1-01 — ACCELERATOR PEDAL AND CONTROL
(#148593) — 19 parça
◀

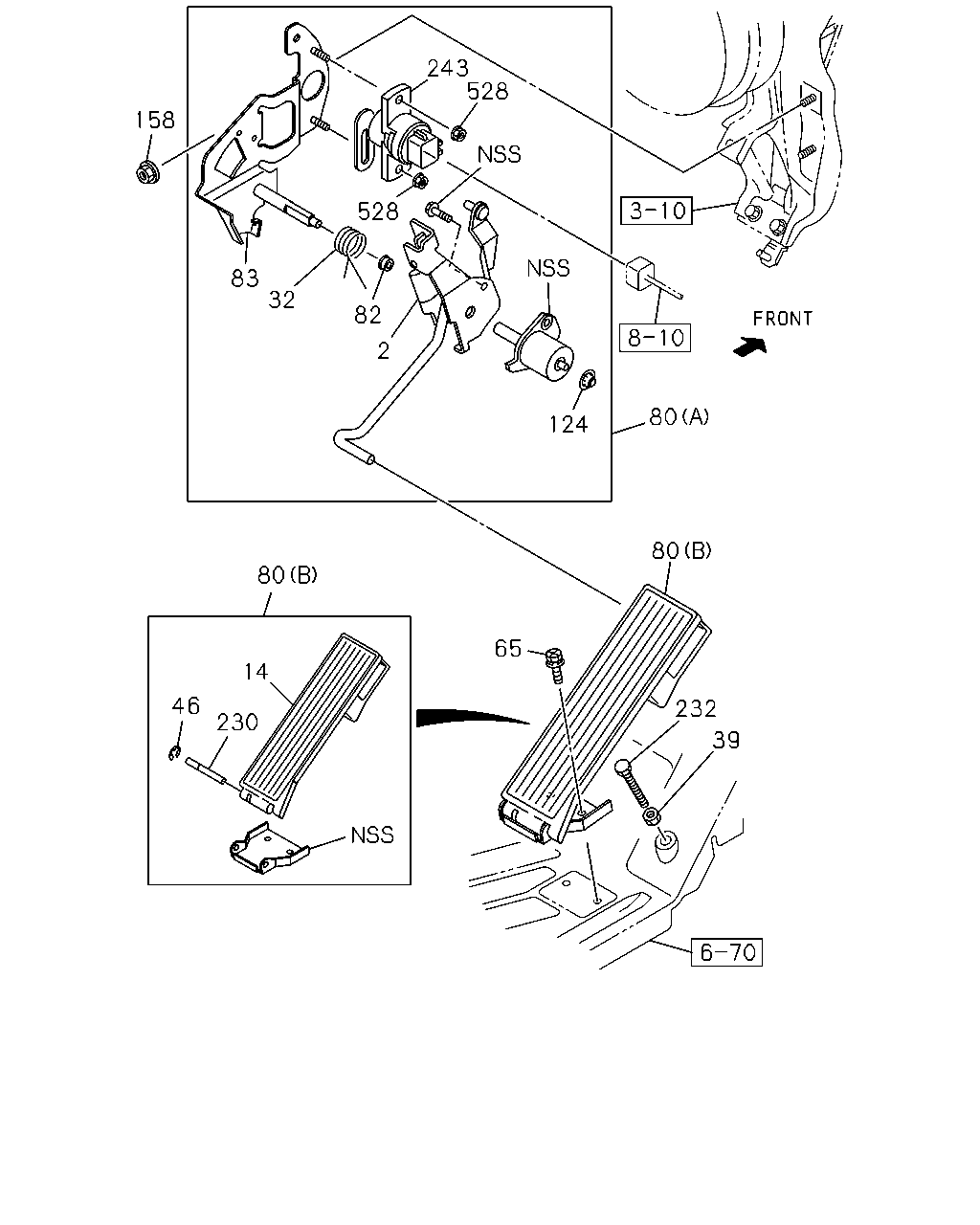

[101A] ACCEL PEDAL (16 parça)

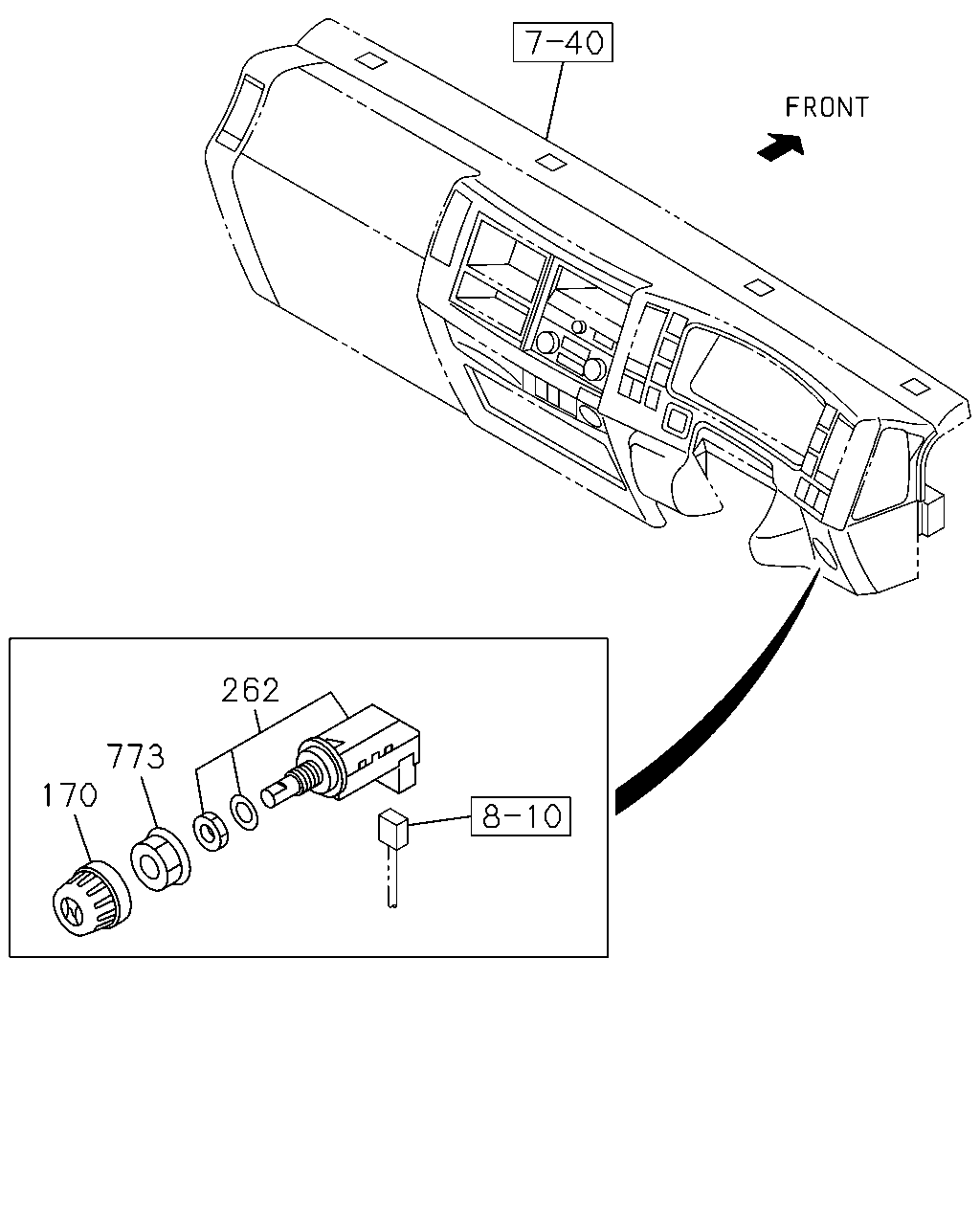

[101A] IDLE ACCEL SWITCH (3 parça)
▶
158
83
32
82
2
528
243
528
124
80
80
232
39
65
80
14
46
230
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
LEVER; ENG CONT
8-98002-158-2
01
1
1409-
14
PAD; PEDAL,ACCEL
MAL
8-97853-062-2
01
1
1409-
32
SPRING; RETURN,ACCEL PEDAL
8-98031-665-0
01
1
1409-
39
NUT; ACCEL PEDAL STOPPER
M8
0-91110-508-0
01
1
1409-
46
RING; SNAP,ACCEL CONT PEDAL
ID=4 MAL
0-91805-504-0
01
1
1409-
65
BOLT
M8X16 W/LK&PL WASHER MAL
8-94310-730-0
02
1
1409-
80
LINK ASM; ENG CONT
(A)
8-97387-358-3
01
1
1409-
80
LINK ASM; ENG CONT
(B) MAL
8-97853-061-2
01
1
1409-
82
BUSHING; ENG CONT LVR
8-97581-053-0
01
1
1409-
83
BRACKET; CONT LINK
8-98023-885-2
01
1
1409-
124
NUT; LEVER
ID=7.9 PUSH NUT
8-94368-617-0
01
1
1409-
158
NUT; BRKT
M8 FLANGE
8-94279-060-0
02
1
1409-
230
PIN; JOINT,ACCEL PEDAL TO BRKT
MAL
8-97853-064-0
01
1
1409-
232
BOLT; STOPPER,ACCEL PEDAL
M8X45 MAL
8-97378-461-0
01
1
1409-
243
SENSOR; ACCEL
8-98131-263-0
01
1
1409-
528
NUT; ACCEL SENSOR
M5
8-94169-022-0
02
1
1409-
262
773
170
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
170
KNOB
8-98013-420-0
01
1
1409-
262
SWITCH; ACCEL,IDLE
8-98013-418-0
01
1
1409-
773
HOLDER; ACCEL PEDAL
8-97352-127-0
01
1
1409-
