0-66 — GENERATOR (#148590) — 17 parça

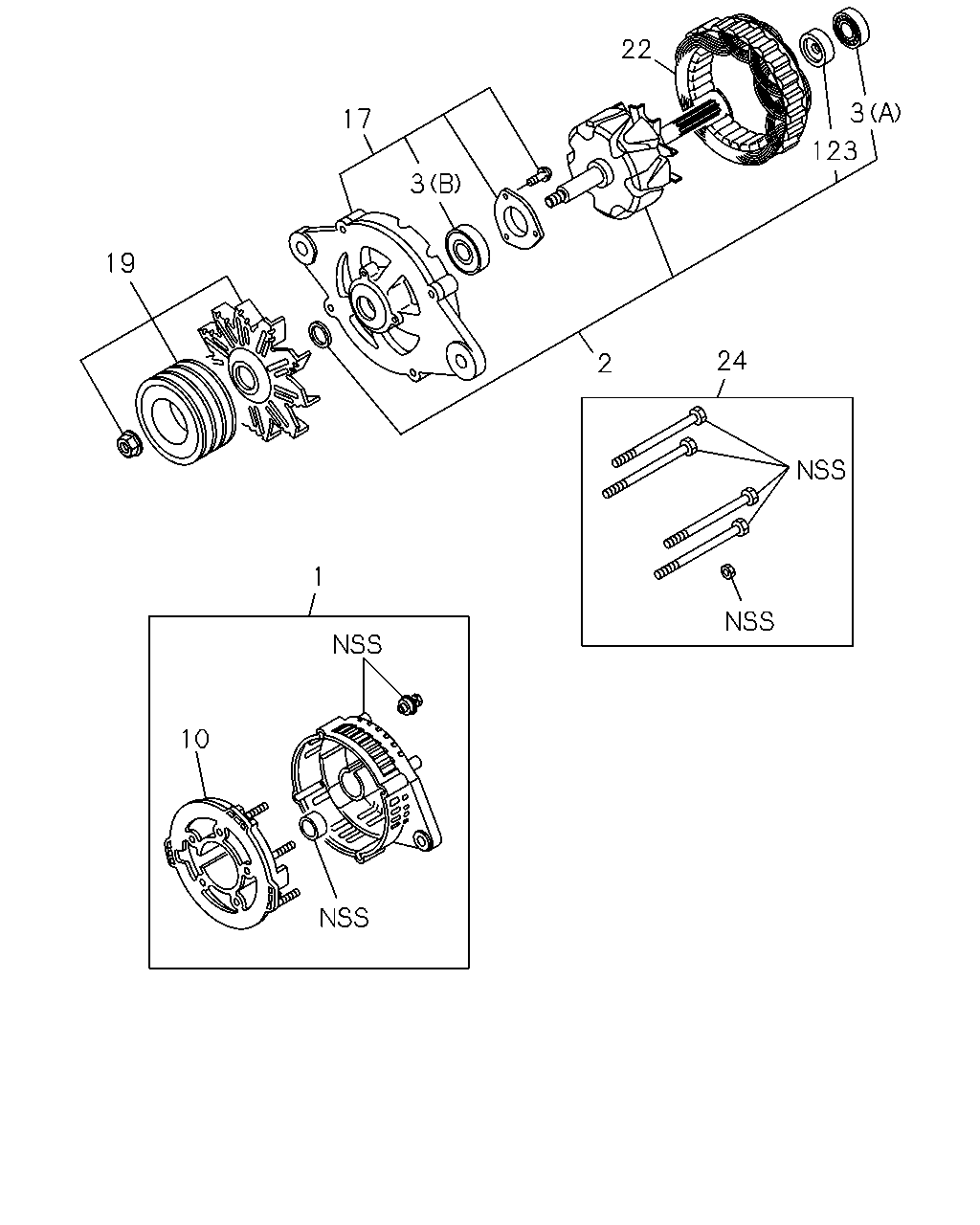

çizim 443168
19 17 3 22 123 3 24 2 1 10
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
ASM PART: B = 8-98075-026-0 		8-98230-316-0 01 1 -
1 COVER ASM; RR,GEN
ASM PART: A = 8-98029-892-2 		8-98230-317-0 01 1 -
2 ROTOR; GEN
ASM PART: B = 8-98075-026-0 		8-98038-914-0 01 1 -
2 ROTOR; GEN
ASM PART: A = 8-98029-892-2 		8-98038-916-1 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-98029-892-2, B = 8-98075-026-0 		8-97062-744-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-98029-892-2, B = 8-98075-026-0 		8-97161-473-0 01 1 -
10 RECTIFIER; GEN
ASM PART: B = 8-98075-026-0 		8-98230-326-0 01 1 -
10 RECTIFIER; GEN
ASM PART: A = 8-98029-892-2 		8-98230-327-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: A = 8-98029-892-2 		8-98038-924-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: B = 8-98075-026-0 		8-98076-329-0 01 1 -
19 PULLEY; GEN
ASM PART: B = 8-98075-026-0 		8-98038-926-1 01 1 -
19 PULLEY; GEN
ASM PART: A = 8-98029-892-2 		8-98040-133-0 01 1 -
22 STATOR; GEN
MAL ASM PART: B = 8-98075-026-0 		8-97192-850-0 01 1 -
22 STATOR; GEN
ASM PART: A = 8-98029-892-2 		8-97249-331-1 01 1 -
24 SCREW; RECTIFIER,GEN
ASM PART: B = 8-98075-026-0 		8-98038-927-0 01 1 -
24 SCREW; RECTIFIER,GEN
ASM PART: A = 8-98029-892-2 		8-98038-928-0 01 1 -
123 GUIDE; BRUSH
MAL ASM PART: A = 8-98029-892-2, B = 8-98075-026-0 		8-97062-644-0 01 1 -
