Isuzu WW
▶
TRUCKS
▶
FVM
▶
11131 - FVM(INDONESIA)6SD1
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶
2-01 — CLUTCH
(#14859) — 52 parça
◀

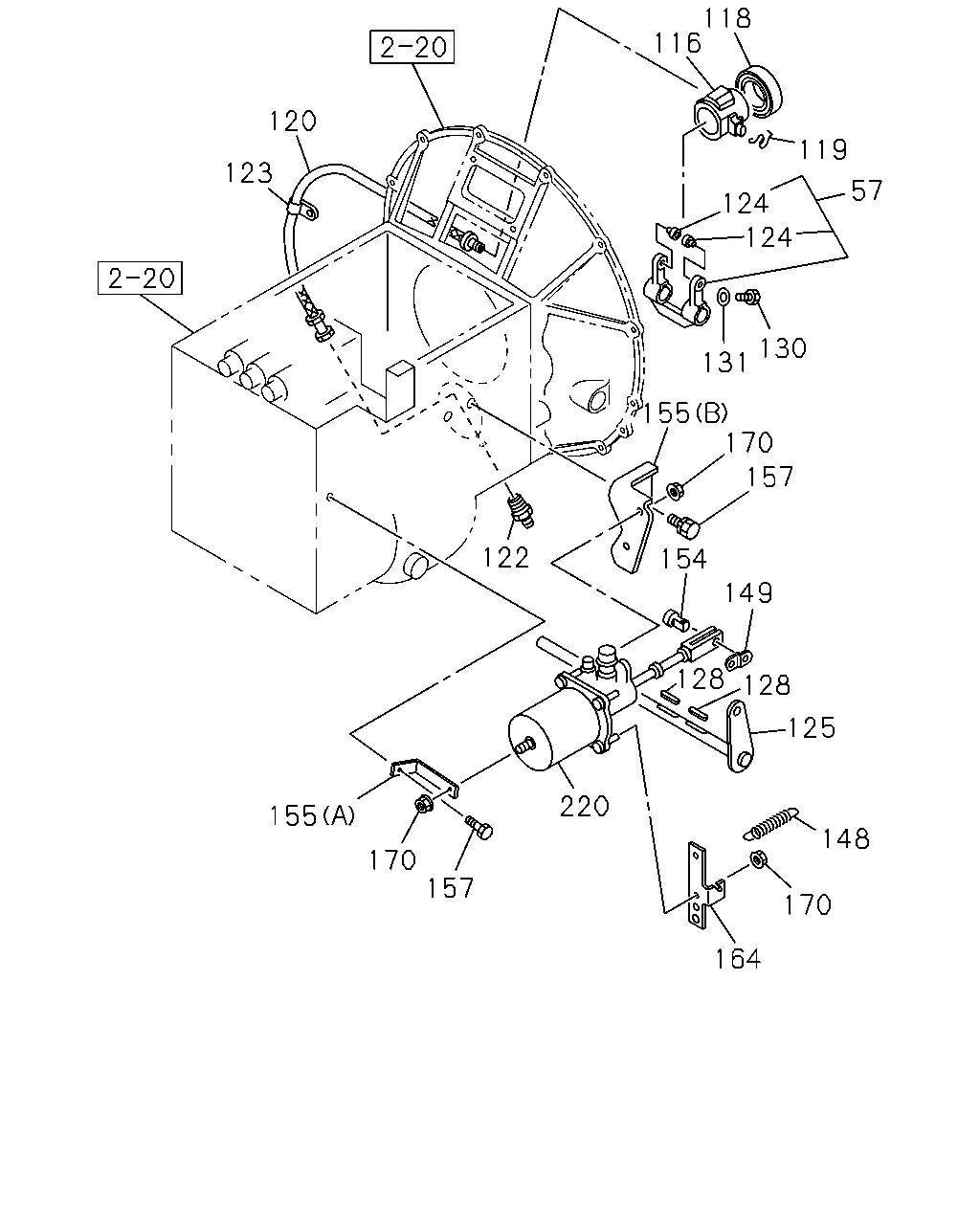

[201A] BOOSTER AND BRACKET (28 parça)

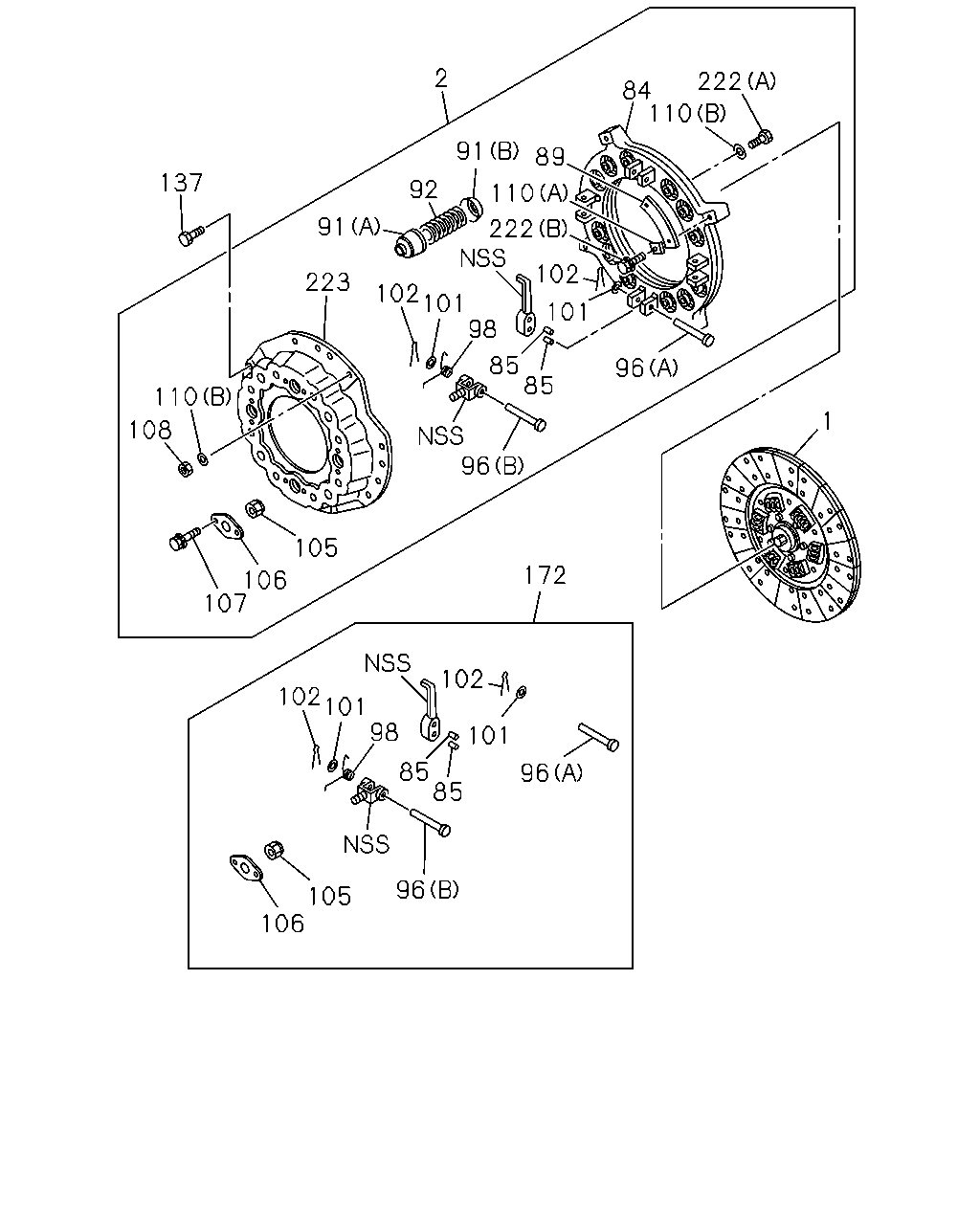

[201A] DISC AND PLATE (24 parça)
▶
118
116
120
119
123
57
124
124
130
131
155
170
157
122
154
149
128
128
125
220
155
148
170
157
170
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
57
FORK; SHIFT,CLU
1-31340-060-0
01
1
0711-1306
57
FORK; SHIFT,CLU
1-31340-077-0
01
1
1307-
116
BLOCK; SHIFT,CLU
1-31321-075-1
01
1
0711-1205
116
BLOCK; SHIFT,CLU
1-31321-113-0
01
1
1206-1306
116
BLOCK; SHIFT,CLU
1-31321-114-0
01
1
1307-
118
BEARING; CLU RELEASE
BEST VALUE PARTS
1-87610-108-0
01
1
0711-
118
BEARING; CLU RELEASE
1-09820-117-0
01
1
0711-
119
SPRING; SHIFT FORK
1-09585-053-1
01
1
0711-
119
SPRING; SHIFT FORK
1-09585-054-1
01
1
0711-
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=405
1-09364-449-0
01
1
0711-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
PT1/8 STRAIGHT
0-90301-410-0
01
1
0711-
123
CLIP; FLEX HOSE,SHIFT BLOCK
ID=22
1-09700-644-1
01
1
0711-
123
CLIP; FLEX HOSE,SHIFT BLOCK
ID=15.5
9-09917-613-0
01
1
0711-
124
BEARING; CAM,SHIFT FORK
1-31349-004-1
02
1
0711-
125
SHAFT; CLU
1-31342-169-1
01
1
0711-
128
KEY; FEATHER,CLU SHAFT
9-09867-008-0
02
1
0711-
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
0711-
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
0711-
148
SPRING; CLU RETURN
1-09583-212-0
01
1
0711-
149
EYE; SPRING,RETURN SPRING
1-31426-019-1
01
1
0711-
154
PIN; JAW JOINT
1-31424-009-0
01
1
0711-
155
BRACKET; MINIPACK
(B)
1-31429-368-0
01
1
0711-
155
BRACKET; MINIPACK
(A)
1-31429-369-0
01
1
0711-
157
BOLT; BRKT
M10X18 FLANGE
0-28181-018-0
03
1
0711-
164
EYE; SPRING
1-47475-372-0
01
1
0711-
170
NUT; BOOSTER FIX
M10 FLANGE
0-91180-210-0
03
1
0711-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS
1-87610-088-0
01
1
0711-1412
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-387-4
01
1
0711-
2
222
84
110
91
89
137
92
110
91
222
102
223
102
101
98
101
85
85
96
110
1
108
96
105
172
106
107
102
102
101
98
101
85
85
96
96
105
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
15"
1-31240-735-2
01
1
0711-
2
PLATE ASM; PRESSURE,CLU
1-31220-380-2
01
1
0711-
84
PLATE; PRESSURE
15" IDN
1-31221-100-0
01
1
0711-
85
BUSHING; RELEASE LEVER
9-31239-116-0
08
1
0711-
89
PLATE; STRAP
IDN
1-31229-050-0
16
1
0711-
91
SEAT; SPR
(A) ID=37 H=25
1-31219-012-0
12
1
0711-
91
SEAT; SPR
(B) ID=37 H=15
1-31219-013-0
12
1
0711-
92
SPRING; CLU
1-31214-053-0
12
1
0711-
96
PIN; RELEASE LEVER
(B) L=49.0
1-31232-005-0
04
1
0711-
96
PIN; RELEASE LEVER
(A) L=57.0
1-31232-014-0
04
1
0711-
98
SPRING; RETURN
1-31233-003-0
04
1
0711-
101
WASHER; RELEASE LEVER
IDN
1-31239-058-0
08
1
0711-
102
PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22
9-08103-022-0
08
1
0711-
105
NUT; SUPPORT
IDN
1-31235-014-0
04
1
0711-
106
PLATE; LK,LEVER SUPPORT
1-31239-019-0
04
1
0711-
107
BOLT; LK PLATE
IDN
1-31239-061-0
08
1
0711-
108
NUT; STRAP
1-09449-036-0
04
1
0711-
110
WASHER; SPECIAL,STRAP
(A) T=1.2
1-31229-009-0
04
1
0711-
110
WASHER; SPECIAL,STRAP
(B) T=3.2
8-97374-512-0
08
1
0711-
137
BOLT; CLU COVER
M10X20 FLANGE
0-28151-020-0
12
1
0711-
172
LEVER KIT; RELEASE,CLU
1-87831-172-1
01
1
0711-
222
BOLT; STRAP
(B) M10X23.2
1-09040-042-0
04
1
0711-
222
BOLT; STRAP
(A) M10X26 HEX SOCKET
1-09040-043-0
04
1
0711-
223
COVER; CLU
IDN
1-31211-019-1
01
1
0711-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
