0-40 — FUEL INJECTION SYSTEM (#148579) — 81 parça

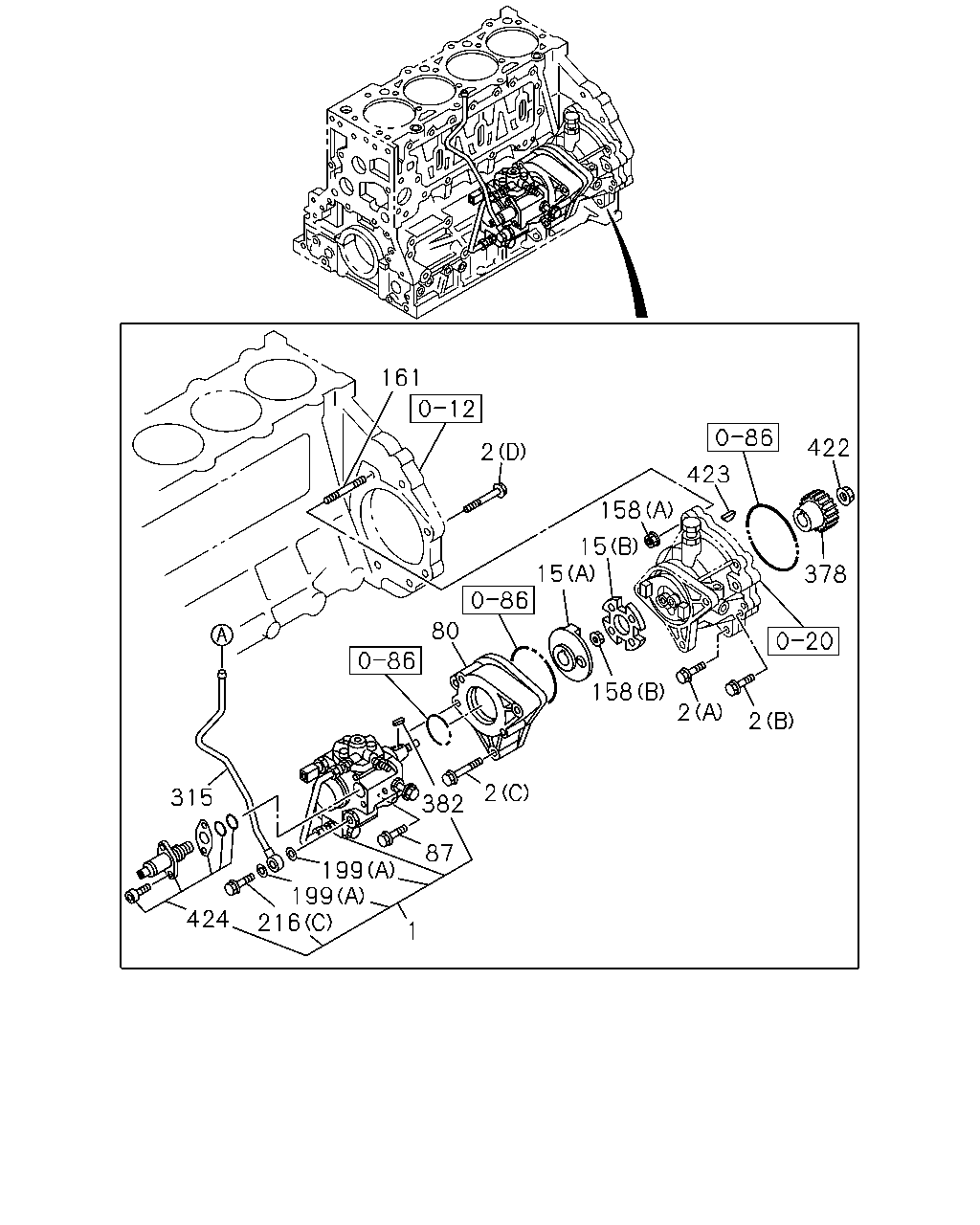

çizim 443097
161 2 422 423 158 15 15 80 2 158 2 2 378 382 87 315 199 199 216 424 1
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97386-557-5 01 1 1409-
2 BOLT; INJ PUMP
(C) M10X60 FLANGE 		0-28051-060-0 03 1 1409-
2 BOLT; INJ PUMP
(A) M10X70 FLANGE 		0-28151-070-0 01 1 1409-
2 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28151-270-0 01 1 1409-
2 BOLT; INJ PUMP
(D) M12X95 FLANGE 		8-94396-485-1 01 1 1409-
15 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 1409-
15 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97306-059-1 01 1 1409-
80 BRACKET; PUMP 8-98061-699-0 01 1 1409-
87 BOLT; PUMP
M8X30 FLANGE 		0-28650-830-0 03 1 1409-
158 NUT; INJ PUMP
(A) M10 FLANGE MAL 		0-91180-110-0 02 1 1409-
158 NUT; INJ PUMP
(B) M14 FLANGE 		0-91180-114-0 01 1 1409-
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97066-386-1 02 1 1409-
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1409-
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1409-
216 BOLT; EYE
(C) 		5-15759-003-0 01 1 1409-
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1409-
216 BOLT; EYE
(A) 		8-98043-033-0 01 1 1409-
315 PIPE; FUEL,SUCTION 8-98126-333-0 01 1 1409-
378 GEAR; PUMP
Z=35 		8-98017-915-0 01 1 1409-
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1409-
422 NUT; GEAR
M18 		8-97141-154-0 01 1 1409-
423 KEY; GEAR 9-08055-519-0 01 1 1409-
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1409-

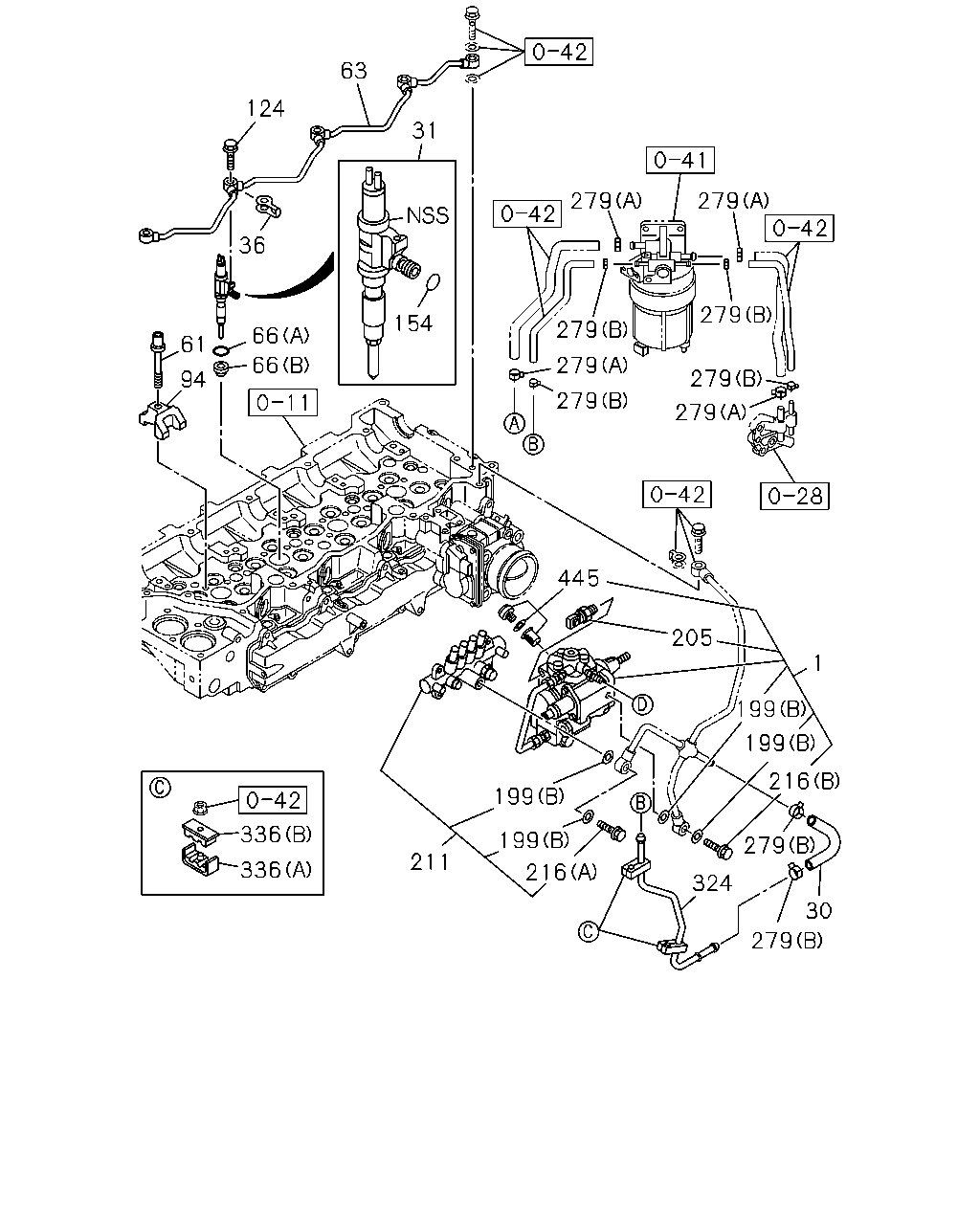

çizim 443851
124 63 36 31 154 61 94 66 66 336 336 445 211 199 199 216 205 199 199 216 279 324 279 30 279 279 279 279 279 279 279 279 1
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97386-557-5 01 1 1409-
30 HOSE; RUBBER,FUEL LEAK 8-98036-320-2 01 1 1409-
31 NOZZLE ASM; INJ 8-97609-788-6 04 1 1409-
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1409-
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 1409-
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 1409-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=23.3 		8-94173-412-0 04 1 1409-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=9.2 T=8.1 		8-98079-248-0 04 1 1409-
94 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 1409-
124 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 1409-
154 GASKET; CONNECTOR
ID=11.0 		0-95690-111-0 04 1 1409-
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1409-
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1409-
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1409-
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1409-
216 BOLT; EYE
(C) 		5-15759-003-0 01 1 1409-
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1409-
216 BOLT; EYE
(A) 		8-98043-033-0 01 1 1409-
279 CLIP; FUEL HOSE
(A) ID=16 		8-97329-628-0 04 1 1409-
279 CLIP; FUEL HOSE
(B) ID=11.5 		8-97375-638-0 06 1 1409-
324 PIPE; FUEL RETURN 8-98036-173-0 01 1 1409-
336 CLIP; FUEL PIPE
(A) ID=8 & 9 L=25 		8-97603-522-0 02 1 1409-
336 CLIP; FUEL PIPE
(B) ID=8 & 9 L=25 		8-97603-523-0 02 1 1409-
445 SCREW; FILTER,INLET 8-98204-986-0 01 1 1409-

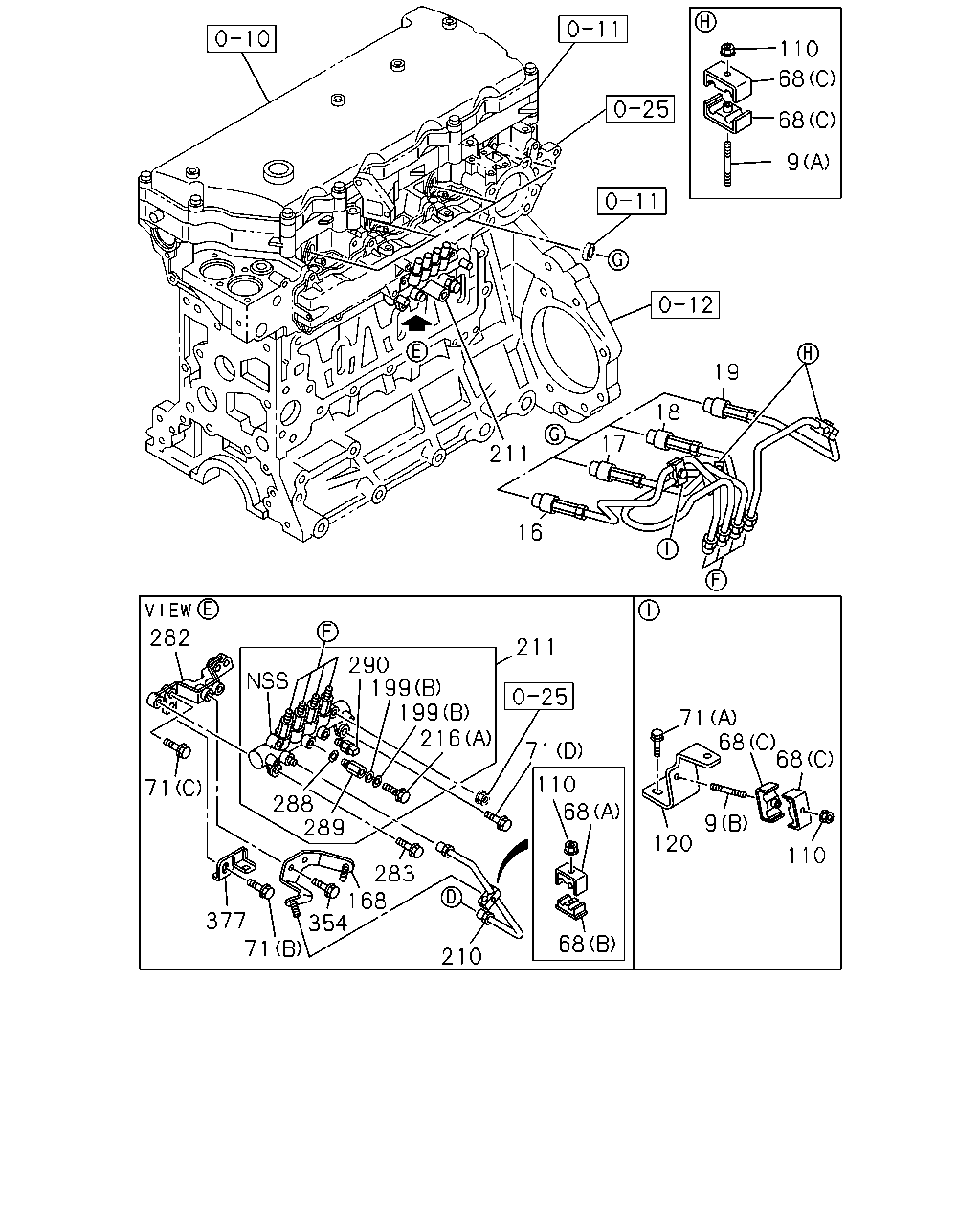

çizim 444011
110 68 68 9 19 18 17 211 16 282 71 290 199 199 216 211 71 110 288 289 283 168 354 377 71 210 68 68 71 68 68 9 120 110
BalonParca AdiParca NoAdetTipApplied Date
9 STUD; CLIP
(A) M6X30 L=38 		0-41010-630-0 02 1 1409-
9 STUD; CLIP
(B) M6X35 L=43 		8-97203-278-0 01 1 1409-
16 PIPE; INJ NO.1 8-98271-202-0 01 1 1409-1501
16 PIPE; INJ NO.1 8-98298-606-0 01 1 1502-
17 PIPE; INJ NO.2 8-98271-203-0 01 1 1409-1501
17 PIPE; INJ NO.2 8-98298-607-0 01 1 1502-
18 PIPE; INJ NO.3 8-98271-204-0 01 1 1409-1501
18 PIPE; INJ NO.3 8-98298-608-0 01 1 1502-
19 PIPE; INJ NO.4 8-98271-205-0 01 1 1409-1501
19 PIPE; INJ NO.4 8-98298-609-0 01 1 1502-
68 CLIP; INJ PIPE
(A) 		1-09701-195-3 01 1 1409-
68 CLIP; INJ PIPE
(B) 		1-09701-196-2 01 1 1409-
68 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 06 1 1409-
71 BOLT; BRKT
(B) M6X10 FLANGE 		0-28050-610-0 01 1 1409-
71 BOLT; BRKT
(A) M8X16 FLANGE MAL 		0-28050-816-0 01 1 1409-
71 BOLT; BRKT
(C) M8X40 FLANGE 		0-28050-840-0 01 1 1409-
71 BOLT; BRKT
(D) M8X50 FLANGE 		0-28050-850-0 01 1 1409-
110 NUT; CLIP
M6 FLANGE MAL 		0-91180-106-0 04 1 1409-
120 BRACKET; INJ PIPE 8-98041-601-0 01 1 1409-
168 BRACKET; FUEL PIPE 8-98036-175-1 01 1 1409-
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1409-
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1409-
210 PIPE; INJ,C/R 8-98036-176-1 01 1 1409-
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1409-
216 BOLT; EYE
(C) 		5-15759-003-0 01 1 1409-
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1409-
216 BOLT; EYE
(A) 		8-98043-033-0 01 1 1409-
282 BRACKET; COMMON RAIL 8-98157-115-0 01 1 1409-
283 BOLT; COMMON RAIL
M8X25 FLANGE 		0-28050-825-0 01 1 1409-
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1409-
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1409-
290 SENSOR; PRESS 8-98119-790-0 01 1 1409-
354 BOLT; FUEL PIPE
M8X16 FLANGE MAL 		0-28050-816-0 02 1 1409-
377 BRACKET; HARNESS 8-97310-438-1 01 1 1409-
