Isuzu WW
▶
TRUCKS
▶
NPR
▶
51566 - NPR MALAYSIA BUS CHASSIS
▶
0 - Engine, Emission, Engine Electrical
▶
0-25 - INLET MANIFOLD
▶
0-25 — INLET MANIFOLD
(#148569) — 39 parça
◀

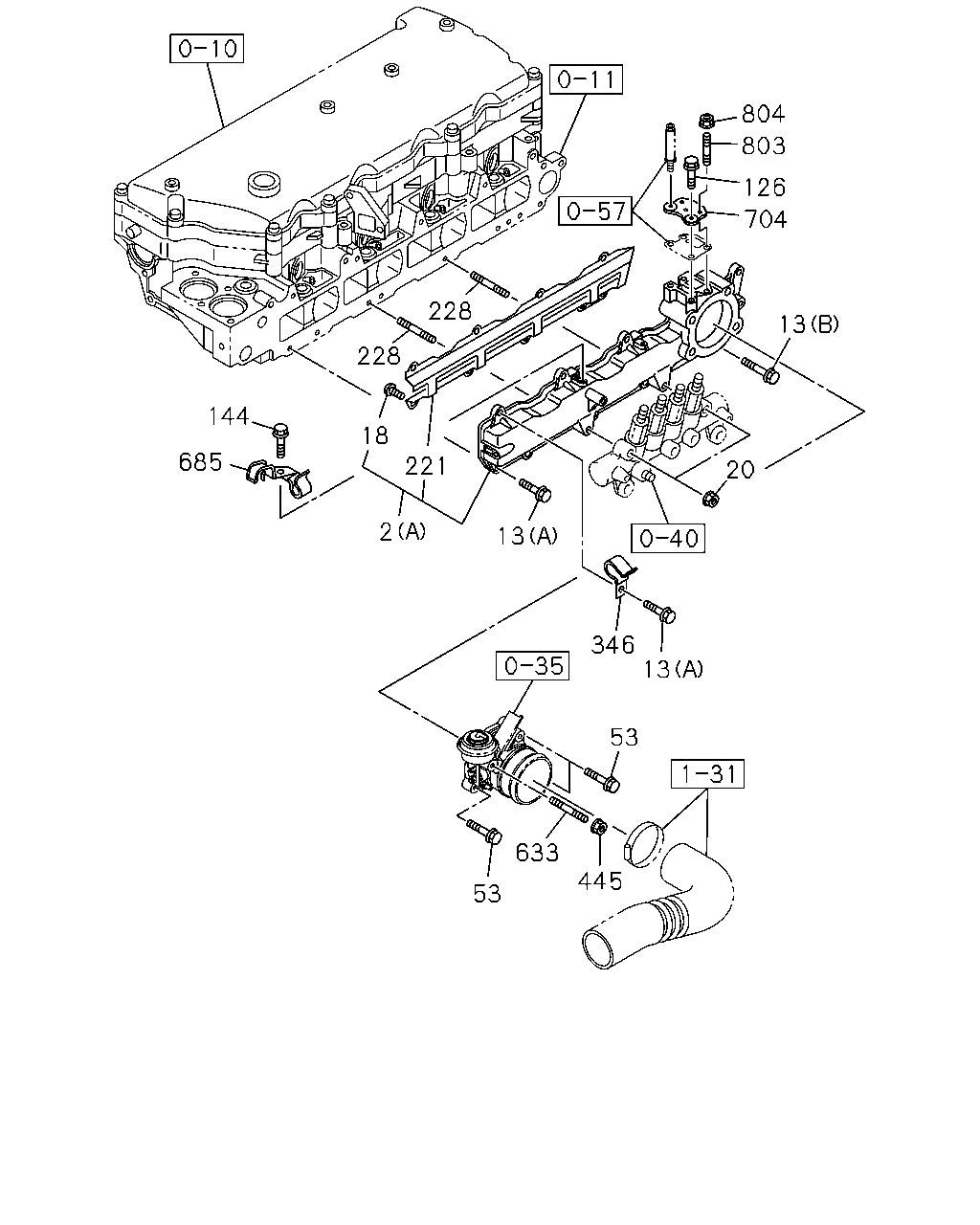

[025A] -'14/9 INLET COVER (18 parça)

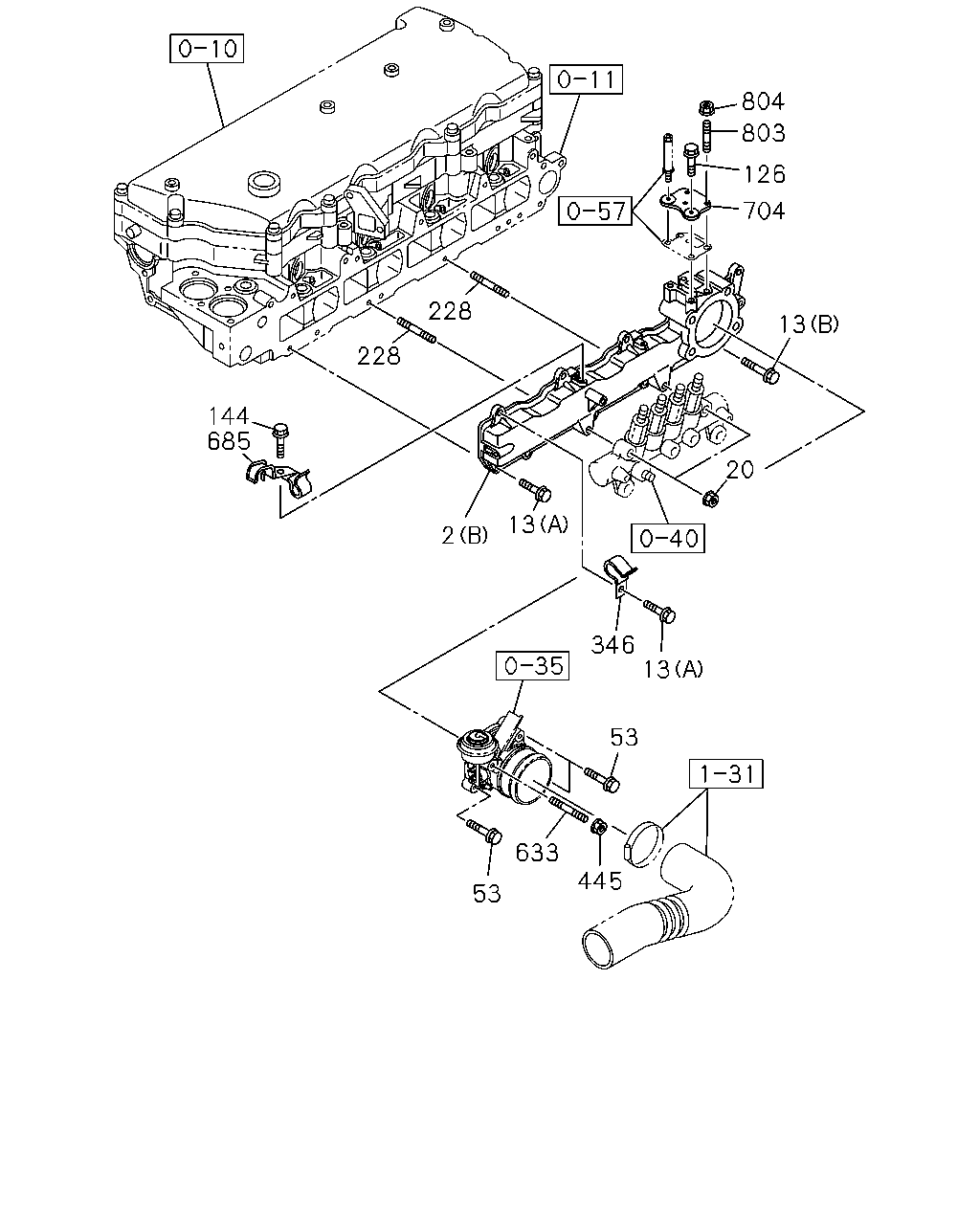

[025A] '14/10- INLET COVER (16 parça)

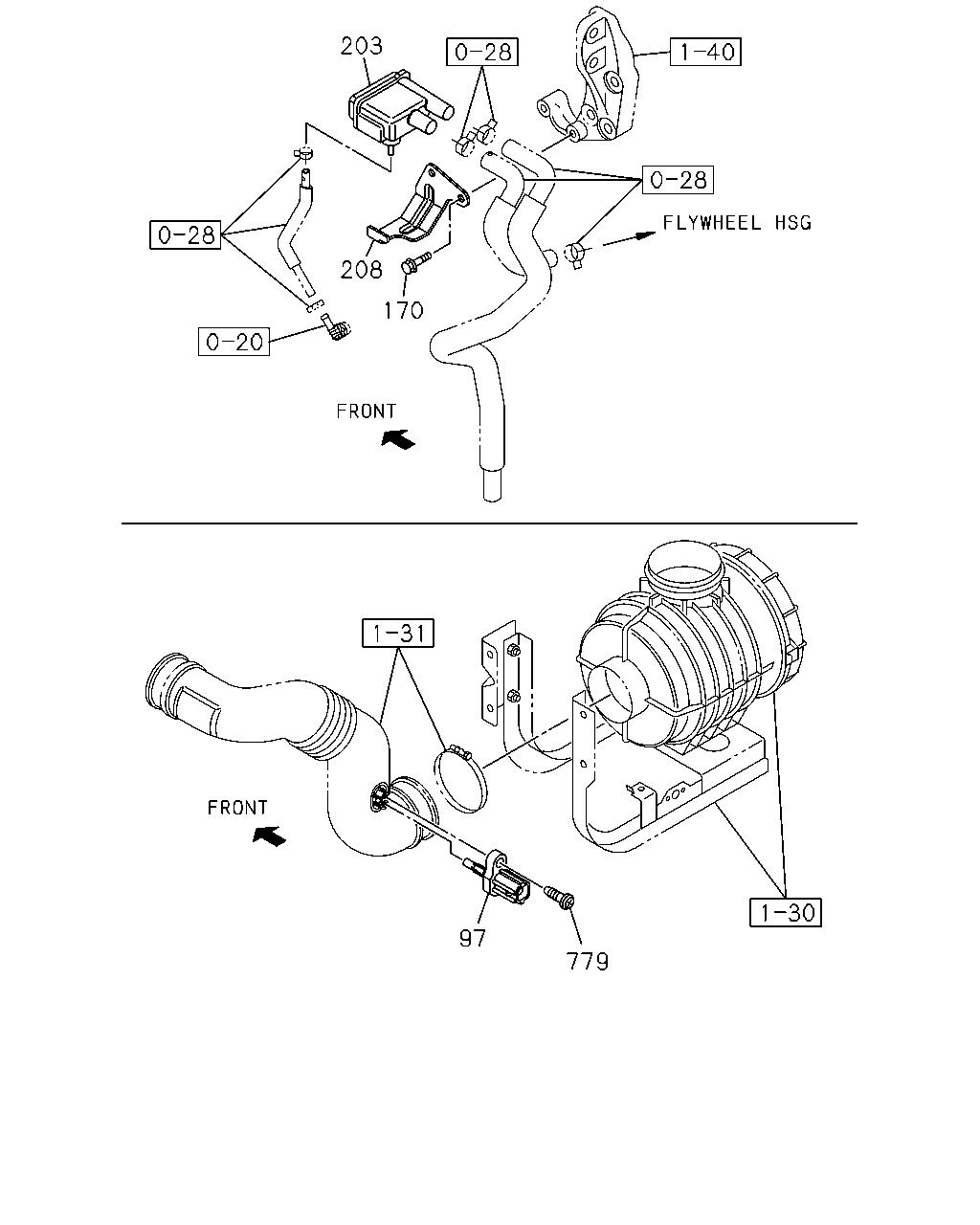

[025A] VALVE AND SENSOR (5 parça)
▶
13
346
13
53
633
445
53
685
144
228
228
18
221
2
704
126
803
804
13
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
COVER; INL
(A)
8-97387-038-0
01
1
1409-1409
2
COVER; INL
(B)
8-97387-039-0
01
1
1410-
13
BOLT; INL MANIF
(A) M8X30 FLANGE
0-28050-830-0
09
1
1409-
13
BOLT; INL MANIF
(B) M8X80 FLANGE
0-28050-880-0
01
1
1409-
18
SCREW; PLATE,INL CVR
M6X10
9-03490-610-0
09
1
1409-1409
20
NUT; INL MANIF
M8 FLANGE MAL
0-91180-108-0
02
1
1409-
53
BOLT; INL PIPE
M8X30 FLANGE
0-28650-830-0
03
1
1409-
126
BOLT; COVER
M8X25 FLANGE MAL
0-28650-825-0
01
1
1409-
144
BOLT; BRKT FIX
M8X12 FLANGE
0-28050-812-0
01
1
1409-
221
PLATE; INL COVER
8-97379-202-0
01
1
1409-1409
228
STUD; INL COVER
M8X117 L=128
8-97111-477-0
02
1
1409-
346
CLIP; ENG HARNESS
ID=12 VINYL CHLORIDE
8-97367-984-1
01
1
1409-
445
NUT; THROTTLE BODY TO MANIF
M8 FLANGE MAL
0-91180-108-0
01
1
1409-
633
STUD; THROTTLE BODY
M8X71 L=83
9-09830-212-0
01
1
1409-
685
BRACKET; HARNESS
8-97331-921-1
01
1
1409-
704
COVER
8-98260-138-0
01
1
1409-
803
STUD; COVER
M8X20 L=32
0-41010-820-0
02
1
1409-
804
NUT; COVER
M8 FLANGE MAL
0-91180-108-0
02
1
1409-
804
803
126
704
13
20
13
2
228
228
144
685
346
13
53
633
445
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
COVER; INL
(A)
8-97387-038-0
01
1
1409-1409
2
COVER; INL
(B)
8-97387-039-0
01
1
1410-
13
BOLT; INL MANIF
(A) M8X30 FLANGE
0-28050-830-0
09
1
1409-
13
BOLT; INL MANIF
(B) M8X80 FLANGE
0-28050-880-0
01
1
1409-
20
NUT; INL MANIF
M8 FLANGE MAL
0-91180-108-0
02
1
1409-
53
BOLT; INL PIPE
M8X30 FLANGE
0-28650-830-0
03
1
1409-
126
BOLT; COVER
M8X25 FLANGE MAL
0-28650-825-0
01
1
1409-
144
BOLT; BRKT FIX
M8X12 FLANGE
0-28050-812-0
01
1
1409-
228
STUD; INL COVER
M8X117 L=128
8-97111-477-0
02
1
1409-
346
CLIP; ENG HARNESS
ID=12 VINYL CHLORIDE
8-97367-984-1
01
1
1409-
445
NUT; THROTTLE BODY TO MANIF
M8 FLANGE MAL
0-91180-108-0
01
1
1409-
633
STUD; THROTTLE BODY
M8X71 L=83
9-09830-212-0
01
1
1409-
685
BRACKET; HARNESS
8-97331-921-1
01
1
1409-
704
COVER
8-98260-138-0
01
1
1409-
803
STUD; COVER
M8X20 L=32
0-41010-820-0
02
1
1409-
804
NUT; COVER
M8 FLANGE MAL
0-91180-108-0
02
1
1409-
170
208
203
97
779
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
97
SENSOR; INTAKE,AIR TEMPERATURE
8-98065-377-0
01
1
1409-
170
BOLT; BRKT
M8X16 FLANGE MAL
0-28050-816-0
02
1
1409-
203
TANK; CATCH,PRESSURE CONT VLV
8-97088-685-1
01
1
1409-
208
BRACKET; CATCH TANK,OIL
8-98074-130-0
01
1
1409-
779
BOLT; SENSOR
M5X14 W/LK WASHER
0-36220-514-0
01
1
1409-
