Isuzu WW
▶
TRUCKS
▶
NPR
▶
51566 - NPR MALAYSIA BUS CHASSIS
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#148566) — 27 parça
◀

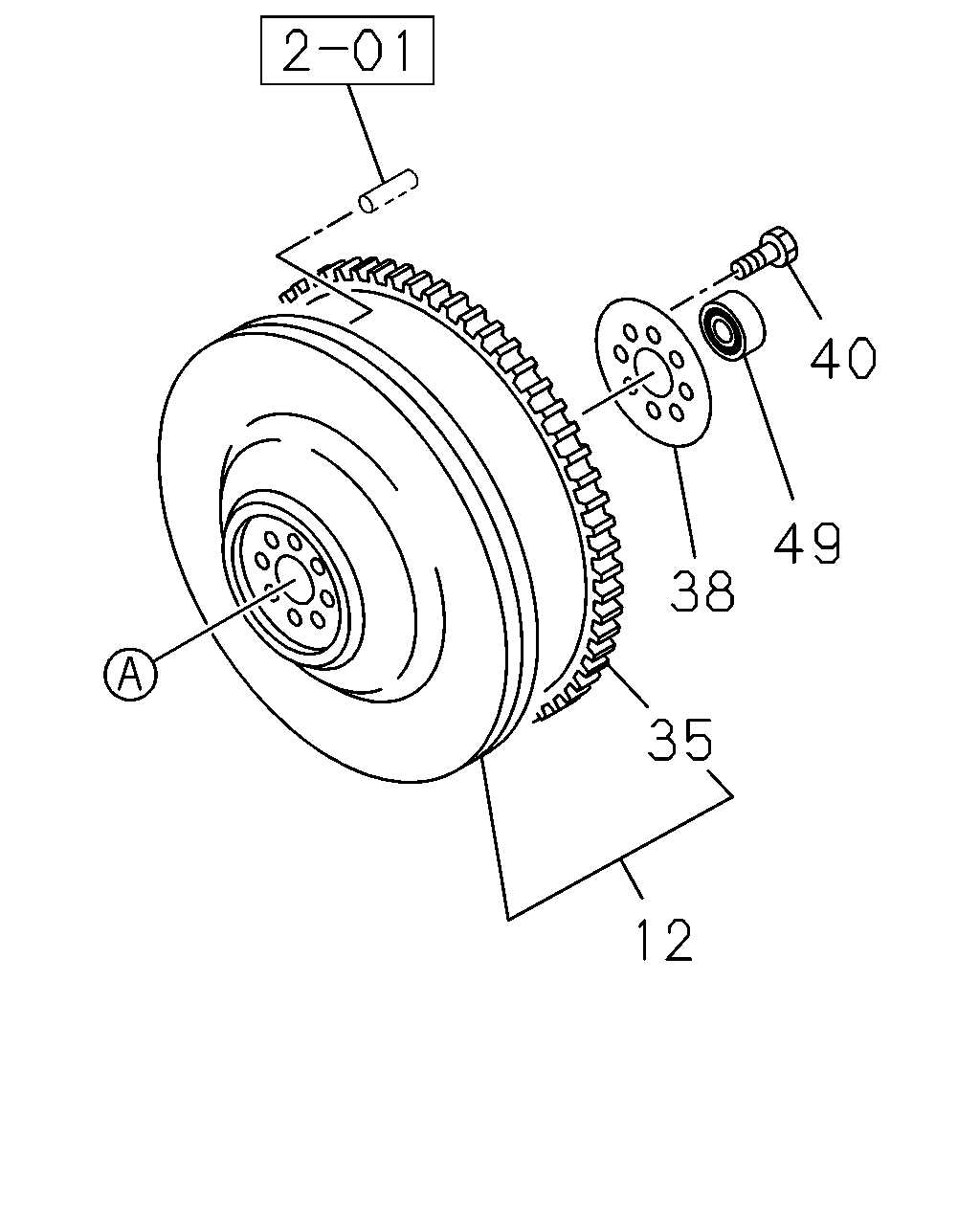

[015A] FLYWHEEL (6 parça)

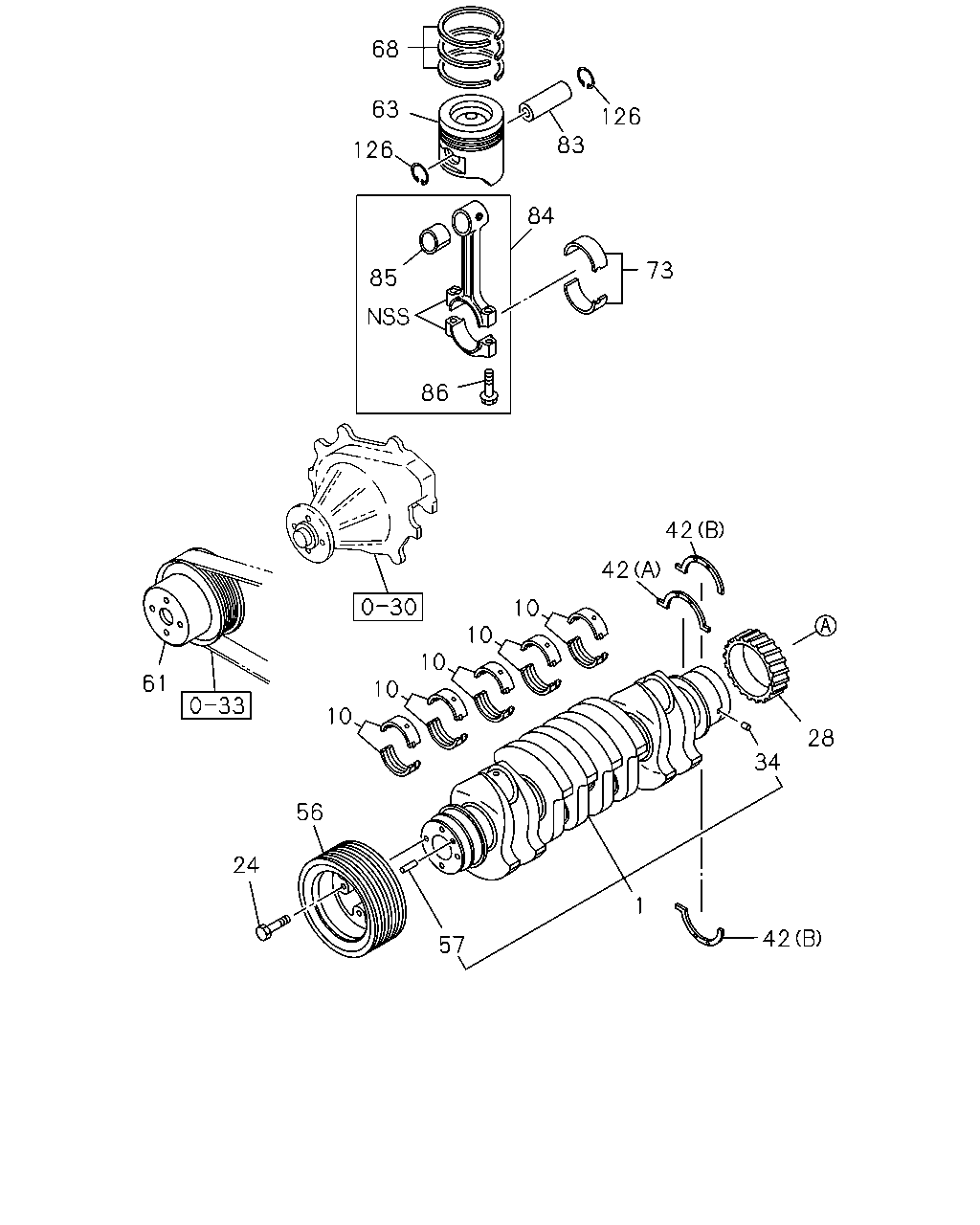

[015A] CRANKSHAFT AND PISTON (21 parça)
▶
38
49
40
35
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
FLYWHEEL
8-97326-227-2
01
1
1409-
35
GEAR; RING
Z=138
8-97046-366-1
01
1
1409-
38
WASHER; FLYWHEEL
ID=55 OD=110
8-94397-496-1
01
1
1409-
40
BOLT; FLYWHEEL
M16X42
8-97178-013-0
08
1
1409-
49
BEARING; PILOT
8-97258-239-0
01
1
1409-
49
BEARING; PILOT
BEST VALUE PARTS
5-87610-164-0
01
1
1409-
68
63
83
126
84
73
85
86
10
10
10
10
10
42
42
28
34
42
57
56
24
61
1
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
8-98029-270-0
01
1
1409-
10
METAL SET; CRANKSHAFT,STANDARD
BLUE
8-97372-076-1
05
1
1409-
10
METAL SET; CRANKSHAFT,STANDARD
BLACK
8-97372-077-1
05
1
1409-
10
METAL SET; CRANKSHAFT,STANDARD
BROWN
8-97372-078-1
05
1
1409-
24
BOLT; DAMPER
M16X42
8-97028-733-0
04
1
1409-
28
GEAR; CR/SHF
Z=42
8-94394-342-4
01
1
1409-
34
PIN; GEAR SETTING
OD=5 L=6
9-09878-626-0
01
1
1409-
42
WASHER; THRUST,CR/SHF
(A)
8-97386-548-0
01
1
1409-
42
WASHER; THRUST,CR/SHF
(B)
8-97386-549-0
02
1
1409-
56
PULLEY; CR/SHF DAMPER
3-GROOVE
8-98004-024-3
01
1
1409-
57
PIN; PULLEY
OD=8 L=20
9-08150-820-0
02
1
1409-
61
PULLEY; FAN DRIVE
1-GROOVE
8-98003-384-1
01
1
1409-
63
PISTON
ALSO INCLUDED IN LINER SET. NON GRADE
8-98041-141-2
04
1
1409-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
8-98040-125-0
04
1
1409-
73
METAL SET; CONN ROD,STANDARD
YELLOW
8-98055-479-0
04
1
1409-
73
METAL SET; CONN ROD,STANDARD
GREEN
8-98055-480-0
04
1
1409-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
8-98018-863-1
04
1
1409-
84
ROD ASM; CONN
8-98018-425-3
04
1
1409-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
8-94391-794-1
04
1
1409-
86
BOLT; CONNROD
M13X57 FLANGE
8-98091-141-0
08
1
1409-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=43.7
8-98006-828-0
08
1
1409-
