Isuzu WW
▶
TRUCKS
▶
FVM
▶
11131 - FVM(INDONESIA)6SD1
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-50 - EXHAUST PIPE AND SILENCER
▶

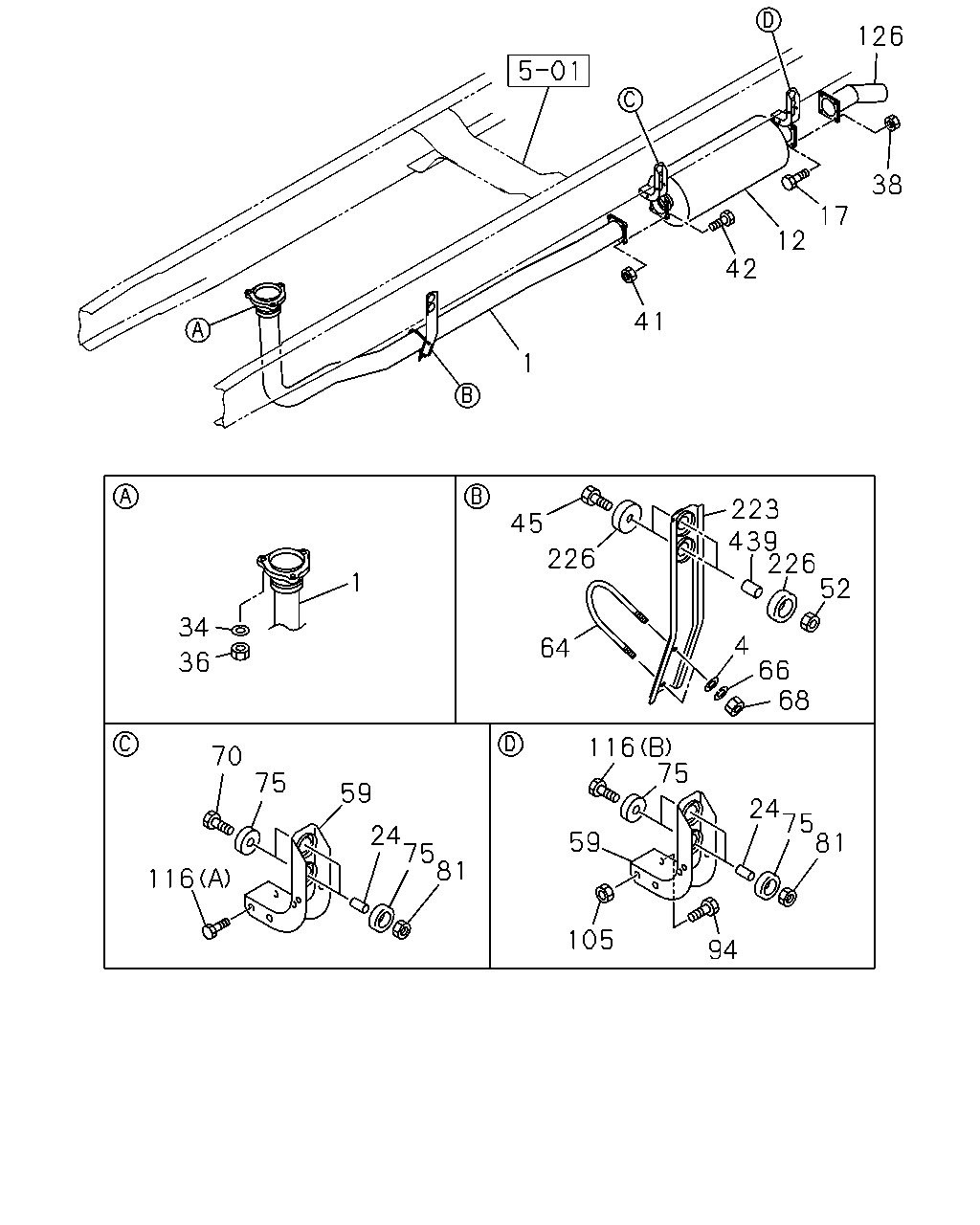

1-50 — EXHAUST PIPE AND SILENCER
(#14856) — 31 parça
126
38
17
12
42
41
1
223
439
226
52
45
226
1
34
4
66
68
64
36
116
75
70
75
59
24
75
81
24
75
81
59
116
105
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; EXH
8-98082-318-0
01
1
0711-
4
WASHER; PL,U BOLT
ID=8.4 OD=16
0-91610-508-0
02
1
0711-
12
SILENCER ASM; EXH
1-22140-938-0
01
1
0711-
17
BOLT; EXH PIPE
M12X25 FLANGE
1-09000-604-0
04
1
0711-
24
COLLAR; DIST,CLAMP
L=22
9-22159-024-0
04
1
0711-
34
WASHER; EXH PIPE
ID=13 OD=24 DISH
1-09500-030-0
03
1
0711-
36
NUT; EXH PIPE
M12
1-09400-010-0
03
1
0711-
38
NUT; SILENCER
M10 FLANGE
0-91180-210-0
04
1
0711-0804
38
NUT; SILENCER
M12 FLANGE
0-91180-212-0
04
1
0805-
41
NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE
0-91180-210-0
04
1
0711-0804
41
NUT; EXH PIPE TO EXH SILENCER
M12 FLANGE
0-91180-212-0
04
1
0805-
42
BOLT; EXH PIPE TO EXH SILENCER
M12X25 FLANGE
1-09000-604-0
04
1
0711-
45
BOLT; BRKT
M10X60 FLANGE
0-28051-060-0
02
1
0711-
52
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0711-
59
BRACKET; EXH SILENCER,FRT
1-22151-626-0
02
1
0711-
64
U-BOLT; EXH PIPE,RR
1-22139-033-1
01
1
0711-1105
64
U-BOLT; EXH PIPE,RR
1-22113-101-0
01
1
1106-
66
WASHER; LK,U BOLT
ID=8.2
0-91510-508-0
02
1
0711-
68
NUT; U BOLT
M8 IDN
0-91110-508-0
02
1
0711-
70
BOLT; BRKT
M10X60 FLANGE
0-28051-060-0
02
1
0711-
75
RUBBER; SUPPORT,BRKT
OD=40
1-22159-094-0
08
1
0711-
81
NUT; BRKT
M10
0-91110-510-0
02
1
0711-
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
0711-
94
BOLT; CLAMP
M10X70 FLANGE IDN
0-28051-070-0
02
1
0711-
105
NUT; CLAMP
M10 FLANGE
0-91180-210-0
02
1
0711-
116
BOLT; BRKT
(B) M10X60 FLANGE
0-28051-060-0
02
1
0711-
116
BOLT; BRKT
(A) M10X70 FLANGE IDN
0-28051-070-0
02
1
0711-
126
PIPE; EXH,RR
1-22126-229-0
01
1
0711-
223
BRACKET; EXH PIPE
1-22131-727-0
01
1
0711-
226
RUBBER; CUSHION
OD=40
1-22159-094-0
04
1
0711-
439
TUBE; DIST,SUPPORT RUBBER
L=22
9-22159-024-0
02
1
0711-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
