◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51580 - TFR/TFS RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#148553) — 235 parça

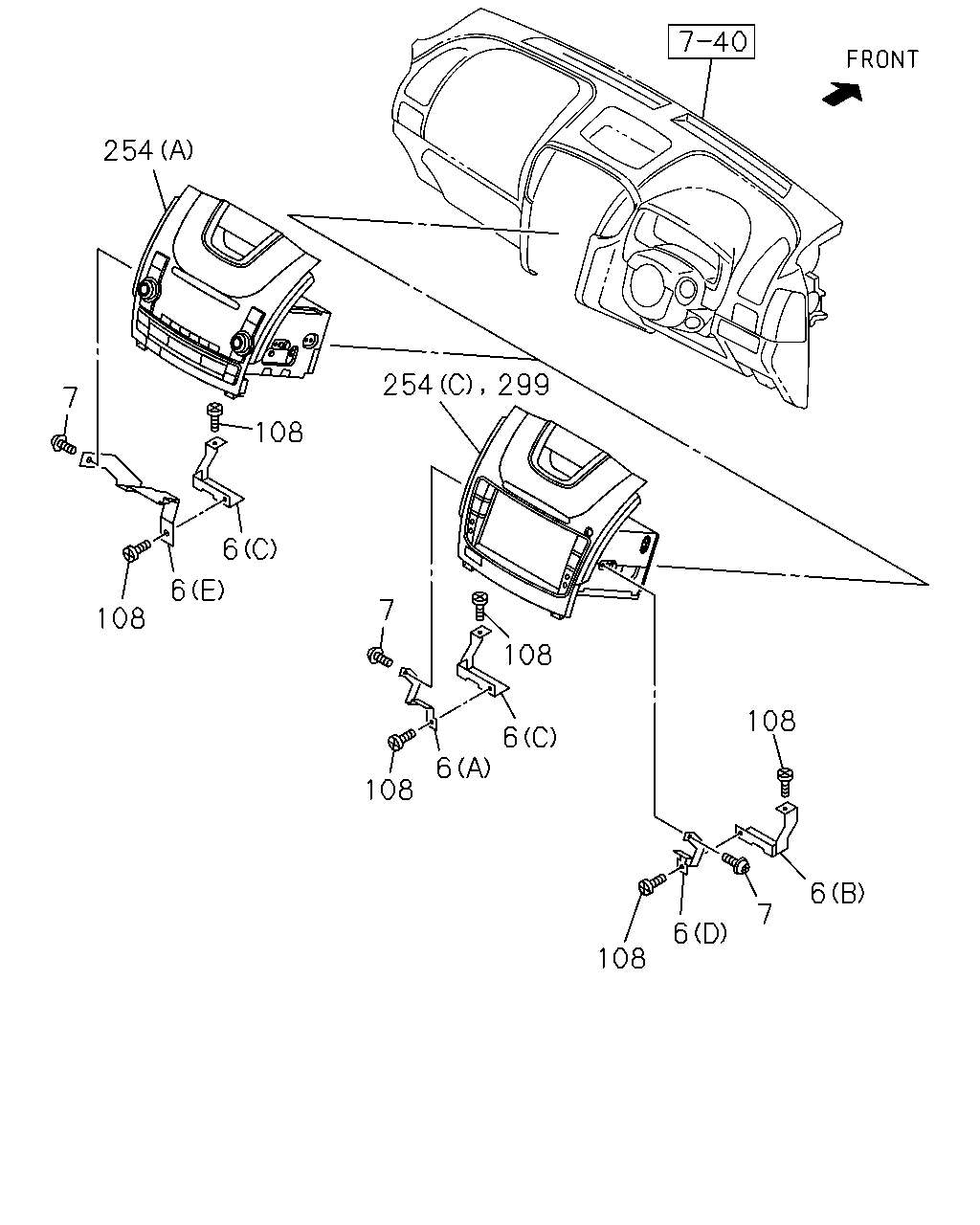

çizim 444408
254 7 108 6 6 108 254 299 7 108 6 6 108 108 6 7 6 108
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
6 09.645 BRACKET; RADIO TO PANEL
RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C) (F) 		8-98102-188-2 02 1 1412- ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
(E) 		8-98227-139-1 01 1 1409-1411 ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (E) 		8-98227-139-1 01 1 1409-1411 ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
(E) 		8-98227-139-1 01 1 1412- ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (E) 		8-98227-139-1 01 1 1412- ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
(C) 		8-98106-390-3 01 1 1409-1411 ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (C) 		8-98106-390-3 01 1 1409-1411 ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
(C) 		8-98106-390-3 01 1 1412-1503 ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (C) 		8-98106-390-3 01 1 1412-1503 ● ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (C) 		8-98106-390-3 01 1 1412-1503 ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
(C) 		8-98106-390-3 01 1 1504-1505 ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (C) 		8-98106-390-3 01 1 1504-1505 ● ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (C) 		8-98106-390-3 01 1 1504-1505 ● ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (C) 		8-98106-390-3 01 1 1504-1505 ●
6 09.645 BRACKET; RADIO TO PANEL
(C) 		8-98106-390-3 01 1 1506- ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (C) 		8-98106-390-3 01 1 1506- ● ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (C) 		8-98106-390-3 01 1 1506- ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (A) 		8-98102-186-2 01 1 1409-1503 ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (A) 		8-98102-186-2 01 1 1504-1505 ● ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (A) 		8-98102-186-2 01 1 1504-1505 ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (A) 		8-98102-186-2 01 1 1506- ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) 		8-98102-187-3 01 1 1409-1503 ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (B) 		8-98102-187-3 01 1 1504-1505 ● ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) 		8-98102-187-3 01 1 1504-1505 ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) 		8-98102-187-3 01 1 1506- ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (D) 		8-98109-822-2 01 1 1409-1503 ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (D) 		8-98109-822-2 01 1 1504-1505 ● ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (D) 		8-98109-822-2 01 1 1504-1505 ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (D) 		8-98109-822-2 01 1 1506- ● ● ●
7 09.650 SCREW; RADIO
AM/FM,CLOCK,CD PLAYER(U1C) 03.680 M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 1412- ● ● ● ● ●
7 09.650 SCREW; RADIO
03.680 M5X10 W/LK+PL WASHER 		0-36230-510-0 01 1 1409-1411 ● ● ●
7 09.650 SCREW; RADIO
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 03.680 M5X10 W/LK+PL WASHER 		0-36230-510-0 01 1 1409-1411 ● ● ●
7 09.650 SCREW; RADIO
03.680 M5X10 W/LK+PL WASHER 		0-36230-510-0 01 1 1412- ●
7 09.650 SCREW; RADIO
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 03.680 M5X10 W/LK+PL WASHER 		0-36230-510-0 01 1 1412- ● ● ● ● ●
7 09.650 SCREW; RADIO
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 03.680 M5X10 W/LK+PL WASHER 		0-36230-510-0 02 1 1409-1503 ● ● ●
7 09.650 SCREW; RADIO
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) 03.680 M5X10 W/LK+PL WASHER 		0-36230-510-0 02 1 1504-1505 ● ●
7 09.650 SCREW; RADIO
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 03.680 M5X10 W/LK+PL WASHER 		0-36230-510-0 02 1 1504-1505 ●
7 09.650 SCREW; RADIO
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 03.680 M5X10 W/LK+PL WASHER 		0-36230-510-0 02 1 1506- ● ● ●
108 09.645 SCREW; BRKT
08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1409-1411 ● ● ●
108 09.645 SCREW; BRKT
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1409-1411 ● ● ●
108 09.645 SCREW; BRKT
08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1412- ●
108 09.645 SCREW; BRKT
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1412- ● ● ● ● ●
108 09.645 SCREW; BRKT
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 08.083 M5X16 TAPPING 		8-98167-449-0 04 1 1409-1503 ● ● ●
108 09.645 SCREW; BRKT
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) 08.083 M5X16 TAPPING 		8-98167-449-0 04 1 1504-1505 ● ●
108 09.645 SCREW; BRKT
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 08.083 M5X16 TAPPING 		8-98167-449-0 04 1 1504-1505 ●
108 09.645 SCREW; BRKT
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 08.083 M5X16 TAPPING 		8-98167-449-0 04 1 1506- ● ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (C) 		8-98222-317-3 01 1 1504-1505 ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
CONGO EQUIPMENT(CDF) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. TUNER BAND LATIN AMERICA<7DM> (A) 		8-98241-357-2 01 1 1412- ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
CONGO EQUIPMENT(CDF) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>, TUNER BAND LATIN AMERICA<7DM> (A) 		8-98241-357-2 01 1 1412- ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) TUNER BAND LATIN AMERICA<7DM> (A) 		8-98241-358-2 01 1 1412- ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) TUNER BAND LATIN AMERICA<7DM> EXC. 6-SPEAKER SYSTEM CUSTOM<UW6> (A) 		8-98241-358-2 01 1 1412- ● ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF),TUNER BAND LATIN AMERIC A<7DM> (A) 		8-98228-730-2 01 1 1412- ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF),6-SPEAKER SYSTEM CUSTOM <UW6>,TUNER BAND LATIN AMERICA<7DM> (A) 		8-98228-730-2 01 1 1412- ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. AUSTRALIA EQUIPMENT(B13), 6-SPEAKER SYSTEM CUSTOM<UW6>,TUNER BAND LATI N AMERICA<7DM> (A) 		8-98228-730-2 01 1 1412- ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
AM/FM,CLOCK,CD PLAYER(U1C) (B) 		8-98219-844-3 01 1 1412- ● ● ● ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
CONGO EQUIPMENT(CDF) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. TUNER BAND LATIN AMERICA<7DM> (A) 		8-98243-602-2 01 1 1412- ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 6-SPEAKER SYSTEM CUSTOM<UW6> TUNER BAND LATIN AMERICA<7DM> (A) 		8-98243-603-2 01 1 1412- ● ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF),TUNER BAND LATIN AMERIC A<7DM> (A) 		8-98219-845-3 01 1 1412- ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. AUSTRALIA EQUIPMENT(B13),TUNER BAND LATIN AMERICA<7DM> (A) 		8-98219-845-3 01 1 1412- ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
6-SPEAKER SYSTEM CUSTOM<UW6> (A) 		8-98243-601-2 01 1 1409-1411 ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 6-SPEAKER SYSTEM CUSTOM<UW6> (A) 		8-98243-601-2 01 1 1409-1411 ● ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
6-SPEAKER SYSTEM CUSTOM<UW6> (A) 		8-98243-601-2 01 1 1412- ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
AUSTRALIA EQUIPMENT(B13) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. TUNER BAND LATIN AMERICA<7DM> (A) 		8-98243-601-2 01 1 1412- ● ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
EXC. 6-SPEAKER SYSTEM CUSTOM<UW6> (A) 		8-98241-356-2 01 1 1409-1411 ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
(A) 		8-98241-356-2 01 1 1409-1411 ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. 6-SPEAKER SYSTEM CUSTOM<UW6> (A) 		8-98241-356-2 01 1 1409-1411 ● ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
EXC. 6-SPEAKER SYSTEM CUSTOM<UW6> (A) 		8-98241-356-2 01 1 1412- ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
AUSTRALIA EQUIPMENT(B13) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. TUNER BAND LATIN AMERICA<7DM> (A) 		8-98241-356-2 01 1 1412- ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
AUSTRALIA EQUIPMENT(B13) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>, TUNER BAND LATIN AMERICA<7DM> (A) 		8-98241-356-2 01 1 1412- ● ● ●
299 09.766 DISPLAY; MULTI
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98287-432-0 01 1 1409-1411 ● ● ●
299 09.766 DISPLAY; MULTI
AUSTRALIA EQUIPMENT(B13) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98287-432-0 01 1 1412-1504 ● ● ●
299 09.766 DISPLAY; MULTI
AUSTRALIA EQUIPMENT(B13) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98309-241-0 01 1 1505- ● ● ●

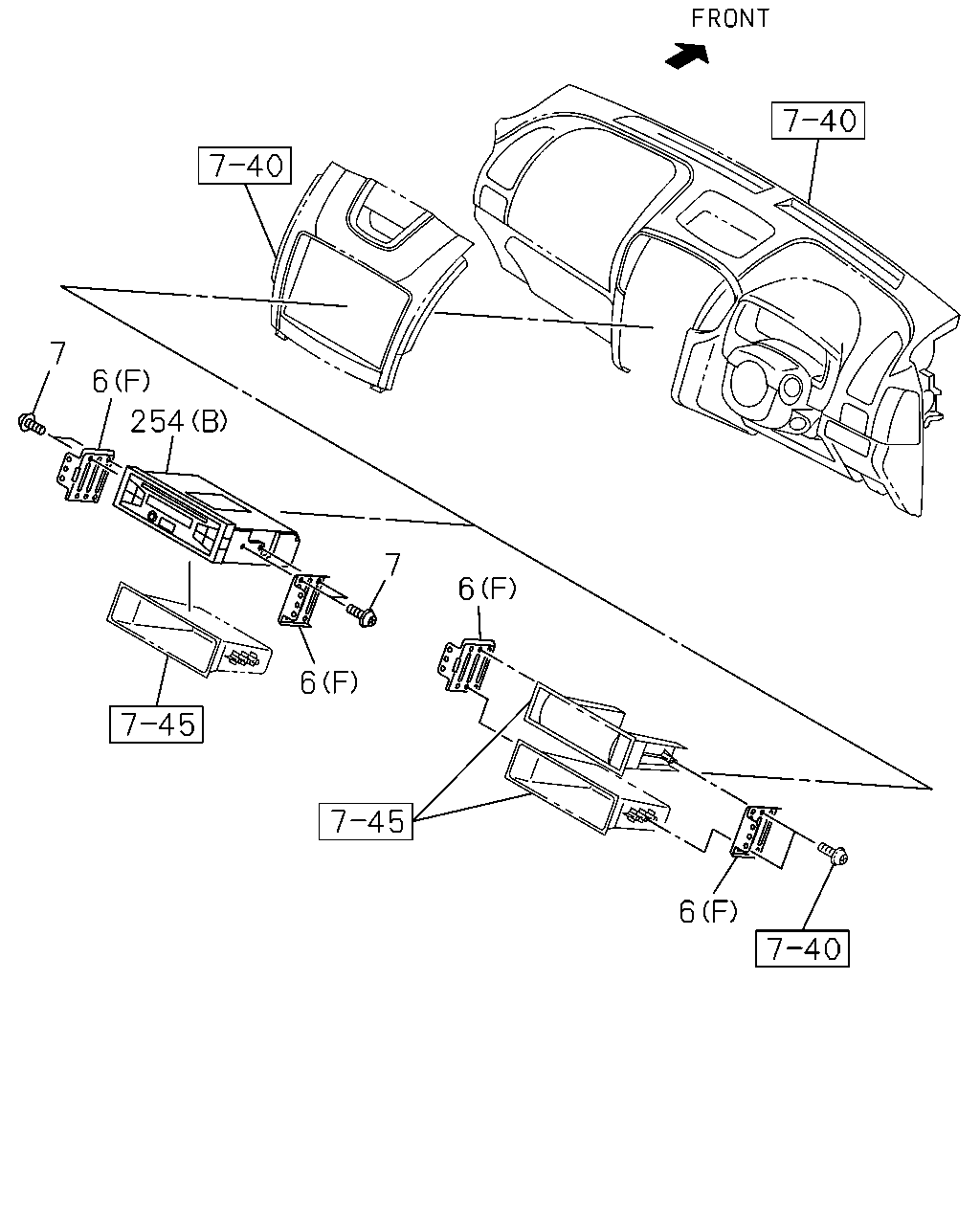

çizim 444440
7 254 7 6 6 6 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
6 09.645 BRACKET; RADIO TO PANEL
RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C) (F) 		8-98102-188-2 02 1 1412- ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
(E) 		8-98227-139-1 01 1 1409-1411 ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (E) 		8-98227-139-1 01 1 1409-1411 ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
(E) 		8-98227-139-1 01 1 1412- ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (E) 		8-98227-139-1 01 1 1412- ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
(C) 		8-98106-390-3 01 1 1409-1411 ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (C) 		8-98106-390-3 01 1 1409-1411 ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
(C) 		8-98106-390-3 01 1 1412-1503 ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (C) 		8-98106-390-3 01 1 1412-1503 ● ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (C) 		8-98106-390-3 01 1 1412-1503 ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
(C) 		8-98106-390-3 01 1 1504-1505 ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (C) 		8-98106-390-3 01 1 1504-1505 ● ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (C) 		8-98106-390-3 01 1 1504-1505 ● ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (C) 		8-98106-390-3 01 1 1504-1505 ●
6 09.645 BRACKET; RADIO TO PANEL
(C) 		8-98106-390-3 01 1 1506- ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (C) 		8-98106-390-3 01 1 1506- ● ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (C) 		8-98106-390-3 01 1 1506- ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (A) 		8-98102-186-2 01 1 1409-1503 ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (A) 		8-98102-186-2 01 1 1504-1505 ● ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (A) 		8-98102-186-2 01 1 1504-1505 ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (A) 		8-98102-186-2 01 1 1506- ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) 		8-98102-187-3 01 1 1409-1503 ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (B) 		8-98102-187-3 01 1 1504-1505 ● ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) 		8-98102-187-3 01 1 1504-1505 ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) 		8-98102-187-3 01 1 1506- ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (D) 		8-98109-822-2 01 1 1409-1503 ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (D) 		8-98109-822-2 01 1 1504-1505 ● ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (D) 		8-98109-822-2 01 1 1504-1505 ●
6 09.645 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (D) 		8-98109-822-2 01 1 1506- ● ● ●
7 09.650 SCREW; RADIO
AM/FM,CLOCK,CD PLAYER(U1C) 03.680 M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 1412- ● ● ● ● ●
7 09.650 SCREW; RADIO
03.680 M5X10 W/LK+PL WASHER 		0-36230-510-0 01 1 1409-1411 ● ● ●
7 09.650 SCREW; RADIO
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 03.680 M5X10 W/LK+PL WASHER 		0-36230-510-0 01 1 1409-1411 ● ● ●
7 09.650 SCREW; RADIO
03.680 M5X10 W/LK+PL WASHER 		0-36230-510-0 01 1 1412- ●
7 09.650 SCREW; RADIO
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 03.680 M5X10 W/LK+PL WASHER 		0-36230-510-0 01 1 1412- ● ● ● ● ●
7 09.650 SCREW; RADIO
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 03.680 M5X10 W/LK+PL WASHER 		0-36230-510-0 02 1 1409-1503 ● ● ●
7 09.650 SCREW; RADIO
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) 03.680 M5X10 W/LK+PL WASHER 		0-36230-510-0 02 1 1504-1505 ● ●
7 09.650 SCREW; RADIO
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 03.680 M5X10 W/LK+PL WASHER 		0-36230-510-0 02 1 1504-1505 ●
7 09.650 SCREW; RADIO
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 03.680 M5X10 W/LK+PL WASHER 		0-36230-510-0 02 1 1506- ● ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (C) 		8-98222-317-3 01 1 1504-1505 ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
CONGO EQUIPMENT(CDF) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. TUNER BAND LATIN AMERICA<7DM> (A) 		8-98241-357-2 01 1 1412- ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
CONGO EQUIPMENT(CDF) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>, TUNER BAND LATIN AMERICA<7DM> (A) 		8-98241-357-2 01 1 1412- ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) TUNER BAND LATIN AMERICA<7DM> (A) 		8-98241-358-2 01 1 1412- ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) TUNER BAND LATIN AMERICA<7DM> EXC. 6-SPEAKER SYSTEM CUSTOM<UW6> (A) 		8-98241-358-2 01 1 1412- ● ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF),TUNER BAND LATIN AMERIC A<7DM> (A) 		8-98228-730-2 01 1 1412- ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF),6-SPEAKER SYSTEM CUSTOM <UW6>,TUNER BAND LATIN AMERICA<7DM> (A) 		8-98228-730-2 01 1 1412- ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. AUSTRALIA EQUIPMENT(B13), 6-SPEAKER SYSTEM CUSTOM<UW6>,TUNER BAND LATI N AMERICA<7DM> (A) 		8-98228-730-2 01 1 1412- ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
AM/FM,CLOCK,CD PLAYER(U1C) (B) 		8-98219-844-3 01 1 1412- ● ● ● ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
CONGO EQUIPMENT(CDF) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. TUNER BAND LATIN AMERICA<7DM> (A) 		8-98243-602-2 01 1 1412- ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 6-SPEAKER SYSTEM CUSTOM<UW6> TUNER BAND LATIN AMERICA<7DM> (A) 		8-98243-603-2 01 1 1412- ● ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. AUSTRALIA EQUIPMENT(B13),CONGO EQUIPMENT(CDF),TUNER BAND LATIN AMERIC A<7DM> (A) 		8-98219-845-3 01 1 1412- ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. AUSTRALIA EQUIPMENT(B13),TUNER BAND LATIN AMERICA<7DM> (A) 		8-98219-845-3 01 1 1412- ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
6-SPEAKER SYSTEM CUSTOM<UW6> (A) 		8-98243-601-2 01 1 1409-1411 ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 6-SPEAKER SYSTEM CUSTOM<UW6> (A) 		8-98243-601-2 01 1 1409-1411 ● ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
6-SPEAKER SYSTEM CUSTOM<UW6> (A) 		8-98243-601-2 01 1 1412- ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
AUSTRALIA EQUIPMENT(B13) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. TUNER BAND LATIN AMERICA<7DM> (A) 		8-98243-601-2 01 1 1412- ● ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
EXC. 6-SPEAKER SYSTEM CUSTOM<UW6> (A) 		8-98241-356-2 01 1 1409-1411 ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
(A) 		8-98241-356-2 01 1 1409-1411 ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. 6-SPEAKER SYSTEM CUSTOM<UW6> (A) 		8-98241-356-2 01 1 1409-1411 ● ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
EXC. 6-SPEAKER SYSTEM CUSTOM<UW6> (A) 		8-98241-356-2 01 1 1412- ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
AUSTRALIA EQUIPMENT(B13) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. TUNER BAND LATIN AMERICA<7DM> (A) 		8-98241-356-2 01 1 1412- ● ●
254 09.645 RADIO CONTROL ASM; STEREO,AM-FM
AUSTRALIA EQUIPMENT(B13) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. 6-SPEAKER SYSTEM CUSTOM<UW6>, TUNER BAND LATIN AMERICA<7DM> (A) 		8-98241-356-2 01 1 1412- ● ● ●

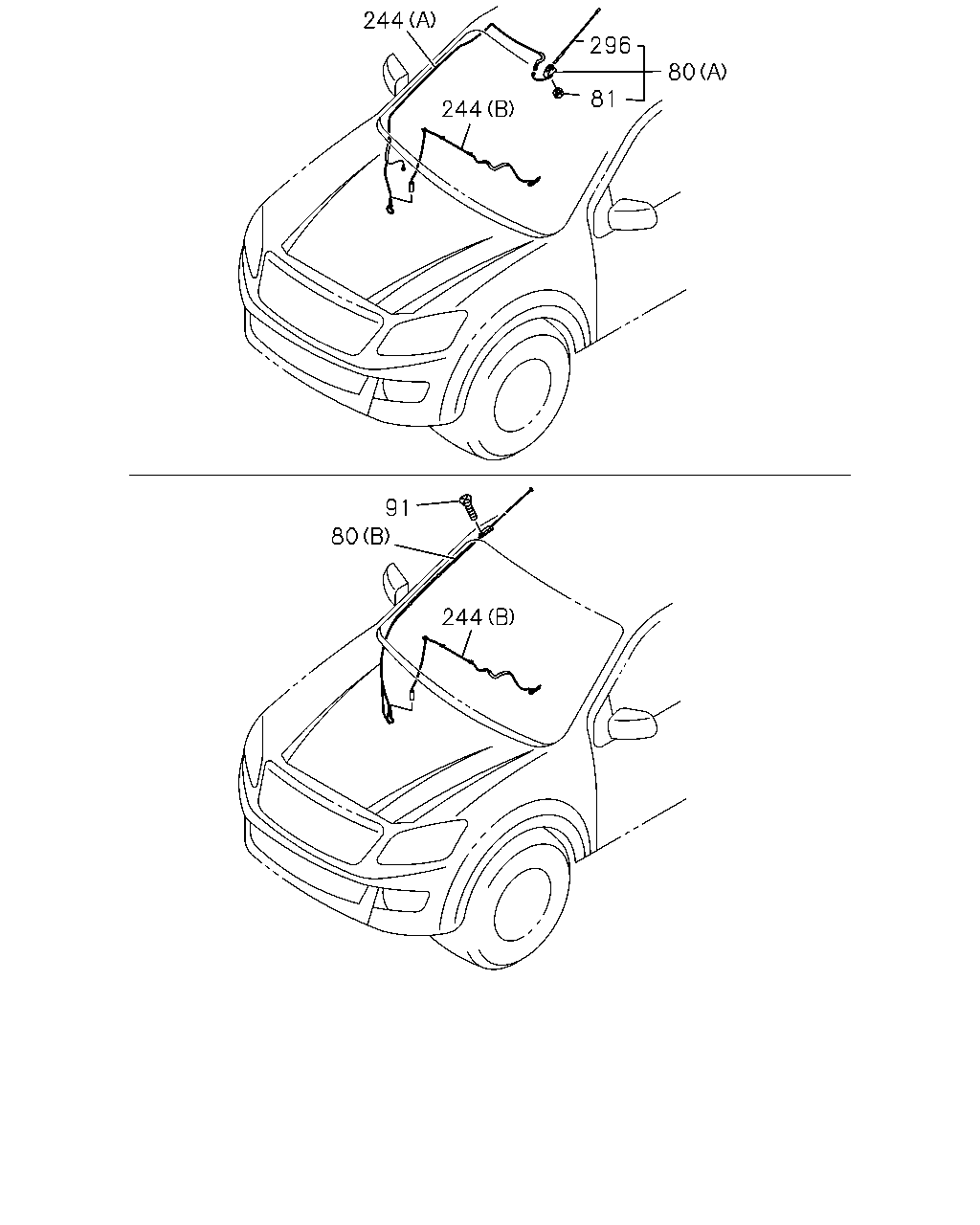

çizim 444456
91 80 244 244 244 296 81 80
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
80 09.645 ANTENNA
(A) 		8-98053-048-0 01 1 1409-1411 ●
80 09.645 ANTENNA
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ROOF RADIO ANTENNA<U71> (A) 		8-98053-048-0 01 1 1409-1411 ● ● ●
80 09.645 ANTENNA
(A) 		8-98053-048-0 01 1 1412-1503 ●
80 09.645 ANTENNA
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUD IO(7QL) ROOF RADIO ANTENNA<U71> (A) 		8-98053-048-0 01 1 1412-1503 ● ● ●
80 09.645 ANTENNA
(A) 		8-98053-048-0 01 1 1504-1505 ●
80 09.645 ANTENNA
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZ E AUDIO(7QL) ROOF RADIO ANTENNA<U71> (A) 		8-98053-048-0 01 1 1504-1505 ● ●
80 09.645 ANTENNA
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUD IO(7QL) ROOF RADIO ANTENNA<U71> (A) 		8-98053-048-0 01 1 1504-1505 ●
80 09.645 ANTENNA
(A) 		8-98053-048-0 01 1 1506- ●
80 09.645 ANTENNA
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUD IO(7QL) ROOF RADIO ANTENNA<U71> (A) 		8-98053-048-0 01 1 1506- ● ● ●
80 09.645 ANTENNA
(B) 		8-98053-047-2 01 1 1409-1411 ● ●
80 09.645 ANTENNA
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. ROOF RADIO ANTENNA<U71> (B) 		8-98053-047-2 01 1 1409-1411 ● ● ●
80 09.645 ANTENNA
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. CONGO EQUIPMENT(CDF),ROOF RADIO ANTENNA<U71> (B) 		8-98053-047-2 01 1 1412- ● ● ● ● ●
80 09.645 ANTENNA
BODY COLOR NAUTILUS BLUE MICA(521), BODY COLOR COSMIC BLACK MICA(523),BODY COLOR MINERAL GRAY MET(530),BODY COLOR TUNDRA GREEN MICA(533),BODY COLOR A SH BEIGE MET(541),BODY COLOR VENETIANRED MICA(546) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (C) DARK GRAY 		8-97423-673-2 01 1 1409-1507 ● ● ●
80 09.645 ANTENNA
BODY COLOR NAUTILUS BLUE MICA(521), BODY COLOR COSMIC BLACK MICA(523),BODY COLOR MINERAL GRAY MET(530),BODY COLOR TUNDRA GREEN MICA(533),BODY COLOR A SH BEIGE MET(541),BODY COLOR VENETIANRED MICA(546) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (C) 		8-97466-011-0 01 1 1508- ● ● ●
80 09.645 ANTENNA
BODY COLOR SPLASH WHITE(527),BODY COLOR TITANIUM SILVER MET(529),BODY COLOR FJORD BLUE MET(545) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (C) SILVER 		8-97423-670-2 01 1 1409-1505 ● ● ●
80 09.645 ANTENNA
BODY COLOR SPLASH WHITE(527),BODY COLOR TITANIUM SILVER MET(529),BODY COLOR FJORD BLUE MET(545) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (C) 		8-97466-010-0 01 1 1506- ● ● ●
81 09.647 NUT; ANTENNA POLE 8-98165-971-0 01 1 1409-1411 ●
81 09.647 NUT; ANTENNA POLE
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ROOF RADIO ANTENNA<U71> 		8-98165-971-0 01 1 1409-1411 ● ● ●
81 09.647 NUT; ANTENNA POLE 8-98165-971-0 01 1 1412-1503 ●
81 09.647 NUT; ANTENNA POLE
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUD IO(7QL) ROOF RADIO ANTENNA<U71> 		8-98165-971-0 01 1 1412-1503 ● ● ●
81 09.647 NUT; ANTENNA POLE 8-98165-971-0 01 1 1504-1505 ●
81 09.647 NUT; ANTENNA POLE
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZ E AUDIO(7QL) ROOF RADIO ANTENNA<U71> 		8-98165-971-0 01 1 1504-1505 ● ●
81 09.647 NUT; ANTENNA POLE
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUD IO(7QL) ROOF RADIO ANTENNA<U71> 		8-98165-971-0 01 1 1504-1505 ●
81 09.647 NUT; ANTENNA POLE 8-98165-971-0 01 1 1506- ●
81 09.647 NUT; ANTENNA POLE
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUD IO(7QL) ROOF RADIO ANTENNA<U71> 		8-98165-971-0 01 1 1506- ● ● ●
91 09.663 BOLT; ANTENNA
M5X16 		8-97375-569-0 02 1 1409-1411 ● ●
91 09.663 BOLT; ANTENNA
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. ROOF RADIO ANTENNA<U71> M5X16 		8-97375-569-0 02 1 1409-1411 ● ● ●
91 09.663 BOLT; ANTENNA
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. CONGO EQUIPMENT(CDF),ROOF RADIO ANTENNA<U71> M5X16 		8-97375-569-0 02 1 1412- ● ● ● ● ●
244 09.647 CABLE; FEEDER
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) ROOF RADIO ANTENNA<U71> (C) 		8-98227-542-0 01 1 1504-1505 ● ●
244 09.647 CABLE; FEEDER
(B) 		8-98053-051-1 01 1 1409-1411 ● ● ●
244 09.647 CABLE; FEEDER
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (B) 		8-98053-051-1 01 1 1409-1411 ● ● ●
244 09.647 CABLE; FEEDER
(B) 		8-98053-051-1 01 1 1412- ●
244 09.647 CABLE; FEEDER
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUD IO(7QL) (B) 		8-98053-051-1 01 1 1412- ● ● ● ● ●
244 09.647 CABLE; FEEDER
(A) 		8-98063-228-0 01 1 1409-1411 ●
244 09.647 CABLE; FEEDER
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ROOF RADIO ANTENNA<U71> (A) 		8-98063-228-0 01 1 1409-1411 ● ● ●
244 09.647 CABLE; FEEDER
(A) 		8-98063-228-0 01 1 1412-1503 ●
244 09.647 CABLE; FEEDER
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUD IO(7QL) ROOF RADIO ANTENNA<U71> (A) 		8-98063-228-0 01 1 1412-1503 ● ● ●
244 09.647 CABLE; FEEDER
(A) 		8-98063-228-0 01 1 1504-1505 ●
244 09.647 CABLE; FEEDER
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZ E AUDIO(7QL) ROOF RADIO ANTENNA<U71> (A) 		8-98063-228-0 01 1 1504-1505 ● ●
244 09.647 CABLE; FEEDER
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUD IO(7QL) ROOF RADIO ANTENNA<U71> (A) 		8-98063-228-0 01 1 1504-1505 ●
244 09.647 CABLE; FEEDER
(A) 		8-98063-228-0 01 1 1506- ●
244 09.647 CABLE; FEEDER
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUD IO(7QL) ROOF RADIO ANTENNA<U71> (A) 		8-98063-228-0 01 1 1506- ● ● ●
244 09.647 CABLE; FEEDER
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (C) 		8-98192-896-2 01 1 1409- ● ● ●
296 09.665 ROD; ANTENNA 8-98165-969-0 01 1 1409-1411 ●
296 09.665 ROD; ANTENNA
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ROOF RADIO ANTENNA<U71> 		8-98165-969-0 01 1 1409-1411 ● ● ●
296 09.665 ROD; ANTENNA 8-98165-969-0 01 1 1412-1503 ●
296 09.665 ROD; ANTENNA
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUD IO(7QL) ROOF RADIO ANTENNA<U71> 		8-98165-969-0 01 1 1412-1503 ● ● ●
296 09.665 ROD; ANTENNA 8-98165-969-0 01 1 1504-1505 ●
296 09.665 ROD; ANTENNA
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZ E AUDIO(7QL) ROOF RADIO ANTENNA<U71> 		8-98165-969-0 01 1 1504-1505 ● ●
296 09.665 ROD; ANTENNA
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUD IO(7QL) ROOF RADIO ANTENNA<U71> 		8-98165-969-0 01 1 1504-1505 ●
296 09.665 ROD; ANTENNA 8-98165-969-0 01 1 1506- ●
296 09.665 ROD; ANTENNA
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUD IO(7QL) ROOF RADIO ANTENNA<U71> 		8-98165-969-0 01 1 1506- ● ● ●
çizim 444459
244 80 141 141 298
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
80 09.645 ANTENNA
(A) 		8-98053-048-0 01 1 1409-1411 ●
80 09.645 ANTENNA
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ROOF RADIO ANTENNA<U71> (A) 		8-98053-048-0 01 1 1409-1411 ● ● ●
80 09.645 ANTENNA
(A) 		8-98053-048-0 01 1 1412-1503 ●
80 09.645 ANTENNA
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUD IO(7QL) ROOF RADIO ANTENNA<U71> (A) 		8-98053-048-0 01 1 1412-1503 ● ● ●
80 09.645 ANTENNA
(A) 		8-98053-048-0 01 1 1504-1505 ●
80 09.645 ANTENNA
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZ E AUDIO(7QL) ROOF RADIO ANTENNA<U71> (A) 		8-98053-048-0 01 1 1504-1505 ● ●
80 09.645 ANTENNA
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUD IO(7QL) ROOF RADIO ANTENNA<U71> (A) 		8-98053-048-0 01 1 1504-1505 ●
80 09.645 ANTENNA
(A) 		8-98053-048-0 01 1 1506- ●
80 09.645 ANTENNA
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUD IO(7QL) ROOF RADIO ANTENNA<U71> (A) 		8-98053-048-0 01 1 1506- ● ● ●
80 09.645 ANTENNA
(B) 		8-98053-047-2 01 1 1409-1411 ● ●
80 09.645 ANTENNA
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. ROOF RADIO ANTENNA<U71> (B) 		8-98053-047-2 01 1 1409-1411 ● ● ●
80 09.645 ANTENNA
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. CONGO EQUIPMENT(CDF),ROOF RADIO ANTENNA<U71> (B) 		8-98053-047-2 01 1 1412- ● ● ● ● ●
80 09.645 ANTENNA
BODY COLOR NAUTILUS BLUE MICA(521), BODY COLOR COSMIC BLACK MICA(523),BODY COLOR MINERAL GRAY MET(530),BODY COLOR TUNDRA GREEN MICA(533),BODY COLOR A SH BEIGE MET(541),BODY COLOR VENETIANRED MICA(546) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (C) DARK GRAY 		8-97423-673-2 01 1 1409-1507 ● ● ●
80 09.645 ANTENNA
BODY COLOR NAUTILUS BLUE MICA(521), BODY COLOR COSMIC BLACK MICA(523),BODY COLOR MINERAL GRAY MET(530),BODY COLOR TUNDRA GREEN MICA(533),BODY COLOR A SH BEIGE MET(541),BODY COLOR VENETIANRED MICA(546) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (C) 		8-97466-011-0 01 1 1508- ● ● ●
80 09.645 ANTENNA
BODY COLOR SPLASH WHITE(527),BODY COLOR TITANIUM SILVER MET(529),BODY COLOR FJORD BLUE MET(545) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (C) SILVER 		8-97423-670-2 01 1 1409-1505 ● ● ●
80 09.645 ANTENNA
BODY COLOR SPLASH WHITE(527),BODY COLOR TITANIUM SILVER MET(529),BODY COLOR FJORD BLUE MET(545) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (C) 		8-97466-010-0 01 1 1506- ● ● ●
141 03.162 CLIP; ANTENNA CABLE
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98219-154-0 02 1 1409- ● ● ●
244 09.647 CABLE; FEEDER
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) ROOF RADIO ANTENNA<U71> (C) 		8-98227-542-0 01 1 1504-1505 ● ●
244 09.647 CABLE; FEEDER
(B) 		8-98053-051-1 01 1 1409-1411 ● ● ●
244 09.647 CABLE; FEEDER
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (B) 		8-98053-051-1 01 1 1409-1411 ● ● ●
244 09.647 CABLE; FEEDER
(B) 		8-98053-051-1 01 1 1412- ●
244 09.647 CABLE; FEEDER
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUD IO(7QL) (B) 		8-98053-051-1 01 1 1412- ● ● ● ● ●
244 09.647 CABLE; FEEDER
(A) 		8-98063-228-0 01 1 1409-1411 ●
244 09.647 CABLE; FEEDER
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ROOF RADIO ANTENNA<U71> (A) 		8-98063-228-0 01 1 1409-1411 ● ● ●
244 09.647 CABLE; FEEDER
(A) 		8-98063-228-0 01 1 1412-1503 ●
244 09.647 CABLE; FEEDER
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUD IO(7QL) ROOF RADIO ANTENNA<U71> (A) 		8-98063-228-0 01 1 1412-1503 ● ● ●
244 09.647 CABLE; FEEDER
(A) 		8-98063-228-0 01 1 1504-1505 ●
244 09.647 CABLE; FEEDER
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZ E AUDIO(7QL) ROOF RADIO ANTENNA<U71> (A) 		8-98063-228-0 01 1 1504-1505 ● ●
244 09.647 CABLE; FEEDER
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUD IO(7QL) ROOF RADIO ANTENNA<U71> (A) 		8-98063-228-0 01 1 1504-1505 ●
244 09.647 CABLE; FEEDER
(A) 		8-98063-228-0 01 1 1506- ●
244 09.647 CABLE; FEEDER
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUD IO(7QL) ROOF RADIO ANTENNA<U71> (A) 		8-98063-228-0 01 1 1506- ● ● ●
244 09.647 CABLE; FEEDER
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (C) 		8-98192-896-2 01 1 1409- ● ● ●
298 09.647 NUT; ANTENNA
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98219-125-0 01 1 1409- ● ● ●

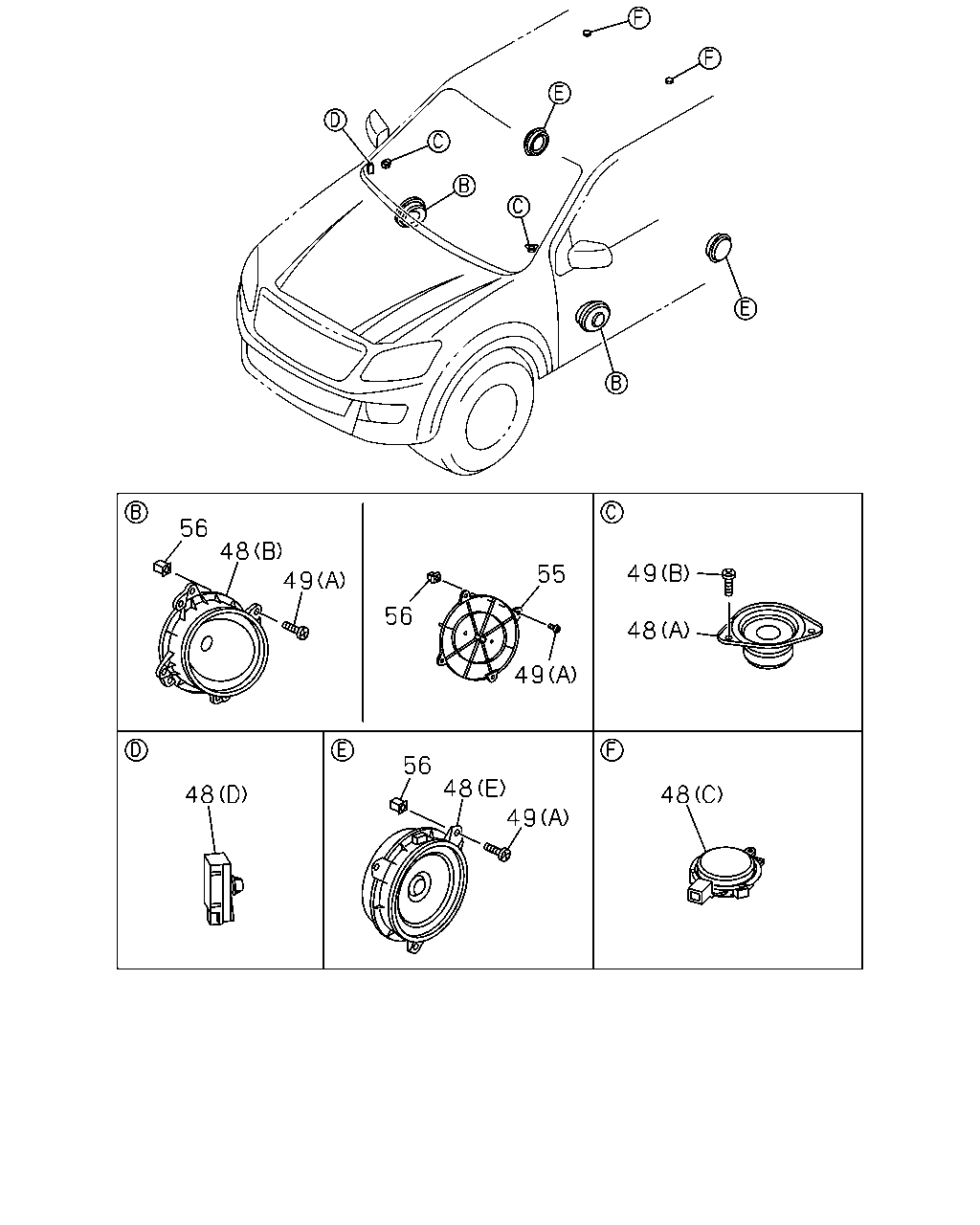

çizim 444470
56 48 49 56 55 49 49 56 48 48 49 48 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> (A) 		8-98052-940-0 02 1 1409- ● ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
6-SPEAKER SYSTEM CUSTOM<UW6>, 8-SPEAKER SYSTEM CUSTOM<U87> (C) 		8-98052-942-0 02 1 1409- ● ● ● ●
48 09.650 SPEAKER; AUDIO
6-SPEAKER SYSTEM CUSTOM<UW6>, 8-SPEAKER SYSTEM CUSTOM<U87> (D) 		8-98064-704-0 01 1 1409- ● ● ● ●
48 09.650 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> ,2-SPEAKER SYSTEM BASE<U95> (B) 		8-98052-937-0 02 1 1409- ● ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> (E) 		8-98052-941-0 02 1 1409- ● ●
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> 08.083 (B) M5X16 TAPPING 		8-98167-449-0 04 1 1409- ● ● ● ● ● ●
49 09.655 SCREW; SPEAKER
16.345 (A) M5X14 TAPPING 		8-98184-363-0 08 1 1409- ● ● ● ● ● ●
49 09.655 SCREW; SPEAKER
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> 16.345 (A) M5X14 TAPPING 		8-98184-363-0 06 1 1409- ● ●
55 09.650 COVER; SPEAKER HOLE
EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM <U87>,2-SPEAKER SYSTEM BASE<U95> 		8-98102-183-0 02 1 1409- ● ● ● ● ● ●
56 09.655 NUT; SPEAKER,RADIO OR STEREO 8-98163-895-0 08 1 1409- ● ● ● ● ● ●
56 09.655 NUT; SPEAKER,RADIO OR STEREO
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> 		8-98163-895-0 06 1 1409- ● ●

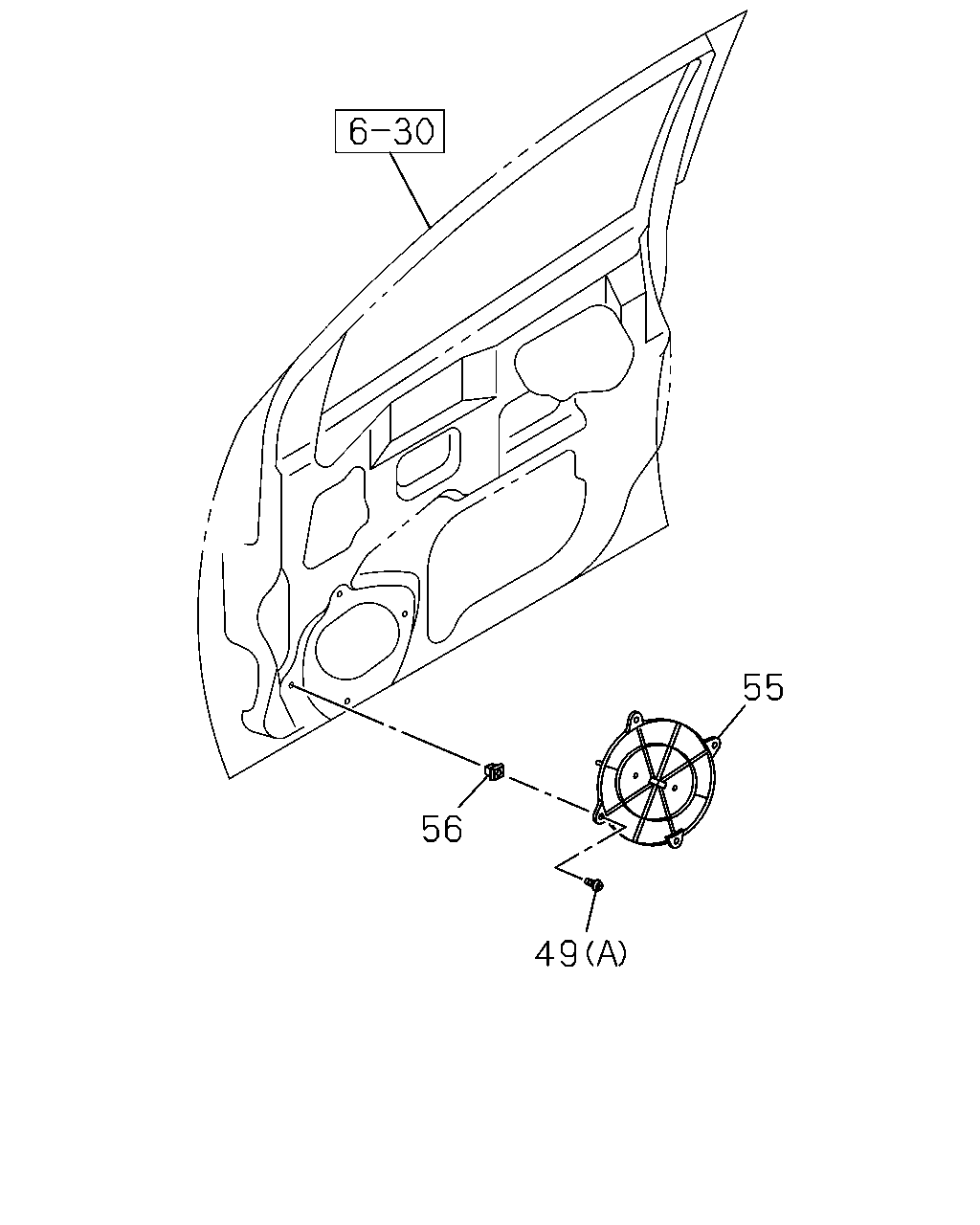

çizim 459053
56 55 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
49 09.655 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> 08.083 (B) M5X16 TAPPING 		8-98167-449-0 04 1 1409- ● ● ● ● ● ●
49 09.655 SCREW; SPEAKER
16.345 (A) M5X14 TAPPING 		8-98184-363-0 08 1 1409- ● ● ● ● ● ●
49 09.655 SCREW; SPEAKER
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> 16.345 (A) M5X14 TAPPING 		8-98184-363-0 06 1 1409- ● ●
55 09.650 COVER; SPEAKER HOLE
EXC. 4-SPEAKER SYSTEM BASE<UQ4>, 6-SPEAKER SYSTEM BASE<UW5>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM <U87>,2-SPEAKER SYSTEM BASE<U95> 		8-98102-183-0 02 1 1409- ● ● ● ● ● ●
56 09.655 NUT; SPEAKER,RADIO OR STEREO 8-98163-895-0 08 1 1409- ● ● ● ● ● ●
56 09.655 NUT; SPEAKER,RADIO OR STEREO
6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> 		8-98163-895-0 06 1 1409- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
