8-75 — CONDENSER (#148551) — 74 parça

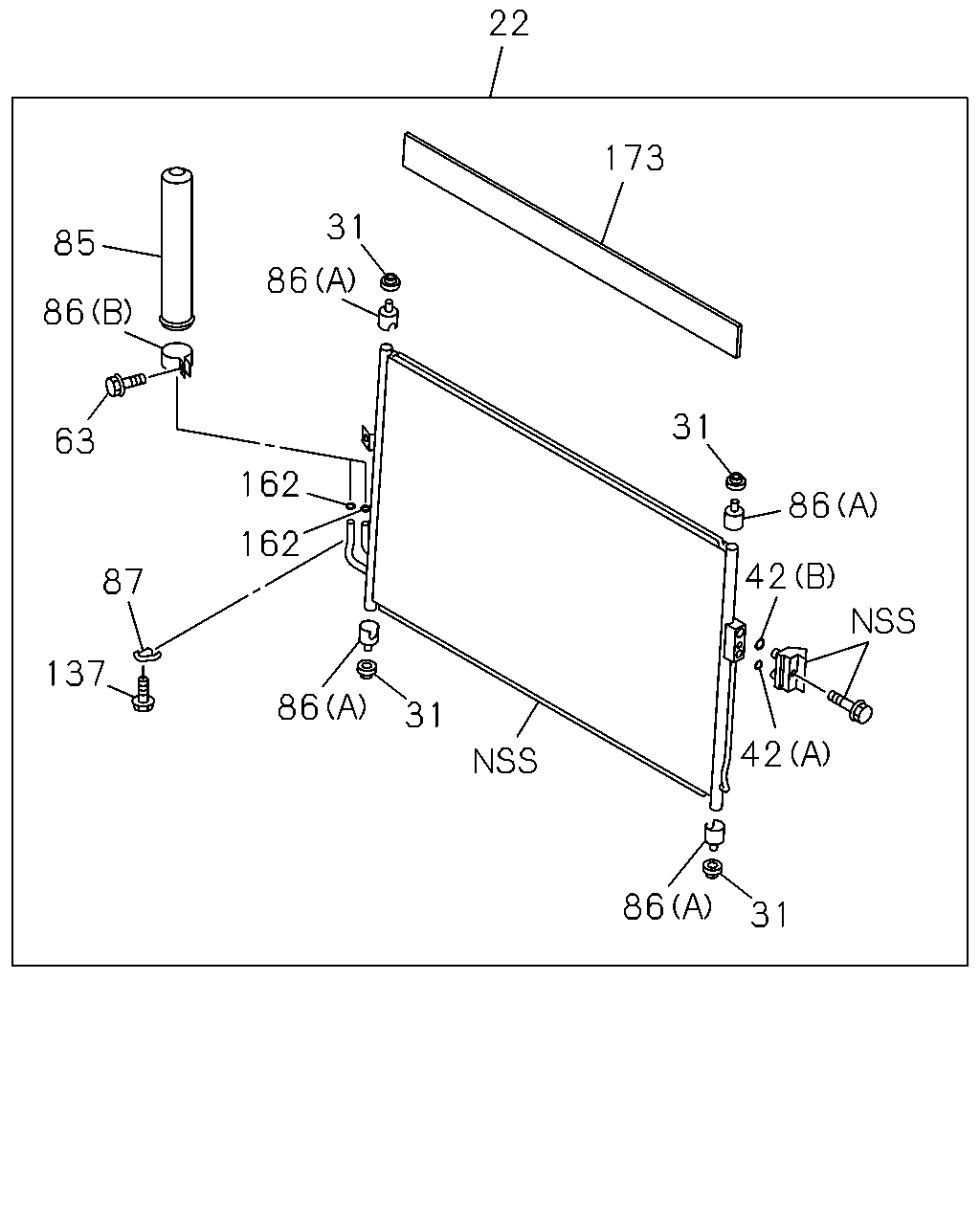

22 173 31 86 42 42 31 86 31 86 162 162 87 137 63 86 85 86 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98052-635-3	01	1	1412-	●	●
22	09.190 CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-98052-634-3	01	1	1409-1411	●		●	●
22	09.190 CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98052-634-3	01	1	1409-1411		●			●	●
22	09.190 CONDENSER ASM; A/C 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98052-634-3	01	1	1412-	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-98193-616-0	04	1	1409-1411	●		●	●
31	09.190 RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98193-616-0	04	1	1409-1411		●			●	●
31	09.190 RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98193-616-0	04	1	1412-	●	●	●	●	●	●
42	09.190 GASKET; CONDENSER AIR CONDITIONER MANUAL CONT(C60) (A) ID=8	8-98193-614-0	01	1	1409-1411	●		●	●
42	09.190 GASKET; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) ID=8	8-98193-614-0	01	1	1409-1411		●			●	●
42	09.190 GASKET; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (A) ID=8	8-98193-614-0	01	1	1412-	●	●	●	●	●	●
42	09.190 GASKET; CONDENSER AIR CONDITIONER MANUAL CONT(C60) (B) ID=12	8-98193-615-0	01	1	1409-1411	●		●	●
42	09.190 GASKET; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) ID=12	8-98193-615-0	01	1	1409-1411		●			●	●
42	09.190 GASKET; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B) ID=12	8-98193-615-0	01	1	1412-	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60) M5X16	8-98193-604-0	01	1	1409-1411	●		●	●
63	09.175 BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M5X16	8-98193-604-0	01	1	1409-1411		●			●	●
63	09.175 BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) M5X16	8-98193-604-0	01	1	1412-	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60)	8-98233-381-0	01	1	1409-1411	●		●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-381-0	01	1	1409-1411		●			●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98233-381-0	01	1	1412-	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60) (B)	8-98193-599-0	01	1	1409-1411	●		●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98193-599-0	01	1	1409-1411		●			●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B)	8-98193-599-0	01	1	1412-	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60) (A)	8-98193-618-0	04	1	1409-1411	●		●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98193-618-0	04	1	1409-1411		●			●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (A)	8-98193-618-0	04	1	1412-	●	●	●	●	●	●
87	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60)	8-98193-602-0	01	1	1409-1411	●		●	●
87	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98193-602-0	01	1	1409-1411		●			●	●
87	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98193-602-0	01	1	1412-	●	●	●	●	●	●
137	09.196 BOLT; BRKT,DRYER AIR CONDITIONER MANUAL CONT(C60) M6X12	8-98193-603-0	01	1	1409-1411	●		●	●
137	09.196 BOLT; BRKT,DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M6X12	8-98193-603-0	01	1	1409-1411		●			●	●
137	09.196 BOLT; BRKT,DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) M6X12	8-98193-603-0	01	1	1412-	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60) 09.190 ID=8	8-98193-614-0	02	1	1409-1411	●		●	●
162	09.195 GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 09.190 ID=8	8-98193-614-0	02	1	1409-1411		●			●	●
162	09.195 GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 09.190 ID=8	8-98193-614-0	02	1	1412-	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-98233-382-0	01	1	1409-1411	●		●	●
173	09.190 INSULATOR; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-382-0	01	1	1409-1411		●			●	●
173	09.190 INSULATOR; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98233-382-0	01	1	1412-	●	●	●	●	●	●

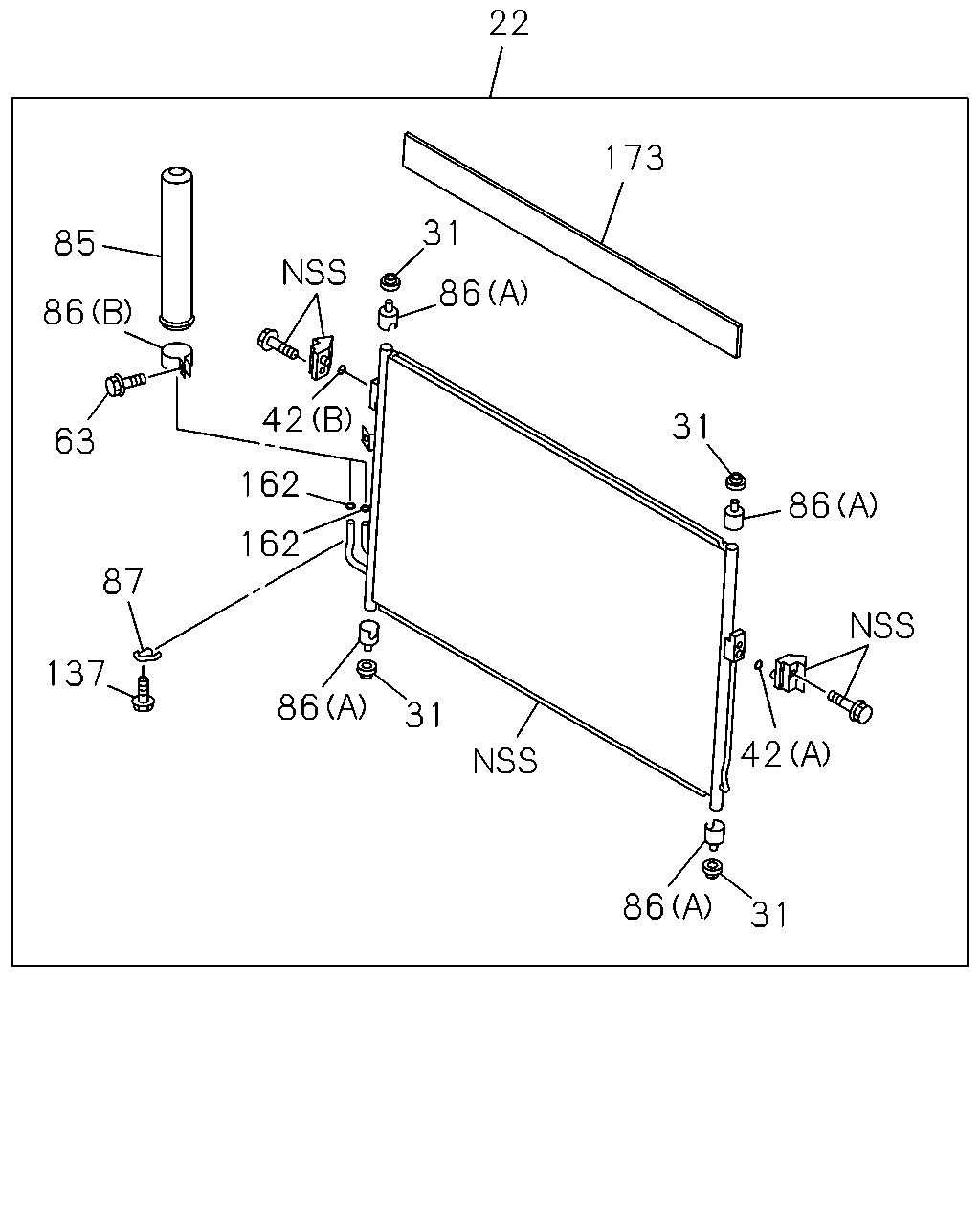

22 173 31 86 31 86 42 31 86 31 86 87 137 162 162 42 63 86 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98052-635-3	01	1	1412-	●	●
22	09.190 CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-98052-634-3	01	1	1409-1411	●		●	●
22	09.190 CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98052-634-3	01	1	1409-1411		●			●	●
22	09.190 CONDENSER ASM; A/C 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98052-634-3	01	1	1412-	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-98193-616-0	04	1	1409-1411	●		●	●
31	09.190 RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98193-616-0	04	1	1409-1411		●			●	●
31	09.190 RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98193-616-0	04	1	1412-	●	●	●	●	●	●
42	09.190 GASKET; CONDENSER AIR CONDITIONER MANUAL CONT(C60) (A) ID=8	8-98193-614-0	01	1	1409-1411	●		●	●
42	09.190 GASKET; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) ID=8	8-98193-614-0	01	1	1409-1411		●			●	●
42	09.190 GASKET; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (A) ID=8	8-98193-614-0	01	1	1412-	●	●	●	●	●	●
42	09.190 GASKET; CONDENSER AIR CONDITIONER MANUAL CONT(C60) (B) ID=12	8-98193-615-0	01	1	1409-1411	●		●	●
42	09.190 GASKET; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) ID=12	8-98193-615-0	01	1	1409-1411		●			●	●
42	09.190 GASKET; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B) ID=12	8-98193-615-0	01	1	1412-	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60) M5X16	8-98193-604-0	01	1	1409-1411	●		●	●
63	09.175 BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M5X16	8-98193-604-0	01	1	1409-1411		●			●	●
63	09.175 BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) M5X16	8-98193-604-0	01	1	1412-	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60)	8-98233-381-0	01	1	1409-1411	●		●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-381-0	01	1	1409-1411		●			●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98233-381-0	01	1	1412-	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60) (B)	8-98193-599-0	01	1	1409-1411	●		●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98193-599-0	01	1	1409-1411		●			●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B)	8-98193-599-0	01	1	1412-	●	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60) (A)	8-98193-618-0	04	1	1409-1411	●		●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98193-618-0	04	1	1409-1411		●			●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (A)	8-98193-618-0	04	1	1412-	●	●	●	●	●	●
87	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60)	8-98193-602-0	01	1	1409-1411	●		●	●
87	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98193-602-0	01	1	1409-1411		●			●	●
87	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98193-602-0	01	1	1412-	●	●	●	●	●	●
137	09.196 BOLT; BRKT,DRYER AIR CONDITIONER MANUAL CONT(C60) M6X12	8-98193-603-0	01	1	1409-1411	●		●	●
137	09.196 BOLT; BRKT,DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) M6X12	8-98193-603-0	01	1	1409-1411		●			●	●
137	09.196 BOLT; BRKT,DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) M6X12	8-98193-603-0	01	1	1412-	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60) 09.190 ID=8	8-98193-614-0	02	1	1409-1411	●		●	●
162	09.195 GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 09.190 ID=8	8-98193-614-0	02	1	1409-1411		●			●	●
162	09.195 GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 09.190 ID=8	8-98193-614-0	02	1	1412-	●	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-98233-382-0	01	1	1409-1411	●		●	●
173	09.190 INSULATOR; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-382-0	01	1	1409-1411		●			●	●
173	09.190 INSULATOR; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98233-382-0	01	1	1412-	●	●	●	●	●	●
