8-71 — COMPRESSOR; AIR CONDITIONING (#148549) — 9 parça

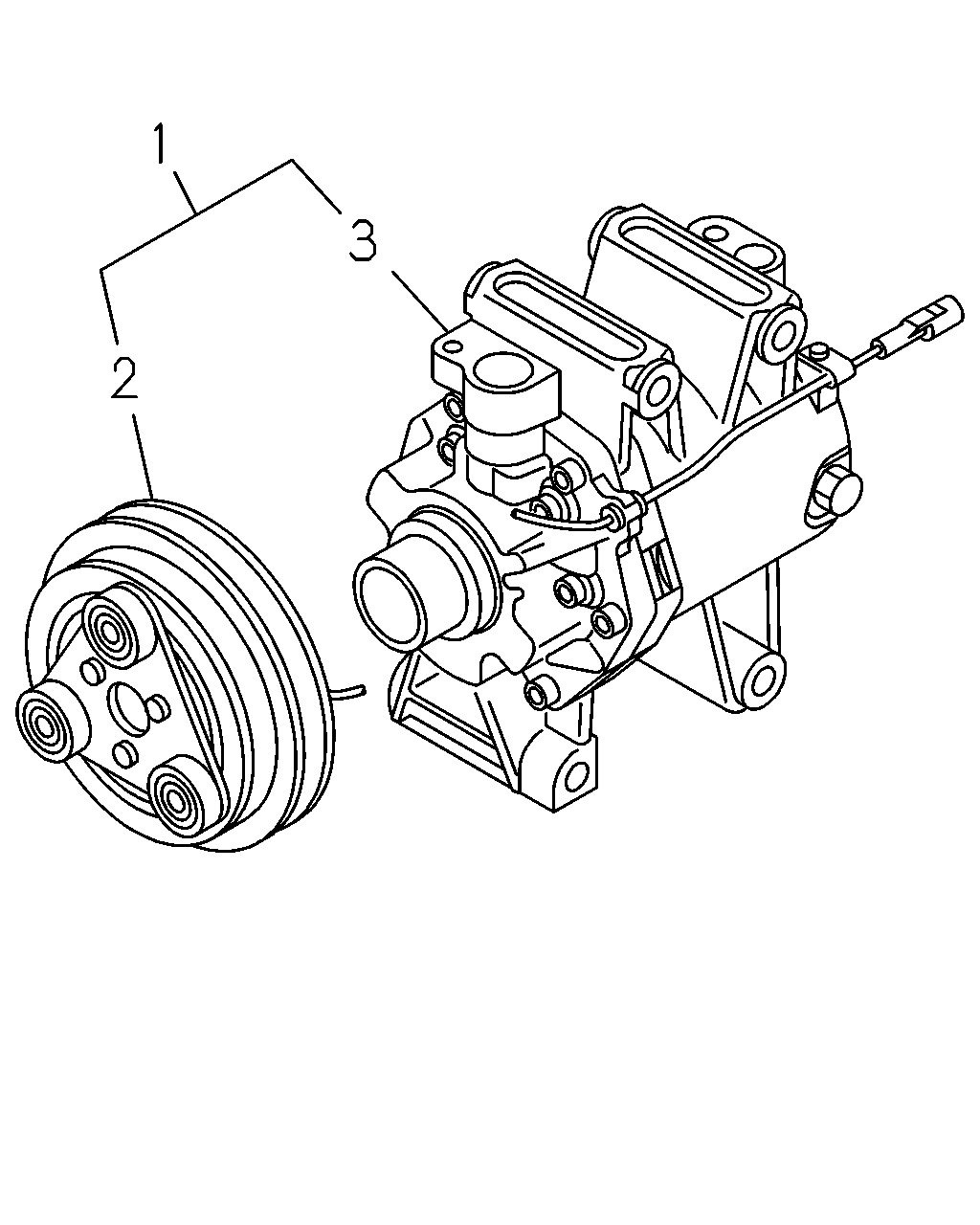

çizim 444389
1 2 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.170 COMPRESSOR ASM; A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 		8-98200-246-1 01 1 1412- ● ●
1 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98102-824-1 01 1 1409-1411 ● ● ● ● ● ●
1 09.170 COMPRESSOR ASM; A/C
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 		8-98102-824-1 01 1 1412- ● ● ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 		8-98258-537-0 01 1 1412- ● ●
2 09.188 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-936-1 01 1 1409-1411 ● ● ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 		8-98139-936-1 01 1 1412- ● ● ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 		8-98258-536-0 01 1 1412- ● ●
3 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-935-1 01 1 1409-1411 ● ● ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 		8-98139-935-1 01 1 1412- ● ● ● ● ● ●
