Sayfa 8-60 - Isuzu EPC

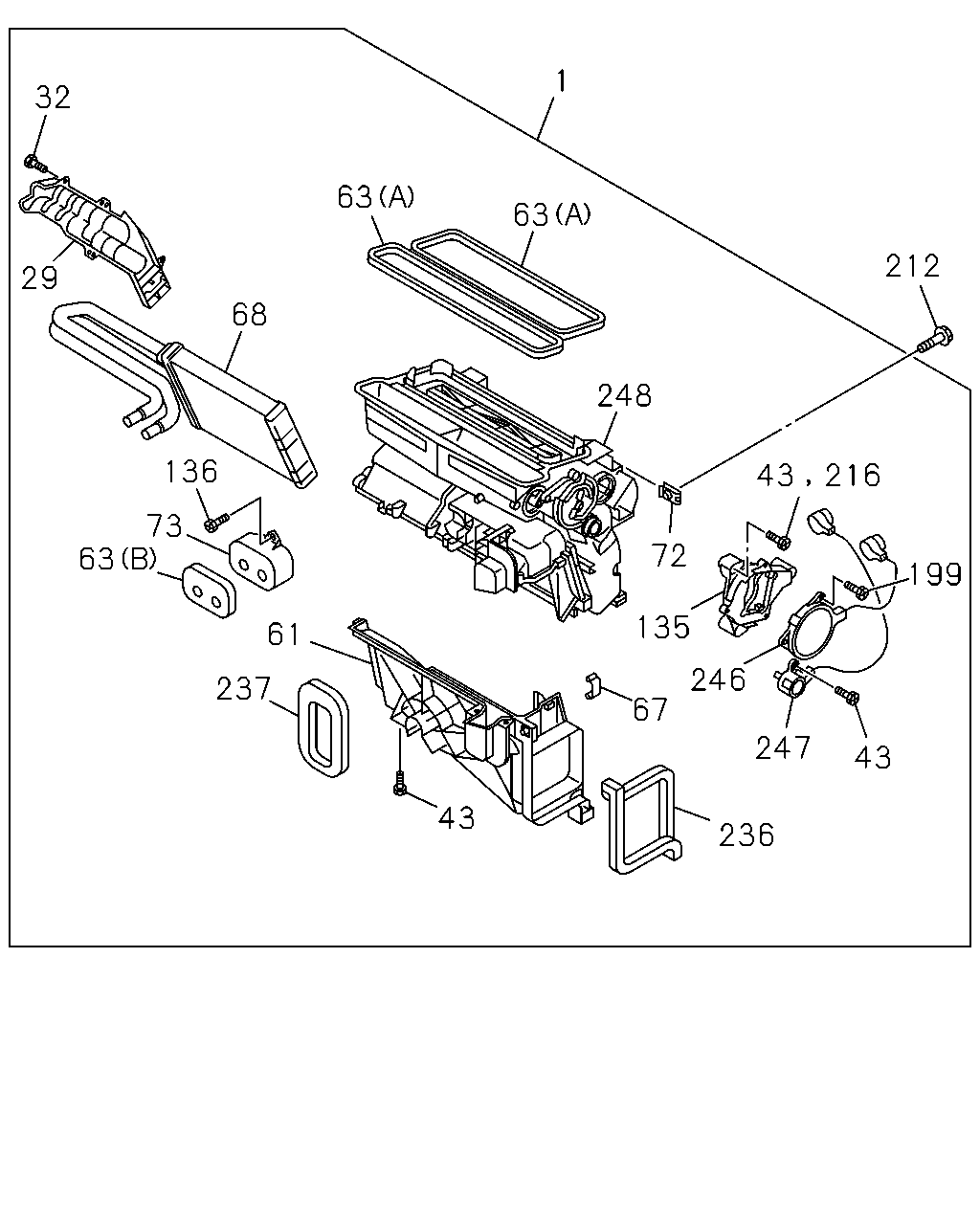

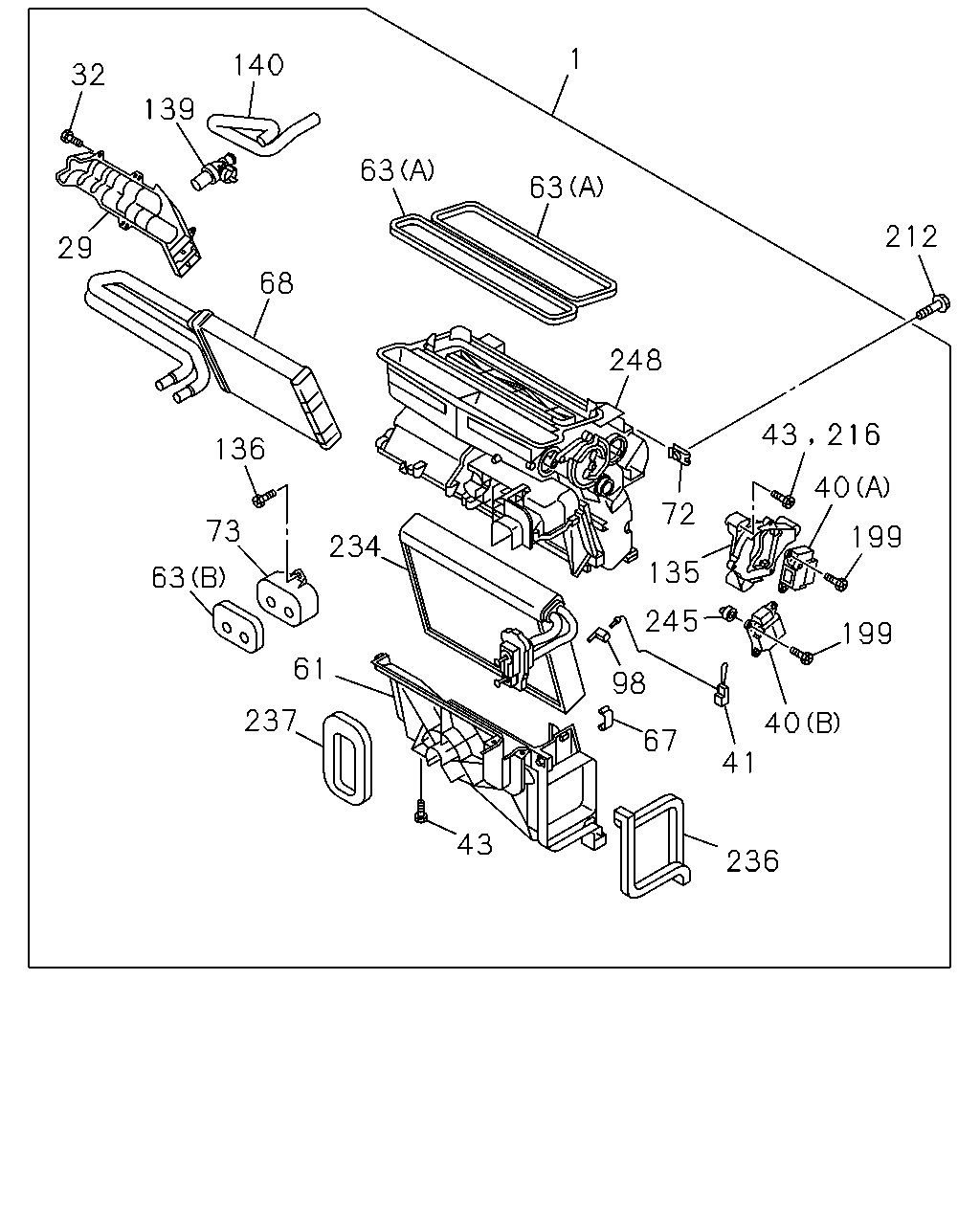

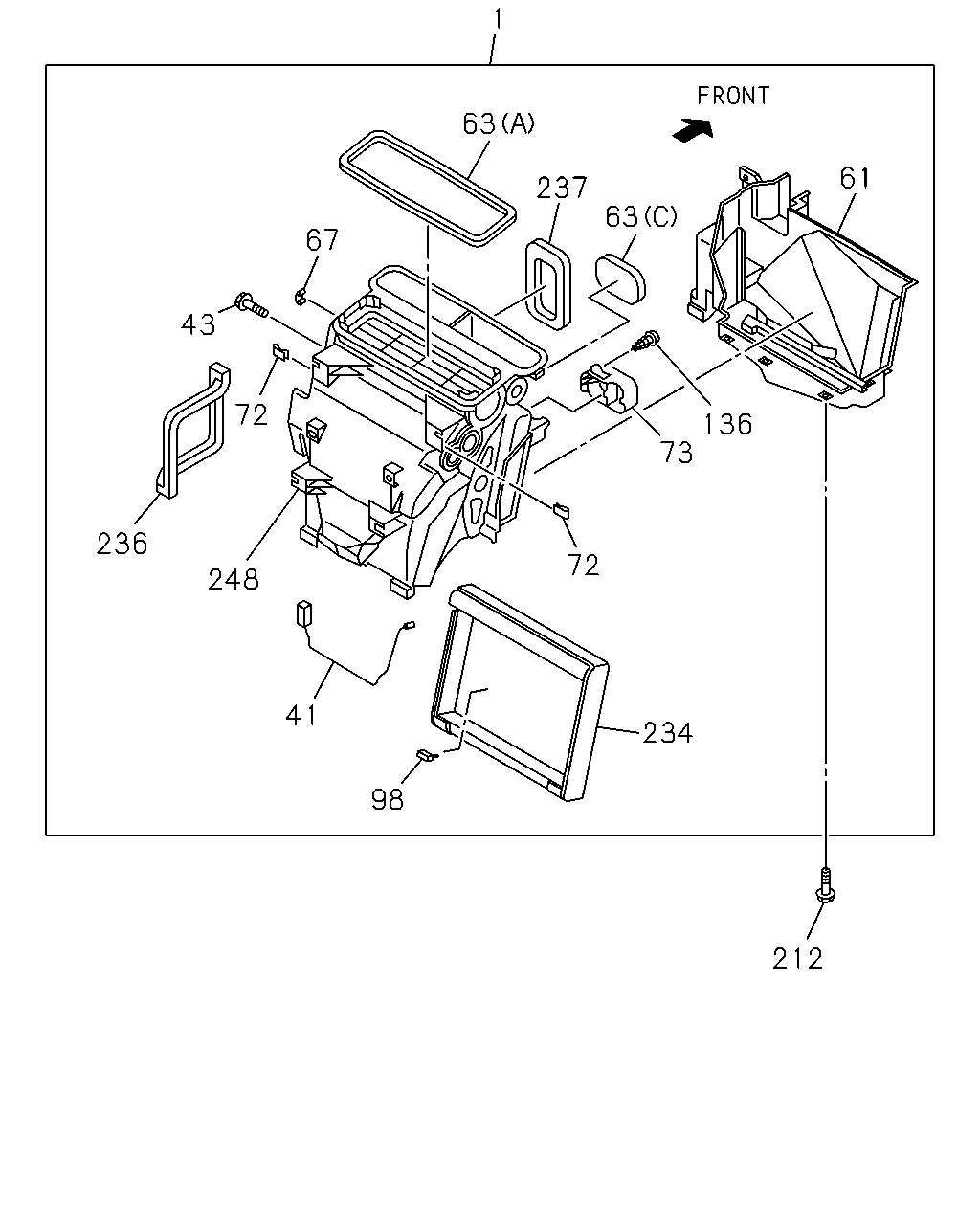

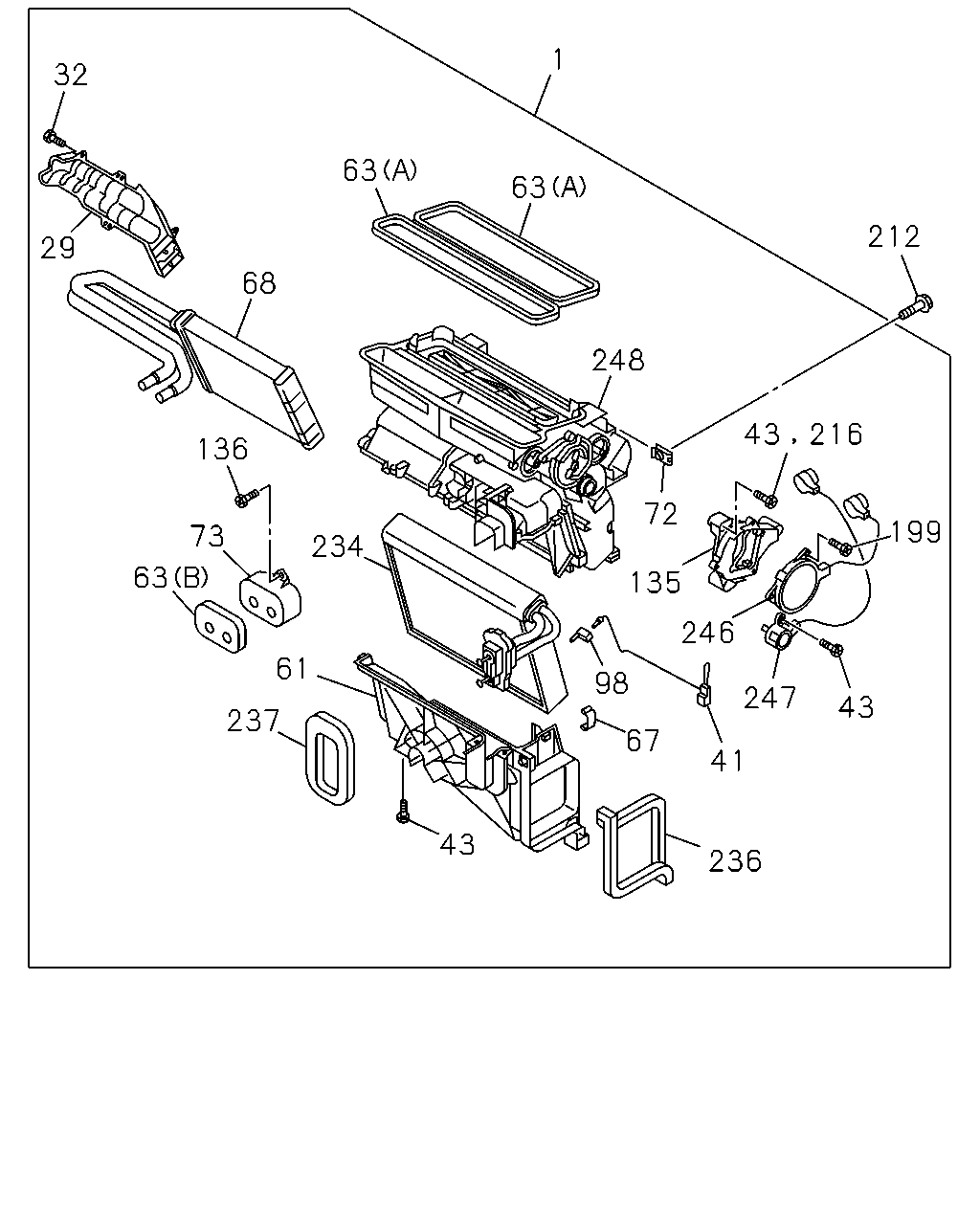

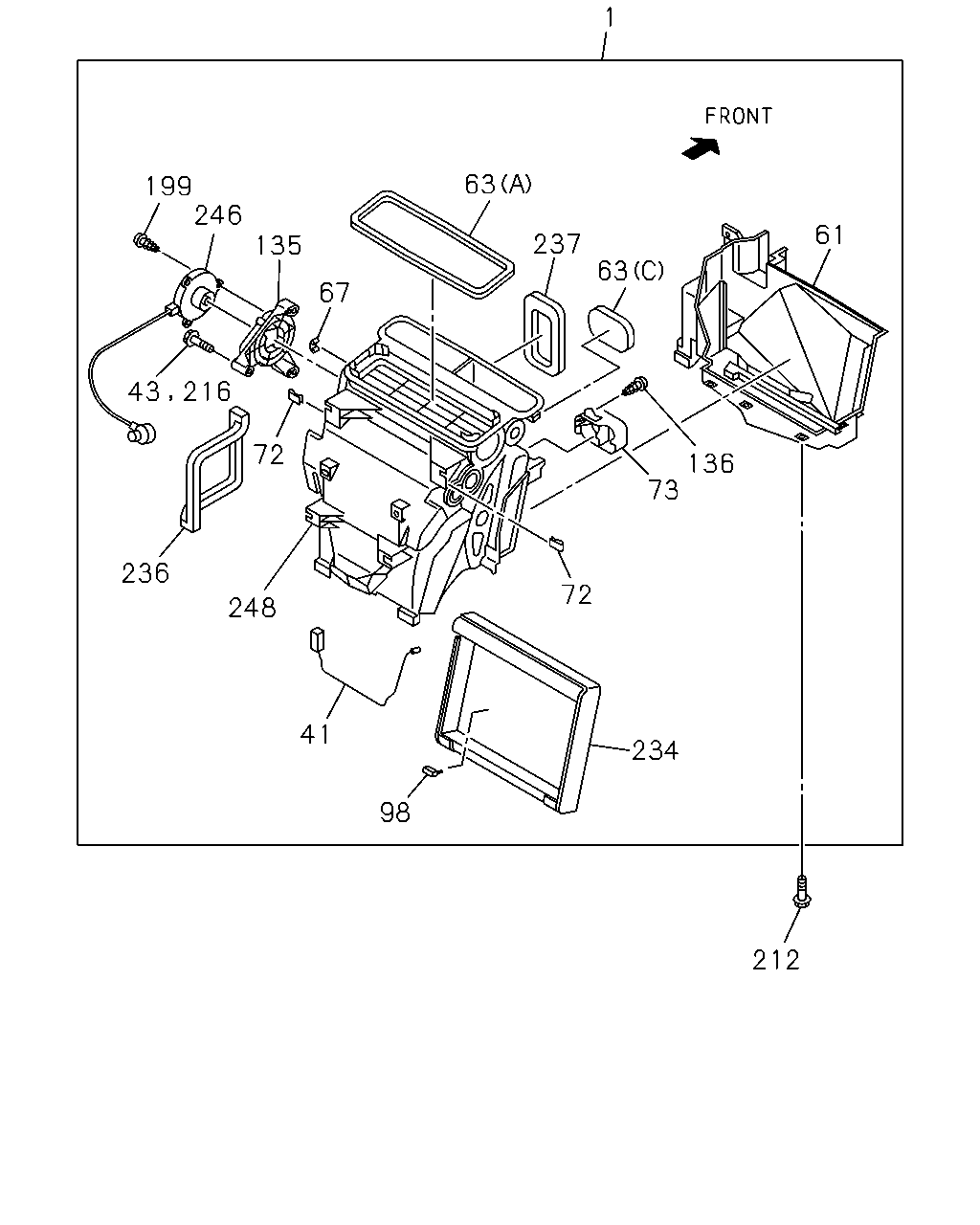

8-60 — HEATER UNIT; FRONT (#148547) — 525 parça

1 212 63 248 43 216 40 199 199 40 41 236 67 98 245 135 72 63 140 139 32 29 68 136 73 234 63 61 237 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-025-1	01	1	1412-	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-025-1	01	1	1412-		●	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-025-1	01	1	1412-				●	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-009-1	01	1	1412-	●			●	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-009-1	01	1	1412-	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-009-1	01	1	1412-		●	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-009-1	01	1	1412-		●	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-009-1	01	1	1412-				●	●
1	08.845 HEATER UNIT REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-024-1	01	1	1412-	●
1	08.845 HEATER UNIT REAR BODY DBL WALL CTR PULL(E63) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-024-1	01	1	1412-					●
1	08.845 HEATER UNIT REAR BODY DELETE(8HH) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-008-1	01	1	1412-	●				●
1	08.845 HEATER UNIT IDENTIFICATION LABEL FOR KD<6UT> COOLER WO/FRESH AIR(8NF)	8-98233-008-1	01	1	1412-	●
1	08.845 HEATER UNIT REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> COOLER WO/FRESH AIR(8NF)	8-98233-008-1	01	1	1412-					●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-026-0	01	1	1409-1411	●			●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-026-0	01	1	1409-1411		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-026-0	01	1	1412-				●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-026-0	01	1	1412-	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-026-0	01	1	1412-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-027-1	01	1	1409-1411	●			●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-027-1	01	1	1409-1411		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-027-1	01	1	1412-				●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-027-1	01	1	1412-	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-027-1	01	1	1412-		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-033-0	01	1	1409-		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98233-017-0	01	1	1409-		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-017-0	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-034-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98233-018-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-018-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98274-150-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98274-148-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98274-148-1	01	1	1409-				●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98274-147-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98274-147-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98274-145-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98274-145-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT>	8-98274-145-1	01	1	1409-				●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98274-145-1	01	1	1409-				●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1409-1411	●			●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1409-1411	●			●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-010-0	01	1	1409-1411		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1409-1411		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1412-	●			●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1412-				●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1412-	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-010-0	01	1	1412-		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1412-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1409-1411	●			●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1409-1411	●			●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-011-1	01	1	1409-1411		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1409-1411		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1412-	●			●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1412-				●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1412-	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-011-1	01	1	1412-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1412-		●	●
29	08.857 COVER; HTR UNIT	8-98233-590-0	01	1	1409-1411	●	●	●	●	●	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-590-0	01	1	1412-	●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT	8-98233-593-0	04	1	1409-1411	●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-593-0	04	1	1412-	●	●	●	●	●	●
40	08.854 ACTUATOR; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (A)	8-98139-385-0	01	1	1409-		●	●	●
40	08.854 ACTUATOR; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) (B)	8-98139-386-0	01	1	1409-		●	●	●
41	08.852 THERMOSTAT; HTR UNIT COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REAR HEATER DUCT<S8C>	8-98157-121-0	01	1	1412-	●	●	●	●	●
41	08.852 THERMOSTAT; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH)	8-98139-382-0	01	1	1409-		●	●	●
41	08.852 THERMOSTAT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH)	8-98139-383-0	01	1	1409-1411	●	●	●	●	●	●
41	08.852 THERMOSTAT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98139-383-0	01	1	1412-	●	●	●	●	●	●
43	09.786 SCREW; CASE,HTR UNIT 08.852	8-98233-593-0	15	1	1409-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH)	8-98233-573-0	01	1	1409-1411	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C42)	8-98233-573-0	01	1	1412-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-572-0	01	1	1409-1411	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98233-572-0	01	1	1412-	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REAR HEATER DUCT<S8C> (A)	8-98139-358-0	01	1	1412-	●	●	●	●	●
63	08.856 LINING; HTR UNIT COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REAR HEATER DUCT<S8C> (C)	8-98157-118-1	01	1	1412-	●	●	●	●	●
63	08.856 LINING; HTR UNIT (A)	8-98139-358-0	02	1	1409-1411	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98139-358-0	02	1	1412-	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT (B)	8-98139-361-1	01	1	1409-1411	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98139-361-1	01	1	1412-	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT	8-98157-123-0	01	1	1409-	●	●	●	●	●	●
68	08.854 CORE; HTR UNIT	8-98139-374-0	01	1	1409-1411	●	●	●	●	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-374-0	01	1	1412-	●	●	●	●	●	●
72	08.845 NUT; CASE,HTR UNIT	8-98139-394-1	03	1	1409-	●	●	●	●	●	●
73	08.845 PLATE; HTR UNIT	8-98233-591-0	01	1	1409-	●	●	●	●	●	●
98	08.854 CLIP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98157-122-0	01	1	1409-1411	●	●	●	●	●	●
98	08.854 CLIP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98157-122-0	01	1	1412-	●	●	●	●	●	●
135	08.854 COVER; HTR	8-98139-377-0	01	1	1409-1411	●	●	●	●	●	●
135	08.854 COVER; HTR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65)	8-98139-377-0	01	1	1412-	●	●	●	●	●	●
136	08.850 SCREW; PLATE 08.852	8-98233-593-0	02	1	1409-	●	●	●	●	●	●
139	08.845 ASPIRATOR; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH)	8-98139-392-1	01	1	1409-		●	●	●
140	08.845 HOSE; AIR AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH)	8-98274-187-0	01	1	1409-		●	●	●
199	08.854 SCREW; ACTUATOR COOLER W/FRESH AIR(C65) 08.852	8-98233-593-0	03	1	1412-	●	●	●	●	●
199	08.854 SCREW; ACTUATOR AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 08.852	8-98233-593-0	04	1	1409-		●	●	●
199	08.854 SCREW; ACTUATOR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 08.852	8-98233-593-0	05	1	1409-1411	●	●	●	●	●	●
199	08.854 SCREW; ACTUATOR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852	8-98233-593-0	05	1	1412-	●	●	●	●	●	●
212	09.262 BOLT; HTR UNIT 03.162 M6X20 FLANGE	0-28650-620-0	05	1	1409-	●	●	●	●	●	●
216	08.845 SCREW; COVER,HEATER UNIT 08.852	8-98233-593-0	03	1	1409-1411	●	●	●	●	●	●
216	08.845 SCREW; COVER,HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65) 08.852	8-98233-593-0	03	1	1412-	●	●	●	●	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-376-1	01	1	1409-1411	●	●	●	●	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98139-376-1	01	1	1412-	●	●	●	●	●	●
236	08.855 GASKET; HEATER	8-98139-357-0	01	1	1409-	●	●	●	●	●	●
237	08.855 INSULATOR; EVAPORATOR	8-98139-360-1	01	1	1409-	●	●	●	●	●	●
245	08.854 ADAPTER; HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH)	8-98139-390-0	01	1	1409-		●	●	●
248	08.854 CASE ASM; HTR UNIT COOLER W/FRESH AIR(C65)	8-98233-564-0	01	1	1412-	●	●	●	●	●
248	08.854 CASE ASM; HTR UNIT COOLER WO/FRESH AIR(8NF)	8-98233-563-0	01	1	1412-	●				●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C>	8-98233-568-0	01	1	1409-		●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>	8-98233-569-0	01	1	1409-		●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C>	8-98233-571-0	01	1	1409-		●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C>	8-98233-567-0	01	1	1409-		●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-567-0	01	1	1409-				●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42)	8-98233-565-0	01	1	1409-	●			●	●	●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C>	8-98233-565-0	01	1	1409-		●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98233-566-0	01	1	1409-	●			●	●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>	8-98233-566-0	01	1	1409-		●	●

1 63 63 32 68 136 234 73 63 61 237 43 67 98 135 72 43 216 248 199 212 246 247 43 41 236 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-025-1	01	1	1412-	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-025-1	01	1	1412-		●	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-025-1	01	1	1412-				●	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-009-1	01	1	1412-	●			●	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-009-1	01	1	1412-	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-009-1	01	1	1412-		●	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-009-1	01	1	1412-		●	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-009-1	01	1	1412-				●	●
1	08.845 HEATER UNIT REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-024-1	01	1	1412-	●
1	08.845 HEATER UNIT REAR BODY DBL WALL CTR PULL(E63) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-024-1	01	1	1412-					●
1	08.845 HEATER UNIT REAR BODY DELETE(8HH) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-008-1	01	1	1412-	●				●
1	08.845 HEATER UNIT IDENTIFICATION LABEL FOR KD<6UT> COOLER WO/FRESH AIR(8NF)	8-98233-008-1	01	1	1412-	●
1	08.845 HEATER UNIT REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> COOLER WO/FRESH AIR(8NF)	8-98233-008-1	01	1	1412-					●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-026-0	01	1	1409-1411	●			●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-026-0	01	1	1409-1411		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-026-0	01	1	1412-				●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-026-0	01	1	1412-	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-026-0	01	1	1412-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-027-1	01	1	1409-1411	●			●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-027-1	01	1	1409-1411		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-027-1	01	1	1412-				●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-027-1	01	1	1412-	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-027-1	01	1	1412-		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-033-0	01	1	1409-		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98233-017-0	01	1	1409-		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-017-0	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-034-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98233-018-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-018-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98274-150-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98274-148-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98274-148-1	01	1	1409-				●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98274-147-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98274-147-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98274-145-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98274-145-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT>	8-98274-145-1	01	1	1409-				●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98274-145-1	01	1	1409-				●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1409-1411	●			●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1409-1411	●			●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-010-0	01	1	1409-1411		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1409-1411		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1412-	●			●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1412-				●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1412-	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-010-0	01	1	1412-		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1412-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1409-1411	●			●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1409-1411	●			●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-011-1	01	1	1409-1411		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1409-1411		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1412-	●			●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1412-				●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1412-	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-011-1	01	1	1412-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1412-		●	●
29	08.857 COVER; HTR UNIT	8-98233-590-0	01	1	1409-1411	●	●	●	●	●	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-590-0	01	1	1412-	●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT	8-98233-593-0	04	1	1409-1411	●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-593-0	04	1	1412-	●	●	●	●	●	●
41	08.852 THERMOSTAT; HTR UNIT COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REAR HEATER DUCT<S8C>	8-98157-121-0	01	1	1412-	●	●	●	●	●
41	08.852 THERMOSTAT; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH)	8-98139-382-0	01	1	1409-		●	●	●
41	08.852 THERMOSTAT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH)	8-98139-383-0	01	1	1409-1411	●	●	●	●	●	●
41	08.852 THERMOSTAT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98139-383-0	01	1	1412-	●	●	●	●	●	●
43	09.786 SCREW; CASE,HTR UNIT 08.852	8-98233-593-0	15	1	1409-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH)	8-98233-573-0	01	1	1409-1411	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C42)	8-98233-573-0	01	1	1412-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-572-0	01	1	1409-1411	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98233-572-0	01	1	1412-	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REAR HEATER DUCT<S8C> (A)	8-98139-358-0	01	1	1412-	●	●	●	●	●
63	08.856 LINING; HTR UNIT COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REAR HEATER DUCT<S8C> (C)	8-98157-118-1	01	1	1412-	●	●	●	●	●
63	08.856 LINING; HTR UNIT (A)	8-98139-358-0	02	1	1409-1411	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98139-358-0	02	1	1412-	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT (B)	8-98139-361-1	01	1	1409-1411	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98139-361-1	01	1	1412-	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT	8-98157-123-0	01	1	1409-	●	●	●	●	●	●
68	08.854 CORE; HTR UNIT	8-98139-374-0	01	1	1409-1411	●	●	●	●	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-374-0	01	1	1412-	●	●	●	●	●	●
72	08.845 NUT; CASE,HTR UNIT	8-98139-394-1	03	1	1409-	●	●	●	●	●	●
73	08.845 PLATE; HTR UNIT	8-98233-591-0	01	1	1409-	●	●	●	●	●	●
98	08.854 CLIP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98157-122-0	01	1	1409-1411	●	●	●	●	●	●
98	08.854 CLIP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98157-122-0	01	1	1412-	●	●	●	●	●	●
135	08.854 COVER; HTR	8-98139-377-0	01	1	1409-1411	●	●	●	●	●	●
135	08.854 COVER; HTR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65)	8-98139-377-0	01	1	1412-	●	●	●	●	●	●
136	08.850 SCREW; PLATE 08.852	8-98233-593-0	02	1	1409-	●	●	●	●	●	●
199	08.854 SCREW; ACTUATOR COOLER W/FRESH AIR(C65) 08.852	8-98233-593-0	03	1	1412-	●	●	●	●	●
199	08.854 SCREW; ACTUATOR AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 08.852	8-98233-593-0	04	1	1409-		●	●	●
199	08.854 SCREW; ACTUATOR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 08.852	8-98233-593-0	05	1	1409-1411	●	●	●	●	●	●
199	08.854 SCREW; ACTUATOR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852	8-98233-593-0	05	1	1412-	●	●	●	●	●	●
212	09.262 BOLT; HTR UNIT 03.162 M6X20 FLANGE	0-28650-620-0	05	1	1409-	●	●	●	●	●	●
216	08.845 SCREW; COVER,HEATER UNIT 08.852	8-98233-593-0	03	1	1409-1411	●	●	●	●	●	●
216	08.845 SCREW; COVER,HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65) 08.852	8-98233-593-0	03	1	1412-	●	●	●	●	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-376-1	01	1	1409-1411	●	●	●	●	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98139-376-1	01	1	1412-	●	●	●	●	●	●
236	08.855 GASKET; HEATER	8-98139-357-0	01	1	1409-	●	●	●	●	●	●
237	08.855 INSULATOR; EVAPORATOR	8-98139-360-1	01	1	1409-	●	●	●	●	●	●
246	08.852 ACTUATOR; MODE COOLER W/FRESH AIR(C65)	8-98139-397-1	01	1	1412-	●	●	●	●	●
246	08.852 ACTUATOR; MODE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH)	8-98157-124-2	01	1	1409-1411	●	●	●	●	●	●
246	08.852 ACTUATOR; MODE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98157-124-2	01	1	1412-	●	●	●	●	●	●
247	08.852 ACTUATOR; TEMP HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH)	8-98139-398-1	01	1	1409-1411	●	●	●	●	●	●
247	08.852 ACTUATOR; TEMP HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98139-398-1	01	1	1412-	●	●	●	●	●	●
248	08.854 CASE ASM; HTR UNIT COOLER W/FRESH AIR(C65)	8-98233-564-0	01	1	1412-	●	●	●	●	●
248	08.854 CASE ASM; HTR UNIT COOLER WO/FRESH AIR(8NF)	8-98233-563-0	01	1	1412-	●				●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C>	8-98233-568-0	01	1	1409-		●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>	8-98233-569-0	01	1	1409-		●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C>	8-98233-571-0	01	1	1409-		●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C>	8-98233-567-0	01	1	1409-		●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-567-0	01	1	1409-				●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42)	8-98233-565-0	01	1	1409-	●			●	●	●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C>	8-98233-565-0	01	1	1409-		●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98233-566-0	01	1	1409-	●			●	●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>	8-98233-566-0	01	1	1409-		●	●

32 1 63 63 212 248 43 216 199 72 135 246 247 43 236 67 43 237 61 73 136 68 29 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-025-1	01	1	1412-	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-025-1	01	1	1412-		●	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-025-1	01	1	1412-				●	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-009-1	01	1	1412-	●			●	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-009-1	01	1	1412-	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-009-1	01	1	1412-		●	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-009-1	01	1	1412-		●	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-009-1	01	1	1412-				●	●
1	08.845 HEATER UNIT REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-024-1	01	1	1412-	●
1	08.845 HEATER UNIT REAR BODY DBL WALL CTR PULL(E63) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-024-1	01	1	1412-					●
1	08.845 HEATER UNIT REAR BODY DELETE(8HH) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-008-1	01	1	1412-	●				●
1	08.845 HEATER UNIT IDENTIFICATION LABEL FOR KD<6UT> COOLER WO/FRESH AIR(8NF)	8-98233-008-1	01	1	1412-	●
1	08.845 HEATER UNIT REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> COOLER WO/FRESH AIR(8NF)	8-98233-008-1	01	1	1412-					●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-026-0	01	1	1409-1411	●			●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-026-0	01	1	1409-1411		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-026-0	01	1	1412-				●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-026-0	01	1	1412-	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-026-0	01	1	1412-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-027-1	01	1	1409-1411	●			●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-027-1	01	1	1409-1411		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-027-1	01	1	1412-				●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-027-1	01	1	1412-	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-027-1	01	1	1412-		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-033-0	01	1	1409-		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98233-017-0	01	1	1409-		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-017-0	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-034-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98233-018-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-018-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98274-150-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98274-148-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98274-148-1	01	1	1409-				●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98274-147-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98274-147-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98274-145-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98274-145-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT>	8-98274-145-1	01	1	1409-				●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98274-145-1	01	1	1409-				●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1409-1411	●			●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1409-1411	●			●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-010-0	01	1	1409-1411		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1409-1411		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1412-	●			●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1412-				●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1412-	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-010-0	01	1	1412-		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1412-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1409-1411	●			●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1409-1411	●			●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-011-1	01	1	1409-1411		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1409-1411		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1412-	●			●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1412-				●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1412-	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-011-1	01	1	1412-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1412-		●	●
29	08.857 COVER; HTR UNIT	8-98233-590-0	01	1	1409-1411	●	●	●	●	●	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-590-0	01	1	1412-	●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT	8-98233-593-0	04	1	1409-1411	●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-593-0	04	1	1412-	●	●	●	●	●	●
43	09.786 SCREW; CASE,HTR UNIT 08.852	8-98233-593-0	15	1	1409-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH)	8-98233-573-0	01	1	1409-1411	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C42)	8-98233-573-0	01	1	1412-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-572-0	01	1	1409-1411	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98233-572-0	01	1	1412-	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REAR HEATER DUCT<S8C> (A)	8-98139-358-0	01	1	1412-	●	●	●	●	●
63	08.856 LINING; HTR UNIT COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REAR HEATER DUCT<S8C> (C)	8-98157-118-1	01	1	1412-	●	●	●	●	●
63	08.856 LINING; HTR UNIT (A)	8-98139-358-0	02	1	1409-1411	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98139-358-0	02	1	1412-	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT (B)	8-98139-361-1	01	1	1409-1411	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98139-361-1	01	1	1412-	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT	8-98157-123-0	01	1	1409-	●	●	●	●	●	●
68	08.854 CORE; HTR UNIT	8-98139-374-0	01	1	1409-1411	●	●	●	●	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-374-0	01	1	1412-	●	●	●	●	●	●
72	08.845 NUT; CASE,HTR UNIT	8-98139-394-1	03	1	1409-	●	●	●	●	●	●
73	08.845 PLATE; HTR UNIT	8-98233-591-0	01	1	1409-	●	●	●	●	●	●
135	08.854 COVER; HTR	8-98139-377-0	01	1	1409-1411	●	●	●	●	●	●
135	08.854 COVER; HTR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65)	8-98139-377-0	01	1	1412-	●	●	●	●	●	●
136	08.850 SCREW; PLATE 08.852	8-98233-593-0	02	1	1409-	●	●	●	●	●	●
199	08.854 SCREW; ACTUATOR COOLER W/FRESH AIR(C65) 08.852	8-98233-593-0	03	1	1412-	●	●	●	●	●
199	08.854 SCREW; ACTUATOR AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 08.852	8-98233-593-0	04	1	1409-		●	●	●
199	08.854 SCREW; ACTUATOR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 08.852	8-98233-593-0	05	1	1409-1411	●	●	●	●	●	●
199	08.854 SCREW; ACTUATOR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852	8-98233-593-0	05	1	1412-	●	●	●	●	●	●
212	09.262 BOLT; HTR UNIT 03.162 M6X20 FLANGE	0-28650-620-0	05	1	1409-	●	●	●	●	●	●
216	08.845 SCREW; COVER,HEATER UNIT 08.852	8-98233-593-0	03	1	1409-1411	●	●	●	●	●	●
216	08.845 SCREW; COVER,HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65) 08.852	8-98233-593-0	03	1	1412-	●	●	●	●	●	●
236	08.855 GASKET; HEATER	8-98139-357-0	01	1	1409-	●	●	●	●	●	●
237	08.855 INSULATOR; EVAPORATOR	8-98139-360-1	01	1	1409-	●	●	●	●	●	●
246	08.852 ACTUATOR; MODE COOLER W/FRESH AIR(C65)	8-98139-397-1	01	1	1412-	●	●	●	●	●
246	08.852 ACTUATOR; MODE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH)	8-98157-124-2	01	1	1409-1411	●	●	●	●	●	●
246	08.852 ACTUATOR; MODE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98157-124-2	01	1	1412-	●	●	●	●	●	●
247	08.852 ACTUATOR; TEMP HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH)	8-98139-398-1	01	1	1409-1411	●	●	●	●	●	●
247	08.852 ACTUATOR; TEMP HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98139-398-1	01	1	1412-	●	●	●	●	●	●
248	08.854 CASE ASM; HTR UNIT COOLER W/FRESH AIR(C65)	8-98233-564-0	01	1	1412-	●	●	●	●	●
248	08.854 CASE ASM; HTR UNIT COOLER WO/FRESH AIR(8NF)	8-98233-563-0	01	1	1412-	●				●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C>	8-98233-568-0	01	1	1409-		●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>	8-98233-569-0	01	1	1409-		●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C>	8-98233-571-0	01	1	1409-		●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C>	8-98233-567-0	01	1	1409-		●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-567-0	01	1	1409-				●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42)	8-98233-565-0	01	1	1409-	●			●	●	●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C>	8-98233-565-0	01	1	1409-		●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98233-566-0	01	1	1409-	●			●	●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>	8-98233-566-0	01	1	1409-		●	●

63 237 63 1 61 136 73 72 234 98 41 248 236 43 216 72 67 135 246 199 212

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-025-1	01	1	1412-	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-025-1	01	1	1412-		●	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-025-1	01	1	1412-				●	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-009-1	01	1	1412-	●			●	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-009-1	01	1	1412-	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-009-1	01	1	1412-		●	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-009-1	01	1	1412-		●	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-009-1	01	1	1412-				●	●
1	08.845 HEATER UNIT REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-024-1	01	1	1412-	●
1	08.845 HEATER UNIT REAR BODY DBL WALL CTR PULL(E63) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-024-1	01	1	1412-					●
1	08.845 HEATER UNIT REAR BODY DELETE(8HH) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-008-1	01	1	1412-	●				●
1	08.845 HEATER UNIT IDENTIFICATION LABEL FOR KD<6UT> COOLER WO/FRESH AIR(8NF)	8-98233-008-1	01	1	1412-	●
1	08.845 HEATER UNIT REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> COOLER WO/FRESH AIR(8NF)	8-98233-008-1	01	1	1412-					●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-026-0	01	1	1409-1411	●			●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-026-0	01	1	1409-1411		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-026-0	01	1	1412-				●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-026-0	01	1	1412-	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-026-0	01	1	1412-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-027-1	01	1	1409-1411	●			●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-027-1	01	1	1409-1411		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-027-1	01	1	1412-				●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-027-1	01	1	1412-	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-027-1	01	1	1412-		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-033-0	01	1	1409-		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98233-017-0	01	1	1409-		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-017-0	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-034-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98233-018-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-018-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98274-150-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98274-148-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98274-148-1	01	1	1409-				●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98274-147-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98274-147-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98274-145-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98274-145-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT>	8-98274-145-1	01	1	1409-				●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98274-145-1	01	1	1409-				●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1409-1411	●			●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1409-1411	●			●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-010-0	01	1	1409-1411		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1409-1411		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1412-	●			●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1412-				●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1412-	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-010-0	01	1	1412-		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1412-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1409-1411	●			●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1409-1411	●			●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-011-1	01	1	1409-1411		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1409-1411		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1412-	●			●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1412-				●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1412-	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-011-1	01	1	1412-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1412-		●	●
41	08.852 THERMOSTAT; HTR UNIT COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REAR HEATER DUCT<S8C>	8-98157-121-0	01	1	1412-	●	●	●	●	●
41	08.852 THERMOSTAT; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH)	8-98139-382-0	01	1	1409-		●	●	●
41	08.852 THERMOSTAT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH)	8-98139-383-0	01	1	1409-1411	●	●	●	●	●	●
41	08.852 THERMOSTAT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98139-383-0	01	1	1412-	●	●	●	●	●	●
43	09.786 SCREW; CASE,HTR UNIT 08.852	8-98233-593-0	15	1	1409-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH)	8-98233-573-0	01	1	1409-1411	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C42)	8-98233-573-0	01	1	1412-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-572-0	01	1	1409-1411	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98233-572-0	01	1	1412-	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REAR HEATER DUCT<S8C> (A)	8-98139-358-0	01	1	1412-	●	●	●	●	●
63	08.856 LINING; HTR UNIT COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REAR HEATER DUCT<S8C> (C)	8-98157-118-1	01	1	1412-	●	●	●	●	●
63	08.856 LINING; HTR UNIT (A)	8-98139-358-0	02	1	1409-1411	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98139-358-0	02	1	1412-	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT (B)	8-98139-361-1	01	1	1409-1411	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98139-361-1	01	1	1412-	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT	8-98157-123-0	01	1	1409-	●	●	●	●	●	●
72	08.845 NUT; CASE,HTR UNIT	8-98139-394-1	03	1	1409-	●	●	●	●	●	●
73	08.845 PLATE; HTR UNIT	8-98233-591-0	01	1	1409-	●	●	●	●	●	●
98	08.854 CLIP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98157-122-0	01	1	1409-1411	●	●	●	●	●	●
98	08.854 CLIP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98157-122-0	01	1	1412-	●	●	●	●	●	●
135	08.854 COVER; HTR	8-98139-377-0	01	1	1409-1411	●	●	●	●	●	●
135	08.854 COVER; HTR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65)	8-98139-377-0	01	1	1412-	●	●	●	●	●	●
136	08.850 SCREW; PLATE 08.852	8-98233-593-0	02	1	1409-	●	●	●	●	●	●
199	08.854 SCREW; ACTUATOR COOLER W/FRESH AIR(C65) 08.852	8-98233-593-0	03	1	1412-	●	●	●	●	●
199	08.854 SCREW; ACTUATOR AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 08.852	8-98233-593-0	04	1	1409-		●	●	●
199	08.854 SCREW; ACTUATOR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) 08.852	8-98233-593-0	05	1	1409-1411	●	●	●	●	●	●
199	08.854 SCREW; ACTUATOR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 08.852	8-98233-593-0	05	1	1412-	●	●	●	●	●	●
212	09.262 BOLT; HTR UNIT 03.162 M6X20 FLANGE	0-28650-620-0	05	1	1409-	●	●	●	●	●	●
216	08.845 SCREW; COVER,HEATER UNIT 08.852	8-98233-593-0	03	1	1409-1411	●	●	●	●	●	●
216	08.845 SCREW; COVER,HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR (C65) 08.852	8-98233-593-0	03	1	1412-	●	●	●	●	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-376-1	01	1	1409-1411	●	●	●	●	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98139-376-1	01	1	1412-	●	●	●	●	●	●
236	08.855 GASKET; HEATER	8-98139-357-0	01	1	1409-	●	●	●	●	●	●
237	08.855 INSULATOR; EVAPORATOR	8-98139-360-1	01	1	1409-	●	●	●	●	●	●
246	08.852 ACTUATOR; MODE COOLER W/FRESH AIR(C65)	8-98139-397-1	01	1	1412-	●	●	●	●	●
246	08.852 ACTUATOR; MODE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH)	8-98157-124-2	01	1	1409-1411	●	●	●	●	●	●
246	08.852 ACTUATOR; MODE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98157-124-2	01	1	1412-	●	●	●	●	●	●
248	08.854 CASE ASM; HTR UNIT COOLER W/FRESH AIR(C65)	8-98233-564-0	01	1	1412-	●	●	●	●	●
248	08.854 CASE ASM; HTR UNIT COOLER WO/FRESH AIR(8NF)	8-98233-563-0	01	1	1412-	●				●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C>	8-98233-568-0	01	1	1409-		●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>	8-98233-569-0	01	1	1409-		●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C>	8-98233-571-0	01	1	1409-		●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C>	8-98233-567-0	01	1	1409-		●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-567-0	01	1	1409-				●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42)	8-98233-565-0	01	1	1409-	●			●	●	●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C>	8-98233-565-0	01	1	1409-		●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98233-566-0	01	1	1409-	●			●	●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>	8-98233-566-0	01	1	1409-		●	●

63 1 237 63 61 136 73 72 234 98 41 248 236 72 43 67 212

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-025-1	01	1	1412-	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-025-1	01	1	1412-		●	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-025-1	01	1	1412-				●	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-009-1	01	1	1412-	●			●	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-009-1	01	1	1412-	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-009-1	01	1	1412-		●	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-009-1	01	1	1412-		●	●
1	08.845 HEATER UNIT COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-009-1	01	1	1412-				●	●
1	08.845 HEATER UNIT REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-024-1	01	1	1412-	●
1	08.845 HEATER UNIT REAR BODY DBL WALL CTR PULL(E63) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-024-1	01	1	1412-					●
1	08.845 HEATER UNIT REAR BODY DELETE(8HH) COOLER WO/FRESH AIR(8NF) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-008-1	01	1	1412-	●				●
1	08.845 HEATER UNIT IDENTIFICATION LABEL FOR KD<6UT> COOLER WO/FRESH AIR(8NF)	8-98233-008-1	01	1	1412-	●
1	08.845 HEATER UNIT REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> COOLER WO/FRESH AIR(8NF)	8-98233-008-1	01	1	1412-					●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-026-0	01	1	1409-1411	●			●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-026-0	01	1	1409-1411		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-026-0	01	1	1412-				●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-026-0	01	1	1412-	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-026-0	01	1	1412-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-027-1	01	1	1409-1411	●			●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-027-1	01	1	1409-1411		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-027-1	01	1	1412-				●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY FLAT BED(E39),REAR BODY DBLWALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-027-1	01	1	1412-	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-027-1	01	1	1412-		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-033-0	01	1	1409-		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98233-017-0	01	1	1409-		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-017-0	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-034-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98233-018-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-018-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98274-150-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98274-148-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98274-148-1	01	1	1409-				●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT>	8-98274-147-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98274-147-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98274-145-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98274-145-1	01	1	1409-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT>	8-98274-145-1	01	1	1409-				●
1	08.845 HEATER UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98274-145-1	01	1	1409-				●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1409-1411	●			●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1409-1411	●			●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-010-0	01	1	1409-1411		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1409-1411		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1412-	●			●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1412-				●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1412-	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-010-0	01	1	1412-		●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-010-0	01	1	1412-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1409-1411	●			●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1409-1411	●			●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-011-1	01	1	1409-1411		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1409-1411		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1412-	●			●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1412-				●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1412-	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C>	8-98233-011-1	01	1	1412-		●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT>	8-98233-011-1	01	1	1412-		●	●
41	08.852 THERMOSTAT; HTR UNIT COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REAR HEATER DUCT<S8C>	8-98157-121-0	01	1	1412-	●	●	●	●	●
41	08.852 THERMOSTAT; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH)	8-98139-382-0	01	1	1409-		●	●	●
41	08.852 THERMOSTAT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH)	8-98139-383-0	01	1	1409-1411	●	●	●	●	●	●
41	08.852 THERMOSTAT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98139-383-0	01	1	1412-	●	●	●	●	●	●
43	09.786 SCREW; CASE,HTR UNIT 08.852	8-98233-593-0	15	1	1409-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH)	8-98233-573-0	01	1	1409-1411	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C42)	8-98233-573-0	01	1	1412-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-572-0	01	1	1409-1411	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98233-572-0	01	1	1412-	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REAR HEATER DUCT<S8C> (A)	8-98139-358-0	01	1	1412-	●	●	●	●	●
63	08.856 LINING; HTR UNIT COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) EXC. REAR HEATER DUCT<S8C> (C)	8-98157-118-1	01	1	1412-	●	●	●	●	●
63	08.856 LINING; HTR UNIT (A)	8-98139-358-0	02	1	1409-1411	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98139-358-0	02	1	1412-	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT (B)	8-98139-361-1	01	1	1409-1411	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B)	8-98139-361-1	01	1	1412-	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT	8-98157-123-0	01	1	1409-	●	●	●	●	●	●
72	08.845 NUT; CASE,HTR UNIT	8-98139-394-1	03	1	1409-	●	●	●	●	●	●
73	08.845 PLATE; HTR UNIT	8-98233-591-0	01	1	1409-	●	●	●	●	●	●
98	08.854 CLIP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98157-122-0	01	1	1409-1411	●	●	●	●	●	●
98	08.854 CLIP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98157-122-0	01	1	1412-	●	●	●	●	●	●
136	08.850 SCREW; PLATE 08.852	8-98233-593-0	02	1	1409-	●	●	●	●	●	●
212	09.262 BOLT; HTR UNIT 03.162 M6X20 FLANGE	0-28650-620-0	05	1	1409-	●	●	●	●	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-376-1	01	1	1409-1411	●	●	●	●	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF)	8-98139-376-1	01	1	1412-	●	●	●	●	●	●
236	08.855 GASKET; HEATER	8-98139-357-0	01	1	1409-	●	●	●	●	●	●
237	08.855 INSULATOR; EVAPORATOR	8-98139-360-1	01	1	1409-	●	●	●	●	●	●
248	08.854 CASE ASM; HTR UNIT COOLER W/FRESH AIR(C65)	8-98233-564-0	01	1	1412-	●	●	●	●	●
248	08.854 CASE ASM; HTR UNIT COOLER WO/FRESH AIR(8NF)	8-98233-563-0	01	1	1412-	●				●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C>	8-98233-568-0	01	1	1409-		●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C>	8-98233-569-0	01	1	1409-		●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C>	8-98233-571-0	01	1	1409-		●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61) EXC. REAR HEATER DUCT<S8C>	8-98233-567-0	01	1	1409-		●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-567-0	01	1	1409-				●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42)	8-98233-565-0	01	1	1409-	●			●	●	●
248	08.854 CASE ASM; HTR UNIT HEATER & DEFROSTER(C42) EXC. REAR HEATER DUCT<S8C>	8-98233-565-0	01	1	1409-		●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98233-566-0	01	1	1409-	●			●	●	●
248	08.854 CASE ASM; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>	8-98233-566-0	01	1	1409-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
