8-50 — AIR CONDITIONING SYSTEM; FRONT (#148545) — 49 parça

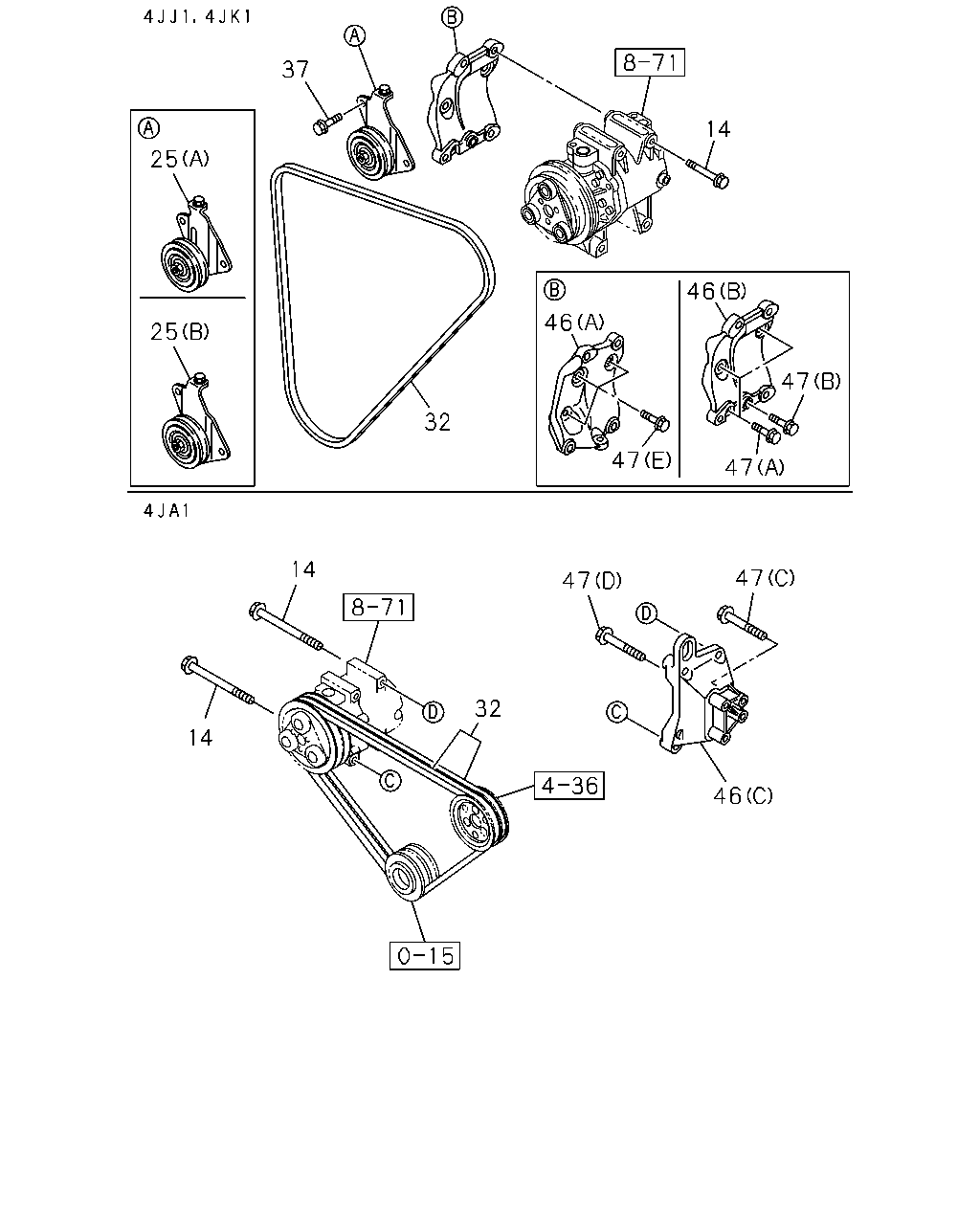

çizim 444353
37 25 25 14 47 47 47 47 46 47 46 14 32 46 14 32
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
14 09.171 BOLT; CMPR
4JK1-TCS ENG(LKZ),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) EXC. PROVISIONAL PACKAGE SPEC(BCC) M10X100 FLANGE 		0-28151-000-0 04 1 1412-1412 ● ● ● ● ●
14 09.171 BOLT; CMPR
AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCY ENG(RDX) ,COOLER WO/FRESH AIR(8NF) EXC. PROVISIONAL PACKAGE SPEC(BCC) M10X100 FLANGE 		0-28151-000-0 04 1 1412- ● ● ● ● ●
14 09.171 BOLT; CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 02.277 M10X95 FLANGE 		8-94397-027-1 04 1 1409-1411 ● ● ●
14 09.171 BOLT; CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.277 M10X95 FLANGE 		8-94397-027-1 04 1 1409-1411 ● ● ●
14 09.171 BOLT; CMPR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) PROVISIONAL PACKAGE SPEC(BCC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 02.277 M10X95 FLANGE 		8-94397-027-1 04 1 1412- ● ● ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JK1-TCS ENG(LKZ),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) EXC. PROVISIONAL PACKAGE SPEC(BCC) (B) 		8-98130-204-0 01 1 1412- ● ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98205-963-0 01 1 1409-1411 ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98205-963-0 01 1 1409-1411 ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) PROVISIONAL PACKAGE SPEC(BCC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (A) 		8-98205-963-0 01 1 1412- ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) L=1510 1 SET=2 PIECE BANDO 		8-97942-726-0 01 1 1412- ● ●
32 01.066 BELT; A/C CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) 1 SET=2 PIECE(8979427270) MITSUBOSHI 		8-97942-728-0 01 1 1412- ● ●
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) L=1445 MITSUBOSHI 		8-97985-121-0 01 1 1409-1411 ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) L=1445 MITSUBOSHI 		8-97985-121-0 01 1 1412- ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) L=1445 BANDO 		8-97985-122-0 01 1 1409-1411 ● ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) L=1445 BANDO 		8-97985-122-0 01 1 1412- ● ● ● ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1409-1411 ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1409-1411 ● ● ●
37 09.173 BOLT; PULLEY BRKT
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1412- ● ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JK1-TCS ENG(LKZ) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) EXC. PROVISIONAL PACKAGE SPEC(BCC) (B) 		8-97371-258-0 01 1 1412- ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (C) 		8-97358-563-0 01 1 1412- ● ●
46 09.171 BRACKET; CMPR
4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B) 		8-98039-618-0 01 1 1412- ● ● ● ●
46 09.171 BRACKET; CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98226-839-0 01 1 1409-1411 ● ● ●
46 09.171 BRACKET; CMPR
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98226-839-0 01 1 1409-1411 ● ● ●
46 09.171 BRACKET; CMPR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) PROVISIONAL PACKAGE SPEC(BCC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (A) 		8-98226-839-0 01 1 1412- ● ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JK1-TCS ENG(LKZ),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) EXC. PROVISIONAL PACKAGE SPEC(BCC) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 03 1 1412- ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JK1-TCS ENG(LKZ),4JK1-TCY ENG(RDX) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) EXC. PROVISIONAL PACKAGE SPEC(BCC) (B) M8X35 FLANGE 		8-98049-562-0 01 1 1412- ● ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) 02.277 (C) M8X40 FLANGE 		0-28050-840-0 02 1 1412- ● ●
47 09.173 BOLT; BRKT TO BODY
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) 00.685 (D) M10X45 FLANGE 		0-28051-045-0 02 1 1412- ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 06.216 (E) M8X25 FLANGE 		0-28650-825-0 04 1 1409-1411 ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 06.216 (E) M8X25 FLANGE 		0-28650-825-0 04 1 1409-1411 ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) PROVISIONAL PACKAGE SPEC(BCC) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 06.216 (E) M8X25 FLANGE 		0-28650-825-0 04 1 1412- ● ● ● ● ● ●
çizim 444372
99 262 99 262
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
99 09.171 BOLT; BRKT
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1409-1411 ● ● ●
99 09.171 BOLT; BRKT
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1409-1411 ● ● ●
99 09.171 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1412- ● ● ● ● ● ●
262 09.190 BRACKET; CONDENSER
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98103-644-0 01 1 1409-1411 ● ● ●
262 09.190 BRACKET; CONDENSER
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) 		8-98103-644-0 01 1 1409-1411 ● ● ●
262 09.190 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (B) 		8-98103-644-0 01 1 1412- ● ● ● ● ● ●
262 09.190 BRACKET; CONDENSER
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98103-645-0 01 1 1409-1411 ● ● ●
262 09.190 BRACKET; CONDENSER
4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98103-645-0 01 1 1409-1411 ● ● ●
262 09.190 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) (A) 		8-98103-645-0 01 1 1412- ● ● ● ● ● ●
çizim 460084
378 211 78 199 69 211
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
69 09.190 WASHER; PL,EVAP
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 1412- ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
M/T AISIN 6 SPEED(RNU) 08.015 M8X16 		8-98056-122-0 01 1 1412- ● ● ● ●
78 09.211 BOLT; EVAP,A/C
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1409-1411 ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1412- ● ● ● ● ● ●
199 09.225 NUT
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1412- ● ● ● ● ●
211 09.190 CLIP; HOSE
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (B) 		8-98173-569-0 01 1 1412- ● ● ● ● ●
211 09.190 CLIP; HOSE
02.343 (A) ID=22 L=35 		8-97375-643-0 01 1 1409-1411 ● ● ● ● ● ●
211 09.190 CLIP; HOSE
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) 02.343 (A) ID=22 L=35 		8-97375-643-0 01 1 1412- ● ● ● ● ● ●
378 09.211 HOSE; DRAIN,EVAPORATOR 8-98163-367-2 01 1 1409- ● ● ● ● ● ●
