8-41 — HEATER SYSTEM; REAR (#148543) — 6 parça

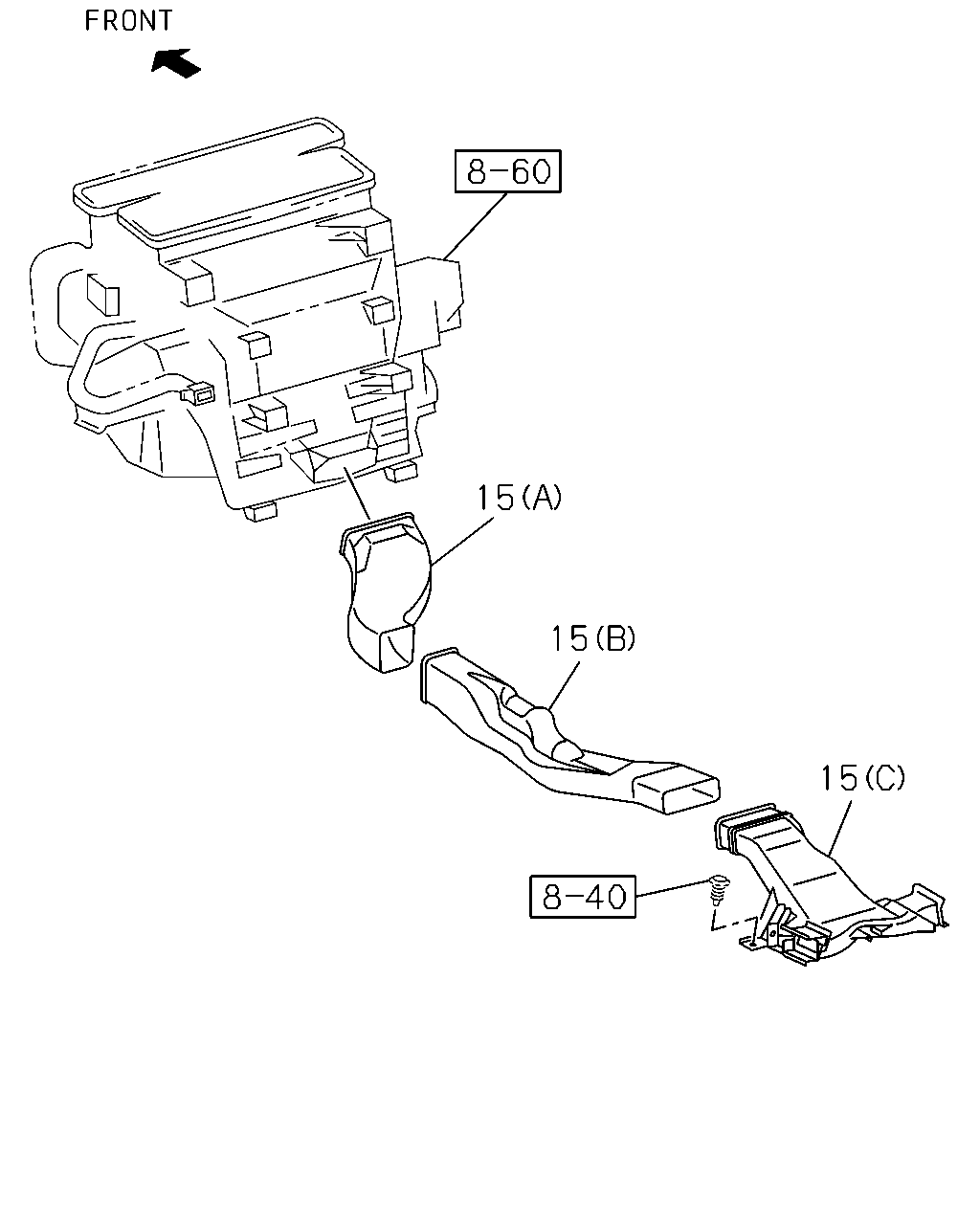

çizim 444296
15 15 15
BalonParca AdiParca NoAdetTipApplied Date A B
15 09.786 DUCT; RR HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> (A) 		8-98129-545-0 01 1 1409-1505 ● ●
15 09.786 DUCT; RR HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> (A) 		8-98129-545-0 01 1 1506- ● ●
15 09.786 DUCT; RR HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> (B) 		8-98129-546-0 01 1 1409-1505 ● ●
15 09.786 DUCT; RR HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> (B) 		8-98129-546-0 01 1 1506- ● ●
15 09.786 DUCT; RR HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR BODY DBL WALL CTR PULL(E63), REARBODY DELETE(8HH) REAR HEATER DUCT<S8C> (C) 		8-98129-547-1 01 1 1409-1505 ● ●
15 09.786 DUCT; RR HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) REAR HEATER DUCT<S8C> (C) 		8-98129-547-1 01 1 1506- ● ●
