◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51580 - TFR/TFS RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#148541) — 55 parça

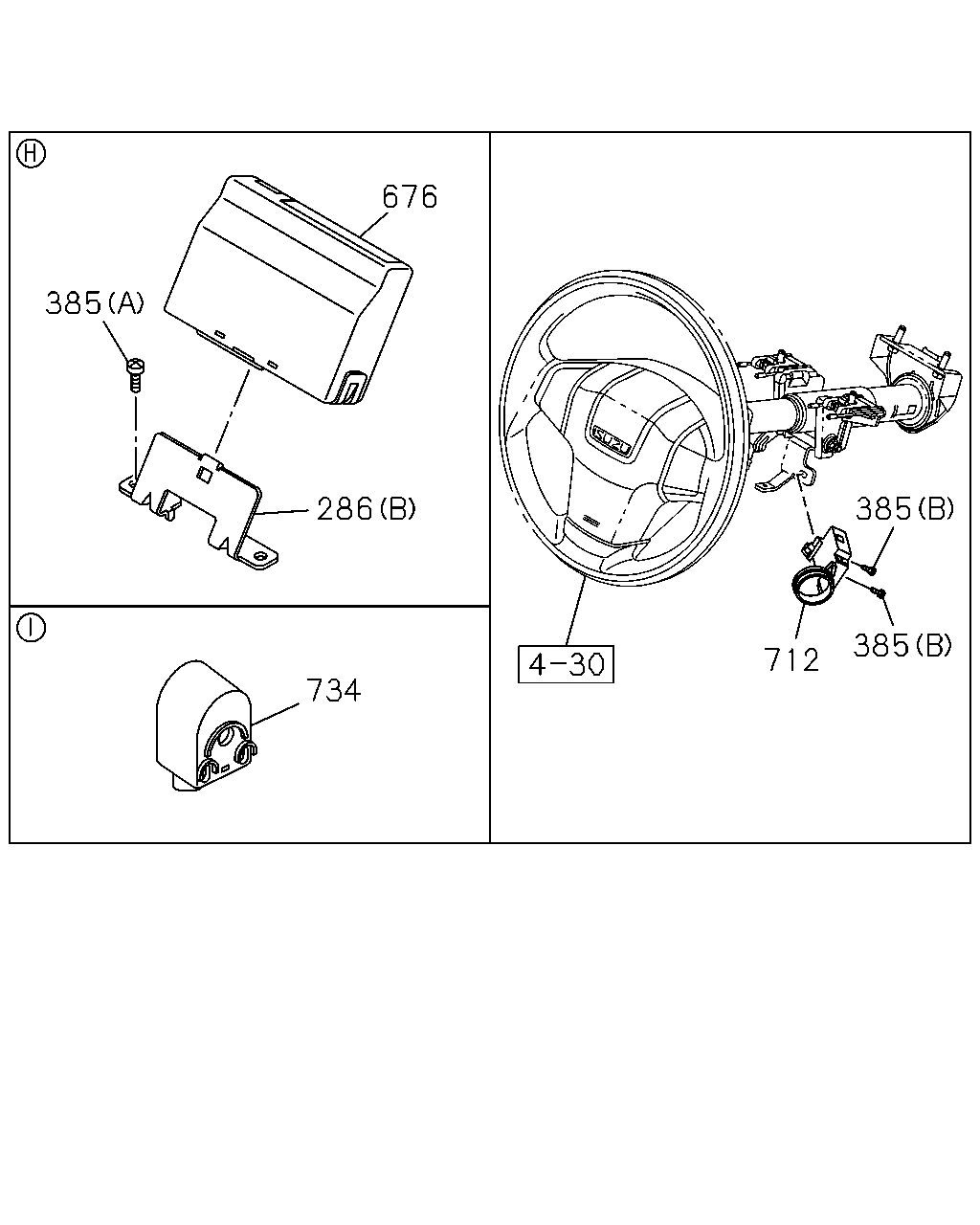

çizim 444016
676 385 286 734 712 385 385
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
286 03.670 BRACKET
REMOTE CONT DOOR LOCK<AP5> (A) 		8-98102-503-0 01 1 1409- ● ● ●
286 03.670 BRACKET
PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> (A) 		8-98102-503-0 01 1 1409- ● ● ●
286 03.670 BRACKET
PASSIVE ENTRY AND START SYSTEM<AP3> (B) 		8-98102-502-2 01 1 1409- ● ● ●
385 03.670 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> 08.083 (A) SCREW M5X16 TAPPING 		8-98167-449-0 01 1 1409- ● ● ●
385 03.670 BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> 08.083 (A) SCREW M5X16 TAPPING 		8-98167-449-0 01 1 1409- ● ● ●
385 03.670 BOLT; CONT UNIT
4JJ1-TCX ENG(LS0) 02.510 (B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1409-1411 ● ● ●
385 03.670 BOLT; CONT UNIT
4JJ1-TCX ENG(LS0) IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 02.510 (B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1409-1411 ● ● ●
385 03.670 BOLT; CONT UNIT
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 02.510 (B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1412-1505 ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> 02.510 (B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1506- ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> 02.510 (B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1506- ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3> 08.083 (A) SCREW M5X16 TAPPING 		8-98167-449-0 02 1 1409- ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98290-819-0 01 1 1409-1505 ● ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98306-471-0 01 1 1506- ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
4JJ1-TCX ENG(LS0) 		8-98123-260-5 01 1 1409-1411 ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
4JJ1-TCX ENG(LS0) IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98123-260-5 01 1 1409-1411 ● ● ●
712 03.670 CONTROL UNIT; ANTI THEFT
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98293-154-0 01 1 1412- ● ● ● ● ● ●
734 02.588 ALARM; MULTI
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98192-897-0 01 1 1409- ● ● ●

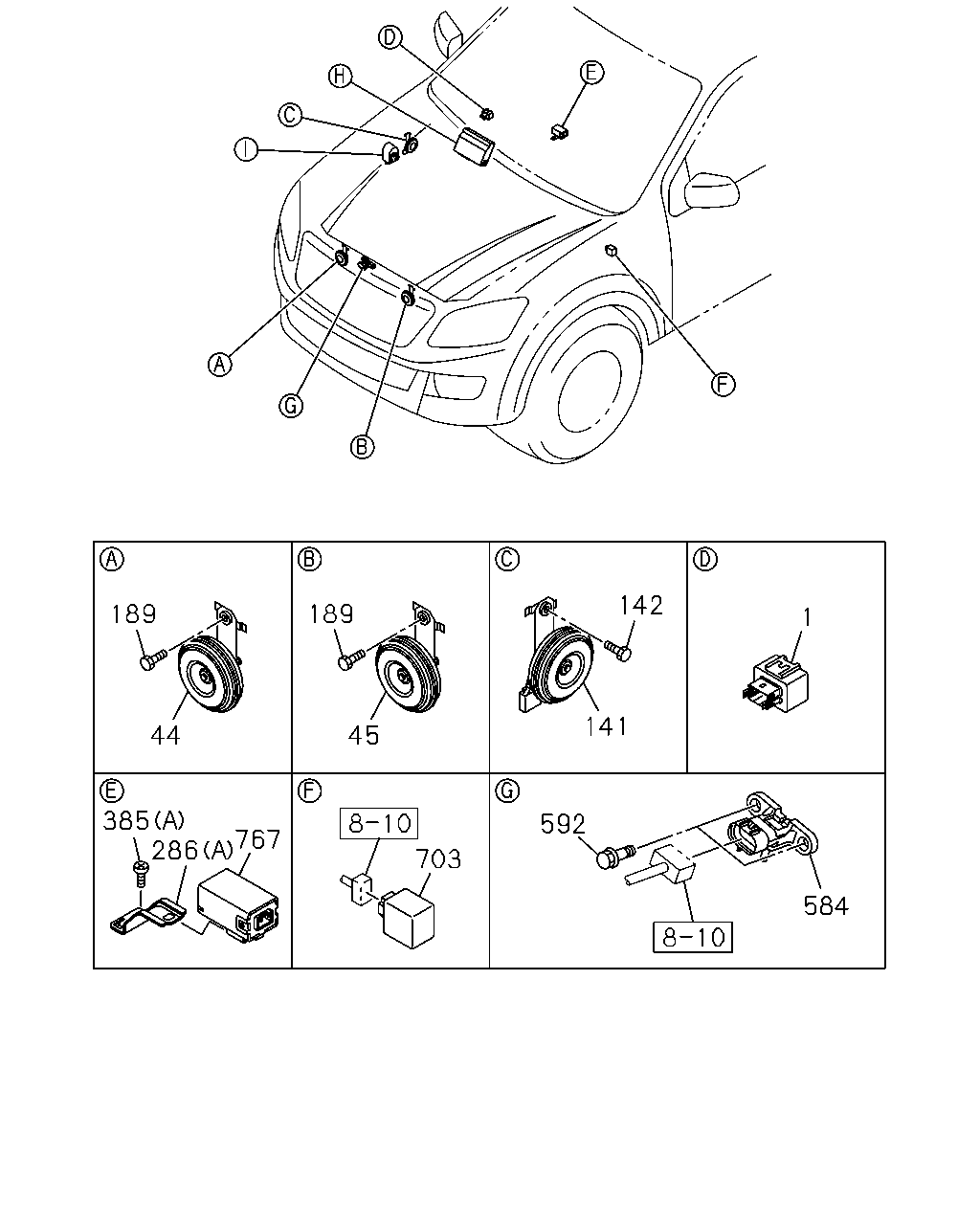

çizim 444492
189 142 141 1 584 703 286 385 767 44 45 189 592
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.575 UNIT; FLASHER 8-98080-978-0 01 1 1409- ● ● ● ● ● ●
44 02.810 HORN; HIGH NOTE 8-98084-022-1 01 1 1409-1411 ● ● ● ● ● ●
44 02.810 HORN; HIGH NOTE 8-98084-022-1 01 1 1412- ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> 		8-98084-022-1 01 1 1412- ● ● ● ● ●
45 02.810 HORN; LOW NOTE 8-98084-023-0 01 1 1409- ● ● ● ● ● ●
141 02.810 HORN; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98164-588-0 01 1 1409- ● ● ●
142 02.810 BOLT; HORN,ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 1409-1501 ● ● ●
142 02.810 BOLT; HORN,ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.559 M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502- ● ● ●
189 02.812 BOLT; HORN
02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 1409-1411 ● ● ● ● ● ●
189 02.812 BOLT; HORN
02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 1409-1411 ● ● ● ● ● ●
189 02.812 BOLT; HORN
02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 1412-1501 ● ● ● ● ● ●
189 02.812 BOLT; HORN
02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 1412-1501 ●
189 02.812 BOLT; HORN
DUAL TONE HORN<U05> 02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 1412-1501 ● ● ● ● ●
189 02.812 BOLT; HORN
02.559 M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502- ● ● ● ● ● ●
189 02.812 BOLT; HORN
02.559 M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502- ●
189 02.812 BOLT; HORN
DUAL TONE HORN<U05> 02.559 M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502- ● ● ● ● ●
286 03.670 BRACKET
REMOTE CONT DOOR LOCK<AP5> (A) 		8-98102-503-0 01 1 1409- ● ● ●
286 03.670 BRACKET
PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> (A) 		8-98102-503-0 01 1 1409- ● ● ●
286 03.670 BRACKET
PASSIVE ENTRY AND START SYSTEM<AP3> (B) 		8-98102-502-2 01 1 1409- ● ● ●
385 03.670 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> 08.083 (A) SCREW M5X16 TAPPING 		8-98167-449-0 01 1 1409- ● ● ●
385 03.670 BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> 08.083 (A) SCREW M5X16 TAPPING 		8-98167-449-0 01 1 1409- ● ● ●
385 03.670 BOLT; CONT UNIT
4JJ1-TCX ENG(LS0) 02.510 (B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1409-1411 ● ● ●
385 03.670 BOLT; CONT UNIT
4JJ1-TCX ENG(LS0) IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 02.510 (B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1409-1411 ● ● ●
385 03.670 BOLT; CONT UNIT
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0), 4JK1-TCY ENG(RDX) IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> 02.510 (B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1412-1505 ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> 02.510 (B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1506- ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> IMMOBILIZER SYSTEM<7KC> 02.510 (B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1506- ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3> 08.083 (A) SCREW M5X16 TAPPING 		8-98167-449-0 02 1 1409- ● ● ●
584 02.440 SENSOR; PRESSURE
4JJ1-TCX ENG(LS0) 03.331 		8-98020-514-0 01 1 1409-1411 ● ● ● ● ● ●
584 02.440 SENSOR; PRESSURE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 03.331 		8-98020-514-0 01 1 1412- ● ● ● ● ● ●
592 02.490 BOLT; SENSOR
4JJ1-TCX ENG(LS0) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1409-1411 ● ● ● ● ● ●
592 02.490 BOLT; SENSOR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1412- ● ● ● ● ● ●
703 09.778 TIMER; DEFOGGER
EXC. REMOTE CONT DOOR LOCK<AP5> 12V 		8-97301-600-0 01 1 1409-1411 ●
703 09.778 TIMER; DEFOGGER
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> 12V 		8-97301-600-0 01 1 1409-1411 ● ● ●
703 09.778 TIMER; DEFOGGER
EXC. REMOTE CONT DOOR LOCK<AP5> 12V 		8-97301-600-0 01 1 1412- ●
703 09.778 TIMER; DEFOGGER
REAR DEFOGGER<C49> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> 12V 		8-97301-600-0 01 1 1412- ● ● ●
767 07.450 RECEIVER ASM; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<AP5> 		8-98076-338-1 01 1 1409- ● ● ● ● ● ●
767 07.450 RECEIVER ASM; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98076-337-1 01 1 1409-1506 ● ● ●
767 07.450 RECEIVER ASM; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98306-421-0 01 1 1507- ● ● ●
