◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51580 - TFR/TFS RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM ▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#148540) — 85 parça

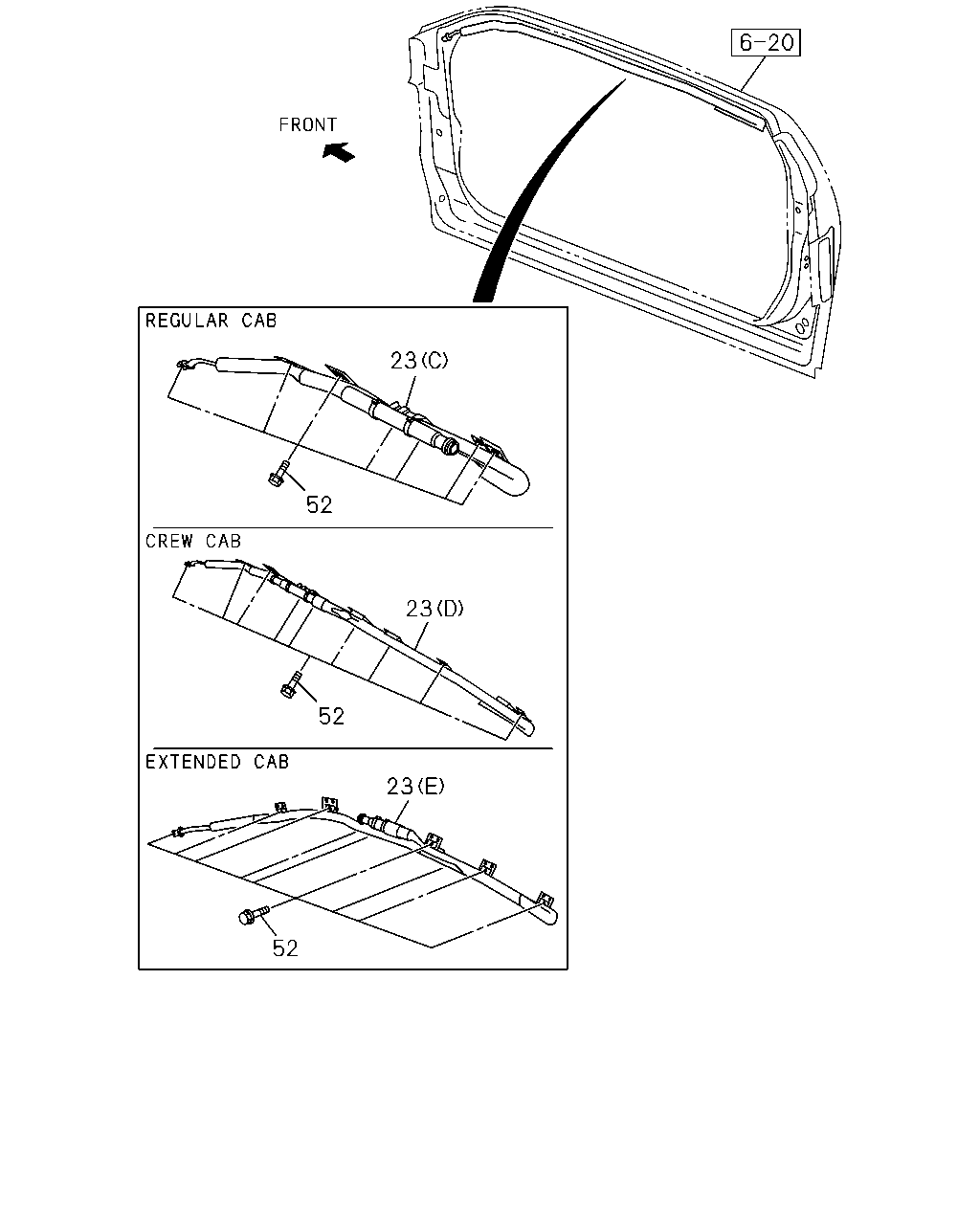

çizim 443998
23 52 23 52 23 52
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
23 02.559 AIR BAG UNIT
(B) BLACK 		8-97416-642-7 01 1 1409-1411 ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
(B) BLACK 		8-97416-642-7 01 1 1412-1509 ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) (B) BLACK 		8-97416-642-7 01 1 1412-1509 ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) (B) BLACK 		8-97416-642-7 01 1 1510- ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
(A) BLACK 		8-97416-641-6 01 1 1409-1411 ● ● ● ●
23 02.559 AIR BAG UNIT
EXC. HIGH RIDE SUSPENSION(7YC) (A) BLACK 		8-97416-641-6 01 1 1409-1411 ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),LAOS EQUIPMENT(CF0) (A) BLACK 		8-97416-641-6 01 1 1412- ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
(E) 		8-98147-098-6 01 1 1409-1411 ● ●
23 02.559 AIR BAG UNIT
(E) 		8-98147-098-6 01 1 1412-1509 ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (E) 		8-98147-098-6 01 1 1412-1509 ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (E) 		8-98147-098-6 01 1 1510- ● ●
23 02.559 AIR BAG UNIT
(E) 		8-98147-099-6 01 1 1409-1411 ● ●
23 02.559 AIR BAG UNIT
(E) 		8-98147-099-6 01 1 1412-1509 ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (E) 		8-98147-099-6 01 1 1412-1509 ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (E) 		8-98147-099-6 01 1 1510- ● ●
23 02.559 AIR BAG UNIT
(C) 		8-98147-096-5 01 1 1409-1411 ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (C) 		8-98147-096-5 01 1 1412- ● ●
23 02.559 AIR BAG UNIT
(C) 		8-98147-097-5 01 1 1409-1411 ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (C) 		8-98147-097-5 01 1 1412- ● ●
23 02.559 AIR BAG UNIT
HIGH RIDE SUSPENSION(7YC) (A) BLACK 		8-97424-332-0 01 1 1409-1411 ●
23 02.559 AIR BAG UNIT
(A) BLACK 		8-97424-332-0 01 1 1409-1411 ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) AUSTRALIA EQUIPMENT(B13),LAOS EQUIPMENT(CF0) HIGH RIDE SUSPENSION(7YC) (A) BLACK 		8-97424-332-0 01 1 1412- ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) LAOS EQUIPMENT(CF0) EXC. HIGH RIDE SUSPENSION(7YC) (A) BLACK 		8-97424-332-0 01 1 1412- ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) INDONESIA EQUIPMENT(B00),LAOS EQUIPMENT(CF0) (A) BLACK 		8-97424-332-0 01 1 1412- ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13),LAOS EQUIPMENT(CF0) (A) BLACK 		8-97424-332-0 01 1 1412- ●
23 02.559 AIR BAG UNIT
(D) 		8-98147-100-6 01 1 1409-1411 ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (D) 		8-98147-100-6 01 1 1412- ● ●
23 02.559 AIR BAG UNIT
(D) 		8-98147-101-6 01 1 1409-1411 ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (D) 		8-98147-101-6 01 1 1412- ● ●
52 02.559 BOLT; AIR BAG
03.162 M6X20 FLANGE 		0-28650-620-0 18 1 1409-1411 ● ●
52 02.559 BOLT; AIR BAG
03.162 M6X20 FLANGE 		0-28650-620-0 18 1 1412-1509 ●
52 02.559 BOLT; AIR BAG
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 03.162 M6X20 FLANGE 		0-28650-620-0 18 1 1412-1509 ●
52 02.559 BOLT; AIR BAG
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 03.162 M6X20 FLANGE 		0-28650-620-0 18 1 1510- ● ●
52 02.559 BOLT; AIR BAG
03.162 M6X20 FLANGE 		0-28650-620-0 14 1 1409-1411 ● ●
52 02.559 BOLT; AIR BAG
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 03.162 M6X20 FLANGE 		0-28650-620-0 14 1 1412- ● ●
52 02.559 BOLT; AIR BAG
03.162 M6X20 FLANGE 		0-28650-620-0 20 1 1409-1411 ● ●
52 02.559 BOLT; AIR BAG
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 03.162 M6X20 FLANGE 		0-28650-620-0 20 1 1412- ● ●

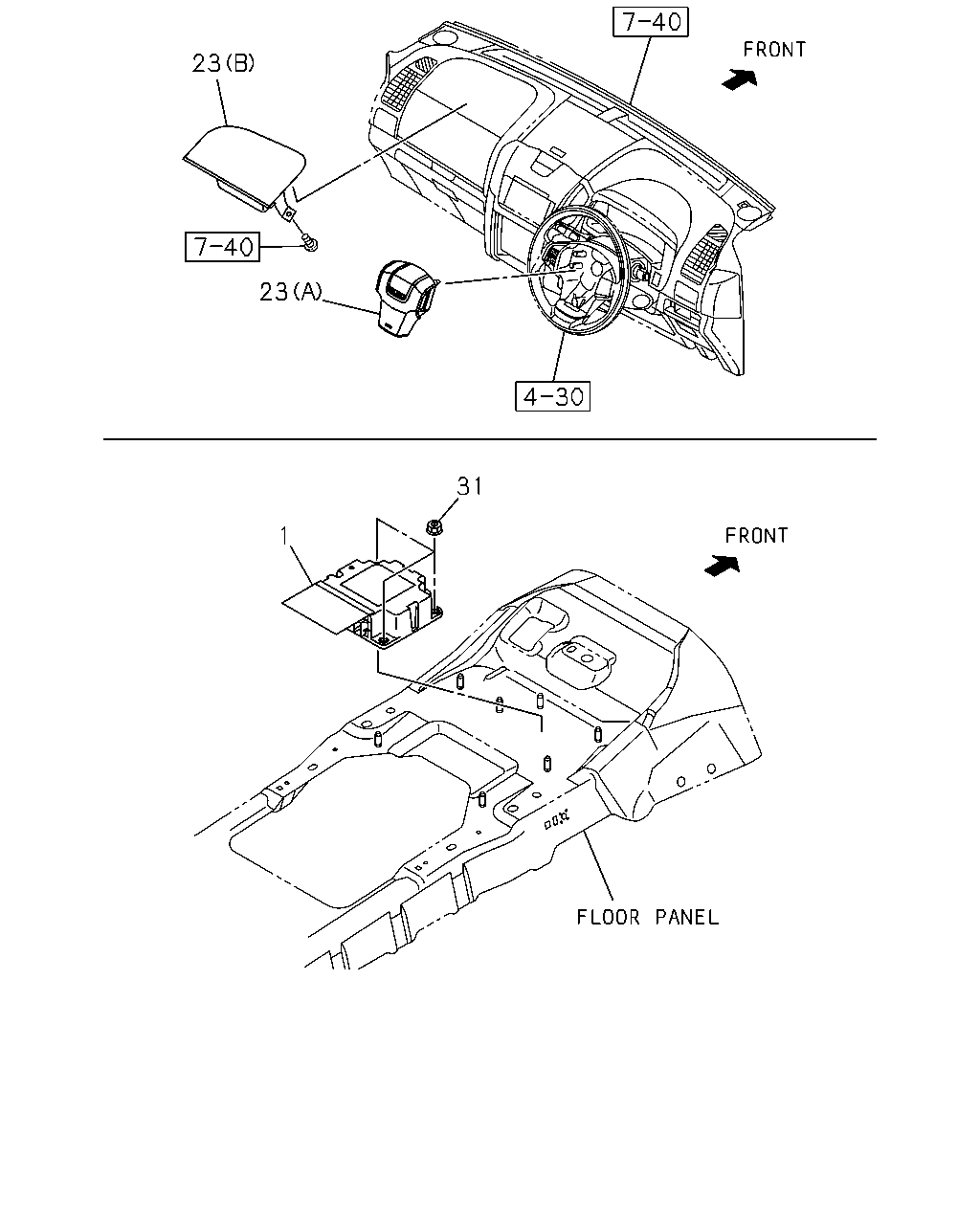

çizim 444044
23 31 1 23
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER(AK5) 		8-98127-250-2 01 1 1412-1509 ● ● ● ● ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER(AK5) 		8-98127-250-2 01 1 1510- ● ● ● ● ● ●
1 02.559 CONTROL UNIT; SIR 8-98159-361-1 01 1 1409-1411 ● ●
1 02.559 CONTROL UNIT; SIR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98159-361-1 01 1 1409-1411 ●
1 02.559 CONTROL UNIT; SIR 8-98159-361-1 01 1 1412-1509 ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98159-361-1 01 1 1412-1509 ● ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 		8-98159-361-1 01 1 1412-1509 ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 		8-98159-361-1 01 1 1510- ● ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98159-361-1 01 1 1510- ● ●
1 02.559 CONTROL UNIT; SIR 8-98159-362-1 01 1 1409-1411 ● ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 		8-98159-362-1 01 1 1412- ● ●
1 02.559 CONTROL UNIT; SIR
HIGH RIDE SUSPENSION(7YC) 		8-98261-127-0 01 1 1409-1411 ●
1 02.559 CONTROL UNIT; SIR 8-98261-127-0 01 1 1409-1411 ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) 		8-98261-127-0 01 1 1412- ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) 		8-98261-127-0 01 1 1412- ●
23 02.559 AIR BAG UNIT
(B) BLACK 		8-97416-642-7 01 1 1409-1411 ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
(B) BLACK 		8-97416-642-7 01 1 1412-1509 ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) (B) BLACK 		8-97416-642-7 01 1 1412-1509 ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) (B) BLACK 		8-97416-642-7 01 1 1510- ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
(A) BLACK 		8-97416-641-6 01 1 1409-1411 ● ● ● ●
23 02.559 AIR BAG UNIT
EXC. HIGH RIDE SUSPENSION(7YC) (A) BLACK 		8-97416-641-6 01 1 1409-1411 ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),LAOS EQUIPMENT(CF0) (A) BLACK 		8-97416-641-6 01 1 1412- ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
(E) 		8-98147-098-6 01 1 1409-1411 ● ●
23 02.559 AIR BAG UNIT
(E) 		8-98147-098-6 01 1 1412-1509 ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (E) 		8-98147-098-6 01 1 1412-1509 ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (E) 		8-98147-098-6 01 1 1510- ● ●
23 02.559 AIR BAG UNIT
(E) 		8-98147-099-6 01 1 1409-1411 ● ●
23 02.559 AIR BAG UNIT
(E) 		8-98147-099-6 01 1 1412-1509 ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (E) 		8-98147-099-6 01 1 1412-1509 ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (E) 		8-98147-099-6 01 1 1510- ● ●
23 02.559 AIR BAG UNIT
(C) 		8-98147-096-5 01 1 1409-1411 ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (C) 		8-98147-096-5 01 1 1412- ● ●
23 02.559 AIR BAG UNIT
(C) 		8-98147-097-5 01 1 1409-1411 ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (C) 		8-98147-097-5 01 1 1412- ● ●
23 02.559 AIR BAG UNIT
HIGH RIDE SUSPENSION(7YC) (A) BLACK 		8-97424-332-0 01 1 1409-1411 ●
23 02.559 AIR BAG UNIT
(A) BLACK 		8-97424-332-0 01 1 1409-1411 ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) AUSTRALIA EQUIPMENT(B13),LAOS EQUIPMENT(CF0) HIGH RIDE SUSPENSION(7YC) (A) BLACK 		8-97424-332-0 01 1 1412- ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) LAOS EQUIPMENT(CF0) EXC. HIGH RIDE SUSPENSION(7YC) (A) BLACK 		8-97424-332-0 01 1 1412- ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) INDONESIA EQUIPMENT(B00),LAOS EQUIPMENT(CF0) (A) BLACK 		8-97424-332-0 01 1 1412- ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13),LAOS EQUIPMENT(CF0) (A) BLACK 		8-97424-332-0 01 1 1412- ●
23 02.559 AIR BAG UNIT
(D) 		8-98147-100-6 01 1 1409-1411 ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (D) 		8-98147-100-6 01 1 1412- ● ●
23 02.559 AIR BAG UNIT
(D) 		8-98147-101-6 01 1 1409-1411 ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (D) 		8-98147-101-6 01 1 1412- ● ●
31 14.865 NUT
01.540 M6 FLANGE 		0-91180-206-0 03 1 1409-1411 ● ● ● ● ● ●
31 14.865 NUT
01.540 M6 FLANGE 		0-91180-206-0 03 1 1412-1509 ●
31 14.865 NUT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 01.540 M6 FLANGE 		0-91180-206-0 03 1 1412-1509 ● ● ● ● ●
31 14.865 NUT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 01.540 M6 FLANGE 		0-91180-206-0 03 1 1510- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
