◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51580 - TFR/TFS RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#148539) — 124 parça

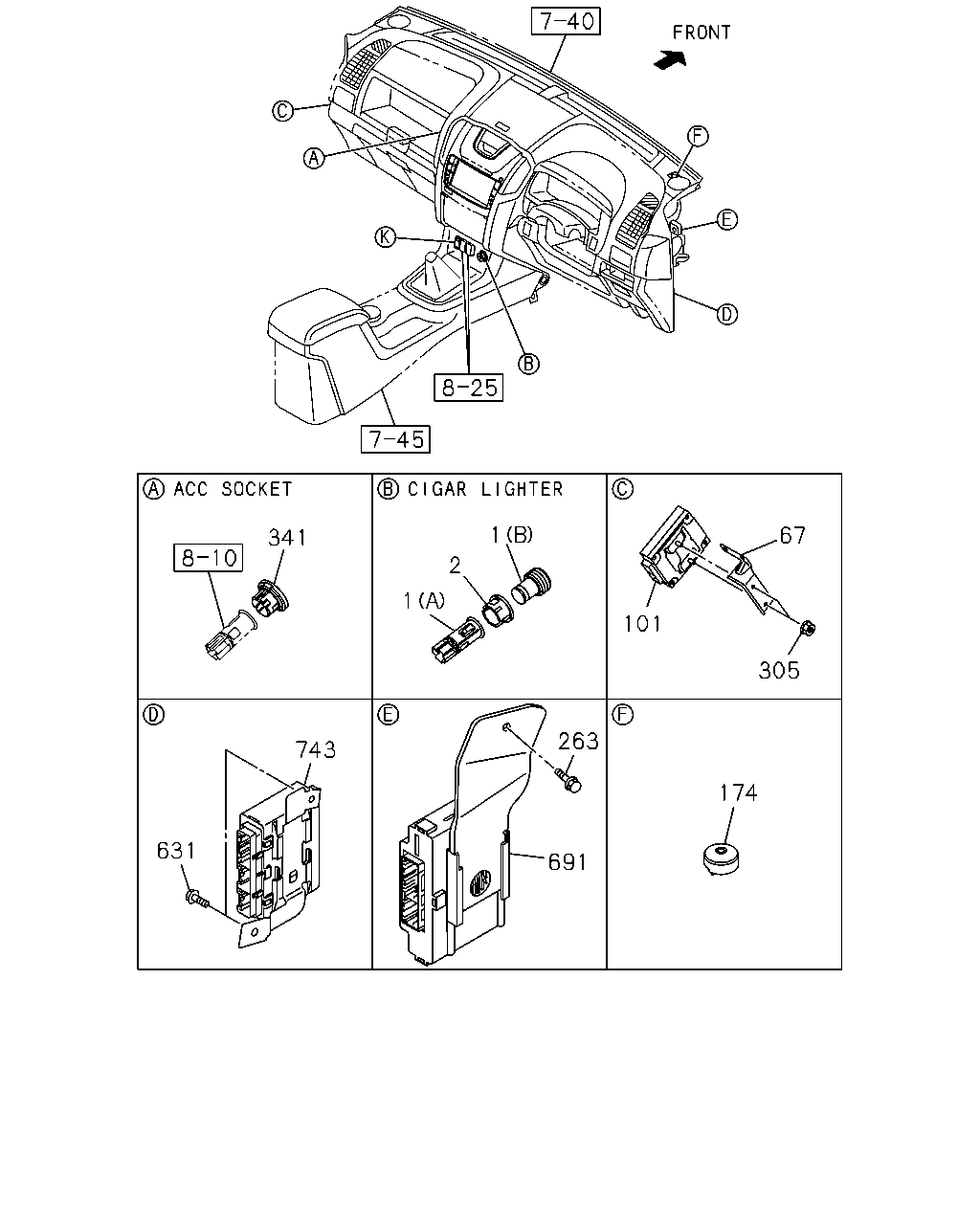

çizim 444418
341 1 1 2 101 305 67 263 174 691 743 631
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.709 LIGHTER; CIGAR
(A) 		8-98123-114-0 01 1 1409- ● ● ● ● ● ●
1 09.709 LIGHTER; CIGAR
(B) 		8-98123-117-0 01 1 1409- ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-98123-118-0 01 1 1409- ● ● ● ● ● ●
67 03.887 BRACKET; CONT UNIT
A/T 5 SPEED-AISIN(MA1) 		8-98113-342-0 01 1 1409-1509 ● ● ● ● ●
67 03.887 BRACKET; CONT UNIT
A/T 5 SPEED-AISIN(MA1) 		8-98113-342-0 01 1 1510- ● ● ● ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) 		8-98239-941-0 01 1 1412-1504 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98239-941-0 01 1 1412-1504 ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) 		8-98315-550-0 01 1 1505- ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98315-550-0 01 1 1505- ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> HIGH RIDE SUSPENSION(7YC) 		8-98239-945-0 01 1 1412- ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-98239-945-0 01 1 1412- ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) 		8-98239-943-0 01 1 1412- ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) EURO4 SPECIFICATION<NT4> 		8-98239-943-0 01 1 1412- ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) EURO4 SPECIFICATION<NT4> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98239-944-0 01 1 1412- ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1) EURO5 SPECIFICATION<NT5> HIGH RIDE SUSPENSION(7YC) 		8-98154-388-0 01 1 1412- ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1) EURO5 SPECIFICATION<NT5> 		8-98154-388-0 01 1 1412- ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) 		8-98239-940-0 01 1 1409-1411 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) 		8-98239-940-0 01 1 1409-1411 ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) 		8-98239-940-0 01 1 1412-1509 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) EURO4 SPECIFICATION<NT4> 		8-98239-940-0 01 1 1412-1509 ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) HIGH RIDE SUSPENSION(7YC) 		8-98239-940-0 01 1 1510- ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) 		8-98239-940-0 01 1 1510- ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1) EURO4 SPECIFICATION<NT4> 		8-98239-940-0 01 1 1510- ● ● ●
174 10.485 INDICATOR; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98153-855-0 01 1 1409- ● ● ●
263 04.115 BOLT; CONT UNIT
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1409-1411 ● ● ●
263 04.115 BOLT; CONT UNIT
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) 02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1412- ●
263 04.115 BOLT; CONT UNIT
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1412- ● ●
305 08.915 NUT; CONT UNIT
A/T 5 SPEED-AISIN(MA1) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1409-1509 ● ● ● ● ●
305 08.915 NUT; CONT UNIT
A/T 5 SPEED-AISIN(MA1) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1510- ● ● ● ● ● ●
341 04.115 COVER ASM
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98123-123-0 01 1 1409- ● ● ● ● ● ●
341 04.115 COVER ASM
EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98142-409-1 01 1 1409- ● ● ● ● ● ●
631 04.054 BOLT; CONT UNIT
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> 09.171 M6X16 FLANGE 		0-28450-616-0 01 1 1409- ● ● ●
631 04.054 BOLT; CONT UNIT
AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> 09.171 M6X16 FLANGE 		0-28450-616-0 01 1 1409- ● ● ●
631 04.054 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> 09.171 M6X16 FLANGE 		0-28450-616-0 02 1 1409- ● ● ●
631 04.054 BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> 09.171 M6X16 FLANGE 		0-28450-616-0 02 1 1409- ● ● ●
691 04.115 CONTROLLER; TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) 		8-98186-110-0 01 1 1409-1411 ● ● ●
691 04.115 CONTROLLER; TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) 		8-98186-110-0 01 1 1412- ●
691 04.115 CONTROLLER; TRANSFER
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ), M/TAISIN 6 SPEED(RNU) 		8-98186-110-0 01 1 1412- ● ●
743 02.510 CONTROL UNIT; BCM
REMOTE CONT DOOR LOCK<AP5> 		8-98215-286-0 01 1 1409- ● ● ● ● ● ●
743 02.510 CONTROL UNIT; BCM
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98065-084-5 01 1 1409- ● ● ●

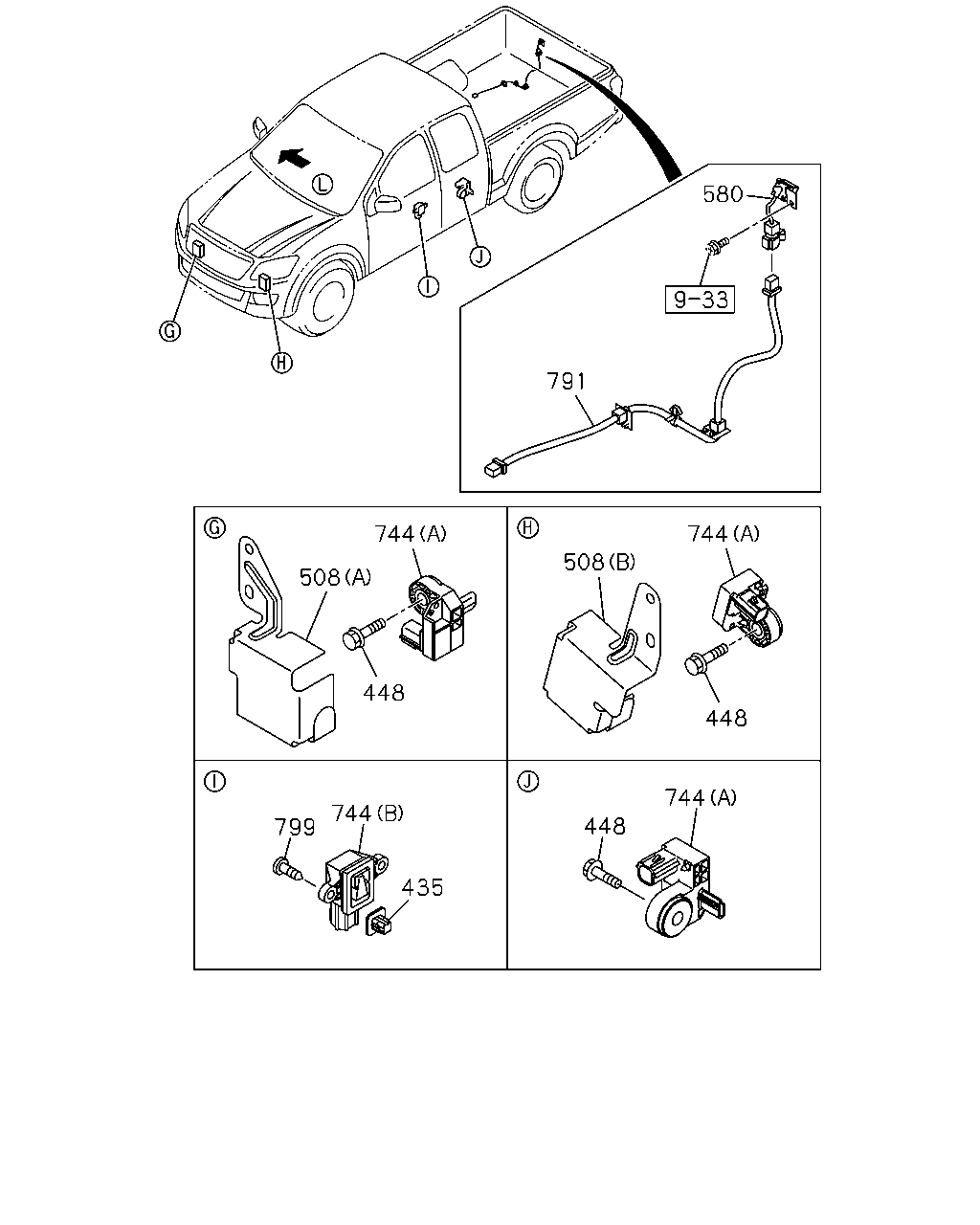

çizim 444434
791 580 744 508 448 508 744 448 744 799 435 448 744
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
435 04.342 GROMMET
12.182 D=7.9X7.9 L=11.4 M5 		8-94367-528-0 04 1 1409-1411 ● ● ● ● ● ●
435 04.342 GROMMET
12.182 D=7.9X7.9 L=11.4 M5 		8-94367-528-0 04 1 1412-1509 ●
435 04.342 GROMMET
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 12.182 D=7.9X7.9 L=11.4 M5 		8-94367-528-0 04 1 1412-1509 ● ● ● ● ●
435 04.342 GROMMET
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 12.182 D=7.9X7.9 L=11.4 M5 		8-94367-528-0 04 1 1510- ● ● ● ● ● ●
448 02.500 BOLT; SENSOR
00.685 M6X25 FLANGE 		0-28650-625-0 02 1 1409-1411 ● ● ● ● ● ●
448 02.500 BOLT; SENSOR
00.685 M6X25 FLANGE 		0-28650-625-0 02 1 1409-1411 ● ● ● ●
448 02.500 BOLT; SENSOR
00.685 M6X25 FLANGE 		0-28650-625-0 02 1 1412-1509 ●
448 02.500 BOLT; SENSOR
00.685 M6X25 FLANGE 		0-28650-625-0 02 1 1412-1509 ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 00.685 M6X25 FLANGE 		0-28650-625-0 02 1 1412-1509 ● ● ● ● ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 00.685 M6X25 FLANGE 		0-28650-625-0 02 1 1412-1509 ● ● ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 00.685 M6X25 FLANGE 		0-28650-625-0 02 1 1510- ● ● ● ● ● ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 00.685 M6X25 FLANGE 		0-28650-625-0 02 1 1510- ● ● ● ●
508 03.682 PROTECTOR
(A) 		8-98165-179-0 01 1 1409-1411 ● ● ● ● ● ●
508 03.682 PROTECTOR
(A) 		8-98165-179-0 01 1 1412-1509 ●
508 03.682 PROTECTOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) (A) 		8-98165-179-0 01 1 1412-1509 ● ● ● ● ●
508 03.682 PROTECTOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) (A) 		8-98165-179-0 01 1 1510- ● ● ● ● ● ●
508 03.682 PROTECTOR
(B) 		8-98165-180-0 01 1 1409-1411 ● ● ● ● ● ●
508 03.682 PROTECTOR
(B) 		8-98165-180-0 01 1 1412-1509 ●
508 03.682 PROTECTOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) (B) 		8-98165-180-0 01 1 1412-1509 ● ● ● ● ●
508 03.682 PROTECTOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) (B) 		8-98165-180-0 01 1 1510- ● ● ● ● ● ●
580 02.510 CAMERA; REAR
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98182-423-0 01 1 1409-1503 ● ● ●
580 02.510 CAMERA; REAR
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) 		8-98182-423-0 01 1 1504-1505 ● ●
580 02.510 CAMERA; REAR
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98182-423-0 01 1 1504-1505 ●
580 02.510 CAMERA; REAR
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98182-423-0 01 1 1506- ● ● ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98059-533-2 02 1 1412-1509 ● ● ● ● ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98059-533-2 02 1 1510- ● ● ● ● ● ●
744 03.682 SENSOR; AIR BAG
(A) 		8-98156-002-0 02 1 1409-1411 ● ● ● ● ● ●
744 03.682 SENSOR; AIR BAG
(A) 		8-98156-002-0 02 1 1409-1411 ● ● ● ●
744 03.682 SENSOR; AIR BAG
(A) 		8-98156-002-0 02 1 1412-1509 ●
744 03.682 SENSOR; AIR BAG
(A) 		8-98156-002-0 02 1 1412-1509 ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (A) 		8-98156-002-0 02 1 1412-1509 ● ● ● ● ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (A) 		8-98156-002-0 02 1 1412-1509 ● ● ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (A) 		8-98156-002-0 02 1 1510- ● ● ● ● ● ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (A) 		8-98156-002-0 02 1 1510- ● ● ● ●
744 03.682 SENSOR; AIR BAG
(B) 		8-98146-939-1 02 1 1409-1411 ● ● ● ● ● ●
744 03.682 SENSOR; AIR BAG
(B) 		8-98146-939-1 02 1 1412-1509 ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (B) 		8-98146-939-1 02 1 1412-1509 ● ● ● ● ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (B) 		8-98146-939-1 02 1 1510- ● ● ● ● ● ●
791 02.480 CABLE; SAFETY
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98182-428-0 01 1 1409-1503 ● ● ●
791 02.480 CABLE; SAFETY
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) 		8-98182-428-0 01 1 1504-1505 ● ●
791 02.480 CABLE; SAFETY
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98182-428-0 01 1 1504-1505 ●
791 02.480 CABLE; SAFETY
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98182-428-0 01 1 1506- ● ● ●
799 03.682 SCREW; SENSOR
08.083 M5X16 TAPPING 		8-98167-449-0 04 1 1409-1411 ● ● ● ● ● ●
799 03.682 SCREW; SENSOR
08.083 M5X16 TAPPING 		8-98167-449-0 04 1 1412-1509 ●
799 03.682 SCREW; SENSOR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 08.083 M5X16 TAPPING 		8-98167-449-0 04 1 1412-1509 ● ● ● ● ●
799 03.682 SCREW; SENSOR
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 08.083 M5X16 TAPPING 		8-98167-449-0 04 1 1510- ● ● ● ● ● ●

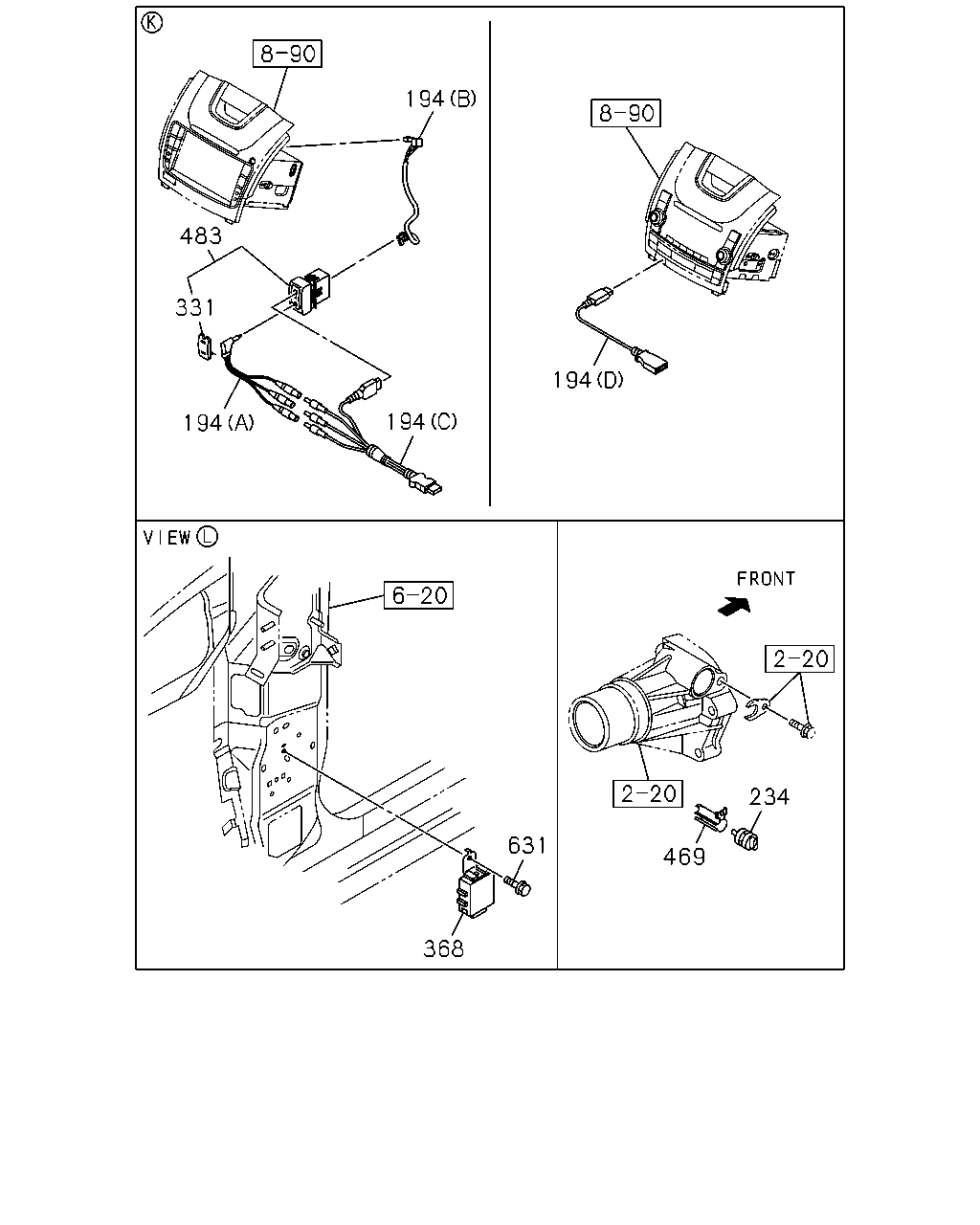

çizim 459379
194 483 331 194 194 194 631 368 469 234
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
194 02.480 CABLE; EXT,SOUND PLAY BOX
09.665 (D) 		8-98193-631-0 01 1 1409-1411 ● ● ●
194 02.480 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 09.665 (D) 		8-98193-631-0 01 1 1409-1411 ● ● ●
194 02.480 CABLE; EXT,SOUND PLAY BOX
09.665 (D) 		8-98193-631-0 01 1 1412- ●
194 02.480 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 09.665 (D) 		8-98193-631-0 01 1 1412- ● ● ● ● ●
194 02.480 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 09.665 (C) 		8-98235-372-0 01 1 1409-1503 ● ● ●
194 02.480 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) 09.665 (C) 		8-98235-372-0 01 1 1504-1505 ● ●
194 02.480 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 09.665 (C) 		8-98235-372-0 01 1 1504-1505 ●
194 02.480 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 09.665 (C) 		8-98235-372-0 01 1 1506- ● ● ●
194 02.480 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) 		8-98209-263-0 01 1 1409-1503 ● ● ●
194 02.480 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (B) 		8-98209-263-0 01 1 1504-1505 ● ●
194 02.480 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) 		8-98209-263-0 01 1 1504-1505 ●
194 02.480 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) 		8-98209-263-0 01 1 1506- ● ● ●
194 02.480 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (A) 		8-98209-351-0 01 1 1409-1503 ● ● ●
194 02.480 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (A) 		8-98209-351-0 01 1 1504-1505 ● ●
194 02.480 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (A) 		8-98209-351-0 01 1 1504-1505 ●
194 02.480 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (A) 		8-98209-351-0 01 1 1506- ● ● ●
234 03.682 SENSOR; VEHICLE SPD
A/T 5 SPEED-AISIN(MA1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4 PULSE PPS RESIN WHITE/BLACK 		8-98043-734-0 01 1 1412- ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 1412- ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 1412- ●
234 03.682 SENSOR; VEHICLE SPD
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 1412- ●
234 03.682 SENSOR; VEHICLE SPD
A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 1412- ● ● ●
331 16.081 COVER; SW
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98217-463-0 01 1 1409-1503 ● ● ●
331 16.081 COVER; SW
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) 		8-98217-463-0 01 1 1504-1505 ● ●
331 16.081 COVER; SW
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98217-463-0 01 1 1504-1505 ●
331 16.081 COVER; SW
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98217-463-0 01 1 1506- ● ● ●
368 16.341 CONTROL UNIT; DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97385-923-0 01 1 1409- ● ● ●
368 16.341 CONTROL UNIT; DOOR LOCK
AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> 		8-97385-923-0 01 1 1409- ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98119-901-0 01 1 1412- ● ●
469 03.682 PROTECTOR; SPEED SENSOR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-98119-901-0 01 1 1412- ●
469 03.682 PROTECTOR; SPEED SENSOR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 		8-98119-901-0 01 1 1412- ●
483 09.755 SWITCH
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98209-259-1 01 1 1409-1503 ● ● ●
483 09.755 SWITCH
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) 		8-98209-259-1 01 1 1504-1505 ● ●
483 09.755 SWITCH
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98209-259-1 01 1 1504-1505 ●
483 09.755 SWITCH
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98209-259-1 01 1 1506- ● ● ●
631 04.054 BOLT; CONT UNIT
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5> 09.171 M6X16 FLANGE 		0-28450-616-0 01 1 1409- ● ● ●
631 04.054 BOLT; CONT UNIT
AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> 09.171 M6X16 FLANGE 		0-28450-616-0 01 1 1409- ● ● ●
631 04.054 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> 09.171 M6X16 FLANGE 		0-28450-616-0 02 1 1409- ● ● ●
631 04.054 BOLT; CONT UNIT
PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> 09.171 M6X16 FLANGE 		0-28450-616-0 02 1 1409- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
