◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51580 - TFR/TFS RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#148538) — 90 parça
çizim 443915
99
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 09.778 12V YAZAKI 		8-97309-293-0 01 1 1409- ● ● ● ● ● ●

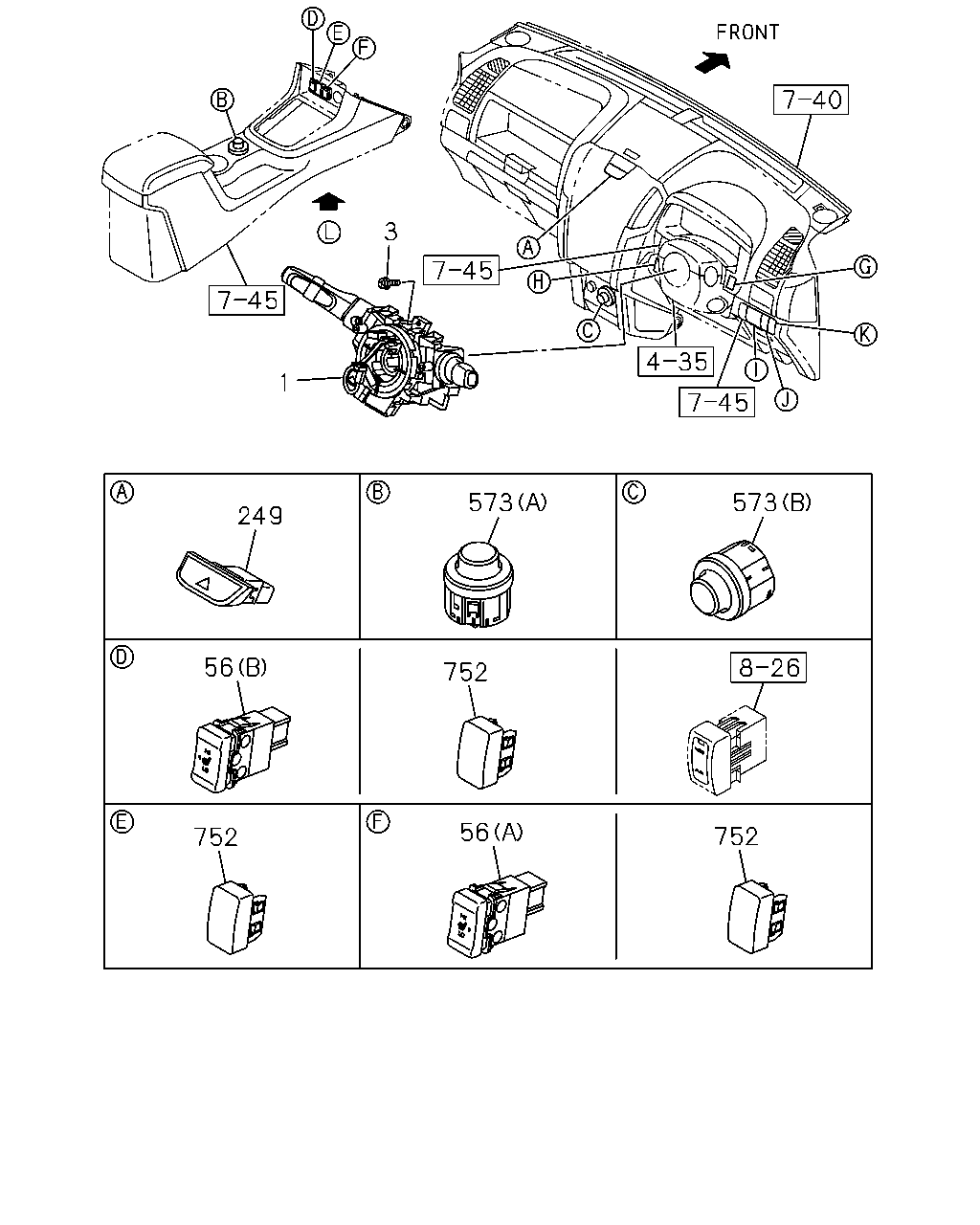

çizim 444331
573 573 752 752 56 752 56 249 1 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.895 SWITCH; COMB
FOG LAMP<T96> EXC. VARIABLE INTERMITTENT WIPER<CD4> ,INTERMITTENT WIPER<C13>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98296-351-0 01 1 1410-1411 ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) ELECTRONIC TRACTION CONTROL<NW9> FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14), VARIABLE INTERMITTENT WIPER<CD4>,INTERMITTEN T WIPER<C13>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA>,SINGAPORE EQ UIPMENT(2G0) 		8-98296-351-0 01 1 1412- ● ● ● ● ●
1 02.895 SWITCH; COMB
EXC. VARIABLE INTERMITTENT WIPER<CD4> ,INTERMITTENT WIPER<C13>,FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98296-352-0 01 1 1410-1411 ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) ELECTRONIC TRACTION CONTROL<NW9> EXC. HONG KONG EQUIPMENT(B14), VARIABLE INTERMITTENT WIPER<CD4>,INTERMITTEN T WIPER<C13>,FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA>,SINGAPORE EQUIPMENT(2G0) 		8-98296-352-0 01 1 1412- ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) INTERMITTENT WIPER<C13> ELECTRONIC TRACTION CONTROL<NW9> EXC. FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98194-151-1 01 1 1412- ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14), ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUM INESCENT INSTRUMENTATION CLUSTER<UCA> ,SINGAPORE EQUIPMENT(2G0) 		8-98194-136-1 01 1 1412- ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) INTERMITTENT WIPER<C13> EXC. HONG KONG EQUIPMENT(B14), ELECTRONIC TRACTION CONTROL<NW9>,FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA>,SINGAPORE EQUIPMENT(2G0) 		8-98194-134-1 01 1 1412- ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14), VARIABLE INTERMITTENT WIPER<CD4>,INTERMITTEN T WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUME NTATION CLUSTER<UCA>,SINGAPORE EQUIPMENT(2G0) 		8-98194-138-1 01 1 1412- ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. HONG KONG EQUIPMENT(B14), VARIABLE INTERMITTENT WIPER<CD4>,INTERMITTEN T WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9>,FOG LAMP<T96>,ELECTRO LUMINE SCENT INSTRUMENTATION CLUSTER<UCA>, SINGAPORE EQUIPMENT(2G0) 		8-98194-139-1 01 1 1412- ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14), ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUM INESCENT INSTRUMENTATION CLUSTER<UCA> ,SINGAPORE EQUIPMENT(2G0) 		8-98059-573-2 01 1 1412- ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> EXC. HONG KONG EQUIPMENT(B14), ELECTRONIC TRACTION CONTROL<NW9>,FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA>,SINGAPORE EQUIPMENT(2G0) 		8-98059-571-2 01 1 1412- ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14), VARIABLE INTERMITTENT WIPER<CD4>,INTERMITTEN T WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUME NTATION CLUSTER<UCA>,SINGAPORE EQUIPMENT(2G0) 		8-98059-580-2 01 1 1412- ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. HONG KONG EQUIPMENT(B14), VARIABLE INTERMITTENT WIPER<CD4>,INTERMITTEN T WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9>,FOG LAMP<T96>,ELECTRO LUMINE SCENT INSTRUMENTATION CLUSTER<UCA>, SINGAPORE EQUIPMENT(2G0) 		8-98059-570-2 01 1 1412- ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) VARIABLE INTERMITTENT WIPER<CD4> ELECTRONIC TRACTION CONTROL<NW9> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> 		8-98194-149-1 01 1 1412- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> EXC. HONG KONG EQUIPMENT(B14), ELECTRONIC TRACTION CONTROL<NW9>,SINGAPORE E QUIPMENT(2G0) 		8-98194-135-1 01 1 1412- ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) VARIABLE INTERMITTENT WIPER<CD4> ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> EXC. HONG KONG EQUIPMENT(B14), ELECTRONIC TRACTION CONTROL<NW9>,FOG LAMP<T96>,SINGAPORE EQUIPMENT(2G0) 		8-98194-140-1 01 1 1412- ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> EXC. HONG KONG EQUIPMENT(B14), ELECTRONIC TRACTION CONTROL<NW9>,SINGAPORE E QUIPMENT(2G0) 		8-98059-575-2 01 1 1412- ● ● ●
1 02.895 SWITCH; COMB
FOG LAMP<T96> 		8-98194-142-1 01 1 1409-1411 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. ELECTRO LUMINESCENT INSTRUMENTAT ION CLUSTER<UCA> 		8-98194-142-1 01 1 1409-1411 ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) INTERMITTENT WIPER<C13> ELECTRONIC TRACTION CONTROL<NW9> FOG LAMP<T96> EXC. HONG KONG EQUIPMENT(B14), ELECTROLUMINESCENT INSTRUMENTATION CLUSTER<UCA>,SINGAPORE EQUIPMENT(2G0) 		8-98194-142-1 01 1 1412- ● ● ● ● ● ●
1 02.895 SWITCH; COMB
EXC. FOG LAMP<T96> 		8-98194-141-1 01 1 1409-1411 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98194-141-1 01 1 1409-1411 ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) INTERMITTENT WIPER<C13> ELECTRONIC TRACTION CONTROL<NW9> EXC. HONG KONG EQUIPMENT(B14),FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENT ATION CLUSTER<UCA>,SINGAPORE EQUIPMENT(2G0) 		8-98194-141-1 01 1 1412- ● ● ● ● ● ●
1 02.895 SWITCH; COMB
VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> 		8-98194-137-1 01 1 1409-1411 ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) VARIABLE INTERMITTENT WIPER<CD4> ELECTRONIC TRACTION CONTROL<NW9> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) 		8-98194-137-1 01 1 1412- ● ● ●
1 02.895 SWITCH; COMB
VARIABLE INTERMITTENT WIPER<CD4> ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> EXC. FOG LAMP<T96> 		8-98227-411-1 01 1 1409-1411 ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) VARIABLE INTERMITTENT WIPER<CD4> ELECTRONIC TRACTION CONTROL<NW9> ELECTRO LUMINESCENT INSTRUMENTATION C LUSTER<UCA> EXC. HONG KONG EQUIPMENT(B14),FOG LAMP<T96>,SINGAPORE EQUIPMENT(2G0) 		8-98227-411-1 01 1 1412- ● ● ●
3 02.897 SCREW; COMB SW
09.744 M5X20 W/LK&PL WASHER 		0-36230-520-0 01 1 1409- ● ● ● ● ● ●
56 08.840 SWITCH; SEAT HTR
HEATER FRT SEAT<KA1> (A) 		8-98147-380-1 01 1 1412- ● ●
56 08.840 SWITCH; SEAT HTR
HEATER FRT SEAT<KA1> (B) 		8-98158-214-1 01 1 1412- ● ●
249 02.485 SWITCH; HAZARD
BLACK 		8-97416-805-0 01 1 1409- ● ● ● ● ● ●
573 09.755 SWITCH; 4WD
FRONT CONSOLE W/LID<D55> (A) 		8-98065-836-2 01 1 1409- ● ●
573 09.755 SWITCH; 4WD
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98065-836-2 01 1 1409- ●
573 09.755 SWITCH; 4WD
EXC. FRONT CONSOLE W/LID<D55> (B) 		8-98058-076-2 01 1 1409- ● ●
573 09.755 SWITCH; 4WD
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98058-076-2 01 1 1409- ●
752 08.840 COVER; SEAT HTR
HEATER FRT SEAT<KA1> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) 		8-98141-215-1 01 1 1412- ● ●
752 08.840 COVER; SEAT HTR
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98141-215-1 02 1 1409-1411 ● ● ●
752 08.840 COVER; SEAT HTR
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. HEATER FRT SEAT<KA1> 		8-98141-215-1 02 1 1412-1503 ● ●
752 08.840 COVER; SEAT HTR
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98141-215-1 02 1 1412-1503 ●
752 08.840 COVER; SEAT HTR
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) EXC. HEATER FRT SEAT<KA1> 		8-98141-215-1 02 1 1504-1505 ● ●
752 08.840 COVER; SEAT HTR
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98141-215-1 02 1 1504-1505 ●
752 08.840 COVER; SEAT HTR
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. HEATER FRT SEAT<KA1> 		8-98141-215-1 02 1 1506- ● ●
752 08.840 COVER; SEAT HTR
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98141-215-1 02 1 1506- ●

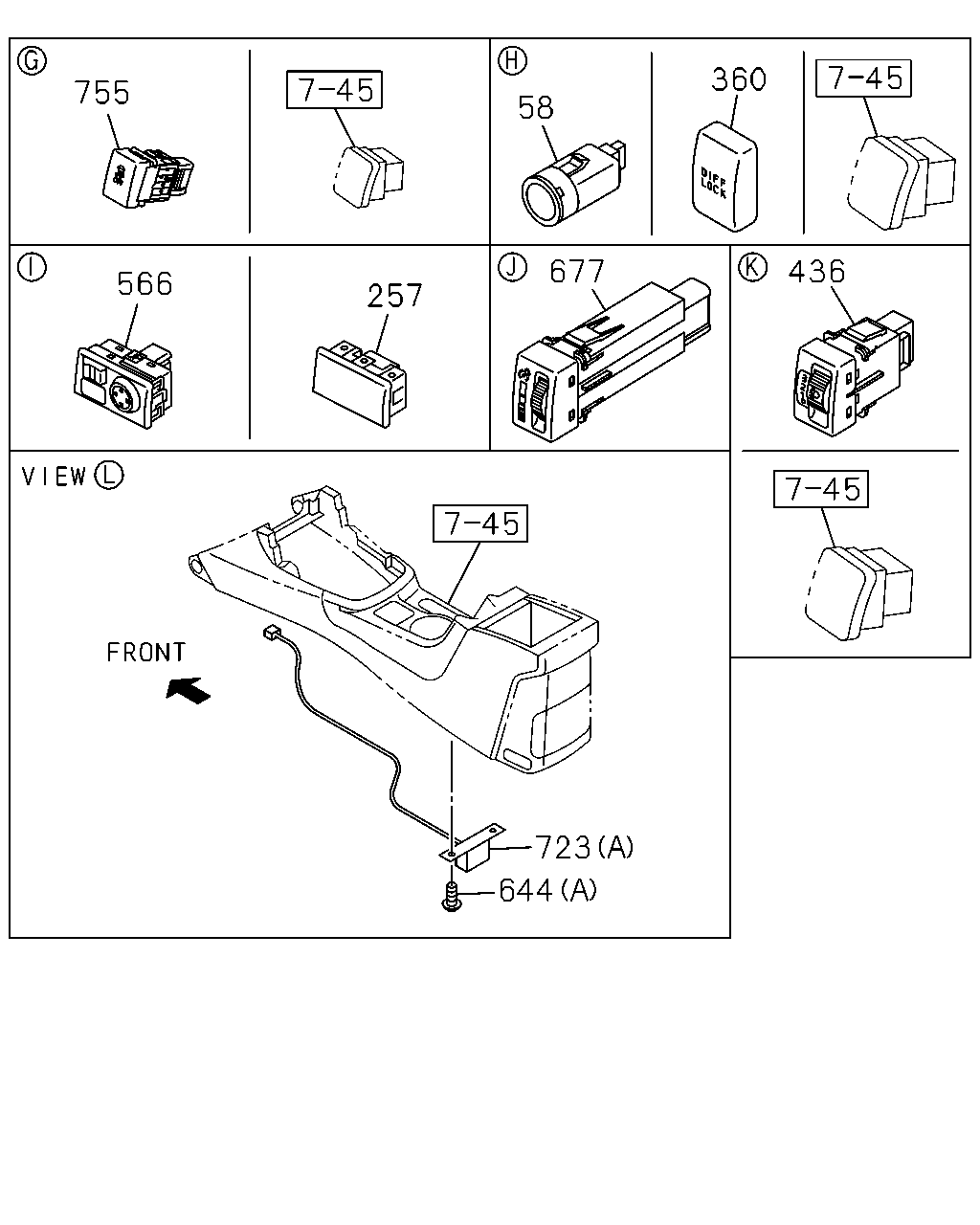

çizim 444349
257 677 436 360 58 755 566 723 644
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
58 02.100 SWITCH; IGNITION
PASSIVE ENTRY AND START SYSTEM<AP3> KEY REMINDER BUZZER<T48> 		8-98226-271-1 01 1 1409-1505 ● ● ●
58 02.100 SWITCH; IGNITION
PASSIVE ENTRY AND START SYSTEM<AP3> 		8-98226-271-1 01 1 1506- ● ● ●
257 16.081 COVER; HOLE,SW
DOOR MIRROR<RT9> 		8-98106-389-2 01 1 1409- ● ● ● ● ● ●
360 04.902 SWITCH ASM; DIFF LK
REAR AXLE DIFF LOCK<8CL> 		8-98058-083-2 01 1 1412- ● ● ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
HEAD LAMP LEVELING MANUAL<T92> 		8-98187-212-1 01 1 1412- ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
HEAD LAMP LEVELING MANUAL<T92> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98187-212-1 01 1 1412- ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98187-211-1 01 1 1412- ● ●
566 02.895 SWITCH; MIRROR
DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98106-392-1 01 1 1409- ● ● ● ● ● ●
566 02.895 SWITCH; MIRROR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-98058-078-1 01 1 1409-1411 ● ● ●
566 02.895 SWITCH; MIRROR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> 		8-98058-078-1 01 1 1412- ● ●
566 02.895 SWITCH; MIRROR
DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3> 		8-98058-078-1 01 1 1412- ●
644 02.485 SCREW; TAPPING
PASSIVE ENTRY AND START SYSTEM<AP3> 08.083 (A) M5X16 TAPPING 		8-98167-449-0 02 1 1409- ● ● ●
644 02.485 SCREW; TAPPING
PASSIVE ENTRY AND START SYSTEM<AP3> (B) M6X12 TAPPING 		0-71240-612-0 01 1 1409- ● ●
677 02.485 SWITCH; ILLUMINATION 8-98058-084-2 01 1 1409-1411 ● ● ● ● ● ●
677 02.485 SWITCH; ILLUMINATION
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98058-084-2 01 1 1412- ● ● ● ● ● ●
723 02.575 ANTENNA; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> (A) 		8-98076-332-1 01 1 1409- ● ● ●
723 02.575 ANTENNA; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> (B) 		8-98076-333-0 01 1 1409- ● ●
755 03.883 SWITCH; ESC OFF 8-98058-081-1 01 1 1409-1411 ● ● ● ● ● ●
755 03.883 SWITCH; ESC OFF 8-98058-081-1 01 1 1412- ●
755 03.883 SWITCH; ESC OFF
ELECTRONIC TRACTION CONTROL<NW9> 		8-98058-081-1 01 1 1412- ● ● ● ● ●

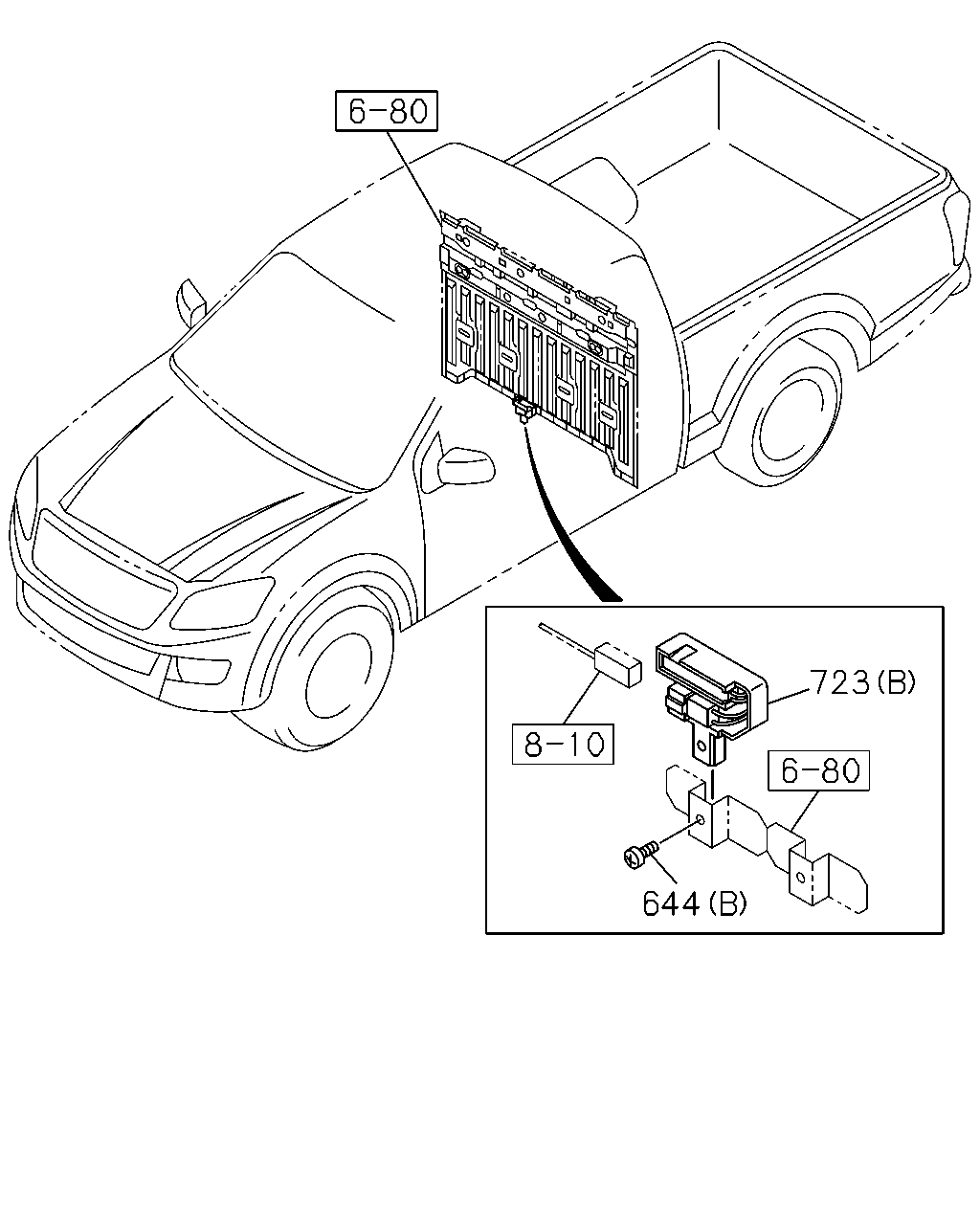

çizim 444384
644 723
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
644 02.485 SCREW; TAPPING
PASSIVE ENTRY AND START SYSTEM<AP3> 08.083 (A) M5X16 TAPPING 		8-98167-449-0 02 1 1409- ● ● ●
644 02.485 SCREW; TAPPING
PASSIVE ENTRY AND START SYSTEM<AP3> (B) M6X12 TAPPING 		0-71240-612-0 01 1 1409- ● ●
723 02.575 ANTENNA; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> (A) 		8-98076-332-1 01 1 1409- ● ● ●
723 02.575 ANTENNA; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> (B) 		8-98076-333-0 01 1 1409- ● ●

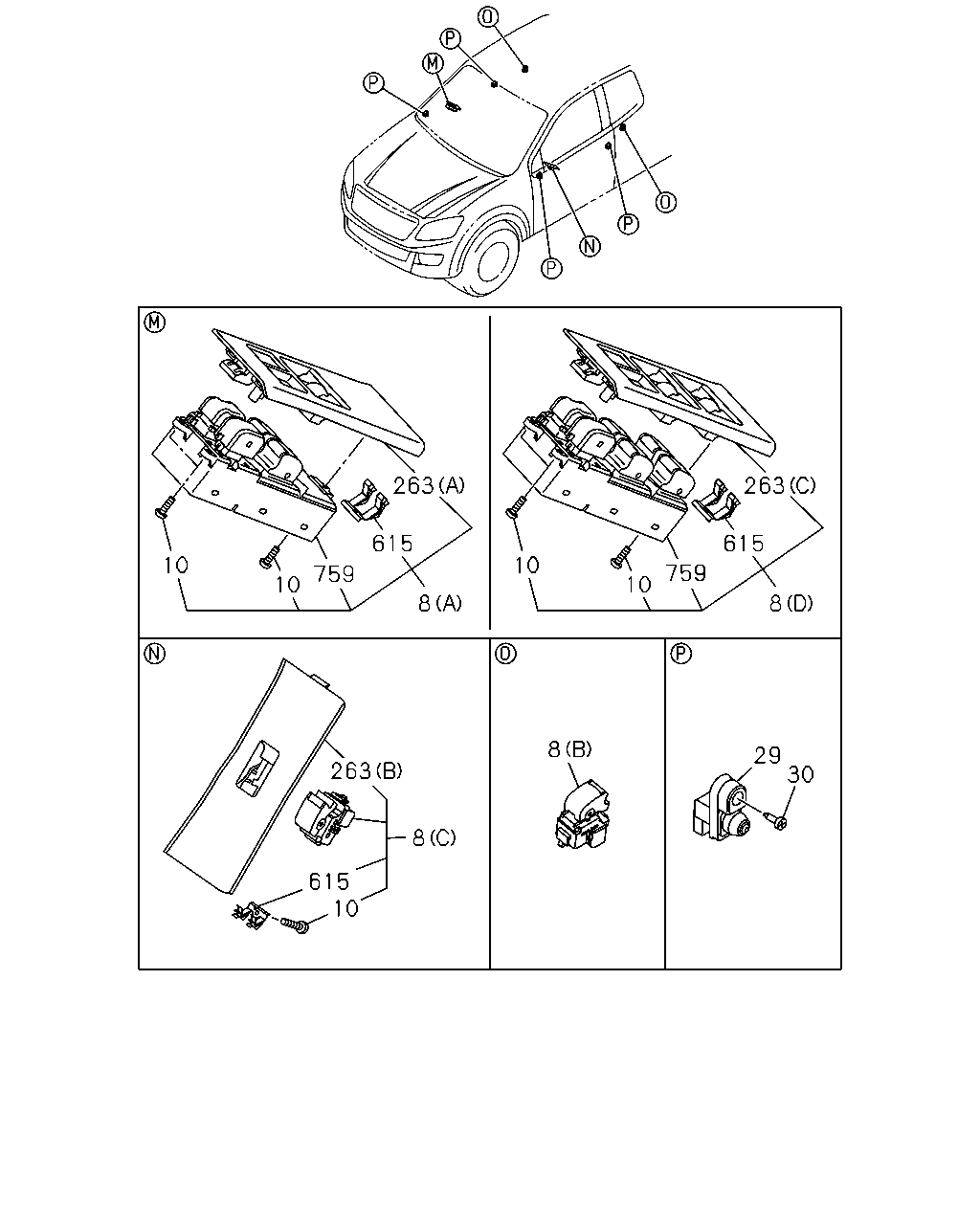

çizim 444385
263 615 759 10 10 8 10 10 759 263 615 8 29 30 8 8 263 615 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW SAFETY DOOR<ABZ> (A) BLACK 		8-97416-734-0 01 1 1409- ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (C) BLACK 		8-97416-810-0 01 1 1409- ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) BLACK 		8-97416-735-0 01 1 1409- ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW SAFETY DOOR<ABZ> (D) BLACK 		8-97416-975-0 01 1 1409- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) BLACK 		8-97417-004-0 02 1 1409- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (D) BLACK 		8-97416-976-0 01 1 1409- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-450-0 03 1 1409- ● ● ● ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-450-0 01 1 1409- ● ● ● ● ● ●
29 16.263 SWITCH; DOOR 8-97313-208-0 02 1 1409- ● ● ● ● ● ●
29 16.263 SWITCH; DOOR 8-97313-208-0 02 1 1409- ● ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 02 1 1409- ● ● ● ● ● ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 02 1 1409- ● ●
263 16.081 COVER; SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-98192-247-0 01 1 1409- ● ● ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-98192-243-0 01 1 1409- ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (C) 		8-98192-244-0 01 1 1409- ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-268-0 01 1 1409- ● ● ● ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-268-0 01 1 1409- ● ● ● ● ● ●
759 16.263 SWITCH ASM; WINDOW
POWER WINDOW SAFETY DOOR<ABZ> 		8-98192-249-0 01 1 1409- ● ● ● ●
759 16.263 SWITCH ASM; WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-250-0 01 1 1409- ● ● ● ●
759 16.263 SWITCH ASM; WINDOW
POWER WINDOW SAFETY DOOR<ABZ> 		8-98192-251-0 01 1 1409- ● ●
759 16.263 SWITCH ASM; WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-252-0 01 1 1409- ● ●
çizim 459481
99
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 09.778 12V YAZAKI 		8-97309-293-0 01 1 1409- ● ● ● ● ● ●
