Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#148536) — 482 parça

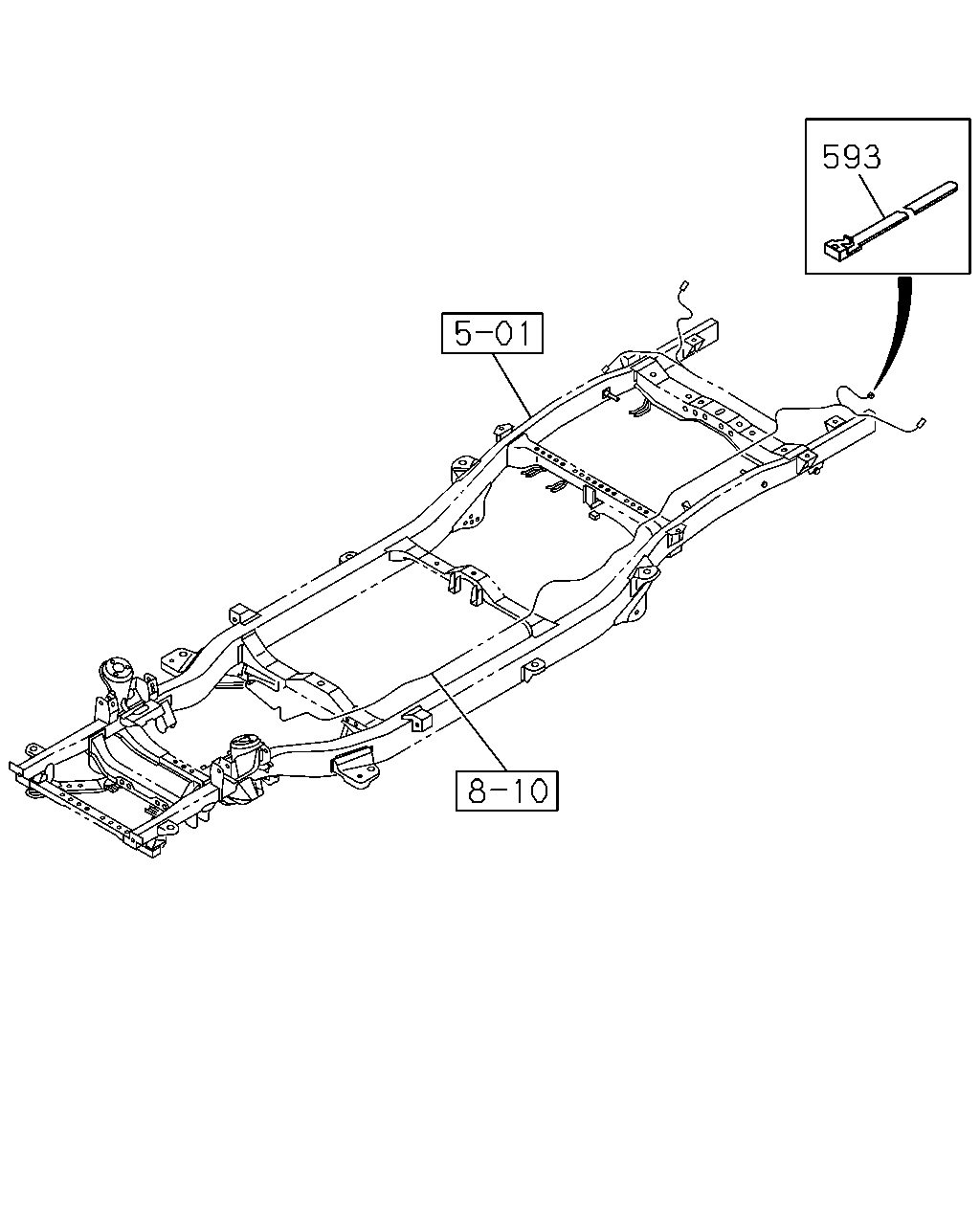

593

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
	593	02.559 CLIP REAR BODY DELETE(8HH) L=250	5-09707-030-1	01	1	1409-	●	●	●	●	●	●

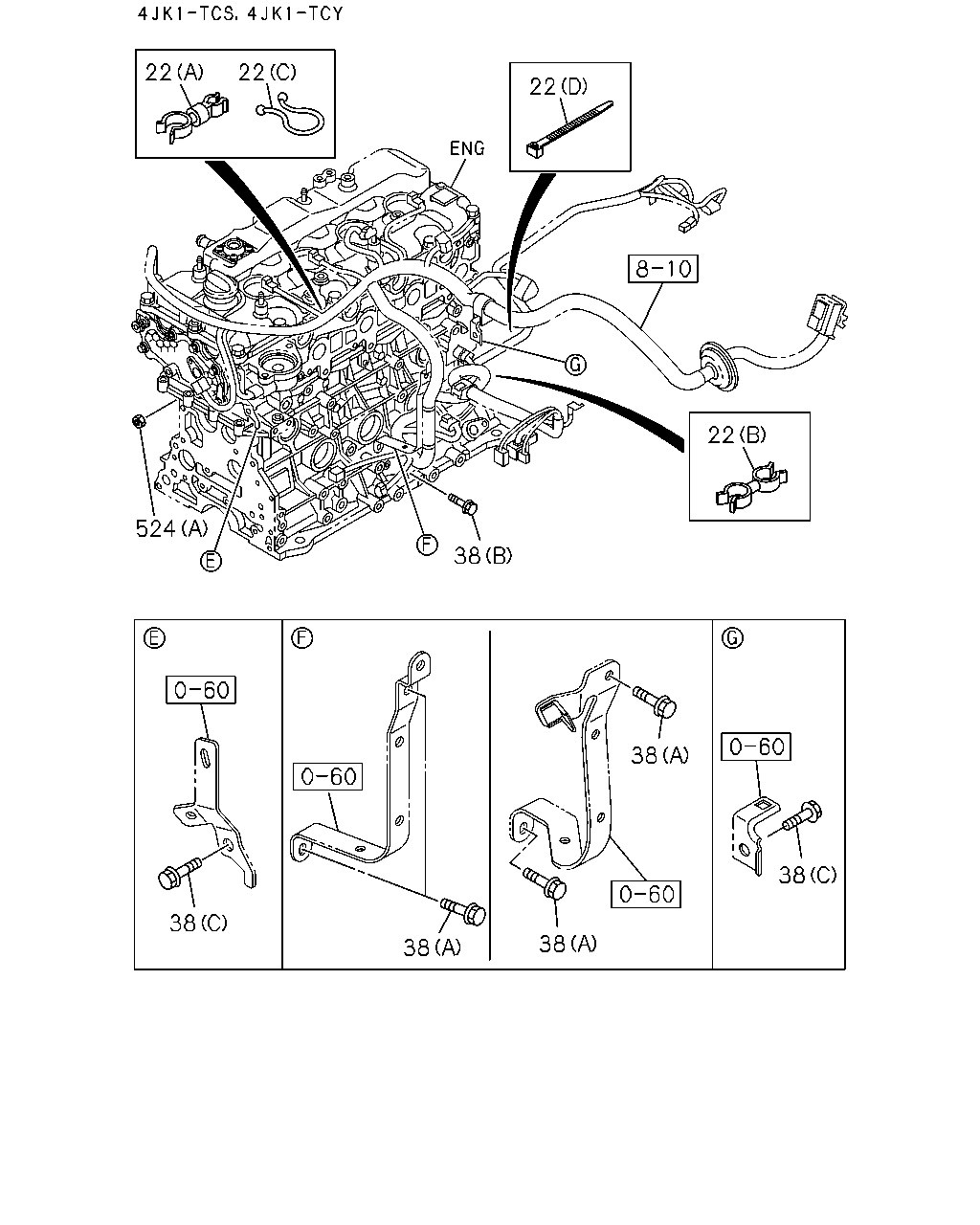

22 22 22 22 38 38 38 38 38 38 524

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
22	02.559 CLIP; ENG HARNESS 4JK1-TCY ENG(RDX) 16.716 (D) L=129.5	8-94368-493-0	02	1	1412-		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) 09.663 (C) ID=15	1-09709-003-0	01	1	1409-1411	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42) 09.663 (C) ID=15	1-09709-003-0	01	1	1412-	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) ID=7.5 & 7.5	8-98212-981-0	01	1	1409-1411	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (B) ID=7.5 & 7.5	8-98212-981-0	01	1	1412-	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JK1-TCS ENG(LKZ) EURO2 SPECIFICATION<NT2> (B) ID=7.5 & 7.5	8-98212-981-0	01	1	1412-		●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) ID=11.8 & 7.5	8-98212-982-0	01	1	1409-1411	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) (A) ID=11.8 & 7.5	8-98212-982-0	01	1	1412-	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) 02.343 (B) M8X12 FLANGE	0-28050-812-0	02	1	1504-		●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1409-1411	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1412-	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	1409-1411	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	1412-	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1409-1411	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1412-	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JK1-TCS ENG(LKZ) 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1412-		●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (E) M10X12 FLANGE	0-28151-012-0	01	1	1409-1411	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.343 (E) M10X12 FLANGE	0-28151-012-0	01	1	1412-	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (D) M6X16 FLANGE	0-28650-616-0	05	1	1409-	●	●	●	●	●	●
524	02.559 NUT; HARNESS 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1409-1411	●	●	●	●	●	●
524	02.559 NUT; HARNESS 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1412-1502	●	●	●	●	●	●
524	02.559 NUT; HARNESS 4JK1-TCS ENG(LKZ),4JK1-TCY ENG(RDX) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1412-1502		●	●	●	●	●
524	02.559 NUT; HARNESS 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1503-	●	●	●	●	●	●
524	02.559 NUT; HARNESS 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1409-	●	●	●	●	●	●

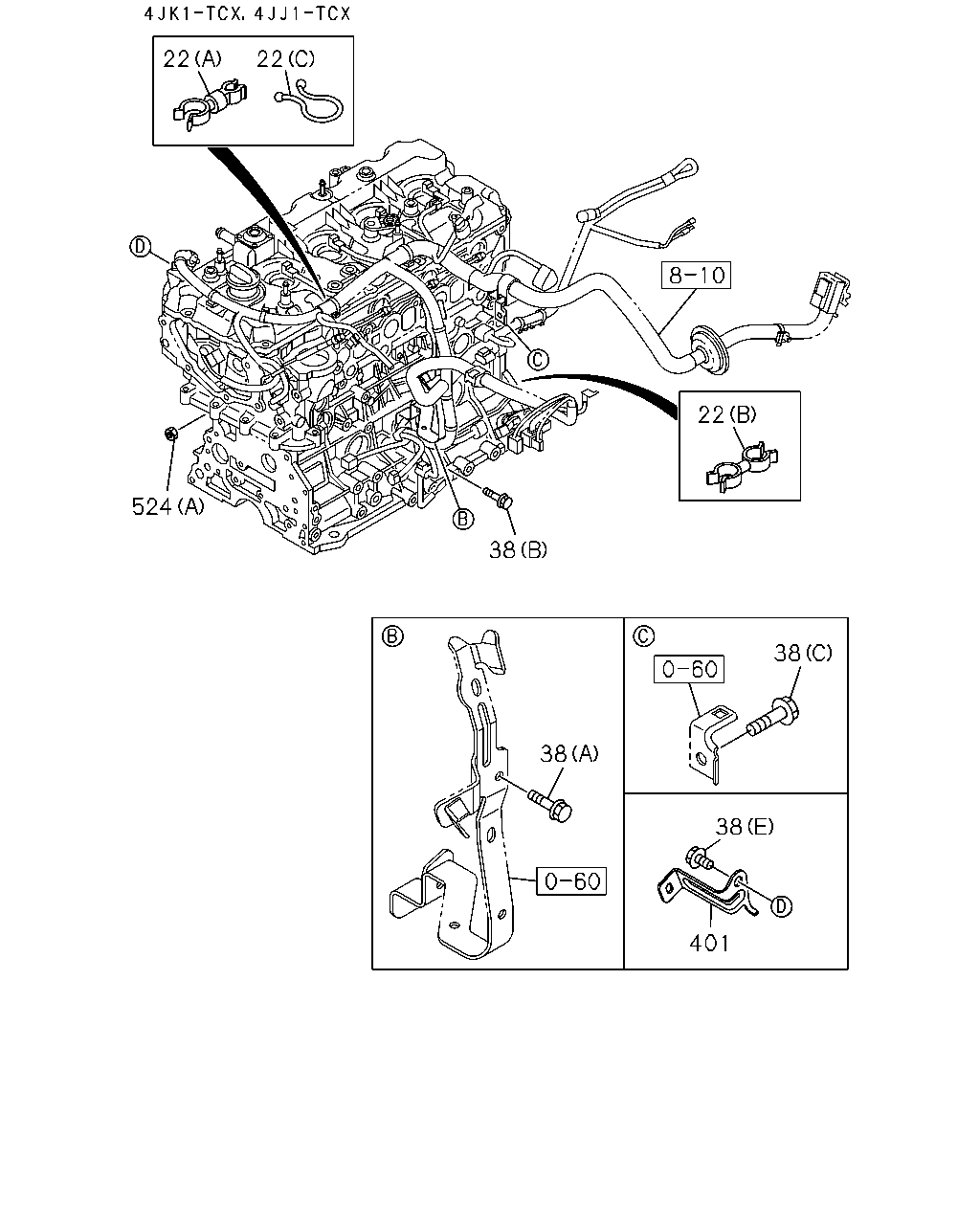

22 22 38 524 38 38 38 401 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
22	02.559 CLIP; ENG HARNESS 4JK1-TCY ENG(RDX) 16.716 (D) L=129.5	8-94368-493-0	02	1	1412-		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) 09.663 (C) ID=15	1-09709-003-0	01	1	1409-1411	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) HEATER & DEFROSTER(C42) 09.663 (C) ID=15	1-09709-003-0	01	1	1412-	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) ID=7.5 & 7.5	8-98212-981-0	01	1	1409-1411	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (B) ID=7.5 & 7.5	8-98212-981-0	01	1	1412-	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JK1-TCS ENG(LKZ) EURO2 SPECIFICATION<NT2> (B) ID=7.5 & 7.5	8-98212-981-0	01	1	1412-		●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) ID=11.8 & 7.5	8-98212-982-0	01	1	1409-1411	●	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) (A) ID=11.8 & 7.5	8-98212-982-0	01	1	1412-	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) 02.343 (B) M8X12 FLANGE	0-28050-812-0	02	1	1504-		●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1409-1411	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1412-	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	1409-1411	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	1412-	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1409-1411	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1412-	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JK1-TCS ENG(LKZ) 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1412-		●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (E) M10X12 FLANGE	0-28151-012-0	01	1	1409-1411	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.343 (E) M10X12 FLANGE	0-28151-012-0	01	1	1412-	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (D) M6X16 FLANGE	0-28650-616-0	05	1	1409-	●	●	●	●	●	●
401	02.559 BRACKET; HARNESS,GEN 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61)	8-98224-801-0	01	1	1409-1411	●	●	●	●	●	●
401	02.559 BRACKET; HARNESS,GEN 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-98224-801-0	01	1	1412-	●	●	●	●	●	●
524	02.559 NUT; HARNESS 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1409-1411	●	●	●	●	●	●
524	02.559 NUT; HARNESS 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1412-1502	●	●	●	●	●	●
524	02.559 NUT; HARNESS 4JK1-TCS ENG(LKZ),4JK1-TCY ENG(RDX) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1412-1502		●	●	●	●	●
524	02.559 NUT; HARNESS 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1503-	●	●	●	●	●	●
524	02.559 NUT; HARNESS 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1409-	●	●	●	●	●	●

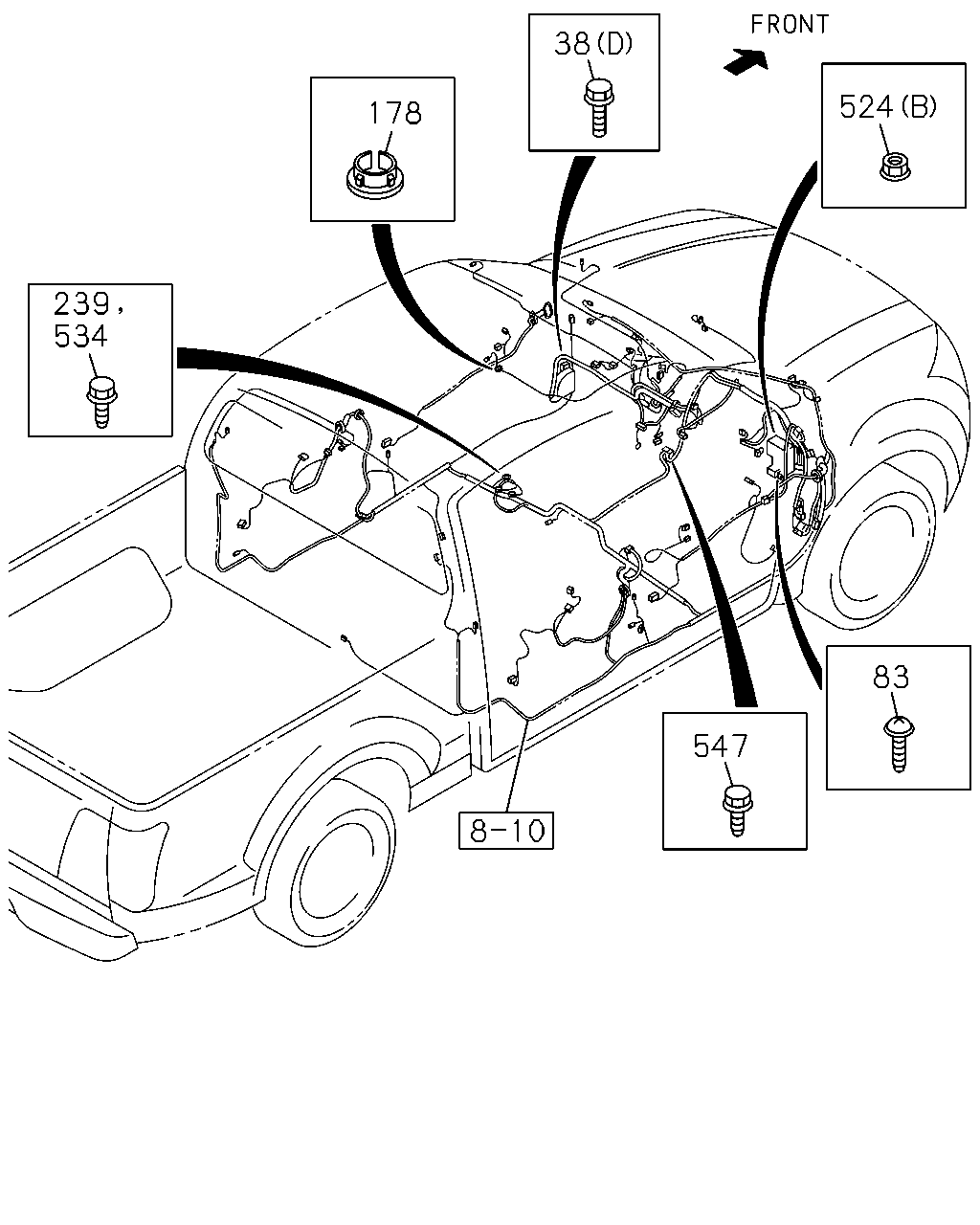

38 524 178 239 534 547 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) 02.343 (B) M8X12 FLANGE	0-28050-812-0	02	1	1504-		●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1409-1411	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1412-	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	1409-1411	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	1412-	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1409-1411	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1412-	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JK1-TCS ENG(LKZ) 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1412-		●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (E) M10X12 FLANGE	0-28151-012-0	01	1	1409-1411	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.343 (E) M10X12 FLANGE	0-28151-012-0	01	1	1412-	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (D) M6X16 FLANGE	0-28650-616-0	05	1	1409-	●	●	●	●	●	●
83	02.483 SCREW; HARNESS 16.549 M5X25 TAPPING W/PL WASHER	0-74360-525-0	01	1	1409-	●	●	●	●	●	●
178	02.559 GROMMET; HARNESS 09.647	8-97027-381-0	01	1	1409-	●	●	●	●	●	●
239	02.559 BOLT; GRAND 4JJ1-TCX ENG(LS0) M6X14 W/LK&PL WASHER	8-97086-822-0	03	1	1409-1411	●	●	●	●	●	●
239	02.559 BOLT; GRAND 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) M6X14 W/LK&PL WASHER	8-97086-822-0	03	1	1412-1501	●	●	●	●	●	●
239	02.559 BOLT; GRAND 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) M6X14 W/PL WASHER	8-98164-836-0	03	1	1502-	●	●	●	●	●	●
239	02.559 BOLT; GRAND M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1409-1501	●	●	●	●	●	●
239	02.559 BOLT; GRAND M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1409-1501	●	●	●	●	●	●
239	02.559 BOLT; GRAND M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-	●	●	●	●	●	●
239	02.559 BOLT; GRAND M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-	●	●	●	●	●	●
524	02.559 NUT; HARNESS 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1409-1411	●	●	●	●	●	●
524	02.559 NUT; HARNESS 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1412-1502	●	●	●	●	●	●
524	02.559 NUT; HARNESS 4JK1-TCS ENG(LKZ),4JK1-TCY ENG(RDX) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1412-1502		●	●	●	●	●
524	02.559 NUT; HARNESS 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1503-	●	●	●	●	●	●
524	02.559 NUT; HARNESS 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1409-	●	●	●	●	●	●
534	02.480 BOLT; EARTH 02.559 M6X14 W/LK&PL WASHER	8-97086-822-0	04	1	1409-1501	●			●
534	02.480 BOLT; EARTH 02.559 M6X14 W/PL WASHER	8-98164-836-0	04	1	1502-	●			●
547	02.559 BOLT M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	1409-1501	●	●	●	●	●	●
547	02.559 BOLT M6X14 W/PL WASHER	8-98164-836-0	01	1	1502-1505	●	●	●	●	●	●
547	02.559 BOLT M6X14 W/PL WASHER	8-98164-836-0	01	1	1506-1509	●
547	02.559 BOLT AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) M6X14 W/PL WASHER	8-98164-836-0	01	1	1506-1509		●	●	●	●	●
547	02.559 BOLT AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) M6X14 W/PL WASHER	8-98164-836-0	01	1	1510-	●	●	●	●	●	●

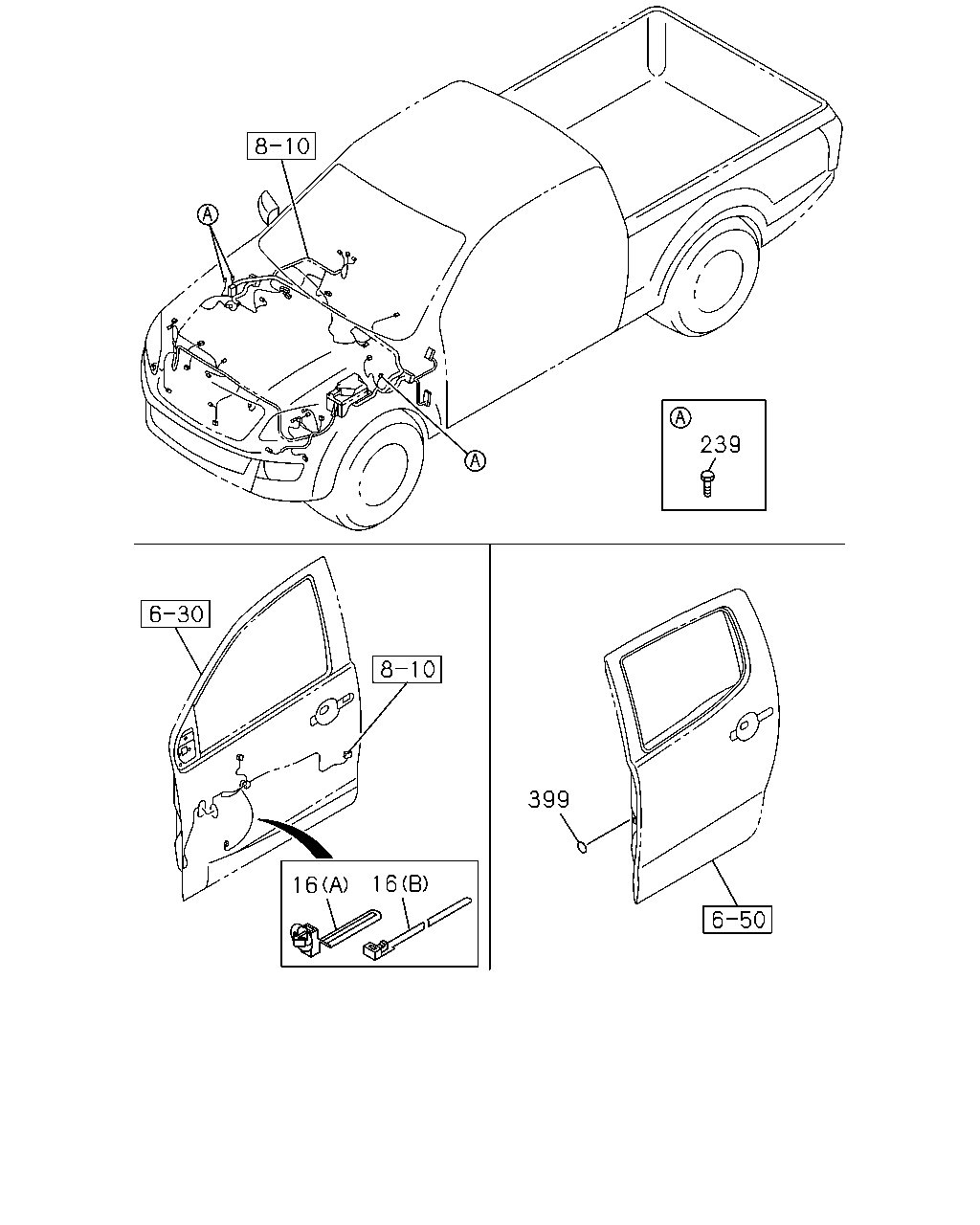

239 399 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	02.559 CLIP; HARNESS 4JA1-T ENG(LP0) 03.162 (D) L=140	5-09707-031-1	01	1	1412-		●	●
16	02.559 CLIP; HARNESS 4JA1-T ENG(LP0) 02.313 (C) ID=18 L=44	8-97367-985-1	02	1	1412-		●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	01	1	1412-1502		●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	01	1	1412-1502		●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	01	1	1412-1502		●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,AUTO D OOR LOCK<AU4> (B) L=140	8-97378-707-0	01	1	1412-1502		●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	01	1	1412-1502		●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=140	8-97378-707-0	01	1	1503-1509		●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (B) L=140	8-97378-707-0	01	1	1503-1509		●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) L=140	8-97378-707-0	01	1	1503-1509		●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) L=140	8-97378-707-0	01	1	1503-1509		●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> ,DOOR MIRROR<RT9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	01	1	1503-1509		●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> (B) L=140	8-97378-707-0	01	1	1503-1509		●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=140	8-97378-707-0	01	1	1510-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> (B) L=140	8-97378-707-0	01	1	1510-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) L=140	8-97378-707-0	01	1	1510-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=140	8-97378-707-0	01	1	1510-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	01	1	1510-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,AUTO D OOR LOCK<AU4> (B) L=140	8-97378-707-0	01	1	1510-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1409-1411	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (A) L=155	8-97173-307-0	02	1	1409-1411	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (A) L=155	8-97173-307-0	02	1	1409-1411	●	●	●	●	●	●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,AUTO D OOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1409-1411	●	●	●	●	●	●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (A) L=155	8-97173-307-0	02	1	1409-1411	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (A) L=155	8-97173-307-0	02	1	1409-1411	●	●	●	●	●	●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (A) L=155	8-97173-307-0	02	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (A) L=155	8-97173-307-0	02	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,AUTO D OOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> (A) L=155	8-97173-307-0	02	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> (A) L=155	8-97173-307-0	02	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> (A) L=155	8-97173-307-0	02	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> (A) L=155	8-97173-307-0	02	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> ,DOOR MIRROR<RT9> (A) L=155	8-97173-307-0	02	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> ,DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> (A) L=155	8-97173-307-0	02	1	1503-1509	●	●			●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1503-1509	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (A) L=155	8-97173-307-0	02	1	1503-1509	●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> (A) L=155	8-97173-307-0	02	1	1503-1509	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (A) L=155	8-97173-307-0	02	1	1503-1509		●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. REMOTE CONT DOOR LOCK<AP5> (A) L=155	8-97173-307-0	02	1	1503-1509		●			●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIRROR<RT9> (A) L=155	8-97173-307-0	02	1	1503-1509		●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. REMOTE CONT DOOR LOCK<AP5>, AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1503-1509		●			●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1503-1509		●			●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1503-1509		●			●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5> (A) L=155	8-97173-307-0	02	1	1503-1509		●			●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (A) L=155	8-97173-307-0	02	1	1503-1509			●	●		●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) L=155	8-97173-307-0	02	1	1503-1509			●	●		●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1503-1509			●	●		●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,AUTO D OOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1503-1509			●	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1503-1509			●	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1503-1509			●			●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1503-1509			●			●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1503-1509			●			●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (A) L=155	8-97173-307-0	02	1	1503-1509			●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,AUSTRA LIA EQUIPMENT(B13),REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1503-1509			●			●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (A) L=155	8-97173-307-0	02	1	1503-1509			●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1503-1509			●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> ,DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (A) L=155	8-97173-307-0	02	1	1503-1509			●			●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> (A) L=155	8-97173-307-0	02	1	1503-1509			●			●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> ,DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1503-1509			●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1503-1509				●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1503-1509				●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1503-1509				●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (A) L=155	8-97173-307-0	02	1	1503-1509				●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,AUSTRA LIA EQUIPMENT(B13),REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1503-1509				●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (A) L=155	8-97173-307-0	02	1	1503-1509				●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1503-1509				●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (A) L=155	8-97173-307-0	02	1	1503-1509				●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (A) L=155	8-97173-307-0	02	1	1503-1509				●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1503-1509				●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> (A) L=155	8-97173-307-0	02	1	1510-	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (A) L=155	8-97173-307-0	02	1	1510-	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1510-	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5> (A) L=155	8-97173-307-0	02	1	1510-	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> (A) L=155	8-97173-307-0	02	1	1510-	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (A) L=155	8-97173-307-0	02	1	1510-		●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. REMOTE CONT DOOR LOCK<AP5> (A) L=155	8-97173-307-0	02	1	1510-		●			●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIRROR<RT9> (A) L=155	8-97173-307-0	02	1	1510-		●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. REMOTE CONT DOOR LOCK<AP5>, AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1510-		●			●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1510-		●			●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1510-		●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> (A) L=155	8-97173-307-0	02	1	1510-		●			●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5> (A) L=155	8-97173-307-0	02	1	1510-		●			●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (A) L=155	8-97173-307-0	02	1	1510-			●	●		●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) L=155	8-97173-307-0	02	1	1510-			●	●		●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1510-			●	●		●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,AUTO D OOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1510-			●	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1510-			●	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1510-			●			●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1510-			●			●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1510-			●			●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (A) L=155	8-97173-307-0	02	1	1510-			●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,AUSTRA LIA EQUIPMENT(B13),REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1510-			●			●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (A) L=155	8-97173-307-0	02	1	1510-			●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1510-			●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> ,DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (A) L=155	8-97173-307-0	02	1	1510-			●			●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> (A) L=155	8-97173-307-0	02	1	1510-			●			●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> ,DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1510-			●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1510-				●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1510-				●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1510-				●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (A) L=155	8-97173-307-0	02	1	1510-				●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,AUSTRA LIA EQUIPMENT(B13),REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1510-				●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (A) L=155	8-97173-307-0	02	1	1510-				●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1510-				●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (A) L=155	8-97173-307-0	02	1	1510-				●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (A) L=155	8-97173-307-0	02	1	1510-				●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1510-				●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	03	1	1409-1411	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=140	8-97378-707-0	03	1	1409-1411	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (B) L=140	8-97378-707-0	03	1	1409-1411	●	●	●	●	●	●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,AUTO D OOR LOCK<AU4> (B) L=140	8-97378-707-0	03	1	1409-1411	●	●	●	●	●	●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (B) L=140	8-97378-707-0	03	1	1409-1411	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) L=140	8-97378-707-0	03	1	1409-1411	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	03	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=140	8-97378-707-0	03	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> (B) L=140	8-97378-707-0	03	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,AUTO D OOR LOCK<AU4> (B) L=140	8-97378-707-0	03	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> (B) L=140	8-97378-707-0	03	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=140	8-97378-707-0	03	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=140	8-97378-707-0	03	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=140	8-97378-707-0	03	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=140	8-97378-707-0	03	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	03	1	1503-1509	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (B) L=140	8-97378-707-0	03	1	1503-1509	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> (B) L=140	8-97378-707-0	03	1	1503-1509	●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> (B) L=140	8-97378-707-0	03	1	1503-1509	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (B) L=140	8-97378-707-0	03	1	1503-1509		●			●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIRROR<RT9> (B) L=140	8-97378-707-0	03	1	1503-1509		●			●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	03	1	1503-1509		●			●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	03	1	1503-1509		●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> (B) L=140	8-97378-707-0	03	1	1503-1509		●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5> (B) L=140	8-97378-707-0	03	1	1503-1509		●			●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=140	8-97378-707-0	03	1	1503-1509			●	●		●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	03	1	1503-1509			●	●		●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,AUTO D OOR LOCK<AU4> (B) L=140	8-97378-707-0	03	1	1503-1509			●	●		●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=140	8-97378-707-0	03	1	1503-1509			●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1503-1509			●			●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=140	8-97378-707-0	03	1	1503-1509			●			●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=140	8-97378-707-0	03	1	1503-1509			●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> ,DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) L=140	8-97378-707-0	03	1	1503-1509			●			●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> (B) L=140	8-97378-707-0	03	1	1503-1509			●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> ,DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1503-1509			●			●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=140	8-97378-707-0	03	1	1503-1509				●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1503-1509				●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=140	8-97378-707-0	03	1	1503-1509				●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=140	8-97378-707-0	03	1	1503-1509				●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) L=140	8-97378-707-0	03	1	1503-1509				●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (B) L=140	8-97378-707-0	03	1	1503-1509				●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1503-1509				●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	03	1	1510-	●	●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> (B) L=140	8-97378-707-0	03	1	1510-	●	●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (B) L=140	8-97378-707-0	03	1	1510-	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> (B) L=140	8-97378-707-0	03	1	1510-	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (B) L=140	8-97378-707-0	03	1	1510-		●			●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIRROR<RT9> (B) L=140	8-97378-707-0	03	1	1510-		●			●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	03	1	1510-		●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5> (B) L=140	8-97378-707-0	03	1	1510-		●			●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=140	8-97378-707-0	03	1	1510-			●	●		●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	03	1	1510-			●	●		●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,AUTO D OOR LOCK<AU4> (B) L=140	8-97378-707-0	03	1	1510-			●	●		●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=140	8-97378-707-0	03	1	1510-			●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1510-			●			●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=140	8-97378-707-0	03	1	1510-			●			●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=140	8-97378-707-0	03	1	1510-			●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> ,DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) L=140	8-97378-707-0	03	1	1510-			●			●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> (B) L=140	8-97378-707-0	03	1	1510-			●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> ,DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1510-			●			●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=140	8-97378-707-0	03	1	1510-				●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1510-				●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=140	8-97378-707-0	03	1	1510-				●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=140	8-97378-707-0	03	1	1510-				●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) L=140	8-97378-707-0	03	1	1510-				●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (B) L=140	8-97378-707-0	03	1	1510-				●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1510-				●
239	02.559 BOLT; GRAND 4JJ1-TCX ENG(LS0) M6X14 W/LK&PL WASHER	8-97086-822-0	03	1	1409-1411	●	●	●	●	●	●
239	02.559 BOLT; GRAND 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) M6X14 W/LK&PL WASHER	8-97086-822-0	03	1	1412-1501	●	●	●	●	●	●
239	02.559 BOLT; GRAND 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) M6X14 W/PL WASHER	8-98164-836-0	03	1	1502-	●	●	●	●	●	●
239	02.559 BOLT; GRAND M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1409-1501	●	●	●	●	●	●
239	02.559 BOLT; GRAND M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1409-1501	●	●	●	●	●	●
239	02.559 BOLT; GRAND M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-	●	●	●	●	●	●
239	02.559 BOLT; GRAND M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-	●	●	●	●	●	●
399	02.559 COVER; HOLE,HARNESS,RR DOOR EXC. AUTO DOOR LOCK<AU4>,6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> 16.064 OD=44 BLACK	5-76777-037-0	02	1	1409-1502			●			●
399	02.559 COVER; HOLE,HARNESS,RR DOOR EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO DOOR LOCK<AU4>,6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM <U87> 16.064 OD=44 BLACK	5-76777-037-0	02	1	1503-1505			●			●
399	02.559 COVER; HOLE,HARNESS,RR DOOR EXC. AUTO DOOR LOCK<AU4> 16.064 OD=44 BLACK	5-76777-037-0	02	1	1506-			●			●

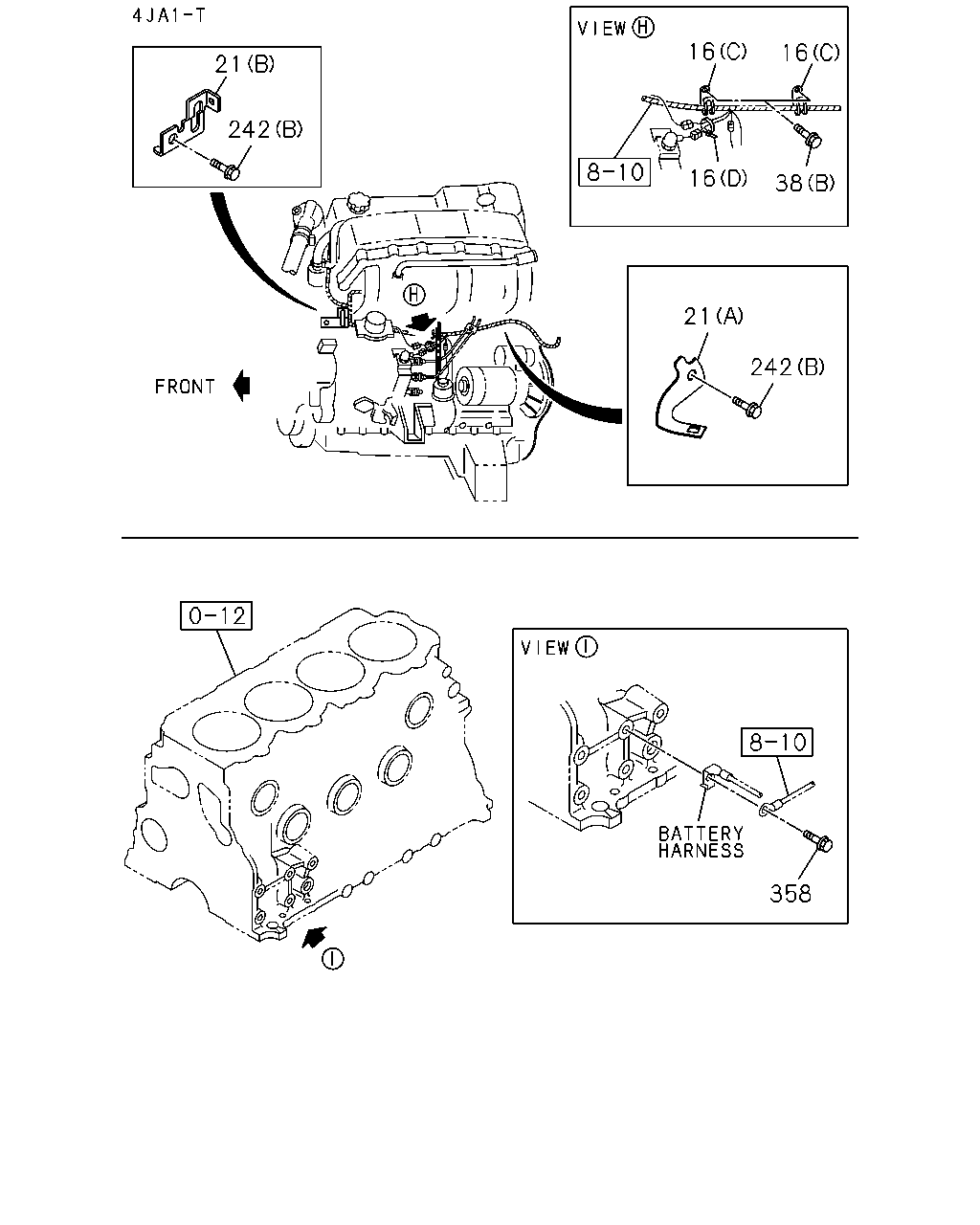

21 242 16 16 16 38 21 242 358

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	02.559 CLIP; HARNESS 4JA1-T ENG(LP0) 03.162 (D) L=140	5-09707-031-1	01	1	1412-		●	●
16	02.559 CLIP; HARNESS 4JA1-T ENG(LP0) 02.313 (C) ID=18 L=44	8-97367-985-1	02	1	1412-		●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	01	1	1412-1502		●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	01	1	1412-1502		●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	01	1	1412-1502		●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,AUTO D OOR LOCK<AU4> (B) L=140	8-97378-707-0	01	1	1412-1502		●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	01	1	1412-1502		●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=140	8-97378-707-0	01	1	1503-1509		●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5> (B) L=140	8-97378-707-0	01	1	1503-1509		●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) L=140	8-97378-707-0	01	1	1503-1509		●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) L=140	8-97378-707-0	01	1	1503-1509		●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> ,DOOR MIRROR<RT9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	01	1	1503-1509		●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> (B) L=140	8-97378-707-0	01	1	1503-1509		●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=140	8-97378-707-0	01	1	1510-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> (B) L=140	8-97378-707-0	01	1	1510-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) L=140	8-97378-707-0	01	1	1510-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=140	8-97378-707-0	01	1	1510-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	01	1	1510-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,AUTO D OOR LOCK<AU4> (B) L=140	8-97378-707-0	01	1	1510-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1409-1411	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (A) L=155	8-97173-307-0	02	1	1409-1411	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (A) L=155	8-97173-307-0	02	1	1409-1411	●	●	●	●	●	●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,AUTO D OOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1409-1411	●	●	●	●	●	●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (A) L=155	8-97173-307-0	02	1	1409-1411	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (A) L=155	8-97173-307-0	02	1	1409-1411	●	●	●	●	●	●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (A) L=155	8-97173-307-0	02	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (A) L=155	8-97173-307-0	02	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,AUTO D OOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> (A) L=155	8-97173-307-0	02	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> (A) L=155	8-97173-307-0	02	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> (A) L=155	8-97173-307-0	02	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> (A) L=155	8-97173-307-0	02	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> ,DOOR MIRROR<RT9> (A) L=155	8-97173-307-0	02	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> ,DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> (A) L=155	8-97173-307-0	02	1	1503-1509	●	●			●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1503-1509	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (A) L=155	8-97173-307-0	02	1	1503-1509	●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> (A) L=155	8-97173-307-0	02	1	1503-1509	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (A) L=155	8-97173-307-0	02	1	1503-1509		●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. REMOTE CONT DOOR LOCK<AP5> (A) L=155	8-97173-307-0	02	1	1503-1509		●			●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIRROR<RT9> (A) L=155	8-97173-307-0	02	1	1503-1509		●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. REMOTE CONT DOOR LOCK<AP5>, AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1503-1509		●			●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1503-1509		●			●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1503-1509		●			●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5> (A) L=155	8-97173-307-0	02	1	1503-1509		●			●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (A) L=155	8-97173-307-0	02	1	1503-1509			●	●		●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) L=155	8-97173-307-0	02	1	1503-1509			●	●		●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1503-1509			●	●		●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,AUTO D OOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1503-1509			●	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1503-1509			●	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1503-1509			●			●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1503-1509			●			●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1503-1509			●			●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (A) L=155	8-97173-307-0	02	1	1503-1509			●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,AUSTRA LIA EQUIPMENT(B13),REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1503-1509			●			●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (A) L=155	8-97173-307-0	02	1	1503-1509			●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1503-1509			●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> ,DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (A) L=155	8-97173-307-0	02	1	1503-1509			●			●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> (A) L=155	8-97173-307-0	02	1	1503-1509			●			●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> ,DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1503-1509			●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1503-1509				●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1503-1509				●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1503-1509				●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (A) L=155	8-97173-307-0	02	1	1503-1509				●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,AUSTRA LIA EQUIPMENT(B13),REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1503-1509				●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (A) L=155	8-97173-307-0	02	1	1503-1509				●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1503-1509				●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (A) L=155	8-97173-307-0	02	1	1503-1509				●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (A) L=155	8-97173-307-0	02	1	1503-1509				●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1503-1509				●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> (A) L=155	8-97173-307-0	02	1	1510-	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (A) L=155	8-97173-307-0	02	1	1510-	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1510-	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5> (A) L=155	8-97173-307-0	02	1	1510-	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> (A) L=155	8-97173-307-0	02	1	1510-	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (A) L=155	8-97173-307-0	02	1	1510-		●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. REMOTE CONT DOOR LOCK<AP5> (A) L=155	8-97173-307-0	02	1	1510-		●			●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIRROR<RT9> (A) L=155	8-97173-307-0	02	1	1510-		●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. REMOTE CONT DOOR LOCK<AP5>, AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1510-		●			●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1510-		●			●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1510-		●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> (A) L=155	8-97173-307-0	02	1	1510-		●			●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5> (A) L=155	8-97173-307-0	02	1	1510-		●			●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (A) L=155	8-97173-307-0	02	1	1510-			●	●		●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) L=155	8-97173-307-0	02	1	1510-			●	●		●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1510-			●	●		●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,AUTO D OOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1510-			●	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1510-			●	●		●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1510-			●			●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1510-			●			●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1510-			●			●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (A) L=155	8-97173-307-0	02	1	1510-			●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,AUSTRA LIA EQUIPMENT(B13),REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1510-			●			●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (A) L=155	8-97173-307-0	02	1	1510-			●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1510-			●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> ,DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (A) L=155	8-97173-307-0	02	1	1510-			●			●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> (A) L=155	8-97173-307-0	02	1	1510-			●			●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> ,DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1510-			●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1510-				●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1510-				●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1510-				●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (A) L=155	8-97173-307-0	02	1	1510-				●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,AUSTRA LIA EQUIPMENT(B13),REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1510-				●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (A) L=155	8-97173-307-0	02	1	1510-				●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155	8-97173-307-0	02	1	1510-				●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (A) L=155	8-97173-307-0	02	1	1510-				●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (A) L=155	8-97173-307-0	02	1	1510-				●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> EXC. AUSTRALIA EQUIPMENT(B13) (A) L=155	8-97173-307-0	02	1	1510-				●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	03	1	1409-1411	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=140	8-97378-707-0	03	1	1409-1411	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (B) L=140	8-97378-707-0	03	1	1409-1411	●	●	●	●	●	●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,AUTO D OOR LOCK<AU4> (B) L=140	8-97378-707-0	03	1	1409-1411	●	●	●	●	●	●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (B) L=140	8-97378-707-0	03	1	1409-1411	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) L=140	8-97378-707-0	03	1	1409-1411	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	03	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=140	8-97378-707-0	03	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> (B) L=140	8-97378-707-0	03	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,AUTO D OOR LOCK<AU4> (B) L=140	8-97378-707-0	03	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> (B) L=140	8-97378-707-0	03	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=140	8-97378-707-0	03	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=140	8-97378-707-0	03	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=140	8-97378-707-0	03	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=140	8-97378-707-0	03	1	1412-1502	●	●	●	●	●	●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	03	1	1503-1509	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (B) L=140	8-97378-707-0	03	1	1503-1509	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> (B) L=140	8-97378-707-0	03	1	1503-1509	●
16	02.559 CLIP; HARNESS DOOR MIRROR<RT9> (B) L=140	8-97378-707-0	03	1	1503-1509	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (B) L=140	8-97378-707-0	03	1	1503-1509		●			●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIRROR<RT9> (B) L=140	8-97378-707-0	03	1	1503-1509		●			●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	03	1	1503-1509		●			●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	03	1	1503-1509		●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> (B) L=140	8-97378-707-0	03	1	1503-1509		●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5> (B) L=140	8-97378-707-0	03	1	1503-1509		●			●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=140	8-97378-707-0	03	1	1503-1509			●	●		●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	03	1	1503-1509			●	●		●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,AUTO D OOR LOCK<AU4> (B) L=140	8-97378-707-0	03	1	1503-1509			●	●		●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=140	8-97378-707-0	03	1	1503-1509			●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1503-1509			●			●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=140	8-97378-707-0	03	1	1503-1509			●			●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=140	8-97378-707-0	03	1	1503-1509			●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> ,DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) L=140	8-97378-707-0	03	1	1503-1509			●			●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> (B) L=140	8-97378-707-0	03	1	1503-1509			●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> ,DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1503-1509			●			●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=140	8-97378-707-0	03	1	1503-1509				●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1503-1509				●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=140	8-97378-707-0	03	1	1503-1509				●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=140	8-97378-707-0	03	1	1503-1509				●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) L=140	8-97378-707-0	03	1	1503-1509				●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (B) L=140	8-97378-707-0	03	1	1503-1509				●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1503-1509				●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	03	1	1510-	●	●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> (B) L=140	8-97378-707-0	03	1	1510-	●	●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (B) L=140	8-97378-707-0	03	1	1510-	●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> (B) L=140	8-97378-707-0	03	1	1510-	●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (B) L=140	8-97378-707-0	03	1	1510-		●			●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIRROR<RT9> (B) L=140	8-97378-707-0	03	1	1510-		●			●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	03	1	1510-		●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK<AP5> (B) L=140	8-97378-707-0	03	1	1510-		●			●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=140	8-97378-707-0	03	1	1510-			●	●		●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	03	1	1510-			●	●		●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,AUTO D OOR LOCK<AU4> (B) L=140	8-97378-707-0	03	1	1510-			●	●		●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=140	8-97378-707-0	03	1	1510-			●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1510-			●			●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=140	8-97378-707-0	03	1	1510-			●			●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=140	8-97378-707-0	03	1	1510-			●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> ,DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) L=140	8-97378-707-0	03	1	1510-			●			●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> (B) L=140	8-97378-707-0	03	1	1510-			●			●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIR ELE C HEATED PWR FOLDING TURN SIGNAL<DNQ> ,DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1510-			●			●
16	02.559 CLIP; HARNESS REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=140	8-97378-707-0	03	1	1510-				●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1510-				●
16	02.559 CLIP; HARNESS AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. AUSTRALIA EQUIPMENT(B13) (B) L=140	8-97378-707-0	03	1	1510-				●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3>, REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THE FT<7KY> (B) L=140	8-97378-707-0	03	1	1510-				●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEF T<7KY> (B) L=140	8-97378-707-0	03	1	1510-				●
16	02.559 CLIP; HARNESS PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (B) L=140	8-97378-707-0	03	1	1510-				●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) DOOR MIR ELEC FOLDING COLOR TURN SIG, BRIGHT<DE3>,DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR<RT9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140	8-97378-707-0	03	1	1510-				●
21	02.483 BRACKET; ENG HARNESS 4JA1-T ENG(LP0) (B)	8-97249-918-1	01	1	1412-		●	●
21	02.483 BRACKET; ENG HARNESS 4JA1-T ENG(LP0) (A)	8-98179-923-0	01	1	1412-		●	●
38	02.559 BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) 02.343 (B) M8X12 FLANGE	0-28050-812-0	02	1	1504-		●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1409-1411	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1412-	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	1409-1411	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	1412-	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1409-1411	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1412-	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JK1-TCS ENG(LKZ) 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	1412-		●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.343 (E) M10X12 FLANGE	0-28151-012-0	01	1	1409-1411	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.343 (E) M10X12 FLANGE	0-28151-012-0	01	1	1412-	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (D) M6X16 FLANGE	0-28650-616-0	05	1	1409-	●	●	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS 4JA1-T ENG(LP0) 02.343 (B) M8X12 FLANGE	0-28050-812-0	03	1	1412-1503		●	●
242	02.483 BOLT; BRKT,HARNESS 4JA1-T ENG(LP0) 02.343 (B) M8X12 FLANGE	0-28050-812-0	02	1	1504-		●	●
242	02.483 BOLT; BRKT,HARNESS 4JK1-TCY ENG(RDX) M/T AISIN 6 SPEED(RNU) 03.895 (C) M8X16 FLANGE	8-98076-109-0	01	1	1412-		●	●		●	●
242	02.483 BOLT; BRKT,HARNESS M/T AISIN 6 SPEED(RNU) 03.895 (C) M8X16 FLANGE	8-98076-109-0	01	1	1412-		●	●		●	●
242	02.483 BOLT; BRKT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1409-	●	●	●	●	●	●
358	02.480 BOLT; EARTH 4JA1-T ENG(LP0) 02.483 M10X16 FLANGE	0-28051-016-0	01	1	1412-		●	●

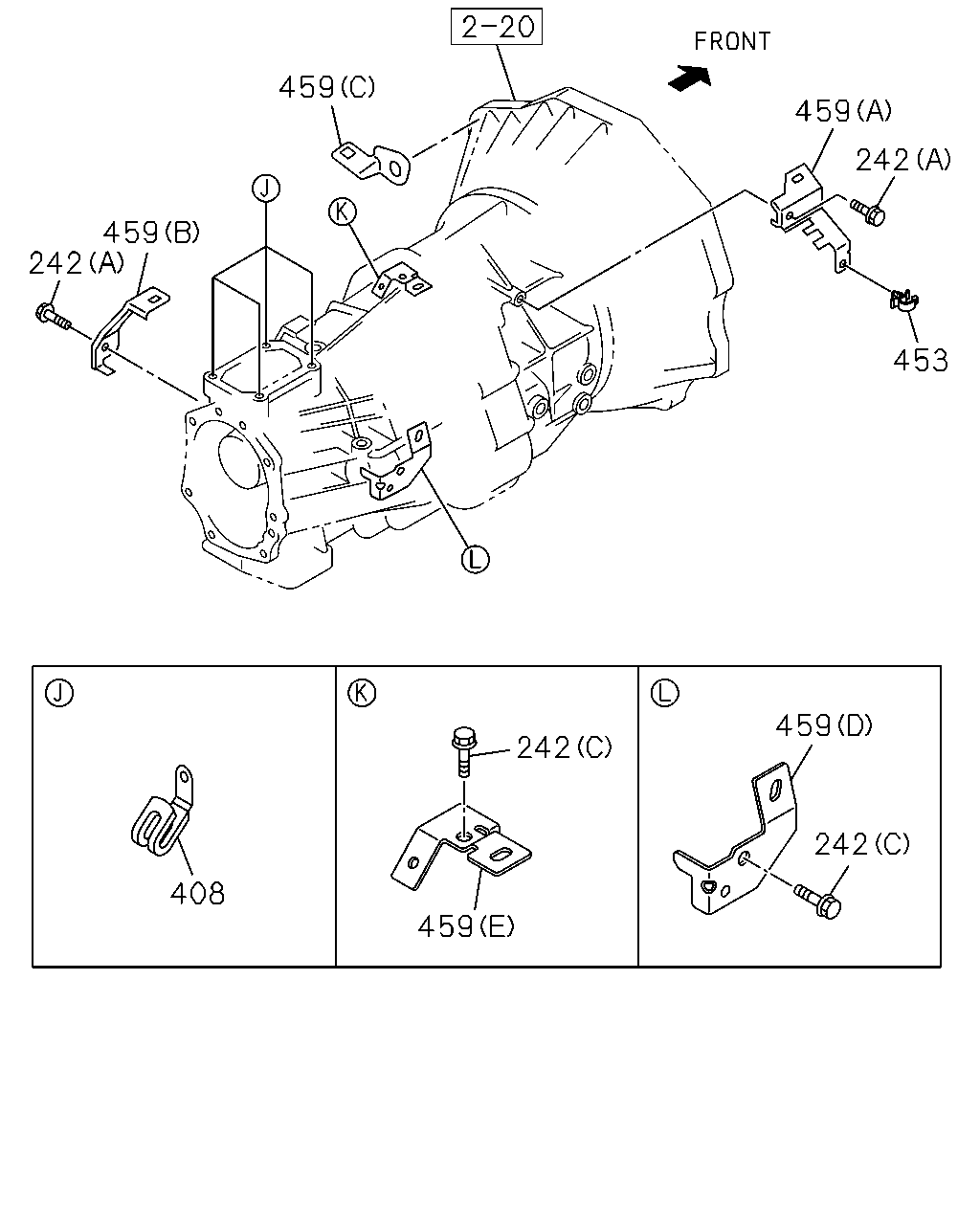

459 459 242 459 242 453 459 242 242 459 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
242	02.483 BOLT; BRKT,HARNESS 4JA1-T ENG(LP0) 02.343 (B) M8X12 FLANGE	0-28050-812-0	03	1	1412-1503		●	●
242	02.483 BOLT; BRKT,HARNESS 4JA1-T ENG(LP0) 02.343 (B) M8X12 FLANGE	0-28050-812-0	02	1	1504-		●	●
242	02.483 BOLT; BRKT,HARNESS 4JK1-TCY ENG(RDX) M/T AISIN 6 SPEED(RNU) 03.895 (C) M8X16 FLANGE	8-98076-109-0	01	1	1412-		●	●		●	●
242	02.483 BOLT; BRKT,HARNESS M/T AISIN 6 SPEED(RNU) 03.895 (C) M8X16 FLANGE	8-98076-109-0	01	1	1412-		●	●		●	●
242	02.483 BOLT; BRKT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1409-	●	●	●	●	●	●
408	02.559 CLIP; TRANS HARNESS 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	04	1	1412-		●	●	●	●	●
453	02.559 CLIP; CABLE HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 04.342 ID=6.5	5-09709-117-0	01	1	1409-	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (C)	8-98050-882-0	01	1	1412-		●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JK1-TCY ENG(RDX) M/T AISIN 6 SPEED(RNU) 04.686 (D)	8-98206-131-0	01	1	1412-		●	●		●	●
459	02.483 BRACKET; SUPPORT,HARNESS M/T AISIN 6 SPEED(RNU) 04.686 (E)	8-98159-956-0	01	1	1412-		●	●		●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (A)	8-98035-740-0	01	1	1409-	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (B)	8-98035-741-0	01	1	1409-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
