◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51580 - TFR/TFS RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#148531) — 116 parça

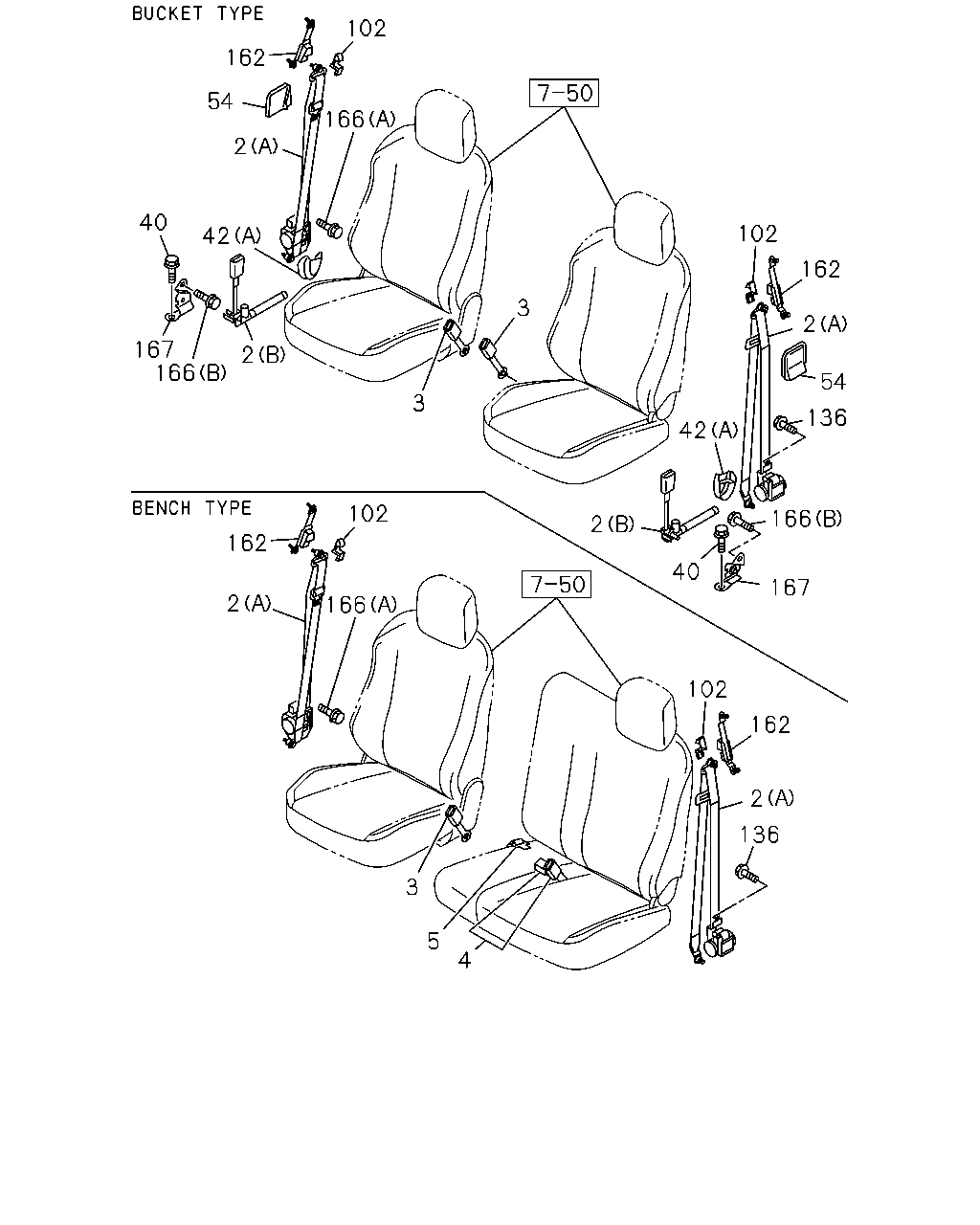

çizim 444381
102 166 162 54 2 42 40 167 2 3 3 2 166 102 2 54 162 136 166 167 40 42 102 162 2 136 102 166 162 2 3 5 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) FRONT SEAT SPLIT BENCH<AM6> EXC. AUSTRALIA EQUIPMENT(B13) (A) BLACK 		8-97423-668-0 01 1 1412- ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. AUSTRALIA EQUIPMENT(B13) (A) BLACK 		8-97423-667-0 01 1 1412- ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER DELETE(AK6) (A) BLACK 		8-97423-661-0 01 1 1412- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. LAOS EQUIPMENT(CF0),HIGH RIDE SUSPENSION(7YC) (A) BLACK 		8-97423-661-0 01 1 1412- ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER DELETE(AK6) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13),LAOS EQUIPMENT(CF0) (A) BLACK 		8-97423-661-0 01 1 1412- ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. INDONESIA EQUIPMENT(B00),LAOS EQUIPMENT(CF0) (A) BLACK 		8-97423-661-0 01 1 1412- ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),LAOS EQUIPMENT(CF0) (A) BLACK 		8-97423-661-0 01 1 1412- ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),LAOS EQUIPMENT(CF0) (A) BLACK 		8-97423-665-0 01 1 1412- ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) LAOS EQUIPMENT(CF0) (A) BLACK 		8-97423-663-0 01 1 1412- ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) INDONESIA EQUIPMENT(B00),LAOS EQUIPMENT(CF0) (A) BLACK 		8-97423-663-0 01 1 1412- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
(A) BLACK 		8-97417-402-1 01 1 1409-1411 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. HIGH RIDE SUSPENSION(7YC) (A) BLACK 		8-97417-402-1 01 1 1409-1411 ●
2 16.714 BELT; SEAT,TONGUE SIDE
(A) BLACK 		8-97417-402-1 01 1 1412-1509 ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13) (A) BLACK 		8-97417-402-1 01 1 1412-1509 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13) EXC. HIGH RIDE SUSPENSION(7YC) (A) BLACK 		8-97417-402-1 01 1 1412-1509 ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13) (A) BLACK 		8-97417-402-1 01 1 1412-1509 ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) (A) BLACK 		8-97417-402-1 01 1 1510- ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13) (A) BLACK 		8-97417-402-1 01 1 1510- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13) EXC. HIGH RIDE SUSPENSION(7YC) (A) BLACK 		8-97417-402-1 01 1 1510- ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13) (A) BLACK 		8-97417-402-1 01 1 1510- ●
2 16.714 BELT; SEAT,TONGUE SIDE
(A) BLACK 		8-97423-662-0 01 1 1409-1411 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. HIGH RIDE SUSPENSION(7YC) (A) BLACK 		8-97423-662-0 01 1 1409-1411 ●
2 16.714 BELT; SEAT,TONGUE SIDE
(A) BLACK 		8-97423-662-0 01 1 1412-1509 ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) (A) BLACK 		8-97423-662-0 01 1 1412-1509 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. LAOS EQUIPMENT(CF0),HIGH RIDE SUSPENSION(7YC) (A) BLACK 		8-97423-662-0 01 1 1412-1509 ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13),LAOS EQUIPMENT(CF0) (A) BLACK 		8-97423-662-0 01 1 1412-1509 ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. INDONESIA EQUIPMENT(B00),LAOS EQUIPMENT(CF0) (A) BLACK 		8-97423-662-0 01 1 1412-1509 ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),LAOS EQUIPMENT(CF0) (A) BLACK 		8-97423-662-0 01 1 1412-1509 ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) (A) BLACK 		8-97423-662-0 01 1 1510- ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. LAOS EQUIPMENT(CF0),HIGH RIDE SUSPENSION(7YC) (A) BLACK 		8-97423-662-0 01 1 1510- ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13),LAOS EQUIPMENT(CF0) (A) BLACK 		8-97423-662-0 01 1 1510- ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. INDONESIA EQUIPMENT(B00),LAOS EQUIPMENT(CF0) (A) BLACK 		8-97423-662-0 01 1 1510- ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),LAOS EQUIPMENT(CF0) (A) BLACK 		8-97423-662-0 01 1 1510- ●
2 16.714 BELT; SEAT,TONGUE SIDE
HIGH RIDE SUSPENSION(7YC) (A) BLACK 		8-97424-339-1 01 1 1409-1411 ●
2 16.714 BELT; SEAT,TONGUE SIDE
(A) BLACK 		8-97424-339-1 01 1 1409-1411 ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) (A) BLACK 		8-97424-339-1 01 1 1412- ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13) (A) BLACK 		8-97424-339-1 01 1 1412- ●
2 16.714 BELT; SEAT,TONGUE SIDE
HIGH RIDE SUSPENSION(7YC) (A) BLACK 		8-97424-333-1 01 1 1409-1411 ●
2 16.714 BELT; SEAT,TONGUE SIDE
(A) BLACK 		8-97424-333-1 01 1 1409-1411 ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) (A) BLACK 		8-97424-333-1 01 1 1412- ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) AUSTRALIA EQUIPMENT(B13) (A) BLACK 		8-97424-333-1 01 1 1412- ●
2 16.714 BELT; SEAT,TONGUE SIDE
HIGH RIDE SUSPENSION(7YC) (B) BLACK 		8-97424-334-0 01 1 1409-1411 ●
2 16.714 BELT; SEAT,TONGUE SIDE
(B) BLACK 		8-97424-334-0 01 1 1409-1411 ●
2 16.714 BELT; SEAT,TONGUE SIDE
AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) (B) BLACK 		8-97424-334-0 01 1 1412- ●
2 16.714 BELT; SEAT,TONGUE SIDE
AUSTRALIA EQUIPMENT(B13) (B) BLACK 		8-97424-334-0 01 1 1412- ●
2 16.714 BELT; SEAT,TONGUE SIDE
HIGH RIDE SUSPENSION(7YC) (B) BLACK 		8-97424-335-0 01 1 1409-1411 ●
2 16.714 BELT; SEAT,TONGUE SIDE
(B) BLACK 		8-97424-335-0 01 1 1409-1411 ●
2 16.714 BELT; SEAT,TONGUE SIDE
AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) (B) BLACK 		8-97424-335-0 01 1 1412- ●
2 16.714 BELT; SEAT,TONGUE SIDE
AUSTRALIA EQUIPMENT(B13) (B) BLACK 		8-97424-335-0 01 1 1412- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),HEATER FRT SEAT<KA1>,SINGAPORE EQUIPMENT(2G0) BLACK 		8-97416-839-0 01 1 1412- ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> EXC. AUSTRALIA EQUIPMENT(B13) BLACK 		8-97426-632-0 01 1 1412- ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),HEATER FRT SEAT<KA1>,SINGAPORE EQUIPMENT(2G0) BLACK 		8-97426-632-0 01 1 1412- ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97426-631-0 01 1 1409-1410 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT TRIM LEATHER<6TB>,SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>, SEATTRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97426-631-0 01 1 1409-1410 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> BLACK 		8-97426-631-0 01 1 1409-1410 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK 		8-97426-631-0 01 1 1411-1411 ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) FRONT SEAT BUCKET STANDARD<A50> BLACK 		8-97426-631-0 01 1 1412- ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK 		8-97426-631-0 01 1 1412- ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97426-630-0 01 1 1409-1410 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT TRIM LEATHER<6TB>,SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK>, SEATTRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97426-630-0 01 1 1409-1410 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE CLOTH<8LK> FRONT SEAT BUCKET STANDARD<A50> BLACK 		8-97426-630-0 01 1 1411- ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> BLACK 		8-97425-488-1 01 1 1409-1410 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) BLACK 		8-97425-488-1 01 1 1409-1410 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> HIGH RIDE SUSPENSION(7YC) BLACK 		8-97425-488-1 01 1 1411-1411 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK 		8-97425-488-1 01 1 1411-1411 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) EXC. HEATER FRT SEAT<KA1> BLACK 		8-97425-488-1 01 1 1412- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AUSTRALIA EQUIPMENT(B13) EXC. HEATER FRT SEAT<KA1> BLACK 		8-97425-488-1 01 1 1412- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> BLACK 		8-97425-489-1 01 1 1409-1410 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> HIGH RIDE SUSPENSION(7YC) BLACK 		8-97425-489-1 01 1 1411-1411 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK 		8-97425-489-1 01 1 1411-1411 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) BLACK 		8-97425-489-1 01 1 1412- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGHGRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AUSTRALIA EQUIPMENT(B13) BLACK 		8-97425-489-1 01 1 1412- ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
FRONT SEAT SPLIT BENCH<AM6> BLACK 		8-97417-107-1 01 1 1412- ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
FRONT SEAT SPLIT BENCH<AM6> BLACK 		8-97423-671-0 01 1 1412- ● ● ● ●
40 16.545 BOLT; BRKT,ANCHOR
HIGH RIDE SUSPENSION(7YC) 16.682 M12X27.5 W/PL WASHER 		8-98050-319-0 02 1 1409-1411 ●
40 16.545 BOLT; BRKT,ANCHOR
16.682 M12X27.5 W/PL WASHER 		8-98050-319-0 02 1 1409-1411 ●
40 16.545 BOLT; BRKT,ANCHOR
AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) 16.682 M12X27.5 W/PL WASHER 		8-98050-319-0 02 1 1412- ●
40 16.545 BOLT; BRKT,ANCHOR
AUSTRALIA EQUIPMENT(B13) 16.682 M12X27.5 W/PL WASHER 		8-98050-319-0 02 1 1412- ●
42 16.578 COVER; SEAT BELT
(A) BLACK 		8-97417-001-0 02 1 1409- ● ●
42 16.578 COVER; SEAT BELT
INTERIOR BASIC(RBA) (B) BLACK 		8-97417-408-0 01 1 1409- ● ●
54 16.714 BEZEL; SEAT BELT
16.165 BLACK 		8-97416-758-1 01 1 1409- ● ●
54 16.714 BEZEL; SEAT BELT
16.165 BLACK 		8-97416-760-1 01 1 1409- ● ●
102 16.714 COVER; SHOULDER ANCHOR
BLACK 		8-97416-646-2 02 1 1409- ● ● ● ● ● ●
136 16.714 BOLT; SEAT BELT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1409-1509 ● ● ● ● ● ●
136 16.714 BOLT; SEAT BELT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1510- ●
136 16.714 BOLT; SEAT BELT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1510- ● ● ● ● ●
162 16.714 ADJUSTER; SEAT BELT
BLACK 		8-97416-645-1 02 1 1409- ● ● ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1409-1509 ● ● ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1510- ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1510- ● ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
HIGH RIDE SUSPENSION(7YC) (B) M14X32 FLANGE 		8-98056-276-0 02 1 1409-1411 ●
166 16.714 BOLT; SEAT BELT ANCHOR
(B) M14X32 FLANGE 		8-98056-276-0 02 1 1409-1411 ●
166 16.714 BOLT; SEAT BELT ANCHOR
AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) (B) M14X32 FLANGE 		8-98056-276-0 02 1 1412- ●
166 16.714 BOLT; SEAT BELT ANCHOR
AUSTRALIA EQUIPMENT(B13) (B) M14X32 FLANGE 		8-98056-276-0 02 1 1412- ●
167 16.714 PLATE; ANCHOR
HIGH RIDE SUSPENSION(7YC) 		8-98216-137-2 01 1 1409-1411 ●
167 16.714 PLATE; ANCHOR 8-98216-137-2 01 1 1409-1411 ●
167 16.714 PLATE; ANCHOR
AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) 		8-98216-137-2 01 1 1412- ●
167 16.714 PLATE; ANCHOR
AUSTRALIA EQUIPMENT(B13) 		8-98216-137-2 01 1 1412- ●
167 16.714 PLATE; ANCHOR
HIGH RIDE SUSPENSION(7YC) 		8-98216-138-2 01 1 1409-1411 ●
167 16.714 PLATE; ANCHOR 8-98216-138-2 01 1 1409-1411 ●
167 16.714 PLATE; ANCHOR
AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) 		8-98216-138-2 01 1 1412- ●
167 16.714 PLATE; ANCHOR
AUSTRALIA EQUIPMENT(B13) 		8-98216-138-2 01 1 1412- ●

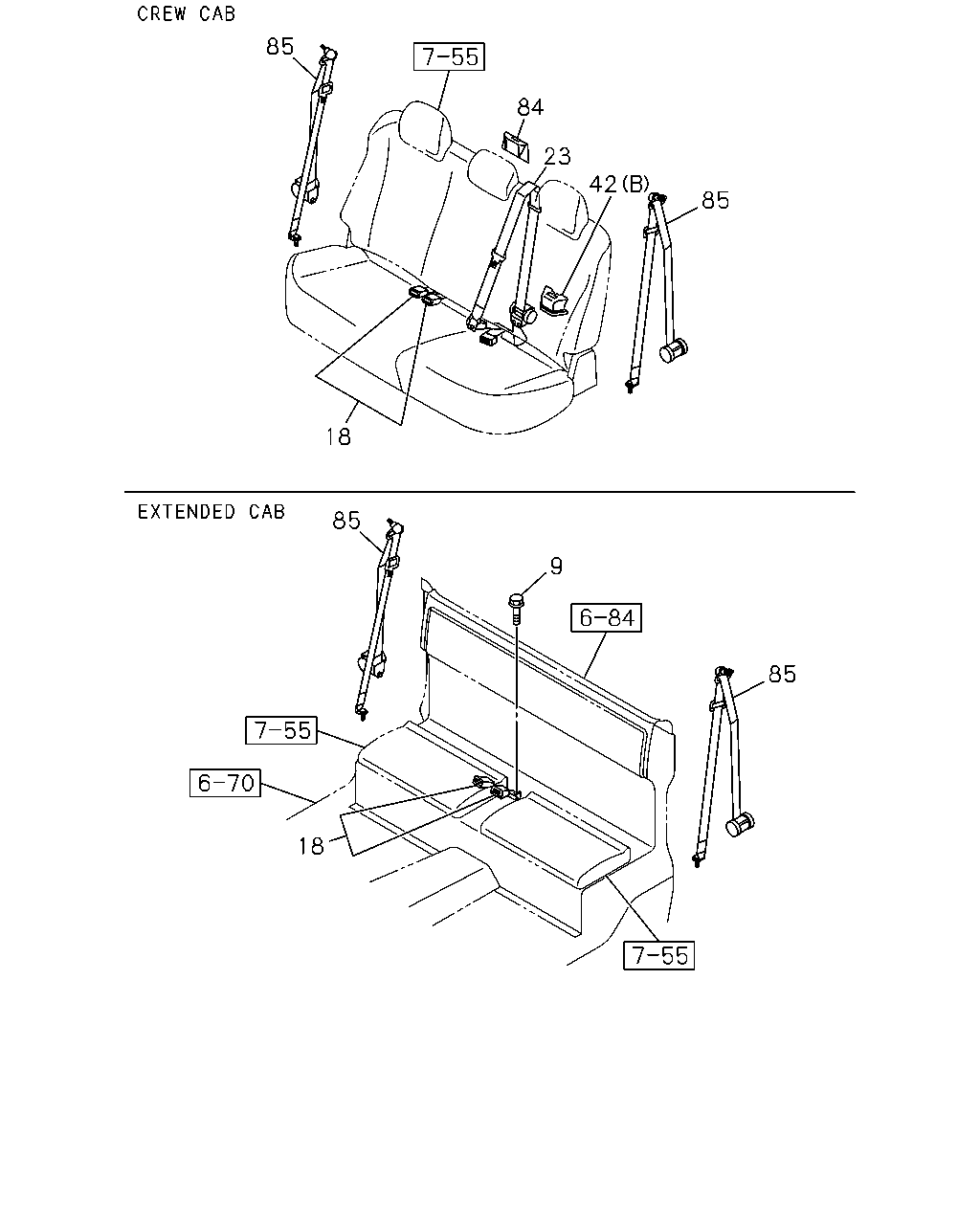

çizim 444394
84 23 85 42 85 18 85 9 85 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 16.714 BOLT; SEAT BELT ANCHOR
JUMP SEAT<AJ2> 16.682 M12X27.5 W/PL WASHER 		8-98050-319-0 01 1 1409- ● ●
18 16.714 BELT; SEAT,RR
JUMP SEAT<AJ2> BLACK 		8-97417-403-3 01 1 1409- ● ●
18 16.714 BELT; SEAT,RR
BLACK 		8-97416-937-1 01 1 1409- ● ●
23 16.714 BELT; SEAT,CENTER
EXC. AUSTRALIA EQUIPMENT(B13) BLACK 		8-97417-405-3 01 1 1412- ● ●
23 16.714 BELT; SEAT,CENTER
BLACK 		8-97417-406-3 01 1 1409-1411 ● ●
23 16.714 BELT; SEAT,CENTER
AUSTRALIA EQUIPMENT(B13) BLACK 		8-97417-406-3 01 1 1412- ● ●
42 16.578 COVER; SEAT BELT
(A) BLACK 		8-97417-001-0 02 1 1409- ● ●
42 16.578 COVER; SEAT BELT
INTERIOR BASIC(RBA) (B) BLACK 		8-97417-408-0 01 1 1409- ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
BLACK 		8-97417-409-1 01 1 1409- ● ●
85 16.714 BELT; SEAT,RR OUTER
EXC. AUSTRALIA EQUIPMENT(B13) BLACK 		8-97423-669-0 02 1 1412- ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> EXC. AUSTRALIA EQUIPMENT(B13) BLACK 		8-97423-669-0 02 1 1412- ●
85 16.714 BELT; SEAT,RR OUTER
BLACK 		8-97417-407-4 02 1 1409-1411 ● ● ● ●
85 16.714 BELT; SEAT,RR OUTER
BLACK 		8-97417-407-4 02 1 1412- ●
85 16.714 BELT; SEAT,RR OUTER
AUSTRALIA EQUIPMENT(B13) BLACK 		8-97417-407-4 02 1 1412- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
