3 |

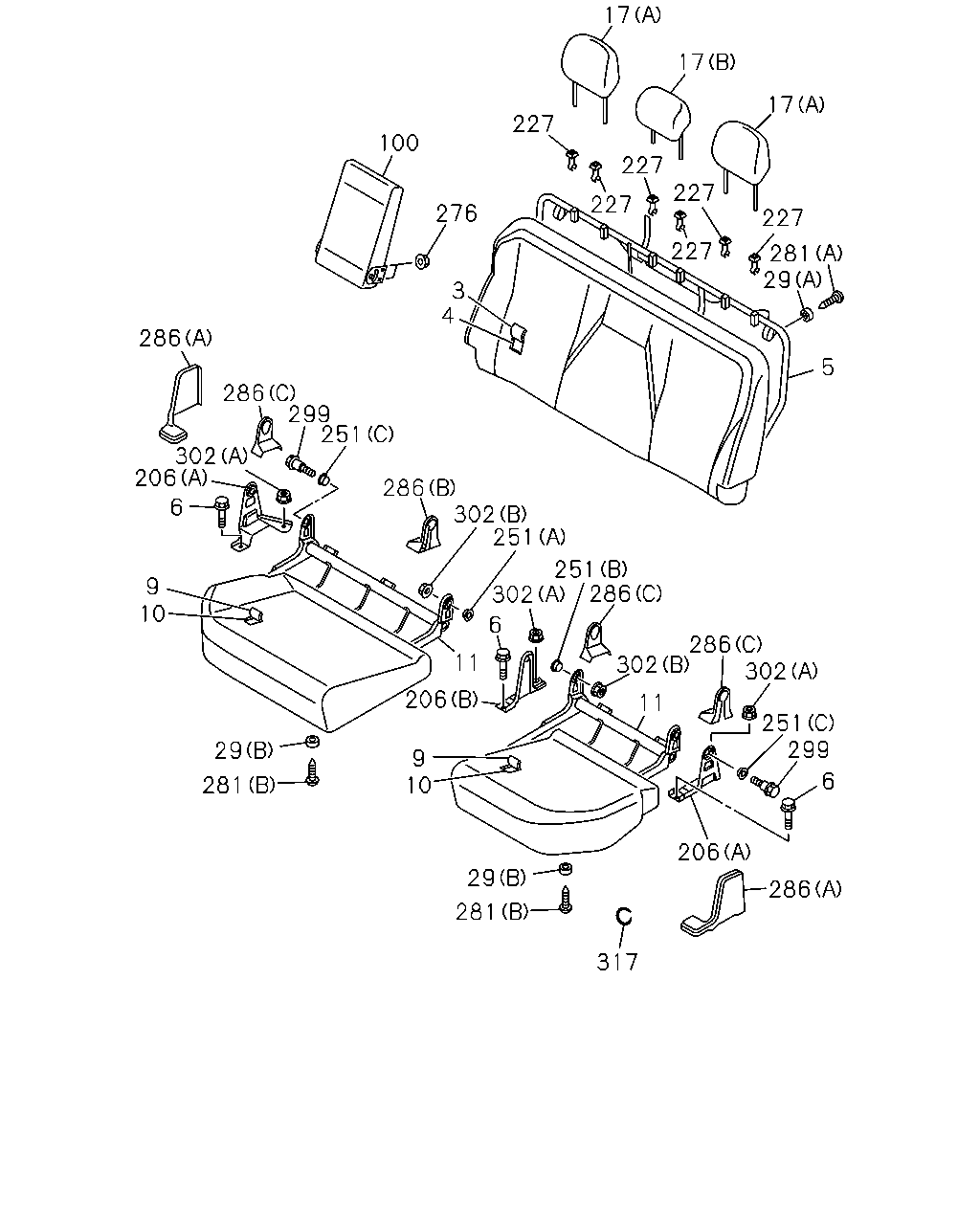

16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM VINYL<8LJ>
RESTRAINT PROVISIONS CHILD<AN4>
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0)
GRAY
|
8-97465-369-0 |
01 |
1 |
1412- |
● |
● |
|
|
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM VINYL<8LJ>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),AUSTRALIA
EQUIPMENT(B13),HONG KONG EQUIPMENT(B14)
,LAOS EQUIPMENT(CF0),SINGAPORE
EQUIPMENT(2G0)
GRAY
|
8-97423-383-0 |
01 |
1 |
1412- |
● |
● |
|
|
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM BASE CLOTH<8LK>
RESTRAINT PROVISIONS CHILD<AN4>
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0)
LIGHT GRAY
|
8-97465-370-0 |
01 |
1 |
1412- |
● |
● |
|
|
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM BASE CLOTH<8LK>
RESTRAINT PROVISIONS CHILD<AN4>
EXC. INDONESIA EQUIPMENT(B00),
AUSTRALIA EQUIPMENT(B13),LAOS EQUIPMENT(CF0)
,SINGAPORE EQUIPMENT(2G0)
LIGHT GRAY
|
8-97423-406-0 |
01 |
1 |
1412- |
● |
● |
|
|
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM BASE CLOTH<8LK>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),AUSTRALIA
EQUIPMENT(B13),LAOS EQUIPMENT(CF0),SING
APORE EQUIPMENT(2G0)
LIGHT GRAY
|
8-97423-403-0 |
01 |
1 |
1412- |
● |
● |
|
|
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB>
RESTRAINT PROVISIONS CHILD<AN4>
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0)
BLACK
|
8-97465-100-0 |
01 |
1 |
1412-1507 |
● |
● |
|
|
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB>
RESTRAINT PROVISIONS CHILD<AN4>
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0)
BLACK
|
8-97460-342-0 |
01 |
1 |
1508- |
● |
● |
|
|
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB>
RESTRAINT PROVISIONS CHILD<AN4>
EXC. INDONESIA EQUIPMENT(B00),
AUSTRALIA EQUIPMENT(B13),LAOS EQUIPMENT(CF0)
,SINGAPORE EQUIPMENT(2G0)
BLACK
|
8-97465-103-0 |
01 |
1 |
1412-1507 |
● |
● |
|
|
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB>
RESTRAINT PROVISIONS CHILD<AN4>
EXC. INDONESIA EQUIPMENT(B00),
AUSTRALIA EQUIPMENT(B13),LAOS EQUIPMENT(CF0)
,SINGAPORE EQUIPMENT(2G0)
BLACK
|
8-97460-365-0 |
01 |
1 |
1508- |
● |
● |
|
|
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),AUSTRALIA
EQUIPMENT(B13),LAOS EQUIPMENT(CF0),SING
APORE EQUIPMENT(2G0)
BLACK
|
8-97465-101-0 |
01 |
1 |
1412-1507 |
● |
● |
|
|
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),AUSTRALIA
EQUIPMENT(B13),LAOS EQUIPMENT(CF0),SING
APORE EQUIPMENT(2G0)
BLACK
|
8-97460-334-0 |
01 |
1 |
1508- |
● |
● |
|
|
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM>
RESTRAINT PROVISIONS CHILD<AN4>
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0)
BLACK
|
8-97423-393-0 |
01 |
1 |
1412-1507 |
● |
● |
|
|
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM>
RESTRAINT PROVISIONS CHILD<AN4>
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0)
BLACK
|
8-97460-302-0 |
01 |
1 |
1508- |
● |
● |
|
|
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM>
RESTRAINT PROVISIONS CHILD<AN4>
EXC. INDONESIA EQUIPMENT(B00),
AUSTRALIA EQUIPMENT(B13),LAOS EQUIPMENT(CF0)
,SINGAPORE EQUIPMENT(2G0)
BLACK
|
8-97423-418-0 |
01 |
1 |
1412-1507 |
● |
● |
|
|
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM>
RESTRAINT PROVISIONS CHILD<AN4>
EXC. INDONESIA EQUIPMENT(B00),
AUSTRALIA EQUIPMENT(B13),LAOS EQUIPMENT(CF0)
,SINGAPORE EQUIPMENT(2G0)
BLACK
|
8-97460-354-0 |
01 |
1 |
1508- |
● |
● |
|
|
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),AUSTRALIA
EQUIPMENT(B13),LAOS EQUIPMENT(CF0),SING
APORE EQUIPMENT(2G0)
BLACK
|
8-97423-390-0 |
01 |
1 |
1412-1507 |
● |
● |
|
|
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),AUSTRALIA
EQUIPMENT(B13),LAOS EQUIPMENT(CF0),SING
APORE EQUIPMENT(2G0)
BLACK
|
8-97460-327-0 |
01 |
1 |
1508- |
● |
● |
|
|
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
INTERIOR BASIC(RBA)
SEAT TRIM VINYL<8LJ>
GRAY
|
8-97423-416-0 |
01 |
1 |
1409-1410 |
● |
● |
|
|
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
INTERIOR BASIC(RBA)
SEAT TRIM VINYL<8LJ>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
GRAY
|
8-97423-416-0 |
01 |
1 |
1411-1411 |
● |
● |
|
|
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
INTERIOR BASIC(RBA)
SEAT TRIM VINYL<8LJ>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
EXC. RESTRAINT PROVISIONS CHILD<AN4>
GRAY
|
8-97423-416-0 |
01 |
1 |
1412- |
● |
● |
|
|
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
INTERIOR BASIC(RBA)
SEAT TRIM BASE CLOTH<8LK>
LIGHT GRAY
|
8-97423-415-0 |
01 |
1 |
1409-1410 |
● |
● |
|
|
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
INTERIOR BASIC(RBA)
SEAT TRIM BASE CLOTH<8LK>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
LIGHT GRAY
|
8-97423-415-0 |
01 |
1 |
1411-1411 |
● |
● |
|
|
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
INTERIOR BASIC(RBA)
SEAT TRIM BASE CLOTH<8LK>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
EXC. RESTRAINT PROVISIONS CHILD<AN4>
LIGHT GRAY
|
8-97423-415-0 |
01 |
1 |
1412- |
● |
● |
|
|
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
INTERIOR CUSTOM(RBD)
SEAT TRIM LEATHER<6TB>
BLACK
|
8-97465-102-0 |
01 |
1 |
1409-1410 |
● |
● |
|
|
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB>
BLACK
|
8-97465-102-0 |
01 |
1 |
1411-1411 |
● |
● |
|
|
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
INTERIOR CUSTOM(RBD)
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
SEAT TRIM LEATHER<6TB>
EXC. RESTRAINT PROVISIONS CHILD<AN4>
BLACK
|
8-97465-102-0 |
01 |
1 |
1412-1507 |
● |
● |
|
|
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
INTERIOR CUSTOM(RBD)
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
SEAT TRIM LEATHER<6TB>
EXC. RESTRAINT PROVISIONS CHILD<AN4>
BLACK
|
8-97460-450-0 |
01 |
1 |
1508- |
● |
● |
|
|
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM>
BLACK
|
8-97423-414-0 |
01 |
1 |
1409-1410 |
● |
● |
|
|
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM>
BLACK
|
8-97423-414-0 |
01 |
1 |
1411-1411 |
● |
● |
|
|
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
EXC. RESTRAINT PROVISIONS CHILD<AN4>
BLACK
|
8-97423-414-0 |
01 |
1 |
1412-1507 |
● |
● |
|
|
| |
3 |
16.714 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
EXC. RESTRAINT PROVISIONS CHILD<AN4>
BLACK
|
8-97460-352-0 |
01 |
1 |
1508- |
● |
● |
|
|
| |
4 |
16.720 PAD; RR,SEAT BACK
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE
CLOTH<8LK>
EXC. AUSTRALIA EQUIPMENT(B13)
|
8-98196-180-0 |
01 |
1 |
1412- |
● |
● |
|
|
| |
4 |
16.720 PAD; RR,SEAT BACK
INTERIOR BASIC(RBA)
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE
CLOTH<8LK>
|
8-98196-181-0 |
01 |
1 |
1409-1410 |
● |
● |
|
|
| |
4 |
16.720 PAD; RR,SEAT BACK
INTERIOR BASIC(RBA)
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE
CLOTH<8LK>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
|
8-98196-181-0 |
01 |
1 |
1411-1411 |
● |
● |
|
|
| |
4 |
16.720 PAD; RR,SEAT BACK
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE
CLOTH<8LK>
AUSTRALIA EQUIPMENT(B13)
|
8-98196-181-0 |
01 |
1 |
1412- |
● |
● |
|
|
| |
4 |
16.720 PAD; RR,SEAT BACK
INTERIOR CUSTOM(RBD)
SEAT TRIM LEATHER<6TB>
|
8-98200-491-0 |
01 |
1 |
1409-1410 |
● |
● |
|
|
| |
4 |
16.720 PAD; RR,SEAT BACK
SEAT TRIM LEATHER<6TB>
|
8-98200-491-0 |
01 |
1 |
1411-1507 |
● |
● |
|
|
| |
4 |
16.720 PAD; RR,SEAT BACK
SEAT TRIM LEATHER<6TB>
|
8-98300-434-0 |
01 |
1 |
1508- |
● |
● |
|
|
| |
4 |
16.720 PAD; RR,SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM>
|
8-98196-183-0 |
01 |
1 |
1409-1410 |
● |
● |
|
|
| |
4 |
16.720 PAD; RR,SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM>
|
8-98196-183-0 |
01 |
1 |
1411-1507 |
● |
● |
|
|
| |
4 |
16.720 PAD; RR,SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM>
|
8-98300-432-0 |
01 |
1 |
1508- |
● |
● |
|
|
| |
5 |
16.720 FRAME ASM; RR SEAT BACK
SEAT TRIM LEATHER<6TB>,SEAT TRIM
HIGHGRADE CLOTH<8LM>
EXC. AUSTRALIA EQUIPMENT(B13)
BLACK
|
8-97427-756-0 |
01 |
1 |
1412- |
● |
● |
|
|
| |
5 |
16.720 FRAME ASM; RR SEAT BACK
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE
CLOTH<8LK>
EXC. AUSTRALIA EQUIPMENT(B13)
BLACK
|
8-97427-751-0 |
01 |
1 |
1412- |
● |
● |
|
|
| |
5 |
16.720 FRAME ASM; RR SEAT BACK
INTERIOR BASIC(RBA)
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE
CLOTH<8LK>
BLACK
|
8-97427-753-0 |
01 |
1 |
1409-1410 |
● |
● |
|
|
| |
5 |
16.720 FRAME ASM; RR SEAT BACK
INTERIOR BASIC(RBA)
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE
CLOTH<8LK>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
BLACK
|
8-97427-753-0 |
01 |
1 |
1411-1411 |
● |
● |
|
|
| |
5 |
16.720 FRAME ASM; RR SEAT BACK
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE
CLOTH<8LK>
AUSTRALIA EQUIPMENT(B13)
BLACK
|
8-97427-753-0 |
01 |
1 |
1412- |
● |
● |
|
|
| |
5 |
16.720 FRAME ASM; RR SEAT BACK
INTERIOR CUSTOM(RBD)
SEAT TRIM LEATHER<6TB>
BLACK
|
8-97427-771-0 |
01 |
1 |
1409-1410 |
● |
● |
|
|
| |
5 |
16.720 FRAME ASM; RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM>
BLACK
|
8-97427-771-0 |
01 |
1 |
1409-1410 |
● |
● |
|
|
| |
5 |
16.720 FRAME ASM; RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
BLACK
|
8-97427-771-0 |
01 |
1 |
1411-1411 |
● |
● |
|
|
| |
5 |
16.720 FRAME ASM; RR SEAT BACK
INTERIOR CUSTOM(RBD)
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
SEAT TRIM LEATHER<6TB>
BLACK
|
8-97427-771-0 |
01 |
1 |
1411-1411 |
● |
● |
|
|
| |
5 |
16.720 FRAME ASM; RR SEAT BACK
SEAT TRIM LEATHER<6TB>,SEAT TRIM
HIGHGRADE CLOTH<8LM>
AUSTRALIA EQUIPMENT(B13)
BLACK
|
8-97427-771-0 |
01 |
1 |
1412- |
● |
● |
|
|
| |
6 |
16.679 BOLT; RR SEAT
16.682
M12X27.5 W/PL WASHER
|
8-98050-319-0 |
03 |
1 |
1409- |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM VINYL<8LJ>
RESTRAINT PROVISIONS CHILD<AN4>
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0)
GRAY
|
8-97465-380-0 |
01 |
1 |
1412- |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM VINYL<8LJ>
RESTRAINT PROVISIONS CHILD<AN4>
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0)
GRAY
|
8-97465-388-0 |
01 |
1 |
1412- |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM BASE CLOTH<8LK>
RESTRAINT PROVISIONS CHILD<AN4>
EXC. AUSTRALIA EQUIPMENT(B13)
LIGHT GRAY
|
8-97423-407-0 |
01 |
1 |
1412- |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM BASE CLOTH<8LK>
RESTRAINT PROVISIONS CHILD<AN4>
EXC. AUSTRALIA EQUIPMENT(B13)
LIGHT GRAY
|
8-97423-408-0 |
01 |
1 |
1412- |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB>
RESTRAINT PROVISIONS CHILD<AN4>
EXC. AUSTRALIA EQUIPMENT(B13)
BLACK
|
8-97465-117-0 |
01 |
1 |
1412-1507 |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB>
RESTRAINT PROVISIONS CHILD<AN4>
EXC. AUSTRALIA EQUIPMENT(B13)
BLACK
|
8-97460-200-0 |
01 |
1 |
1508- |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB>
RESTRAINT PROVISIONS CHILD<AN4>
EXC. AUSTRALIA EQUIPMENT(B13)
BLACK
|
8-97465-127-0 |
01 |
1 |
1412-1507 |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB>
RESTRAINT PROVISIONS CHILD<AN4>
EXC. AUSTRALIA EQUIPMENT(B13)
BLACK
|
8-97460-201-0 |
01 |
1 |
1508- |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM>
RESTRAINT PROVISIONS CHILD<AN4>
EXC. AUSTRALIA EQUIPMENT(B13)
BLACK
|
8-97423-394-0 |
01 |
1 |
1412-1507 |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM>
RESTRAINT PROVISIONS CHILD<AN4>
EXC. AUSTRALIA EQUIPMENT(B13)
BLACK
|
8-97460-304-0 |
01 |
1 |
1508- |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM>
RESTRAINT PROVISIONS CHILD<AN4>
EXC. AUSTRALIA EQUIPMENT(B13)
BLACK
|
8-97423-395-0 |
01 |
1 |
1412-1507 |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM>
RESTRAINT PROVISIONS CHILD<AN4>
EXC. AUSTRALIA EQUIPMENT(B13)
BLACK
|
8-97460-306-0 |
01 |
1 |
1508- |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
JUMP SEAT<AJ2>
LIGHT GRAY
|
8-97423-325-0 |
01 |
1 |
1409- |
|
|
● |
● |
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
JUMP SEAT<AJ2>
LIGHT GRAY
|
8-97423-326-0 |
01 |
1 |
1409- |
|
|
● |
● |
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR BASIC(RBA)
SEAT TRIM VINYL<8LJ>
GRAY
|
8-97423-384-0 |
01 |
1 |
1409-1410 |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR BASIC(RBA)
SEAT TRIM VINYL<8LJ>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
GRAY
|
8-97423-384-0 |
01 |
1 |
1411-1411 |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM VINYL<8LJ>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),HONG KONG
EQUIPMENT(B14),LAOS EQUIPMENT(CF0),SING
APORE EQUIPMENT(2G0)
GRAY
|
8-97423-384-0 |
01 |
1 |
1412- |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR BASIC(RBA)
SEAT TRIM VINYL<8LJ>
GRAY
|
8-97423-385-0 |
01 |
1 |
1409-1410 |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR BASIC(RBA)
SEAT TRIM VINYL<8LJ>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
GRAY
|
8-97423-385-0 |
01 |
1 |
1411-1411 |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM VINYL<8LJ>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),HONG KONG
EQUIPMENT(B14),LAOS EQUIPMENT(CF0),SING
APORE EQUIPMENT(2G0)
GRAY
|
8-97423-385-0 |
01 |
1 |
1412- |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR BASIC(RBA)
SEAT TRIM BASE CLOTH<8LK>
LIGHT GRAY
|
8-97423-404-0 |
01 |
1 |
1409-1410 |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR BASIC(RBA)
SEAT TRIM BASE CLOTH<8LK>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
LIGHT GRAY
|
8-97423-404-0 |
01 |
1 |
1411-1411 |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM BASE CLOTH<8LK>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0)
LIGHT GRAY
|
8-97423-404-0 |
01 |
1 |
1412- |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR BASIC(RBA)
SEAT TRIM BASE CLOTH<8LK>
LIGHT GRAY
|
8-97423-405-0 |
01 |
1 |
1409-1410 |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR BASIC(RBA)
SEAT TRIM BASE CLOTH<8LK>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
LIGHT GRAY
|
8-97423-405-0 |
01 |
1 |
1411-1411 |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM BASE CLOTH<8LK>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0)
LIGHT GRAY
|
8-97423-405-0 |
01 |
1 |
1412- |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD)
SEAT TRIM LEATHER<6TB>
BLACK
|
8-97465-118-0 |
01 |
1 |
1409-1410 |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB>
BLACK
|
8-97465-118-0 |
01 |
1 |
1411-1411 |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0)
BLACK
|
8-97465-118-0 |
01 |
1 |
1412-1507 |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0)
BLACK
|
8-97460-336-0 |
01 |
1 |
1508- |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
INTERIOR CUSTOM(RBD)
SEAT TRIM LEATHER<6TB>
BLACK
|
8-97465-128-0 |
01 |
1 |
1409-1410 |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB>
BLACK
|
8-97465-128-0 |
01 |
1 |
1411-1411 |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0)
BLACK
|
8-97465-128-0 |
01 |
1 |
1412-1507 |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0)
BLACK
|
8-97460-338-0 |
01 |
1 |
1508- |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM>
BLACK
|
8-97423-376-0 |
01 |
1 |
1409-1410 |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM>
BLACK
|
8-97423-376-0 |
01 |
1 |
1411-1411 |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0)
BLACK
|
8-97423-376-0 |
01 |
1 |
1412-1507 |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0)
BLACK
|
8-97460-299-0 |
01 |
1 |
1508- |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM>
BLACK
|
8-97423-377-0 |
01 |
1 |
1409-1410 |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM>
BLACK
|
8-97423-377-0 |
01 |
1 |
1411-1411 |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0)
BLACK
|
8-97423-377-0 |
01 |
1 |
1412-1507 |
● |
● |
|
|
| |
9 |
16.717 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0)
BLACK
|
8-97460-295-0 |
01 |
1 |
1508- |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE
CLOTH<8LK>
RESTRAINT PROVISIONS CHILD<AN4>
EXC. AUSTRALIA EQUIPMENT(B13)
|
8-98200-494-0 |
01 |
1 |
1412-1412 |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
SEAT TRIM BASE CLOTH<8LK>
FRONT SEAT BUCKET STANDARD<A50>
RESTRAINT PROVISIONS CHILD<AN4>
|
8-98200-494-1 |
01 |
1 |
1501- |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE
CLOTH<8LK>
RESTRAINT PROVISIONS CHILD<AN4>
EXC. AUSTRALIA EQUIPMENT(B13)
|
8-98200-498-0 |
01 |
1 |
1412-1412 |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
SEAT TRIM BASE CLOTH<8LK>
FRONT SEAT BUCKET STANDARD<A50>
RESTRAINT PROVISIONS CHILD<AN4>
|
8-98200-498-1 |
01 |
1 |
1501- |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB>
RESTRAINT PROVISIONS CHILD<AN4>
EXC. AUSTRALIA EQUIPMENT(B13)
|
8-98200-496-0 |
01 |
1 |
1412-1507 |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB>
RESTRAINT PROVISIONS CHILD<AN4>
EXC. AUSTRALIA EQUIPMENT(B13)
|
8-98300-438-0 |
01 |
1 |
1508- |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB>
RESTRAINT PROVISIONS CHILD<AN4>
EXC. AUSTRALIA EQUIPMENT(B13)
|
8-98200-500-0 |
01 |
1 |
1412-1507 |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB>
RESTRAINT PROVISIONS CHILD<AN4>
EXC. AUSTRALIA EQUIPMENT(B13)
|
8-98300-442-0 |
01 |
1 |
1508- |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM>
RESTRAINT PROVISIONS CHILD<AN4>
EXC. AUSTRALIA EQUIPMENT(B13)
|
8-98196-199-0 |
01 |
1 |
1412-1507 |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM>
RESTRAINT PROVISIONS CHILD<AN4>
EXC. AUSTRALIA EQUIPMENT(B13)
|
8-98300-436-0 |
01 |
1 |
1508- |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM>
RESTRAINT PROVISIONS CHILD<AN4>
EXC. AUSTRALIA EQUIPMENT(B13)
|
8-98196-213-0 |
01 |
1 |
1412-1507 |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM>
RESTRAINT PROVISIONS CHILD<AN4>
EXC. AUSTRALIA EQUIPMENT(B13)
|
8-98300-440-0 |
01 |
1 |
1508- |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
INTERIOR BASIC(RBA)
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE
CLOTH<8LK>
|
8-98200-493-0 |
01 |
1 |
1409-1410 |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
INTERIOR BASIC(RBA)
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE
CLOTH<8LK>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
|
8-98200-493-0 |
01 |
1 |
1411-1411 |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE
CLOTH<8LK>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0)
|
8-98200-493-1 |
01 |
1 |
1412- |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
INTERIOR BASIC(RBA)
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE
CLOTH<8LK>
|
8-98200-497-0 |
01 |
1 |
1409-1410 |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
INTERIOR BASIC(RBA)
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE
CLOTH<8LK>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
|
8-98200-497-0 |
01 |
1 |
1411-1411 |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE
CLOTH<8LK>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0)
|
8-98200-497-1 |
01 |
1 |
1412- |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
INTERIOR CUSTOM(RBD)
SEAT TRIM LEATHER<6TB>
|
8-98200-495-0 |
01 |
1 |
1409-1410 |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB>
|
8-98200-495-0 |
01 |
1 |
1411-1411 |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0)
|
8-98200-495-0 |
01 |
1 |
1412-1507 |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0)
|
8-98300-437-0 |
01 |
1 |
1508- |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
INTERIOR CUSTOM(RBD)
SEAT TRIM LEATHER<6TB>
|
8-98200-499-0 |
01 |
1 |
1409-1410 |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB>
|
8-98200-499-0 |
01 |
1 |
1411-1411 |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0)
|
8-98200-499-0 |
01 |
1 |
1412-1507 |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0)
|
8-98300-441-0 |
01 |
1 |
1508- |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM>
|
8-98196-198-0 |
01 |
1 |
1409-1410 |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM>
|
8-98196-198-0 |
01 |
1 |
1411-1411 |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0)
|
8-98196-198-0 |
01 |
1 |
1412-1507 |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0)
|
8-98300-435-0 |
01 |
1 |
1508- |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM>
|
8-98196-212-0 |
01 |
1 |
1409-1410 |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM>
|
8-98196-212-0 |
01 |
1 |
1411-1411 |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0)
|
8-98196-212-0 |
01 |
1 |
1412-1507 |
● |
● |
|
|
| |
10 |
16.716 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0)
|
8-98300-439-0 |
01 |
1 |
1508- |
● |
● |
|
|
| |
11 |
16.716 FRAME ASM; CUSHION,RR SEAT
RESTRAINT PROVISIONS CHILD<AN4>
BLACK
|
8-97427-778-1 |
01 |
1 |
1412- |
● |
● |
|
|
| |
11 |
16.716 FRAME ASM; CUSHION,RR SEAT
RESTRAINT PROVISIONS CHILD<AN4>
BLACK
|
8-97427-781-1 |
01 |
1 |
1412- |
● |
● |
|
|
| |
11 |
16.716 FRAME ASM; CUSHION,RR SEAT
BLACK
|
8-97427-776-0 |
01 |
1 |
1409-1411 |
● |
● |
|
|
| |
11 |
16.716 FRAME ASM; CUSHION,RR SEAT
EXC. RESTRAINT PROVISIONS CHILD<AN4>
BLACK
|
8-97427-776-0 |
01 |
1 |
1412- |
● |
● |
|
|
| |
11 |
16.716 FRAME ASM; CUSHION,RR SEAT
BLACK
|
8-97427-779-0 |
01 |
1 |
1409-1411 |
● |
● |
|
|
| |
11 |
16.716 FRAME ASM; CUSHION,RR SEAT
EXC. RESTRAINT PROVISIONS CHILD<AN4>
BLACK
|
8-97427-779-0 |
01 |
1 |
1412- |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
SEAT TRIM VINYL<8LJ>
RESTRAINT PROVISIONS CHILD<AN4>
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0)
(A)
GRAY
|
8-97425-358-0 |
02 |
1 |
1412- |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
SEAT TRIM VINYL<8LJ>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),AUSTRALIA
EQUIPMENT(B13),HONG KONG EQUIPMENT(B14)
,LAOS EQUIPMENT(CF0),SINGAPORE
EQUIPMENT(2G0)
(A)
GRAY
|
8-97425-358-0 |
02 |
1 |
1412- |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB>
RESTRAINT PROVISIONS CHILD<AN4>
EXC. AUSTRALIA EQUIPMENT(B13),HONG
KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT
(2G0)
(A)
BLACK
|
8-97465-070-0 |
02 |
1 |
1412- |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),AUSTRALIA
EQUIPMENT(B13),HONG KONG EQUIPMENT(B14)
,LAOS EQUIPMENT(CF0),SINGAPORE
EQUIPMENT(2G0)
(A)
BLACK
|
8-97465-070-0 |
02 |
1 |
1412- |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB>
RESTRAINT PROVISIONS CHILD<AN4>
EXC. AUSTRALIA EQUIPMENT(B13),HONG
KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT
(2G0)
(B)
BLACK
|
8-97465-074-0 |
01 |
1 |
1412- |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),AUSTRALIA
EQUIPMENT(B13),HONG KONG EQUIPMENT(B14)
,LAOS EQUIPMENT(CF0),SINGAPORE
EQUIPMENT(2G0)
(B)
BLACK
|
8-97465-074-0 |
01 |
1 |
1412- |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM>
RESTRAINT PROVISIONS CHILD<AN4>
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0)
(B)
LIGHT GRAY
|
8-97424-692-0 |
01 |
1 |
1412-1412 |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM>
EXC. INDONESIA EQUIPMENT(B00),
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT
(B14),LAOS EQUIPMENT(CF0),SINGAPORE
EQUIPMENT(2G0)
(B)
LIGHT GRAY
|
8-97424-692-0 |
01 |
1 |
1412-1412 |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM>
EXC. AUSTRALIA EQUIPMENT(B13),HONG
KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT
(2G0)
(B)
LIGHT GRAY
|
8-97424-692-0 |
01 |
1 |
1501- |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
SEAT TRIM BASE CLOTH<8LK>
RESTRAINT PROVISIONS CHILD<AN4>
EXC. AUSTRALIA EQUIPMENT(B13),HONG
KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT
(2G0)
(A)
LIGHT GRAY
|
8-97424-691-0 |
02 |
1 |
1412-1412 |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
SEAT TRIM BASE CLOTH<8LK>
EXC. RESTRAINT PROVISIONS CHILD<AN4>,
INDONESIA EQUIPMENT(B00),AUSTRALIA
EQUIPMENT(B13),HONG KONG EQUIPMENT(B14)
,LAOS EQUIPMENT(CF0),SINGAPORE
EQUIPMENT(2G0)
(A)
LIGHT GRAY
|
8-97424-691-0 |
02 |
1 |
1412-1412 |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM>
RESTRAINT PROVISIONS CHILD<AN4>
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0)
(A)
LIGHT GRAY
|
8-97424-691-0 |
02 |
1 |
1412-1412 |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM>
EXC. INDONESIA EQUIPMENT(B00),
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT
(B14),LAOS EQUIPMENT(CF0),SINGAPORE
EQUIPMENT(2G0)
(A)
LIGHT GRAY
|
8-97424-691-0 |
02 |
1 |
1412-1412 |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM
HIGH GRADE CLOTH<8LM>
EXC. AUSTRALIA EQUIPMENT(B13),HONG
KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT
(2G0)
(A)
LIGHT GRAY
|
8-97424-691-0 |
02 |
1 |
1501- |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR BASIC(RBA)
SEAT TRIM VINYL<8LJ>
(A)
GRAY
|
8-97425-361-0 |
02 |
1 |
1409-1410 |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR BASIC(RBA)
SEAT TRIM VINYL<8LJ>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
(A)
GRAY
|
8-97425-361-0 |
02 |
1 |
1411-1411 |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR BASIC(RBA)
SEAT TRIM VINYL<8LJ>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
EXC. RESTRAINT PROVISIONS CHILD<AN4>
(A)
GRAY
|
8-97425-361-0 |
02 |
1 |
1412- |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR BASIC(RBA)
SEAT TRIM VINYL<8LJ>
(B)
GRAY
|
8-97425-362-0 |
01 |
1 |
1409-1410 |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR BASIC(RBA)
SEAT TRIM VINYL<8LJ>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
(B)
GRAY
|
8-97425-362-0 |
01 |
1 |
1411-1411 |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR BASIC(RBA)
SEAT TRIM VINYL<8LJ>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
EXC. RESTRAINT PROVISIONS CHILD<AN4>
(B)
GRAY
|
8-97425-362-0 |
01 |
1 |
1412- |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM>
(A)
LIGHT GRAY
|
8-97424-713-0 |
02 |
1 |
1409-1410 |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR BASIC(RBA)
SEAT TRIM BASE CLOTH<8LK>
(A)
LIGHT GRAY
|
8-97424-713-0 |
02 |
1 |
1409-1410 |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR BASIC(RBA)
SEAT TRIM BASE CLOTH<8LK>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
(A)
LIGHT GRAY
|
8-97424-713-0 |
02 |
1 |
1411-1411 |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
(A)
LIGHT GRAY
|
8-97424-713-0 |
02 |
1 |
1411-1411 |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR BASIC(RBA)
SEAT TRIM BASE CLOTH<8LK>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
EXC. RESTRAINT PROVISIONS CHILD<AN4>
(A)
LIGHT GRAY
|
8-97424-713-0 |
02 |
1 |
1412- |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR BASIC(RBA)
SEAT TRIM BASE CLOTH<8LK>
RESTRAINT PROVISIONS CHILD<AN4>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
SINGAPORE EQUIPMENT(2G0)
(A)
LIGHT GRAY
|
8-97424-713-0 |
02 |
1 |
1412- |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
EXC. RESTRAINT PROVISIONS CHILD<AN4>
(A)
LIGHT GRAY
|
8-97424-713-0 |
02 |
1 |
1412- |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR BASIC(RBA)
SEAT TRIM BASE CLOTH<8LK>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
HONG KONG EQUIPMENT(B14)
(A)
LIGHT GRAY
|
8-97424-713-0 |
02 |
1 |
1412- |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR CUSTOM(RBD)
SEAT TRIM HIGH GRADE CLOTH<8LM>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
HONG KONG EQUIPMENT(B14)
(A)
LIGHT GRAY
|
8-97424-713-0 |
02 |
1 |
1412- |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR CUSTOM(RBD)
SEAT TRIM HIGH GRADE CLOTH<8LM>
RESTRAINT PROVISIONS CHILD<AN4>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
SINGAPORE EQUIPMENT(2G0)
(A)
LIGHT GRAY
|
8-97424-713-0 |
02 |
1 |
1412- |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM>
(B)
LIGHT GRAY
|
8-97424-714-0 |
01 |
1 |
1409-1410 |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR BASIC(RBA)
SEAT TRIM BASE CLOTH<8LK>
(B)
LIGHT GRAY
|
8-97424-714-0 |
01 |
1 |
1409-1410 |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR BASIC(RBA)
SEAT TRIM BASE CLOTH<8LK>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
(B)
LIGHT GRAY
|
8-97424-714-0 |
01 |
1 |
1411-1411 |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
(B)
LIGHT GRAY
|
8-97424-714-0 |
01 |
1 |
1411-1411 |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR BASIC(RBA)
SEAT TRIM BASE CLOTH<8LK>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
EXC. RESTRAINT PROVISIONS CHILD<AN4>
(B)
LIGHT GRAY
|
8-97424-714-0 |
01 |
1 |
1412- |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
EXC. RESTRAINT PROVISIONS CHILD<AN4>
(B)
LIGHT GRAY
|
8-97424-714-0 |
01 |
1 |
1412- |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR CUSTOM(RBD)
SEAT TRIM HIGH GRADE CLOTH<8LM>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
HONG KONG EQUIPMENT(B14)
(B)
LIGHT GRAY
|
8-97424-714-0 |
01 |
1 |
1412- |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR CUSTOM(RBD)
SEAT TRIM HIGH GRADE CLOTH<8LM>
RESTRAINT PROVISIONS CHILD<AN4>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
SINGAPORE EQUIPMENT(2G0)
(B)
LIGHT GRAY
|
8-97424-714-0 |
01 |
1 |
1412- |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR CUSTOM(RBD)
SEAT TRIM LEATHER<6TB>
(A)
BLACK
|
8-97465-076-0 |
02 |
1 |
1409-1410 |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB>
(A)
BLACK
|
8-97465-076-0 |
02 |
1 |
1411-1411 |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR CUSTOM(RBD)
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
SEAT TRIM LEATHER<6TB>
EXC. RESTRAINT PROVISIONS CHILD<AN4>
(A)
BLACK
|
8-97465-076-0 |
02 |
1 |
1412-1412 |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR CUSTOM(RBD)
RESTRAINT PROVISIONS CHILD<AN4>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
SINGAPORE EQUIPMENT(2G0)
SEAT TRIM LEATHER<6TB>
(A)
BLACK
|
8-97465-076-0 |
02 |
1 |
1412-1412 |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR CUSTOM(RBD)
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
HONG KONG EQUIPMENT(B14)
SEAT TRIM LEATHER<6TB>
(A)
BLACK
|
8-97465-076-0 |
02 |
1 |
1412-1412 |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR CUSTOM(RBD)
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
SEAT TRIM LEATHER<6TB>
EXC. RESTRAINT PROVISIONS CHILD<AN4>
(A)
BLACK
|
8-97465-076-0 |
02 |
1 |
1501- |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR CUSTOM(RBD)
RESTRAINT PROVISIONS CHILD<AN4>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
SINGAPORE EQUIPMENT(2G0)
SEAT TRIM LEATHER<6TB>
(A)
BLACK
|
8-97465-076-0 |
02 |
1 |
1501- |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR CUSTOM(RBD)
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
HONG KONG EQUIPMENT(B14)
SEAT TRIM LEATHER<6TB>
(A)
BLACK
|
8-97465-076-0 |
02 |
1 |
1501- |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR CUSTOM(RBD)
SEAT TRIM LEATHER<6TB>
(B)
BLACK
|
8-97465-080-0 |
01 |
1 |
1409-1410 |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB>
(B)
BLACK
|
8-97465-080-0 |
01 |
1 |
1411-1411 |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR CUSTOM(RBD)
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
SEAT TRIM LEATHER<6TB>
EXC. RESTRAINT PROVISIONS CHILD<AN4>
(B)
BLACK
|
8-97465-080-0 |
01 |
1 |
1412-1412 |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR CUSTOM(RBD)
RESTRAINT PROVISIONS CHILD<AN4>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
SINGAPORE EQUIPMENT(2G0)
SEAT TRIM LEATHER<6TB>
(B)
BLACK
|
8-97465-080-0 |
01 |
1 |
1412-1412 |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR CUSTOM(RBD)
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
HONG KONG EQUIPMENT(B14)
SEAT TRIM LEATHER<6TB>
(B)
BLACK
|
8-97465-080-0 |
01 |
1 |
1412-1412 |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR CUSTOM(RBD)
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
SEAT TRIM LEATHER<6TB>
EXC. RESTRAINT PROVISIONS CHILD<AN4>
(B)
BLACK
|
8-97465-080-0 |
01 |
1 |
1501- |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR CUSTOM(RBD)
RESTRAINT PROVISIONS CHILD<AN4>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
SINGAPORE EQUIPMENT(2G0)
SEAT TRIM LEATHER<6TB>
(B)
BLACK
|
8-97465-080-0 |
01 |
1 |
1501- |
● |
● |
|
|
| |
17 |
16.718 REST; HD,RR SEAT
INTERIOR CUSTOM(RBD)
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
HONG KONG EQUIPMENT(B14)
SEAT TRIM LEATHER<6TB>
(B)
BLACK
|
8-97465-080-0 |
01 |
1 |
1501- |
● |
● |
|
|
| |
29 |
16.686 RUBBER; RR SEAT
EXC. RESTRAINT PROVISIONS CHILD<AN4>
(B)
|
8-98224-621-0 |
04 |
1 |
1412- |
● |
● |
|
|
| |
29 |
16.686 RUBBER; RR SEAT
(A)
|
8-98224-609-0 |
02 |
1 |
1409- |
● |
● |
|
|
| |
29 |
16.686 RUBBER; RR SEAT
(B)
|
8-98224-621-0 |
04 |
1 |
1409-1411 |
● |
● |
|
|
| |
29 |
16.686 RUBBER; RR SEAT
RESTRAINT PROVISIONS CHILD<AN4>
(B)
|
8-98224-621-0 |
05 |
1 |
1412- |
● |
● |
|
|
| |
100 |
15.039 REST; ARM,RR SEAT
INTERIOR CUSTOM(RBD)
SEAT TRIM LEATHER<6TB>
BLACK
|
8-97465-106-0 |
01 |
1 |
1409-1410 |
● |
● |
|
|
| |
100 |
15.039 REST; ARM,RR SEAT
SEAT TRIM LEATHER<6TB>
BLACK
|
8-97465-106-0 |
01 |
1 |
1411- |
● |
● |
|
|
| |
100 |
15.039 REST; ARM,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM>
LIGHT GRAY
|
8-97424-694-0 |
01 |
1 |
1409-1410 |
● |
● |
|
|
| |
100 |
15.039 REST; ARM,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM>
LIGHT GRAY
|
8-97424-694-0 |
01 |
1 |
1411- |
● |
● |
|
|
| |
206 |
16.682 BRACKET ASM; LEG,RR SEAT
(A)
|
8-98224-625-0 |
01 |
1 |
1409-1412 |
● |
● |
|
|
| |
206 |
16.682 BRACKET ASM; LEG,RR SEAT
(A)
|
8-98224-625-0 |
01 |
1 |
1501- |
● |
● |
|
|
| |
206 |
16.682 BRACKET ASM; LEG,RR SEAT
(B)
|
8-98224-695-0 |
01 |
1 |
1409- |
● |
● |
|
|
| |
206 |
16.682 BRACKET ASM; LEG,RR SEAT
(A)
|
8-98224-697-0 |
01 |
1 |
1409-1412 |
● |
● |
|
|
| |
206 |
16.682 BRACKET ASM; LEG,RR SEAT
(A)
|
8-98224-697-0 |
01 |
1 |
1501- |
● |
● |
|
|
| |
227 |
16.718 HOLDER; GUIDE,RR HD REST
SEAT TRIM LEATHER<6TB>,SEAT TRIM
HIGHGRADE CLOTH<8LM>
EXC. AUSTRALIA EQUIPMENT(B13)
16.716
BLACK
|
8-97424-499-0 |
03 |
1 |
1412- |
● |
● |
|
|
| |
227 |
16.718 HOLDER; GUIDE,RR HD REST
AUSTRALIA EQUIPMENT(B13)
16.716
BLACK
|
8-97424-499-0 |
03 |
1 |
1412- |
● |
● |
|
|
| |
227 |
16.718 HOLDER; GUIDE,RR HD REST
SEAT TRIM LEATHER<6TB>,SEAT TRIM
HIGHGRADE CLOTH<8LM>
EXC. AUSTRALIA EQUIPMENT(B13)
16.716
BLACK
|
8-97424-500-0 |
03 |
1 |
1412- |
● |
● |
|
|
| |
227 |
16.718 HOLDER; GUIDE,RR HD REST
AUSTRALIA EQUIPMENT(B13)
16.716
BLACK
|
8-97424-500-0 |
03 |
1 |
1412- |
● |
● |
|
|
| |
227 |
16.718 HOLDER; GUIDE,RR HD REST
16.716
LOCK
BLACK
|
8-97424-499-0 |
03 |
1 |
1409-1411 |
● |
● |
|
|
| |
227 |
16.718 HOLDER; GUIDE,RR HD REST
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE
CLOTH<8LK>
EXC. AUSTRALIA EQUIPMENT(B13)
16.716
LOCK
BLACK
|
8-97424-499-0 |
02 |
1 |
1412- |
● |
● |
|
|
| |
227 |
16.718 HOLDER; GUIDE,RR HD REST
16.716
FREE
BLACK
|
8-97424-500-0 |
03 |
1 |
1409-1411 |
● |
● |
|
|
| |
227 |
16.718 HOLDER; GUIDE,RR HD REST
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE
CLOTH<8LK>
EXC. AUSTRALIA EQUIPMENT(B13)
16.716
FREE
BLACK
|
8-97424-500-0 |
02 |
1 |
1412- |
● |
● |
|
|
| |
251 |
16.682 BUSHING; HINGE PIN
(A)
|
8-98224-622-0 |
01 |
1 |
1409- |
● |
● |
|
|
| |
251 |
16.682 BUSHING; HINGE PIN
(B)
|
8-98224-623-0 |
01 |
1 |
1409- |
● |
● |
|
|
| |
251 |
16.682 BUSHING; HINGE PIN
(C)
|
8-98224-624-0 |
02 |
1 |
1409- |
● |
● |
|
|
| |
276 |
16.720 NUT; ARM REST
INTERIOR CUSTOM(RBD)
SEAT TRIM LEATHER<6TB>
M6 FLANGE
|
8-98224-604-0 |
04 |
1 |
1409-1410 |
● |
● |
|
|
| |
276 |
16.720 NUT; ARM REST
SEAT TRIM HIGH GRADE CLOTH<8LM>
M6 FLANGE
|
8-98224-604-0 |
04 |
1 |
1409-1410 |
● |
● |
|
|
| |
276 |
16.720 NUT; ARM REST
SEAT TRIM HIGH GRADE CLOTH<8LM>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
M6 FLANGE
|
8-98224-604-0 |
04 |
1 |
1411-1411 |
● |
● |
|
|
| |
276 |
16.720 NUT; ARM REST
INTERIOR CUSTOM(RBD)
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
SEAT TRIM LEATHER<6TB>
M6 FLANGE
|
8-98224-604-0 |
04 |
1 |
1411-1411 |
● |
● |
|
|
| |
276 |
16.720 NUT; ARM REST
SEAT TRIM LEATHER<6TB>,SEAT TRIM
HIGHGRADE CLOTH<8LM>
M6 FLANGE
|
8-98224-604-0 |
04 |
1 |
1412- |
● |
● |
|
|
| |
281 |
16.715 SCREW
SEAT TRIM LEATHER<6TB>,SEAT TRIM
BASECLOTH<8LK>,SEAT TRIM HIGH GRADE CLOT
H<8LM>
RESTRAINT PROVISIONS CHILD<AN4>
EXC. AUSTRALIA EQUIPMENT(B13)
(B)
M5X18
|
8-98233-169-0 |
05 |
1 |
1412-1507 |
● |
● |
|
|
| |
281 |
16.715 SCREW
EXC. RESTRAINT PROVISIONS CHILD<AN4>
(B)
M5X18
|
8-98233-169-0 |
04 |
1 |
1508- |
● |
● |
|
|
| |
281 |
16.715 SCREW
(A)
M4X14
|
8-98224-611-0 |
02 |
1 |
1409- |
● |
● |
|
|
| |
281 |
16.715 SCREW
(B)
M5X18
|
8-98233-169-0 |
04 |
1 |
1409-1411 |
● |
● |
|
|
| |
281 |
16.715 SCREW
SEAT TRIM VINYL<8LJ>
RESTRAINT PROVISIONS CHILD<AN4>
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0)
(B)
M5X18
|
8-98233-169-0 |
04 |
1 |
1412-1507 |
● |
● |
|
|
| |
281 |
16.715 SCREW
EXC. RESTRAINT PROVISIONS CHILD<AN4>
(B)
M5X18
|
8-98233-169-0 |
04 |
1 |
1412-1507 |
● |
● |
|
|
| |
281 |
16.715 SCREW
RESTRAINT PROVISIONS CHILD<AN4>
(B)
M5X18
|
8-98233-169-0 |
05 |
1 |
1508- |
● |
● |
|
|
| |
286 |
16.716 COVER; HINGE
(B)
BLACK
|
8-97424-699-1 |
01 |
1 |
1409- |
● |
● |
|
|
| |
286 |
16.716 COVER; HINGE
(C)
BLACK
|
8-97424-700-0 |
03 |
1 |
1409- |
● |
● |
|
|
| |
286 |
16.716 COVER; HINGE
(A)
BLACK
|
8-97416-997-2 |
01 |
1 |
1409- |
● |
● |
|
|
| |
286 |
16.716 COVER; HINGE
(A)
BLACK
|
8-97416-999-2 |
01 |
1 |
1409- |
● |
● |
|
|
| |
299 |
16.716 BOLT; LEG
M8X26
|
8-98224-698-0 |
02 |
1 |
1409- |
● |
● |
|
|
| |
302 |
16.715 NUT; RR SEAT
JUMP SEAT<AJ2>
05.816
(A)
M12 FLANGE
|
0-91180-212-0 |
04 |
1 |
1409- |
|
|
● |
● |
| |
302 |
16.715 NUT; RR SEAT
(B)
M6 FLANGE
|
8-98225-096-0 |
02 |
1 |
1409- |
● |
● |
|
|
| |
302 |
16.715 NUT; RR SEAT
05.816
(A)
M12 FLANGE
|
0-91180-212-0 |
03 |
1 |
1409- |
● |
● |
|
|
| |
317 |
16.717 RING; BACK,RR SEAT
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE
CLOTH<8LK>
16.724
|
8-98220-068-0 |
27 |
1 |
1508-1510 |
● |
● |
|
|
| |
317 |
16.717 RING; BACK,RR SEAT
INTERIOR BASIC(RBA)
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE
CLOTH<8LK>
16.724
|
8-98220-068-0 |
35 |
1 |
1409-1410 |
● |
● |
|
|
| |
317 |
16.717 RING; BACK,RR SEAT
INTERIOR BASIC(RBA)
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE
CLOTH<8LK>
FRONT SEAT BUCKET POWER ASSIST<AQ9>,
FRONT SEAT BUCKET MANUAL HEIGHT
CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50>
16.724
|
8-98220-068-0 |
35 |
1 |
1411-1411 |
● |
● |
|
|
| |
317 |
16.717 RING; BACK,RR SEAT
SEAT TRIM LEATHER<6TB>
16.724
|
8-98220-068-0 |
43 |
1 |
1412-1507 |
● |
● |
|
|
| |
317 |
16.717 RING; BACK,RR SEAT
SEAT TRIM LEATHER<6TB>
16.724
|
8-98220-068-0 |
51 |
1 |
1508- |
● |
● |
|
|
| |
317 |
16.717 RING; BACK,RR SEAT
INTERIOR CUSTOM(RBD)
SEAT TRIM LEATHER<6TB>
16.724
|
8-98220-068-0 |
43 |
1 |
1409-1410 |
● |
● |
|
|
| |
317 |
16.717 RING; BACK,RR SEAT
SEAT TRIM LEATHER<6TB>
16.724
|
8-98220-068-0 |
43 |
1 |
1411-1411 |
● |
● |
|
|
| |
317 |
16.717 RING; BACK,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM>
16.724
|
8-98220-068-0 |
38 |
1 |
1412-1507 |
● |
● |
|
|
| |
317 |
16.717 RING; BACK,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM>
16.724
|
8-98220-068-0 |
48 |
1 |
1508- |
● |
● |
|
|
| |
317 |
16.717 RING; BACK,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM>
16.724
|
8-98220-068-0 |
38 |
1 |
1409-1410 |
● |
● |
|
|
| |
317 |
16.717 RING; BACK,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM>
16.724
|
8-98220-068-0 |
38 |
1 |
1411-1411 |
● |
● |
|
|
| |
317 |
16.717 RING; BACK,RR SEAT
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE
CLOTH<8LK>
16.724
|
8-98220-068-0 |
35 |
1 |
1412-1507 |
● |
● |
|
|
| |
317 |
16.717 RING; BACK,RR SEAT
SEAT TRIM VINYL<8LJ>
RESTRAINT PROVISIONS CHILD<AN4>
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0)
16.724
|
8-98220-068-0 |
35 |
1 |
1508-1510 |
● |
● |
|
|
| |
317 |
16.717 RING; BACK,RR SEAT
SEAT TRIM VINYL<8LJ>,SEAT TRIM BASE
CLOTH<8LK>
16.724
|
8-98220-068-0 |
27 |
1 |
1511- |
● |
● |
|
|
