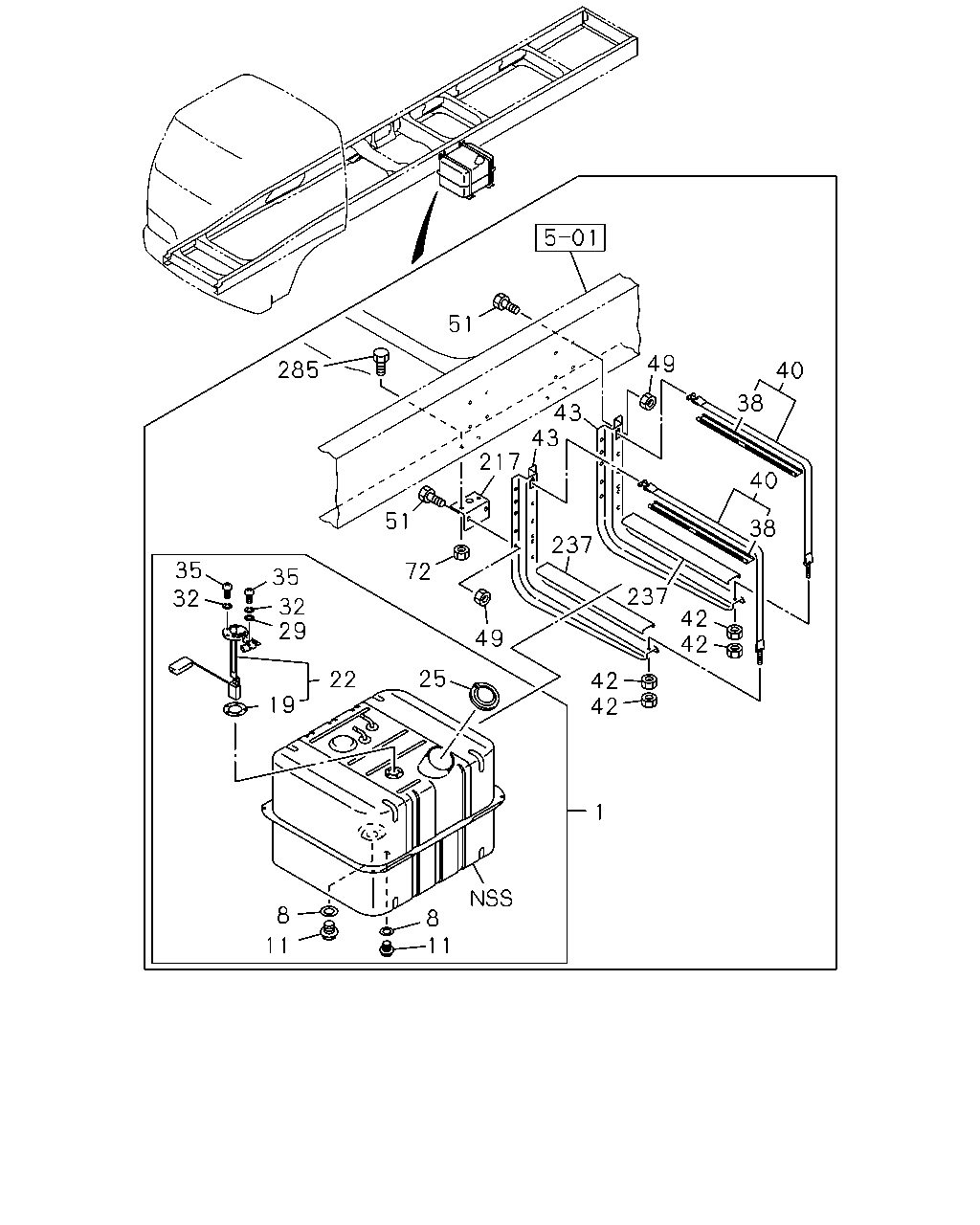

1-40 — FUEL TANK
(#14853) — 19 parça
51
43
43
49
285
40
38
217
40
51
38
237
35
32
72
35
237
32
29
42
42
49
25
22
42
42
19
1
8
8
11
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
720X610X496 200L
1-22401-192-2
01
1
0711-
8
GASKET; DRAIN PLUG,FUEL TANK
ID=14.2 OD=23.0 IDN
9-09572-014-0
02
1
0711-
11
PLUG; DRAIN,FUEL TANK
M14X14 IDN
9-09862-156-0
02
1
0711-
19
GASKET; FUEL TANK UNIT
ID=42 OD=71
5-83148-001-0
01
1
0711-
22
UNIT; FUEL TANK
1-83141-124-0
01
1
0711-
25
CAP; FILLER,FUEL TANK
1-22440-046-1
01
1
0711-
29
WASHER; PL,FUEL TANK UNIT
ID=5.3
0-91610-505-0
01
1
0711-
32
WASHER; LK,FUEL TANK UNIT
ID=5.1
0-91510-505-0
05
1
0711-
35
SCREW; FUEL TANK UNIT
M5X10
0-34218-510-0
05
1
0711-
38
INSULATION; SUPPORT BELT
L=650
1-22553-022-1
02
1
0711-
40
BELT; SUPPORT,FUEL TANK
L=1030
1-22550-204-2
02
1
0711-
42
NUT; SUPPORT BELT
M10
0-91110-510-0
04
1
0711-
43
BRACKET; FUEL TANK
1-53461-279-4
02
1
0711-
49
NUT; BRKT
M12
0-91110-512-0
12
1
0711-
51
BOLT; BRKT TO FRAME
M12X40 FLANGE
0-28651-240-0
12
1
0711-
72
NUT; BRKT
M12
0-91110-512-0
04
1
0711-
217
BRACKET; FUEL TANK,LOW
1-53461-283-2
02
1
0711-
237
GASKET; BRKT TO FUEL TANK
L=580
1-22553-003-0
02
1
0711-
285
BOLT; BRKT
M12X50 FLANGE
0-28051-250-0
04
1
0711-
