7-45 — CONSOLE BOX (#148528) — 167 parça

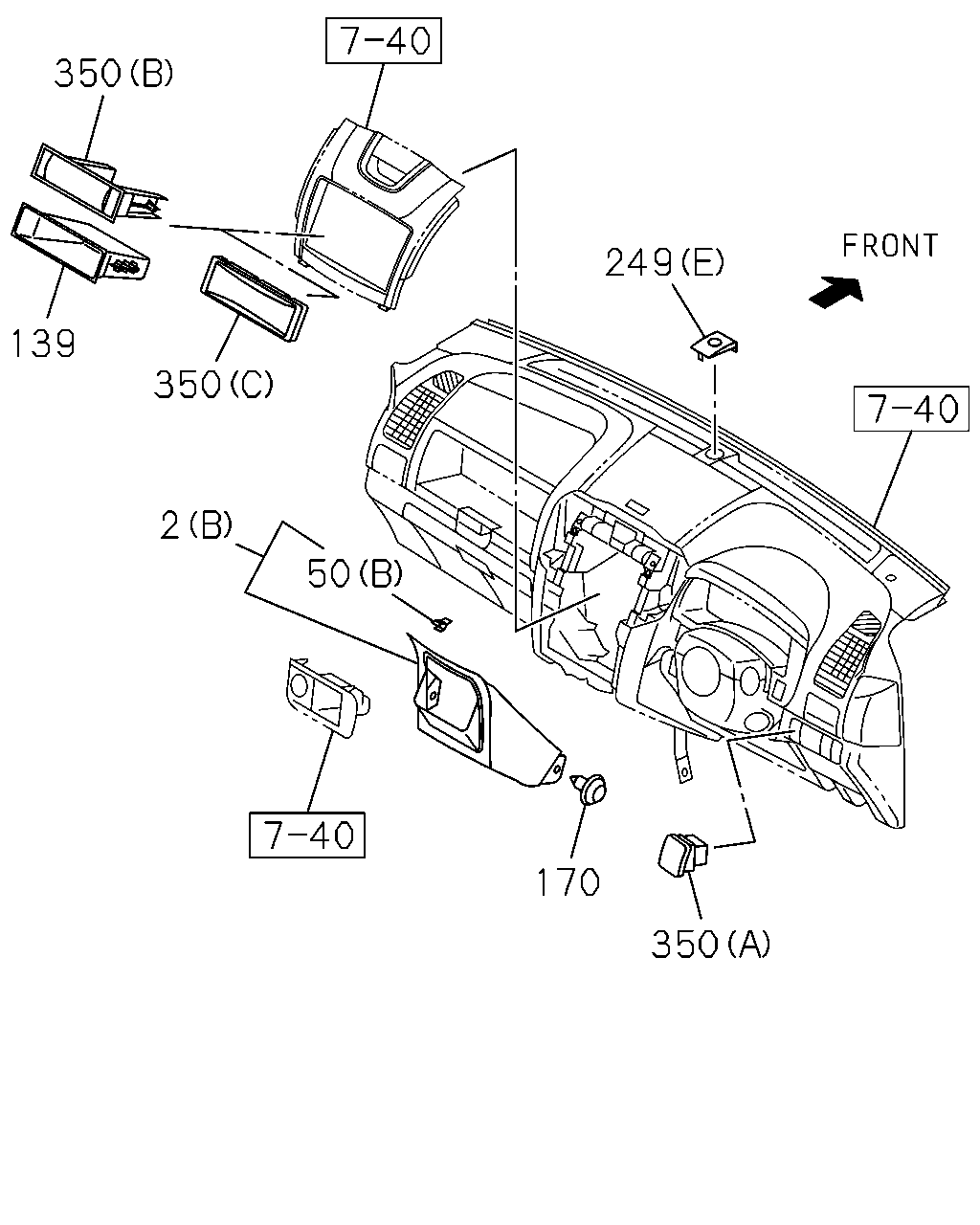

çizim 443889
249 350 139 2 50 170 350 350
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 16.081 CONSOLE; CENTER
(B) BLACK 		8-97416-633-4 01 1 1409- ● ● ● ● ● ●
2 16.081 CONSOLE; CENTER
FRONT CONSOLE WO/LID<D54> (C) BLACK 		8-97416-653-3 01 1 1409- ● ● ● ● ● ●
2 16.081 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97427-532-0 01 1 1409- ● ● ● ●
2 16.081 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> EXC. REAR HEATER DUCT<S8C> (A) BLACK 		8-97427-532-0 01 1 1409- ● ●
2 16.081 CONSOLE; CENTER
CUSTOM FRONT CONSOLE<D07> REAR HEATER DUCT<S8C> (A) BLACK 		8-97427-535-0 01 1 1409- ● ●
2 16.081 CONSOLE; CENTER
CUSTOM FRONT CONSOLE<D07> EXC. REAR HEATER DUCT<S8C> (A) BLACK 		8-97427-531-0 01 1 1409- ● ●
2 16.081 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> REAR HEATER DUCT<S8C> (A) BLACK 		8-97427-536-0 01 1 1409- ● ●
50 04.010 CLIP; CONSOLE
16.165 (A) 		8-98164-677-0 02 1 1409- ● ● ● ● ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) 		8-98192-891-0 02 1 1409- ● ● ●
139 16.650 BOX; CONSOLE,UPR
RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C) BLACK 		8-97416-619-0 01 1 1412- ● ● ● ● ●
170 16.650 RETAINER; CONSOLE BOX
BLACK 		8-97416-699-0 02 1 1409- ● ● ● ● ● ●
249 16.674 COVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (E) BLACK 		8-97416-613-2 01 1 1409-1411 ● ● ● ● ● ●
249 16.674 COVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (E) BLACK 		8-97416-613-2 01 1 1412- ● ● ● ● ● ●
249 16.674 COVER
FRONT CONSOLE W/LID<D55> (C) BLACK 		8-97416-660-1 01 1 1409- ● ●
249 16.674 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) BLACK 		8-97416-660-1 01 1 1409- ●
249 16.674 COVER
M/T MUX 5 SPEED 5S(MZJ) INTERIOR BASIC(RBA) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (A) BLACK 		8-97417-151-2 01 1 1409-1411 ● ● ● ● ● ●
249 16.674 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-151-2 01 1 1412- ● ● ● ● ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR BASIC(RBA) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (B) BLACK 		8-97417-153-1 01 1 1409-1411 ● ● ● ● ●
249 16.674 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-153-1 01 1 1412-1509 ● ● ● ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR BASIC(RBA) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-153-1 01 1 1510- ● ● ● ● ● ●
249 16.674 COVER
AIR CONDITIONER AUTOMATIC CONT(C61) (E) BLACK 		8-97416-614-2 01 1 1409- ● ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) BLACK 		8-97417-418-1 01 1 1409-1411 ● ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> HEATER FRT SEAT<KA1> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) BLACK 		8-97417-418-1 01 1 1412-1503 ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-418-1 01 1 1412-1503 ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) BLACK 		8-97417-418-1 01 1 1412-1503 ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-418-1 01 1 1504-1505 ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) EXC. HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-418-1 01 1 1504-1505 ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) BLACK 		8-97417-418-1 01 1 1504-1505 ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> HEATER FRT SEAT<KA1> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) BLACK 		8-97417-418-1 01 1 1506- ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-418-1 01 1 1506- ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) BLACK 		8-97417-418-1 01 1 1506- ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (B) BLACK 		8-97417-152-1 01 1 1409-1411 ● ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-152-1 01 1 1412- ● ● ●
249 16.674 COVER
M/T MUX 5 SPEED 5S(MZJ) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (A) BLACK 		8-97417-414-2 01 1 1409-1411 ● ● ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> HEATER FRT SEAT<KA1> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) BLACK 		8-97417-414-2 01 1 1412-1503 ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-414-2 01 1 1412-1503 ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) INTERIOR CUSTOM(RBD) FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (A) BLACK 		8-97417-414-2 01 1 1412-1503 ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> HEATER FRT SEAT<KA1> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) BLACK 		8-97417-414-2 01 1 1412-1503 ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-414-2 01 1 1412-1503 ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-414-2 01 1 1504-1505 ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) EXC. HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-414-2 01 1 1504-1505 ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) INTERIOR CUSTOM(RBD) FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (A) BLACK 		8-97417-414-2 01 1 1504-1505 ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-414-2 01 1 1504-1505 ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) EXC. HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-414-2 01 1 1504-1505 ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> HEATER FRT SEAT<KA1> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) BLACK 		8-97417-414-2 01 1 1506- ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-414-2 01 1 1506- ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) INTERIOR CUSTOM(RBD) FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (A) BLACK 		8-97417-414-2 01 1 1506- ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> HEATER FRT SEAT<KA1> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) BLACK 		8-97417-414-2 01 1 1506- ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-414-2 01 1 1506- ●
249 16.674 COVER
M/T MUX 5 SPEED 5S(MZJ) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (A) BLACK 		8-97417-150-2 01 1 1409-1411 ● ● ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-150-2 01 1 1412- ● ● ●
249 16.674 COVER
FRONT CONSOLE W/LID<D55> (D) BLACK 		8-97416-659-2 01 1 1409- ● ●
249 16.674 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (D) BLACK 		8-97416-659-2 01 1 1409- ●
350 16.650 COVER; CONSOLE
RADIO DELETE(UL5) (B) BLACK 		8-97416-806-0 01 1 1412- ● ● ● ● ●
350 16.650 COVER; CONSOLE
INST PANEL FOR DIN E SIZE AUDIO(7QL) (C) BLACK 		8-97416-807-0 01 1 1412- ● ● ● ● ●
350 16.650 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1409-1411 ● ● ● ● ● ●
350 16.650 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1409-1411 ● ● ● ● ● ●
350 16.650 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1409-1411 ● ● ● ● ● ●
350 16.650 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1409-1411 ● ● ●
350 16.650 COVER; CONSOLE
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) 		8-98103-424-2 01 1 1409-1411 ● ● ●
350 16.650 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1412- ● ● ● ● ● ●
350 16.650 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1412- ● ● ● ●
350 16.650 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1412- ● ●
350 16.650 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1412- ●
350 16.650 COVER; CONSOLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98103-424-2 01 1 1412- ● ● ● ● ●
350 16.650 COVER; CONSOLE
EXC. HEAD LAMP LEVELING MANUAL<T92> (A) 		8-98103-424-2 01 1 1412- ● ● ● ●
350 16.650 COVER; CONSOLE
EXC. REAR AXLE DIFF LOCK<8CL> (A) 		8-98103-424-2 01 1 1412- ● ● ● ●
350 16.650 COVER; CONSOLE
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (A) 		8-98103-424-2 01 1 1412- ● ● ●
350 16.650 COVER; CONSOLE
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) 		8-98103-424-2 01 1 1412- ● ● ●
350 16.650 COVER; CONSOLE
EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-98103-424-2 01 1 1412- ●
350 16.650 COVER; CONSOLE
EXC. AUSTRALIA EQUIPMENT(B13), SINGAPORE EQUIPMENT(2G0) (A) 		8-98103-424-2 01 1 1412- ●

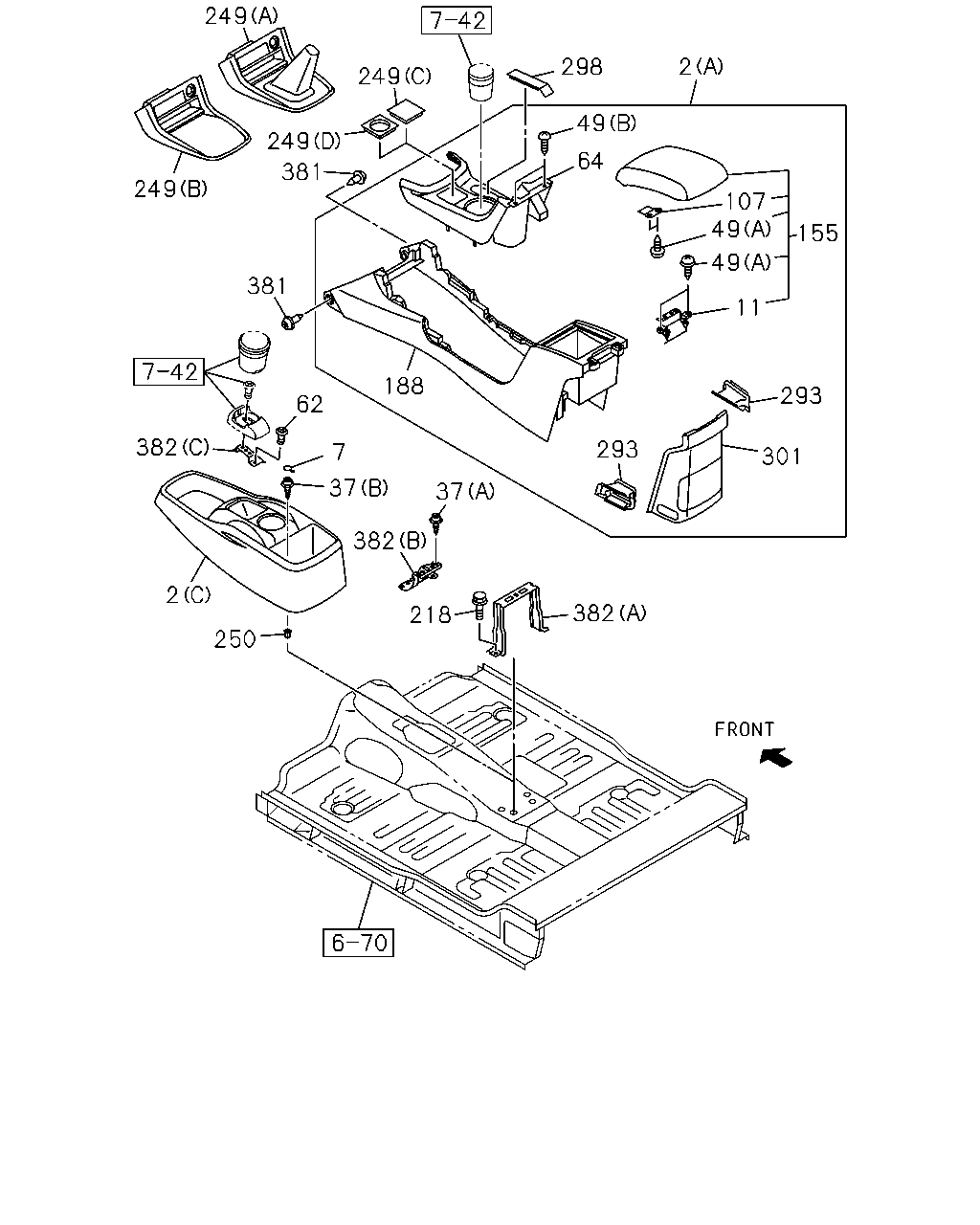

çizim 444255
293 301 293 382 37 382 218 37 7 2 250 382 381 381 249 249 249 249 298 49 2 64 107 49 155 49 11 188 62
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 16.081 CONSOLE; CENTER
(B) BLACK 		8-97416-633-4 01 1 1409- ● ● ● ● ● ●
2 16.081 CONSOLE; CENTER
FRONT CONSOLE WO/LID<D54> (C) BLACK 		8-97416-653-3 01 1 1409- ● ● ● ● ● ●
2 16.081 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97427-532-0 01 1 1409- ● ● ● ●
2 16.081 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> EXC. REAR HEATER DUCT<S8C> (A) BLACK 		8-97427-532-0 01 1 1409- ● ●
2 16.081 CONSOLE; CENTER
CUSTOM FRONT CONSOLE<D07> REAR HEATER DUCT<S8C> (A) BLACK 		8-97427-535-0 01 1 1409- ● ●
2 16.081 CONSOLE; CENTER
CUSTOM FRONT CONSOLE<D07> EXC. REAR HEATER DUCT<S8C> (A) BLACK 		8-97427-531-0 01 1 1409- ● ●
2 16.081 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> REAR HEATER DUCT<S8C> (A) BLACK 		8-97427-536-0 01 1 1409- ● ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
FRONT CONSOLE WO/LID<D54> 16.165 BLACK 		8-97416-610-0 02 1 1409- ● ● ● ● ● ●
11 16.650 HINGE; CONSOLE LID
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-090-0 01 1 1409- ● ● ● ●
11 16.650 HINGE; CONSOLE LID
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-090-0 01 1 1409- ● ●
37 16.650 SCREW; CONSOLE
FRONT CONSOLE WO/LID<D54> 03.028 (B) M5X16 TAPPING W/PL WASHER 		8-98039-091-0 02 1 1409- ● ● ● ● ● ●
37 16.650 SCREW; CONSOLE
FRONT CONSOLE W/LID<D55> 01.269 (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 03 1 1409- ● ● ● ●
37 16.650 SCREW; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> 01.269 (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 03 1 1409- ● ●
49 04.017 SCREW; CONSOLE
FRONT CONSOLE W/LID<D55> 16.081 (A) M5X16 		8-98197-847-0 06 1 1409- ● ● ● ●
49 04.017 SCREW; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> 16.081 (A) M5X16 		8-98197-847-0 06 1 1409- ● ●
49 04.017 SCREW; CONSOLE
FRONT CONSOLE W/LID<D55> (B) M4X14 		8-98234-823-0 02 1 1409- ● ● ● ●
49 04.017 SCREW; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) M4X14 		8-98234-823-0 02 1 1409- ● ●
62 16.650 SCREW; BRKT
4JJ1-TCX ENG(LS0) EXC. FRONT CONSOLE W/LID<D55> 16.100 M5X10 TAPPING 		0-71240-510-0 02 1 1409-1411 ● ● ● ●
62 16.650 SCREW; BRKT
4JJ1-TCX ENG(LS0) EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> 16.100 M5X10 TAPPING 		0-71240-510-0 02 1 1409-1411 ● ●
62 16.650 SCREW; BRKT
EXC. CONGO EQUIPMENT(CDF),CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> 16.100 M5X10 TAPPING 		0-71240-510-0 02 1 1412- ● ● ● ● ● ●
64 16.650 BEZEL; CENTER CONSOLE
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-087-3 01 1 1409- ● ● ● ●
64 16.650 BEZEL; CENTER CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-087-3 01 1 1409- ● ●
107 16.650 LOCK; LID,RR CONSOLE
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-089-0 01 1 1409- ● ● ● ●
107 16.650 LOCK; LID,RR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-089-0 01 1 1409- ● ●
155 16.650 LID; PARCEL BOX
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-088-1 01 1 1409- ● ● ● ●
155 16.650 LID; PARCEL BOX
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-088-1 01 1 1409- ● ●
188 16.650 CONSOLE; RR
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-086-3 01 1 1409- ● ● ● ●
188 16.650 CONSOLE; RR
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-086-3 01 1 1409- ● ●
218 16.650 BOLT; BRKT
FRONT CONSOLE W/LID<D55> M6X12.5 FLANGE 		8-98014-141-0 02 1 1409- ● ● ● ●
218 16.650 BOLT; BRKT
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> M6X12.5 FLANGE 		8-98014-141-0 02 1 1409- ● ●
249 16.674 COVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (E) BLACK 		8-97416-613-2 01 1 1409-1411 ● ● ● ● ● ●
249 16.674 COVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (E) BLACK 		8-97416-613-2 01 1 1412- ● ● ● ● ● ●
249 16.674 COVER
FRONT CONSOLE W/LID<D55> (C) BLACK 		8-97416-660-1 01 1 1409- ● ●
249 16.674 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) BLACK 		8-97416-660-1 01 1 1409- ●
249 16.674 COVER
M/T MUX 5 SPEED 5S(MZJ) INTERIOR BASIC(RBA) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (A) BLACK 		8-97417-151-2 01 1 1409-1411 ● ● ● ● ● ●
249 16.674 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-151-2 01 1 1412- ● ● ● ● ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR BASIC(RBA) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (B) BLACK 		8-97417-153-1 01 1 1409-1411 ● ● ● ● ●
249 16.674 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-153-1 01 1 1412-1509 ● ● ● ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR BASIC(RBA) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-153-1 01 1 1510- ● ● ● ● ● ●
249 16.674 COVER
AIR CONDITIONER AUTOMATIC CONT(C61) (E) BLACK 		8-97416-614-2 01 1 1409- ● ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) BLACK 		8-97417-418-1 01 1 1409-1411 ● ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> HEATER FRT SEAT<KA1> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) BLACK 		8-97417-418-1 01 1 1412-1503 ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-418-1 01 1 1412-1503 ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) BLACK 		8-97417-418-1 01 1 1412-1503 ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-418-1 01 1 1504-1505 ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) EXC. HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-418-1 01 1 1504-1505 ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) BLACK 		8-97417-418-1 01 1 1504-1505 ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> HEATER FRT SEAT<KA1> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) BLACK 		8-97417-418-1 01 1 1506- ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-418-1 01 1 1506- ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) BLACK 		8-97417-418-1 01 1 1506- ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (B) BLACK 		8-97417-152-1 01 1 1409-1411 ● ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-152-1 01 1 1412- ● ● ●
249 16.674 COVER
M/T MUX 5 SPEED 5S(MZJ) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (A) BLACK 		8-97417-414-2 01 1 1409-1411 ● ● ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> HEATER FRT SEAT<KA1> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) BLACK 		8-97417-414-2 01 1 1412-1503 ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-414-2 01 1 1412-1503 ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) INTERIOR CUSTOM(RBD) FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (A) BLACK 		8-97417-414-2 01 1 1412-1503 ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> HEATER FRT SEAT<KA1> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) BLACK 		8-97417-414-2 01 1 1412-1503 ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-414-2 01 1 1412-1503 ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-414-2 01 1 1504-1505 ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) EXC. HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-414-2 01 1 1504-1505 ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) INTERIOR CUSTOM(RBD) FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (A) BLACK 		8-97417-414-2 01 1 1504-1505 ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-414-2 01 1 1504-1505 ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) EXC. HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-414-2 01 1 1504-1505 ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> HEATER FRT SEAT<KA1> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) BLACK 		8-97417-414-2 01 1 1506- ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-414-2 01 1 1506- ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) INTERIOR CUSTOM(RBD) FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (A) BLACK 		8-97417-414-2 01 1 1506- ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> HEATER FRT SEAT<KA1> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) BLACK 		8-97417-414-2 01 1 1506- ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-414-2 01 1 1506- ●
249 16.674 COVER
M/T MUX 5 SPEED 5S(MZJ) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) (A) BLACK 		8-97417-150-2 01 1 1409-1411 ● ● ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-150-2 01 1 1412- ● ● ●
249 16.674 COVER
FRONT CONSOLE W/LID<D55> (D) BLACK 		8-97416-659-2 01 1 1409- ● ●
249 16.674 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (D) BLACK 		8-97416-659-2 01 1 1409- ●
250 16.650 GROMMET; CONSOLE BOX
FRONT CONSOLE WO/LID<D54> 16.588 D=7X7 L=7.5 		5-09983-007-0 02 1 1409- ● ● ● ● ● ●
293 16.650 DUCT
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> REAR HEATER DUCT<S8C> 		8-98134-786-0 01 1 1409- ● ●
293 16.650 DUCT
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> REAR HEATER DUCT<S8C> 		8-98134-787-0 01 1 1409- ● ●
298 16.650 BEZEL; HAND BRAKE,CONSOLE
FRONT CONSOLE W/LID<D55> BLACK 		8-97416-651-2 01 1 1409- ● ● ● ●
298 16.650 BEZEL; HAND BRAKE,CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97416-651-2 01 1 1409- ● ●
301 16.650 BEZEL; CONSOLE
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-092-2 01 1 1409- ● ● ● ● ● ●
301 16.650 BEZEL; CONSOLE
CUSTOM FRONT CONSOLE<D07> BLACK 		8-97423-091-2 01 1 1409- ● ●
381 16.100 RETAINER; FLOOR CONSOLE
FRONT CONSOLE W/LID<D55> BLACK 		8-97360-070-0 02 1 1409- ● ● ● ●
381 16.100 RETAINER; FLOOR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97360-070-0 02 1 1409- ● ●
382 16.100 BRACKET; FLOOR CONSOLE
FRONT CONSOLE W/LID<D55> (A) 		8-98102-973-3 01 1 1409- ● ● ● ●
382 16.100 BRACKET; FLOOR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98102-973-3 01 1 1409- ● ●
382 16.100 BRACKET; FLOOR CONSOLE
FRONT CONSOLE W/LID<D55> (B) 		8-98112-864-4 01 1 1409- ● ● ● ●
382 16.100 BRACKET; FLOOR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98112-864-4 01 1 1409- ● ●
382 16.100 BRACKET; FLOOR CONSOLE
4JJ1-TCX ENG(LS0) EXC. FRONT CONSOLE W/LID<D55> (C) 		8-98123-599-2 01 1 1409-1411 ● ● ● ●
382 16.100 BRACKET; FLOOR CONSOLE
4JJ1-TCX ENG(LS0) EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) 		8-98123-599-2 01 1 1409-1411 ● ●
382 16.100 BRACKET; FLOOR CONSOLE
EXC. CONGO EQUIPMENT(CDF),CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) 		8-98123-599-2 01 1 1412- ● ● ● ● ● ●

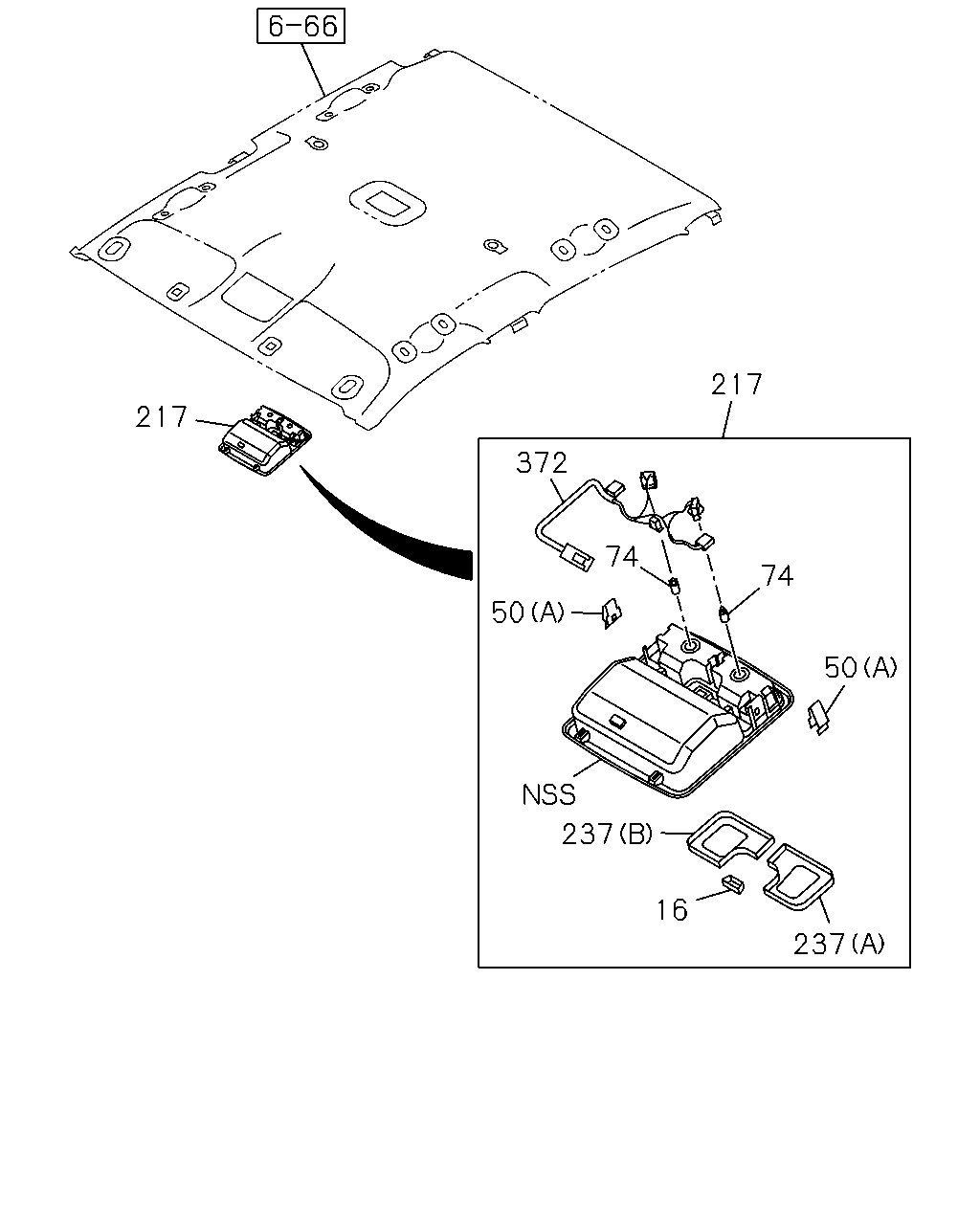

çizim 444273
372 217 74 50 16 237 237 50 74 217
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 16.650 KNOB ASM
HEADER CONSOLE<DK6> GRAY 		8-97423-261-0 01 1 1409- ● ● ●
50 04.010 CLIP; CONSOLE
16.165 (A) 		8-98164-677-0 02 1 1409- ● ● ● ● ● ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (B) 		8-98192-891-0 02 1 1409- ● ● ●
74 08.991 BULB; CONSOLE
HEADER CONSOLE<DK6> 12V 5W 		8-94124-595-0 02 1 1409- ● ● ●
217 16.745 CONSOLE; HEADER
HEADER CONSOLE<DK6> GRAY 		8-97416-690-5 01 1 1409- ● ● ●
237 16.650 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> (A) 		8-98192-893-0 01 1 1409- ● ● ●
237 16.650 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> (B) 		8-98192-894-0 01 1 1409- ● ● ●
372 16.674 HARNESS ASM; SWITCH,HEADER CONSO
HEADER CONSOLE<DK6> 		8-98192-890-0 01 1 1409- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
