◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51580 - TFR/TFS RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶

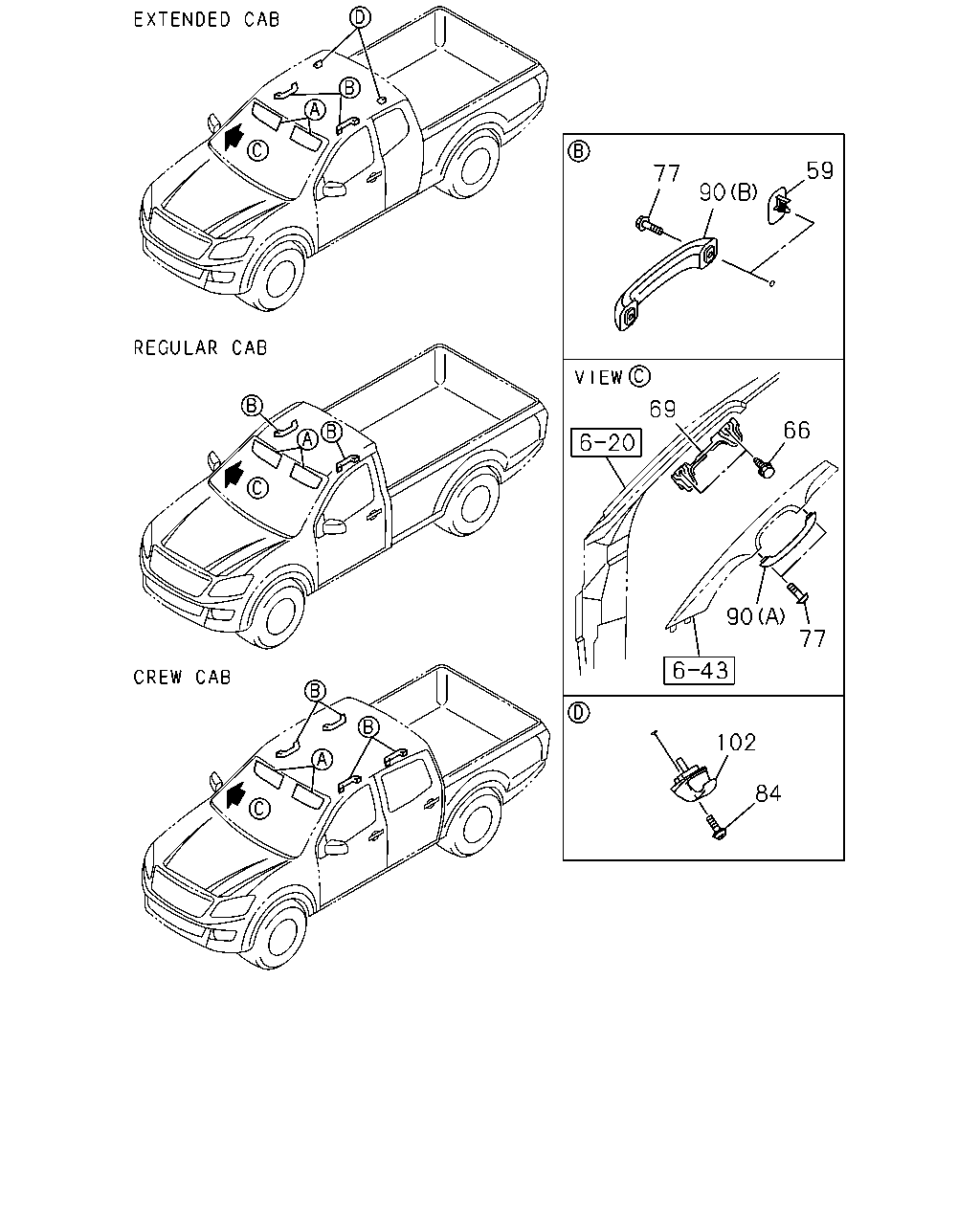

7-43 — SUN VISOR AND ASSIST GRIP (#148527) — 84 parça

77 59 69 66 90 77 102 84 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
59	16.450 COVER; ASSIST GRIP AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) GRAY	8-97416-700-0	02	1	1412-1509	●	●	●	●	●
59	16.450 COVER; ASSIST GRIP EXC. ASSIST HANDLE<E28> GRAY	8-97416-700-0	02	1	1412-1509	●	●	●	●	●
59	16.450 COVER; ASSIST GRIP EXC. ASSIST HANDLE<E28> GRAY	8-97416-700-0	02	1	1510-	●	●	●	●	●	●
59	16.450 COVER; ASSIST GRIP AIR BAG DRIVER & PASSENGER(AK5) GRAY	8-97416-700-0	02	1	1510-						●
59	16.450 COVER; ASSIST GRIP AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) GRAY	8-97416-700-0	02	1	1510-	●	●	●	●	●
66	16.450 BOLT; ASSIST GRIP BRKT HIGH RIDE SUSPENSION(7YC) M6X16 FLANGE	8-98050-320-0	04	1	1409-1509	●	●
66	16.450 BOLT; ASSIST GRIP BRKT M6X16 FLANGE	8-98050-320-0	04	1	1409-1509			●	●	●
66	16.450 BOLT; ASSIST GRIP BRKT HIGH RIDE SUSPENSION(7YC) M6X16 FLANGE	8-98050-320-0	04	1	1510-	●	●				●
66	16.450 BOLT; ASSIST GRIP BRKT M6X16 FLANGE	8-98050-320-0	04	1	1510-			●	●	●
69	16.450 BRACKET; ASSIST GRIP HIGH RIDE SUSPENSION(7YC)	8-98103-347-3	01	1	1409-1509	●	●
69	16.450 BRACKET; ASSIST GRIP	8-98103-347-3	01	1	1409-1509			●	●	●
69	16.450 BRACKET; ASSIST GRIP HIGH RIDE SUSPENSION(7YC)	8-98103-347-3	01	1	1510-	●	●				●
69	16.450 BRACKET; ASSIST GRIP	8-98103-347-3	01	1	1510-			●	●	●
69	16.450 BRACKET; ASSIST GRIP HIGH RIDE SUSPENSION(7YC)	8-98103-348-3	01	1	1409-1509	●	●
69	16.450 BRACKET; ASSIST GRIP	8-98103-348-3	01	1	1409-1509			●	●	●
69	16.450 BRACKET; ASSIST GRIP HIGH RIDE SUSPENSION(7YC)	8-98103-348-3	01	1	1510-	●	●				●
69	16.450 BRACKET; ASSIST GRIP	8-98103-348-3	01	1	1510-			●	●	●
77	16.450 SCREW; ASSIST GRIP HIGH RIDE SUSPENSION(7YC) M6X25	0-36230-625-0	04	1	1412-1509	●	●
77	16.450 SCREW; ASSIST GRIP AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) M6X25	0-36230-625-0	04	1	1412-1509		●			●
77	16.450 SCREW; ASSIST GRIP M6X25	0-36230-625-0	04	1	1412-1509			●	●	●
77	16.450 SCREW; ASSIST GRIP HIGH RIDE SUSPENSION(7YC) M6X25	0-36230-625-0	04	1	1510-	●	●				●
77	16.450 SCREW; ASSIST GRIP AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) M6X25	0-36230-625-0	04	1	1510-		●			●
77	16.450 SCREW; ASSIST GRIP M6X25	0-36230-625-0	04	1	1510-			●	●	●
77	16.450 SCREW; ASSIST GRIP HIGH RIDE SUSPENSION(7YC) M6X25	0-36230-625-0	04	1	1409-1411	●	●
77	16.450 SCREW; ASSIST GRIP M6X25	0-36230-625-0	04	1	1409-1411			●	●	●
77	16.450 SCREW; ASSIST GRIP AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ASSIST HANDLE<E28> M6X25	0-36230-625-0	02	1	1412-1509	●	●	●	●	●
77	16.450 SCREW; ASSIST GRIP AIR BAG DRIVER & PASSENGER(AK5) ASSIST HANDLE<E28> M6X25	0-36230-625-0	02	1	1510-						●
77	16.450 SCREW; ASSIST GRIP AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ASSIST HANDLE<E28> M6X25	0-36230-625-0	02	1	1510-	●	●	●	●	●
84	16.450 SCREW; ASSIST GRIP M6X25	0-36230-625-0	02	1	1409-1411			●			●
84	16.450 SCREW; ASSIST GRIP M6X25	0-36230-625-0	02	1	1412-1509						●
84	16.450 SCREW; ASSIST GRIP AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) M6X25	0-36230-625-0	02	1	1412-1509			●
84	16.450 SCREW; ASSIST GRIP AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) M6X25	0-36230-625-0	02	1	1510-			●			●
90	16.450 GRIP; ASSIST,ROOF AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ASSIST HANDLE<E28> (B) FRONT GRAY	8-97416-698-4	01	1	1412-1509	●	●	●	●	●
90	16.450 GRIP; ASSIST,ROOF AIR BAG DRIVER & PASSENGER(AK5) ASSIST HANDLE<E28> (B) FRONT GRAY	8-97416-698-4	01	1	1510-						●
90	16.450 GRIP; ASSIST,ROOF AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) ASSIST HANDLE<E28> (B) FRONT GRAY	8-97416-698-4	01	1	1510-	●	●	●	●	●
90	16.450 GRIP; ASSIST,ROOF AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) (B) REAR GRAY	8-97418-299-1	01	1	1412-		●			●
90	16.450 GRIP; ASSIST,ROOF AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) (B) REAR GRAY	8-97418-300-1	01	1	1412-		●			●
90	16.450 GRIP; ASSIST,ROOF (B) FRONT GRAY	8-97419-356-5	02	1	1409-1411		●	●		●	●
90	16.450 GRIP; ASSIST,ROOF (B) FRONT GRAY	8-97419-356-5	02	1	1412-1509						●
90	16.450 GRIP; ASSIST,ROOF AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) ASSIST HANDLE<E28> (B) FRONT GRAY	8-97419-356-5	02	1	1412-1509		●	●		●
90	16.450 GRIP; ASSIST,ROOF AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) ASSIST HANDLE<E28> (B) FRONT GRAY	8-97419-356-5	02	1	1510-		●	●		●	●
90	16.450 GRIP; ASSIST,ROOF HIGH RIDE SUSPENSION(7YC) (A) GRAY	8-97416-698-4	02	1	1409-1509	●	●
90	16.450 GRIP; ASSIST,ROOF (A) GRAY	8-97416-698-4	02	1	1409-1509			●	●	●
90	16.450 GRIP; ASSIST,ROOF HIGH RIDE SUSPENSION(7YC) (A) GRAY	8-97416-698-4	02	1	1510-	●	●				●
90	16.450 GRIP; ASSIST,ROOF (A) GRAY	8-97416-698-4	02	1	1510-			●	●	●
90	16.450 GRIP; ASSIST,ROOF (B) FRONT GRAY	8-97423-866-2	02	1	1409-1411	●			●
90	16.450 GRIP; ASSIST,ROOF AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) ASSIST HANDLE<E28> (B) FRONT GRAY	8-97423-866-2	02	1	1412-	●			●
90	16.450 GRIP; ASSIST,ROOF (B) REAR GRAY	8-97419-357-6	01	1	1409-1411		●			●
90	16.450 GRIP; ASSIST,ROOF AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (B) REAR GRAY	8-97419-357-6	01	1	1412-		●			●
90	16.450 GRIP; ASSIST,ROOF (B) REAR GRAY	8-97423-347-4	01	1	1409-1411		●			●
90	16.450 GRIP; ASSIST,ROOF AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) (B) REAR GRAY	8-97423-347-4	01	1	1412-		●			●
102	16.450 HOOK; COAT HANGER GRAY	8-97416-958-1	02	1	1409-1411			●			●
102	16.450 HOOK; COAT HANGER GRAY	8-97416-958-1	02	1	1412-1509						●
102	16.450 HOOK; COAT HANGER AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) GRAY	8-97416-958-1	02	1	1412-1509			●
102	16.450 HOOK; COAT HANGER AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) GRAY	8-97416-958-1	02	1	1510-			●			●

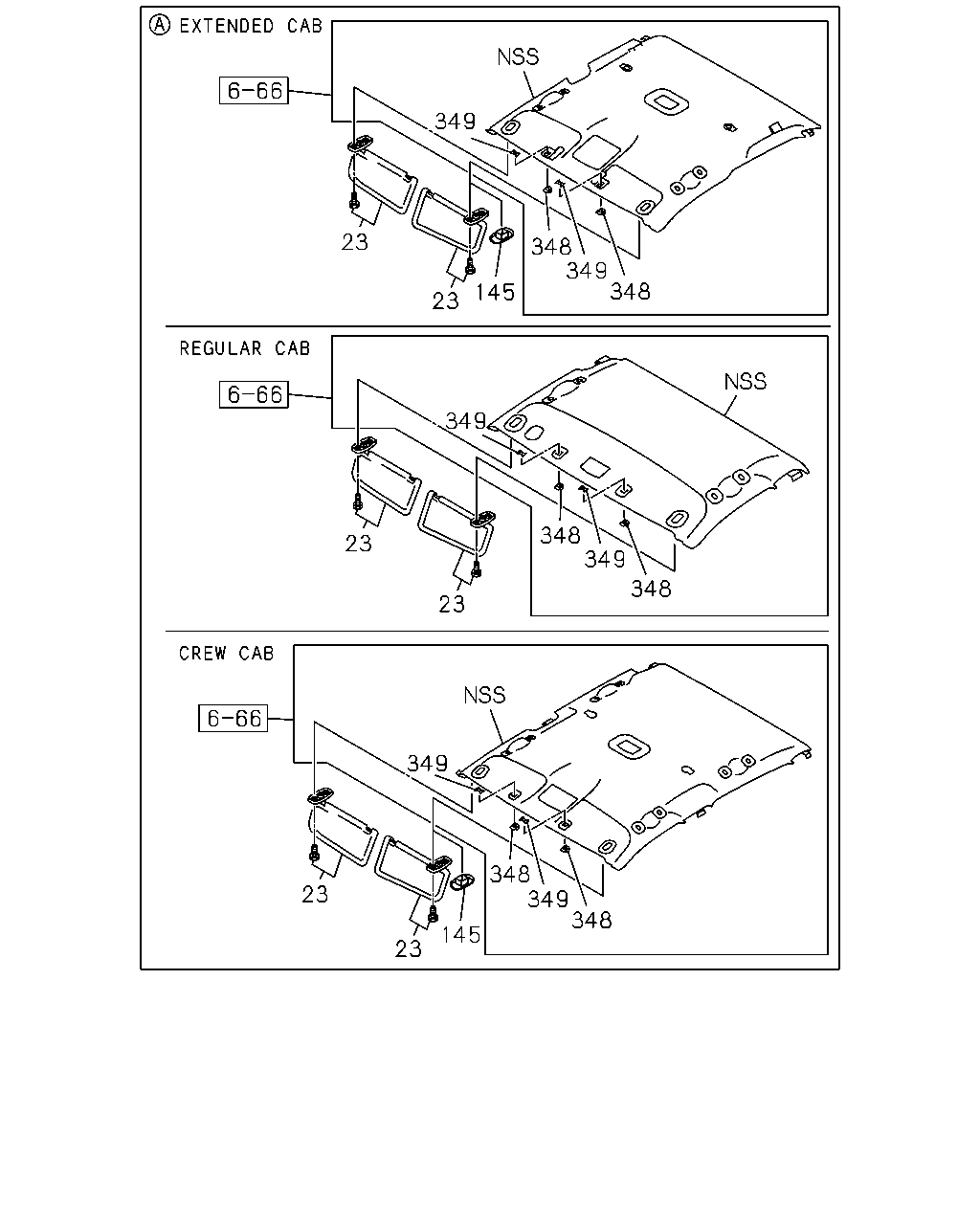

348 349 348 348 349 348 349 23 23 145 349 23 23 349 348 349 348 145 23 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
23	16.070 SUN VISOR AIR BAG DRIVER & PASSENGER DELETE(AK6) SUNVISOR PASSENGER SIDE<D20> GRAY	8-97416-681-2	01	1	1412-	●			●
23	16.070 SUN VISOR AIR BAG DRIVER & PASSENGER DELETE(AK6) SUNVISOR PASSENGER SIDE<D20> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY	8-97416-681-2	01	1	1412-		●	●		●
23	16.070 SUN VISOR AIR BAG DRIVER & PASSENGER DELETE(AK6) SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRR OR<D34> GRAY	8-97416-685-3	01	1	1412-		●	●		●
23	16.070 SUN VISOR GRAY	8-97419-363-3	01	1	1409-1411	●			●		●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY	8-97419-363-3	01	1	1409-1411		●	●		●
23	16.070 SUN VISOR GRAY	8-97419-363-3	01	1	1412-1509						●
23	16.070 SUN VISOR AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SUNVISOR PASSENGER SIDE<D20> GRAY	8-97419-363-3	01	1	1412-1509	●			●
23	16.070 SUN VISOR AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SUNVISOR PASSENGER SIDE<D20> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY	8-97419-363-3	01	1	1412-1509		●	●		●
23	16.070 SUN VISOR AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) GRAY	8-97419-363-3	01	1	1510-						●
23	16.070 SUN VISOR AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SUNVISOR PASSENGER SIDE<D20> GRAY	8-97419-363-3	01	1	1510-	●			●
23	16.070 SUN VISOR AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SUNVISOR PASSENGER SIDE<D20> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY	8-97419-363-3	01	1	1510-		●	●		●
23	16.070 SUN VISOR GRAY	8-97416-682-2	01	1	1409-1411	●					●
23	16.070 SUN VISOR EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY	8-97416-682-2	01	1	1409-1411		●
23	16.070 SUN VISOR GRAY	8-97416-682-2	01	1	1412-1509						●
23	16.070 SUN VISOR EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) GRAY	8-97416-682-2	01	1	1412-1509	●
23	16.070 SUN VISOR EXC. HONG KONG EQUIPMENT(B14), SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> ,SINGAPORE EQUIPMENT(2G0) GRAY	8-97416-682-2	01	1	1412-1509		●
23	16.070 SUN VISOR AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) GRAY	8-97416-682-2	01	1	1510-						●
23	16.070 SUN VISOR EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) GRAY	8-97416-682-2	01	1	1510-	●
23	16.070 SUN VISOR EXC. HONG KONG EQUIPMENT(B14), SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> ,SINGAPORE EQUIPMENT(2G0) GRAY	8-97416-682-2	01	1	1510-		●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRR OR<D34> GRAY	8-97417-458-4	01	1	1409-1411		●	●		●
23	16.070 SUN VISOR AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) SUNVISOR PASSENGER SIDE<D20> SUNVISOR PASSENGER SIDE W/VANITY MIRR OR<D34> GRAY	8-97417-458-4	01	1	1412-		●	●		●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE W/VANITY MIRR OR<D34> GRAY	8-97416-683-2	01	1	1409-1411		●
23	16.070 SUN VISOR HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) GRAY	8-97416-683-2	01	1	1412-	●	●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE W/VANITY MIRR OR<D34> EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) GRAY	8-97416-683-2	01	1	1412-		●
23	16.070 SUN VISOR GRAY	8-97417-459-2	01	1	1409-			●	●	●
145	16.070 PLUG; HOLE EXC. SUNVISOR PASSENGER SIDE<D20> GRAY	8-97416-689-1	01	1	1409-1411		●	●		●
145	16.070 PLUG; HOLE EXC. SUNVISOR PASSENGER SIDE<D20> GRAY	8-97416-689-1	01	1	1412-	●	●	●	●	●
348	16.070 RETAINER; SUNSHADE GRAY	8-97403-990-0	02	1	1409-	●	●	●	●	●	●
349	16.070 CLIP; RETAINER SUNSHADE	8-98039-903-0	02	1	1409-	●	●	●	●	●	●
