Isuzu WW
▶
PICKUP
▶
TFR
▶
51580 - TFR/TFS RHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-42 - ASH TRAY
▶

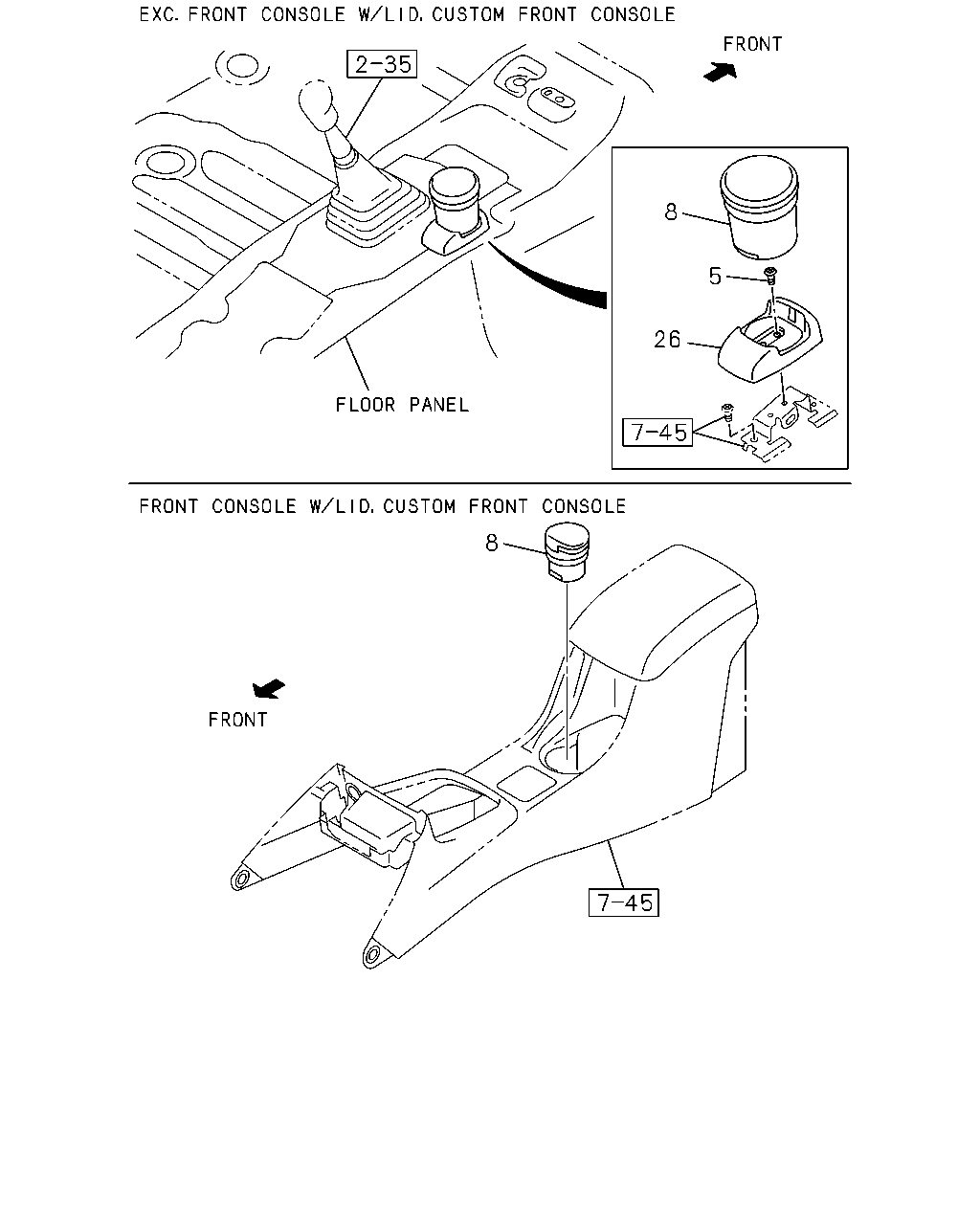

7-42 — ASH TRAY
(#148526) — 12 parça
Tümü
A - TFB5CF
B - TFB5SF
C - TFS5CF
D - TFS5SF
E - TFB5WF
F - TFS5WF
8
5
26
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
5
16.120 SCREW; BRKT,ASH TRAY
4JJ1-TCX ENG(LS0) EXC. FRONT CONSOLE W/LID<D55> 16.345 M5X14 TAPPING
8-98184-363-0
02
1
1409-1411
●
●
●
●
5
16.120 SCREW; BRKT,ASH TRAY
4JJ1-TCX ENG(LS0) EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> 16.345 M5X14 TAPPING
8-98184-363-0
02
1
1409-1411
●
●
5
16.120 SCREW; BRKT,ASH TRAY
EXC. CONGO EQUIPMENT(CDF),CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> 16.345 M5X14 TAPPING
8-98184-363-0
02
1
1412-
●
●
●
●
●
●
8
16.120 TRAY ASM; ASH
4JJ1-TCX ENG(LS0) FRONT CONSOLE W/LID<D55> BLACK
8-97416-811-1
01
1
1409-1411
●
●
●
●
8
16.120 TRAY ASM; ASH
4JJ1-TCX ENG(LS0) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK
8-97416-811-1
01
1
1409-1411
●
●
8
16.120 TRAY ASM; ASH
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK
8-97416-811-1
01
1
1412-
●
●
●
●
●
●
8
16.120 TRAY ASM; ASH
4JJ1-TCX ENG(LS0) EXC. FRONT CONSOLE W/LID<D55> BLACK
8-97416-634-2
01
1
1409-1411
●
●
●
●
8
16.120 TRAY ASM; ASH
4JJ1-TCX ENG(LS0) EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK
8-97416-634-2
01
1
1409-1411
●
●
8
16.120 TRAY ASM; ASH
EXC. CONGO EQUIPMENT(CDF),CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK
8-97416-634-2
01
1
1412-
●
●
●
●
●
●
26
16.120 HOUSING; ASH TRAY
4JJ1-TCX ENG(LS0) EXC. FRONT CONSOLE W/LID<D55> BLACK
8-97416-632-3
01
1
1409-1411
●
●
●
●
26
16.120 HOUSING; ASH TRAY
4JJ1-TCX ENG(LS0) EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK
8-97416-632-3
01
1
1409-1411
●
●
26
16.120 HOUSING; ASH TRAY
EXC. CONGO EQUIPMENT(CDF),CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK
8-97416-632-3
01
1
1412-
●
●
●
●
●
●
