◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51580 - TFR/TFS RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#148522) — 87 parça

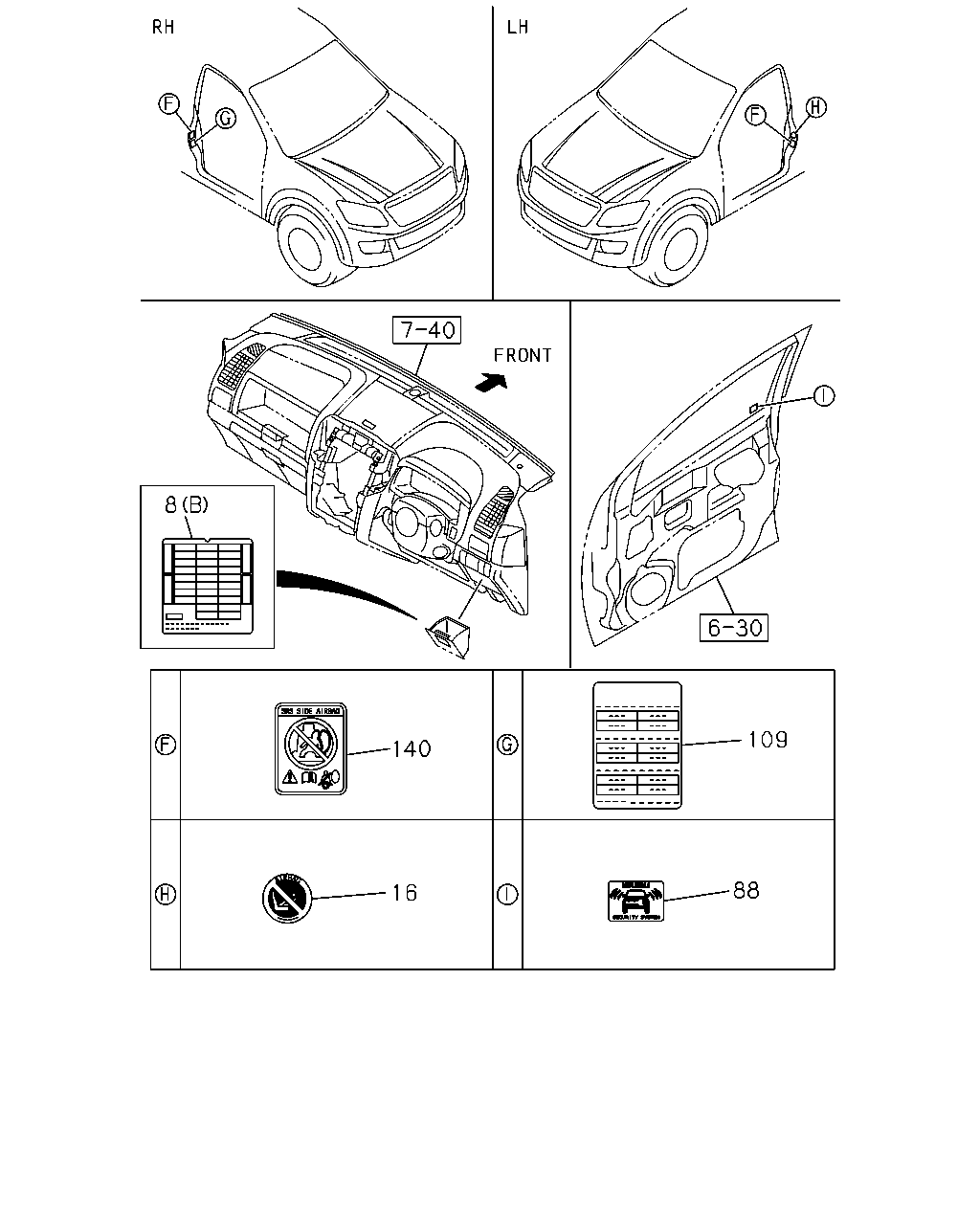

çizim 443936
8 140 16 88 109
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 03.680 LABEL; FUSE
4JA1-T ENG(LP0) INTERIOR BASIC(RBA) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELEC TRONIC TRACTION CONTROL<NW9>, SPEEDOMETER KILO&MILES<U19> (A) 		8-98181-920-1 01 1 1412- ● ●
8 03.680 LABEL; FUSE
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) 		8-98166-842-3 01 1 1409-1411 ● ● ● ● ● ●
8 03.680 LABEL; FUSE
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) 		8-98166-842-3 01 1 1409-1411 ● ● ●
8 03.680 LABEL; FUSE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) (A) 		8-98166-842-3 01 1 1412- ● ● ● ● ● ●
8 03.680 LABEL; FUSE
4JJ1-TCX ENG(LS0) (B) 		8-98213-358-0 01 1 1409-1411 ● ● ●
8 03.680 LABEL; FUSE
4JJ1-TCX ENG(LS0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) 		8-98213-358-0 01 1 1409-1411 ● ● ●
8 03.680 LABEL; FUSE
4JJ1-TCX ENG(LS0) (B) 		8-98213-358-0 01 1 1412- ●
8 03.680 LABEL; FUSE
(B) 		8-98213-358-0 01 1 1412- ●
8 03.680 LABEL; FUSE
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) 		8-98213-358-0 01 1 1412- ●
8 03.680 LABEL; FUSE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) 		8-98213-358-0 01 1 1412- ●
8 03.680 LABEL; FUSE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) (B) 		8-98213-358-0 01 1 1412- ●
8 03.680 LABEL; FUSE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) 		8-98213-358-0 01 1 1412- ●
8 03.680 LABEL; FUSE
PASSIVE ENTRY AND START SYSTEM<AP3> (B) 		8-98272-293-0 01 1 1409- ● ● ●
16 08.808 PLATE; CAUTION,SIR 8-97378-569-0 01 1 1409-1411 ● ● ● ● ● ●
16 08.808 PLATE; CAUTION,SIR 8-97378-569-0 01 1 1412-1509 ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 		8-97378-569-0 01 1 1412-1509 ● ● ● ● ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 		8-97378-569-0 01 1 1510- ● ● ● ● ● ●
88 08.808 LABEL; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98141-993-2 02 1 1409- ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 205R16C(CUY),FRT&RR 215/70R15CDUNLOP TIRE(CWP),FRT&RR 245/70R16(QCQ),FRT&RR 195R15C(QZO),FRT&RR 255/65R17(QZX) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98102-346-1 01 1 1412- ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 205R16C(CUY),FRT&RR 245/70R16(QCQ),FRT&RR 255/65R17(QZX) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98102-346-1 01 1 1412- ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 205R16C(CUY),FRT&RR 215/70R15CDUNLOP TIRE(CWP),FRT&RR 245/70R16(QCQ),FRT&RR 195R15C(QZO),FRT&RR 255/65R17(QZX) EXC. AUSTRALIA EQUIPMENT(B13),HIGH RIDE SUSPENSION(7YC) 		8-98100-752-1 01 1 1412- ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD 8-98100-751-0 01 1 1409-1411 ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 215/70R15C DUNLOP TIRE(CWP) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98100-751-0 01 1 1409-1411 ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD 8-98100-751-0 01 1 1412-1509 ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 215/70R15C DUNLOP TIRE(CWP) AUSTRALIA EQUIPMENT(B13) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98100-751-0 01 1 1412-1509 ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 215/70R15C DUNLOP TIRE(CWP) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98100-751-0 01 1 1510- ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 215/70R15C DUNLOP TIRE(CWP) AUSTRALIA EQUIPMENT(B13) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98100-751-0 01 1 1510- ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 245/70R16 PA TIRE D693(BZD) HIGH RIDE SUSPENSION(7YC) 		8-98100-756-0 01 1 1409-1411 ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 245/70R16 PA TIRE D693(BZD) 		8-98100-756-0 01 1 1409-1411 ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 245/70R16 PA TIRE D693(BZD) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) 		8-98100-756-0 01 1 1412-1509 ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 245/70R16 PA TIRE D693(BZD) AUSTRALIA EQUIPMENT(B13) 		8-98100-756-0 01 1 1412-1509 ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 245/70R16 PA TIRE D693(BZD) HIGH RIDE SUSPENSION(7YC) 		8-98100-756-0 01 1 1510- ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 245/70R16 PA TIRE D693(BZD) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) 		8-98100-756-0 01 1 1510- ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 245/70R16 PA TIRE D693(BZD) AUSTRALIA EQUIPMENT(B13) 		8-98100-756-0 01 1 1510- ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 255/65R17(QZX) HIGH RIDE SUSPENSION(7YC) 		8-98100-757-0 01 1 1409-1411 ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 255/65R17(QZX) 		8-98100-757-0 01 1 1409-1411 ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 255/65R17(QZX) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) 		8-98100-757-0 01 1 1412-1509 ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 255/65R17(QZX) AUSTRALIA EQUIPMENT(B13) 		8-98100-757-0 01 1 1412-1509 ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 255/65R17(QZX) HIGH RIDE SUSPENSION(7YC) 		8-98100-757-0 01 1 1510- ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 255/65R17(QZX) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) 		8-98100-757-0 01 1 1510- ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 255/65R17(QZX) AUSTRALIA EQUIPMENT(B13) 		8-98100-757-0 01 1 1510- ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 205R16C(CUY) 		8-98100-755-1 01 1 1409-1411 ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 205R16C(CUY) AUSTRALIA EQUIPMENT(B13) 		8-98100-755-1 01 1 1412- ● ● ●
140 08.808 PLATE; CAUTION,SRS 8-98179-251-2 02 1 1409-1411 ● ● ● ● ● ●
140 08.808 PLATE; CAUTION,SRS 8-98179-251-2 02 1 1412-1509 ●
140 08.808 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 		8-98179-251-2 02 1 1412-1509 ● ● ● ● ●
140 08.808 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 		8-98179-251-2 02 1 1510- ● ● ● ● ● ●

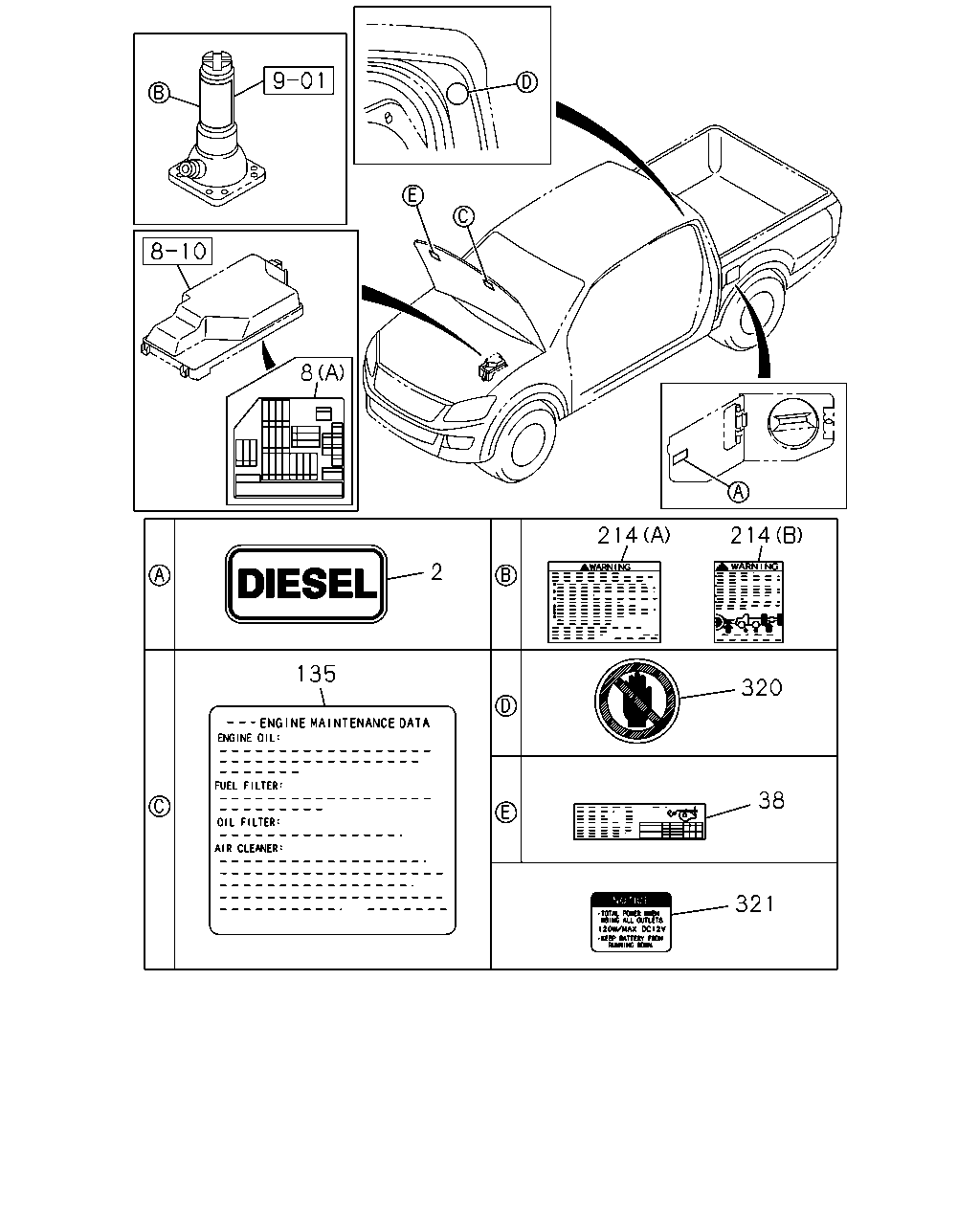

çizim 444123
8 2 135 214 214 320 38 321
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.680 LABEL; FUEL CAUTION
REAR BODY DBL WALL CTR PULL(E63) 		8-98147-133-0 01 1 1409-1510 ● ● ● ● ● ●
8 03.680 LABEL; FUSE
4JA1-T ENG(LP0) INTERIOR BASIC(RBA) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,4 WHEEL ANTI LOCK BRAKE<JE5>,ELEC TRONIC TRACTION CONTROL<NW9>, SPEEDOMETER KILO&MILES<U19> (A) 		8-98181-920-1 01 1 1412- ● ●
8 03.680 LABEL; FUSE
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) 		8-98166-842-3 01 1 1409-1411 ● ● ● ● ● ●
8 03.680 LABEL; FUSE
4JJ1-TCX ENG(LS0) A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) INTERIOR CUSTOM(RBD) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (A) 		8-98166-842-3 01 1 1409-1411 ● ● ●
8 03.680 LABEL; FUSE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) (A) 		8-98166-842-3 01 1 1412- ● ● ● ● ● ●
8 03.680 LABEL; FUSE
4JJ1-TCX ENG(LS0) (B) 		8-98213-358-0 01 1 1409-1411 ● ● ●
8 03.680 LABEL; FUSE
4JJ1-TCX ENG(LS0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) 		8-98213-358-0 01 1 1409-1411 ● ● ●
8 03.680 LABEL; FUSE
4JJ1-TCX ENG(LS0) (B) 		8-98213-358-0 01 1 1412- ●
8 03.680 LABEL; FUSE
(B) 		8-98213-358-0 01 1 1412- ●
8 03.680 LABEL; FUSE
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) 		8-98213-358-0 01 1 1412- ●
8 03.680 LABEL; FUSE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) 		8-98213-358-0 01 1 1412- ●
8 03.680 LABEL; FUSE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) (B) 		8-98213-358-0 01 1 1412- ●
8 03.680 LABEL; FUSE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) 		8-98213-358-0 01 1 1412- ●
8 03.680 LABEL; FUSE
PASSIVE ENTRY AND START SYSTEM<AP3> (B) 		8-98272-293-0 01 1 1409- ● ● ●
38 08.808 PLATE; CAUTION,LSV
CONGO EQUIPMENT(CDF) BRK WHL LK CONT LSPV<JR9> 		8-97947-963-0 01 1 1412- ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JJ1-TCX ENG(LS0) 		8-98302-557-0 01 1 1504- ●
135 08.808 PLATE; CAUTION,ENGINE
4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13) 		8-98302-557-0 01 1 1504- ● ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) 		8-98200-831-0 01 1 1412-1503 ● ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98200-831-0 01 1 1504- ● ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JA1-T ENG(LP0) 		8-97332-377-1 01 1 1412- ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JK1-TCY ENG(RDX) 		8-98196-345-0 01 1 1412-1503 ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JK1-TCY ENG(RDX) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98196-345-0 01 1 1504- ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JJ1-TCX ENG(LS0) 		8-98200-830-0 01 1 1409-1503 ● ● ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JJ1-TCX ENG(LS0) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98200-830-0 01 1 1504- ● ● ● ● ●
214 08.808 LABEL; JACK
EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98245-069-0 01 1 1412-1501 ● ● ● ● ●
214 08.808 LABEL; JACK
EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-98304-658-0 01 1 1502- ● ● ● ● ●
214 08.808 LABEL; JACK
(A) 		8-98192-980-2 01 1 1409-1411 ● ● ● ● ● ●
214 08.808 LABEL; JACK
(A) 		8-98192-980-2 01 1 1412- ●
214 08.808 LABEL; JACK
AUSTRALIA EQUIPMENT(B13) (A) 		8-98192-980-2 01 1 1412- ● ● ● ● ●
320 08.808 LABEL; WARNING,DOOR 8-98183-175-0 01 1 1409-1501 ● ●
320 08.808 LABEL; WARNING,DOOR 8-98302-861-0 02 1 1502- ● ●
320 08.808 LABEL; WARNING,DOOR 8-98183-176-0 01 1 1409-1501 ● ●
321 08.808 LABEL; WARNING,POWER
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98183-494-1 01 1 1409- ● ● ● ● ● ●

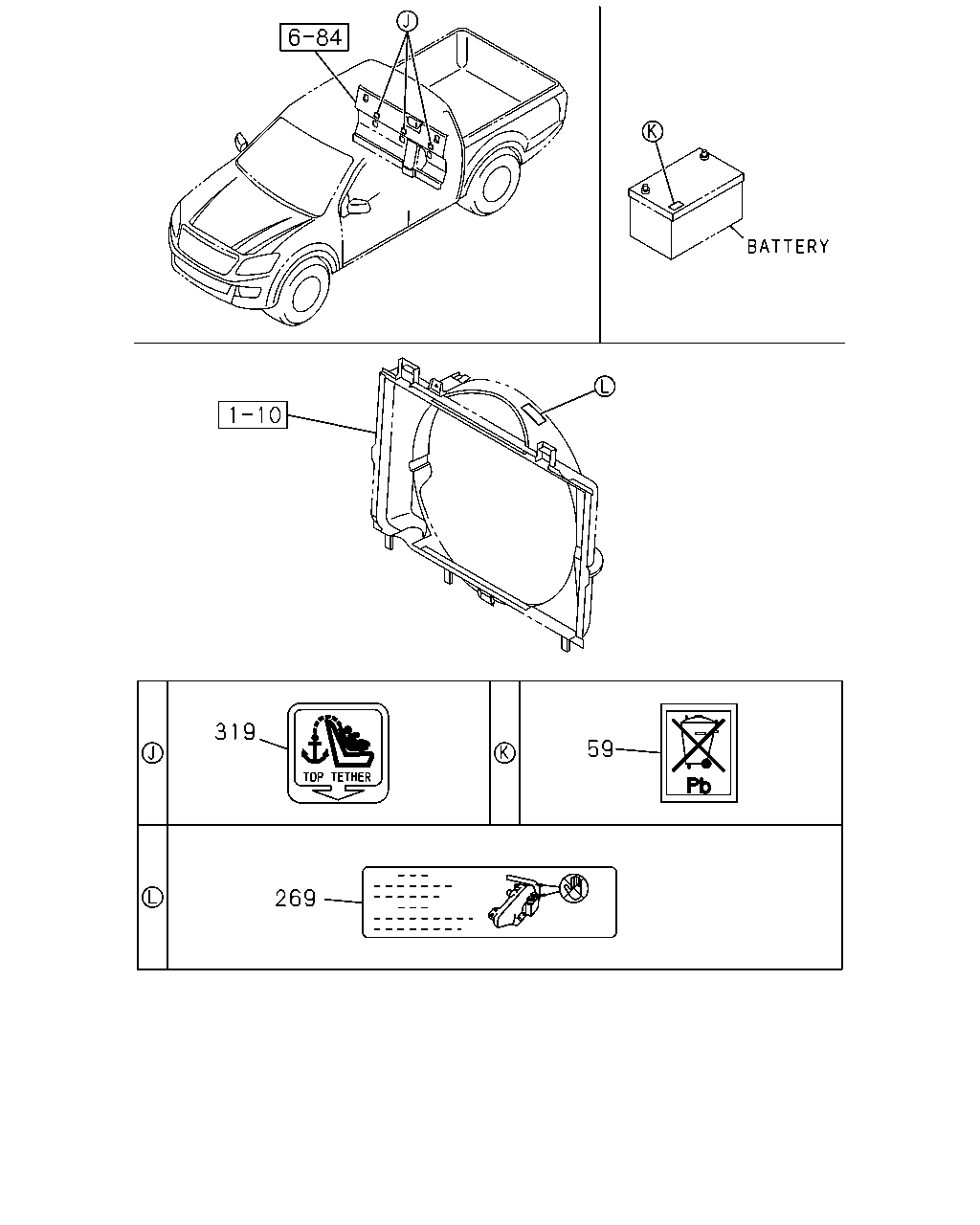

çizim 459846
319 59 269
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
59 08.808 PLATE; CAUTION,BATTERY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 		8-98140-947-0 01 1 1412- ● ● ●
59 08.808 PLATE; CAUTION,BATTERY
SINGAPORE EQUIPMENT(2G0) BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 		8-98140-947-0 01 1 1412- ●
269 08.808 LABEL; CAUTION,EGR
4JA1-T ENG(LP0) EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2> 		8-97943-094-0 01 1 1412- ● ●
319 08.808 LABEL; TOP TETHER
LAOS EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0) 		8-98174-417-0 02 1 1412- ●
319 08.808 LABEL; TOP TETHER
INDONESIA EQUIPMENT(B00),LAOS EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0) 		8-98174-417-0 02 1 1412- ●
319 08.808 LABEL; TOP TETHER 8-98174-417-0 03 1 1409-1411 ● ●
319 08.808 LABEL; TOP TETHER
AUSTRALIA EQUIPMENT(B13) 		8-98174-417-0 03 1 1412- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
