◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51580 - TFR/TFS RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#148521) — 21 parça

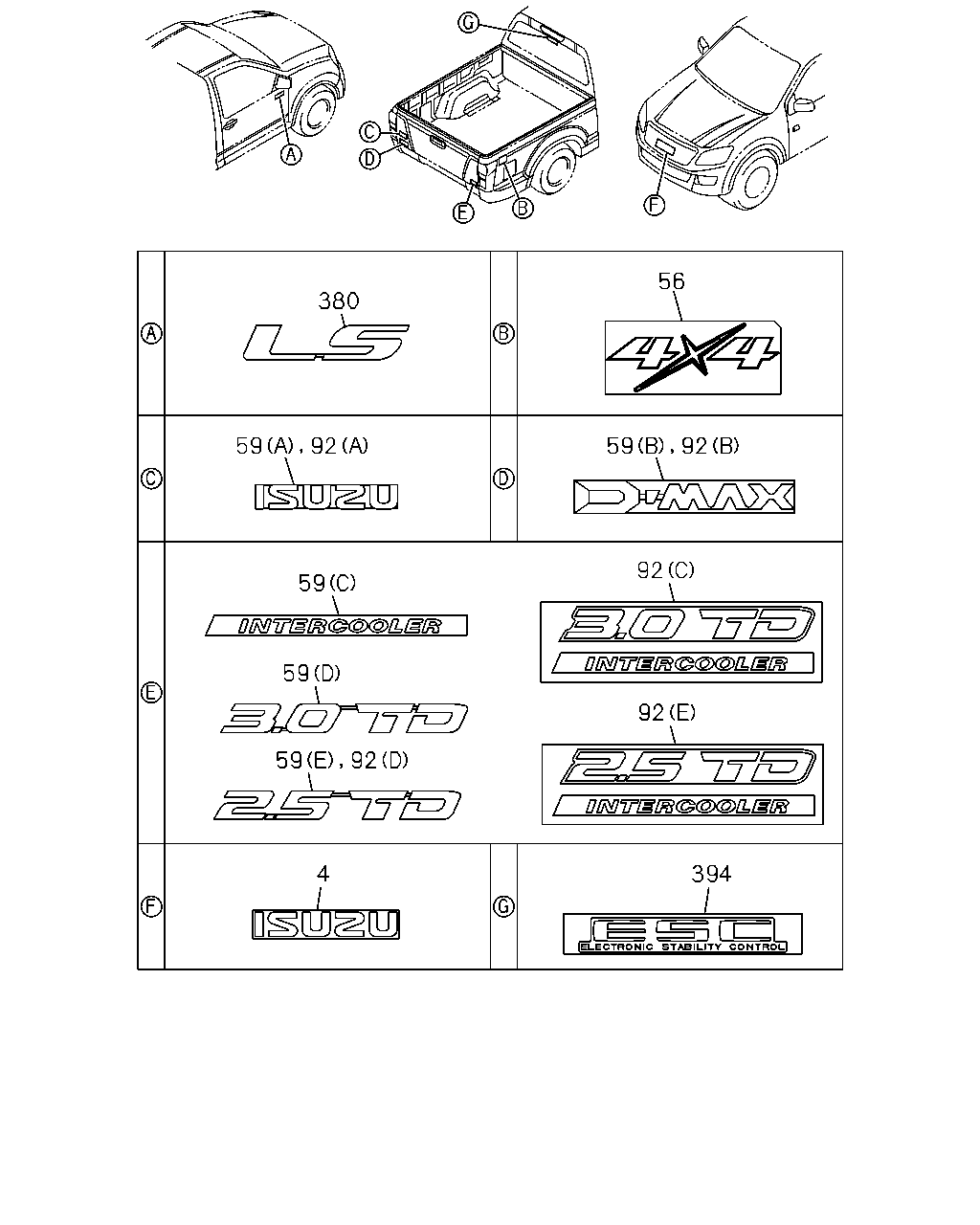

çizim 444102
380 56 59 92 59 92 92 59 59 59 92 394 4 92
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 01.303 EMBLEM; RAD GRILLE 8-98164-912-0 01 1 1409- ● ● ● ● ● ●
56 08.147 DECAL; BODY SIDE
BODY COLOR NAUTILUS BLUE MICA(521), BODY COLOR COSMIC BLACK MICA(523),BODY COLOR MINERAL GRAY MET(530),BODY COLOR TUNDRA GREEN MICA(533),BODY COLOR V ENETIAN RED MICA(546) REAR BODY DBL WALL CTR PULL(E63) DECAL 4X4<YJ3> LIGHT SILVER & RED 		8-97421-195-1 02 1 1409- ● ● ●
56 08.147 DECAL; BODY SIDE
BODY COLOR SPLASH WHITE(527),BODY COLOR TITANIUM SILVER MET(529),BODY COLOR ASH BEIGE MET(541),BODY COLOR FJORD BLUE MET(545) REAR BODY DBL WALL CTR PULL(E63) DECAL 4X4<YJ3> DARK GRAY & RED 		8-97421-196-1 02 1 1409- ● ● ●
59 01.303 DECAL; TAIL GATE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (E) 		8-98134-871-0 01 1 1412- ● ● ●
59 01.303 DECAL; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98129-896-0 01 1 1409- ● ● ● ●
59 01.303 DECAL; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98134-860-0 01 1 1409- ● ● ● ●
59 01.303 DECAL; TAIL GATE
4JJ1-TCX ENG(LS0) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98129-903-0 01 1 1409-1411 ● ● ●
59 01.303 DECAL; TAIL GATE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98129-903-0 01 1 1412- ● ● ●
59 01.303 DECAL; TAIL GATE
4JJ1-TCX ENG(LS0) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98134-872-0 01 1 1409- ● ● ●
92 08.147 DECAL; RR END
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) REAR BODY DBL WALL CTR PULL(E63) (E) 		8-98129-870-0 01 1 1412- ● ●
92 08.147 DECAL; RR END
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) INTERIOR BASIC(RBA) REAR BODY DBL WALL CTR PULL(E63) (E) 		8-98129-870-0 01 1 1412- ● ● ●
92 08.147 DECAL; RR END
4JA1-T ENG(LP0) REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98129-869-0 01 1 1412- ● ●
92 08.147 DECAL; RR END
4JJ1-TCX ENG(LS0) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98129-871-0 01 1 1409- ● ● ●
92 08.147 DECAL; RR END
4JJ1-TCX ENG(LS0) INTERIOR BASIC(RBA) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98129-871-0 01 1 1409- ● ● ●
92 08.147 DECAL; RR END
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98129-861-0 01 1 1409- ● ●
92 08.147 DECAL; RR END
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98129-863-0 01 1 1409- ● ●
380 17.215 PLATE; SIDE
INTERIOR CUSTOM(RBD) 		8-98129-894-0 02 1 1409- ● ● ●
394 16.507 DECAL; RR BODY
ELECTRONIC TRACTION CONTROL<NW9> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) 		8-98129-857-2 01 1 1412- ● ●
394 16.507 DECAL; RR BODY
ELECTRONIC TRACTION CONTROL<NW9> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98129-857-2 01 1 1412- ●
çizim 459824
231
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
231 01.303 EMBLEM; ENG
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) PROVISIONAL PACKAGE SPEC(BCC) EXC. ENG SIGHT SHIELD<8LQ> 		8-98298-641-0 01 1 1412- ● ● ● ● ●
231 01.303 EMBLEM; ENG
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. PROVISIONAL PACKAGE SPEC(BCC), ENG SIGHT SHIELD<8LQ> 		8-98221-983-0 01 1 1412- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
