Sayfa 6-84 - Isuzu EPC

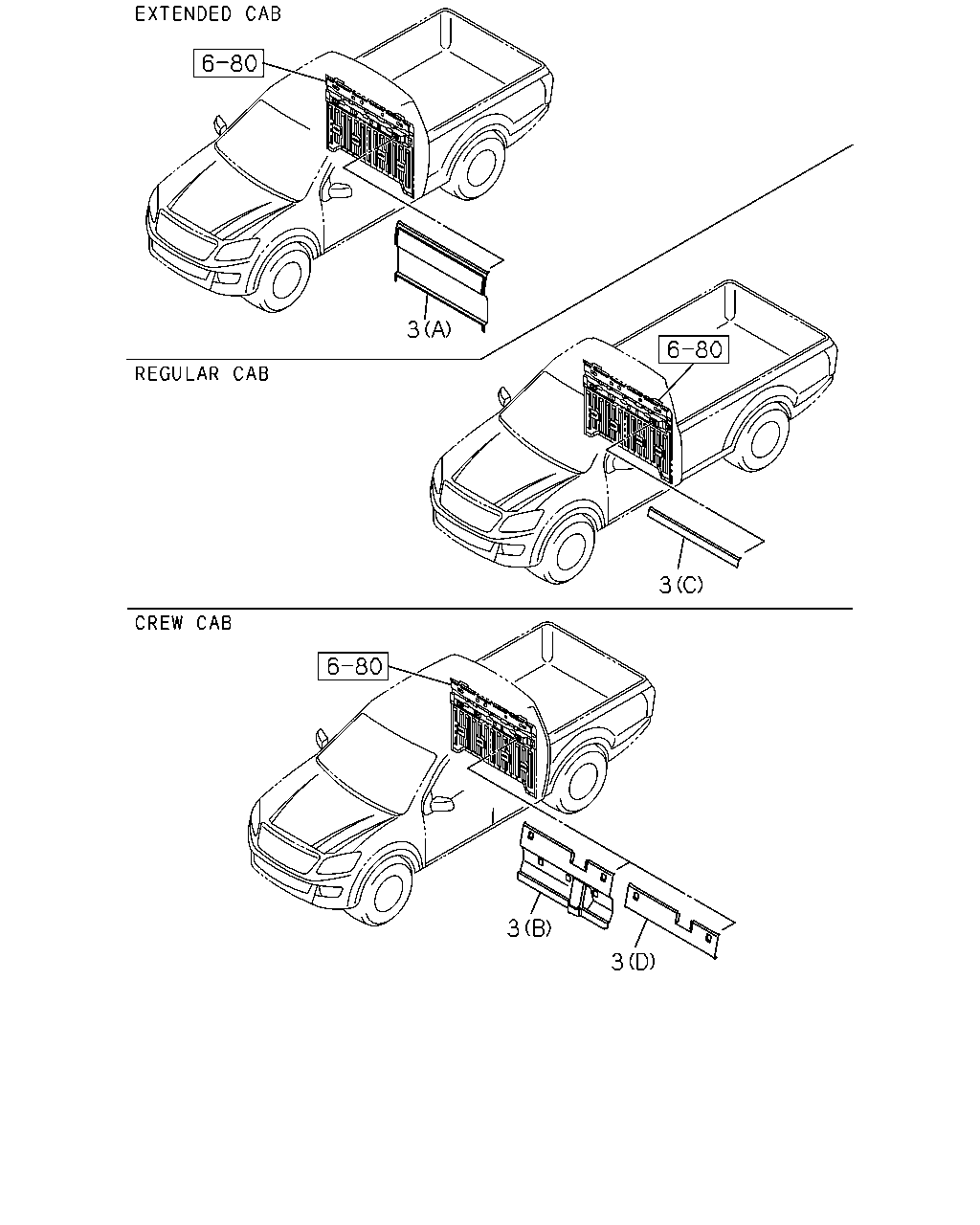

6-84 — BACK TRIM (#148518) — 7 parça

3 3 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	16.578 TRIM; FULL,BACK UPR JUMP SEAT<AJ2> (A) LIGHT GRAY	8-97428-390-0	01	1	1409-	●	●
3	16.578 TRIM; FULL,BACK UPR EXC. JUMP SEAT<AJ2> (A) LIGHT GRAY	8-97428-389-0	01	1	1409-	●	●
3	16.578 TRIM; FULL,BACK UPR 4JJ1-TCX ENG(LS0) (C) BLACK	8-97417-124-1	01	1	1409-1411			●	●
3	16.578 TRIM; FULL,BACK UPR (C) BLACK	8-97417-124-1	01	1	1412-			●
3	16.578 TRIM; FULL,BACK UPR 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) (C) BLACK	8-97417-124-1	01	1	1412-				●
3	16.578 TRIM; FULL,BACK UPR INTERIOR BASIC(RBA) (D) BLACK	8-97417-467-0	01	1	1409-					●	●
3	16.578 TRIM; FULL,BACK UPR INTERIOR CUSTOM(RBD) (B) BLACK	8-97417-466-3	01	1	1409-					●	●
