◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51580 - TFR/TFS RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#148514) — 19 parça

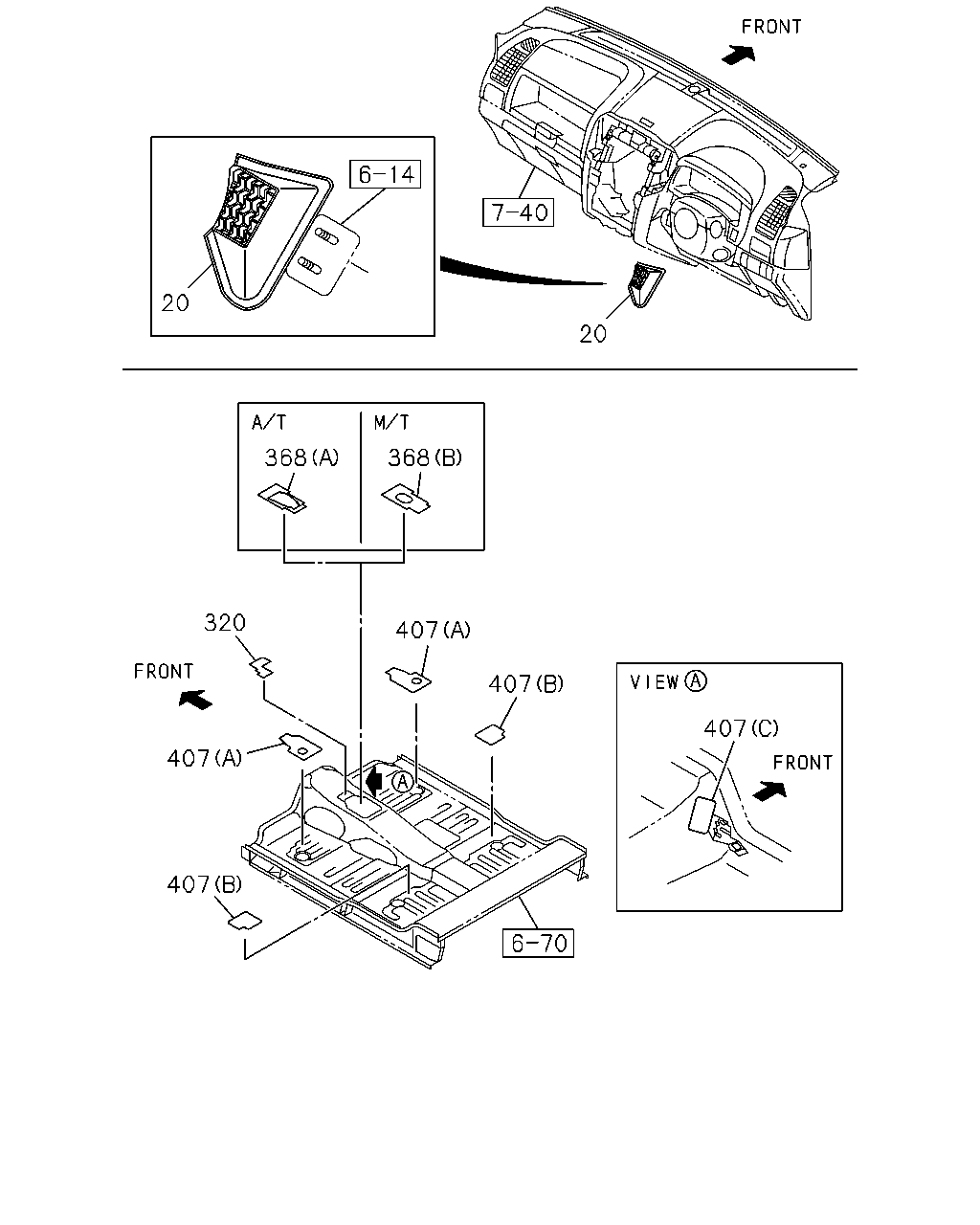

çizim 443908
20 20 368 368 407 407 407 407 407 320
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
20 16.547 REST; FOOT 8-98064-439-2 01 1 1409- ● ● ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
AIR BAG DRIVER & PASSENGER DELETE(AK6) 		8-98166-705-0 01 1 1412- ● ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
4JJ1-TCX ENG(LS0) FRONT CONSOLE W/LID<D55> 		8-98166-704-0 01 1 1409-1411 ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
4JJ1-TCX ENG(LS0) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> 		8-98166-704-0 01 1 1409-1411 ● ●
320 16.549 INSULATOR; FLOOR,FRT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) 		8-98166-704-0 01 1 1412-1509 ● ● ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> 		8-98166-704-0 01 1 1510- ● ● ● ● ● ●
368 16.549 INSULATOR; FLOOR,RR
M/T MUX 5 SPEED 5S(MZJ) FRONT CONSOLE W/LID<D55> (B) 		8-98166-706-0 01 1 1409-1411 ● ● ● ●
368 16.549 INSULATOR; FLOOR,RR
M/T MUX 5 SPEED 5S(MZJ) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98166-706-0 01 1 1409-1411 ● ●
368 16.549 INSULATOR; FLOOR,RR
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98166-706-0 01 1 1412- ● ● ● ● ● ●
368 16.549 INSULATOR; FLOOR,RR
A/T 5 SPEED-AISIN(MA1) FRONT CONSOLE W/LID<D55> (A) 		8-98166-707-0 01 1 1409-1509 ● ● ●
368 16.549 INSULATOR; FLOOR,RR
A/T 5 SPEED-AISIN(MA1) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98166-707-0 01 1 1409-1509 ● ●
368 16.549 INSULATOR; FLOOR,RR
A/T 5 SPEED-AISIN(MA1) FRONT CONSOLE W/LID<D55> (A) 		8-98166-707-0 01 1 1510- ● ● ● ●
368 16.549 INSULATOR; FLOOR,RR
A/T 5 SPEED-AISIN(MA1) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98166-707-0 01 1 1510- ● ●
407 16.850 DEADENER; FLOOR PANEL
FRONT SEAT BUCKET STANDARD<A50> HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) (A) 		8-98103-655-1 01 1 1412- ●
407 16.850 DEADENER; FLOOR PANEL
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) FRONT SEAT BUCKET STANDARD<A50> SINGAPORE EQUIPMENT(2G0) (A) 		8-98103-655-1 01 1 1412- ●
407 16.850 DEADENER; FLOOR PANEL
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (C) 		8-98165-147-0 01 1 1409-1411 ● ● ● ● ● ●
407 16.850 DEADENER; FLOOR PANEL
(C) 		8-98165-147-0 01 1 1412- ● ● ● ● ● ●
407 16.850 DEADENER; FLOOR PANEL
(A) 		8-98103-655-1 02 1 1409- ● ● ● ●
407 16.850 DEADENER; FLOOR PANEL
(B) 		8-98155-918-0 02 1 1409- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
