◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51580 - TFR/TFS RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#148512) — 269 parça

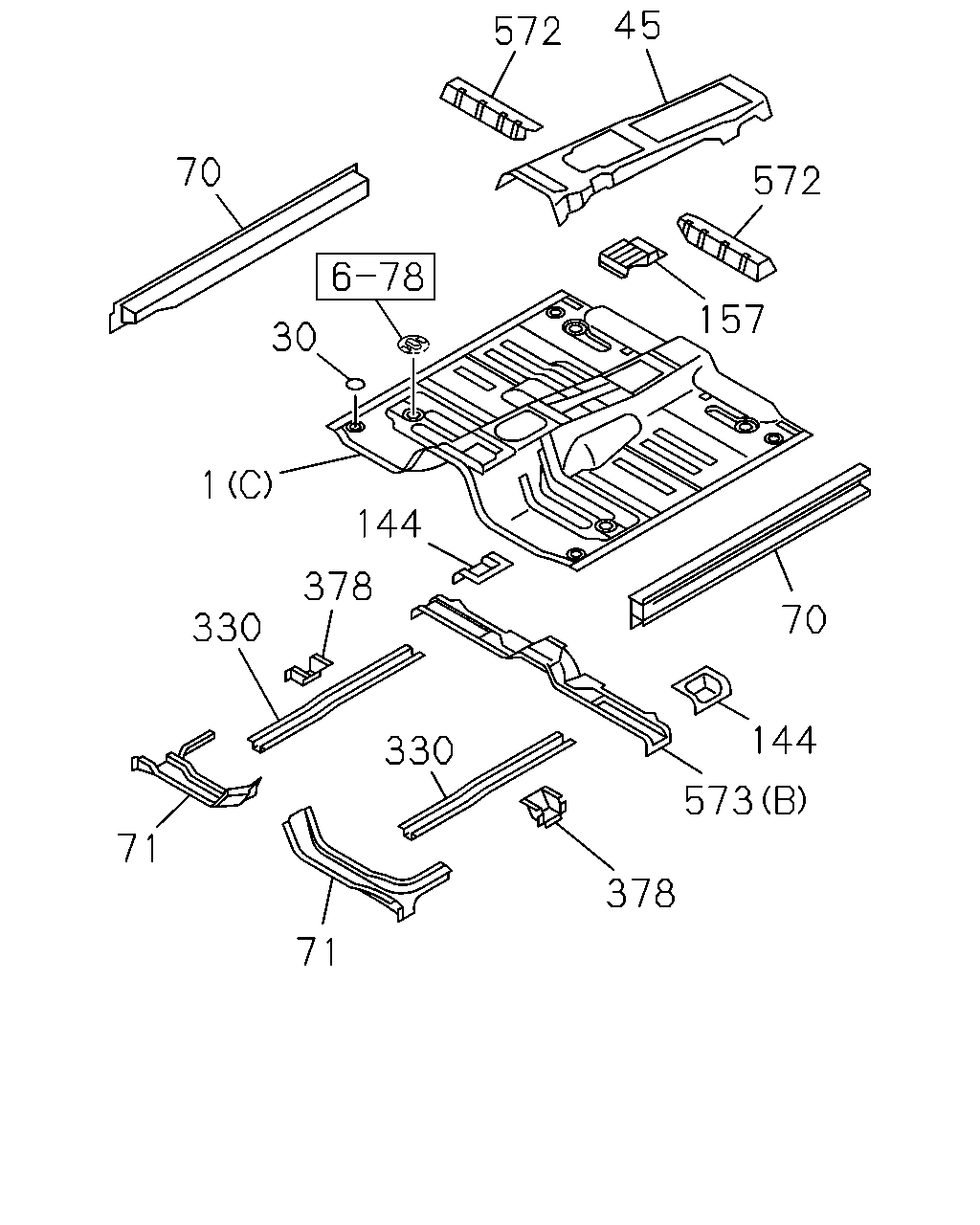

çizim 444113
45 70 30 1 144 378 330 71 71 330 378 573 70 144 157 572 572
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.545 PANEL; FLOOR
4JJ1-TCX ENG(LS0) (A) 		8-98112-030-6 01 1 1409-1411 ●
1 16.545 PANEL; FLOOR
4JJ1-TCX ENG(LS0) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A) 		8-98112-030-6 01 1 1409-1411 ●
1 16.545 PANEL; FLOOR
4JJ1-TCX ENG(LS0) (A) 		8-98112-030-6 01 1 1412- ●
1 16.545 PANEL; FLOOR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A) 		8-98112-030-6 01 1 1412- ●
1 16.545 PANEL; FLOOR
(C) 		8-98103-921-7 01 1 1409- ● ●
1 16.545 PANEL; FLOOR
(B) 		8-98199-516-0 01 1 1409- ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 04 1 1409-1505 ● ● ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 04 1 1506- ● ● ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 06 1 1409-1505 ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 06 1 1506- ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98101-035-8 01 1 1409- ● ● ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98104-022-7 01 1 1409- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT (B14),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0) 		8-98103-893-3 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT (B14),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0) 		8-98103-907-3 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT (B14),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),KENYA EQUIPMENT(CL1),SINGAP ORE EQUIPMENT(2G0) 		8-98103-894-3 01 1 1412-1412 ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT (B14),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0) 		8-98103-894-3 01 1 1501- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT (B14),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),KENYA EQUIPMENT(CL1),SINGAP ORE EQUIPMENT(2G0) 		8-98103-912-3 01 1 1412-1412 ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT (B14),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0) 		8-98103-912-3 01 1 1501- ● ●
70 16.545 PANEL; ROCKER INNER
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98162-993-2 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98162-997-2 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER
4JJ1-TCX ENG(LS0) 		8-98101-006-5 01 1 1409-1411 ●
70 16.545 PANEL; ROCKER INNER
4JJ1-TCX ENG(LS0) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 		8-98101-006-5 01 1 1409-1411 ●
70 16.545 PANEL; ROCKER INNER
4JJ1-TCX ENG(LS0) 		8-98101-006-5 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13) 		8-98101-006-5 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER
4JJ1-TCX ENG(LS0) 		8-98101-982-5 01 1 1409-1411 ●
70 16.545 PANEL; ROCKER INNER
4JJ1-TCX ENG(LS0) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 		8-98101-982-5 01 1 1409-1411 ●
70 16.545 PANEL; ROCKER INNER
4JJ1-TCX ENG(LS0) 		8-98101-982-5 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13) 		8-98101-982-5 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER 8-98162-991-1 01 1 1409-1411 ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET STANDARD<A50> INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) ,CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0) 		8-98162-991-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6> INDONESIA EQUIPMENT(B00),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0) 		8-98162-991-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-996-1 01 1 1409-1411 ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET STANDARD<A50> INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) ,CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0) 		8-98162-996-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6> INDONESIA EQUIPMENT(B00),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0) 		8-98162-996-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
HIGH RIDE SUSPENSION(7YC) 		8-98238-369-0 01 1 1409-1411 ●
70 16.545 PANEL; ROCKER INNER 8-98238-369-0 01 1 1409-1411 ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) 		8-98238-369-0 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13) 		8-98238-369-0 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER
HIGH RIDE SUSPENSION(7YC) 		8-98238-370-0 01 1 1409-1411 ●
70 16.545 PANEL; ROCKER INNER 8-98238-370-0 01 1 1409-1411 ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) 		8-98238-370-0 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13) 		8-98238-370-0 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER
4JJ1-TCX ENG(LS0) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98162-994-1 01 1 1409-1411 ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98162-994-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6> CONGO EQUIPMENT(CDF) 		8-98162-994-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> INDONESIA EQUIPMENT(B00),LAOS EQUIPMENT(CF0) 		8-98162-994-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) HIGH RIDE SUSPENSION(7YC) 		8-98162-994-1 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER
4JJ1-TCX ENG(LS0) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98162-998-1 01 1 1409-1411 ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98162-998-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6> CONGO EQUIPMENT(CDF) 		8-98162-998-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> INDONESIA EQUIPMENT(B00),LAOS EQUIPMENT(CF0) 		8-98162-998-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) HIGH RIDE SUSPENSION(7YC) 		8-98162-998-1 01 1 1412- ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-984-5 01 1 1409-1411 ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98101-984-5 01 1 1409-1411 ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-984-5 01 1 1412- ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER
HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98101-984-5 01 1 1412- ●
71 16.545 BRACKET; CAB MTG,CENTER
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98101-984-5 01 1 1412- ●
71 16.545 BRACKET; CAB MTG,CENTER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98101-984-5 01 1 1412- ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-985-7 01 1 1409-1411 ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98101-985-7 01 1 1409-1411 ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-985-8 01 1 1412- ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER
HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98101-985-8 01 1 1412- ●
71 16.545 BRACKET; CAB MTG,CENTER
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98101-985-8 01 1 1412- ●
71 16.545 BRACKET; CAB MTG,CENTER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98101-985-8 01 1 1412- ●
71 16.545 BRACKET; CAB MTG,CENTER
HIGH RIDE SUSPENSION(7YC) 		8-98238-341-0 01 1 1409-1411 ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98238-341-0 01 1 1409-1411 ●
71 16.545 BRACKET; CAB MTG,CENTER
AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) 		8-98238-341-0 01 1 1412- ●
71 16.545 BRACKET; CAB MTG,CENTER
AUSTRALIA EQUIPMENT(B13) 		8-98238-341-0 01 1 1412- ●
71 16.545 BRACKET; CAB MTG,CENTER
HIGH RIDE SUSPENSION(7YC) 		8-98238-342-1 01 1 1409-1411 ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98238-342-1 01 1 1409-1411 ●
71 16.545 BRACKET; CAB MTG,CENTER
AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) 		8-98238-342-1 01 1 1412- ●
71 16.545 BRACKET; CAB MTG,CENTER
AUSTRALIA EQUIPMENT(B13) 		8-98238-342-1 01 1 1412- ●
144 16.545 BRACKET; MTG,RR 8-98100-940-3 01 1 1409- ● ●
144 16.545 BRACKET; MTG,RR 8-98104-737-4 01 1 1409- ● ●
144 16.545 BRACKET; MTG,RR 8-98100-940-3 02 1 1409- ● ●
157 16.520 BRACKET; TOOL BOX LID 8-98115-434-6 01 1 1409- ● ●
157 16.520 BRACKET; TOOL BOX LID 8-98115-430-5 01 1 1409- ● ●
330 16.545 REINFORCEMENT; FLOOR 8-98100-938-0 02 1 1409- ● ● ● ● ● ●
378 16.545 GASSET; LWR 8-98101-037-0 02 1 1409- ● ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-019-3 01 1 1409- ● ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-020-3 01 1 1409- ● ● ● ● ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT SPLIT BENCH<AM6> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),KENYA EQUIPMENT(CL1),SINGAPORE EQUIPMENT(2G0) (B) 		8-98103-925-4 01 1 1412-1412 ● ● ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT SPLIT BENCH<AM6> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) (B) 		8-98103-925-4 01 1 1501- ● ● ● ●
573 16.576 SILL; FLOOR,RR
JUMP SEAT<AJ2> (A) 		8-98104-745-3 01 1 1409- ● ●
573 16.576 SILL; FLOOR,RR
(B) 		8-98151-571-2 01 1 1409-1411 ● ● ● ● ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (B) 		8-98151-571-2 01 1 1412- ● ● ● ● ● ●
573 16.576 SILL; FLOOR,RR
EXC. JUMP SEAT<AJ2> (A) 		8-98101-960-4 01 1 1409- ● ●
573 16.576 SILL; FLOOR,RR
(C) 		8-98104-056-3 01 1 1409- ● ●

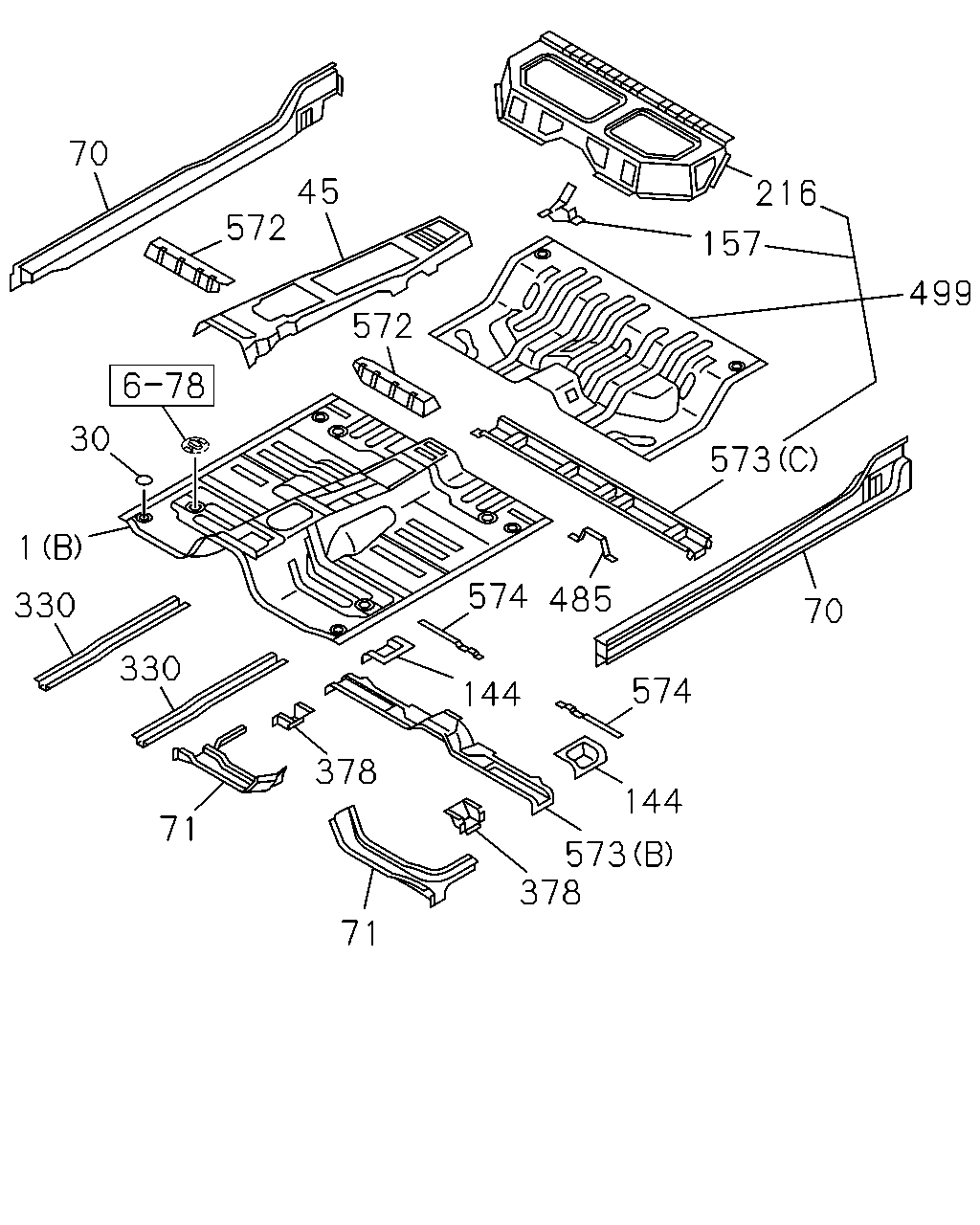

çizim 444162
70 572 45 572 30 1 330 330 71 71 378 378 144 574 485 574 144 70 573 499 216 157 573
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.545 PANEL; FLOOR
4JJ1-TCX ENG(LS0) (A) 		8-98112-030-6 01 1 1409-1411 ●
1 16.545 PANEL; FLOOR
4JJ1-TCX ENG(LS0) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A) 		8-98112-030-6 01 1 1409-1411 ●
1 16.545 PANEL; FLOOR
4JJ1-TCX ENG(LS0) (A) 		8-98112-030-6 01 1 1412- ●
1 16.545 PANEL; FLOOR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A) 		8-98112-030-6 01 1 1412- ●
1 16.545 PANEL; FLOOR
(C) 		8-98103-921-7 01 1 1409- ● ●
1 16.545 PANEL; FLOOR
(B) 		8-98199-516-0 01 1 1409- ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 04 1 1409-1505 ● ● ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 04 1 1506- ● ● ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 06 1 1409-1505 ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 06 1 1506- ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98101-035-8 01 1 1409- ● ● ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98104-022-7 01 1 1409- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT (B14),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0) 		8-98103-893-3 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT (B14),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0) 		8-98103-907-3 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT (B14),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),KENYA EQUIPMENT(CL1),SINGAP ORE EQUIPMENT(2G0) 		8-98103-894-3 01 1 1412-1412 ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT (B14),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0) 		8-98103-894-3 01 1 1501- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT (B14),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),KENYA EQUIPMENT(CL1),SINGAP ORE EQUIPMENT(2G0) 		8-98103-912-3 01 1 1412-1412 ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT (B14),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0) 		8-98103-912-3 01 1 1501- ● ●
70 16.545 PANEL; ROCKER INNER
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98162-993-2 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98162-997-2 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER
4JJ1-TCX ENG(LS0) 		8-98101-006-5 01 1 1409-1411 ●
70 16.545 PANEL; ROCKER INNER
4JJ1-TCX ENG(LS0) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 		8-98101-006-5 01 1 1409-1411 ●
70 16.545 PANEL; ROCKER INNER
4JJ1-TCX ENG(LS0) 		8-98101-006-5 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13) 		8-98101-006-5 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER
4JJ1-TCX ENG(LS0) 		8-98101-982-5 01 1 1409-1411 ●
70 16.545 PANEL; ROCKER INNER
4JJ1-TCX ENG(LS0) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 		8-98101-982-5 01 1 1409-1411 ●
70 16.545 PANEL; ROCKER INNER
4JJ1-TCX ENG(LS0) 		8-98101-982-5 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13) 		8-98101-982-5 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER 8-98162-991-1 01 1 1409-1411 ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET STANDARD<A50> INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) ,CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0) 		8-98162-991-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6> INDONESIA EQUIPMENT(B00),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0) 		8-98162-991-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-996-1 01 1 1409-1411 ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET STANDARD<A50> INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) ,CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0) 		8-98162-996-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6> INDONESIA EQUIPMENT(B00),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0) 		8-98162-996-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
HIGH RIDE SUSPENSION(7YC) 		8-98238-369-0 01 1 1409-1411 ●
70 16.545 PANEL; ROCKER INNER 8-98238-369-0 01 1 1409-1411 ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) 		8-98238-369-0 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13) 		8-98238-369-0 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER
HIGH RIDE SUSPENSION(7YC) 		8-98238-370-0 01 1 1409-1411 ●
70 16.545 PANEL; ROCKER INNER 8-98238-370-0 01 1 1409-1411 ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) 		8-98238-370-0 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13) 		8-98238-370-0 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER
4JJ1-TCX ENG(LS0) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98162-994-1 01 1 1409-1411 ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98162-994-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6> CONGO EQUIPMENT(CDF) 		8-98162-994-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> INDONESIA EQUIPMENT(B00),LAOS EQUIPMENT(CF0) 		8-98162-994-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) HIGH RIDE SUSPENSION(7YC) 		8-98162-994-1 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER
4JJ1-TCX ENG(LS0) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98162-998-1 01 1 1409-1411 ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98162-998-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6> CONGO EQUIPMENT(CDF) 		8-98162-998-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> INDONESIA EQUIPMENT(B00),LAOS EQUIPMENT(CF0) 		8-98162-998-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) HIGH RIDE SUSPENSION(7YC) 		8-98162-998-1 01 1 1412- ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-984-5 01 1 1409-1411 ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98101-984-5 01 1 1409-1411 ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-984-5 01 1 1412- ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER
HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98101-984-5 01 1 1412- ●
71 16.545 BRACKET; CAB MTG,CENTER
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98101-984-5 01 1 1412- ●
71 16.545 BRACKET; CAB MTG,CENTER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98101-984-5 01 1 1412- ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-985-7 01 1 1409-1411 ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98101-985-7 01 1 1409-1411 ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-985-8 01 1 1412- ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER
HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98101-985-8 01 1 1412- ●
71 16.545 BRACKET; CAB MTG,CENTER
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98101-985-8 01 1 1412- ●
71 16.545 BRACKET; CAB MTG,CENTER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98101-985-8 01 1 1412- ●
71 16.545 BRACKET; CAB MTG,CENTER
HIGH RIDE SUSPENSION(7YC) 		8-98238-341-0 01 1 1409-1411 ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98238-341-0 01 1 1409-1411 ●
71 16.545 BRACKET; CAB MTG,CENTER
AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) 		8-98238-341-0 01 1 1412- ●
71 16.545 BRACKET; CAB MTG,CENTER
AUSTRALIA EQUIPMENT(B13) 		8-98238-341-0 01 1 1412- ●
71 16.545 BRACKET; CAB MTG,CENTER
HIGH RIDE SUSPENSION(7YC) 		8-98238-342-1 01 1 1409-1411 ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98238-342-1 01 1 1409-1411 ●
71 16.545 BRACKET; CAB MTG,CENTER
AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) 		8-98238-342-1 01 1 1412- ●
71 16.545 BRACKET; CAB MTG,CENTER
AUSTRALIA EQUIPMENT(B13) 		8-98238-342-1 01 1 1412- ●
144 16.545 BRACKET; MTG,RR 8-98100-940-3 01 1 1409- ● ●
144 16.545 BRACKET; MTG,RR 8-98104-737-4 01 1 1409- ● ●
144 16.545 BRACKET; MTG,RR 8-98100-940-3 02 1 1409- ● ●
157 16.520 BRACKET; TOOL BOX LID 8-98115-434-6 01 1 1409- ● ●
157 16.520 BRACKET; TOOL BOX LID 8-98115-430-5 01 1 1409- ● ●
216 16.670 PANEL; SEAT RISER
JUMP SEAT<AJ2> 		8-98104-744-8 01 1 1409- ● ●
216 16.670 PANEL; SEAT RISER
EXC. JUMP SEAT<AJ2> 		8-98101-953-8 01 1 1409- ● ●
216 16.670 PANEL; SEAT RISER 8-98116-648-4 01 1 1409- ● ●
330 16.545 REINFORCEMENT; FLOOR 8-98100-938-0 02 1 1409- ● ● ● ● ● ●
378 16.545 GASSET; LWR 8-98101-037-0 02 1 1409- ● ● ● ● ● ●
485 16.800 SEAL; TAPE TYPE 8-94336-915-0 01 1 1409- ● ●
499 16.545 PANEL; FLOOR,RR 8-98116-646-9 01 1 1409-1506 ● ●
499 16.545 PANEL; FLOOR,RR 8-98322-482-0 01 1 1507- ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-019-3 01 1 1409- ● ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-020-3 01 1 1409- ● ● ● ● ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT SPLIT BENCH<AM6> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),KENYA EQUIPMENT(CL1),SINGAPORE EQUIPMENT(2G0) (B) 		8-98103-925-4 01 1 1412-1412 ● ● ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT SPLIT BENCH<AM6> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) (B) 		8-98103-925-4 01 1 1501- ● ● ● ●
573 16.576 SILL; FLOOR,RR
JUMP SEAT<AJ2> (A) 		8-98104-745-3 01 1 1409- ● ●
573 16.576 SILL; FLOOR,RR
(B) 		8-98151-571-2 01 1 1409-1411 ● ● ● ● ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (B) 		8-98151-571-2 01 1 1412- ● ● ● ● ● ●
573 16.576 SILL; FLOOR,RR
EXC. JUMP SEAT<AJ2> (A) 		8-98101-960-4 01 1 1409- ● ●
573 16.576 SILL; FLOOR,RR
(C) 		8-98104-056-3 01 1 1409- ● ●
574 16.800 TAPE; ADHESIVE 8-98178-885-0 02 1 1409- ● ●

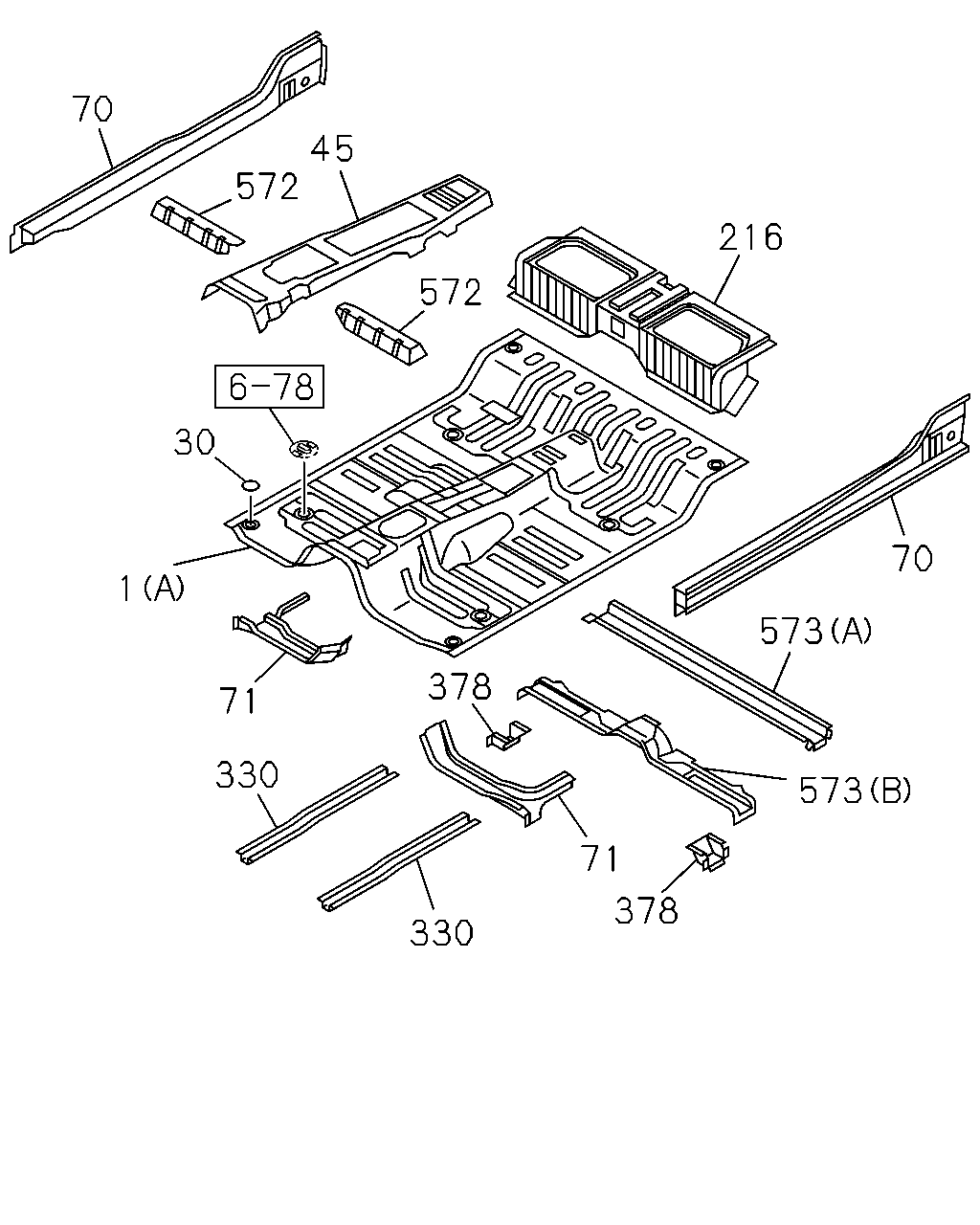

çizim 444253
216 572 45 572 70 30 1 71 378 573 70 573 71 378 330 330
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.545 PANEL; FLOOR
4JJ1-TCX ENG(LS0) (A) 		8-98112-030-6 01 1 1409-1411 ●
1 16.545 PANEL; FLOOR
4JJ1-TCX ENG(LS0) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A) 		8-98112-030-6 01 1 1409-1411 ●
1 16.545 PANEL; FLOOR
4JJ1-TCX ENG(LS0) (A) 		8-98112-030-6 01 1 1412- ●
1 16.545 PANEL; FLOOR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (A) 		8-98112-030-6 01 1 1412- ●
1 16.545 PANEL; FLOOR
(C) 		8-98103-921-7 01 1 1409- ● ●
1 16.545 PANEL; FLOOR
(B) 		8-98199-516-0 01 1 1409- ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 04 1 1409-1505 ● ● ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 04 1 1506- ● ● ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 06 1 1409-1505 ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 06 1 1506- ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98101-035-8 01 1 1409- ● ● ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98104-022-7 01 1 1409- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT (B14),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0) 		8-98103-893-3 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET STANDARD<A50> EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT (B14),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0) 		8-98103-907-3 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT (B14),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),KENYA EQUIPMENT(CL1),SINGAP ORE EQUIPMENT(2G0) 		8-98103-894-3 01 1 1412-1412 ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT (B14),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0) 		8-98103-894-3 01 1 1501- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT (B14),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),KENYA EQUIPMENT(CL1),SINGAP ORE EQUIPMENT(2G0) 		8-98103-912-3 01 1 1412-1412 ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT (B14),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0) 		8-98103-912-3 01 1 1501- ● ●
70 16.545 PANEL; ROCKER INNER
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98162-993-2 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98162-997-2 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER
4JJ1-TCX ENG(LS0) 		8-98101-006-5 01 1 1409-1411 ●
70 16.545 PANEL; ROCKER INNER
4JJ1-TCX ENG(LS0) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 		8-98101-006-5 01 1 1409-1411 ●
70 16.545 PANEL; ROCKER INNER
4JJ1-TCX ENG(LS0) 		8-98101-006-5 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13) 		8-98101-006-5 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER
4JJ1-TCX ENG(LS0) 		8-98101-982-5 01 1 1409-1411 ●
70 16.545 PANEL; ROCKER INNER
4JJ1-TCX ENG(LS0) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> 		8-98101-982-5 01 1 1409-1411 ●
70 16.545 PANEL; ROCKER INNER
4JJ1-TCX ENG(LS0) 		8-98101-982-5 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13) 		8-98101-982-5 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER 8-98162-991-1 01 1 1409-1411 ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET STANDARD<A50> INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) ,CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0) 		8-98162-991-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6> INDONESIA EQUIPMENT(B00),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0) 		8-98162-991-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-996-1 01 1 1409-1411 ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET STANDARD<A50> INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) ,CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0) 		8-98162-996-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6> INDONESIA EQUIPMENT(B00),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0) 		8-98162-996-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
HIGH RIDE SUSPENSION(7YC) 		8-98238-369-0 01 1 1409-1411 ●
70 16.545 PANEL; ROCKER INNER 8-98238-369-0 01 1 1409-1411 ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) 		8-98238-369-0 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13) 		8-98238-369-0 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER
HIGH RIDE SUSPENSION(7YC) 		8-98238-370-0 01 1 1409-1411 ●
70 16.545 PANEL; ROCKER INNER 8-98238-370-0 01 1 1409-1411 ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) 		8-98238-370-0 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER
AUSTRALIA EQUIPMENT(B13) 		8-98238-370-0 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER
4JJ1-TCX ENG(LS0) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98162-994-1 01 1 1409-1411 ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98162-994-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6> CONGO EQUIPMENT(CDF) 		8-98162-994-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> INDONESIA EQUIPMENT(B00),LAOS EQUIPMENT(CF0) 		8-98162-994-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) HIGH RIDE SUSPENSION(7YC) 		8-98162-994-1 01 1 1412- ●
70 16.545 PANEL; ROCKER INNER
4JJ1-TCX ENG(LS0) FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98162-998-1 01 1 1409-1411 ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SIN GAPORE EQUIPMENT(2G0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98162-998-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6> CONGO EQUIPMENT(CDF) 		8-98162-998-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT SPLIT BENCH<AM6>,FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEATBUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> INDONESIA EQUIPMENT(B00),LAOS EQUIPMENT(CF0) 		8-98162-998-1 01 1 1412- ● ●
70 16.545 PANEL; ROCKER INNER
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0) HIGH RIDE SUSPENSION(7YC) 		8-98162-998-1 01 1 1412- ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-984-5 01 1 1409-1411 ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98101-984-5 01 1 1409-1411 ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-984-5 01 1 1412- ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER
HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98101-984-5 01 1 1412- ●
71 16.545 BRACKET; CAB MTG,CENTER
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98101-984-5 01 1 1412- ●
71 16.545 BRACKET; CAB MTG,CENTER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98101-984-5 01 1 1412- ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-985-7 01 1 1409-1411 ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98101-985-7 01 1 1409-1411 ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-985-8 01 1 1412- ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER
HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98101-985-8 01 1 1412- ●
71 16.545 BRACKET; CAB MTG,CENTER
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98101-985-8 01 1 1412- ●
71 16.545 BRACKET; CAB MTG,CENTER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98101-985-8 01 1 1412- ●
71 16.545 BRACKET; CAB MTG,CENTER
HIGH RIDE SUSPENSION(7YC) 		8-98238-341-0 01 1 1409-1411 ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98238-341-0 01 1 1409-1411 ●
71 16.545 BRACKET; CAB MTG,CENTER
AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) 		8-98238-341-0 01 1 1412- ●
71 16.545 BRACKET; CAB MTG,CENTER
AUSTRALIA EQUIPMENT(B13) 		8-98238-341-0 01 1 1412- ●
71 16.545 BRACKET; CAB MTG,CENTER
HIGH RIDE SUSPENSION(7YC) 		8-98238-342-1 01 1 1409-1411 ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98238-342-1 01 1 1409-1411 ●
71 16.545 BRACKET; CAB MTG,CENTER
AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) 		8-98238-342-1 01 1 1412- ●
71 16.545 BRACKET; CAB MTG,CENTER
AUSTRALIA EQUIPMENT(B13) 		8-98238-342-1 01 1 1412- ●
216 16.670 PANEL; SEAT RISER
JUMP SEAT<AJ2> 		8-98104-744-8 01 1 1409- ● ●
216 16.670 PANEL; SEAT RISER
EXC. JUMP SEAT<AJ2> 		8-98101-953-8 01 1 1409- ● ●
216 16.670 PANEL; SEAT RISER 8-98116-648-4 01 1 1409- ● ●
330 16.545 REINFORCEMENT; FLOOR 8-98100-938-0 02 1 1409- ● ● ● ● ● ●
378 16.545 GASSET; LWR 8-98101-037-0 02 1 1409- ● ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-019-3 01 1 1409- ● ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-020-3 01 1 1409- ● ● ● ● ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT SPLIT BENCH<AM6> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),KENYA EQUIPMENT(CL1),SINGAPORE EQUIPMENT(2G0) (B) 		8-98103-925-4 01 1 1412-1412 ● ● ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT SPLIT BENCH<AM6> EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) (B) 		8-98103-925-4 01 1 1501- ● ● ● ●
573 16.576 SILL; FLOOR,RR
JUMP SEAT<AJ2> (A) 		8-98104-745-3 01 1 1409- ● ●
573 16.576 SILL; FLOOR,RR
(B) 		8-98151-571-2 01 1 1409-1411 ● ● ● ● ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (B) 		8-98151-571-2 01 1 1412- ● ● ● ● ● ●
573 16.576 SILL; FLOOR,RR
EXC. JUMP SEAT<AJ2> (A) 		8-98101-960-4 01 1 1409- ● ●
573 16.576 SILL; FLOOR,RR
(C) 		8-98104-056-3 01 1 1409- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
