◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51580 - TFR/TFS RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#148511) — 123 parça

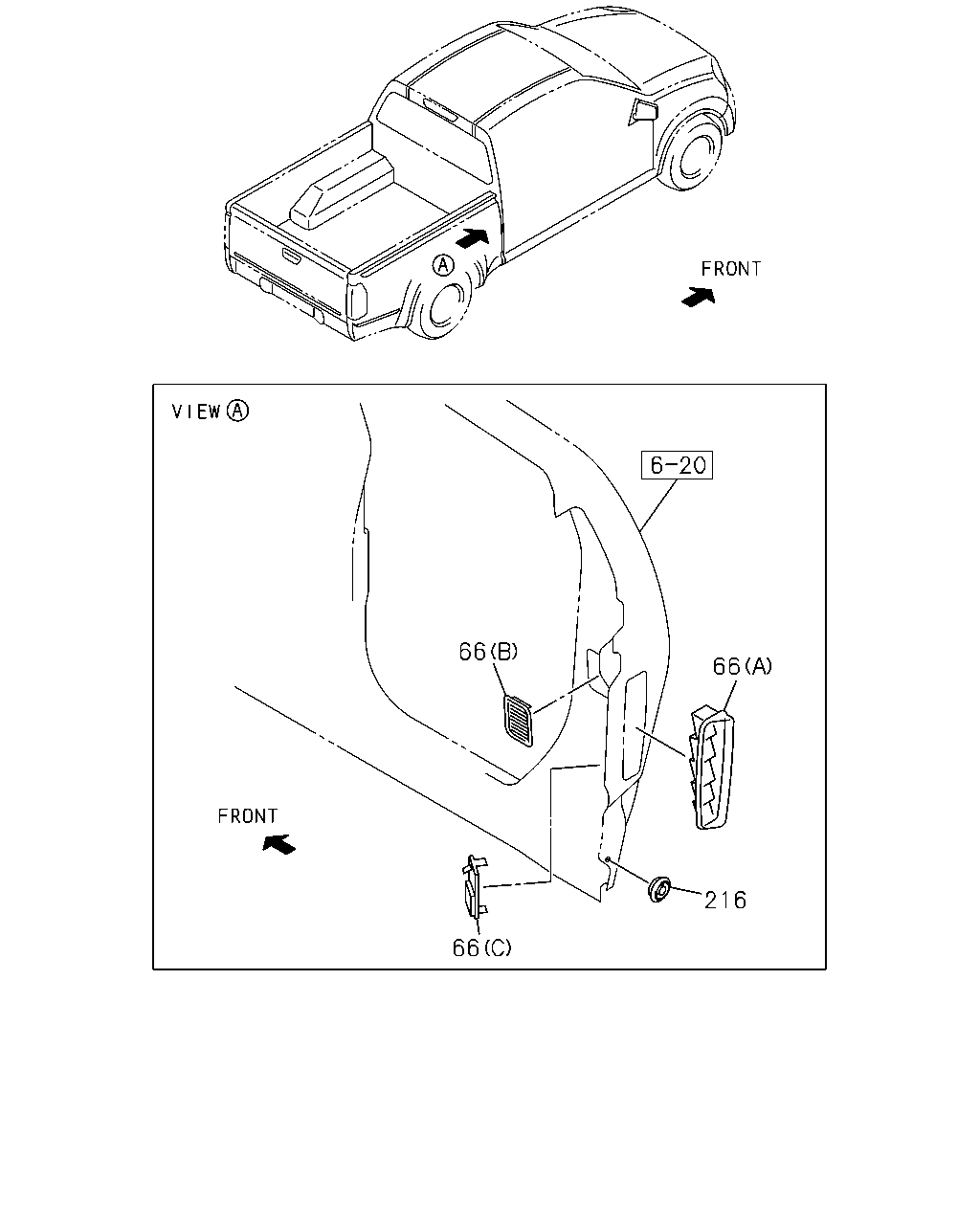

çizim 443934
66 66 216 66
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
66 16.576 GRILLE; AIR OUTLET
(A) 		8-98164-822-2 01 1 1409- ● ● ● ● ● ●
66 16.576 GRILLE; AIR OUTLET
(A) 		8-98164-823-2 01 1 1409- ● ● ● ● ● ●
66 16.576 GRILLE; AIR OUTLET
(C) 		8-97251-682-1 02 1 1409- ● ●
66 16.576 GRILLE; AIR OUTLET
(B) 		8-97365-208-0 02 1 1409- ● ●
216 16.576 GROMMET; HOLE
4JJ1-TCX ENG(LS0) 16.575 OD=19 		8-97365-823-0 10 1 1409-1411 ●
216 16.576 GROMMET; HOLE
4JJ1-TCX ENG(LS0) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ) 16.575 OD=19 		8-97365-823-0 10 1 1409-1411 ●
216 16.576 GROMMET; HOLE
4JJ1-TCX ENG(LS0) 16.575 OD=19 		8-97365-823-0 10 1 1412-1505 ●
216 16.576 GROMMET; HOLE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13) 16.575 OD=19 		8-97365-823-0 10 1 1412-1505 ●
216 16.576 GROMMET; HOLE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 16.575 OD=19 		8-97365-823-0 10 1 1412-1505 ●
216 16.576 GROMMET; HOLE
16.575 OD=19 		8-97365-823-0 10 1 1506- ● ●
216 16.576 GROMMET; HOLE
4JJ1-TCX ENG(LS0) 16.549 OD=30 		8-94107-655-0 02 1 1409-1411 ● ●
216 16.576 GROMMET; HOLE
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) 16.549 OD=30 		8-94107-655-0 02 1 1412-1505 ●
216 16.576 GROMMET; HOLE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0) 16.549 OD=30 		8-94107-655-0 02 1 1412-1505 ●
216 16.576 GROMMET; HOLE
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) 16.549 OD=30 		8-94107-655-0 02 1 1412-1505 ●
216 16.576 GROMMET; HOLE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) SINGAPORE EQUIPMENT(2G0) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) 16.549 OD=30 		8-94107-655-0 02 1 1412-1505 ●
216 16.576 GROMMET; HOLE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) 16.549 OD=30 		8-94107-655-0 02 1 1412-1505 ●
216 16.576 GROMMET; HOLE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13), SINGAPORE EQUIPMENT(2G0) 16.549 OD=30 		8-94107-655-0 02 1 1412-1505 ●
216 16.576 GROMMET; HOLE
16.549 OD=30 		8-94107-655-0 02 1 1506- ● ●
216 16.576 GROMMET; HOLE
4JJ1-TCX ENG(LS0) INTERIOR BASIC(RBA) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ) EXC. HIGH RIDE SUSPENSION(7YC) 16.575 OD=19 		8-97365-823-0 12 1 1409-1411 ●
216 16.576 GROMMET; HOLE
4JJ1-TCX ENG(LS0) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ) HIGH RIDE SUSPENSION(7YC) 16.575 OD=19 		8-97365-823-0 12 1 1409-1411 ●
216 16.576 GROMMET; HOLE
4JJ1-TCX ENG(LS0) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ) 16.575 OD=19 		8-97365-823-0 12 1 1409-1411 ●
216 16.576 GROMMET; HOLE
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 16.575 OD=19 		8-97365-823-0 12 1 1412-1412 ●
216 16.576 GROMMET; HOLE
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. HIGH RIDE SUSPENSION(7YC) 16.575 OD=19 		8-97365-823-0 12 1 1412-1412 ●
216 16.576 GROMMET; HOLE
LAOS EQUIPMENT(CF0) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 16.575 OD=19 		8-97365-823-0 12 1 1412-1412 ●
216 16.576 GROMMET; HOLE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0) 16.575 OD=19 		8-97365-823-0 12 1 1412-1412 ●
216 16.576 GROMMET; HOLE
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) HIGH RIDE SUSPENSION(7YC) 16.575 OD=19 		8-97365-823-0 12 1 1412-1412 ●
216 16.576 GROMMET; HOLE
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. HIGH RIDE SUSPENSION(7YC) 16.575 OD=19 		8-97365-823-0 12 1 1412-1412 ●
216 16.576 GROMMET; HOLE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) INTERIOR CUSTOM(RBD) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) KENYA EQUIPMENT(CL1) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 16.575 OD=19 		8-97365-823-0 12 1 1412-1412 ●
216 16.576 GROMMET; HOLE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) INDONESIA EQUIPMENT(B00),LAOS EQUIPMENT(CF0) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 16.575 OD=19 		8-97365-823-0 12 1 1412-1412 ●
216 16.576 GROMMET; HOLE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 16.575 OD=19 		8-97365-823-0 12 1 1412-1412 ●
216 16.576 GROMMET; HOLE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT (B14),LAOS EQUIPMENT(CF0),KENYA EQUIPMENT(CL1),SINGAPORE EQUIPMENT(2G0) 16.575 OD=19 		8-97365-823-0 12 1 1412-1412 ●
216 16.576 GROMMET; HOLE
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 16.575 OD=19 		8-97365-823-0 12 1 1501-1503 ●
216 16.576 GROMMET; HOLE
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. HIGH RIDE SUSPENSION(7YC) 16.575 OD=19 		8-97365-823-0 12 1 1501-1503 ●
216 16.576 GROMMET; HOLE
LAOS EQUIPMENT(CF0) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 16.575 OD=19 		8-97365-823-0 12 1 1501-1503 ●
216 16.576 GROMMET; HOLE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0) 16.575 OD=19 		8-97365-823-0 12 1 1501-1503 ●
216 16.576 GROMMET; HOLE
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) HIGH RIDE SUSPENSION(7YC) 16.575 OD=19 		8-97365-823-0 12 1 1501-1503 ●
216 16.576 GROMMET; HOLE
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. HIGH RIDE SUSPENSION(7YC) 16.575 OD=19 		8-97365-823-0 12 1 1501-1503 ●
216 16.576 GROMMET; HOLE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) INDONESIA EQUIPMENT(B00),LAOS EQUIPMENT(CF0) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 16.575 OD=19 		8-97365-823-0 12 1 1501-1503 ●
216 16.576 GROMMET; HOLE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 16.575 OD=19 		8-97365-823-0 12 1 1501-1503 ●
216 16.576 GROMMET; HOLE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT (B14),LAOS EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0) 16.575 OD=19 		8-97365-823-0 12 1 1501-1503 ●
216 16.576 GROMMET; HOLE
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) 16.575 OD=19 		8-97365-823-0 12 1 1504-1505 ●
216 16.576 GROMMET; HOLE
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) EXC. HIGH RIDE SUSPENSION(7YC) 16.575 OD=19 		8-97365-823-0 12 1 1504-1505 ●
216 16.576 GROMMET; HOLE
LAOS EQUIPMENT(CF0) 16.575 OD=19 		8-97365-823-0 12 1 1504-1505 ●
216 16.576 GROMMET; HOLE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0) 16.575 OD=19 		8-97365-823-0 12 1 1504-1505 ●
216 16.576 GROMMET; HOLE
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) HIGH RIDE SUSPENSION(7YC) 16.575 OD=19 		8-97365-823-0 12 1 1504-1505 ●
216 16.576 GROMMET; HOLE
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. HIGH RIDE SUSPENSION(7YC) 16.575 OD=19 		8-97365-823-0 12 1 1504-1505 ●
216 16.576 GROMMET; HOLE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) INDONESIA EQUIPMENT(B00),LAOS EQUIPMENT(CF0) 16.575 OD=19 		8-97365-823-0 12 1 1504-1505 ●
216 16.576 GROMMET; HOLE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 16.575 OD=19 		8-97365-823-0 12 1 1504-1505 ●
216 16.576 GROMMET; HOLE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT (B14),LAOS EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0) 16.575 OD=19 		8-97365-823-0 12 1 1504-1505 ●
216 16.576 GROMMET; HOLE
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) CONGO EQUIPMENT(CDF) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 16.575 OD=19 		8-97365-823-0 12 1 1506-1506 ●
216 16.576 GROMMET; HOLE
INTERIOR BASIC(RBA) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. HIGH RIDE SUSPENSION(7YC) 16.575 OD=19 		8-97365-823-0 12 1 1506-1506 ●
216 16.576 GROMMET; HOLE
LAOS EQUIPMENT(CF0) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 16.575 OD=19 		8-97365-823-0 12 1 1506-1506 ●
216 16.576 GROMMET; HOLE
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0) 16.575 OD=19 		8-97365-823-0 12 1 1506-1506 ●
216 16.576 GROMMET; HOLE
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) HIGH RIDE SUSPENSION(7YC) 16.575 OD=19 		8-97365-823-0 12 1 1506-1506 ●
216 16.576 GROMMET; HOLE
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. HIGH RIDE SUSPENSION(7YC) 16.575 OD=19 		8-97365-823-0 12 1 1506-1506 ●
216 16.576 GROMMET; HOLE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) INDONESIA EQUIPMENT(B00),LAOS EQUIPMENT(CF0) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 16.575 OD=19 		8-97365-823-0 12 1 1506-1506 ●
216 16.576 GROMMET; HOLE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 16.575 OD=19 		8-97365-823-0 12 1 1506-1506 ●
216 16.576 GROMMET; HOLE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT (B14),LAOS EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0) 16.575 OD=19 		8-97365-823-0 12 1 1506-1506 ●
216 16.576 GROMMET; HOLE
16.575 OD=19 		8-97365-823-0 12 1 1506- ● ●
çizim 444174
1 220 7 1 7 1 220 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) GRAY 		8-97417-113-3 01 1 1412- ● ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6>, 8-SPEAKER SYSTEM CUSTOM<U87> EXC. HEADER CONSOLE<DK6> GRAY 		8-97416-957-5 01 1 1412- ● ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUS TOM<U87> GRAY 		8-97416-955-5 01 1 1412- ● ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6>, 8-SPEAKER SYSTEM CUSTOM<U87> EXC. MAP LAMP<C74> GRAY 		8-97416-956-5 01 1 1412- ● ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> GRAY 		8-97416-953-5 01 1 1412- ● ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEA KER SYSTEM CUSTOM<U87> GRAY 		8-97416-954-5 01 1 1412- ● ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> GRAY 		8-97416-695-5 01 1 1412-1509 ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER(AK5) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97416-695-5 01 1 1510- ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> GRAY 		8-97416-695-5 01 1 1510- ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97416-693-5 01 1 1412-1509 ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER(AK5) MAP LAMP<C74> EXC. 6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97416-693-5 01 1 1510- ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97416-693-5 01 1 1510- ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> GRAY 		8-97416-694-5 01 1 1412- ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97416-691-5 01 1 1412- ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97416-692-5 01 1 1412-1509 ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER(AK5) EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97416-692-5 01 1 1510- ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97416-692-5 01 1 1510- ●
1 16.742 LINING; HD
MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-380-4 01 1 1409-1411 ●
1 16.742 LINING; HD
MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> GRAY 		8-97419-380-4 01 1 1409-1411 ●
1 16.742 LINING; HD
MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-380-4 01 1 1412-1509 ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> GRAY 		8-97419-380-4 01 1 1412-1509 ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-380-4 01 1 1510- ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> GRAY 		8-97419-380-4 01 1 1510- ●
1 16.742 LINING; HD
MAP LAMP<C74> EXC. 6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-379-4 01 1 1409-1411 ●
1 16.742 LINING; HD
MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-379-4 01 1 1409-1411 ●
1 16.742 LINING; HD
MAP LAMP<C74> EXC. 6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-379-4 01 1 1412-1509 ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-379-4 01 1 1412-1509 ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) MAP LAMP<C74> EXC. 6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-379-4 01 1 1510- ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-379-4 01 1 1510- ●
1 16.742 LINING; HD
6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> GRAY 		8-97429-707-0 01 1 1409-1411 ●
1 16.742 LINING; HD
6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> GRAY 		8-97429-707-0 01 1 1409-1411 ●
1 16.742 LINING; HD
6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> GRAY 		8-97429-707-0 01 1 1412-1509 ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> GRAY 		8-97429-707-0 01 1 1412-1509 ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> GRAY 		8-97429-707-0 01 1 1510- ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> GRAY 		8-97429-707-0 01 1 1510- ●
1 16.742 LINING; HD
EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-378-4 01 1 1409-1411 ●
1 16.742 LINING; HD
EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-378-4 01 1 1409-1411 ●
1 16.742 LINING; HD
EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-378-4 01 1 1412-1509 ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-378-4 01 1 1412-1509 ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-378-4 01 1 1510- ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-378-4 01 1 1510- ●
1 16.742 LINING; HD
GRAY 		8-97419-375-2 01 1 1409-1411 ● ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) GRAY 		8-97419-375-2 01 1 1412- ● ●
1 16.742 LINING; HD
MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6>, 8-SPEAKER SYSTEM CUSTOM<U87> EXC. HEADER CONSOLE<DK6> GRAY 		8-97419-385-4 01 1 1409-1411 ● ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6>, 8-SPEAKER SYSTEM CUSTOM<U87> EXC. HEADER CONSOLE<DK6> GRAY 		8-97419-385-4 01 1 1412- ● ●
1 16.742 LINING; HD
MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUS TOM<U87> GRAY 		8-97419-384-4 01 1 1409-1411 ● ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUS TOM<U87> GRAY 		8-97419-384-4 01 1 1412- ● ●
1 16.742 LINING; HD
HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6>, 8-SPEAKER SYSTEM CUSTOM<U87> EXC. MAP LAMP<C74> GRAY 		8-97419-382-4 01 1 1409-1411 ● ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6>, 8-SPEAKER SYSTEM CUSTOM<U87> EXC. MAP LAMP<C74> GRAY 		8-97419-382-4 01 1 1412- ● ●
1 16.742 LINING; HD
HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> GRAY 		8-97419-381-4 01 1 1409-1411 ● ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEAKER SYSTEM CUSTOM<U87> GRAY 		8-97419-381-4 01 1 1412- ● ●
1 16.742 LINING; HD
6-SPEAKER SYSTEM CUSTOM<UW6>, 8-SPEAKER SYSTEM CUSTOM<U87> EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> GRAY 		8-97429-708-0 01 1 1409-1411 ● ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 6-SPEAKER SYSTEM CUSTOM<UW6>, 8-SPEAKER SYSTEM CUSTOM<U87> EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> GRAY 		8-97429-708-0 01 1 1412- ● ●
1 16.742 LINING; HD
EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6>, 8-SPEAKER SYSTEM CUSTOM<U87> GRAY 		8-97419-383-4 01 1 1409-1411 ● ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6>,8-SPEA KER SYSTEM CUSTOM<U87> GRAY 		8-97419-383-4 01 1 1412- ● ●
1 16.742 LINING; HD
HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> GRAY 		8-97419-377-4 01 1 1409-1411 ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> GRAY 		8-97419-377-4 01 1 1412- ●
1 16.742 LINING; HD
HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-376-4 01 1 1409-1411 ●
1 16.742 LINING; HD
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97419-376-4 01 1 1412- ●
7 16.742 RETAINER; HEADLINING RAIL
GRAY 		8-97416-696-0 02 1 1409- ● ● ● ● ● ●
220 16.165 BRACKET; SPEAKER
6-SPEAKER SYSTEM CUSTOM<UW6>, 8-SPEAKER SYSTEM CUSTOM<U87> 		8-98128-570-0 02 1 1409-1509 ● ● ● ●
220 16.165 BRACKET; SPEAKER
AIR BAG DRIVER & PASSENGER & SIDE & R OOF(AY0) 6-SPEAKER SYSTEM CUSTOM<UW6>, 8-SPEAKER SYSTEM CUSTOM<U87> 		8-98128-570-0 02 1 1510- ● ● ● ●
220 16.165 BRACKET; SPEAKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6>, 8-SPEAKER SYSTEM CUSTOM<U87> EXC. MAP LAMP<C74> 		8-98128-570-0 02 1 1510- ● ● ● ●
220 16.165 BRACKET; SPEAKER
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER DELETE(AK6) MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6>, 8-SPEAKER SYSTEM CUSTOM<U87> EXC. HEADER CONSOLE<DK6> 		8-98128-570-0 02 1 1510- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
