6-60 — ROOF PANEL (#148510) — 201 parça

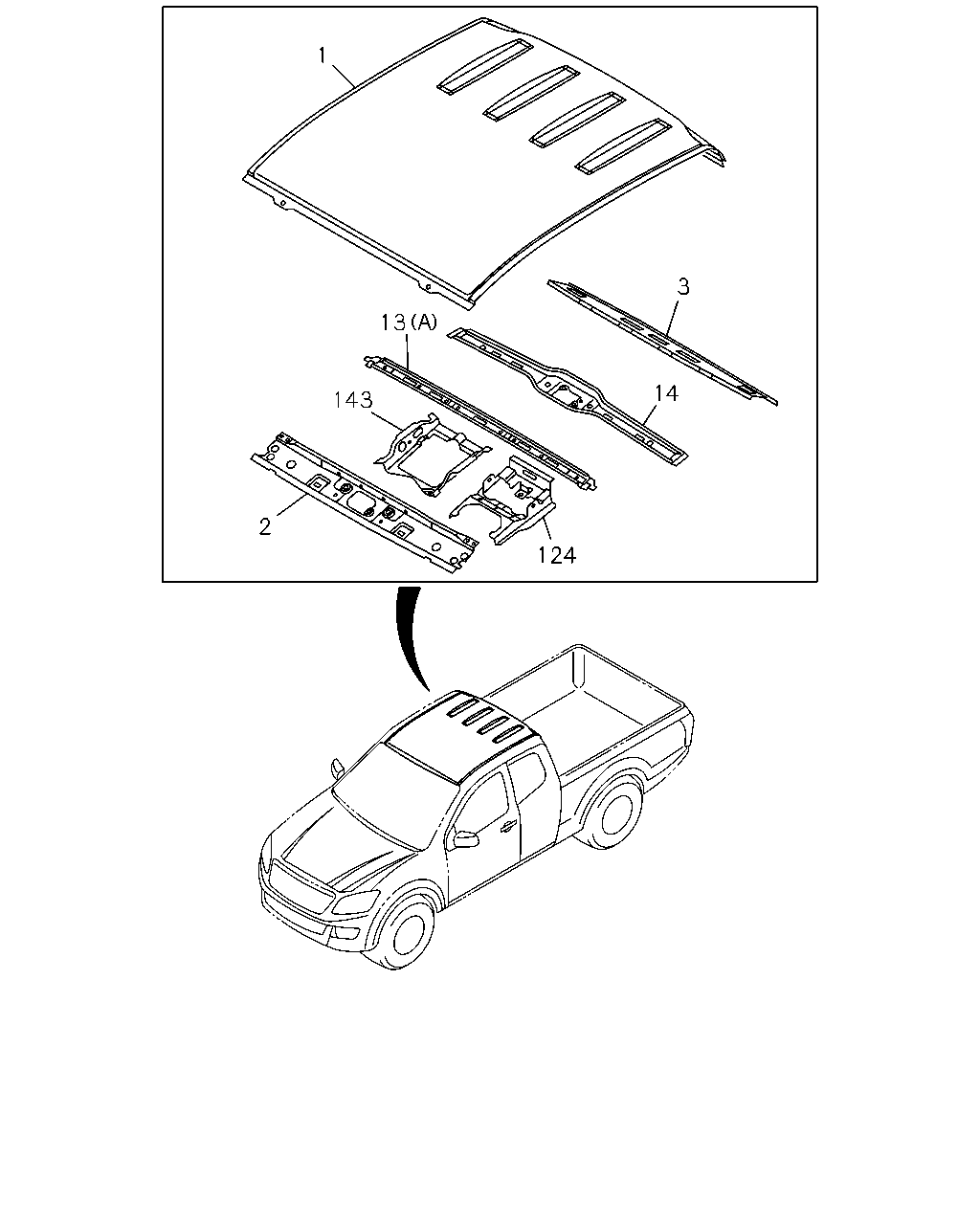

çizim 443807
124 2 143 13 3 14 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.585 PANEL; ROOF
EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98103-950-3 01 1 1412- ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1),HEADER CONSOLE<DK6>,ROO F RADIO ANTENNA<U71> 		8-98103-957-3 01 1 1412-1412 ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98103-957-3 01 1 1501-1503 ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA),AM/FM,CLOCK,C D PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98103-957-3 01 1 1504-1505 ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98103-957-3 01 1 1506- ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),KENYA EQUIPMENT(CL1),HEADER CONSOLE<DK6>,HIGH MOUNT STOPLAMP<TS6>,ROOF RADIO ANTENNA<U71>,SI NGAPORE EQUIPMENT(2G0) 		8-98103-955-3 01 1 1412-1412 ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),HEADER CONSOLE<DK6> ,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIOANTENNA<U71>,SINGAPORE EQUIPMENT(2G0) 		8-98103-955-3 01 1 1501-1503 ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA),AM/FM,CLOCK,C D PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),HEADER CONSOLE<DK6> ,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIOANTENNA<U71>,SINGAPORE EQUIPMENT(2G0) 		8-98103-955-3 01 1 1504-1505 ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),HEADER CONSOLE<DK6> ,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIOANTENNA<U71>,SINGAPORE EQUIPMENT(2G0) 		8-98103-955-3 01 1 1506- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98184-915-1 01 1 1412-1503 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98184-915-1 01 1 1412-1503 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA),AM/FM,CLOCK,C D PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98184-915-1 01 1 1504-1505 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA),AM/FM,CLOCK,C D PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98184-915-1 01 1 1504-1505 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98184-915-1 01 1 1506- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98184-915-1 01 1 1506- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. MAP LAMP<C74>,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98184-914-1 01 1 1412-1503 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) MAP LAMP<C74> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98184-914-1 01 1 1412-1503 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA),AM/FM,CLOCK,C D PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. MAP LAMP<C74>,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98184-914-1 01 1 1504-1505 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) MAP LAMP<C74> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA),AM/FM,CLOCK,C D PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98184-914-1 01 1 1504-1505 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. MAP LAMP<C74>,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98184-914-1 01 1 1506- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) MAP LAMP<C74> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98184-914-1 01 1 1506- ● ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98103-953-3 01 1 1412- ●
1 16.585 PANEL; ROOF
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98103-952-3 01 1 1412- ●
1 16.585 PANEL; ROOF 8-98103-954-2 01 1 1409-1411 ●
1 16.585 PANEL; ROOF
HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ) ROOF RADIO ANTENNA<U71> EXC. MAP LAMP<C74> 		8-98103-954-2 01 1 1409-1411 ●
1 16.585 PANEL; ROOF
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98103-954-2 01 1 1409-1411 ●
1 16.585 PANEL; ROOF 8-98103-954-2 01 1 1412-1506 ●
1 16.585 PANEL; ROOF
MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. AUSTRALIA EQUIPMENT(B13),HEADER CONSOLE<DK6> 		8-98103-954-2 01 1 1412-1506 ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(B13) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98103-954-2 01 1 1412-1506 ●
1 16.585 PANEL; ROOF
HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. MAP LAMP<C74> 		8-98103-954-2 01 1 1412-1506 ●
1 16.585 PANEL; ROOF 8-98103-954-3 01 1 1507- ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(B13) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> 		8-98103-954-3 01 1 1507- ●
1 16.585 PANEL; ROOF
MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98103-954-3 01 1 1507- ●
1 16.585 PANEL; ROOF
HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. MAP LAMP<C74> 		8-98103-954-3 01 1 1507- ●
1 16.585 PANEL; ROOF 8-98103-951-3 01 1 1409-1411 ● ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> 		8-98103-951-3 01 1 1412- ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ) ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98273-025-0 01 1 1409-1411 ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) AUSTRALIA EQUIPMENT(B13) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98273-025-0 01 1 1412-1503 ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) AUSTRALIA EQUIPMENT(B13) HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98273-025-0 01 1 1504-1505 ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) AUSTRALIA EQUIPMENT(B13) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98273-025-0 01 1 1506- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98209-324-0 01 1 1409-1411 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) MAP LAMP<C74> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98209-324-0 01 1 1409-1411 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) AUSTRALIA EQUIPMENT(B13) HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98209-324-0 01 1 1412- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) AUSTRALIA EQUIPMENT(B13) MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98209-324-0 01 1 1412- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) MAP LAMP<C74> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ) ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98103-960-3 01 1 1409-1411 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ) ROOF RADIO ANTENNA<U71> EXC. MAP LAMP<C74> 		8-98103-960-3 01 1 1409-1411 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. CONGO EQUIPMENT(CDF),HEADER CONSOLE<DK6> 		8-98103-960-3 01 1 1412-1503 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. CONGO EQUIPMENT(CDF),MAP LAMP<C74> 		8-98103-960-3 01 1 1412-1503 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> EXC. CONGO EQUIPMENT(CDF),HEADER CONSOLE<DK6> 		8-98103-960-3 01 1 1504-1505 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> EXC. CONGO EQUIPMENT(CDF),MAP LAMP<C74> 		8-98103-960-3 01 1 1504-1505 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. CONGO EQUIPMENT(CDF),HEADER CONSOLE<DK6> 		8-98103-960-3 01 1 1506- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. CONGO EQUIPMENT(CDF),MAP LAMP<C74> 		8-98103-960-3 01 1 1506- ● ●
1 16.585 PANEL; ROOF
EXC. ROOF RADIO ANTENNA<U71> 		8-98209-323-1 01 1 1409-1411 ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(B13) HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98209-323-1 01 1 1412- ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(B13) MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98209-323-1 01 1 1412- ●
2 16.585 PANEL; ROOF,CENTER 8-98103-964-5 01 1 1409- ● ● ● ● ● ●
3 16.585 PANEL; ROOF,RR 8-98103-999-3 01 1 1409- ● ● ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
(C) 		8-98150-942-0 01 1 1409- ● ●
13 16.585 PANEL; ROOF SUPPORT
(B) 		8-98103-982-0 01 1 1409- ● ●
13 16.585 PANEL; ROOF SUPPORT
(A) 		8-98103-963-1 01 1 1409- ● ● ● ● ● ●
14 16.585 SUPPORT; ROOF
EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0) 		8-98163-387-1 01 1 1412- ● ●
14 16.585 SUPPORT; ROOF
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98163-386-1 01 1 1412- ●
14 16.585 SUPPORT; ROOF 8-98103-976-1 01 1 1409-1411 ● ●
14 16.585 SUPPORT; ROOF 8-98103-976-1 01 1 1412- ●
14 16.585 SUPPORT; ROOF
AUSTRALIA EQUIPMENT(B13) 		8-98103-976-1 01 1 1412- ●
14 16.585 SUPPORT; ROOF 8-98112-817-1 01 1 1409-1411 ● ●
14 16.585 SUPPORT; ROOF
INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) ,CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0) 		8-98112-817-1 01 1 1412- ● ●
124 16.585 BRACKET; ROOM LAMP
MAP LAMP<C74> 		8-98103-968-0 01 1 1409- ● ● ● ●
143 16.584 BRACKET; CONSOLE
HEADER CONSOLE<DK6> 16.570 		8-98103-962-1 01 1 1409- ● ● ●

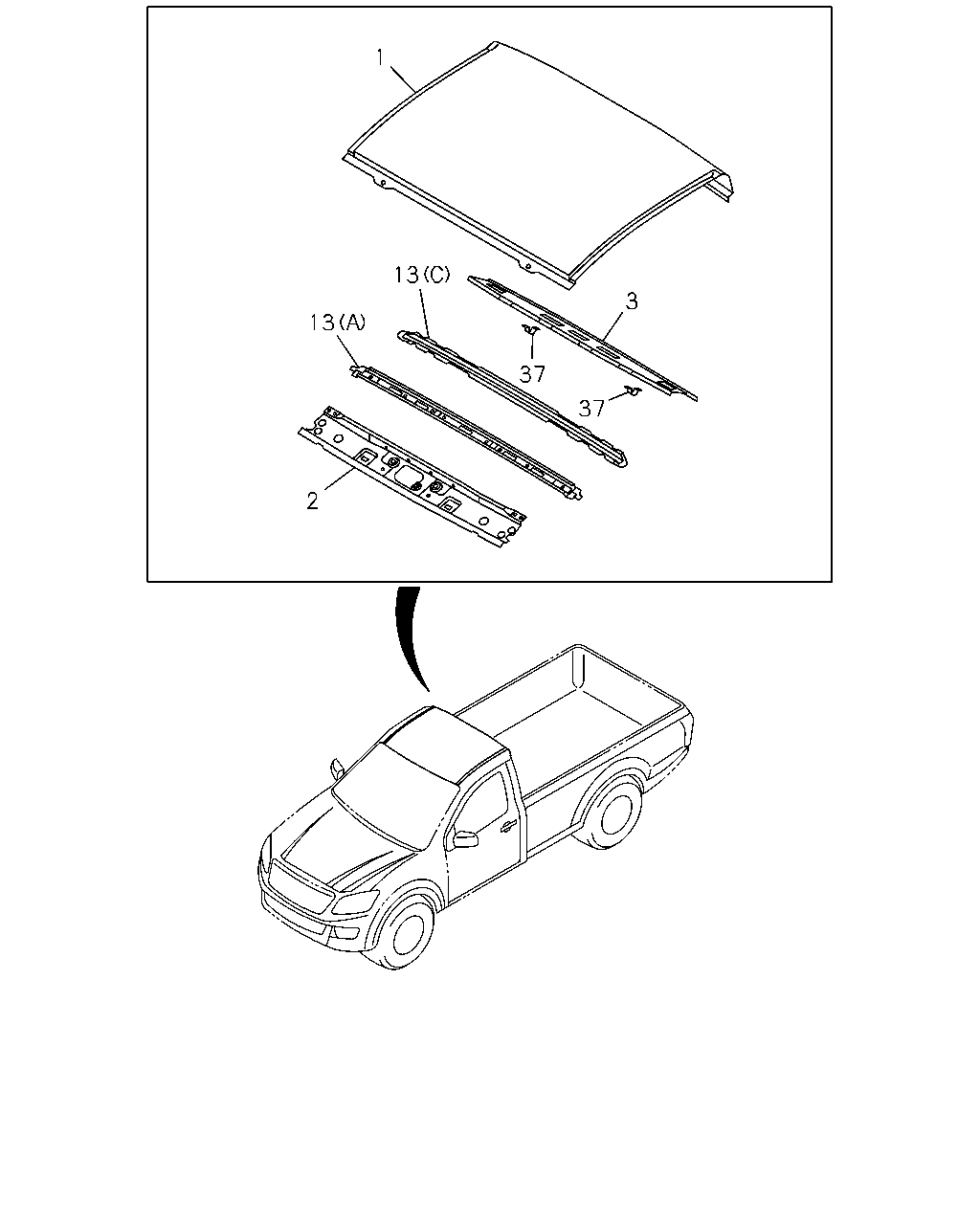

çizim 444092
2 13 13 37 3 37 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.585 PANEL; ROOF
EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98103-950-3 01 1 1412- ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1),HEADER CONSOLE<DK6>,ROO F RADIO ANTENNA<U71> 		8-98103-957-3 01 1 1412-1412 ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98103-957-3 01 1 1501-1503 ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA),AM/FM,CLOCK,C D PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98103-957-3 01 1 1504-1505 ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98103-957-3 01 1 1506- ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),KENYA EQUIPMENT(CL1),HEADER CONSOLE<DK6>,HIGH MOUNT STOPLAMP<TS6>,ROOF RADIO ANTENNA<U71>,SI NGAPORE EQUIPMENT(2G0) 		8-98103-955-3 01 1 1412-1412 ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),HEADER CONSOLE<DK6> ,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIOANTENNA<U71>,SINGAPORE EQUIPMENT(2G0) 		8-98103-955-3 01 1 1501-1503 ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA),AM/FM,CLOCK,C D PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),HEADER CONSOLE<DK6> ,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIOANTENNA<U71>,SINGAPORE EQUIPMENT(2G0) 		8-98103-955-3 01 1 1504-1505 ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),HEADER CONSOLE<DK6> ,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIOANTENNA<U71>,SINGAPORE EQUIPMENT(2G0) 		8-98103-955-3 01 1 1506- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98184-915-1 01 1 1412-1503 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98184-915-1 01 1 1412-1503 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA),AM/FM,CLOCK,C D PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98184-915-1 01 1 1504-1505 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA),AM/FM,CLOCK,C D PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98184-915-1 01 1 1504-1505 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98184-915-1 01 1 1506- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98184-915-1 01 1 1506- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. MAP LAMP<C74>,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98184-914-1 01 1 1412-1503 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) MAP LAMP<C74> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98184-914-1 01 1 1412-1503 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA),AM/FM,CLOCK,C D PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. MAP LAMP<C74>,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98184-914-1 01 1 1504-1505 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) MAP LAMP<C74> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA),AM/FM,CLOCK,C D PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98184-914-1 01 1 1504-1505 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. MAP LAMP<C74>,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98184-914-1 01 1 1506- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) MAP LAMP<C74> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98184-914-1 01 1 1506- ● ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98103-953-3 01 1 1412- ●
1 16.585 PANEL; ROOF
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98103-952-3 01 1 1412- ●
1 16.585 PANEL; ROOF 8-98103-954-2 01 1 1409-1411 ●
1 16.585 PANEL; ROOF
HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ) ROOF RADIO ANTENNA<U71> EXC. MAP LAMP<C74> 		8-98103-954-2 01 1 1409-1411 ●
1 16.585 PANEL; ROOF
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98103-954-2 01 1 1409-1411 ●
1 16.585 PANEL; ROOF 8-98103-954-2 01 1 1412-1506 ●
1 16.585 PANEL; ROOF
MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. AUSTRALIA EQUIPMENT(B13),HEADER CONSOLE<DK6> 		8-98103-954-2 01 1 1412-1506 ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(B13) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98103-954-2 01 1 1412-1506 ●
1 16.585 PANEL; ROOF
HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. MAP LAMP<C74> 		8-98103-954-2 01 1 1412-1506 ●
1 16.585 PANEL; ROOF 8-98103-954-3 01 1 1507- ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(B13) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> 		8-98103-954-3 01 1 1507- ●
1 16.585 PANEL; ROOF
MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98103-954-3 01 1 1507- ●
1 16.585 PANEL; ROOF
HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. MAP LAMP<C74> 		8-98103-954-3 01 1 1507- ●
1 16.585 PANEL; ROOF 8-98103-951-3 01 1 1409-1411 ● ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> 		8-98103-951-3 01 1 1412- ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ) ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98273-025-0 01 1 1409-1411 ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) AUSTRALIA EQUIPMENT(B13) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98273-025-0 01 1 1412-1503 ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) AUSTRALIA EQUIPMENT(B13) HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98273-025-0 01 1 1504-1505 ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) AUSTRALIA EQUIPMENT(B13) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98273-025-0 01 1 1506- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98209-324-0 01 1 1409-1411 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) MAP LAMP<C74> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98209-324-0 01 1 1409-1411 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) AUSTRALIA EQUIPMENT(B13) HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98209-324-0 01 1 1412- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) AUSTRALIA EQUIPMENT(B13) MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98209-324-0 01 1 1412- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) MAP LAMP<C74> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ) ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98103-960-3 01 1 1409-1411 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ) ROOF RADIO ANTENNA<U71> EXC. MAP LAMP<C74> 		8-98103-960-3 01 1 1409-1411 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. CONGO EQUIPMENT(CDF),HEADER CONSOLE<DK6> 		8-98103-960-3 01 1 1412-1503 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. CONGO EQUIPMENT(CDF),MAP LAMP<C74> 		8-98103-960-3 01 1 1412-1503 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> EXC. CONGO EQUIPMENT(CDF),HEADER CONSOLE<DK6> 		8-98103-960-3 01 1 1504-1505 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> EXC. CONGO EQUIPMENT(CDF),MAP LAMP<C74> 		8-98103-960-3 01 1 1504-1505 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. CONGO EQUIPMENT(CDF),HEADER CONSOLE<DK6> 		8-98103-960-3 01 1 1506- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. CONGO EQUIPMENT(CDF),MAP LAMP<C74> 		8-98103-960-3 01 1 1506- ● ●
1 16.585 PANEL; ROOF
EXC. ROOF RADIO ANTENNA<U71> 		8-98209-323-1 01 1 1409-1411 ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(B13) HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98209-323-1 01 1 1412- ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(B13) MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98209-323-1 01 1 1412- ●
2 16.585 PANEL; ROOF,CENTER 8-98103-964-5 01 1 1409- ● ● ● ● ● ●
3 16.585 PANEL; ROOF,RR 8-98103-999-3 01 1 1409- ● ● ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
(C) 		8-98150-942-0 01 1 1409- ● ●
13 16.585 PANEL; ROOF SUPPORT
(B) 		8-98103-982-0 01 1 1409- ● ●
13 16.585 PANEL; ROOF SUPPORT
(A) 		8-98103-963-1 01 1 1409- ● ● ● ● ● ●
37 16.585 BRACKET; TRIM,ROOF BACK 8-98103-996-0 02 1 1409- ● ● ● ●

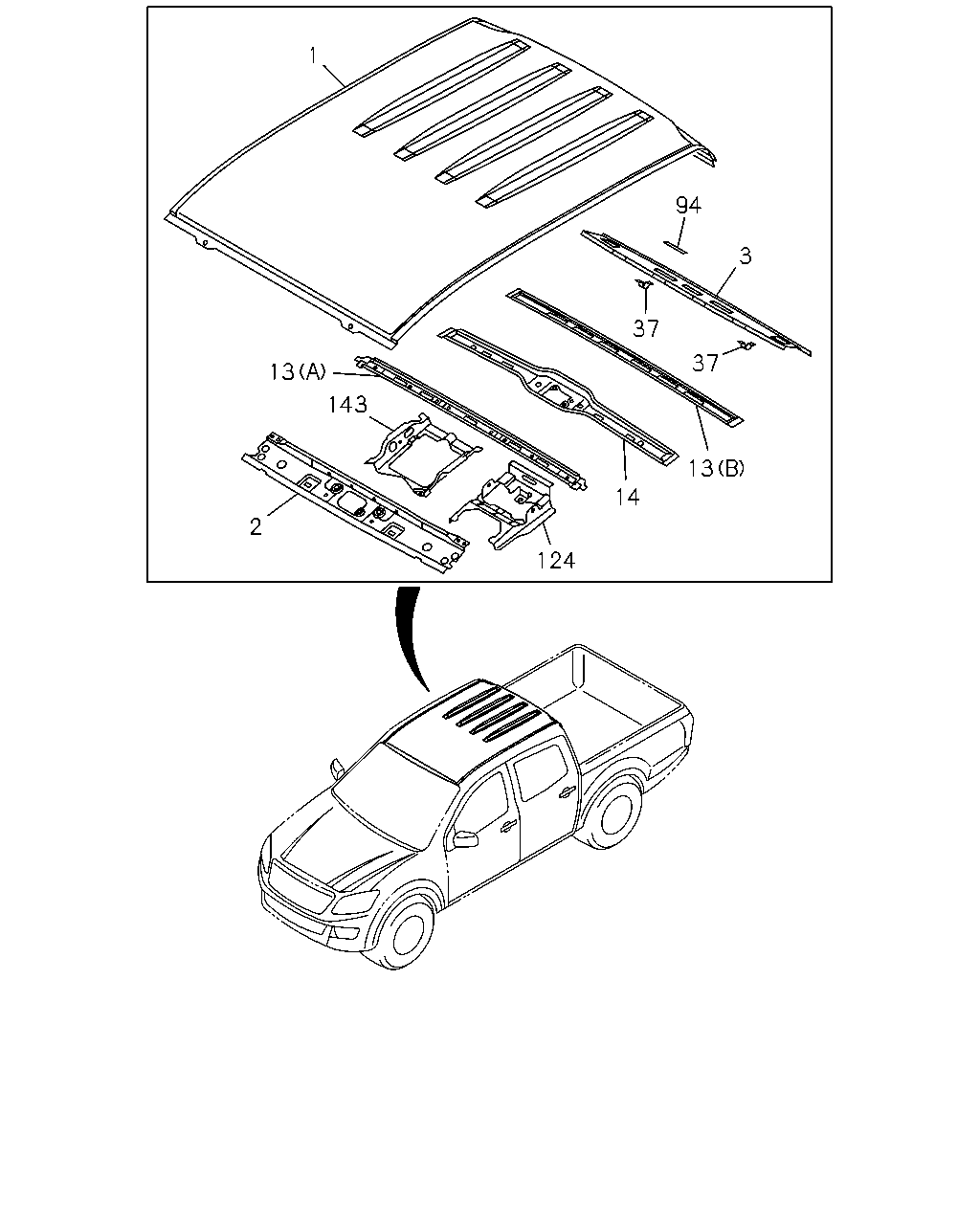

çizim 444094
94 3 37 37 13 14 124 2 143 13 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.585 PANEL; ROOF
EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98103-950-3 01 1 1412- ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1),HEADER CONSOLE<DK6>,ROO F RADIO ANTENNA<U71> 		8-98103-957-3 01 1 1412-1412 ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98103-957-3 01 1 1501-1503 ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA),AM/FM,CLOCK,C D PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98103-957-3 01 1 1504-1505 ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98103-957-3 01 1 1506- ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),KENYA EQUIPMENT(CL1),HEADER CONSOLE<DK6>,HIGH MOUNT STOPLAMP<TS6>,ROOF RADIO ANTENNA<U71>,SI NGAPORE EQUIPMENT(2G0) 		8-98103-955-3 01 1 1412-1412 ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),HEADER CONSOLE<DK6> ,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIOANTENNA<U71>,SINGAPORE EQUIPMENT(2G0) 		8-98103-955-3 01 1 1501-1503 ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA),AM/FM,CLOCK,C D PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),HEADER CONSOLE<DK6> ,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIOANTENNA<U71>,SINGAPORE EQUIPMENT(2G0) 		8-98103-955-3 01 1 1504-1505 ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),HEADER CONSOLE<DK6> ,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIOANTENNA<U71>,SINGAPORE EQUIPMENT(2G0) 		8-98103-955-3 01 1 1506- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98184-915-1 01 1 1412-1503 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98184-915-1 01 1 1412-1503 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA),AM/FM,CLOCK,C D PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98184-915-1 01 1 1504-1505 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA),AM/FM,CLOCK,C D PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98184-915-1 01 1 1504-1505 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98184-915-1 01 1 1506- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98184-915-1 01 1 1506- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. MAP LAMP<C74>,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98184-914-1 01 1 1412-1503 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) MAP LAMP<C74> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98184-914-1 01 1 1412-1503 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA),AM/FM,CLOCK,C D PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. MAP LAMP<C74>,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98184-914-1 01 1 1504-1505 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) MAP LAMP<C74> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA),AM/FM,CLOCK,C D PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98184-914-1 01 1 1504-1505 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. MAP LAMP<C74>,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98184-914-1 01 1 1506- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) MAP LAMP<C74> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98184-914-1 01 1 1506- ● ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98103-953-3 01 1 1412- ●
1 16.585 PANEL; ROOF
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ,RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AU DIO(7QL) EXC. AUSTRALIA EQUIPMENT(B13),HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98103-952-3 01 1 1412- ●
1 16.585 PANEL; ROOF 8-98103-954-2 01 1 1409-1411 ●
1 16.585 PANEL; ROOF
HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ) ROOF RADIO ANTENNA<U71> EXC. MAP LAMP<C74> 		8-98103-954-2 01 1 1409-1411 ●
1 16.585 PANEL; ROOF
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98103-954-2 01 1 1409-1411 ●
1 16.585 PANEL; ROOF 8-98103-954-2 01 1 1412-1506 ●
1 16.585 PANEL; ROOF
MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. AUSTRALIA EQUIPMENT(B13),HEADER CONSOLE<DK6> 		8-98103-954-2 01 1 1412-1506 ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(B13) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98103-954-2 01 1 1412-1506 ●
1 16.585 PANEL; ROOF
HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. MAP LAMP<C74> 		8-98103-954-2 01 1 1412-1506 ●
1 16.585 PANEL; ROOF 8-98103-954-3 01 1 1507- ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(B13) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6> 		8-98103-954-3 01 1 1507- ●
1 16.585 PANEL; ROOF
MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98103-954-3 01 1 1507- ●
1 16.585 PANEL; ROOF
HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. MAP LAMP<C74> 		8-98103-954-3 01 1 1507- ●
1 16.585 PANEL; ROOF 8-98103-951-3 01 1 1409-1411 ● ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> 		8-98103-951-3 01 1 1412- ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ) ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98273-025-0 01 1 1409-1411 ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) AUSTRALIA EQUIPMENT(B13) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98273-025-0 01 1 1412-1503 ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) AUSTRALIA EQUIPMENT(B13) HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98273-025-0 01 1 1504-1505 ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) AUSTRALIA EQUIPMENT(B13) HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98273-025-0 01 1 1506- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98209-324-0 01 1 1409-1411 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) MAP LAMP<C74> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98209-324-0 01 1 1409-1411 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) AUSTRALIA EQUIPMENT(B13) HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98209-324-0 01 1 1412- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) AUSTRALIA EQUIPMENT(B13) MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98209-324-0 01 1 1412- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) MAP LAMP<C74> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ) ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98103-960-3 01 1 1409-1411 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ) ROOF RADIO ANTENNA<U71> EXC. MAP LAMP<C74> 		8-98103-960-3 01 1 1409-1411 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. CONGO EQUIPMENT(CDF),HEADER CONSOLE<DK6> 		8-98103-960-3 01 1 1412-1503 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. CONGO EQUIPMENT(CDF),MAP LAMP<C74> 		8-98103-960-3 01 1 1412-1503 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> EXC. CONGO EQUIPMENT(CDF),HEADER CONSOLE<DK6> 		8-98103-960-3 01 1 1504-1505 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> EXC. CONGO EQUIPMENT(CDF),MAP LAMP<C74> 		8-98103-960-3 01 1 1504-1505 ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. CONGO EQUIPMENT(CDF),HEADER CONSOLE<DK6> 		8-98103-960-3 01 1 1506- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P LAYER(UGQ),RADIO DELETE(UL5),AM/FM, CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) ROOF RADIO ANTENNA<U71> EXC. CONGO EQUIPMENT(CDF),MAP LAMP<C74> 		8-98103-960-3 01 1 1506- ● ●
1 16.585 PANEL; ROOF
EXC. ROOF RADIO ANTENNA<U71> 		8-98209-323-1 01 1 1409-1411 ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(B13) HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98209-323-1 01 1 1412- ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(B13) MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98209-323-1 01 1 1412- ●
2 16.585 PANEL; ROOF,CENTER 8-98103-964-5 01 1 1409- ● ● ● ● ● ●
3 16.585 PANEL; ROOF,RR 8-98103-999-3 01 1 1409- ● ● ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
(C) 		8-98150-942-0 01 1 1409- ● ●
13 16.585 PANEL; ROOF SUPPORT
(B) 		8-98103-982-0 01 1 1409- ● ●
13 16.585 PANEL; ROOF SUPPORT
(A) 		8-98103-963-1 01 1 1409- ● ● ● ● ● ●
14 16.585 SUPPORT; ROOF
EXC. INDONESIA EQUIPMENT(B00), AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0) 		8-98163-387-1 01 1 1412- ● ●
14 16.585 SUPPORT; ROOF
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98163-386-1 01 1 1412- ●
14 16.585 SUPPORT; ROOF 8-98103-976-1 01 1 1409-1411 ● ●
14 16.585 SUPPORT; ROOF 8-98103-976-1 01 1 1412- ●
14 16.585 SUPPORT; ROOF
AUSTRALIA EQUIPMENT(B13) 		8-98103-976-1 01 1 1412- ●
14 16.585 SUPPORT; ROOF 8-98112-817-1 01 1 1409-1411 ● ●
14 16.585 SUPPORT; ROOF
INDONESIA EQUIPMENT(B00),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) ,CONGO EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE EQUIPMENT(2G0) 		8-98112-817-1 01 1 1412- ● ●
37 16.585 BRACKET; TRIM,ROOF BACK 8-98103-996-0 02 1 1409- ● ● ● ●
94 16.570 SEAL; REINFORCEMENT 8-98201-900-0 01 1 1409- ● ●
124 16.585 BRACKET; ROOM LAMP
MAP LAMP<C74> 		8-98103-968-0 01 1 1409- ● ● ● ●
143 16.584 BRACKET; CONSOLE
HEADER CONSOLE<DK6> 16.570 		8-98103-962-1 01 1 1409- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
