Isuzu WW
▶
TRUCKS
▶
FVM
▶
11131 - FVM(INDONESIA)6SD1
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶

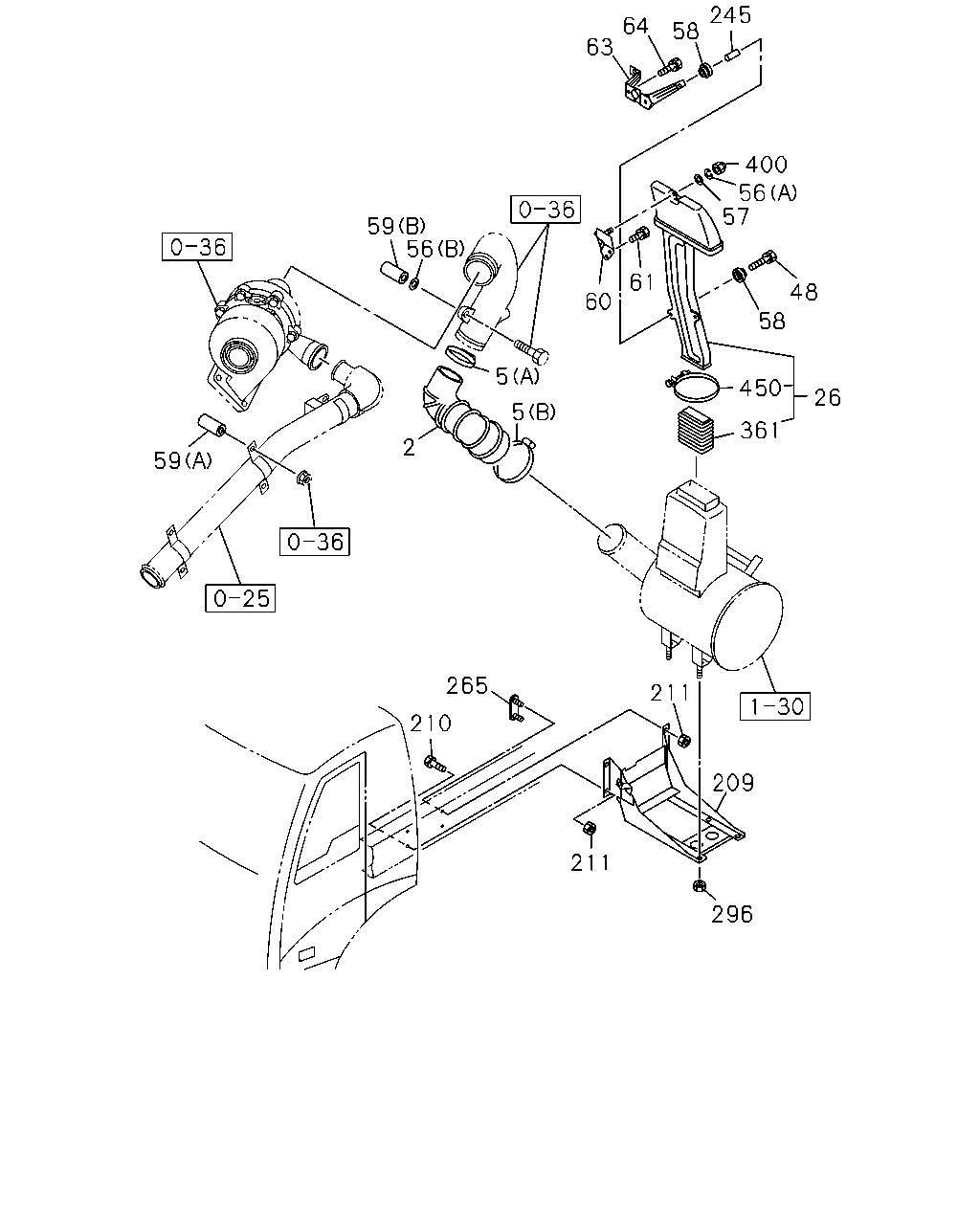

1-31 — AIR DUCT
(#14851) — 26 parça
245
64
58
63
400
56
57
59
56
61
48
60
58
5
450
26
5
361
2
59
265
211
210
209
211
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOSE; ACL
8-98096-414-0
01
1
0711-
5
CLIP; AIR DUCT
(A) ID=77-95
1-09707-198-0
01
1
0711-0810
5
CLIP; AIR DUCT
(A) ID=75-95
8-98133-357-0
01
1
0811-
5
CLIP; AIR DUCT
(B) ID=130-165
1-09707-201-0
01
1
0711-0810
5
CLIP; AIR DUCT
(B) ID=130-150
8-98133-360-0
01
1
0811-
26
DUCT; AIR INT
1-14230-173-2
01
1
0711-
48
BOLT; AIR DUCT
M10X26
1-09030-044-1
02
1
0711-
56
WASHER; LK,AIR INT DUCT
(A) M10
1-09500-046-0
01
1
0711-
56
WASHER; LK,AIR INT DUCT
(B) T=5.5
1-14149-042-0
02
1
0711-
57
WASHER; PL,AIR INT DUCT
ID=10.5 OD=26 T=2.6
1-09985-184-0
01
1
0711-
58
SUPPORT; AIR INL DUCT
OD=40 T=18.5
1-14119-267-0
04
1
0711-
59
TUBE; DIST,AIR INT DUCT
(A) L=43
1-14149-048-1
02
1
0711-
59
TUBE; DIST,AIR INT DUCT
(B) L=55
1-14149-166-0
02
1
0711-
60
BRACKET; AIR DUCT,UPR
1-79998-748-2
01
1
0711-
61
BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER
1-09980-526-0
02
1
0711-
63
BRACKET; AIR DUCT,LWR
1-79998-749-3
01
1
0711-
64
BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER
1-09980-526-0
02
1
0711-
209
BRACKET; ACL
1-53497-587-0
01
1
0711-
210
BOLT; ACL BRKT
M12X40 FLANGE
0-28651-240-0
02
1
0711-
211
NUT; BRKT
M12 FLANGE
0-91180-212-0
04
1
0711-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
0711-
265
BRACKET; STUD,ACL
1-53497-454-1
01
1
0711-
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
0711-
361
RUBBER; CUSHION,AIR DUCT
1-14231-973-1
01
1
0711-
400
NUT; CAP,AIR DUCT
M10
1-09984-145-0
01
1
0711-
450
CLAMP; HOSE
9-09915-504-1
01
1
0711-
