6 |
16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
(A)
BLACK
|
8-97421-775-4 |
01 |
1 |
1409- |
● |
● |
|
|
| |
6 |
16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
(A)
BLACK
|
8-97421-777-4 |
01 |
1 |
1409- |
● |
● |
|
|
| |
6 |
16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR BASIC(RBA)
(B)
BLACK
|
8-97416-726-4 |
01 |
1 |
1409- |
|
|
● |
● |
| |
6 |
16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR BASIC(RBA)
(B)
BLACK
|
8-97416-728-4 |
01 |
1 |
1409- |
|
|
● |
● |
| |
6 |
16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR CUSTOM(RBD)
(B)
BLACK
|
8-97416-730-3 |
01 |
1 |
1409- |
|
|
● |
● |
| |
6 |
16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
INTERIOR CUSTOM(RBD)
(B)
BLACK
|
8-97416-732-3 |
01 |
1 |
1409- |
|
|
● |
● |
| |
9 |
16.345 GROMMET; SCREW,INSIDE HANDLE
10.565
|
8-94152-494-0 |
02 |
1 |
1409- |
|
|
● |
● |
| |
17 |
16.330 LOCK; DOOR,RR DOOR
(A)
|
8-98103-157-5 |
01 |
1 |
1409- |
● |
● |
|
|
| |
17 |
16.330 LOCK; DOOR,RR DOOR
(A)
|
8-98103-158-5 |
01 |
1 |
1409- |
● |
● |
|
|
| |
17 |
16.330 LOCK; DOOR,RR DOOR
(B)
|
8-98103-159-5 |
01 |
1 |
1409- |
● |
● |
|
|
| |
17 |
16.330 LOCK; DOOR,RR DOOR
(B)
|
8-98103-160-5 |
01 |
1 |
1409- |
● |
● |
|
|
| |
17 |
16.330 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4>
(C)
|
8-98231-774-0 |
01 |
1 |
1409- |
|
|
● |
● |
| |
17 |
16.330 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4>
(C)
|
8-98231-775-0 |
01 |
1 |
1409- |
|
|
● |
● |
| |
17 |
16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4>
REMOTE CONT DOOR LOCK W/ANTI
THEFT<7KY>
(D)
|
8-98231-778-0 |
01 |
1 |
1409-1502 |
|
|
● |
● |
| |
17 |
16.330 LOCK; DOOR,RR DOOR
PASSIVE ENTRY AND START SYSTEM<AP3>,
REMOTE CONT DOOR LOCK<AP5>
AUTO DOOR LOCK<AU4>
REMOTE CONT DOOR LOCK W/ANTI
THEFT<7KY>
(D)
|
8-98231-778-1 |
01 |
1 |
1503- |
|
|
● |
● |
| |
17 |
16.330 LOCK; DOOR,RR DOOR
PASSIVE ENTRY AND START SYSTEM<AP3>
AUTO DOOR LOCK<AU4>
EXC. REMOTE CONT DOOR LOCK W/ANTI THE
FT<7KY>
(D)
|
8-98231-778-1 |
01 |
1 |
1503- |
|
|
● |
● |
| |
17 |
16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4>
REMOTE CONT DOOR LOCK W/ANTI
THEFT<7KY>
(D)
|
8-98231-779-0 |
01 |
1 |
1409-1502 |
|
|
● |
● |
| |
17 |
16.330 LOCK; DOOR,RR DOOR
PASSIVE ENTRY AND START SYSTEM<AP3>,
REMOTE CONT DOOR LOCK<AP5>
AUTO DOOR LOCK<AU4>
REMOTE CONT DOOR LOCK W/ANTI
THEFT<7KY>
(D)
|
8-98231-779-1 |
01 |
1 |
1503- |
|
|
● |
● |
| |
17 |
16.330 LOCK; DOOR,RR DOOR
PASSIVE ENTRY AND START SYSTEM<AP3>
AUTO DOOR LOCK<AU4>
EXC. REMOTE CONT DOOR LOCK W/ANTI THE
FT<7KY>
(D)
|
8-98231-779-1 |
01 |
1 |
1503- |
|
|
● |
● |
| |
17 |
16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4>
EXC. REMOTE CONT DOOR LOCK W/ANTI THE
FT<7KY>
(D)
|
8-98231-776-0 |
01 |
1 |
1409-1502 |
|
|
● |
● |
| |
17 |
16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4>
EXC. PASSIVE ENTRY AND START
SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEF
T<7KY>
(D)
|
8-98231-776-1 |
01 |
1 |
1503- |
|
|
● |
● |
| |
17 |
16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4>
EXC. REMOTE CONT DOOR LOCK W/ANTI THE
FT<7KY>
(D)
|
8-98231-777-0 |
01 |
1 |
1409-1502 |
|
|
● |
● |
| |
17 |
16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4>
EXC. PASSIVE ENTRY AND START
SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEF
T<7KY>
(D)
|
8-98231-777-1 |
01 |
1 |
1503- |
|
|
● |
● |
| |
19 |
16.345 BOLT; RR DOOR LOCK
16.330
(B)
M6X14.5
|
8-98004-342-0 |
06 |
1 |
1409-1502 |
● |
● |
● |
● |
| |
19 |
16.345 BOLT; RR DOOR LOCK
16.330
(B)
M6X14.5
|
8-98004-342-0 |
06 |
1 |
1503-1505 |
● |
● |
|
|
| |
19 |
16.345 BOLT; RR DOOR LOCK
PASSIVE ENTRY AND START SYSTEM<AP3>,
REMOTE CONT DOOR LOCK<AP5>
16.330
(B)
M6X14.5
|
8-98004-342-0 |
06 |
1 |
1503-1505 |
|
|
● |
● |
| |
19 |
16.345 BOLT; RR DOOR LOCK
REMOTE CONT DOOR LOCK W/ANTI
THEFT<7KY>
EXC. PASSIVE ENTRY AND START
SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,AUTO D
OOR LOCK<AU4>
16.330
(B)
M6X14.5
|
8-98004-342-0 |
06 |
1 |
1503-1505 |
|
|
● |
● |
| |
19 |
16.345 BOLT; RR DOOR LOCK
EXC. PASSIVE ENTRY AND START
SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,
REMOTECONT DOOR LOCK W/ANTI THEFT<7KY>
16.330
(B)
M6X14.5
|
8-98004-342-0 |
06 |
1 |
1503-1505 |
|
|
● |
● |
| |
19 |
16.345 BOLT; RR DOOR LOCK
16.330
(B)
M6X14.5
|
8-98004-342-0 |
06 |
1 |
1506- |
● |
● |
● |
● |
| |
19 |
16.345 BOLT; RR DOOR LOCK
(C)
M6X16
|
8-98165-451-0 |
06 |
1 |
1409- |
● |
● |
|
|
| |
19 |
16.345 BOLT; RR DOOR LOCK
AUTO DOOR LOCK<AU4>
10.765
(A)
M6X8 FLANGE
|
8-98048-996-0 |
02 |
1 |
1409-1502 |
|
|
● |
● |
| |
19 |
16.345 BOLT; RR DOOR LOCK
PASSIVE ENTRY AND START SYSTEM<AP3>,
REMOTE CONT DOOR LOCK<AP5>
AUTO DOOR LOCK<AU4>
REMOTE CONT DOOR LOCK W/ANTI
THEFT<7KY>
10.765
(A)
M6X8 FLANGE
|
8-98048-996-0 |
02 |
1 |
1503-1505 |
|
|
● |
● |
| |
19 |
16.345 BOLT; RR DOOR LOCK
AUTO DOOR LOCK<AU4>
EXC. REMOTE CONT DOOR LOCK W/ANTI THE
FT<7KY>
10.765
(A)
M6X8 FLANGE
|
8-98048-996-0 |
02 |
1 |
1503-1505 |
|
|
● |
● |
| |
19 |
16.345 BOLT; RR DOOR LOCK
AUTO DOOR LOCK<AU4>
10.765
(A)
M6X8 FLANGE
|
8-98048-996-0 |
02 |
1 |
1506- |
|
|
● |
● |
| |
21 |
16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4>
REMOTE CONT DOOR LOCK W/ANTI
THEFT<7KY>
|
8-97351-083-0 |
01 |
1 |
1409-1502 |
|
|
● |
● |
| |
21 |
16.345 ACTUATOR; RR DOOR LOCK
PASSIVE ENTRY AND START SYSTEM<AP3>,
REMOTE CONT DOOR LOCK<AP5>
AUTO DOOR LOCK<AU4>
REMOTE CONT DOOR LOCK W/ANTI
THEFT<7KY>
|
8-98292-020-0 |
01 |
1 |
1503- |
|
|
● |
● |
| |
21 |
16.345 ACTUATOR; RR DOOR LOCK
PASSIVE ENTRY AND START SYSTEM<AP3>
AUTO DOOR LOCK<AU4>
EXC. REMOTE CONT DOOR LOCK W/ANTI THE
FT<7KY>
|
8-98292-020-0 |
01 |
1 |
1503- |
|
|
● |
● |
| |
21 |
16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4>
REMOTE CONT DOOR LOCK W/ANTI
THEFT<7KY>
|
8-97351-084-0 |
01 |
1 |
1409-1502 |
|
|
● |
● |
| |
21 |
16.345 ACTUATOR; RR DOOR LOCK
PASSIVE ENTRY AND START SYSTEM<AP3>,
REMOTE CONT DOOR LOCK<AP5>
AUTO DOOR LOCK<AU4>
REMOTE CONT DOOR LOCK W/ANTI
THEFT<7KY>
|
8-98292-019-0 |
01 |
1 |
1503- |
|
|
● |
● |
| |
21 |
16.345 ACTUATOR; RR DOOR LOCK
PASSIVE ENTRY AND START SYSTEM<AP3>
AUTO DOOR LOCK<AU4>
EXC. REMOTE CONT DOOR LOCK W/ANTI THE
FT<7KY>
|
8-98292-019-0 |
01 |
1 |
1503- |
|
|
● |
● |
| |
21 |
16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4>
EXC. REMOTE CONT DOOR LOCK W/ANTI THE
FT<7KY>
|
8-97351-081-0 |
01 |
1 |
1409-1502 |
|
|
● |
● |
| |
21 |
16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4>
EXC. PASSIVE ENTRY AND START
SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEF
T<7KY>
|
8-98292-018-0 |
01 |
1 |
1503- |
|
|
● |
● |
| |
21 |
16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4>
EXC. REMOTE CONT DOOR LOCK W/ANTI THE
FT<7KY>
|
8-97351-082-0 |
01 |
1 |
1409-1502 |
|
|
● |
● |
| |
21 |
16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4>
EXC. PASSIVE ENTRY AND START
SYSTEM<AP3>,REMOTE CONT DOOR LOCK W/ANTI THEF
T<7KY>
|
8-98292-017-0 |
01 |
1 |
1503- |
|
|
● |
● |
| |
24 |
16.345 ANTIRATTLER; DOOR INSIDE HANDLE
|
8-97251-932-0 |
02 |
1 |
1409- |
|
|
● |
● |
| |
27 |
16.330 SCREW; RR DOOR LOCK
AUTO DOOR LOCK<AU4>
|
8-97349-997-0 |
04 |
1 |
1409- |
|
|
● |
● |
| |
30 |
16.335 STRIKER; RR DOOR
(A)
|
8-98103-162-3 |
01 |
1 |
1409- |
● |
● |
|
|
| |
30 |
16.335 STRIKER; RR DOOR
(A)
|
8-98103-163-3 |
01 |
1 |
1409- |
● |
● |
|
|
| |
30 |
16.335 STRIKER; RR DOOR
(B)
|
8-98103-164-3 |
01 |
1 |
1409- |
● |
● |
|
|
| |
30 |
16.335 STRIKER; RR DOOR
(B)
|
8-98103-165-3 |
01 |
1 |
1409- |
● |
● |
|
|
| |
30 |
16.335 STRIKER; RR DOOR
(C)
|
8-98012-203-0 |
02 |
1 |
1409- |
|
|
● |
● |
| |
32 |
16.335 SCREW; DOOR STRIKER
M8X35
|
8-98049-360-0 |
08 |
1 |
1409- |
● |
● |
|
|
| |
32 |
16.335 SCREW; DOOR STRIKER
M8X35
|
8-98049-360-0 |
04 |
1 |
1409- |
|
|
● |
● |
| |
37 |
16.157 GROMMET; RR DOOR
(A)
|
8-98212-205-0 |
02 |
1 |
1409- |
● |
● |
|
|
| |
37 |
16.157 GROMMET; RR DOOR
12.182
(B)
OD=26
|
8-94141-484-0 |
02 |
1 |
1409- |
|
|
● |
● |
| |
38 |
16.345 SCREW; INSIDE LEVER,RR DOOR LK
02.343
(A)
M6X16 FLANGE
|
0-28650-616-0 |
06 |
1 |
1409- |
● |
● |
|
|
| |
38 |
16.345 SCREW; INSIDE LEVER,RR DOOR LK
(B)
M5X14 TAPPING
|
8-98184-363-0 |
02 |
1 |
1409- |
|
|
● |
● |
| |
46 |
16.345 COVER; OUTSIDE HANDLE
HANDLE O/S DOOR BODY COLOR<D75>
KD PAINT LESS SUPPLY<7TV>
16.270
|
8-98201-401-0 |
02 |
1 |
1409- |
|
|
● |
● |
| |
46 |
16.345 COVER; OUTSIDE HANDLE
OUTSIDE HANDLE CHROME<E20>
16.270
PLATED
|
8-98176-465-1 |
02 |
1 |
1409- |
|
|
● |
● |
| |
46 |
16.345 COVER; OUTSIDE HANDLE
BODY COLOR NAUTILUS BLUE MICA(521)
HANDLE O/S DOOR BODY COLOR<D75>
EXC. KD PAINT LESS SUPPLY<7TV>
16.270
DARK BLUE
|
8-97422-452-1 |
02 |
1 |
1409- |
|
|
● |
● |
| |
46 |
16.345 COVER; OUTSIDE HANDLE
BODY COLOR COSMIC BLACK MICA(523)
HANDLE O/S DOOR BODY COLOR<D75>
EXC. KD PAINT LESS SUPPLY<7TV>
16.270
BLACK
|
8-97422-454-1 |
02 |
1 |
1409- |
|
|
● |
● |
| |
46 |
16.345 COVER; OUTSIDE HANDLE
BODY COLOR SPLASH WHITE(527)
HANDLE O/S DOOR BODY COLOR<D75>
EXC. KD PAINT LESS SUPPLY<7TV>
16.270
WHITE
|
8-97422-463-1 |
02 |
1 |
1409- |
|
|
● |
● |
| |
46 |
16.345 COVER; OUTSIDE HANDLE
BODY COLOR TITANIUM SILVER MET(529)
HANDLE O/S DOOR BODY COLOR<D75>
EXC. KD PAINT LESS SUPPLY<7TV>
16.270
SILVER
|
8-97422-456-1 |
02 |
1 |
1409- |
|
|
● |
● |
| |
46 |
16.345 COVER; OUTSIDE HANDLE
BODY COLOR MINERAL GRAY MET(530)
HANDLE O/S DOOR BODY COLOR<D75>
EXC. KD PAINT LESS SUPPLY<7TV>
16.270
GRAY
|
8-97422-455-1 |
02 |
1 |
1409- |
|
|
● |
● |
| |
46 |
16.345 COVER; OUTSIDE HANDLE
BODY COLOR TUNDRA GREEN MICA(533)
HANDLE O/S DOOR BODY COLOR<D75>
EXC. KD PAINT LESS SUPPLY<7TV>
16.270
DARK GREEN
|
8-97422-453-1 |
02 |
1 |
1409- |
|
|
● |
● |
| |
46 |
16.345 COVER; OUTSIDE HANDLE
BODY COLOR ASH BEIGE MET(541)
HANDLE O/S DOOR BODY COLOR<D75>
EXC. KD PAINT LESS SUPPLY<7TV>
16.270
LIGHT BEIGE
|
8-97422-460-1 |
02 |
1 |
1409- |
|
|
● |
● |
| |
46 |
16.345 COVER; OUTSIDE HANDLE
BODY COLOR FJORD BLUE MET(545)
HANDLE O/S DOOR BODY COLOR<D75>
EXC. KD PAINT LESS SUPPLY<7TV>
16.270
LIGHT BLUE
|
8-97424-512-1 |
02 |
1 |
1409- |
|
|
● |
● |
| |
46 |
16.345 COVER; OUTSIDE HANDLE
BODY COLOR VENETIAN RED MICA(546)
HANDLE O/S DOOR BODY COLOR<D75>
EXC. KD PAINT LESS SUPPLY<7TV>
16.270
RED
|
8-97424-555-1 |
02 |
1 |
1409- |
|
|
● |
● |
| |
46 |
16.345 COVER; OUTSIDE HANDLE
EXC. HANDLE O/S DOOR BODY COLOR<D75>,
OUTSIDE HANDLE CHROME<E20>
16.270
BLACK
|
8-98176-463-1 |
02 |
1 |
1409- |
|
|
● |
● |
| |
56 |
16.360 GASKET; HANDLE,RR DOOR
16.350
(A)
|
8-98176-466-0 |
02 |
1 |
1409- |
|
|
● |
● |
| |
56 |
16.360 GASKET; HANDLE,RR DOOR
(B)
|
8-98176-467-2 |
02 |
1 |
1409- |
|
|
● |
● |
| |
83 |
16.341 CABLE ASM; LOCK CONTROL
(A)
|
8-98193-861-0 |
01 |
1 |
1409- |
● |
● |
|
|
| |
83 |
16.341 CABLE ASM; LOCK CONTROL
(A)
|
8-98193-862-0 |
01 |
1 |
1409- |
● |
● |
|
|
| |
83 |
16.341 CABLE ASM; LOCK CONTROL
(B)
|
8-98193-863-0 |
02 |
1 |
1409- |
● |
● |
|
|
| |
83 |
16.341 CABLE ASM; LOCK CONTROL
(C)
|
8-98193-715-0 |
01 |
1 |
1409- |
|
|
● |
● |
| |
83 |
16.341 CABLE ASM; LOCK CONTROL
(D)
|
8-98193-716-0 |
02 |
1 |
1409- |
|
|
● |
● |
| |
83 |
16.341 CABLE ASM; LOCK CONTROL
(C)
|
8-98193-717-0 |
01 |
1 |
1409- |
|
|
● |
● |
| |
84 |
16.270 COVER; DOOR LOCK
|
8-97351-079-0 |
01 |
1 |
1409- |
|
|
● |
● |
| |
84 |
16.270 COVER; DOOR LOCK
|
8-97351-080-0 |
01 |
1 |
1409- |
|
|
● |
● |
| |
88 |

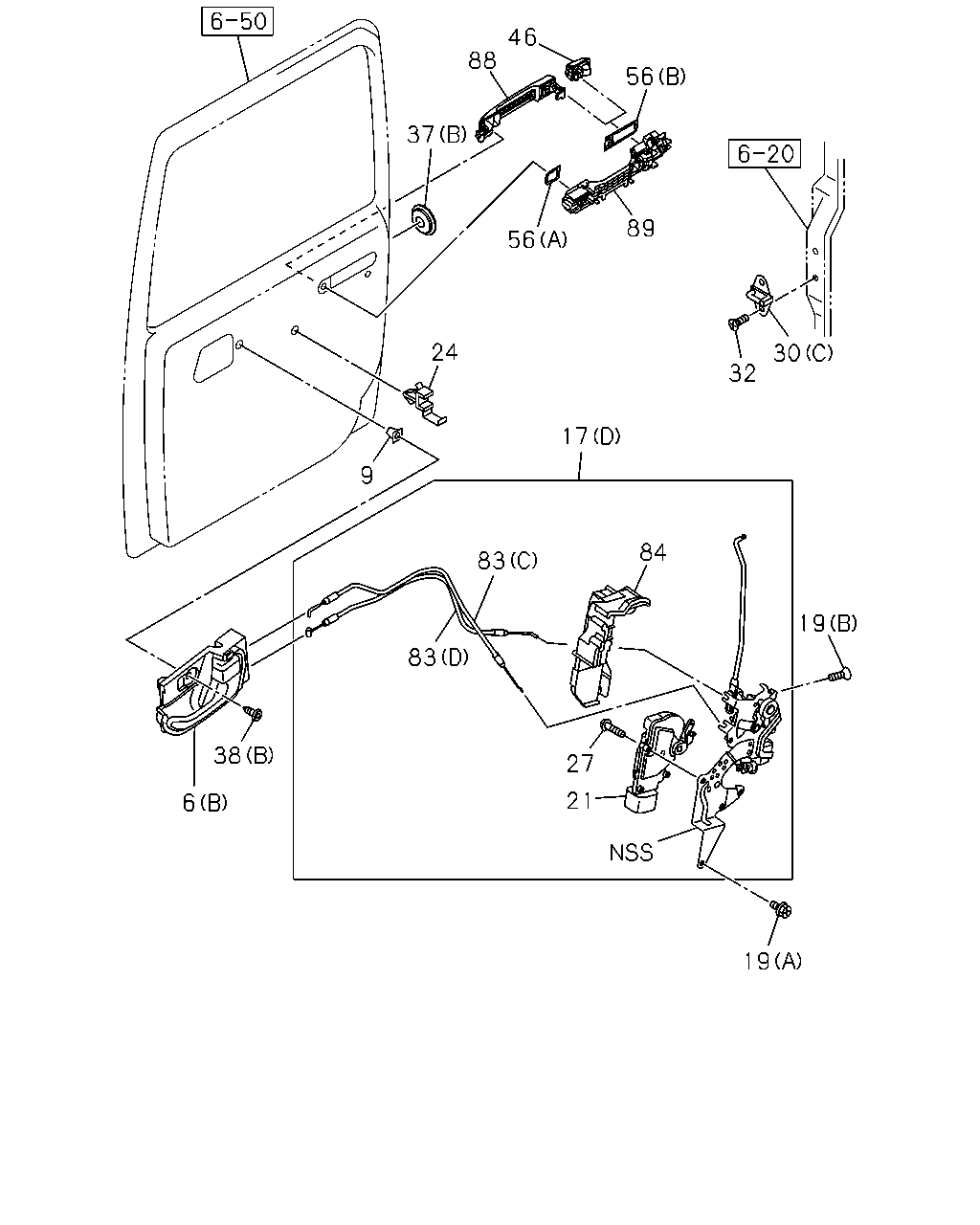

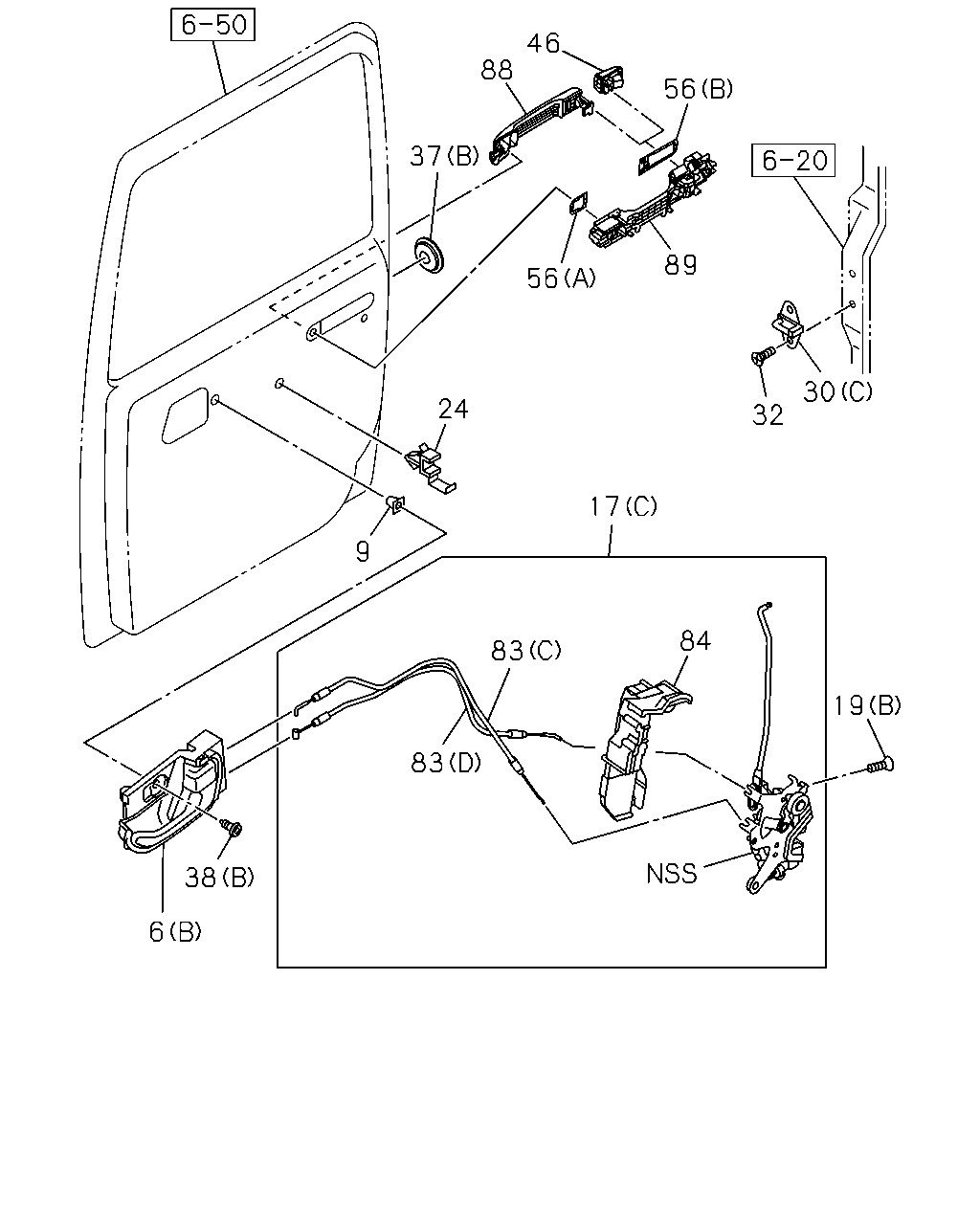

16.335 GRIP; RR DOOR
HANDLE O/S DOOR BODY COLOR<D75>
KD PAINT LESS SUPPLY<7TV>
16.330
|
8-98201-399-0 |
02 |
1 |
1409- |
|
|
● |
● |
| |
88 |
16.335 GRIP; RR DOOR
OUTSIDE HANDLE CHROME<E20>
16.330
PLATED
|
8-98176-458-0 |
02 |
1 |
1409- |
|
|
● |
● |
| |
88 |
16.335 GRIP; RR DOOR
BODY COLOR NAUTILUS BLUE MICA(521)
HANDLE O/S DOOR BODY COLOR<D75>
EXC. KD PAINT LESS SUPPLY<7TV>
16.330
DARK BLUE
|
8-97422-425-0 |
02 |
1 |
1409- |
|
|
● |
● |
| |
88 |
16.335 GRIP; RR DOOR
BODY COLOR COSMIC BLACK MICA(523)
HANDLE O/S DOOR BODY COLOR<D75>
EXC. KD PAINT LESS SUPPLY<7TV>
16.330
BLACK
|
8-97422-427-0 |
02 |
1 |
1409- |
|
|
● |
● |
| |
88 |
16.335 GRIP; RR DOOR
BODY COLOR SPLASH WHITE(527)
HANDLE O/S DOOR BODY COLOR<D75>
EXC. KD PAINT LESS SUPPLY<7TV>
16.330
WHITE
|
8-97422-436-0 |
02 |
1 |
1409- |
|
|
● |
● |
| |
88 |
16.335 GRIP; RR DOOR
BODY COLOR TITANIUM SILVER MET(529)
HANDLE O/S DOOR BODY COLOR<D75>
EXC. KD PAINT LESS SUPPLY<7TV>
16.330
SILVER
|
8-97422-429-0 |
02 |
1 |
1409- |
|
|
● |
● |
| |
88 |
16.335 GRIP; RR DOOR
BODY COLOR MINERAL GRAY MET(530)
HANDLE O/S DOOR BODY COLOR<D75>
EXC. KD PAINT LESS SUPPLY<7TV>
16.330
GRAY
|
8-97422-428-0 |
02 |
1 |
1409- |
|
|
● |
● |
| |
88 |
16.335 GRIP; RR DOOR
BODY COLOR TUNDRA GREEN MICA(533)
HANDLE O/S DOOR BODY COLOR<D75>
EXC. KD PAINT LESS SUPPLY<7TV>
16.330
DARK GREEN
|
8-97422-426-0 |
02 |
1 |
1409- |
|
|
● |
● |
| |
88 |
16.335 GRIP; RR DOOR
BODY COLOR ASH BEIGE MET(541)
HANDLE O/S DOOR BODY COLOR<D75>
EXC. KD PAINT LESS SUPPLY<7TV>
16.330
LIGHT BEIGE
|
8-97422-433-0 |
02 |
1 |
1409- |
|
|
● |
● |
| |
88 |
16.335 GRIP; RR DOOR
BODY COLOR FJORD BLUE MET(545)
HANDLE O/S DOOR BODY COLOR<D75>
EXC. KD PAINT LESS SUPPLY<7TV>
16.330
LIGHT BLUE
|
8-97424-507-0 |
02 |
1 |
1409- |
|
|
● |
● |
| |
88 |
16.335 GRIP; RR DOOR
BODY COLOR VENETIAN RED MICA(546)
HANDLE O/S DOOR BODY COLOR<D75>
EXC. KD PAINT LESS SUPPLY<7TV>
16.330
RED
|
8-97424-545-0 |
02 |
1 |
1409- |
|
|
● |
● |
| |
88 |
16.335 GRIP; RR DOOR
EXC. HANDLE O/S DOOR BODY COLOR<D75>,
OUTSIDE HANDLE CHROME<E20>
16.330
|
8-98176-456-0 |
02 |
1 |
1409- |
|
|
● |
● |
| |
89 |
16.335 BRACKET; GRIP,DOOR
|
8-98176-472-4 |
01 |
1 |
1409-1510 |
|
|
● |
● |
| |
89 |
16.335 BRACKET; GRIP,DOOR
|
8-98331-500-0 |
01 |
1 |
1511- |
|
|
● |
● |
| |
89 |
16.335 BRACKET; GRIP,DOOR
|
8-98176-473-4 |
01 |
1 |
1409-1510 |
|
|
● |
● |
| |
89 |
16.335 BRACKET; GRIP,DOOR
|
8-98331-501-0 |
01 |
1 |
1511- |
|
|
● |
● |
