Isuzu WW
▶
PICKUP
▶
TFR
▶
51580 - TFR/TFS RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-50 - REAR DOOR AND HINGE
▶
6-50 — REAR DOOR AND HINGE
(#148506) — 41 parça
Tümü
A - TFB5WF
B - TFS5WF
C - TFB5CF
D - TFS5CF
◀

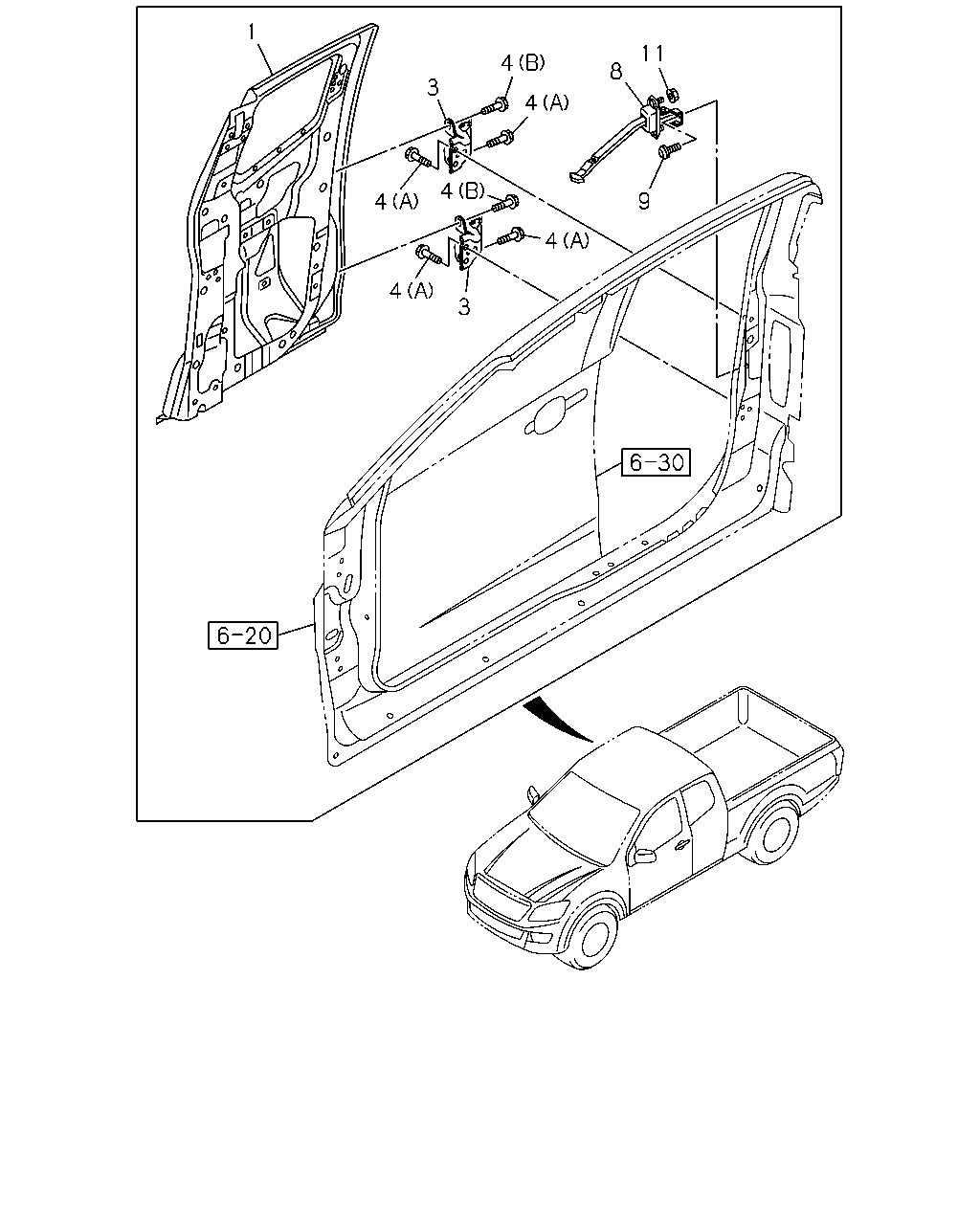

[650A] EXTENDED CAB (20 parça)

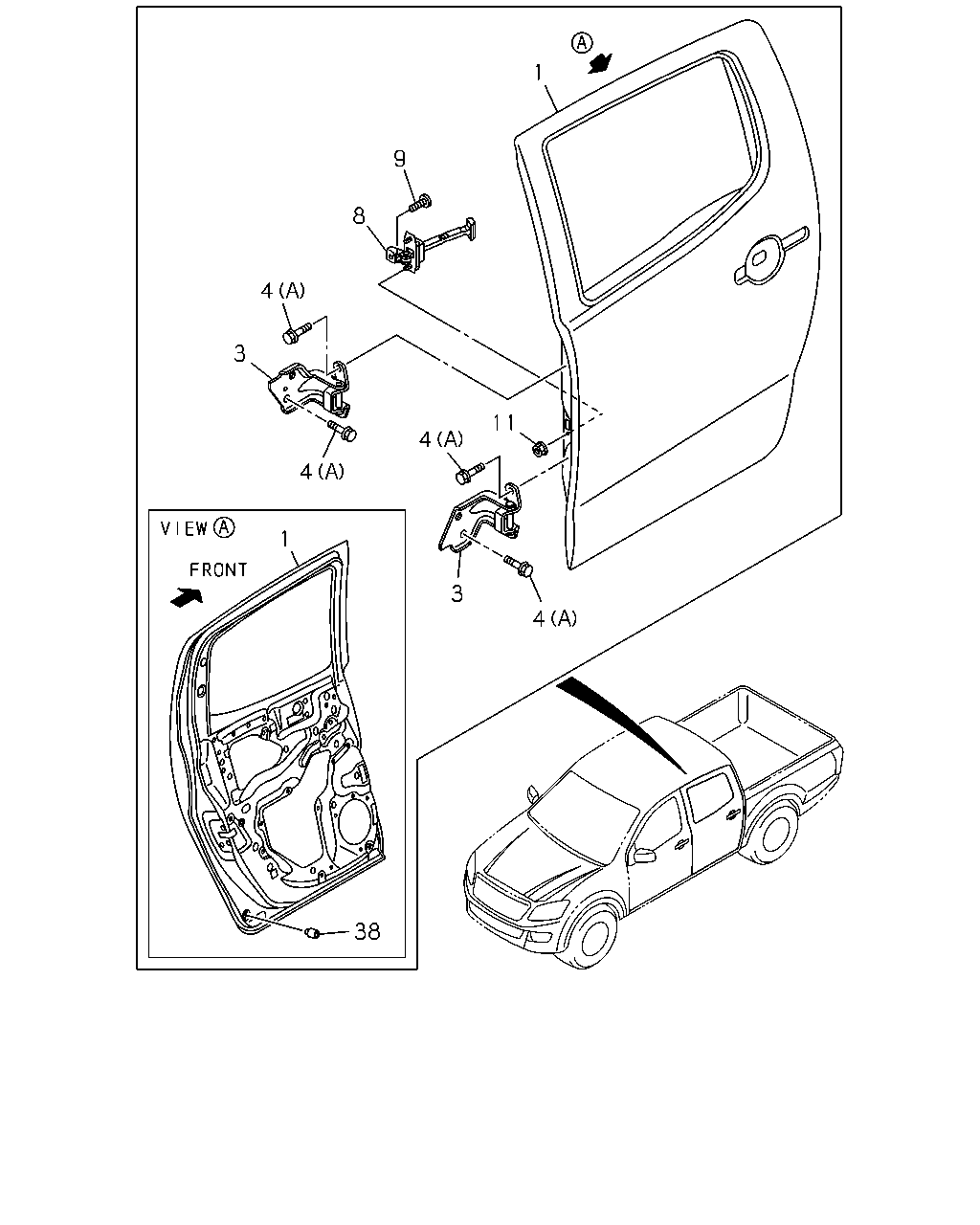

[650A] CREW CAB (21 parça)
▶
4
4
4
3
4
3
4
4
11
8
9
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
16.150 DOOR ASM; REAR
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0)
8-98161-044-2
01
1
1412-
●
●
1
16.150 DOOR ASM; REAR
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0)
8-98161-045-2
01
1
1412-
●
●
1
16.150 DOOR ASM; REAR
8-98108-260-8
01
1
1409-
●
●
1
16.150 DOOR ASM; REAR
8-98108-261-8
01
1
1409-
●
●
1
16.150 DOOR ASM; REAR
8-98108-218-3
01
1
1409-1411
●
●
1
16.150 DOOR ASM; REAR
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0)
8-98108-218-4
01
1
1412-
●
●
1
16.150 DOOR ASM; REAR
8-98108-219-3
01
1
1409-1411
●
●
1
16.150 DOOR ASM; REAR
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0)
8-98108-219-4
01
1
1412-
●
●
3
16.335 HINGE; RR DOOR
UPR RH & LWR LH
8-98105-282-3
02
1
1409-
●
●
3
16.335 HINGE; RR DOOR
LWR RH & UPR LH
8-98105-283-3
02
1
1409-
●
●
3
16.335 HINGE; RR DOOR
UPR RH & LWR LH
8-98105-280-1
02
1
1409-
●
●
3
16.335 HINGE; RR DOOR
LWR RH & UPR LH
8-98105-281-1
02
1
1409-
●
●
4
16.335 BOLT; HINGE
09.171 (A) M8X23 FLANGE
8-98005-842-0
16
1
1409-
●
●
4
16.335 BOLT; HINGE
16.320 (B) M8X23 FLANGE
8-98029-440-0
04
1
1409-
●
●
4
16.335 BOLT; HINGE
09.171 (A) M8X23 FLANGE
8-98005-842-0
08
1
1409-
●
●
4
16.335 BOLT; HINGE
09.171 (A) M8X23 FLANGE
8-98005-842-0
08
1
1409-
●
●
8
16.320 ARM; CHECK,RR DOOR
8-98103-032-4
02
1
1409-
●
●
8
16.320 ARM; CHECK,RR DOOR
8-98103-031-3
02
1
1409-
●
●
9
16.323 BOLT; CHECK ARM
16.320 M8X23
8-98166-694-0
02
1
1409-
●
●
●
●
11
16.320 NUT
M6 FLANGE
8-98049-362-0
04
1
1409-
●
●
●
●
38
4
3
4
11
4
1
3
4
8
9
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
16.150 DOOR ASM; REAR
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0)
8-98161-044-2
01
1
1412-
●
●
1
16.150 DOOR ASM; REAR
EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF),SINGAPORE EQUIPMENT(2G0)
8-98161-045-2
01
1
1412-
●
●
1
16.150 DOOR ASM; REAR
8-98108-260-8
01
1
1409-
●
●
1
16.150 DOOR ASM; REAR
8-98108-261-8
01
1
1409-
●
●
1
16.150 DOOR ASM; REAR
8-98108-218-3
01
1
1409-1411
●
●
1
16.150 DOOR ASM; REAR
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0)
8-98108-218-4
01
1
1412-
●
●
1
16.150 DOOR ASM; REAR
8-98108-219-3
01
1
1409-1411
●
●
1
16.150 DOOR ASM; REAR
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),CONGO EQUIPMENT(CDF), SINGAPORE EQUIPMENT(2G0)
8-98108-219-4
01
1
1412-
●
●
3
16.335 HINGE; RR DOOR
UPR RH & LWR LH
8-98105-282-3
02
1
1409-
●
●
3
16.335 HINGE; RR DOOR
LWR RH & UPR LH
8-98105-283-3
02
1
1409-
●
●
3
16.335 HINGE; RR DOOR
UPR RH & LWR LH
8-98105-280-1
02
1
1409-
●
●
3
16.335 HINGE; RR DOOR
LWR RH & UPR LH
8-98105-281-1
02
1
1409-
●
●
4
16.335 BOLT; HINGE
09.171 (A) M8X23 FLANGE
8-98005-842-0
16
1
1409-
●
●
4
16.335 BOLT; HINGE
16.320 (B) M8X23 FLANGE
8-98029-440-0
04
1
1409-
●
●
4
16.335 BOLT; HINGE
09.171 (A) M8X23 FLANGE
8-98005-842-0
08
1
1409-
●
●
4
16.335 BOLT; HINGE
09.171 (A) M8X23 FLANGE
8-98005-842-0
08
1
1409-
●
●
8
16.320 ARM; CHECK,RR DOOR
8-98103-032-4
02
1
1409-
●
●
8
16.320 ARM; CHECK,RR DOOR
8-98103-031-3
02
1
1409-
●
●
9
16.323 BOLT; CHECK ARM
16.320 M8X23
8-98166-694-0
02
1
1409-
●
●
●
●
11
16.320 NUT
M6 FLANGE
8-98049-362-0
04
1
1409-
●
●
●
●
38
16.152 PROTECTOR; RR DOOR
16.165
8-98202-864-0
02
1
1409-
●
●
