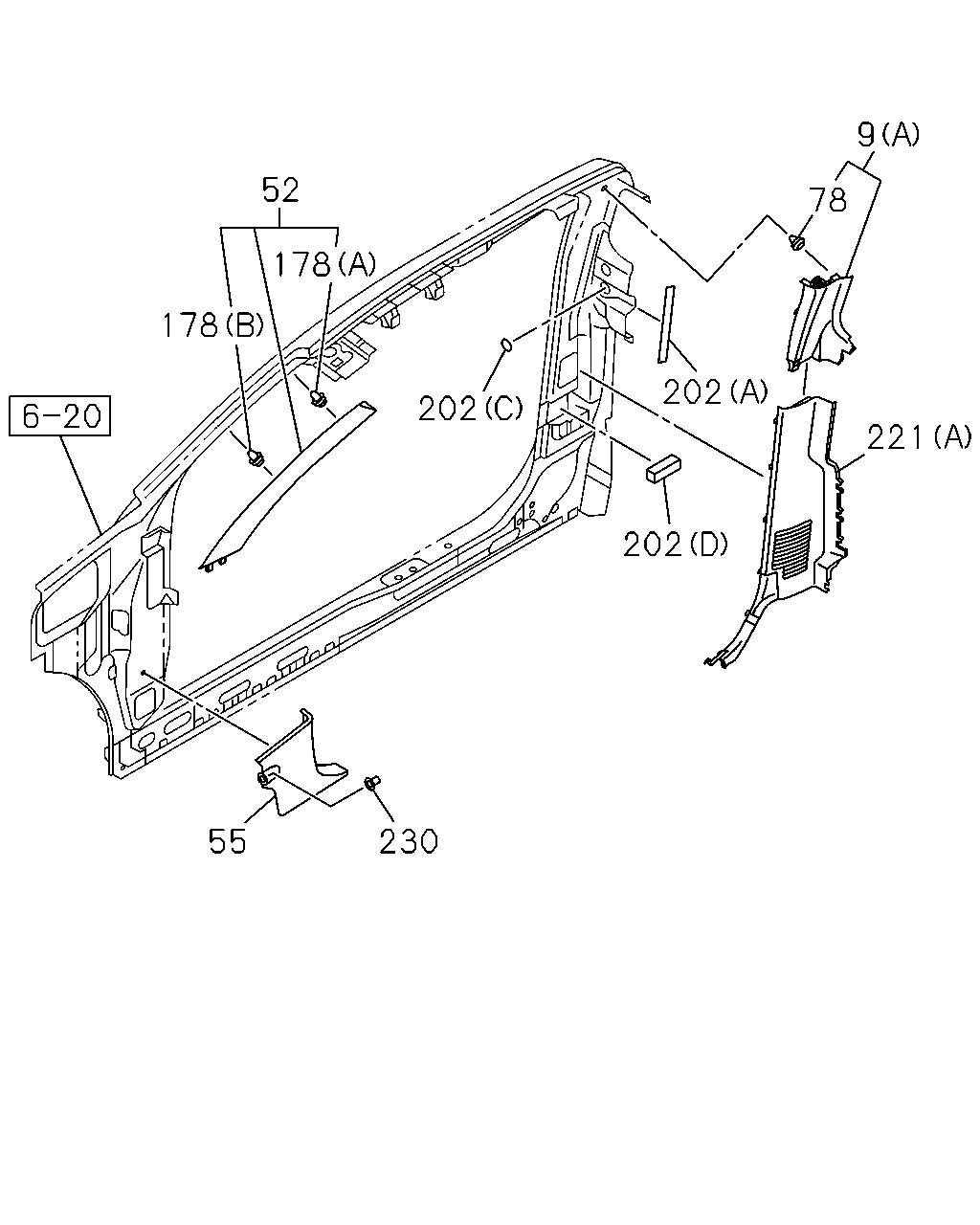

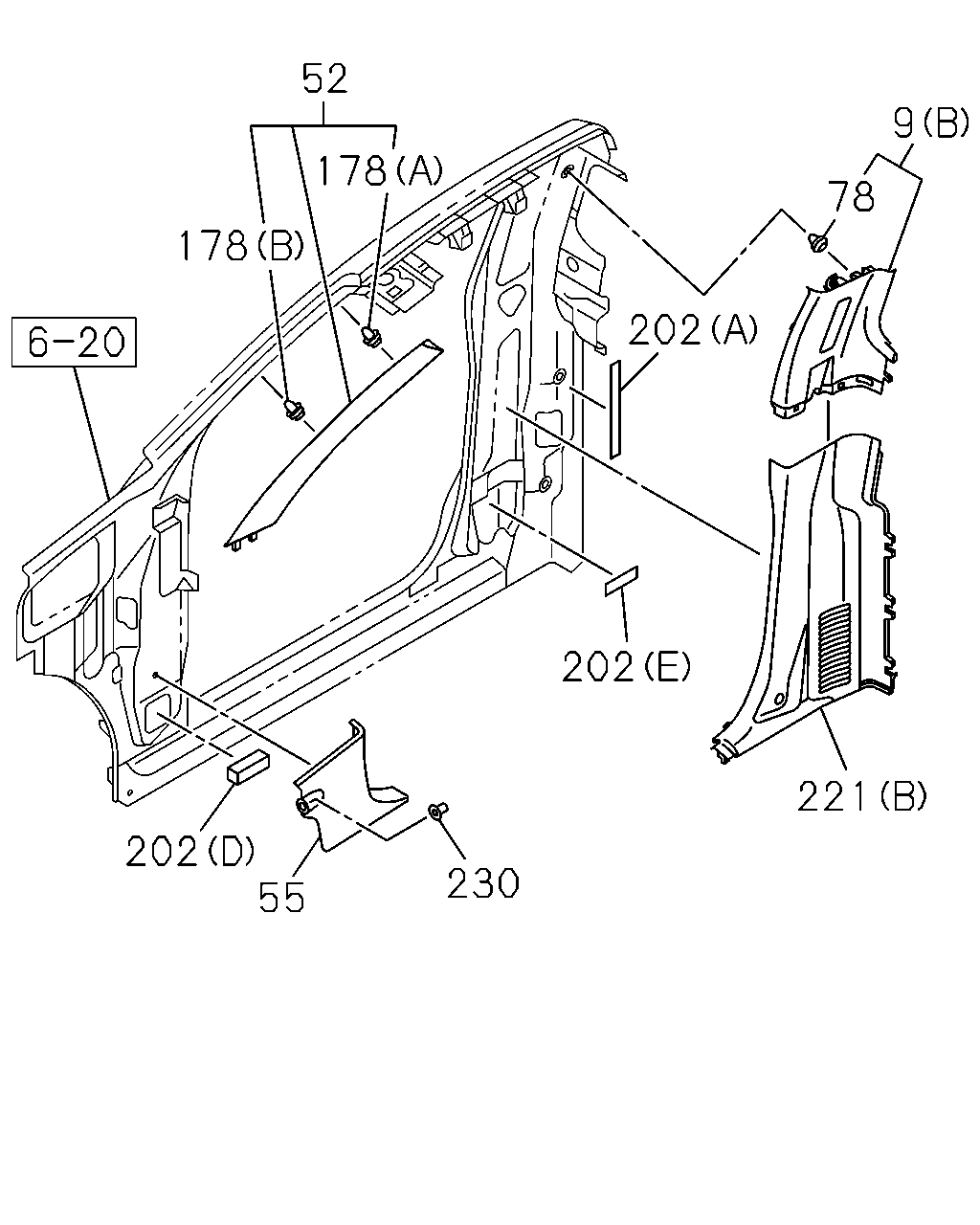

9 |
16.575 TRIM; SIDE PANEL,UPR
JUMP SEAT<AJ2>
(A)
BLACK
|
8-97416-707-2 |
01 |
1 |
1409- |
● |
● |
|
|
|
|
| |
9 |
16.575 TRIM; SIDE PANEL,UPR
JUMP SEAT<AJ2>
(A)
BLACK
|
8-97416-709-2 |
01 |
1 |
1409- |
● |
● |
|
|
|
|
| |
9 |
16.575 TRIM; SIDE PANEL,UPR
EXC. JUMP SEAT<AJ2>
(A)
BLACK
|
8-97416-711-2 |
01 |
1 |
1409- |
● |
● |
|
|
|
|
| |
9 |
16.575 TRIM; SIDE PANEL,UPR
EXC. JUMP SEAT<AJ2>
(A)
BLACK
|
8-97416-713-2 |
01 |
1 |
1409- |
● |
● |
|
|
|
|
| |
9 |
16.575 TRIM; SIDE PANEL,UPR
(B)
BLACK
|
8-97417-118-1 |
01 |
1 |
1409- |
|
|
● |
● |
|
|
| |
9 |
16.575 TRIM; SIDE PANEL,UPR
(B)
BLACK
|
8-97417-120-1 |
01 |
1 |
1409- |
|
|
● |
● |
|
|
| |
9 |
16.575 TRIM; SIDE PANEL,UPR
(C)
BLACK
|
8-97416-969-0 |
01 |
1 |
1409- |
|
|
|
|
● |
● |
| |
9 |
16.575 TRIM; SIDE PANEL,UPR
(C)
BLACK
|
8-97416-971-0 |
01 |
1 |
1409- |
|
|
|
|
● |
● |
| |
39 |
16.575 COVER; TRIM,CENTER PILLAR
GRAY
|
8-97416-959-2 |
01 |
1 |
1409- |
|
|
|
|
● |
● |
| |
39 |
16.575 COVER; TRIM,CENTER PILLAR
GRAY
|
8-97416-960-2 |
01 |
1 |
1409- |
|
|
|
|
● |
● |
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
HIGH RIDE SUSPENSION(7YC)
GRAY
|
8-97416-679-2 |
01 |
1 |
1412-1509 |
|
|
● |
|
● |
|
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
GRAY
|
8-97416-679-2 |
01 |
1 |
1412-1509 |
|
● |
|
● |
|
● |
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5)
HIGH RIDE SUSPENSION(7YC)
GRAY
|
8-97416-679-2 |
01 |
1 |
1510- |
● |
|
|
|
|
|
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
HIGH RIDE SUSPENSION(7YC)
GRAY
|
8-97416-679-2 |
01 |
1 |
1510- |
|
|
● |
|
● |
|
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
GRAY
|
8-97416-679-2 |
01 |
1 |
1510- |
|
● |
|
● |
|
● |
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
HIGH RIDE SUSPENSION(7YC)
GRAY
|
8-97416-680-2 |
01 |
1 |
1412-1509 |
|
|
● |
|
● |
|
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
GRAY
|
8-97416-680-2 |
01 |
1 |
1412-1509 |
|
● |
|
● |
|
● |
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5)
HIGH RIDE SUSPENSION(7YC)
GRAY
|
8-97416-680-2 |
01 |
1 |
1510- |
● |
|
|
|
|
|
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
HIGH RIDE SUSPENSION(7YC)
GRAY
|
8-97416-680-2 |
01 |
1 |
1510- |
|
|
● |
|
● |
|
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
GRAY
|
8-97416-680-2 |
01 |
1 |
1510- |
|
● |
|
● |
|
● |
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
EXC. HIGH RIDE SUSPENSION(7YC)
GRAY
|
8-97416-677-2 |
01 |
1 |
1412-1509 |
|
|
● |
|
● |
|
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5)
EXC. HIGH RIDE SUSPENSION(7YC)
GRAY
|
8-97416-677-2 |
01 |
1 |
1510- |
● |
|
|
|
|
|
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
EXC. HIGH RIDE SUSPENSION(7YC)
GRAY
|
8-97416-677-2 |
01 |
1 |
1510- |
|
|
● |
|
● |
|
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
EXC. HIGH RIDE SUSPENSION(7YC)
GRAY
|
8-97416-678-2 |
01 |
1 |
1412-1509 |
|
|
● |
|
● |
|
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5)
EXC. HIGH RIDE SUSPENSION(7YC)
GRAY
|
8-97416-678-2 |
01 |
1 |
1510- |
● |
|
|
|
|
|
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
EXC. HIGH RIDE SUSPENSION(7YC)
GRAY
|
8-97416-678-2 |
01 |
1 |
1510- |
|
|
● |
|
● |
|
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
GRAY
|
8-97419-330-3 |
01 |
1 |
1409-1411 |
● |
|
|
|
|
|
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
EXC. HIGH RIDE SUSPENSION(7YC)
GRAY
|
8-97419-330-3 |
01 |
1 |
1409-1411 |
|
|
● |
|
● |
|
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
GRAY
|
8-97419-330-3 |
01 |
1 |
1412-1509 |
● |
|
|
|
|
|
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
EXC. HIGH RIDE SUSPENSION(7YC)
GRAY
|
8-97419-330-3 |
01 |
1 |
1412-1509 |
|
|
● |
|
● |
|
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
EXC. HIGH RIDE SUSPENSION(7YC)
GRAY
|
8-97419-330-3 |
01 |
1 |
1510- |
● |
|
● |
|
● |
|
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
GRAY
|
8-97419-332-3 |
01 |
1 |
1409-1411 |
● |
|
|
|
|
|
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
EXC. HIGH RIDE SUSPENSION(7YC)
GRAY
|
8-97419-332-3 |
01 |
1 |
1409-1411 |
|
|
● |
|
● |
|
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
GRAY
|
8-97419-332-3 |
01 |
1 |
1412-1509 |
● |
|
|
|
|
|
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
EXC. HIGH RIDE SUSPENSION(7YC)
GRAY
|
8-97419-332-3 |
01 |
1 |
1412-1509 |
|
|
● |
|
● |
|
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
EXC. HIGH RIDE SUSPENSION(7YC)
GRAY
|
8-97419-332-3 |
01 |
1 |
1510- |
● |
|
● |
|
● |
|
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
HIGH RIDE SUSPENSION(7YC)
GRAY
|
8-97419-331-3 |
01 |
1 |
1409-1411 |
|
|
● |
|
● |
|
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
GRAY
|
8-97419-331-3 |
01 |
1 |
1409-1411 |
|
● |
|
● |
|
● |
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
HIGH RIDE SUSPENSION(7YC)
GRAY
|
8-97419-331-3 |
01 |
1 |
1412-1509 |
|
|
● |
|
● |
|
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
GRAY
|
8-97419-331-3 |
01 |
1 |
1412-1509 |
|
● |
|
● |
|
● |
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
HIGH RIDE SUSPENSION(7YC)
GRAY
|
8-97419-331-3 |
01 |
1 |
1510- |
● |
|
● |
|
● |
|
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
GRAY
|
8-97419-331-3 |
01 |
1 |
1510- |
|
● |
|
● |
|
● |
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
HIGH RIDE SUSPENSION(7YC)
GRAY
|
8-97419-333-3 |
01 |
1 |
1409-1411 |
|
|
● |
|
● |
|
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
GRAY
|
8-97419-333-3 |
01 |
1 |
1409-1411 |
|
● |
|
● |
|
● |
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
HIGH RIDE SUSPENSION(7YC)
GRAY
|
8-97419-333-3 |
01 |
1 |
1412-1509 |
|
|
● |
|
● |
|
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
GRAY
|
8-97419-333-3 |
01 |
1 |
1412-1509 |
|
● |
|
● |
|
● |
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
HIGH RIDE SUSPENSION(7YC)
GRAY
|
8-97419-333-3 |
01 |
1 |
1510- |
● |
|
● |
|
● |
|
| |
52 |
16.165 COVER; TRIM,FRT PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
GRAY
|
8-97419-333-3 |
01 |
1 |
1510- |
|
● |
|
● |
|
● |
| |
55 |
16.166 PAD; TRIM,DASH SIDE
BLACK
|
8-97416-673-3 |
01 |
1 |
1409- |
● |
● |
● |
● |
● |
● |
| |
55 |
16.166 PAD; TRIM,DASH SIDE
BLACK
|
8-97424-004-0 |
01 |
1 |
1409- |
● |
● |
● |
● |
● |
● |
| |
78 |
16.165 CLIP; TRIM PAD,SIDE PANEL
|
8-97351-983-0 |
04 |
1 |
1409- |
● |
● |
|
|
● |
● |
| |
78 |
16.165 CLIP; TRIM PAD,SIDE PANEL
|
8-97351-983-0 |
08 |
1 |
1409- |
|
|
● |
● |
|
|
| |
78 |
16.165 CLIP; TRIM PAD,SIDE PANEL
|
8-97351-983-0 |
06 |
1 |
1409- |
|
|
|
|
● |
● |
| |
163 |
16.575 COVER; TRIM,CENTER PILLAR,LWR
HIGH RIDE SUSPENSION(7YC)
BLACK
|
8-97424-384-1 |
01 |
1 |
1409-1411 |
|
|
|
|
● |
|
| |
163 |
16.575 COVER; TRIM,CENTER PILLAR,LWR
BLACK
|
8-97424-384-1 |
01 |
1 |
1409-1411 |
|
|
|
|
|
● |
| |
163 |
16.575 COVER; TRIM,CENTER PILLAR,LWR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
HIGH RIDE SUSPENSION(7YC)
BLACK
|
8-97424-384-1 |
01 |
1 |
1412- |
|
|
|
|
● |
|
| |
163 |
16.575 COVER; TRIM,CENTER PILLAR,LWR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
BLACK
|
8-97424-384-1 |
01 |
1 |
1412- |
|
|
|
|
|
● |
| |
163 |
16.575 COVER; TRIM,CENTER PILLAR,LWR
HIGH RIDE SUSPENSION(7YC)
BLACK
|
8-97424-385-1 |
01 |
1 |
1409-1411 |
|
|
|
|
● |
|
| |
163 |
16.575 COVER; TRIM,CENTER PILLAR,LWR
BLACK
|
8-97424-385-1 |
01 |
1 |
1409-1411 |
|
|
|
|
|
● |
| |
163 |
16.575 COVER; TRIM,CENTER PILLAR,LWR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
HIGH RIDE SUSPENSION(7YC)
BLACK
|
8-97424-385-1 |
01 |
1 |
1412- |
|
|
|
|
● |
|
| |
163 |
16.575 COVER; TRIM,CENTER PILLAR,LWR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
BLACK
|
8-97424-385-1 |
01 |
1 |
1412- |
|
|
|
|
|
● |
| |
163 |
16.575 COVER; TRIM,CENTER PILLAR,LWR
EXC. HIGH RIDE SUSPENSION(7YC)
BLACK
|
8-97416-961-4 |
01 |
1 |
1409-1411 |
|
|
|
|
● |
|
| |
163 |
16.575 COVER; TRIM,CENTER PILLAR,LWR
EXC. AUSTRALIA EQUIPMENT(B13)
BLACK
|
8-97416-961-4 |
01 |
1 |
1412- |
|
|
|
|
● |
● |
| |
163 |
16.575 COVER; TRIM,CENTER PILLAR,LWR
AUSTRALIA EQUIPMENT(B13)
EXC. HIGH RIDE SUSPENSION(7YC)
BLACK
|
8-97416-961-4 |
01 |
1 |
1412- |
|
|
|
|
● |
|
| |
163 |
16.575 COVER; TRIM,CENTER PILLAR,LWR
EXC. HIGH RIDE SUSPENSION(7YC)
BLACK
|
8-97416-963-4 |
01 |
1 |
1409-1411 |
|
|
|
|
● |
|
| |
163 |
16.575 COVER; TRIM,CENTER PILLAR,LWR
EXC. AUSTRALIA EQUIPMENT(B13)
BLACK
|
8-97416-963-4 |
01 |
1 |
1412- |
|
|
|
|
● |
● |
| |
163 |
16.575 COVER; TRIM,CENTER PILLAR,LWR
AUSTRALIA EQUIPMENT(B13)
EXC. HIGH RIDE SUSPENSION(7YC)
BLACK
|
8-97416-963-4 |
01 |
1 |
1412- |
|
|
|
|
● |
|
| |
178 |
16.165 CLIP; TRIM COVER
(B)
|
8-98139-052-0 |
02 |
1 |
1409-1411 |
● |
● |
● |
● |
● |
● |
| |
178 |
16.165 CLIP; TRIM COVER
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
(B)
|
8-98139-052-0 |
02 |
1 |
1412-1503 |
● |
● |
● |
● |
● |
● |
| |
178 |
16.165 CLIP; TRIM COVER
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98139-052-0 |
02 |
1 |
1412-1503 |
● |
|
● |
|
● |
|
| |
178 |
16.165 CLIP; TRIM COVER
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
(B)
|
8-98139-052-0 |
02 |
1 |
1504- |
● |
● |
● |
● |
● |
● |
| |
178 |
16.165 CLIP; TRIM COVER
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98139-052-0 |
02 |
1 |
1504- |
● |
|
● |
|
● |
|
| |
178 |
16.165 CLIP; TRIM COVER
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98139-052-0 |
02 |
1 |
1504- |
● |
|
● |
|
● |
|
| |
178 |
16.165 CLIP; TRIM COVER
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
(B)
|
8-98139-052-0 |
02 |
1 |
1504- |
|
● |
|
● |
|
● |
| |
178 |
16.165 CLIP; TRIM COVER
(A)
|
8-98182-136-0 |
02 |
1 |
1409-1411 |
● |
|
|
|
|
|
| |
178 |
16.165 CLIP; TRIM COVER
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98182-136-0 |
02 |
1 |
1409-1411 |
|
|
● |
|
● |
|
| |
178 |
16.165 CLIP; TRIM COVER
(A)
|
8-98182-136-0 |
02 |
1 |
1412-1509 |
● |
|
|
|
|
|
| |
178 |
16.165 CLIP; TRIM COVER
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98182-136-0 |
02 |
1 |
1412-1509 |
|
|
● |
|
● |
|
| |
178 |
16.165 CLIP; TRIM COVER
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98182-136-0 |
02 |
1 |
1510- |
● |
|
● |
|
● |
|
| |
178 |
16.165 CLIP; TRIM COVER
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
(A)
|
8-98166-326-0 |
02 |
1 |
1412-1509 |
|
● |
● |
● |
● |
● |
| |
178 |
16.165 CLIP; TRIM COVER
AIR BAG DRIVER & PASSENGER(AK5)
(A)
|
8-98166-326-0 |
02 |
1 |
1510- |
● |
|
|
|
|
|
| |
178 |
16.165 CLIP; TRIM COVER
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
(A)
|
8-98166-326-0 |
02 |
1 |
1510- |
|
● |
● |
● |
● |
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
(A)
|
8-98179-381-3 |
02 |
1 |
1409- |
● |
● |
● |
● |
● |
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JJ1-TCX ENG(LS0)
16.332
(C)
OD=52 BLACK
|
1-76798-041-0 |
02 |
1 |
1409-1411 |
● |
|
|
|
|
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JJ1-TCX ENG(LS0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ)
16.332
(C)
OD=52 BLACK
|
1-76798-041-0 |
02 |
1 |
1409-1411 |
|
● |
|
|
|
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JJ1-TCX ENG(LS0)
16.332
(C)
OD=52 BLACK
|
1-76798-041-0 |
02 |
1 |
1412-1505 |
● |
|
|
|
|
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. AUSTRALIA EQUIPMENT(B13)
16.332
(C)
OD=52 BLACK
|
1-76798-041-0 |
02 |
1 |
1412-1505 |
|
● |
|
|
|
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
16.332
(C)
OD=52 BLACK
|
1-76798-041-0 |
02 |
1 |
1412-1505 |
|
● |
|
|
|
|
| |
202 |
16.575 SEAL; CENTER PILLAR
16.332
(C)
OD=52 BLACK
|
1-76798-041-0 |
02 |
1 |
1506- |
● |
● |
|
|
|
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JJ1-TCX ENG(LS0)
(D)
|
8-97362-561-0 |
10 |
1 |
1409-1411 |
● |
|
|
|
|
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JJ1-TCX ENG(LS0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ)
(D)
|
8-97362-561-0 |
10 |
1 |
1409-1411 |
|
● |
|
|
|
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JJ1-TCX ENG(LS0)
(D)
|
8-97362-561-0 |
10 |
1 |
1412-1505 |
● |
|
|
|
|
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. AUSTRALIA EQUIPMENT(B13)
(D)
|
8-97362-561-0 |
10 |
1 |
1412-1505 |
|
● |
|
|
|
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(D)
|
8-97362-561-0 |
10 |
1 |
1412-1505 |
|
● |
|
|
|
|
| |
202 |
16.575 SEAL; CENTER PILLAR
(D)
|
8-97362-561-0 |
10 |
1 |
1506- |
● |
● |
|
|
|
|
| |
202 |
16.575 SEAL; CENTER PILLAR
(E)
|
8-97350-306-0 |
02 |
1 |
1409-1411 |
|
|
● |
|
● |
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
(E)
|
8-97350-306-0 |
02 |
1 |
1412-1505 |
|
|
● |
● |
● |
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
(E)
|
8-97350-306-0 |
02 |
1 |
1506- |
|
|
● |
● |
● |
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JJ1-TCX ENG(LS0)
(D)
|
8-97362-561-0 |
02 |
1 |
1409-1411 |
|
|
● |
● |
|
|
| |
202 |
16.575 SEAL; CENTER PILLAR
HONG KONG EQUIPMENT(B14),SINGAPORE
EQUIPMENT(2G0)
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ)
,RADIO DELETE(UL5),AM/FM,CLOCK,CD
PLAYER(U1C),INST PANEL FOR DIN E SIZE AU
DIO(7QL)
(D)
|
8-97362-561-0 |
02 |
1 |
1412-1505 |
|
|
● |
|
|
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ)
,RADIO DELETE(UL5),AM/FM,CLOCK,CD
PLAYER(U1C),INST PANEL FOR DIN E SIZE AU
DIO(7QL)
EXC. AUSTRALIA EQUIPMENT(B13),HONG
KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT
(2G0)
(D)
|
8-97362-561-0 |
02 |
1 |
1412-1505 |
|
|
● |
|
|
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ)
,RADIO DELETE(UL5),AM/FM,CLOCK,CD
PLAYER(U1C),INST PANEL FOR DIN E SIZE AU
DIO(7QL)
(D)
|
8-97362-561-0 |
02 |
1 |
1412-1505 |
|
|
● |
|
|
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
SINGAPORE EQUIPMENT(2G0)
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ)
,RADIO DELETE(UL5),AM/FM,CLOCK,CD
PLAYER(U1C),INST PANEL FOR DIN E SIZE AU
DIO(7QL)
(D)
|
8-97362-561-0 |
02 |
1 |
1412-1505 |
|
|
|
● |
|
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ)
,RADIO DELETE(UL5),AM/FM,CLOCK,CD
PLAYER(U1C),INST PANEL FOR DIN E SIZE AU
DIO(7QL)
(D)
|
8-97362-561-0 |
02 |
1 |
1412-1505 |
|
|
|
● |
|
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ)
,RADIO DELETE(UL5),AM/FM,CLOCK,CD
PLAYER(U1C),INST PANEL FOR DIN E SIZE AU
DIO(7QL)
EXC. AUSTRALIA EQUIPMENT(B13),
SINGAPORE EQUIPMENT(2G0)
(D)
|
8-97362-561-0 |
02 |
1 |
1412-1505 |
|
|
|
● |
|
|
| |
202 |
16.575 SEAL; CENTER PILLAR
(D)
|
8-97362-561-0 |
02 |
1 |
1506- |
|
|
● |
● |
|
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JJ1-TCX ENG(LS0)
INTERIOR BASIC(RBA)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ)
EXC. HIGH RIDE SUSPENSION(7YC)
(D)
|
8-97362-561-0 |
06 |
1 |
1409-1411 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
INTERIOR BASIC(RBA)
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. HIGH RIDE SUSPENSION(7YC)
(D)
|
8-97362-561-0 |
06 |
1 |
1412-1412 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
LAOS EQUIPMENT(CF0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(D)
|
8-97362-561-0 |
06 |
1 |
1412-1412 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. AUSTRALIA EQUIPMENT(B13),HONG
KONG EQUIPMENT(B14),CONGO
EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE
EQUIPMENT(2G0)
(D)
|
8-97362-561-0 |
06 |
1 |
1412-1412 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
HONG KONG EQUIPMENT(B14),SINGAPORE
EQUIPMENT(2G0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(D)
|
8-97362-561-0 |
06 |
1 |
1412-1412 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
INTERIOR BASIC(RBA)
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
CONGO EQUIPMENT(CDF)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(D)
|
8-97362-561-0 |
06 |
1 |
1412-1412 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
INTERIOR CUSTOM(RBD)
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
KENYA EQUIPMENT(CL1)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(D)
|
8-97362-561-0 |
06 |
1 |
1412-1412 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(D)
|
8-97362-561-0 |
06 |
1 |
1412-1412 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
HONG KONG EQUIPMENT(B14),SINGAPORE
EQUIPMENT(2G0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(D)
|
8-97362-561-0 |
06 |
1 |
1412-1412 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. INDONESIA EQUIPMENT(B00),
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT
(B14),LAOS EQUIPMENT(CF0),KENYA
EQUIPMENT(CL1),SINGAPORE EQUIPMENT(2G0)
(D)
|
8-97362-561-0 |
06 |
1 |
1412-1412 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
LAOS EQUIPMENT(CF0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(D)
|
8-97362-561-0 |
06 |
1 |
1501-1503 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. AUSTRALIA EQUIPMENT(B13),HONG
KONG EQUIPMENT(B14),CONGO
EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE
EQUIPMENT(2G0)
(D)
|
8-97362-561-0 |
06 |
1 |
1501-1503 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
HONG KONG EQUIPMENT(B14),SINGAPORE
EQUIPMENT(2G0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(D)
|
8-97362-561-0 |
06 |
1 |
1501-1503 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
INTERIOR BASIC(RBA)
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
CONGO EQUIPMENT(CDF)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(D)
|
8-97362-561-0 |
06 |
1 |
1501-1503 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
INTERIOR BASIC(RBA)
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. HIGH RIDE SUSPENSION(7YC)
(D)
|
8-97362-561-0 |
06 |
1 |
1501-1503 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(D)
|
8-97362-561-0 |
06 |
1 |
1501-1503 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
HONG KONG EQUIPMENT(B14),SINGAPORE
EQUIPMENT(2G0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(D)
|
8-97362-561-0 |
06 |
1 |
1501-1503 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. INDONESIA EQUIPMENT(B00),
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT
(B14),LAOS EQUIPMENT(CF0),SINGAPORE
EQUIPMENT(2G0)
(D)
|
8-97362-561-0 |
06 |
1 |
1501-1503 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
LAOS EQUIPMENT(CF0)
(D)
|
8-97362-561-0 |
06 |
1 |
1504-1505 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
EXC. AUSTRALIA EQUIPMENT(B13),HONG
KONG EQUIPMENT(B14),CONGO
EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE
EQUIPMENT(2G0)
(D)
|
8-97362-561-0 |
06 |
1 |
1504-1505 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
HONG KONG EQUIPMENT(B14),SINGAPORE
EQUIPMENT(2G0)
(D)
|
8-97362-561-0 |
06 |
1 |
1504-1505 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
INTERIOR BASIC(RBA)
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
CONGO EQUIPMENT(CDF)
(D)
|
8-97362-561-0 |
06 |
1 |
1504-1505 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
INTERIOR BASIC(RBA)
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
EXC. HIGH RIDE SUSPENSION(7YC)
(D)
|
8-97362-561-0 |
06 |
1 |
1504-1505 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0)
(D)
|
8-97362-561-0 |
06 |
1 |
1504-1505 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
HONG KONG EQUIPMENT(B14),SINGAPORE
EQUIPMENT(2G0)
(D)
|
8-97362-561-0 |
06 |
1 |
1504-1505 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
EXC. INDONESIA EQUIPMENT(B00),
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT
(B14),LAOS EQUIPMENT(CF0),SINGAPORE
EQUIPMENT(2G0)
(D)
|
8-97362-561-0 |
06 |
1 |
1504-1505 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
LAOS EQUIPMENT(CF0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(D)
|
8-97362-561-0 |
06 |
1 |
1506-1506 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. AUSTRALIA EQUIPMENT(B13),HONG
KONG EQUIPMENT(B14),CONGO
EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE
EQUIPMENT(2G0)
(D)
|
8-97362-561-0 |
06 |
1 |
1506-1506 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
HONG KONG EQUIPMENT(B14),SINGAPORE
EQUIPMENT(2G0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(D)
|
8-97362-561-0 |
06 |
1 |
1506-1506 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
INTERIOR BASIC(RBA)
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
CONGO EQUIPMENT(CDF)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(D)
|
8-97362-561-0 |
06 |
1 |
1506-1506 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
INTERIOR BASIC(RBA)
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. HIGH RIDE SUSPENSION(7YC)
(D)
|
8-97362-561-0 |
06 |
1 |
1506-1506 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(D)
|
8-97362-561-0 |
06 |
1 |
1506-1506 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
HONG KONG EQUIPMENT(B14),SINGAPORE
EQUIPMENT(2G0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(D)
|
8-97362-561-0 |
06 |
1 |
1506-1506 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. INDONESIA EQUIPMENT(B00),
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT
(B14),LAOS EQUIPMENT(CF0),SINGAPORE
EQUIPMENT(2G0)
(D)
|
8-97362-561-0 |
06 |
1 |
1506-1506 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
HIGH RIDE SUSPENSION(7YC)
(D)
|
8-97362-561-0 |
04 |
1 |
1506- |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
(D)
|
8-97362-561-0 |
04 |
1 |
1506- |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JJ1-TCX ENG(LS0)
INTERIOR BASIC(RBA)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ)
EXC. HIGH RIDE SUSPENSION(7YC)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1409-1411 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JJ1-TCX ENG(LS0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ)
HIGH RIDE SUSPENSION(7YC)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1409-1411 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JJ1-TCX ENG(LS0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1409-1411 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
INTERIOR BASIC(RBA)
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
CONGO EQUIPMENT(CDF)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1412-1412 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
INTERIOR BASIC(RBA)
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. HIGH RIDE SUSPENSION(7YC)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1412-1412 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
LAOS EQUIPMENT(CF0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1412-1412 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. AUSTRALIA EQUIPMENT(B13),HONG
KONG EQUIPMENT(B14),CONGO
EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE
EQUIPMENT(2G0)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1412-1412 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13),HONG KONG
EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
HIGH RIDE SUSPENSION(7YC)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1412-1412 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
HONG KONG EQUIPMENT(B14),SINGAPORE
EQUIPMENT(2G0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. HIGH RIDE SUSPENSION(7YC)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1412-1412 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
INTERIOR CUSTOM(RBD)
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
KENYA EQUIPMENT(CL1)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1412-1412 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1412-1412 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13),HONG KONG
EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1412-1412 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. INDONESIA EQUIPMENT(B00),
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT
(B14),LAOS EQUIPMENT(CF0),KENYA
EQUIPMENT(CL1),SINGAPORE EQUIPMENT(2G0)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1412-1412 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
INTERIOR BASIC(RBA)
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
CONGO EQUIPMENT(CDF)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1501-1503 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
INTERIOR BASIC(RBA)
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. HIGH RIDE SUSPENSION(7YC)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1501-1503 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
LAOS EQUIPMENT(CF0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1501-1503 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. AUSTRALIA EQUIPMENT(B13),HONG
KONG EQUIPMENT(B14),CONGO
EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE
EQUIPMENT(2G0)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1501-1503 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13),HONG KONG
EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
HIGH RIDE SUSPENSION(7YC)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1501-1503 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
HONG KONG EQUIPMENT(B14),SINGAPORE
EQUIPMENT(2G0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. HIGH RIDE SUSPENSION(7YC)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1501-1503 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1501-1503 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13),HONG KONG
EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1501-1503 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. INDONESIA EQUIPMENT(B00),
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT
(B14),LAOS EQUIPMENT(CF0),SINGAPORE
EQUIPMENT(2G0)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1501-1503 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
INTERIOR BASIC(RBA)
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
CONGO EQUIPMENT(CDF)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1504-1505 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
INTERIOR BASIC(RBA)
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
EXC. HIGH RIDE SUSPENSION(7YC)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1504-1505 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
LAOS EQUIPMENT(CF0)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1504-1505 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
EXC. AUSTRALIA EQUIPMENT(B13),HONG
KONG EQUIPMENT(B14),CONGO
EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE
EQUIPMENT(2G0)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1504-1505 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13),HONG KONG
EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)
HIGH RIDE SUSPENSION(7YC)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1504-1505 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
HONG KONG EQUIPMENT(B14),SINGAPORE
EQUIPMENT(2G0)
EXC. HIGH RIDE SUSPENSION(7YC)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1504-1505 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1504-1505 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13),HONG KONG
EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1504-1505 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
EXC. INDONESIA EQUIPMENT(B00),
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT
(B14),LAOS EQUIPMENT(CF0),SINGAPORE
EQUIPMENT(2G0)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1504-1505 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
INTERIOR BASIC(RBA)
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
CONGO EQUIPMENT(CDF)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1506-1506 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
INTERIOR BASIC(RBA)
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. HIGH RIDE SUSPENSION(7YC)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1506-1506 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
LAOS EQUIPMENT(CF0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1506-1506 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. AUSTRALIA EQUIPMENT(B13),HONG
KONG EQUIPMENT(B14),CONGO
EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE
EQUIPMENT(2G0)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1506-1506 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13),HONG KONG
EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
HIGH RIDE SUSPENSION(7YC)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1506-1506 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
HONG KONG EQUIPMENT(B14),SINGAPORE
EQUIPMENT(2G0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. HIGH RIDE SUSPENSION(7YC)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1506-1506 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1506-1506 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13),HONG KONG
EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1506-1506 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. INDONESIA EQUIPMENT(B00),
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT
(B14),LAOS EQUIPMENT(CF0),SINGAPORE
EQUIPMENT(2G0)
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1506-1506 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
16.165
(C)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1506- |
|
|
|
|
● |
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JJ1-TCX ENG(LS0)
INTERIOR BASIC(RBA)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ)
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98269-733-0 |
02 |
1 |
1409-1411 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JJ1-TCX ENG(LS0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ)
HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98269-733-0 |
02 |
1 |
1409-1411 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JJ1-TCX ENG(LS0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ)
(B)
|
8-98269-733-0 |
02 |
1 |
1409-1411 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
INTERIOR BASIC(RBA)
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
CONGO EQUIPMENT(CDF)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(B)
|
8-98269-733-0 |
02 |
1 |
1412-1412 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
INTERIOR BASIC(RBA)
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98269-733-0 |
02 |
1 |
1412-1412 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
LAOS EQUIPMENT(CF0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(B)
|
8-98269-733-0 |
02 |
1 |
1412-1412 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. AUSTRALIA EQUIPMENT(B13),HONG
KONG EQUIPMENT(B14),CONGO
EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE
EQUIPMENT(2G0)
(B)
|
8-98269-733-0 |
02 |
1 |
1412-1412 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13),HONG KONG
EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98269-733-0 |
02 |
1 |
1412-1412 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
HONG KONG EQUIPMENT(B14),SINGAPORE
EQUIPMENT(2G0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98269-733-0 |
02 |
1 |
1412-1412 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
INTERIOR CUSTOM(RBD)
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
KENYA EQUIPMENT(CL1)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(B)
|
8-98269-733-0 |
02 |
1 |
1412-1412 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(B)
|
8-98269-733-0 |
02 |
1 |
1412-1412 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13),HONG KONG
EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(B)
|
8-98269-733-0 |
02 |
1 |
1412-1412 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. INDONESIA EQUIPMENT(B00),
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT
(B14),LAOS EQUIPMENT(CF0),KENYA
EQUIPMENT(CL1),SINGAPORE EQUIPMENT(2G0)
(B)
|
8-98269-733-0 |
02 |
1 |
1412-1412 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
INTERIOR BASIC(RBA)
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
CONGO EQUIPMENT(CDF)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(B)
|
8-98269-733-0 |
02 |
1 |
1501-1503 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
INTERIOR BASIC(RBA)
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98269-733-0 |
02 |
1 |
1501-1503 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
LAOS EQUIPMENT(CF0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(B)
|
8-98269-733-0 |
02 |
1 |
1501-1503 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. AUSTRALIA EQUIPMENT(B13),HONG
KONG EQUIPMENT(B14),CONGO
EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE
EQUIPMENT(2G0)
(B)
|
8-98269-733-0 |
02 |
1 |
1501-1503 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13),HONG KONG
EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98269-733-0 |
02 |
1 |
1501-1503 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
HONG KONG EQUIPMENT(B14),SINGAPORE
EQUIPMENT(2G0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98269-733-0 |
02 |
1 |
1501-1503 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(B)
|
8-98269-733-0 |
02 |
1 |
1501-1503 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13),HONG KONG
EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(B)
|
8-98269-733-0 |
02 |
1 |
1501-1503 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. INDONESIA EQUIPMENT(B00),
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT
(B14),LAOS EQUIPMENT(CF0),SINGAPORE
EQUIPMENT(2G0)
(B)
|
8-98269-733-0 |
02 |
1 |
1501-1503 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
INTERIOR BASIC(RBA)
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
CONGO EQUIPMENT(CDF)
(B)
|
8-98269-733-0 |
02 |
1 |
1504-1505 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
INTERIOR BASIC(RBA)
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98269-733-0 |
02 |
1 |
1504-1505 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
LAOS EQUIPMENT(CF0)
(B)
|
8-98269-733-0 |
02 |
1 |
1504-1505 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
EXC. AUSTRALIA EQUIPMENT(B13),HONG
KONG EQUIPMENT(B14),CONGO
EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE
EQUIPMENT(2G0)
(B)
|
8-98269-733-0 |
02 |
1 |
1504-1505 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13),HONG KONG
EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)
HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98269-733-0 |
02 |
1 |
1504-1505 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
HONG KONG EQUIPMENT(B14),SINGAPORE
EQUIPMENT(2G0)
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98269-733-0 |
02 |
1 |
1504-1505 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0)
(B)
|
8-98269-733-0 |
02 |
1 |
1504-1505 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13),HONG KONG
EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)
(B)
|
8-98269-733-0 |
02 |
1 |
1504-1505 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
EXC. INDONESIA EQUIPMENT(B00),
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT
(B14),LAOS EQUIPMENT(CF0),SINGAPORE
EQUIPMENT(2G0)
(B)
|
8-98269-733-0 |
02 |
1 |
1504-1505 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
INTERIOR BASIC(RBA)
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
CONGO EQUIPMENT(CDF)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(B)
|
8-98269-733-0 |
02 |
1 |
1506-1506 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
INTERIOR BASIC(RBA)
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98269-733-0 |
02 |
1 |
1506-1506 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
LAOS EQUIPMENT(CF0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(B)
|
8-98269-733-0 |
02 |
1 |
1506-1506 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. AUSTRALIA EQUIPMENT(B13),HONG
KONG EQUIPMENT(B14),CONGO
EQUIPMENT(CDF),LAOS EQUIPMENT(CF0),SINGAPORE
EQUIPMENT(2G0)
(B)
|
8-98269-733-0 |
02 |
1 |
1506-1506 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13),HONG KONG
EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98269-733-0 |
02 |
1 |
1506-1506 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
HONG KONG EQUIPMENT(B14),SINGAPORE
EQUIPMENT(2G0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98269-733-0 |
02 |
1 |
1506-1506 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
INDONESIA EQUIPMENT(B00),LAOS
EQUIPMENT(CF0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(B)
|
8-98269-733-0 |
02 |
1 |
1506-1506 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13),HONG KONG
EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(B)
|
8-98269-733-0 |
02 |
1 |
1506-1506 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
AIR BAG DRIVER & PASSENGER(AK5),AIR
BAG DRIVER & PASSENGER DELETE(AK6)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
EXC. INDONESIA EQUIPMENT(B00),
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT
(B14),LAOS EQUIPMENT(CF0),SINGAPORE
EQUIPMENT(2G0)
(B)
|
8-98269-733-0 |
02 |
1 |
1506-1506 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
(B)
|
8-98269-733-0 |
02 |
1 |
1506- |
|
|
|
|
● |
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
4JJ1-TCX ENG(LS0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ)
HIGH RIDE SUSPENSION(7YC)
(D)
|
8-97362-561-0 |
04 |
1 |
1409-1411 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JJ1-TCX ENG(LS0)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ)
(D)
|
8-97362-561-0 |
04 |
1 |
1409-1411 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
HIGH RIDE SUSPENSION(7YC)
(D)
|
8-97362-561-0 |
04 |
1 |
1412-1503 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(D)
|
8-97362-561-0 |
04 |
1 |
1412-1503 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
HIGH RIDE SUSPENSION(7YC)
(D)
|
8-97362-561-0 |
04 |
1 |
1504-1505 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
(D)
|
8-97362-561-0 |
04 |
1 |
1504-1505 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
HIGH RIDE SUSPENSION(7YC)
(D)
|
8-97362-561-0 |
04 |
1 |
1506-1506 |
|
|
|
|
● |
|
| |
202 |
16.575 SEAL; CENTER PILLAR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)
AIR BAG DRIVER & PASSENGER & SIDE & R
OOF(AY0)
AUSTRALIA EQUIPMENT(B13)
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI
W/DISPLAY(UCY),AM/FM,CLOCK,BLUE TOOTH,CD P
LAYER(UGQ),RADIO DELETE(UL5),AM/FM,
CLOCK,CD PLAYER(U1C),INST PANEL FOR DIN
E SIZE AUDIO(7QL)
(D)
|
8-97362-561-0 |
04 |
1 |
1506-1506 |
|
|
|
|
|
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
EXC. AUSTRALIA EQUIPMENT(B13)
(D)
|
8-97362-561-0 |
06 |
1 |
1506- |
|
|
|
|
● |
● |
| |
202 |
16.575 SEAL; CENTER PILLAR
AUSTRALIA EQUIPMENT(B13)
EXC. HIGH RIDE SUSPENSION(7YC)
(D)
|
8-97362-561-0 |
06 |
1 |
1506- |
|
|
|
|
● |
|
| |
221 |
16.592 TRIM; SIDE PANEL,LOWER
(A)
BLACK
|
8-97428-384-0 |
01 |
1 |
1409- |
● |
● |
|
|
|
|
| |
221 |
16.592 TRIM; SIDE PANEL,LOWER
(A)
BLACK
|
8-97428-386-0 |
01 |
1 |
1409- |
● |
● |
|
|
|
|
| |
221 |
16.592 TRIM; SIDE PANEL,LOWER
(B)
BLACK
|
8-97417-114-3 |
01 |
1 |
1409- |
|
|
● |
● |
|
|
| |
221 |
16.592 TRIM; SIDE PANEL,LOWER
(B)
BLACK
|
8-97417-116-3 |
01 |
1 |
1409- |
|
|
● |
● |
|
|
| |
221 |
16.592 TRIM; SIDE PANEL,LOWER
(C)
BLACK
|
8-97416-965-1 |
01 |
1 |
1409- |
|
|
|
|
● |
● |
| |
221 |
16.592 TRIM; SIDE PANEL,LOWER
(C)
BLACK
|
8-97416-967-1 |
01 |
1 |
1409- |
|
|
|
|
● |
● |
| |
230 |
16.578 RETAINER; TRIM
BLACK
|
8-97416-808-0 |
02 |
1 |
1409- |
● |
● |
● |
● |
● |
● |
