Isuzu WW
▶
TRUCKS
▶
FVM
▶
11131 - FVM(INDONESIA)6SD1
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-30 - AIR CLEANER
▶

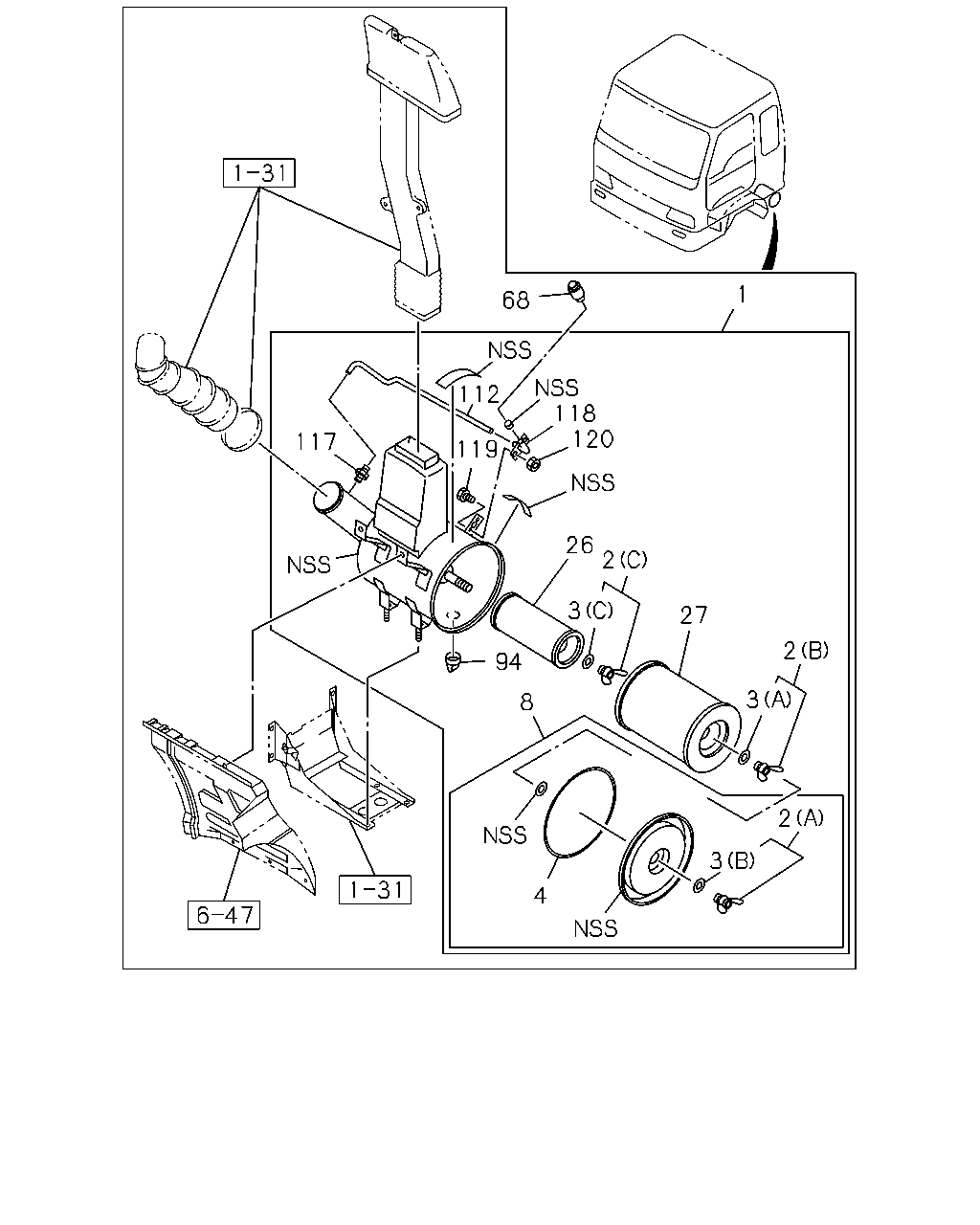

1-30 — AIR CLEANER
(#14850) — 19 parça
1
68
118
120
112
117
119
26
2
3
27
2
94
3
8
2
3
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLEANER ASM; AIR
1-14210-826-2
01
1
0711-
2
NUT; WING,ELEMENT
(C)
1-14217-003-0
01
1
0711-
2
NUT; WING,ELEMENT
(A)
1-14217-049-0
01
1
0711-
2
NUT; WING,ELEMENT
(B)
1-14217-050-0
01
1
0711-
3
WASHER; SEAL,WING NUT
(C)
1-14219-032-0
01
1
0711-
3
WASHER; SEAL,WING NUT
(A)
1-14219-118-0
01
1
0711-
3
WASHER; SEAL,WING NUT
(B)
1-14219-156-0
01
1
0711-
4
GASKET; COVER TO BODY
1-14219-128-0
01
1
0711-
8
COVER ASM; ACL
1-14212-053-0
01
1
0711-
26
FILTER; ACL,INNER
1-14215-151-0
01
1
0711-
27
FILTER; ACL,OUTER
BEST VALUE PARTS
1-87610-058-0
01
1
0711-
27
FILTER; ACL,OUTER
1-14215-181-0
01
1
0711-
68
INDICATOR; SERVICE
1-14219-212-0
01
1
0711-
94
VALVE; VACUATOR
1-14219-192-0
01
1
0711-
112
HOSE; INDICATOR
1-14219-273-0
01
1
0711-
117
JOINT; INDICATOR HOSE
1-14219-272-0
01
1
0711-
118
BRACKET; INDICATOR
1-14219-187-0
01
1
0711-
119
BOLT; INDICATOR BRKT
M6X16
9-02040-616-0
02
1
0711-
120
NUT; INDICATOR BRKT
M6 IDN
9-09111-406-0
02
1
0711-
