◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51580 - TFR/TFS RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-14 - DASH PANEL AND FENDER SKIRT ▶
6-14 — DASH PANEL AND FENDER SKIRT (#148497) — 10 parça

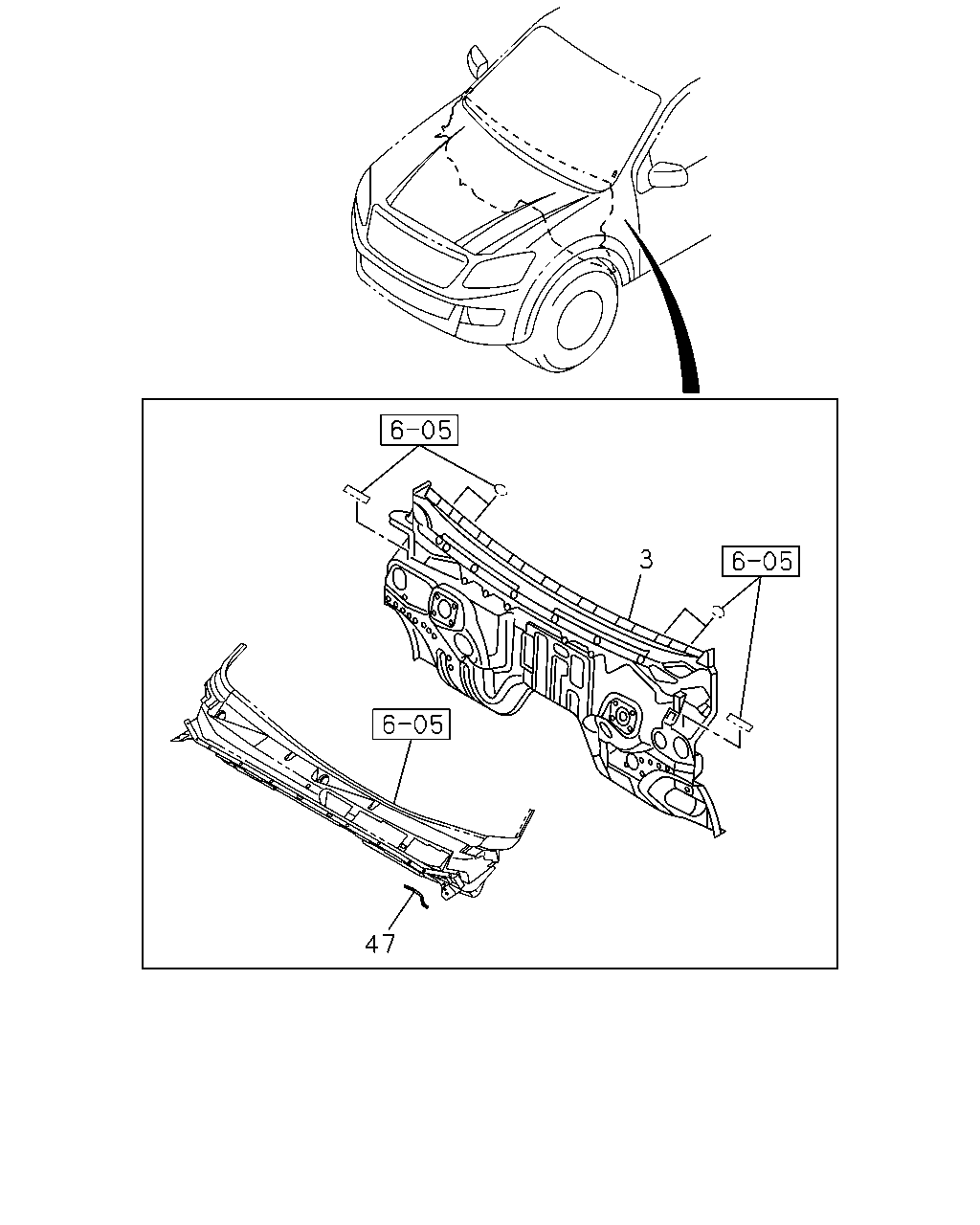

çizim 443888
3 47
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 16.550 PANEL; SUB,DASH LWR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) CONGO EQUIPMENT(CDF) 		8-98124-738-2 01 1 1412- ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JA1-T ENG(LP0) CONGO EQUIPMENT(CDF) 		8-98206-216-2 01 1 1412- ● ●
3 16.550 PANEL; SUB,DASH LWR
4JA1-T ENG(LP0) EXC. CONGO EQUIPMENT(CDF) 		8-98103-215-2 01 1 1412- ● ●
3 16.550 PANEL; SUB,DASH LWR
4JJ1-TCX ENG(LS0) 		8-98103-213-1 01 1 1409-1411 ● ● ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JJ1-TCX ENG(LS0) 		8-98103-213-2 01 1 1412- ●
3 16.550 PANEL; SUB,DASH LWR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) EXC. CONGO EQUIPMENT(CDF) 		8-98103-213-2 01 1 1412- ● ● ● ●
3 16.550 PANEL; SUB,DASH LWR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-98103-213-2 01 1 1412- ●
47 16.550 TAPE; DASH PANEL
4JA1-T ENG(LP0) 		8-98151-273-0 02 1 1412- ● ●
47 16.550 TAPE; DASH PANEL
4JJ1-TCX ENG(LS0) 		8-98151-273-0 01 1 1409-1411 ● ● ● ● ● ●
47 16.550 TAPE; DASH PANEL
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 		8-98151-273-0 01 1 1412- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
