◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51580 - TFR/TFS RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#148493) — 56 parça

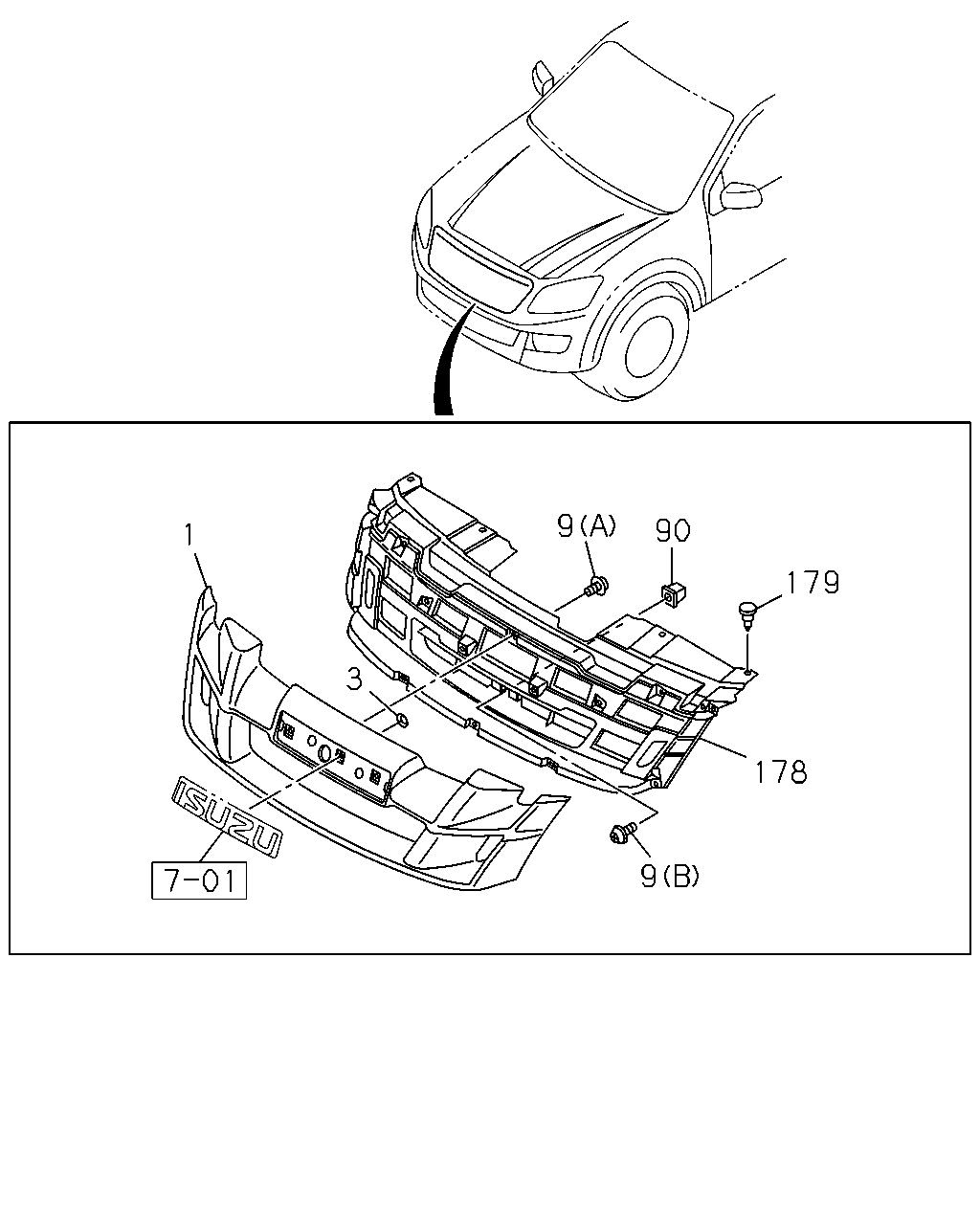

çizim 443390
1 3 9 90 179 178 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> EXC. KD PAINT LESS SUPPLY<7TV> PLEASE PAINT TO MATCH BODY COLOR 		8-98196-514-1 01 1 1409- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> PLATED 		8-98193-869-0 01 1 1409- ● ● ●
1 01.266 GRILLE; RAD
KD PAINT LESS SUPPLY<7TV> 		8-98193-867-0 01 1 1409- ● ● ●
1 01.266 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1> ,KD PAINT LESS SUPPLY<7TV> 		8-98193-867-0 01 1 1409- ● ● ●
1 01.266 GRILLE; RAD
KD PAINT LESS SUPPLY<7TV> EXC. BRIGHT RAD GRILLE<V22> 		8-98193-867-0 01 1 1409- ● ● ●
1 01.266 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1> ,BRIGHT RAD GRILLE<V22>,KD PAINT LESSSUPPLY<7TV> 		8-98193-867-0 01 1 1409- ● ● ●
3 01.269 CLIP; GRILLE 8-98211-687-0 03 1 1409- ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
(B) M5X16 		8-98167-352-0 01 1 1409- ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
(A) M5X16 TAPPING W/PL WASHER 		8-98193-872-0 12 1 1409- ● ● ● ● ● ●
90 01.269 NUT; RAD GRILLE
02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 1409- ● ● ● ● ● ●
178 01.269 GRILLE; INNER,RAD 8-98193-871-0 01 1 1409- ● ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
07.832 		8-97301-188-0 04 1 1409- ● ● ● ● ● ●

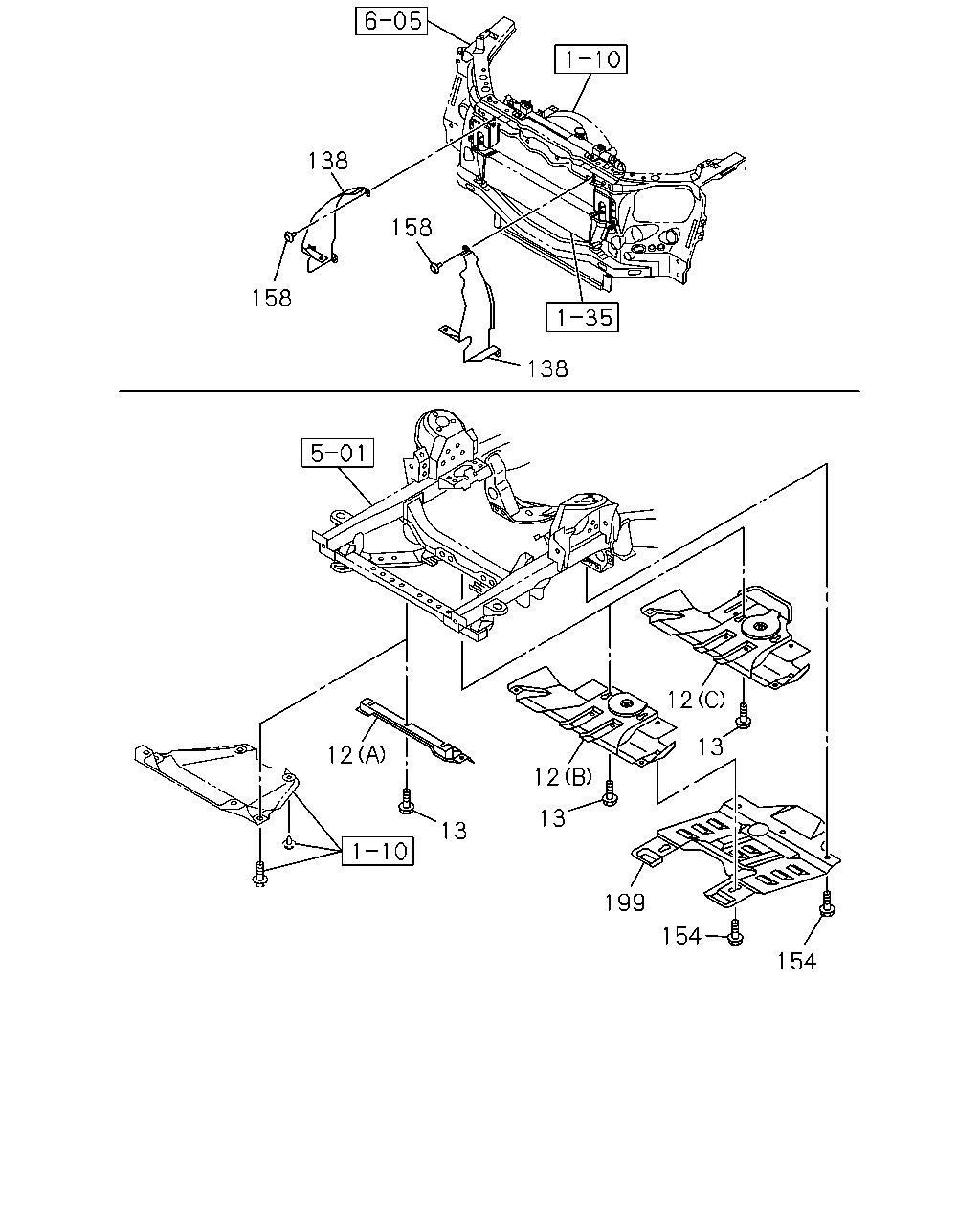

çizim 443972
138 158 138 158 12 13 12 13 199 154 154 12 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 01.274 PLATE; SKID,RAD
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) EXC. UNDER FRT GUARD<6RJ> (C) 		8-98102-131-2 01 1 1412-1412 ● ●
12 01.274 PLATE; SKID,RAD
4JJ1-TCX ENG(LS0) SKID PLATE<7WE> (A) 		8-98102-129-1 01 1 1409-1411 ● ● ●
12 01.274 PLATE; SKID,RAD
4JJ1-TCX ENG(LS0) (A) 		8-98102-129-1 01 1 1409-1411 ● ● ●
12 01.274 PLATE; SKID,RAD
4JJ1-TCX ENG(LS0) SKID PLATE<7WE> (A) 		8-98102-129-1 01 1 1412-1505 ●
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> (A) 		8-98102-129-1 01 1 1412-1505 ● ●
12 01.274 PLATE; SKID,RAD
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) 		8-98102-129-1 01 1 1412-1505 ●
12 01.274 PLATE; SKID,RAD
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) (A) 		8-98102-129-1 01 1 1412-1505 ● ●
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> (A) 		8-98102-129-1 01 1 1506- ● ● ●
12 01.274 PLATE; SKID,RAD
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) 		8-98102-129-1 01 1 1506- ●
12 01.274 PLATE; SKID,RAD
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) (A) 		8-98102-129-1 01 1 1506- ● ●
12 01.274 PLATE; SKID,RAD
4JJ1-TCX ENG(LS0) SKID PLATE<7WE> (B) 		8-98229-406-0 01 1 1409-1411 ● ● ●
12 01.274 PLATE; SKID,RAD
4JJ1-TCX ENG(LS0) (B) 		8-98229-406-0 01 1 1409-1411 ● ● ●
12 01.274 PLATE; SKID,RAD
4JJ1-TCX ENG(LS0) SKID PLATE<7WE> (B) 		8-98229-406-0 01 1 1412-1412 ●
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> (B) 		8-98229-406-0 01 1 1412-1412 ● ●
12 01.274 PLATE; SKID,RAD
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (B) 		8-98229-406-0 01 1 1412-1412 ●
12 01.274 PLATE; SKID,RAD
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) UNDER FRT GUARD<6RJ> (B) 		8-98229-406-0 01 1 1412-1412 ● ●
12 01.274 PLATE; SKID,RAD
4JJ1-TCX ENG(LS0) SKID PLATE<7WE> (B) 		8-98229-406-0 01 1 1501-1505 ●
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> (B) 		8-98229-406-0 01 1 1501-1505 ● ●
12 01.274 PLATE; SKID,RAD
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (B) 		8-98229-406-0 01 1 1501-1505 ●
12 01.274 PLATE; SKID,RAD
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) (B) 		8-98229-406-0 01 1 1501-1505 ● ●
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> (B) 		8-98229-406-0 01 1 1506- ● ● ●
12 01.274 PLATE; SKID,RAD
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (B) 		8-98229-406-0 01 1 1506- ●
12 01.274 PLATE; SKID,RAD
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) (B) 		8-98229-406-0 01 1 1506- ● ●
13 01.267 BOLT; RAD SKID PLATE
4JJ1-TCX ENG(LS0) SKID PLATE<7WE> M10X28 W/LK&PL WASHER 		8-97945-706-0 09 1 1409-1411 ● ● ●
13 01.267 BOLT; RAD SKID PLATE
4JJ1-TCX ENG(LS0) M10X28 W/LK&PL WASHER 		8-97945-706-0 09 1 1409-1411 ● ● ●
13 01.267 BOLT; RAD SKID PLATE
4JJ1-TCX ENG(LS0) SKID PLATE<7WE> M10X28 W/LK&PL WASHER 		8-97945-706-0 09 1 1412-1505 ●
13 01.267 BOLT; RAD SKID PLATE
SKID PLATE<7WE> M10X28 W/LK&PL WASHER 		8-97945-706-0 09 1 1412-1505 ● ●
13 01.267 BOLT; RAD SKID PLATE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) M10X28 W/LK&PL WASHER 		8-97945-706-0 09 1 1412-1505 ●
13 01.267 BOLT; RAD SKID PLATE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) M10X28 W/LK&PL WASHER 		8-97945-706-0 09 1 1412-1505 ● ●
13 01.267 BOLT; RAD SKID PLATE
SKID PLATE<7WE> M10X28 W/LK&PL WASHER 		8-97945-706-0 09 1 1506- ● ● ●
13 01.267 BOLT; RAD SKID PLATE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) M10X28 W/LK&PL WASHER 		8-97945-706-0 09 1 1506- ●
13 01.267 BOLT; RAD SKID PLATE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) M10X28 W/LK&PL WASHER 		8-97945-706-0 09 1 1506- ● ●
138 01.266 GUIDE; AIR
4JJ1-TCX ENG(LS0) 		8-98137-586-1 01 1 1409-1411 ● ● ● ● ● ●
138 01.266 GUIDE; AIR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 		8-98137-586-1 01 1 1412- ● ● ● ● ● ●
138 01.266 GUIDE; AIR
4JJ1-TCX ENG(LS0) 		8-98137-587-1 01 1 1409-1411 ● ● ● ● ● ●
138 01.266 GUIDE; AIR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 		8-98137-587-1 01 1 1412- ● ● ● ● ● ●
154 01.267 BOLT; COVER
4JJ1-TCX ENG(LS0) 01.428 M12X25 FLANGE 		8-98230-015-0 04 1 1409-1411 ● ● ●
154 01.267 BOLT; COVER
UNDER FRT GUARD<6RJ> HIGH RIDE SUSPENSION(7YC) 01.428 M12X25 FLANGE 		8-98230-015-0 04 1 1412- ● ●
154 01.267 BOLT; COVER
01.428 M12X25 FLANGE 		8-98230-015-0 04 1 1412- ● ● ●
158 01.269 CLIP; PROTECTOR
4JJ1-TCX ENG(LS0) 08.154 OD=22 L=10.7 		8-94215-211-0 06 1 1409-1411 ● ● ● ● ● ●
158 01.269 CLIP; PROTECTOR
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 08.154 OD=22 L=10.7 		8-94215-211-0 06 1 1412- ● ● ● ● ● ●
199 01.274 PLATE; OIL PAN
4JJ1-TCX ENG(LS0) 01.426 		8-98229-404-0 01 1 1409-1411 ● ● ●
199 01.274 PLATE; OIL PAN
UNDER FRT GUARD<6RJ> HIGH RIDE SUSPENSION(7YC) 01.426 		8-98229-404-0 01 1 1412- ● ●
199 01.274 PLATE; OIL PAN
01.426 		8-98229-404-0 01 1 1412- ● ● ●
