◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51580 - TFR/TFS RHD ▶ 5 - Frame, Cab Mounting ▶ 5-40 - ENGINE ROOM INSULATOR ▶
5-40 — ENGINE ROOM INSULATOR (#148491) — 10 parça

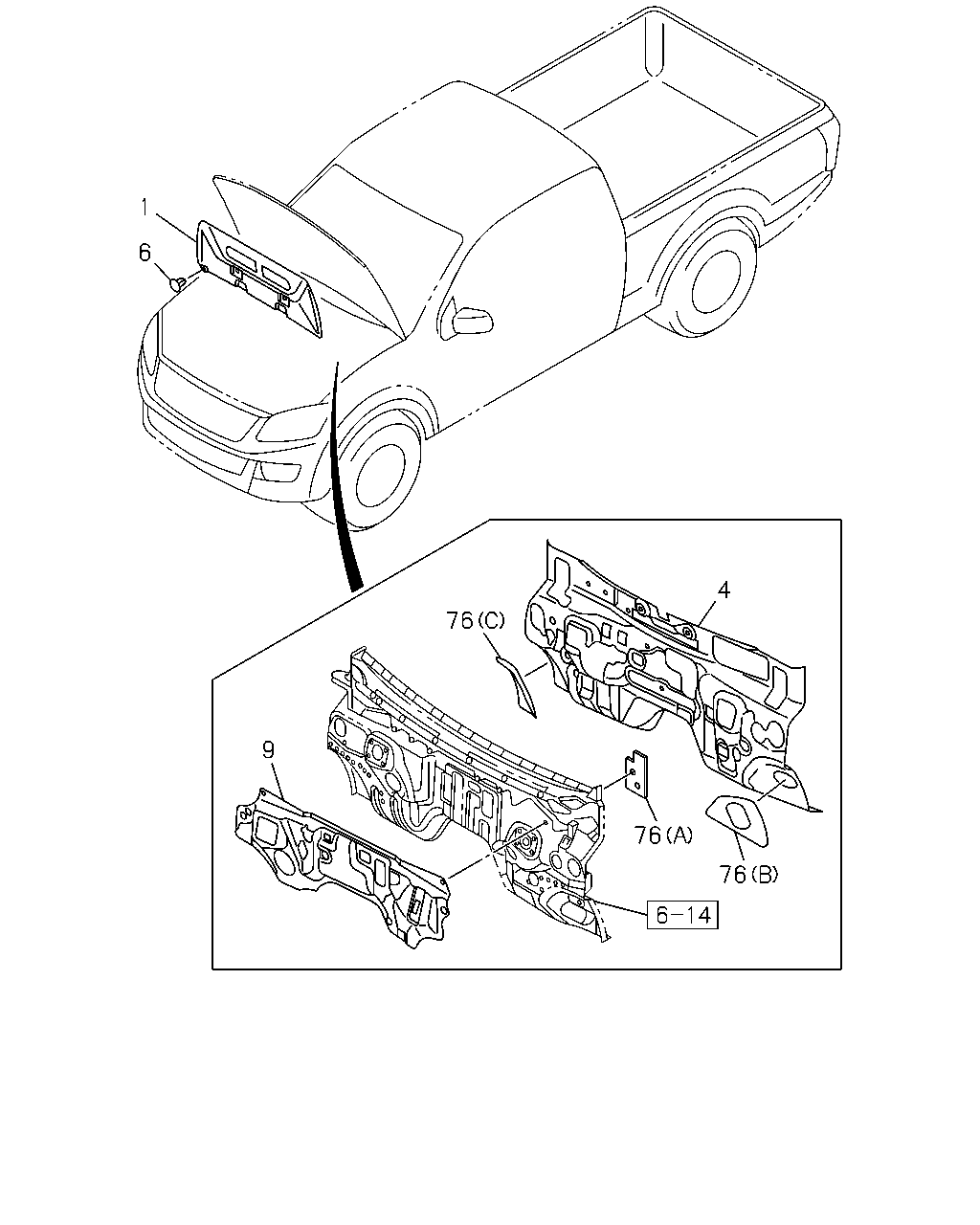

çizim 443799
76 4 76 9 6 1 76
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 08.021 INSULATION; ENG HOOD 8-98074-100-1 01 1 1409- ● ● ● ● ● ●
4 08.021 INSULATION; DASH PNL,INNER
INDONESIA EQUIPMENT(B00),LAOS EQUIPMENT(CF0) 		8-98276-090-0 01 1 1412- ● ● ●
4 08.021 INSULATION; DASH PNL,INNER
4JJ1-TCX ENG(LS0) 		8-98074-011-1 01 1 1409-1411 ● ● ● ● ● ●
4 08.021 INSULATION; DASH PNL,INNER 8-98074-011-1 01 1 1412- ● ● ●
4 08.021 INSULATION; DASH PNL,INNER
EXC. INDONESIA EQUIPMENT(B00),LAOS EQUIPMENT(CF0) 		8-98074-011-1 01 1 1412- ● ● ●
6 08.021 CLIP; ENG HOOD INSULATION
ID=6.2 L=11.4 		8-97808-623-0 09 1 1409- ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM 8-98074-008-0 01 1 1409- ● ● ● ● ● ●
76 15.280 DEADENER; DASH ENG ROOM
(A) 		8-98104-578-2 01 1 1409- ● ● ● ● ● ●
76 15.280 DEADENER; DASH ENG ROOM
(B) 		8-98161-052-0 01 1 1409- ● ● ● ● ● ●
76 15.280 DEADENER; DASH ENG ROOM
(C) 		8-98161-053-0 01 1 1409- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
