Isuzu WW
▶
TRUCKS
▶
FVM
▶
11131 - FVM(INDONESIA)6SD1
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶

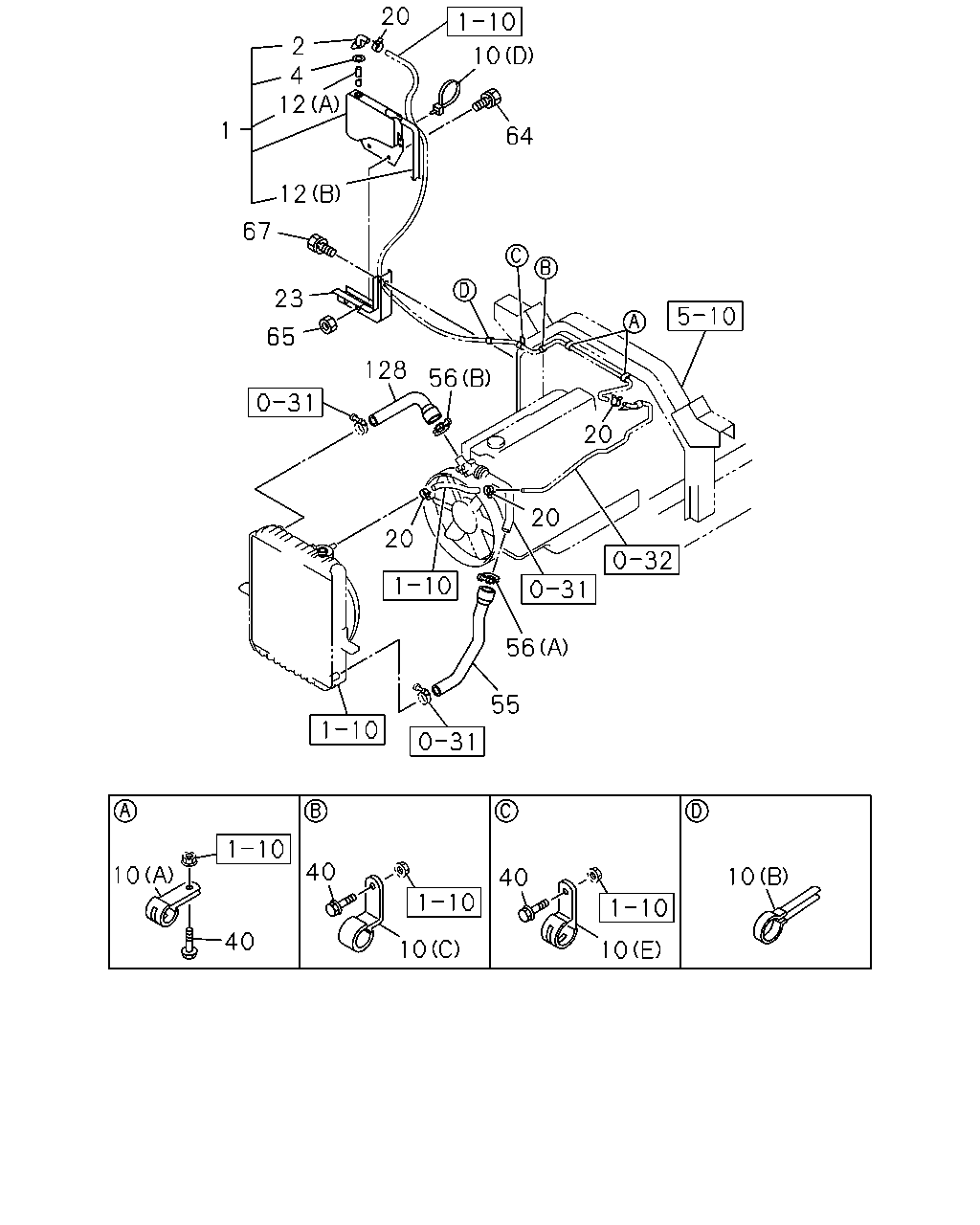

1-11 — RADIATOR HOSE AND SUB TANK
(#14849) — 20 parça
20
2
4
12
10
1
64
12
67
23
65
128
56
20
20
20
56
55
40
10
10
40
40
10
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
1-21480-104-1
01
1
0711-
2
CAP; SURGE TANK
1-21483-008-0
01
1
0711-
4
GASKET; SURGE TANK
5-21489-006-0
01
1
0711-
10
CLIP; RUBBER HOSE
(E) ID=13 L=20
0-95235-235-0
01
1
0711-
10
CLIP; RUBBER HOSE
(C) ID=15 H=24 L=20
1-09700-606-0
01
1
0711-
10
CLIP; RUBBER HOSE
(A) ID=14.5 L=40
1-09701-014-0
02
1
0711-
10
CLIP; RUBBER HOSE
(D) L=140 IDN
5-09707-031-1
01
1
0711-
10
CLIP; RUBBER HOSE
(B) ID=14 L=44
9-09917-427-0
01
1
0711-
12
HOSE; SURGE TANK
(B) L=300
1-09366-199-0
01
1
0711-
12
HOSE; SURGE TANK
(A)
1-21489-203-0
01
1
0711-
20
CLIP; HOSE,RAD
ID=12 IDN
8-94238-610-0
04
1
0711-
23
BRACKET; RESERVE TANK
1-21489-128-0
01
1
0711-
40
BOLT; CLIP
M8X20 FLANGE IDN
0-28650-820-0
04
1
0711-
55
HOSE; WATER,RAD OUTLET
1-21437-543-0
01
1
0711-
56
CLIP; WATER HOSE,RAD
(B) ID=76
1-09704-069-0
01
1
0711-
56
CLIP; WATER HOSE,RAD
(A) ID=70
1-09704-078-0
01
1
0711-
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-093-0
04
1
0711-
65
NUT; BRKT,SUB TANK
M8 FLANGE
0-91180-108-0
04
1
0711-
67
BOLT; BRKT
M10X20 FLANGE IDN
0-28651-020-0
02
1
0711-
128
HOSE; WATER,RAD INL
1-21437-544-0
01
1
0711-
