Isuzu WW
▶
PICKUP
▶
TFR
▶
51580 - TFR/TFS RHD
▶
5 - Frame, Cab Mounting
▶
5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#148487) — 60 parça
Tümü
A - TFB5CF
B - TFB5SF
C - TFB5WF
D - TFS5CF
E - TFS5SF
F - TFS5WF
◀

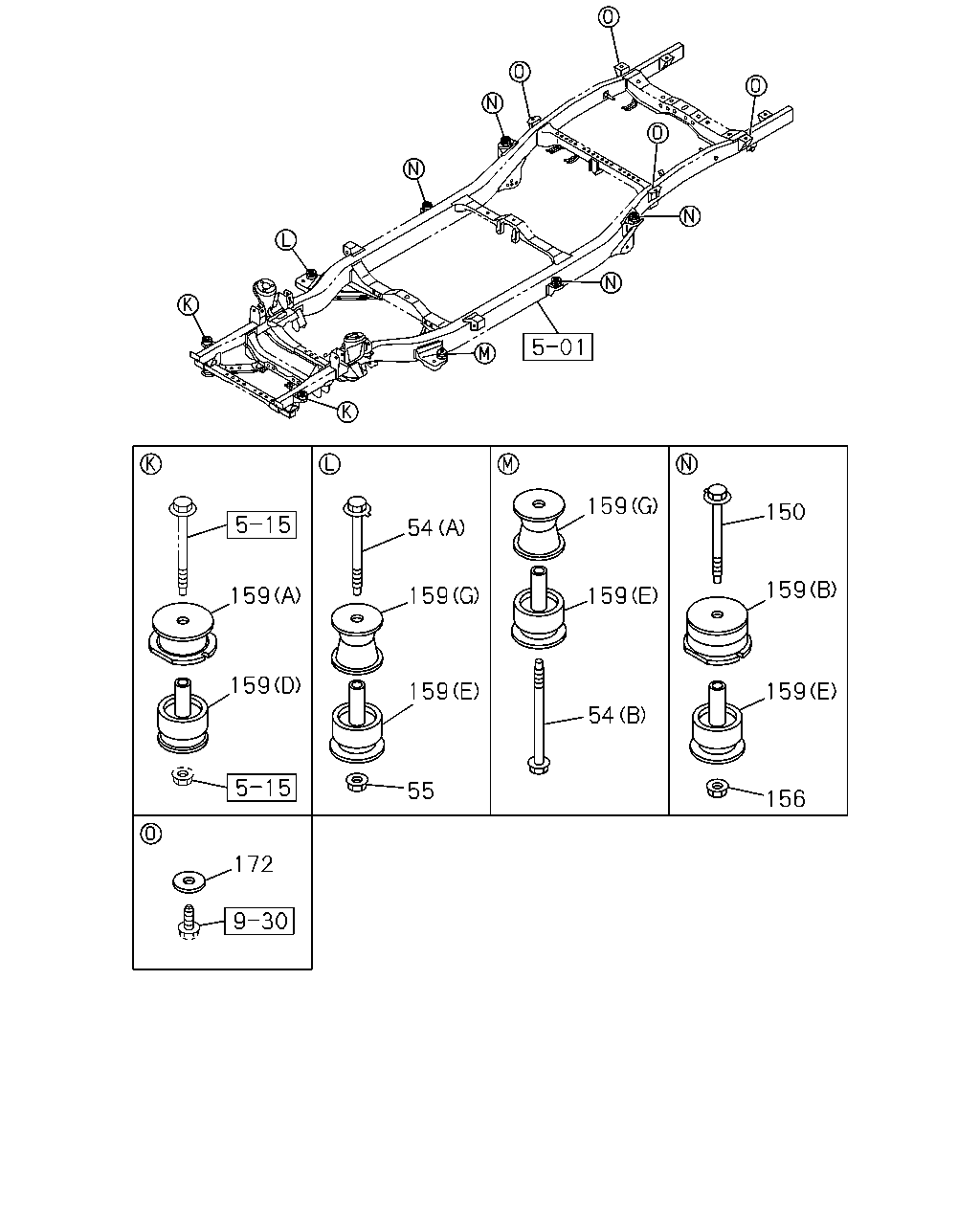

[510A] REGULAR CAB (20 parça)

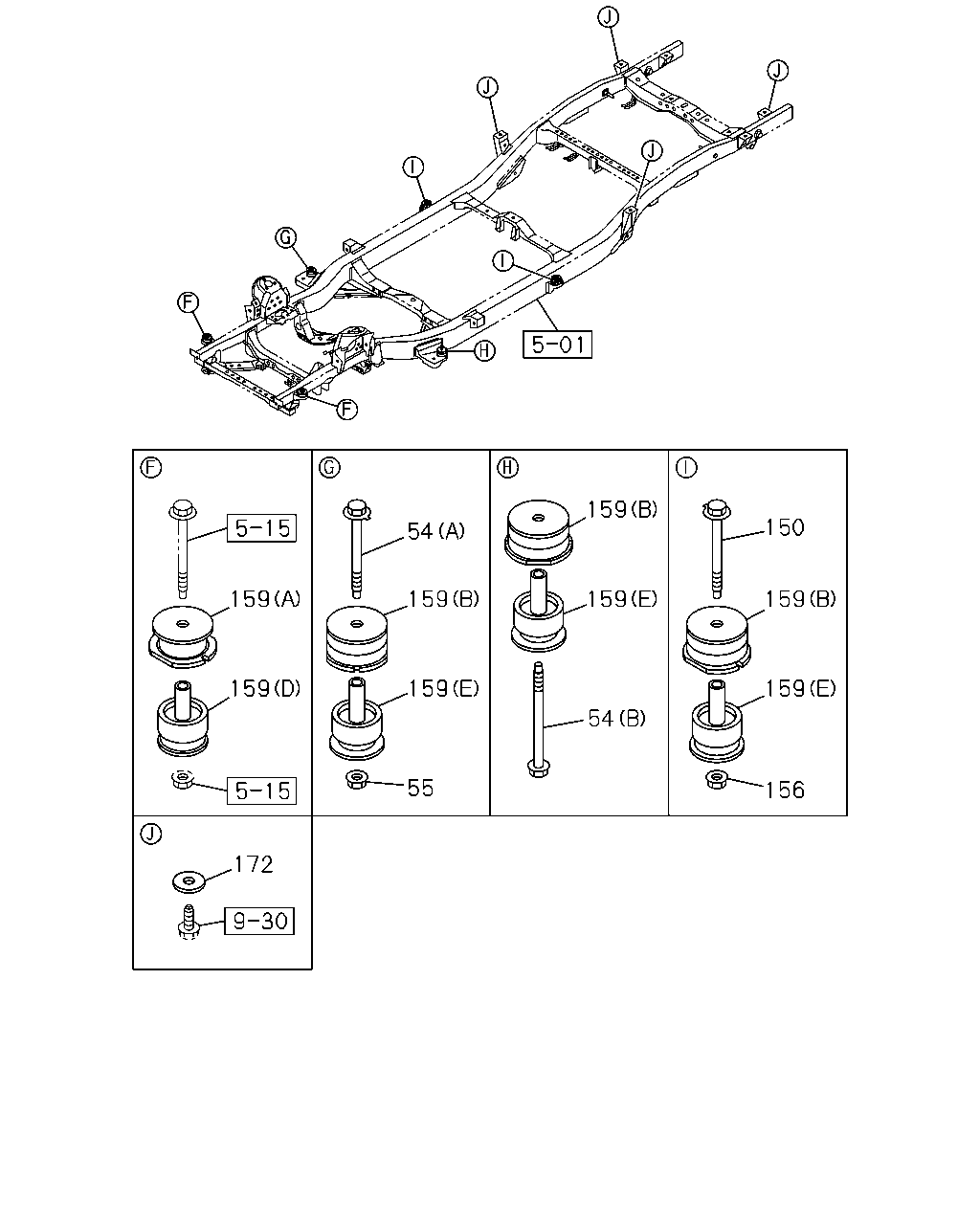

[510A] CREW CAB (20 parça)

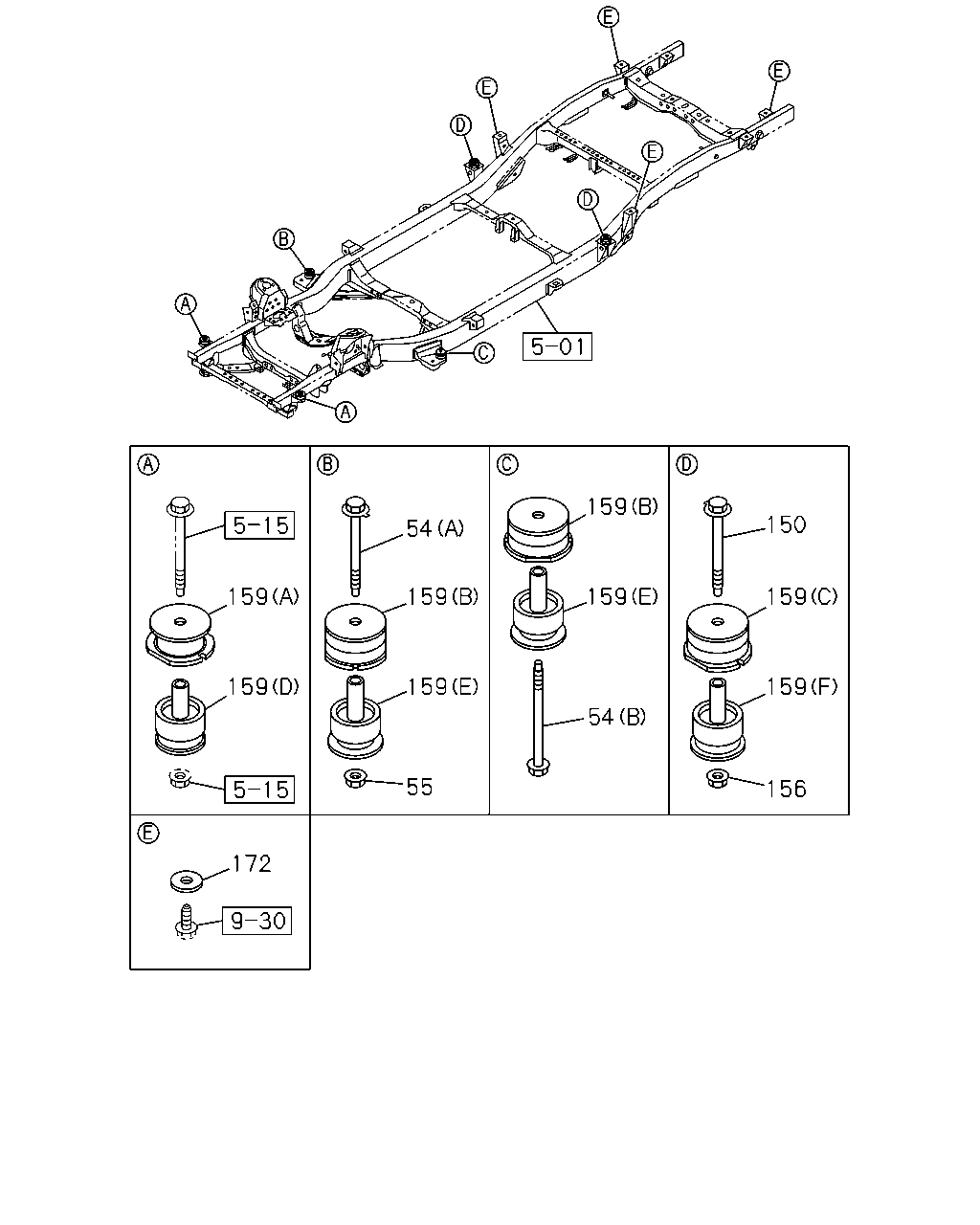

[510A] EXTENDED CAB (20 parça)
▶
156
159
159
150
54
159
159
55
159
159
54
159
159
172
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
54
09.008 BOLT; RUBBER
(A) M10X130 FLANGE
8-98102-202-3
01
1
1409-
●
●
●
●
●
●
54
09.008 BOLT; RUBBER
(B) M10X141 FLANGE
8-98169-670-0
01
1
1409-
●
●
●
●
●
●
55
09.008 NUT; RUBBER
06.672 M10 FLANGE
0-91280-210-0
01
1
1409-
●
●
●
●
●
●
150
09.011 BOLT; CAB MTG RR
09.008 M10X130 FLANGE
8-98102-202-3
02
1
1409-
●
●
●
●
●
●
150
09.011 BOLT; CAB MTG RR
09.008 M10X130 FLANGE
8-98102-202-3
02
1
1409-
●
●
156
07.529 NUT; CAB MTG RR
06.672 M10 FLANGE
0-91280-210-0
02
1
1409-
●
●
●
●
●
●
156
07.529 NUT; CAB MTG RR
06.672 M10 FLANGE
0-91280-210-0
02
1
1409-
●
●
159
09.023 RUBBER; CUSHION,CAB MTG
(B)
8-98174-970-0
02
1
1409-
●
●
●
●
●
●
159
09.023 RUBBER; CUSHION,CAB MTG
(B)
8-98174-970-0
02
1
1409-
●
●
●
●
159
09.023 RUBBER; CUSHION,CAB MTG
(A)
8-97367-285-0
02
1
1409-
●
●
●
●
●
●
159
09.023 RUBBER; CUSHION,CAB MTG
(D)
8-98051-326-0
02
1
1409-
●
●
●
●
●
●
159
09.023 RUBBER; CUSHION,CAB MTG
(F)
8-98075-386-1
02
1
1409-
●
●
159
09.023 RUBBER; CUSHION,CAB MTG
(C)
8-98174-971-0
02
1
1409-
●
●
159
09.023 RUBBER; CUSHION,CAB MTG
(G)
8-98075-381-0
02
1
1409-
●
●
159
09.023 RUBBER; CUSHION,CAB MTG
(E)
8-98075-385-1
02
1
1409-
●
●
●
●
●
●
159
09.023 RUBBER; CUSHION,CAB MTG
(E)
8-98075-385-1
02
1
1409-
●
●
●
●
159
09.023 RUBBER; CUSHION,CAB MTG
(E)
8-98075-385-1
02
1
1409-
●
●
172
09.011 WASHER; BODY MTG RUBBER
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=13 OD=40 T=6
8-98098-458-0
06
1
1409-
●
●
172
09.011 WASHER; BODY MTG RUBBER
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=13 OD=40 T=6
8-98098-458-0
08
1
1409-
●
●
172
09.011 WASHER; BODY MTG RUBBER
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=13 OD=40 T=6
8-98098-458-0
04
1
1409-
●
●
156
159
159
150
54
159
159
54
159
159
55
159
159
172
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
54
09.008 BOLT; RUBBER
(A) M10X130 FLANGE
8-98102-202-3
01
1
1409-
●
●
●
●
●
●
54
09.008 BOLT; RUBBER
(B) M10X141 FLANGE
8-98169-670-0
01
1
1409-
●
●
●
●
●
●
55
09.008 NUT; RUBBER
06.672 M10 FLANGE
0-91280-210-0
01
1
1409-
●
●
●
●
●
●
150
09.011 BOLT; CAB MTG RR
09.008 M10X130 FLANGE
8-98102-202-3
02
1
1409-
●
●
●
●
●
●
150
09.011 BOLT; CAB MTG RR
09.008 M10X130 FLANGE
8-98102-202-3
02
1
1409-
●
●
156
07.529 NUT; CAB MTG RR
06.672 M10 FLANGE
0-91280-210-0
02
1
1409-
●
●
●
●
●
●
156
07.529 NUT; CAB MTG RR
06.672 M10 FLANGE
0-91280-210-0
02
1
1409-
●
●
159
09.023 RUBBER; CUSHION,CAB MTG
(B)
8-98174-970-0
02
1
1409-
●
●
●
●
●
●
159
09.023 RUBBER; CUSHION,CAB MTG
(B)
8-98174-970-0
02
1
1409-
●
●
●
●
159
09.023 RUBBER; CUSHION,CAB MTG
(A)
8-97367-285-0
02
1
1409-
●
●
●
●
●
●
159
09.023 RUBBER; CUSHION,CAB MTG
(D)
8-98051-326-0
02
1
1409-
●
●
●
●
●
●
159
09.023 RUBBER; CUSHION,CAB MTG
(F)
8-98075-386-1
02
1
1409-
●
●
159
09.023 RUBBER; CUSHION,CAB MTG
(C)
8-98174-971-0
02
1
1409-
●
●
159
09.023 RUBBER; CUSHION,CAB MTG
(G)
8-98075-381-0
02
1
1409-
●
●
159
09.023 RUBBER; CUSHION,CAB MTG
(E)
8-98075-385-1
02
1
1409-
●
●
●
●
●
●
159
09.023 RUBBER; CUSHION,CAB MTG
(E)
8-98075-385-1
02
1
1409-
●
●
●
●
159
09.023 RUBBER; CUSHION,CAB MTG
(E)
8-98075-385-1
02
1
1409-
●
●
172
09.011 WASHER; BODY MTG RUBBER
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=13 OD=40 T=6
8-98098-458-0
06
1
1409-
●
●
172
09.011 WASHER; BODY MTG RUBBER
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=13 OD=40 T=6
8-98098-458-0
08
1
1409-
●
●
172
09.011 WASHER; BODY MTG RUBBER
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=13 OD=40 T=6
8-98098-458-0
04
1
1409-
●
●
159
159
54
159
159
55
159
159
54
150
159
159
156
172
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
54
09.008 BOLT; RUBBER
(A) M10X130 FLANGE
8-98102-202-3
01
1
1409-
●
●
●
●
●
●
54
09.008 BOLT; RUBBER
(B) M10X141 FLANGE
8-98169-670-0
01
1
1409-
●
●
●
●
●
●
55
09.008 NUT; RUBBER
06.672 M10 FLANGE
0-91280-210-0
01
1
1409-
●
●
●
●
●
●
150
09.011 BOLT; CAB MTG RR
09.008 M10X130 FLANGE
8-98102-202-3
02
1
1409-
●
●
●
●
●
●
150
09.011 BOLT; CAB MTG RR
09.008 M10X130 FLANGE
8-98102-202-3
02
1
1409-
●
●
156
07.529 NUT; CAB MTG RR
06.672 M10 FLANGE
0-91280-210-0
02
1
1409-
●
●
●
●
●
●
156
07.529 NUT; CAB MTG RR
06.672 M10 FLANGE
0-91280-210-0
02
1
1409-
●
●
159
09.023 RUBBER; CUSHION,CAB MTG
(B)
8-98174-970-0
02
1
1409-
●
●
●
●
●
●
159
09.023 RUBBER; CUSHION,CAB MTG
(B)
8-98174-970-0
02
1
1409-
●
●
●
●
159
09.023 RUBBER; CUSHION,CAB MTG
(A)
8-97367-285-0
02
1
1409-
●
●
●
●
●
●
159
09.023 RUBBER; CUSHION,CAB MTG
(D)
8-98051-326-0
02
1
1409-
●
●
●
●
●
●
159
09.023 RUBBER; CUSHION,CAB MTG
(F)
8-98075-386-1
02
1
1409-
●
●
159
09.023 RUBBER; CUSHION,CAB MTG
(C)
8-98174-971-0
02
1
1409-
●
●
159
09.023 RUBBER; CUSHION,CAB MTG
(G)
8-98075-381-0
02
1
1409-
●
●
159
09.023 RUBBER; CUSHION,CAB MTG
(E)
8-98075-385-1
02
1
1409-
●
●
●
●
●
●
159
09.023 RUBBER; CUSHION,CAB MTG
(E)
8-98075-385-1
02
1
1409-
●
●
●
●
159
09.023 RUBBER; CUSHION,CAB MTG
(E)
8-98075-385-1
02
1
1409-
●
●
172
09.011 WASHER; BODY MTG RUBBER
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=13 OD=40 T=6
8-98098-458-0
06
1
1409-
●
●
172
09.011 WASHER; BODY MTG RUBBER
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=13 OD=40 T=6
8-98098-458-0
08
1
1409-
●
●
172
09.011 WASHER; BODY MTG RUBBER
REAR BODY DBL WALL CTR PULL(E63) 03.023 ID=13 OD=40 T=6
8-98098-458-0
04
1
1409-
●
●
