1 |

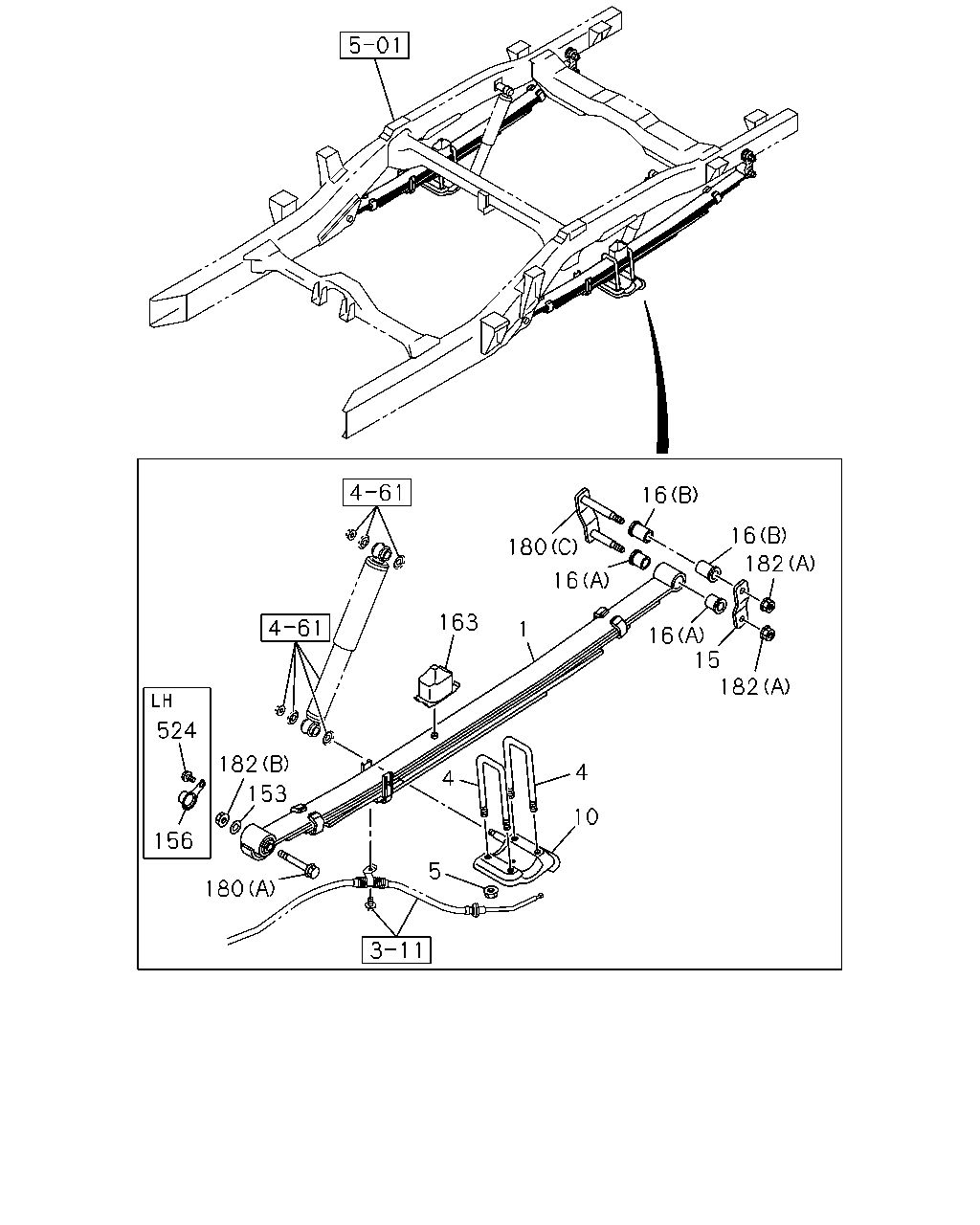

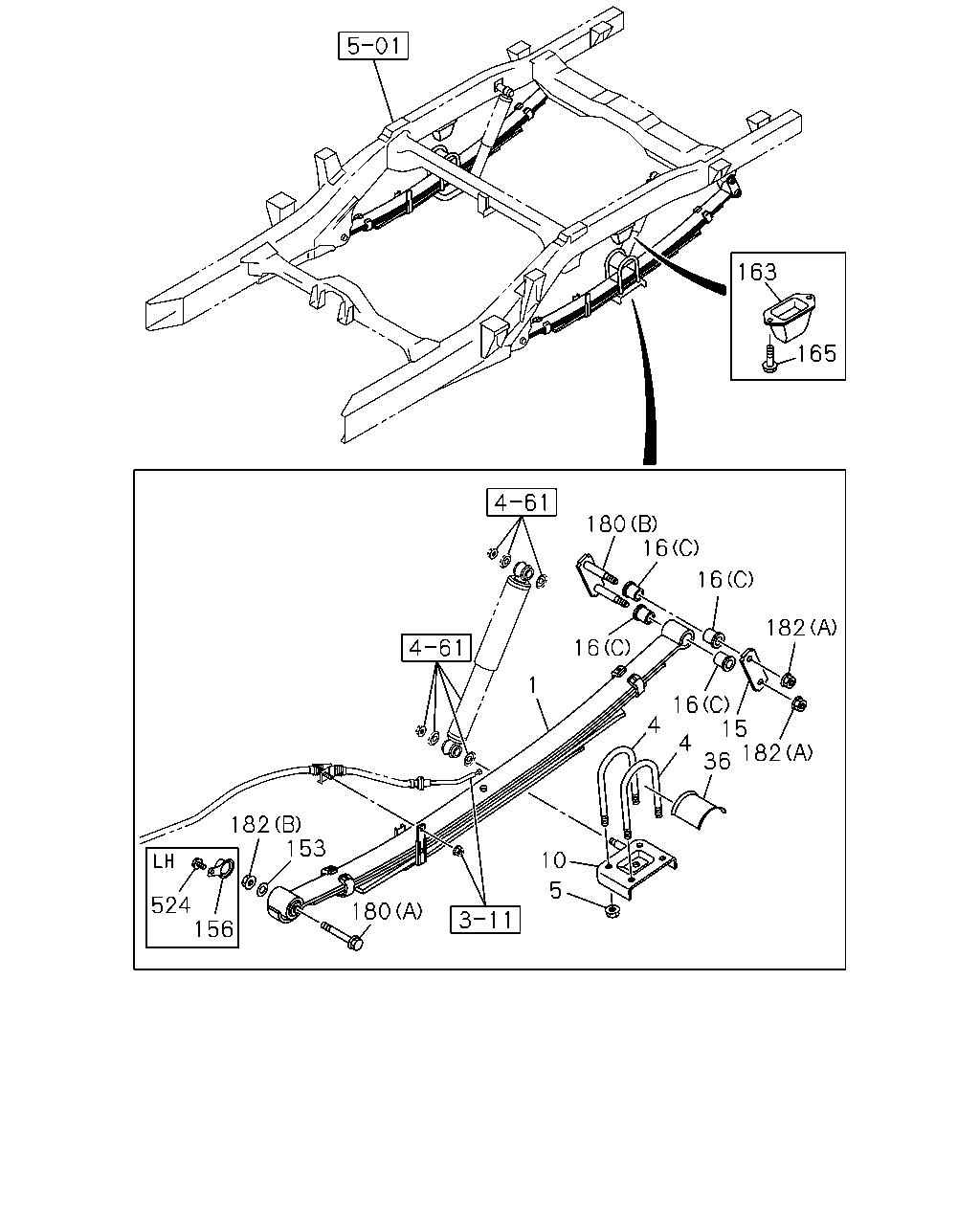

07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
M/T MUX 5 SPEED 5S(MZJ)
REAR SPRING HEAVY DUTY(G50)
6-LEAF
|
8-98201-544-2 |
02 |
1 |
1409-1411 |
● |
|
|
|
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
A/T 5 SPEED-AISIN(MA1),M/T MUX 5
SPEED 5S(MZJ)
REAR SPRING HEAVY DUTY(G50)
EXC. HIGH RIDE SUSPENSION(7YC)
6-LEAF
|
8-98201-544-2 |
02 |
1 |
1409-1411 |
|
● |
● |
|
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
M/T MUX 5 SPEED 5S(MZJ)
REAR SPRING HEAVY DUTY(G50)
6-LEAF
|
8-98201-544-2 |
02 |
1 |
1412-1509 |
● |
|
|
|
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
REAR SPRING HEAVY DUTY(G50)
EXC. HIGH RIDE SUSPENSION(7YC)
6-LEAF
|
8-98201-544-2 |
02 |
1 |
1412-1509 |
|
● |
|
|
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
A/T 5 SPEED-AISIN(MA1),M/T MUA 5
SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),
M/TMSG 5 SPEED(M75),M/T AISIN 6
SPEED(RNU),M/T MUA 5 SPEED 5G(RSP)
REAR SPRING HEAVY DUTY(G50)
EXC. HIGH RIDE SUSPENSION(7YC)
6-LEAF
|
8-98201-544-2 |
02 |
1 |
1412-1509 |
|
|
● |
|
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
A/T 5 SPEED-AISIN(MA1),M/T MUX 5
SPEED 5S(MZJ)
REAR SPRING HEAVY DUTY(G50)
EXC. HIGH RIDE SUSPENSION(7YC)
6-LEAF
|
8-98201-544-2 |
02 |
1 |
1510- |
● |
|
|
|
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
REAR SPRING HEAVY DUTY(G50)
EXC. HIGH RIDE SUSPENSION(7YC)
6-LEAF
|
8-98201-544-2 |
02 |
1 |
1510- |
|
● |
|
|
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
A/T 5 SPEED-AISIN(MA1),M/T MUA 5
SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),
M/TMSG 5 SPEED(M75),M/T AISIN 6
SPEED(RNU),M/T MUA 5 SPEED 5G(RSP)
REAR SPRING HEAVY DUTY(G50)
EXC. HIGH RIDE SUSPENSION(7YC)
6-LEAF
|
8-98201-544-2 |
02 |
1 |
1510- |
|
|
● |
|
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
M/T MUX 5 SPEED 5S(MZJ)
EXC. REAR SPRING HEAVY DUTY(G50)
5-LEAF
|
8-98201-543-3 |
02 |
1 |
1409-1411 |
● |
|
|
|
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
A/T 5 SPEED-AISIN(MA1),M/T MUX 5
SPEED 5S(MZJ)
EXC. REAR SPRING HEAVY DUTY(G50),
HIGHRIDE SUSPENSION(7YC)
5-LEAF
|
8-98201-543-3 |
02 |
1 |
1409-1411 |
|
● |
● |
|
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
M/T MUX 5 SPEED 5S(MZJ)
EXC. REAR SPRING HEAVY DUTY(G50)
5-LEAF
|
8-98201-543-3 |
02 |
1 |
1412-1509 |
● |
|
|
|
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
EXC. REAR SPRING HEAVY DUTY(G50),
HIGHRIDE SUSPENSION(7YC)
5-LEAF
|
8-98201-543-3 |
02 |
1 |
1412-1509 |
|
● |
|
|
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
A/T 5 SPEED-AISIN(MA1),M/T MUA 5
SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),
M/TMSG 5 SPEED(M75),M/T AISIN 6
SPEED(RNU),M/T MUA 5 SPEED 5G(RSP)
EXC. REAR SPRING HEAVY DUTY(G50),
HIGHRIDE SUSPENSION(7YC)
5-LEAF
|
8-98201-543-3 |
02 |
1 |
1412-1509 |
|
|
● |
|
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
A/T 5 SPEED-AISIN(MA1),M/T MUX 5
SPEED 5S(MZJ)
EXC. REAR SPRING HEAVY DUTY(G50),
HIGHRIDE SUSPENSION(7YC)
5-LEAF
|
8-98201-543-3 |
02 |
1 |
1510- |
● |
|
|
|
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
EXC. REAR SPRING HEAVY DUTY(G50),
HIGHRIDE SUSPENSION(7YC)
5-LEAF
|
8-98201-543-3 |
02 |
1 |
1510- |
|
● |
|
|
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
A/T 5 SPEED-AISIN(MA1),M/T MUA 5
SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),
M/TMSG 5 SPEED(M75),M/T AISIN 6
SPEED(RNU),M/T MUA 5 SPEED 5G(RSP)
EXC. REAR SPRING HEAVY DUTY(G50),
HIGHRIDE SUSPENSION(7YC)
5-LEAF
|
8-98201-543-3 |
02 |
1 |
1510- |
|
|
● |
|
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
A/T 5 SPEED-AISIN(MA1),M/T MUX 5
SPEED 5S(MZJ)
REAR SPRING HEAVY DUTY(G50)
HIGH RIDE SUSPENSION(7YC)
5-LEAF
|
8-98282-590-1 |
02 |
1 |
1409-1411 |
|
● |
● |
|
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
M/T MUX 5 SPEED 5S(MZJ)
REAR SPRING HEAVY DUTY(G50)
5-LEAF
|
8-98282-590-1 |
02 |
1 |
1409-1411 |
|
|
|
● |
● |
● |
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
REAR SPRING HEAVY DUTY(G50)
HIGH RIDE SUSPENSION(7YC)
5-LEAF
|
8-98282-590-1 |
02 |
1 |
1412-1509 |
|
● |
|
|
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
A/T 5 SPEED-AISIN(MA1),M/T MUA 5
SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),
M/TMSG 5 SPEED(M75),M/T AISIN 6
SPEED(RNU),M/T MUA 5 SPEED 5G(RSP)
REAR SPRING HEAVY DUTY(G50)
HIGH RIDE SUSPENSION(7YC)
5-LEAF
|
8-98282-590-1 |
02 |
1 |
1412-1509 |
|
|
● |
|
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ)
REAR SPRING HEAVY DUTY(G50)
5-LEAF
|
8-98282-590-1 |
02 |
1 |
1412-1509 |
|
|
|
● |
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU)
REAR SPRING HEAVY DUTY(G50)
5-LEAF
|
8-98282-590-1 |
02 |
1 |
1412-1509 |
|
|
|
|
● |
● |
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
A/T 5 SPEED-AISIN(MA1),M/T MUX 5
SPEED 5S(MZJ)
REAR SPRING HEAVY DUTY(G50)
HIGH RIDE SUSPENSION(7YC)
5-LEAF
|
8-98282-590-1 |
02 |
1 |
1510- |
● |
|
|
|
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
REAR SPRING HEAVY DUTY(G50)
HIGH RIDE SUSPENSION(7YC)
5-LEAF
|
8-98282-590-1 |
02 |
1 |
1510- |
|
● |
|
|
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
A/T 5 SPEED-AISIN(MA1),M/T MUA 5
SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),
M/TMSG 5 SPEED(M75),M/T AISIN 6
SPEED(RNU),M/T MUA 5 SPEED 5G(RSP)
REAR SPRING HEAVY DUTY(G50)
HIGH RIDE SUSPENSION(7YC)
5-LEAF
|
8-98282-590-1 |
02 |
1 |
1510- |
|
|
● |
|
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ)
REAR SPRING HEAVY DUTY(G50)
5-LEAF
|
8-98282-590-1 |
02 |
1 |
1510- |
|
|
|
● |
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU)
REAR SPRING HEAVY DUTY(G50)
5-LEAF
|
8-98282-590-1 |
02 |
1 |
1510- |
|
|
|
|
● |
● |
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
A/T 5 SPEED-AISIN(MA1),M/T MUX 5
SPEED 5S(MZJ)
HIGH RIDE SUSPENSION(7YC)
EXC. REAR SPRING HEAVY DUTY(G50)
5-LEAF
|
8-98282-594-1 |
02 |
1 |
1409-1411 |
|
● |
● |
|
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
M/T MUX 5 SPEED 5S(MZJ)
EXC. REAR SPRING HEAVY DUTY(G50)
5-LEAF
|
8-98282-594-1 |
02 |
1 |
1409-1411 |
|
|
|
● |
● |
● |
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
HIGH RIDE SUSPENSION(7YC)
EXC. REAR SPRING HEAVY DUTY(G50)
5-LEAF
|
8-98282-594-1 |
02 |
1 |
1412-1509 |
|
● |
|
|
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
A/T 5 SPEED-AISIN(MA1),M/T MUA 5
SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),
M/TMSG 5 SPEED(M75),M/T AISIN 6
SPEED(RNU),M/T MUA 5 SPEED 5G(RSP)
HIGH RIDE SUSPENSION(7YC)
EXC. REAR SPRING HEAVY DUTY(G50)
5-LEAF
|
8-98282-594-1 |
02 |
1 |
1412-1509 |
|
|
● |
|
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ)
EXC. REAR SPRING HEAVY DUTY(G50)
5-LEAF
|
8-98282-594-1 |
02 |
1 |
1412-1509 |
|
|
|
● |
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU)
EXC. REAR SPRING HEAVY DUTY(G50)
5-LEAF
|
8-98282-594-1 |
02 |
1 |
1412-1509 |
|
|
|
|
● |
● |
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
A/T 5 SPEED-AISIN(MA1),M/T MUX 5
SPEED 5S(MZJ)
HIGH RIDE SUSPENSION(7YC)
EXC. REAR SPRING HEAVY DUTY(G50)
5-LEAF
|
8-98282-594-1 |
02 |
1 |
1510- |
● |
|
|
|
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
HIGH RIDE SUSPENSION(7YC)
EXC. REAR SPRING HEAVY DUTY(G50)
5-LEAF
|
8-98282-594-1 |
02 |
1 |
1510- |
|
● |
|
|
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
A/T 5 SPEED-AISIN(MA1),M/T MUA 5
SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),
M/TMSG 5 SPEED(M75),M/T AISIN 6
SPEED(RNU),M/T MUA 5 SPEED 5G(RSP)
HIGH RIDE SUSPENSION(7YC)
EXC. REAR SPRING HEAVY DUTY(G50)
5-LEAF
|
8-98282-594-1 |
02 |
1 |
1510- |
|
|
● |
|
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ)
EXC. REAR SPRING HEAVY DUTY(G50)
5-LEAF
|
8-98282-594-1 |
02 |
1 |
1510- |
|
|
|
● |
|
|
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU)
EXC. REAR SPRING HEAVY DUTY(G50)
5-LEAF
|
8-98282-594-1 |
02 |
1 |
1510- |
|
|
|
|
● |
● |
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
A/T 5 SPEED-AISIN(MA1)
REAR SPRING HEAVY DUTY(G50)
5-LEAF
|
8-98282-589-1 |
02 |
1 |
1409- |
|
|
|
● |
● |
● |
| |
1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
A/T 5 SPEED-AISIN(MA1)
EXC. REAR SPRING HEAVY DUTY(G50)
5-LEAF
|
8-98282-593-1 |
02 |
1 |
1409- |
|
|
|
● |
● |
● |
| |
4 |
07.516 U-BOLT; RR SPR
REAR SPRING HEAVY DUTY(G50)
L=187
|
8-97248-621-1 |
04 |
1 |
1409-1509 |
● |
|
|
|
|
|
| |
4 |
07.516 U-BOLT; RR SPR
REAR SPRING HEAVY DUTY(G50)
EXC. HIGH RIDE SUSPENSION(7YC)
L=187
|
8-97248-621-1 |
04 |
1 |
1409-1509 |
|
● |
● |
|
|
|
| |
4 |
07.516 U-BOLT; RR SPR
REAR SPRING HEAVY DUTY(G50)
EXC. HIGH RIDE SUSPENSION(7YC)
L=187
|
8-97248-621-1 |
04 |
1 |
1510- |
● |
● |
● |
|
|
|
| |
4 |
07.516 U-BOLT; RR SPR
EXC. REAR SPRING HEAVY DUTY(G50)
L=175
|
8-97947-045-0 |
04 |
1 |
1409-1509 |
● |
|
|
|
|
|
| |
4 |
07.516 U-BOLT; RR SPR
EXC. REAR SPRING HEAVY DUTY(G50),
HIGHRIDE SUSPENSION(7YC)
L=175
|
8-97947-045-0 |
04 |
1 |
1409-1509 |
|
● |
● |
|
|
|
| |
4 |
07.516 U-BOLT; RR SPR
EXC. REAR SPRING HEAVY DUTY(G50),
HIGHRIDE SUSPENSION(7YC)
L=175
|
8-97947-045-0 |
04 |
1 |
1510- |
● |
● |
● |
|
|
|
| |
4 |
07.516 U-BOLT; RR SPR
HIGH RIDE SUSPENSION(7YC)
L=170
|
8-97946-550-0 |
04 |
1 |
1409-1509 |
|
● |
● |
|
|
|
| |
4 |
07.516 U-BOLT; RR SPR
L=170
|
8-97946-550-0 |
04 |
1 |
1409-1509 |
|
|
|
● |
● |
● |
| |
4 |
07.516 U-BOLT; RR SPR
HIGH RIDE SUSPENSION(7YC)
L=170
|
8-97946-550-0 |
04 |
1 |
1510- |
● |
● |
● |
|
|
|
| |
4 |
07.516 U-BOLT; RR SPR
L=170
|
8-97946-550-0 |
04 |
1 |
1510- |
|
|
|
● |
● |
● |
| |
5 |
07.529 NUT; U-BOLT,RR SPR
M14 FLANGE
|
8-97245-635-0 |
08 |
1 |
1409- |
● |
● |
● |
● |
● |
● |
| |
10 |
07.529 CLAMP; LWR,RR SPR
|
8-98160-070-0 |
01 |
1 |
1409-1509 |
● |
|
|
|
|
|
| |
10 |
07.529 CLAMP; LWR,RR SPR
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98160-070-0 |
01 |
1 |
1409-1509 |
|
● |
● |
|
|
|
| |
10 |
07.529 CLAMP; LWR,RR SPR
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98160-070-0 |
01 |
1 |
1510- |
● |
● |
● |
|
|
|
| |
10 |
07.529 CLAMP; LWR,RR SPR
|
8-98160-083-0 |
01 |
1 |
1409-1509 |
● |
|
|
|
|
|
| |
10 |
07.529 CLAMP; LWR,RR SPR
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98160-083-0 |
01 |
1 |
1409-1509 |
|
● |
● |
|
|
|
| |
10 |
07.529 CLAMP; LWR,RR SPR
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98160-083-0 |
01 |
1 |
1510- |
● |
● |
● |
|
|
|
| |
10 |
07.529 CLAMP; LWR,RR SPR
HIGH RIDE SUSPENSION(7YC)
|
8-98165-850-1 |
01 |
1 |
1409-1509 |
|
● |
● |
|
|
|
| |
10 |
07.529 CLAMP; LWR,RR SPR
|
8-98165-850-1 |
01 |
1 |
1409-1509 |
|
|
|
● |
● |
● |
| |
10 |
07.529 CLAMP; LWR,RR SPR
HIGH RIDE SUSPENSION(7YC)
|
8-98165-850-1 |
01 |
1 |
1510- |
● |
● |
● |
|
|
|
| |
10 |
07.529 CLAMP; LWR,RR SPR
|
8-98165-850-1 |
01 |
1 |
1510- |
|
|
|
● |
● |
● |
| |
10 |
07.529 CLAMP; LWR,RR SPR
HIGH RIDE SUSPENSION(7YC)
|
8-98165-851-1 |
01 |
1 |
1409-1509 |
|
● |
● |
|
|
|
| |
10 |
07.529 CLAMP; LWR,RR SPR
|
8-98165-851-1 |
01 |
1 |
1409-1509 |
|
|
|
● |
● |
● |
| |
10 |
07.529 CLAMP; LWR,RR SPR
HIGH RIDE SUSPENSION(7YC)
|
8-98165-851-1 |
01 |
1 |
1510- |
● |
● |
● |
|
|
|
| |
10 |
07.529 CLAMP; LWR,RR SPR
|
8-98165-851-1 |
01 |
1 |
1510- |
|
|
|
● |
● |
● |
| |
15 |
07.523 SHACKLE; RR SPR
|
8-98005-815-0 |
02 |
1 |
1409-1509 |
● |
|
|
|
|
|
| |
15 |
07.523 SHACKLE; RR SPR
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98005-815-0 |
02 |
1 |
1409-1509 |
|
● |
● |
|
|
|
| |
15 |
07.523 SHACKLE; RR SPR
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98005-815-0 |
02 |
1 |
1510- |
● |
● |
● |
|
|
|
| |
15 |
07.523 SHACKLE; RR SPR
HIGH RIDE SUSPENSION(7YC)
|
8-97946-551-1 |
02 |
1 |
1409-1509 |
|
● |
● |
|
|
|
| |
15 |
07.523 SHACKLE; RR SPR
|
8-97946-551-1 |
02 |
1 |
1409-1509 |
|
|
|
● |
● |
● |
| |
15 |
07.523 SHACKLE; RR SPR
HIGH RIDE SUSPENSION(7YC)
|
8-97946-551-1 |
02 |
1 |
1510- |
● |
● |
● |
|
|
|
| |
15 |
07.523 SHACKLE; RR SPR
|
8-97946-551-1 |
02 |
1 |
1510- |
|
|
|
● |
● |
● |
| |
16 |
07.524 BUSHING; SHACKLE,RR SPR
(C)
|
8-97357-492-0 |
08 |
1 |
1409-1509 |
● |
|
|
|
|
|
| |
16 |
07.524 BUSHING; SHACKLE,RR SPR
EXC. HIGH RIDE SUSPENSION(7YC)
(C)
|
8-97357-492-0 |
08 |
1 |
1409-1509 |
|
● |
● |
|
|
|
| |
16 |
07.524 BUSHING; SHACKLE,RR SPR
EXC. HIGH RIDE SUSPENSION(7YC)
(C)
|
8-97357-492-0 |
08 |
1 |
1510- |
● |
● |
● |
|
|
|
| |
16 |
07.524 BUSHING; SHACKLE,RR SPR
HIGH RIDE SUSPENSION(7YC)
(A)
|
8-97357-492-0 |
04 |
1 |
1409-1509 |
|
● |
● |
|
|
|
| |
16 |
07.524 BUSHING; SHACKLE,RR SPR
(A)
|
8-97357-492-0 |
04 |
1 |
1409-1509 |
|
|
|
● |
● |
● |
| |
16 |
07.524 BUSHING; SHACKLE,RR SPR
HIGH RIDE SUSPENSION(7YC)
(A)
|
8-97357-492-0 |
04 |
1 |
1510- |
● |
● |
● |
|
|
|
| |
16 |
07.524 BUSHING; SHACKLE,RR SPR
(A)
|
8-97357-492-0 |
04 |
1 |
1510- |
|
|
|
● |
● |
● |
| |
16 |
07.524 BUSHING; SHACKLE,RR SPR
HIGH RIDE SUSPENSION(7YC)
(B)
|
8-97946-545-0 |
04 |
1 |
1409-1509 |
|
● |
● |
|
|
|
| |
16 |
07.524 BUSHING; SHACKLE,RR SPR
(B)
|
8-97946-545-0 |
04 |
1 |
1409-1509 |
|
|
|
● |
● |
● |
| |
16 |
07.524 BUSHING; SHACKLE,RR SPR
HIGH RIDE SUSPENSION(7YC)
(B)
|
8-97946-545-0 |
04 |
1 |
1510- |
● |
● |
● |
|
|
|
| |
16 |
07.524 BUSHING; SHACKLE,RR SPR
(B)
|
8-97946-545-0 |
04 |
1 |
1510- |
|
|
|
● |
● |
● |
| |
36 |
07.529 SEAT; HELPER RUBBER,RR SPR
|
8-98005-878-0 |
02 |
1 |
1409-1509 |
● |
|
|
|
|
|
| |
36 |
07.529 SEAT; HELPER RUBBER,RR SPR
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98005-878-0 |
02 |
1 |
1409-1509 |
|
● |
● |
|
|
|
| |
36 |
07.529 SEAT; HELPER RUBBER,RR SPR
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98005-878-0 |
02 |
1 |
1510- |
● |
● |
● |
|
|
|
| |
153 |
07.529 WASHER; PL,SPRING PIN
ID=14.5 OD=30
|
8-98005-921-0 |
02 |
1 |
1409- |
● |
● |
● |
● |
● |
● |
| |
156 |
07.526 PROTECTOR; LEAF SPRING,RR SUSP
|
8-97947-363-0 |
01 |
1 |
1409- |
● |
● |
● |
● |
● |
● |
| |
163 |
07.529 RUBBER; HELPER,RR SPR
|
8-97946-803-1 |
02 |
1 |
1409-1509 |
● |
|
|
|
|
|
| |
163 |
07.529 RUBBER; HELPER,RR SPR
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97946-803-1 |
02 |
1 |
1409-1509 |
|
● |
● |
|
|
|
| |
163 |
07.529 RUBBER; HELPER,RR SPR
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97946-803-1 |
02 |
1 |
1510- |
● |
● |
● |
|
|
|
| |
163 |
07.529 RUBBER; HELPER,RR SPR
HIGH RIDE SUSPENSION(7YC)
|
8-97946-549-3 |
02 |
1 |
1409-1509 |
|
● |
● |
|
|
|
| |
163 |
07.529 RUBBER; HELPER,RR SPR
|
8-97946-549-3 |
02 |
1 |
1409-1509 |
|
|
|
● |
● |
● |
| |
163 |
07.529 RUBBER; HELPER,RR SPR
HIGH RIDE SUSPENSION(7YC)
|
8-97946-549-3 |
02 |
1 |
1510- |
● |
● |
● |
|
|
|
| |
163 |
07.529 RUBBER; HELPER,RR SPR
|
8-97946-549-3 |
02 |
1 |
1510- |
|
|
|
● |
● |
● |
| |
165 |
07.529 BOLT; HELPER RUBBER
07.068
M10X30 FLANGE
|
0-28661-030-0 |
04 |
1 |
1409-1509 |
● |
|
|
|
|
|
| |
165 |
07.529 BOLT; HELPER RUBBER
EXC. HIGH RIDE SUSPENSION(7YC)
07.068
M10X30 FLANGE
|
0-28661-030-0 |
04 |
1 |
1409-1509 |
|
● |
● |
|
|
|
| |
165 |
07.529 BOLT; HELPER RUBBER
EXC. HIGH RIDE SUSPENSION(7YC)
07.068
M10X30 FLANGE
|
0-28661-030-0 |
04 |
1 |
1510- |
● |
● |
● |
|
|
|
| |
180 |
07.529 PIN; RR SPR
(A)
|
8-97947-078-0 |
02 |
1 |
1409- |
● |
● |
● |
● |
● |
● |
| |
180 |
07.529 PIN; RR SPR
(B)
|
8-98005-814-0 |
02 |
1 |
1409-1509 |
● |
|
|
|
|
|
| |
180 |
07.529 PIN; RR SPR
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98005-814-0 |
02 |
1 |
1409-1509 |
|
● |
● |
|
|
|
| |
180 |
07.529 PIN; RR SPR
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98005-814-0 |
02 |
1 |
1510- |
● |
● |
● |
|
|
|
| |
180 |
07.529 PIN; RR SPR
HIGH RIDE SUSPENSION(7YC)
(C)
|
8-97946-547-1 |
02 |
1 |
1409-1509 |
|
● |
● |
|
|
|
| |
180 |
07.529 PIN; RR SPR
(C)
|
8-97946-547-1 |
02 |
1 |
1409-1509 |
|
|
|
● |
● |
● |
| |
180 |
07.529 PIN; RR SPR
HIGH RIDE SUSPENSION(7YC)
(C)
|
8-97946-547-1 |
02 |
1 |
1510- |
● |
● |
● |
|
|
|
| |
180 |
07.529 PIN; RR SPR
(C)
|
8-97946-547-1 |
02 |
1 |
1510- |
|
|
|
● |
● |
● |
| |
182 |
07.529 NUT; PIN,RR SPR
(A)
M14 FLANGE
|
0-91180-114-0 |
04 |
1 |
1409- |
● |
● |
● |
● |
● |
● |
| |
182 |
07.529 NUT; PIN,RR SPR
(B)
M14 FLANGE
|
8-97245-651-0 |
02 |
1 |
1409- |
● |
● |
● |
● |
● |
● |
| |
524 |
07.516 BOLT; RR SPR
01.531
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
1409- |
● |
● |
● |
● |
● |
● |
