Sayfa 4-50 - Isuzu EPC

4-50 — FRONT SUSPENSION (#148480) — 367 parça

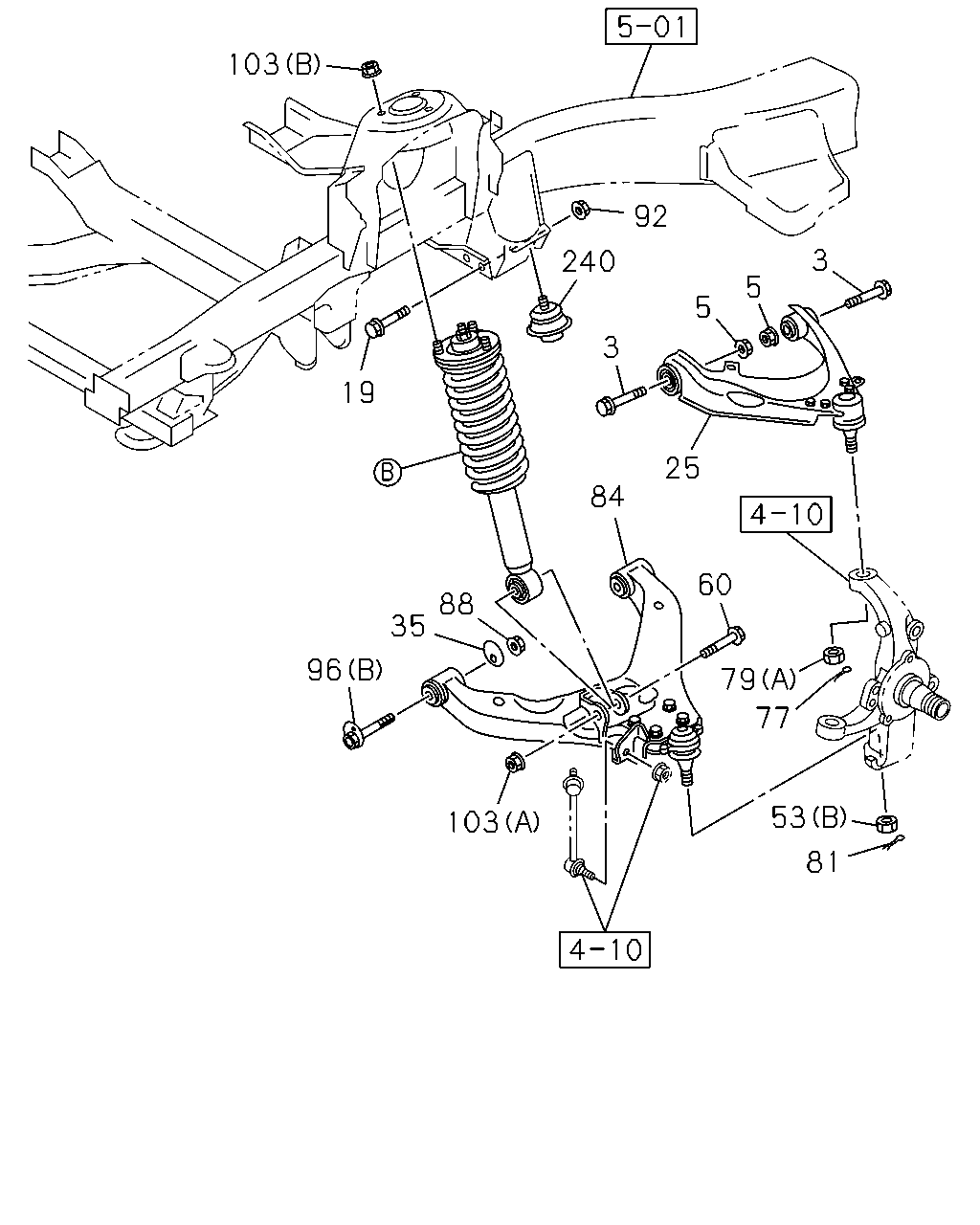

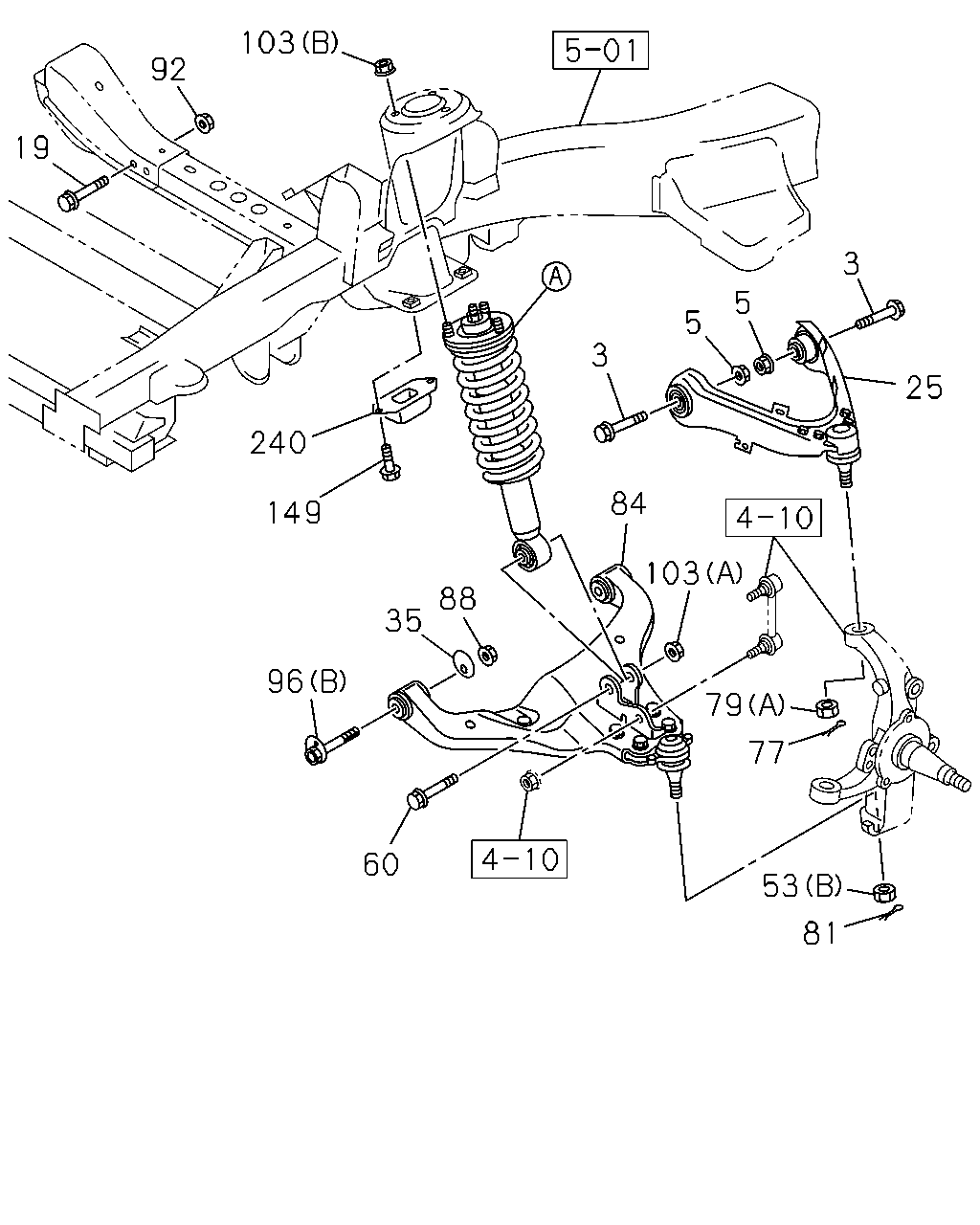

92 19 103 240 149 3 5 5 3 25 84 88 35 96 103 79 77 53 81 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	06.164 BOLT; UPR LINK TO FRAME M14X74	8-97947-455-0	04	1	1409-	●	●	●	●	●	●
5	06.164 NUT; UPR LINK TO FRAME 07.529 M14 FLANGE	8-97245-635-0	04	1	1409-	●	●	●	●	●	●
19	07.425 BOLT; FRT SUSP TO C/MBR 04.085 M10X80 FLANGE	0-28061-080-0	04	1	1409-1411	●
19	07.425 BOLT; FRT SUSP TO C/MBR EXC. HIGH RIDE SUSPENSION(7YC) 04.085 M10X80 FLANGE	0-28061-080-0	04	1	1409-1411		●	●
19	07.425 BOLT; FRT SUSP TO C/MBR 04.085 M10X80 FLANGE	0-28061-080-0	04	1	1412-1509	●
19	07.425 BOLT; FRT SUSP TO C/MBR EXC. UNDER FRT GUARD<6RJ>,HIGH RIDE SUSPENSION(7YC) 04.085 M10X80 FLANGE	0-28061-080-0	04	1	1412-1509		●	●
19	07.425 BOLT; FRT SUSP TO C/MBR EXC. HIGH RIDE SUSPENSION(7YC) 04.085 M10X80 FLANGE	0-28061-080-0	04	1	1510-	●
19	07.425 BOLT; FRT SUSP TO C/MBR EXC. UNDER FRT GUARD<6RJ>,HIGH RIDE SUSPENSION(7YC) 04.085 M10X80 FLANGE	0-28061-080-0	04	1	1510-		●	●
19	07.425 BOLT; FRT SUSP TO C/MBR HIGH RIDE SUSPENSION(7YC) M10X100	0-28061-000-0	04	1	1409-1509		●	●
19	07.425 BOLT; FRT SUSP TO C/MBR M10X100	0-28061-000-0	04	1	1409-1509				●	●	●
19	07.425 BOLT; FRT SUSP TO C/MBR HIGH RIDE SUSPENSION(7YC) M10X100	0-28061-000-0	04	1	1510-	●	●	●
19	07.425 BOLT; FRT SUSP TO C/MBR M10X100	0-28061-000-0	04	1	1510-				●	●	●
25	06.168 ARM; UPR CONT	8-98212-475-0	01	1	1409-1509	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98212-475-0	01	1	1409-1509		●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98212-475-0	01	1	1510-	●	●	●
25	06.168 ARM; UPR CONT	8-98212-476-0	01	1	1409-1509	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98212-476-0	01	1	1409-1509		●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98212-476-0	01	1	1510-	●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-841-2	01	1	1409-1509		●	●
25	06.168 ARM; UPR CONT	8-97945-841-2	01	1	1409-1509				●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-841-2	01	1	1510-	●	●	●
25	06.168 ARM; UPR CONT	8-97945-841-2	01	1	1510-				●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-842-2	01	1	1409-1509		●	●
25	06.168 ARM; UPR CONT	8-97945-842-2	01	1	1409-1509				●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-842-2	01	1	1510-	●	●	●
25	06.168 ARM; UPR CONT	8-97945-842-2	01	1	1510-				●	●	●
35	06.170 PLATE; BUSHING SUPPORT 06.164	8-97214-814-0	04	1	1409-	●	●	●	●	●	●
53	06.174 NUT; LWR LINK 07.529 (B) M18	0-91110-518-0	02	1	1409-	●	●	●	●	●	●
53	06.174 NUT; LWR LINK 05.816 (A) M12 FLANGE	0-91180-212-0	08	1	1409-	●	●	●	●	●	●
60	07.347 BOLT; S/ABS TO LWR LINK 06.164 M14X74	8-97947-455-0	02	1	1409-	●	●	●	●	●	●
77	06.174 PIN; SPLIT,LINK END TO KNUCKLE OD=2.8 L=28	0-81123-028-0	02	1	1409-	●	●	●	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 07.833 (A) M14	0-91110-514-0	02	1	1409-	●	●	●	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 01.540 (B) M8 FLANGE	0-91180-208-0	08	1	1409-	●	●	●	●	●	●
81	06.174 PIN; SPLIT,LWR LINK TO KNUCKLE OD=2.8 L=28	0-81123-028-0	02	1	1409-	●	●	●	●	●	●
84	06.168 ARM; LWR CONT	8-98162-164-0	01	1	1409-1509	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98162-164-0	01	1	1409-1509		●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98162-164-0	01	1	1510-	●	●	●
84	06.168 ARM; LWR CONT	8-98162-165-0	01	1	1409-1509	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98162-165-0	01	1	1409-1509		●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98162-165-0	01	1	1510-	●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-843-1	01	1	1409-1509		●	●
84	06.168 ARM; LWR CONT	8-97945-843-1	01	1	1409-1509				●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-843-1	01	1	1510-	●	●	●
84	06.168 ARM; LWR CONT	8-97945-843-1	01	1	1510-				●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-844-1	01	1	1409-1509		●	●
84	06.168 ARM; LWR CONT	8-97945-844-1	01	1	1409-1509				●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-844-1	01	1	1510-	●	●	●
84	06.168 ARM; LWR CONT	8-97945-844-1	01	1	1510-				●	●	●
88	06.174 NUT; LWR LINK M16 FLANGE	8-97245-631-0	04	1	1409-	●	●	●	●	●	●
92	06.164 NUT; FRT SUSP 04.085 M10 FLANGE	0-91180-210-0	04	1	1409-	●	●	●	●	●	●
96	06.174 BOLT; LWR LINK (A) M12X37 FLANGE	8-97245-639-0	08	1	1409-	●	●	●	●	●	●
96	06.174 BOLT; LWR LINK (B) M16X102 W/PLATE	8-98186-404-0	04	1	1409-	●	●	●	●	●	●
103	07.347 NUT; S/ABS TO LWR LINK 07.529 (A) M14 FLANGE	8-97245-635-0	02	1	1409-	●	●	●	●	●	●
103	07.347 NUT; S/ABS TO LWR LINK (B) M10 FLANGE	8-97245-637-0	06	1	1409-	●	●	●	●	●	●
149	06.172 BOLT; ARM TO LWR CONT ARM 00.029 M10X25 FLANGE	0-28651-025-0	04	1	1409-1509	●
149	06.172 BOLT; ARM TO LWR CONT ARM EXC. HIGH RIDE SUSPENSION(7YC) 00.029 M10X25 FLANGE	0-28651-025-0	04	1	1409-1509		●	●
149	06.172 BOLT; ARM TO LWR CONT ARM EXC. HIGH RIDE SUSPENSION(7YC) 00.029 M10X25 FLANGE	0-28651-025-0	04	1	1510-	●	●	●
240	07.395 BUMPER; LWR CONT ARM	8-97215-052-0	02	1	1409-1509	●
240	07.395 BUMPER; LWR CONT ARM EXC. HIGH RIDE SUSPENSION(7YC)	8-97215-052-0	02	1	1409-1509		●	●
240	07.395 BUMPER; LWR CONT ARM EXC. HIGH RIDE SUSPENSION(7YC)	8-97215-052-0	02	1	1510-	●	●	●
240	07.395 BUMPER; LWR CONT ARM HIGH RIDE SUSPENSION(7YC)	8-97946-180-0	02	1	1409-1509		●	●
240	07.395 BUMPER; LWR CONT ARM	8-97946-180-0	02	1	1409-1509				●	●	●
240	07.395 BUMPER; LWR CONT ARM HIGH RIDE SUSPENSION(7YC)	8-97946-180-0	02	1	1510-	●	●	●
240	07.395 BUMPER; LWR CONT ARM	8-97946-180-0	02	1	1510-				●	●	●

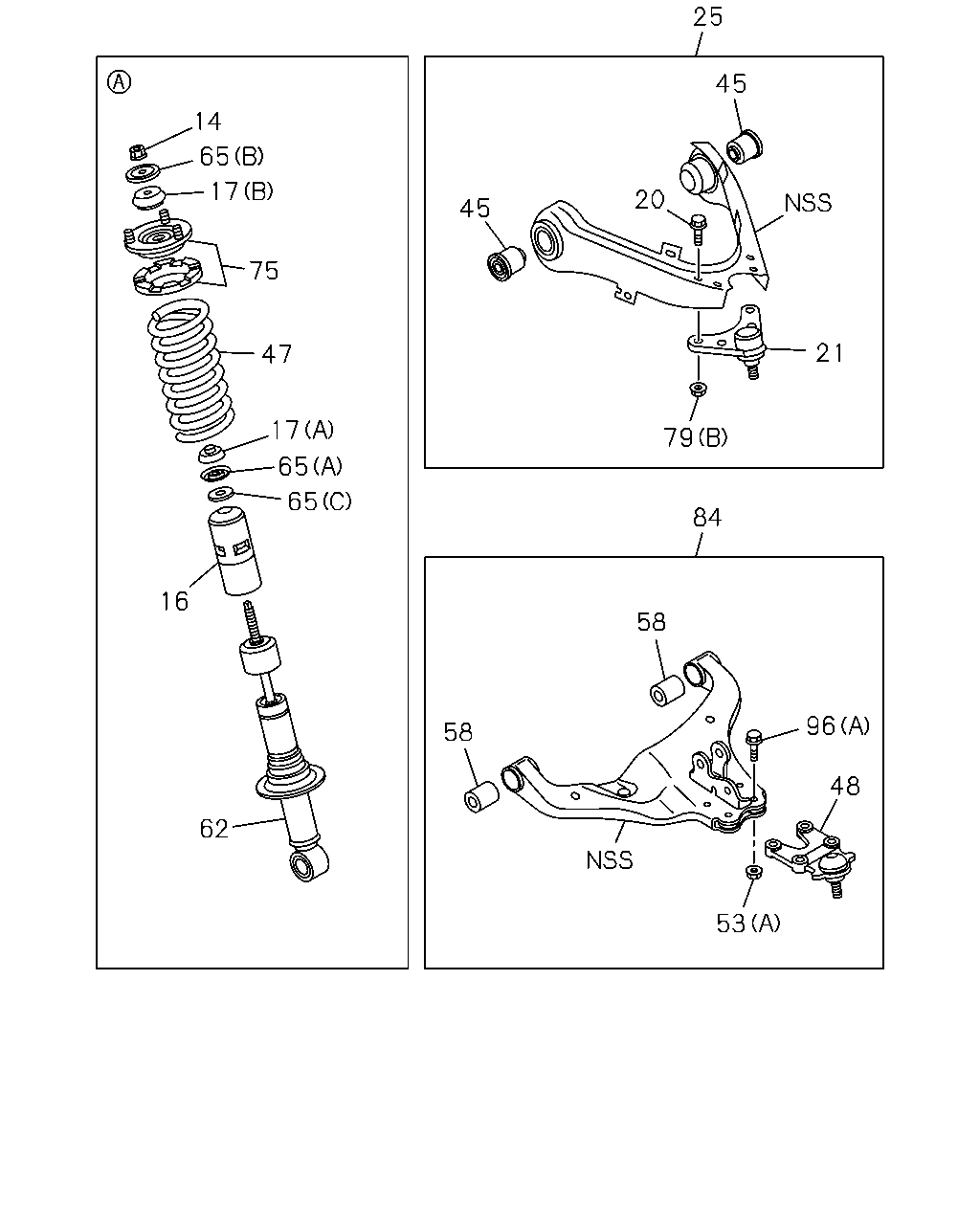

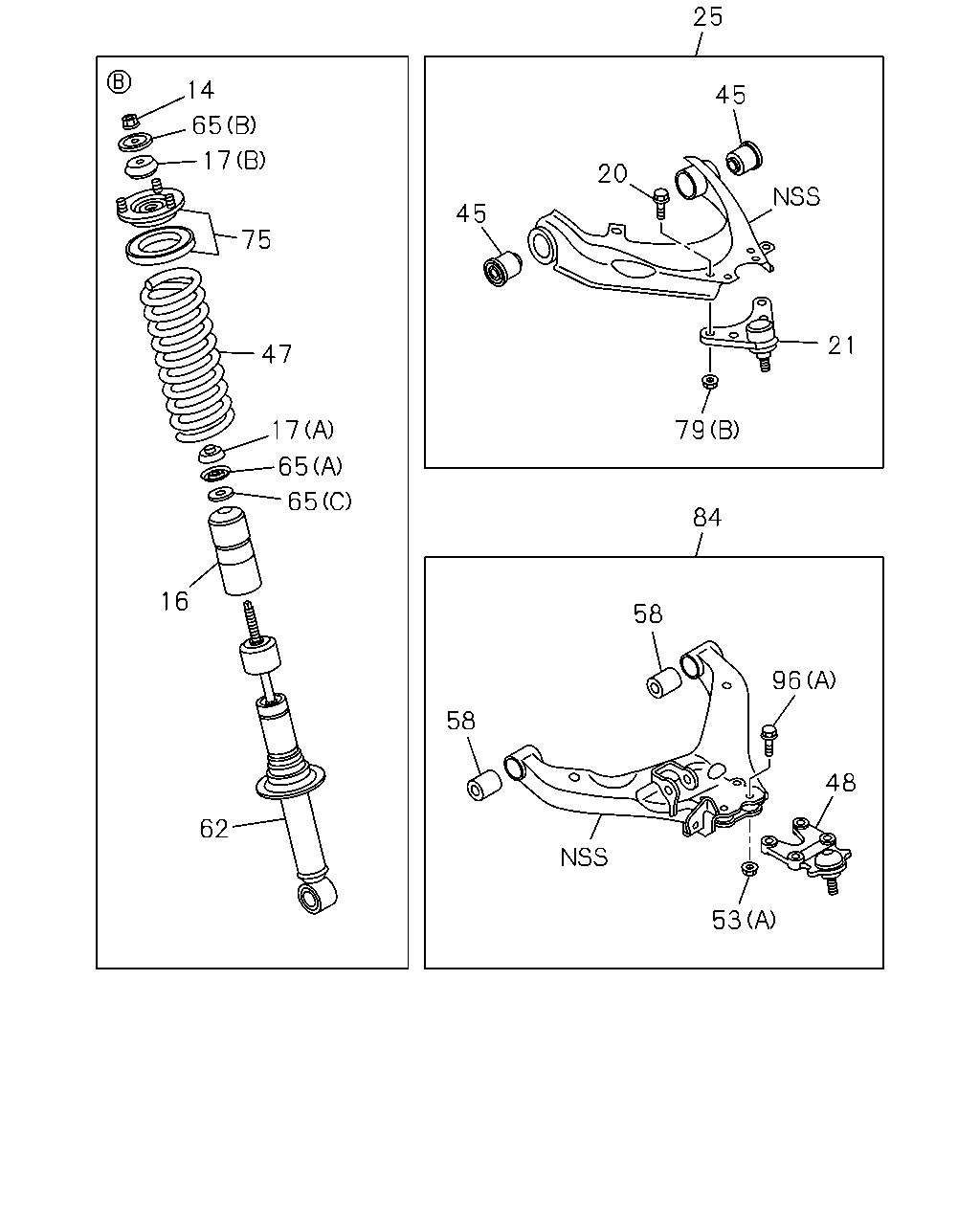

14 65 17 75 47 17 65 65 16 62 25 45 20 45 21 79 58 58 96 48 53 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	07.389 NUT; S/ABS,UPR M12 FLANGE	8-97236-304-0	02	1	1409-	●	●	●	●	●	●
16	07.395 COVER; DUST,FRT S/ABS	8-97944-566-0	02	1	1409-1509	●
16	07.395 COVER; DUST,FRT S/ABS EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-566-0	02	1	1409-1509		●	●
16	07.395 COVER; DUST,FRT S/ABS EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-566-0	02	1	1510-	●	●	●
16	07.395 COVER; DUST,FRT S/ABS HIGH RIDE SUSPENSION(7YC)	8-97947-100-0	02	1	1409-1509		●	●
16	07.395 COVER; DUST,FRT S/ABS	8-97947-100-0	02	1	1409-1509				●	●	●
16	07.395 COVER; DUST,FRT S/ABS HIGH RIDE SUSPENSION(7YC)	8-97947-100-0	02	1	1510-	●	●	●
16	07.395 COVER; DUST,FRT S/ABS	8-97947-100-0	02	1	1510-				●	●	●
17	07.388 BUSHING; RUBBER,S/ABS (A)	8-97236-303-0	02	1	1409-	●	●	●	●	●	●
17	07.388 BUSHING; RUBBER,S/ABS (B)	8-97264-184-0	02	1	1409-	●	●	●	●	●	●
20	06.174 BOLT; UPR LINK END TO UPR LINK M8X25 FLANGE	0-28060-825-0	08	1	1409-	●	●	●	●	●	●
21	06.168 JOINT ASM; BALL,UPR CONT ARM	8-98005-827-0	02	1	1409-	●	●	●	●	●	●
25	06.168 ARM; UPR CONT	8-98212-475-0	01	1	1409-1509	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98212-475-0	01	1	1409-1509		●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98212-475-0	01	1	1510-	●	●	●
25	06.168 ARM; UPR CONT	8-98212-476-0	01	1	1409-1509	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98212-476-0	01	1	1409-1509		●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98212-476-0	01	1	1510-	●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-841-2	01	1	1409-1509		●	●
25	06.168 ARM; UPR CONT	8-97945-841-2	01	1	1409-1509				●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-841-2	01	1	1510-	●	●	●
25	06.168 ARM; UPR CONT	8-97945-841-2	01	1	1510-				●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-842-2	01	1	1409-1509		●	●
25	06.168 ARM; UPR CONT	8-97945-842-2	01	1	1409-1509				●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-842-2	01	1	1510-	●	●	●
25	06.168 ARM; UPR CONT	8-97945-842-2	01	1	1510-				●	●	●
45	06.164 BUSHING; UPR LINK,FRT	8-97364-173-0	04	1	1409-1509	●
45	06.164 BUSHING; UPR LINK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97364-173-0	04	1	1409-1509		●	●
45	06.164 BUSHING; UPR LINK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97364-173-0	04	1	1510-	●	●	●
45	06.164 BUSHING; UPR LINK,FRT HIGH RIDE SUSPENSION(7YC)	8-97947-419-0	04	1	1409-1509		●	●
45	06.164 BUSHING; UPR LINK,FRT	8-97947-419-0	04	1	1409-1509				●	●	●
45	06.164 BUSHING; UPR LINK,FRT HIGH RIDE SUSPENSION(7YC)	8-97947-419-0	04	1	1510-	●	●	●
45	06.164 BUSHING; UPR LINK,FRT	8-97947-419-0	04	1	1510-				●	●	●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0)	8-97947-204-2	02	1	1412-		●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0),HIGH RIDE SUSPENSION(7YC)	8-97947-114-2	02	1	1412-		●
47	07.412 SPRING; COIL,FRT SUSP 4JA1-T ENG(LP0) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0),HIGH RIDE SUSPENSION(7YC)	8-97947-114-2	02	1	1412-			●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCX ENG(LS0) REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0)	8-97947-118-2	02	1	1412-		●
47	07.412 SPRING; COIL,FRT SUSP	8-97947-185-2	02	1	1409-1411	●
47	07.412 SPRING; COIL,FRT SUSP EXC. HIGH RIDE SUSPENSION(7YC)	8-97947-185-2	02	1	1409-1411			●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13) EXC. HIGH RIDE SUSPENSION(7YC)	8-97947-185-3	02	1	1412-	●		●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCY ENG(RDX) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97947-185-3	02	1	1412-		●	●
47	07.412 SPRING; COIL,FRT SUSP HIGH RIDE SUSPENSION(7YC)	8-97947-205-3	02	1	1409-1411		●
47	07.412 SPRING; COIL,FRT SUSP	8-97947-205-3	02	1	1409-1411					●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC)	8-97947-205-3	02	1	1412-		●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0)	8-97947-205-3	02	1	1412-			●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),REAR SPRING HEAVY D UTY(G50),SINGAPORE EQUIPMENT(2G0)	8-97947-205-3	02	1	1412-			●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13)	8-97947-205-3	02	1	1412-					●
47	07.412 SPRING; COIL,FRT SUSP EXC. HIGH RIDE SUSPENSION(7YC)	8-97947-184-0	02	1	1409-1411		●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13) EXC. HIGH RIDE SUSPENSION(7YC)	8-97947-184-1	02	1	1412-		●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0),HIGH RIDE SUSPENSION(7YC)	8-97947-184-1	02	1	1412-			●
47	07.412 SPRING; COIL,FRT SUSP HIGH RIDE SUSPENSION(7YC)	8-97947-206-1	02	1	1409-1411		●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50)	8-97947-206-1	02	1	1412-1506			●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC)	8-97947-206-1	02	1	1412-1506			●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),REAR SPRING HEAVY D UTY(G50),SINGAPORE EQUIPMENT(2G0)	8-97947-206-1	02	1	1412-1506			●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) REAR SPRING HEAVY DUTY(G50) EXC. AUSTRALIA EQUIPMENT(B13)	8-97947-206-1	02	1	1412-1506				●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) EXC. AUSTRALIA EQUIPMENT(B13),REAR SPRING HEAVY DUTY(G50)	8-97947-206-1	02	1	1412-1506				●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) REAR SPRING HEAVY DUTY(G50) EXC. AUSTRALIA EQUIPMENT(B13), SINGAPORE EQUIPMENT(2G0)	8-97947-206-1	02	1	1412-1506					●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) EXC. AUSTRALIA EQUIPMENT(B13),REAR SPRING HEAVY DUTY(G50),SINGAPORE EQUIPM ENT(2G0)	8-97947-206-1	02	1	1412-1506					●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0)	8-97947-206-1	02	1	1412-1506						●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),REAR SPRING HEAVY D UTY(G50),SINGAPORE EQUIPMENT(2G0)	8-97947-206-2	02	1	1507-1509			●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC)	8-97947-206-2	02	1	1507-1509			●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCY ENG(RDX) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50)	8-97947-206-2	02	1	1507-1509			●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) REAR SPRING HEAVY DUTY(G50) EXC. AUSTRALIA EQUIPMENT(B13)	8-97947-206-2	02	1	1507-1509				●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) EXC. AUSTRALIA EQUIPMENT(B13),REAR SPRING HEAVY DUTY(G50)	8-97947-206-2	02	1	1507-1509				●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) REAR SPRING HEAVY DUTY(G50) EXC. AUSTRALIA EQUIPMENT(B13), SINGAPORE EQUIPMENT(2G0)	8-97947-206-2	02	1	1507-1509					●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) EXC. AUSTRALIA EQUIPMENT(B13),REAR SPRING HEAVY DUTY(G50),SINGAPORE EQUIPM ENT(2G0)	8-97947-206-2	02	1	1507-1509					●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0)	8-97947-206-2	02	1	1507-1509						●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC)	8-97947-206-2	02	1	1510-	●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),REAR SPRING HEAVY D UTY(G50),SINGAPORE EQUIPMENT(2G0)	8-97947-206-2	02	1	1510-			●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC)	8-97947-206-2	02	1	1510-			●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCY ENG(RDX) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50)	8-97947-206-2	02	1	1510-			●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) REAR SPRING HEAVY DUTY(G50) EXC. AUSTRALIA EQUIPMENT(B13)	8-97947-206-2	02	1	1510-				●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) EXC. AUSTRALIA EQUIPMENT(B13),REAR SPRING HEAVY DUTY(G50)	8-97947-206-2	02	1	1510-				●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) REAR SPRING HEAVY DUTY(G50) EXC. AUSTRALIA EQUIPMENT(B13), SINGAPORE EQUIPMENT(2G0)	8-97947-206-2	02	1	1510-					●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) EXC. AUSTRALIA EQUIPMENT(B13),REAR SPRING HEAVY DUTY(G50),SINGAPORE EQUIPM ENT(2G0)	8-97947-206-2	02	1	1510-					●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0)	8-97947-206-2	02	1	1510-						●
47	07.412 SPRING; COIL,FRT SUSP	8-97947-207-2	02	1	1409-1411				●		●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13)	8-97947-207-2	02	1	1412-1506				●		●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCY ENG(RDX) SINGAPORE EQUIPMENT(2G0) EXC. REAR SPRING HEAVY DUTY(G50)	8-97947-207-2	02	1	1412-1506					●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR SPRING HEAVY DUTY(G50)	8-97947-207-2	02	1	1412-1506						●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCY ENG(RDX) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),REAR SPRING HEAVY D UTY(G50),SINGAPORE EQUIPMENT(2G0)	8-97947-207-2	02	1	1412-1506						●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13)	8-97947-207-3	02	1	1507-				●		●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCY ENG(RDX) SINGAPORE EQUIPMENT(2G0) EXC. REAR SPRING HEAVY DUTY(G50)	8-97947-207-3	02	1	1507-					●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCY ENG(RDX) EXC. AUSTRALIA EQUIPMENT(B13),REAR SPRING HEAVY DUTY(G50)	8-97947-207-3	02	1	1507-						●
48	06.174 JOINT ASM; BALL,LWR CONT ARM	8-98005-875-0	02	1	1409-	●	●	●	●	●	●
53	06.174 NUT; LWR LINK 07.529 (B) M18	0-91110-518-0	02	1	1409-	●	●	●	●	●	●
53	06.174 NUT; LWR LINK 05.816 (A) M12 FLANGE	0-91180-212-0	08	1	1409-	●	●	●	●	●	●
58	06.170 BUSHING; LWR LINK	8-97364-174-0	04	1	1409-1509	●
58	06.170 BUSHING; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC)	8-97364-174-0	04	1	1409-1509		●	●
58	06.170 BUSHING; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC)	8-97364-174-0	04	1	1510-	●	●	●
58	06.170 BUSHING; LWR LINK HIGH RIDE SUSPENSION(7YC)	8-97947-087-1	04	1	1409-1509		●	●
58	06.170 BUSHING; LWR LINK	8-97947-087-1	04	1	1409-1509				●	●	●
58	06.170 BUSHING; LWR LINK HIGH RIDE SUSPENSION(7YC)	8-97947-087-1	04	1	1510-	●	●	●
58	06.170 BUSHING; LWR LINK	8-97947-087-1	04	1	1510-				●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC)	8-98212-126-0	02	1	1409-	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. REAR SPRING HEAVY DUTY(G50), HIGHRIDE SUSPENSION(7YC)	8-97947-094-3	02	1	1409-	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT HIGH RIDE SUSPENSION(7YC)	8-97947-098-3	02	1	1409-1509		●	●
62	07.345 ABSORBER ASM; SHOCK,FRT HIGH RIDE SUSPENSION(7YC)	8-97947-098-3	02	1	1510-	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97947-097-3	02	1	1409-				●	●	●
65	07.347 WASHER; S/ABS (C)	8-97944-892-0	02	1	1409-	●	●	●	●	●	●
65	07.347 WASHER; S/ABS (B)	8-98005-971-0	02	1	1409-	●	●	●	●	●	●
65	07.347 WASHER; S/ABS (A)	8-98005-972-0	02	1	1409-	●	●	●	●	●	●
75	07.380 BRACKET; FRT S/ABS	8-98177-899-1	02	1	1409-	●	●	●	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 07.833 (A) M14	0-91110-514-0	02	1	1409-	●	●	●	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 01.540 (B) M8 FLANGE	0-91180-208-0	08	1	1409-	●	●	●	●	●	●
84	06.168 ARM; LWR CONT	8-98162-164-0	01	1	1409-1509	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98162-164-0	01	1	1409-1509		●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98162-164-0	01	1	1510-	●	●	●
84	06.168 ARM; LWR CONT	8-98162-165-0	01	1	1409-1509	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98162-165-0	01	1	1409-1509		●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98162-165-0	01	1	1510-	●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-843-1	01	1	1409-1509		●	●
84	06.168 ARM; LWR CONT	8-97945-843-1	01	1	1409-1509				●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-843-1	01	1	1510-	●	●	●
84	06.168 ARM; LWR CONT	8-97945-843-1	01	1	1510-				●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-844-1	01	1	1409-1509		●	●
84	06.168 ARM; LWR CONT	8-97945-844-1	01	1	1409-1509				●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-844-1	01	1	1510-	●	●	●
84	06.168 ARM; LWR CONT	8-97945-844-1	01	1	1510-				●	●	●
96	06.174 BOLT; LWR LINK (A) M12X37 FLANGE	8-97245-639-0	08	1	1409-	●	●	●	●	●	●
96	06.174 BOLT; LWR LINK (B) M16X102 W/PLATE	8-98186-404-0	04	1	1409-	●	●	●	●	●	●

92 5 5 3 240 19 103 3 84 25 60 88 35 96 103 79 77 53 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	06.164 BOLT; UPR LINK TO FRAME M14X74	8-97947-455-0	04	1	1409-	●	●	●	●	●	●
5	06.164 NUT; UPR LINK TO FRAME 07.529 M14 FLANGE	8-97245-635-0	04	1	1409-	●	●	●	●	●	●
19	07.425 BOLT; FRT SUSP TO C/MBR 04.085 M10X80 FLANGE	0-28061-080-0	04	1	1409-1411	●
19	07.425 BOLT; FRT SUSP TO C/MBR EXC. HIGH RIDE SUSPENSION(7YC) 04.085 M10X80 FLANGE	0-28061-080-0	04	1	1409-1411		●	●
19	07.425 BOLT; FRT SUSP TO C/MBR 04.085 M10X80 FLANGE	0-28061-080-0	04	1	1412-1509	●
19	07.425 BOLT; FRT SUSP TO C/MBR EXC. UNDER FRT GUARD<6RJ>,HIGH RIDE SUSPENSION(7YC) 04.085 M10X80 FLANGE	0-28061-080-0	04	1	1412-1509		●	●
19	07.425 BOLT; FRT SUSP TO C/MBR EXC. HIGH RIDE SUSPENSION(7YC) 04.085 M10X80 FLANGE	0-28061-080-0	04	1	1510-	●
19	07.425 BOLT; FRT SUSP TO C/MBR EXC. UNDER FRT GUARD<6RJ>,HIGH RIDE SUSPENSION(7YC) 04.085 M10X80 FLANGE	0-28061-080-0	04	1	1510-		●	●
19	07.425 BOLT; FRT SUSP TO C/MBR HIGH RIDE SUSPENSION(7YC) M10X100	0-28061-000-0	04	1	1409-1509		●	●
19	07.425 BOLT; FRT SUSP TO C/MBR M10X100	0-28061-000-0	04	1	1409-1509				●	●	●
19	07.425 BOLT; FRT SUSP TO C/MBR HIGH RIDE SUSPENSION(7YC) M10X100	0-28061-000-0	04	1	1510-	●	●	●
19	07.425 BOLT; FRT SUSP TO C/MBR M10X100	0-28061-000-0	04	1	1510-				●	●	●
25	06.168 ARM; UPR CONT	8-98212-475-0	01	1	1409-1509	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98212-475-0	01	1	1409-1509		●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98212-475-0	01	1	1510-	●	●	●
25	06.168 ARM; UPR CONT	8-98212-476-0	01	1	1409-1509	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98212-476-0	01	1	1409-1509		●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98212-476-0	01	1	1510-	●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-841-2	01	1	1409-1509		●	●
25	06.168 ARM; UPR CONT	8-97945-841-2	01	1	1409-1509				●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-841-2	01	1	1510-	●	●	●
25	06.168 ARM; UPR CONT	8-97945-841-2	01	1	1510-				●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-842-2	01	1	1409-1509		●	●
25	06.168 ARM; UPR CONT	8-97945-842-2	01	1	1409-1509				●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-842-2	01	1	1510-	●	●	●
25	06.168 ARM; UPR CONT	8-97945-842-2	01	1	1510-				●	●	●
35	06.170 PLATE; BUSHING SUPPORT 06.164	8-97214-814-0	04	1	1409-	●	●	●	●	●	●
53	06.174 NUT; LWR LINK 07.529 (B) M18	0-91110-518-0	02	1	1409-	●	●	●	●	●	●
53	06.174 NUT; LWR LINK 05.816 (A) M12 FLANGE	0-91180-212-0	08	1	1409-	●	●	●	●	●	●
60	07.347 BOLT; S/ABS TO LWR LINK 06.164 M14X74	8-97947-455-0	02	1	1409-	●	●	●	●	●	●
77	06.174 PIN; SPLIT,LINK END TO KNUCKLE OD=2.8 L=28	0-81123-028-0	02	1	1409-	●	●	●	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 07.833 (A) M14	0-91110-514-0	02	1	1409-	●	●	●	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 01.540 (B) M8 FLANGE	0-91180-208-0	08	1	1409-	●	●	●	●	●	●
81	06.174 PIN; SPLIT,LWR LINK TO KNUCKLE OD=2.8 L=28	0-81123-028-0	02	1	1409-	●	●	●	●	●	●
84	06.168 ARM; LWR CONT	8-98162-164-0	01	1	1409-1509	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98162-164-0	01	1	1409-1509		●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98162-164-0	01	1	1510-	●	●	●
84	06.168 ARM; LWR CONT	8-98162-165-0	01	1	1409-1509	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98162-165-0	01	1	1409-1509		●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98162-165-0	01	1	1510-	●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-843-1	01	1	1409-1509		●	●
84	06.168 ARM; LWR CONT	8-97945-843-1	01	1	1409-1509				●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-843-1	01	1	1510-	●	●	●
84	06.168 ARM; LWR CONT	8-97945-843-1	01	1	1510-				●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-844-1	01	1	1409-1509		●	●
84	06.168 ARM; LWR CONT	8-97945-844-1	01	1	1409-1509				●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-844-1	01	1	1510-	●	●	●
84	06.168 ARM; LWR CONT	8-97945-844-1	01	1	1510-				●	●	●
88	06.174 NUT; LWR LINK M16 FLANGE	8-97245-631-0	04	1	1409-	●	●	●	●	●	●
92	06.164 NUT; FRT SUSP 04.085 M10 FLANGE	0-91180-210-0	04	1	1409-	●	●	●	●	●	●
96	06.174 BOLT; LWR LINK (A) M12X37 FLANGE	8-97245-639-0	08	1	1409-	●	●	●	●	●	●
96	06.174 BOLT; LWR LINK (B) M16X102 W/PLATE	8-98186-404-0	04	1	1409-	●	●	●	●	●	●
103	07.347 NUT; S/ABS TO LWR LINK 07.529 (A) M14 FLANGE	8-97245-635-0	02	1	1409-	●	●	●	●	●	●
103	07.347 NUT; S/ABS TO LWR LINK (B) M10 FLANGE	8-97245-637-0	06	1	1409-	●	●	●	●	●	●
240	07.395 BUMPER; LWR CONT ARM	8-97215-052-0	02	1	1409-1509	●
240	07.395 BUMPER; LWR CONT ARM EXC. HIGH RIDE SUSPENSION(7YC)	8-97215-052-0	02	1	1409-1509		●	●
240	07.395 BUMPER; LWR CONT ARM EXC. HIGH RIDE SUSPENSION(7YC)	8-97215-052-0	02	1	1510-	●	●	●
240	07.395 BUMPER; LWR CONT ARM HIGH RIDE SUSPENSION(7YC)	8-97946-180-0	02	1	1409-1509		●	●
240	07.395 BUMPER; LWR CONT ARM	8-97946-180-0	02	1	1409-1509				●	●	●
240	07.395 BUMPER; LWR CONT ARM HIGH RIDE SUSPENSION(7YC)	8-97946-180-0	02	1	1510-	●	●	●
240	07.395 BUMPER; LWR CONT ARM	8-97946-180-0	02	1	1510-				●	●	●

62 16 65 65 17 47 75 17 65 14 25 45 20 45 21 79 84 58 96 48 53 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	07.389 NUT; S/ABS,UPR M12 FLANGE	8-97236-304-0	02	1	1409-	●	●	●	●	●	●
16	07.395 COVER; DUST,FRT S/ABS	8-97944-566-0	02	1	1409-1509	●
16	07.395 COVER; DUST,FRT S/ABS EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-566-0	02	1	1409-1509		●	●
16	07.395 COVER; DUST,FRT S/ABS EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-566-0	02	1	1510-	●	●	●
16	07.395 COVER; DUST,FRT S/ABS HIGH RIDE SUSPENSION(7YC)	8-97947-100-0	02	1	1409-1509		●	●
16	07.395 COVER; DUST,FRT S/ABS	8-97947-100-0	02	1	1409-1509				●	●	●
16	07.395 COVER; DUST,FRT S/ABS HIGH RIDE SUSPENSION(7YC)	8-97947-100-0	02	1	1510-	●	●	●
16	07.395 COVER; DUST,FRT S/ABS	8-97947-100-0	02	1	1510-				●	●	●
17	07.388 BUSHING; RUBBER,S/ABS (A)	8-97236-303-0	02	1	1409-	●	●	●	●	●	●
17	07.388 BUSHING; RUBBER,S/ABS (B)	8-97264-184-0	02	1	1409-	●	●	●	●	●	●
20	06.174 BOLT; UPR LINK END TO UPR LINK M8X25 FLANGE	0-28060-825-0	08	1	1409-	●	●	●	●	●	●
21	06.168 JOINT ASM; BALL,UPR CONT ARM	8-98005-827-0	02	1	1409-	●	●	●	●	●	●
25	06.168 ARM; UPR CONT	8-98212-475-0	01	1	1409-1509	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98212-475-0	01	1	1409-1509		●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98212-475-0	01	1	1510-	●	●	●
25	06.168 ARM; UPR CONT	8-98212-476-0	01	1	1409-1509	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98212-476-0	01	1	1409-1509		●	●
25	06.168 ARM; UPR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98212-476-0	01	1	1510-	●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-841-2	01	1	1409-1509		●	●
25	06.168 ARM; UPR CONT	8-97945-841-2	01	1	1409-1509				●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-841-2	01	1	1510-	●	●	●
25	06.168 ARM; UPR CONT	8-97945-841-2	01	1	1510-				●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-842-2	01	1	1409-1509		●	●
25	06.168 ARM; UPR CONT	8-97945-842-2	01	1	1409-1509				●	●	●
25	06.168 ARM; UPR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-842-2	01	1	1510-	●	●	●
25	06.168 ARM; UPR CONT	8-97945-842-2	01	1	1510-				●	●	●
45	06.164 BUSHING; UPR LINK,FRT	8-97364-173-0	04	1	1409-1509	●
45	06.164 BUSHING; UPR LINK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97364-173-0	04	1	1409-1509		●	●
45	06.164 BUSHING; UPR LINK,FRT EXC. HIGH RIDE SUSPENSION(7YC)	8-97364-173-0	04	1	1510-	●	●	●
45	06.164 BUSHING; UPR LINK,FRT HIGH RIDE SUSPENSION(7YC)	8-97947-419-0	04	1	1409-1509		●	●
45	06.164 BUSHING; UPR LINK,FRT	8-97947-419-0	04	1	1409-1509				●	●	●
45	06.164 BUSHING; UPR LINK,FRT HIGH RIDE SUSPENSION(7YC)	8-97947-419-0	04	1	1510-	●	●	●
45	06.164 BUSHING; UPR LINK,FRT	8-97947-419-0	04	1	1510-				●	●	●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0)	8-97947-204-2	02	1	1412-		●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0),HIGH RIDE SUSPENSION(7YC)	8-97947-114-2	02	1	1412-		●
47	07.412 SPRING; COIL,FRT SUSP 4JA1-T ENG(LP0) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0),HIGH RIDE SUSPENSION(7YC)	8-97947-114-2	02	1	1412-			●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCX ENG(LS0) REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0)	8-97947-118-2	02	1	1412-		●
47	07.412 SPRING; COIL,FRT SUSP	8-97947-185-2	02	1	1409-1411	●
47	07.412 SPRING; COIL,FRT SUSP EXC. HIGH RIDE SUSPENSION(7YC)	8-97947-185-2	02	1	1409-1411			●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13) EXC. HIGH RIDE SUSPENSION(7YC)	8-97947-185-3	02	1	1412-	●		●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCY ENG(RDX) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97947-185-3	02	1	1412-		●	●
47	07.412 SPRING; COIL,FRT SUSP HIGH RIDE SUSPENSION(7YC)	8-97947-205-3	02	1	1409-1411		●
47	07.412 SPRING; COIL,FRT SUSP	8-97947-205-3	02	1	1409-1411					●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC)	8-97947-205-3	02	1	1412-		●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0)	8-97947-205-3	02	1	1412-			●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),REAR SPRING HEAVY D UTY(G50),SINGAPORE EQUIPMENT(2G0)	8-97947-205-3	02	1	1412-			●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13)	8-97947-205-3	02	1	1412-					●
47	07.412 SPRING; COIL,FRT SUSP EXC. HIGH RIDE SUSPENSION(7YC)	8-97947-184-0	02	1	1409-1411		●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13) EXC. HIGH RIDE SUSPENSION(7YC)	8-97947-184-1	02	1	1412-		●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0),HIGH RIDE SUSPENSION(7YC)	8-97947-184-1	02	1	1412-			●
47	07.412 SPRING; COIL,FRT SUSP HIGH RIDE SUSPENSION(7YC)	8-97947-206-1	02	1	1409-1411		●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50)	8-97947-206-1	02	1	1412-1506			●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC)	8-97947-206-1	02	1	1412-1506			●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),REAR SPRING HEAVY D UTY(G50),SINGAPORE EQUIPMENT(2G0)	8-97947-206-1	02	1	1412-1506			●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) REAR SPRING HEAVY DUTY(G50) EXC. AUSTRALIA EQUIPMENT(B13)	8-97947-206-1	02	1	1412-1506				●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) EXC. AUSTRALIA EQUIPMENT(B13),REAR SPRING HEAVY DUTY(G50)	8-97947-206-1	02	1	1412-1506				●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) REAR SPRING HEAVY DUTY(G50) EXC. AUSTRALIA EQUIPMENT(B13), SINGAPORE EQUIPMENT(2G0)	8-97947-206-1	02	1	1412-1506					●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) EXC. AUSTRALIA EQUIPMENT(B13),REAR SPRING HEAVY DUTY(G50),SINGAPORE EQUIPM ENT(2G0)	8-97947-206-1	02	1	1412-1506					●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0)	8-97947-206-1	02	1	1412-1506						●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),REAR SPRING HEAVY D UTY(G50),SINGAPORE EQUIPMENT(2G0)	8-97947-206-2	02	1	1507-1509			●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC)	8-97947-206-2	02	1	1507-1509			●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCY ENG(RDX) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50)	8-97947-206-2	02	1	1507-1509			●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) REAR SPRING HEAVY DUTY(G50) EXC. AUSTRALIA EQUIPMENT(B13)	8-97947-206-2	02	1	1507-1509				●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) EXC. AUSTRALIA EQUIPMENT(B13),REAR SPRING HEAVY DUTY(G50)	8-97947-206-2	02	1	1507-1509				●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) REAR SPRING HEAVY DUTY(G50) EXC. AUSTRALIA EQUIPMENT(B13), SINGAPORE EQUIPMENT(2G0)	8-97947-206-2	02	1	1507-1509					●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) EXC. AUSTRALIA EQUIPMENT(B13),REAR SPRING HEAVY DUTY(G50),SINGAPORE EQUIPM ENT(2G0)	8-97947-206-2	02	1	1507-1509					●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0)	8-97947-206-2	02	1	1507-1509						●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC)	8-97947-206-2	02	1	1510-	●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),REAR SPRING HEAVY D UTY(G50),SINGAPORE EQUIPMENT(2G0)	8-97947-206-2	02	1	1510-			●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC)	8-97947-206-2	02	1	1510-			●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCY ENG(RDX) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50)	8-97947-206-2	02	1	1510-			●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) REAR SPRING HEAVY DUTY(G50) EXC. AUSTRALIA EQUIPMENT(B13)	8-97947-206-2	02	1	1510-				●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) EXC. AUSTRALIA EQUIPMENT(B13),REAR SPRING HEAVY DUTY(G50)	8-97947-206-2	02	1	1510-				●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) REAR SPRING HEAVY DUTY(G50) EXC. AUSTRALIA EQUIPMENT(B13), SINGAPORE EQUIPMENT(2G0)	8-97947-206-2	02	1	1510-					●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) EXC. AUSTRALIA EQUIPMENT(B13),REAR SPRING HEAVY DUTY(G50),SINGAPORE EQUIPM ENT(2G0)	8-97947-206-2	02	1	1510-					●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT (2G0)	8-97947-206-2	02	1	1510-						●
47	07.412 SPRING; COIL,FRT SUSP	8-97947-207-2	02	1	1409-1411				●		●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13)	8-97947-207-2	02	1	1412-1506				●		●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCY ENG(RDX) SINGAPORE EQUIPMENT(2G0) EXC. REAR SPRING HEAVY DUTY(G50)	8-97947-207-2	02	1	1412-1506					●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. REAR SPRING HEAVY DUTY(G50)	8-97947-207-2	02	1	1412-1506						●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCY ENG(RDX) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),REAR SPRING HEAVY D UTY(G50),SINGAPORE EQUIPMENT(2G0)	8-97947-207-2	02	1	1412-1506						●
47	07.412 SPRING; COIL,FRT SUSP 4JJ1-TCX ENG(LS0) AUSTRALIA EQUIPMENT(B13)	8-97947-207-3	02	1	1507-				●		●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCY ENG(RDX) SINGAPORE EQUIPMENT(2G0) EXC. REAR SPRING HEAVY DUTY(G50)	8-97947-207-3	02	1	1507-					●
47	07.412 SPRING; COIL,FRT SUSP 4JK1-TCY ENG(RDX) EXC. AUSTRALIA EQUIPMENT(B13),REAR SPRING HEAVY DUTY(G50)	8-97947-207-3	02	1	1507-						●
48	06.174 JOINT ASM; BALL,LWR CONT ARM	8-98005-875-0	02	1	1409-	●	●	●	●	●	●
53	06.174 NUT; LWR LINK 07.529 (B) M18	0-91110-518-0	02	1	1409-	●	●	●	●	●	●
53	06.174 NUT; LWR LINK 05.816 (A) M12 FLANGE	0-91180-212-0	08	1	1409-	●	●	●	●	●	●
58	06.170 BUSHING; LWR LINK	8-97364-174-0	04	1	1409-1509	●
58	06.170 BUSHING; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC)	8-97364-174-0	04	1	1409-1509		●	●
58	06.170 BUSHING; LWR LINK EXC. HIGH RIDE SUSPENSION(7YC)	8-97364-174-0	04	1	1510-	●	●	●
58	06.170 BUSHING; LWR LINK HIGH RIDE SUSPENSION(7YC)	8-97947-087-1	04	1	1409-1509		●	●
58	06.170 BUSHING; LWR LINK	8-97947-087-1	04	1	1409-1509				●	●	●
58	06.170 BUSHING; LWR LINK HIGH RIDE SUSPENSION(7YC)	8-97947-087-1	04	1	1510-	●	●	●
58	06.170 BUSHING; LWR LINK	8-97947-087-1	04	1	1510-				●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC)	8-98212-126-0	02	1	1409-	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. REAR SPRING HEAVY DUTY(G50), HIGHRIDE SUSPENSION(7YC)	8-97947-094-3	02	1	1409-	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT HIGH RIDE SUSPENSION(7YC)	8-97947-098-3	02	1	1409-1509		●	●
62	07.345 ABSORBER ASM; SHOCK,FRT HIGH RIDE SUSPENSION(7YC)	8-97947-098-3	02	1	1510-	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97947-097-3	02	1	1409-				●	●	●
65	07.347 WASHER; S/ABS (C)	8-97944-892-0	02	1	1409-	●	●	●	●	●	●
65	07.347 WASHER; S/ABS (B)	8-98005-971-0	02	1	1409-	●	●	●	●	●	●
65	07.347 WASHER; S/ABS (A)	8-98005-972-0	02	1	1409-	●	●	●	●	●	●
75	07.380 BRACKET; FRT S/ABS	8-98177-899-1	02	1	1409-	●	●	●	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 07.833 (A) M14	0-91110-514-0	02	1	1409-	●	●	●	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 01.540 (B) M8 FLANGE	0-91180-208-0	08	1	1409-	●	●	●	●	●	●
84	06.168 ARM; LWR CONT	8-98162-164-0	01	1	1409-1509	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98162-164-0	01	1	1409-1509		●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98162-164-0	01	1	1510-	●	●	●
84	06.168 ARM; LWR CONT	8-98162-165-0	01	1	1409-1509	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98162-165-0	01	1	1409-1509		●	●
84	06.168 ARM; LWR CONT EXC. HIGH RIDE SUSPENSION(7YC)	8-98162-165-0	01	1	1510-	●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-843-1	01	1	1409-1509		●	●
84	06.168 ARM; LWR CONT	8-97945-843-1	01	1	1409-1509				●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-843-1	01	1	1510-	●	●	●
84	06.168 ARM; LWR CONT	8-97945-843-1	01	1	1510-				●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-844-1	01	1	1409-1509		●	●
84	06.168 ARM; LWR CONT	8-97945-844-1	01	1	1409-1509				●	●	●
84	06.168 ARM; LWR CONT HIGH RIDE SUSPENSION(7YC)	8-97945-844-1	01	1	1510-	●	●	●
84	06.168 ARM; LWR CONT	8-97945-844-1	01	1	1510-				●	●	●
96	06.174 BOLT; LWR LINK (A) M12X37 FLANGE	8-97245-639-0	08	1	1409-	●	●	●	●	●	●
96	06.174 BOLT; LWR LINK (B) M16X102 W/PLATE	8-98186-404-0	04	1	1409-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
