Isuzu WW
▶
TRUCKS
▶
FVM
▶
11131 - FVM(INDONESIA)6SD1
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

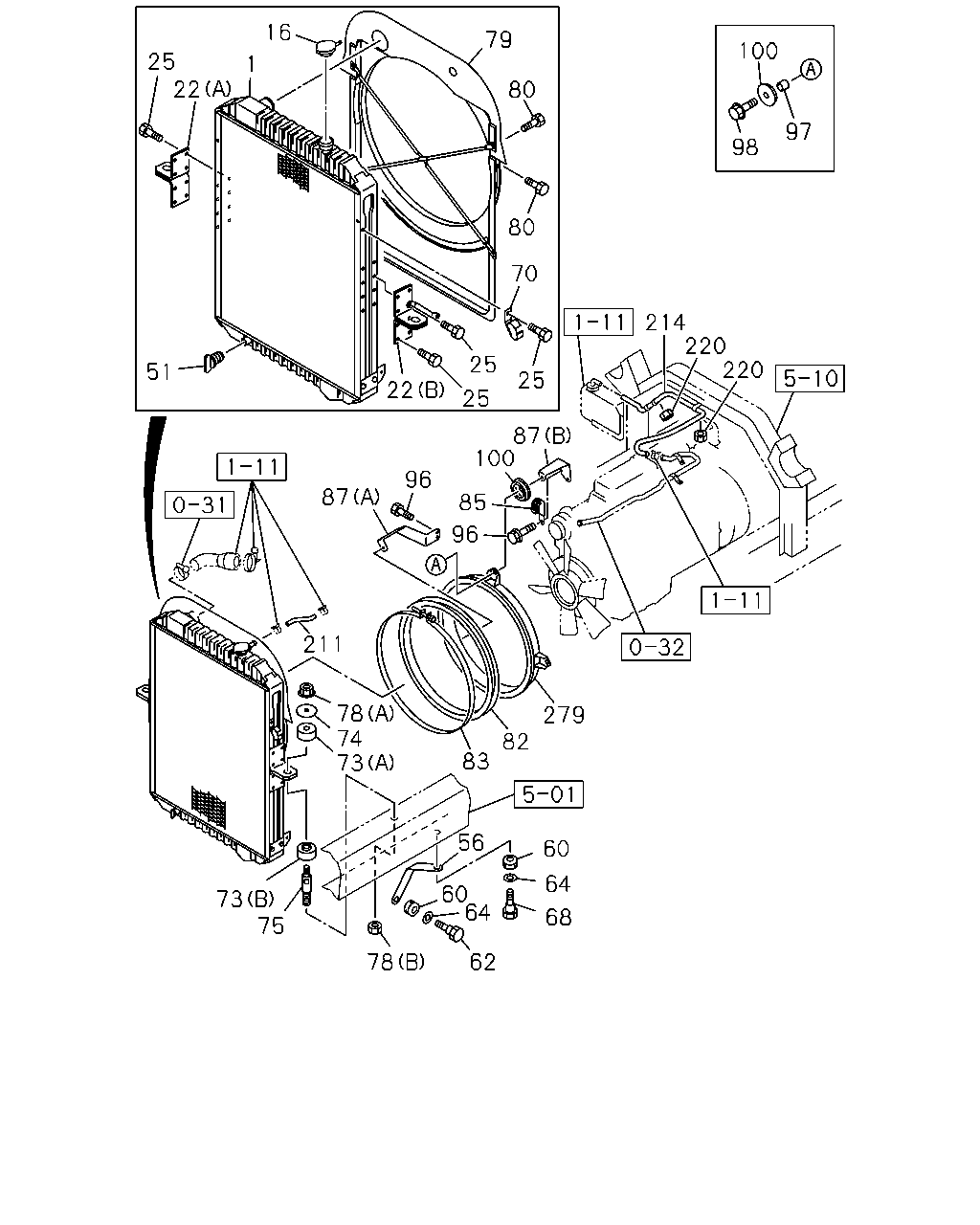

1-10 - RADIATOR
▶
1-10 — RADIATOR
(#14848) — 36 parça
16
79
100
25
22
1
80
97
98
80
70
214
220
220
25
51
22
25
25
87
100
96
87
85
96
211
78
74
73
279
82
83
56
60
64
60
64
73
75
68
78
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
1-21410-708-0
01
1
0711-
16
CAP; RAD
1-21450-053-2
01
1
0711-
22
BRACKET; RAD MTG
(A)
1-21464-458-0
01
1
0711-
22
BRACKET; RAD MTG
(B)
1-21464-520-0
01
1
0711-
25
BOLT; BRKT
M8X12 FLANGE
0-28080-812-0
17
1
0711-
51
PLUG; DRAIN
W/GASKET IDN
1-09609-009-0
01
1
0711-
56
STAY; RAD
1-21464-452-0
01
1
0711-
56
STAY; RAD
1-21464-453-0
01
1
0711-
60
GROMMET
1-09332-117-0
04
1
0711-
62
BOLT; STAY
M8X22
1-09009-123-0
02
1
0711-
64
WASHER; STAY TO RAD
ID=12.5 OD=26
0-91610-612-0
04
1
0711-
68
BOLT; STAY TO BRKT
M8X30
1-09009-020-1
02
1
0711-
70
STAY; RAD
1-83571-875-0
01
1
0711-
73
RUBBER; CUSHION,RAD MTG
(A) T=14
1-21467-004-0
02
1
0711-
73
RUBBER; CUSHION,RAD MTG
(B) T=24
1-21467-011-1
02
1
0711-
74
WASHER; PL,CUSHION RUBBER
ID=8.4 OD=22
1-09503-154-2
02
1
0711-
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5
1-21466-007-3
02
1
0711-
78
NUT; CUSHION RUBBER
(A) M10 FLANGE
0-91180-110-0
02
1
0711-
78
NUT; CUSHION RUBBER
(B) M12 FLANGE
0-91180-212-0
02
1
0711-
79
GUIDE; FAN,RAD
1-21551-397-2
01
1
0711-
80
BOLT; FAN GUIDE
M6X12 FLANGE
0-28080-612-0
04
1
0711-
82
COVER; FAN,RAD
1-21559-397-0
01
1
0711-
83
CLIP; FAN COVER
1-09707-177-2
01
1
0711-
85
CLIP
ID=18 L=44
8-94225-185-0
01
1
0711-0801
85
CLIP
ID=18 L=44
8-97367-985-1
01
1
0802-
87
STAY; FAN GUIDE
(A)
1-21559-373-0
01
1
0711-
87
STAY; FAN GUIDE
(B)
1-21559-379-0
01
1
0711-
96
BOLT; STAY FIX
M8X16 FLANGE
0-28050-816-0
04
1
0711-
97
TUBE; DIST,FAN GUIDE
9-09651-072-0
03
1
0711-
98
BOLT; RAD FAN GUIDE
M8X45 FLANGE
0-28050-845-0
03
1
0711-
100
RUBBER; MTG
8-94395-766-0
06
1
0711-
211
HOSE; RAD TO PIPE
L=350 SERVICED BY L=3000
0-03557-300-0
01
1
0711-
214
HOSE; PIPE TO RESERVE TANK
L=1200 SERVICED BY L=3000
0-03557-300-0
01
1
0711-
220
NUT; CLIP
M8 FLANGE
0-91180-108-0
04
1
0711-
279
BELL MOUTH
8-94394-174-1
01
1
0711-0711
279
BELL MOUTH
1-21551-395-0
01
1
0712-
