Sayfa 4-35 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51580 - TFR/TFS RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-35 - POWER STEERING CONTROL; CHASSIS SIDE ▶

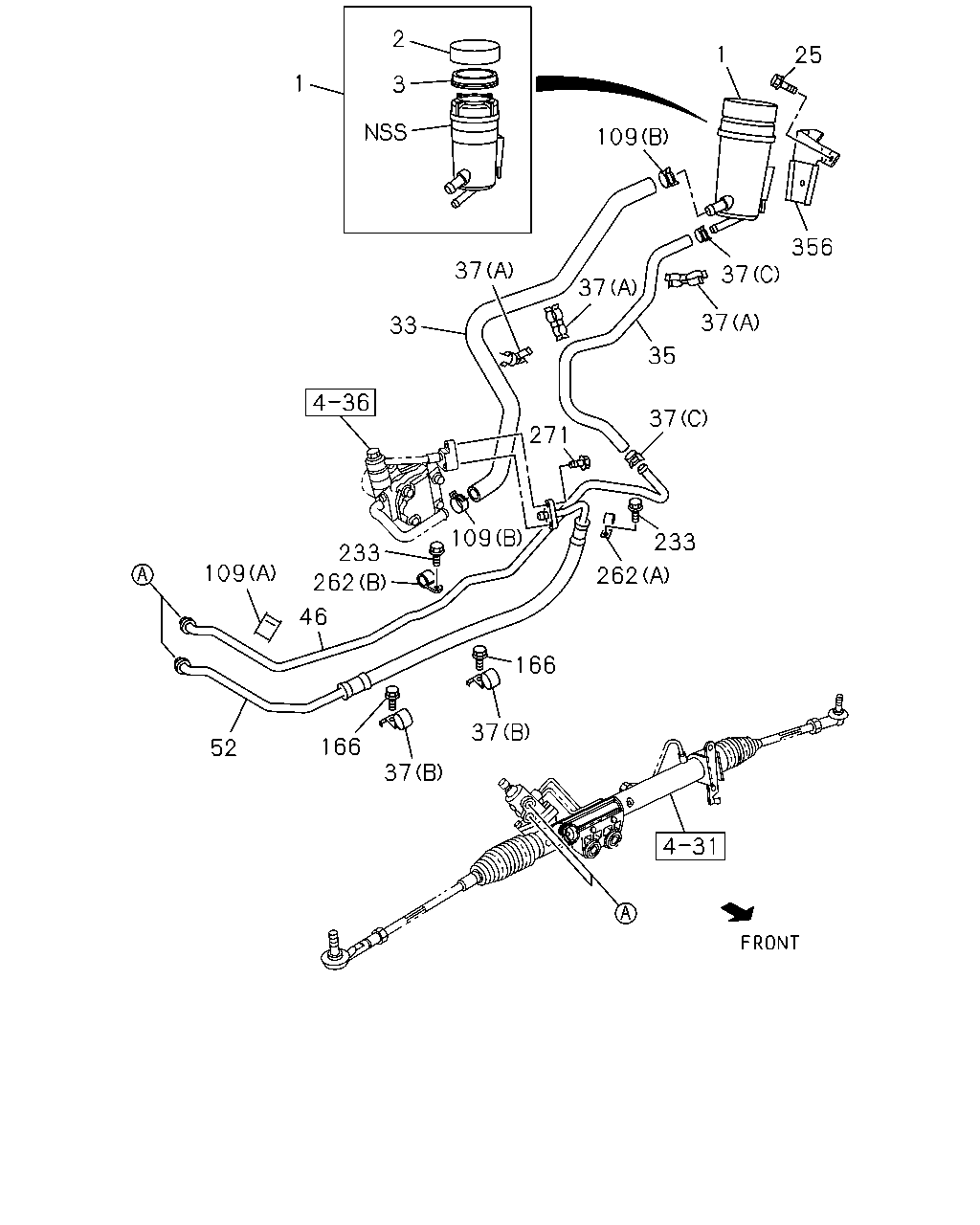

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#148476) — 126 parça

1 2 3 1 25 356 37 37 37 37 33 35 37 271 233 262 109 233 109 262 46 52 166 37 37 166 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.635 TANK ASM; OIL,P/S	8-97234-350-0	01	1	1409-1505	●	●	●	●	●	●
1	06.635 TANK ASM; OIL,P/S	8-97234-350-0	01	1	1506-	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S	8-97349-476-0	01	1	1409-1505	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S	8-97349-476-0	01	1	1506-	●	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S	8-97349-477-0	01	1	1409-1505	●	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S	8-97349-477-0	01	1	1506-	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1409-	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1-T ENG(LP0)	8-97946-137-0	01	1	1412-		●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97946-138-2	01	1	1409-1411	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97946-138-2	01	1	1412-	●			●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)	8-97946-138-2	01	1	1412-		●	●
35	06.671 HOSE; RETURN,P/S TANK	8-97946-140-1	01	1	1409-	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 06.672 (A) ID=17.5 & 21	8-97177-580-0	01	1	1409-1411	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 06.672 (A) ID=17.5 & 21	8-97177-580-0	01	1	1412-	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 06.672 (A) ID=17.5 & 21	8-97177-580-0	02	1	1409-1411	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 06.672 (A) ID=17.5 & 21	8-97177-580-0	02	1	1412-	●			●	●	●
37	01.762 CLIP; HOSE,P/S 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 06.672 (A) ID=17.5 & 21	8-97177-580-0	02	1	1412-		●	●
37	01.762 CLIP; HOSE,P/S (C) ID=16	8-98030-682-0	02	1	1409-	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S (B) ID=21.5 L=21	8-98211-907-0	02	1	1409-1411	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S (B) ID=21.5 L=21	8-98211-907-0	02	1	1412-	●			●	●	●
37	01.762 CLIP; HOSE,P/S 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) (B) ID=21.5 L=21	8-98211-907-0	02	1	1412-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JA1-T ENG(LP0) HIGH RIDE SUSPENSION(7YC)	8-98209-390-0	01	1	1412-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) L=1017	8-98179-941-0	01	1	1412-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-98228-467-1	01	1	1409-1411	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK EXC. HIGH RIDE SUSPENSION(7YC)	8-98228-467-1	01	1	1409-1411		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-98228-467-1	01	1	1412-1509	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC)	8-98228-467-1	01	1	1412-1509		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC)	8-98228-467-1	01	1	1510-	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK HIGH RIDE SUSPENSION(7YC)	8-98228-468-1	01	1	1409-1411		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-98228-468-1	01	1	1409-1411				●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC)	8-98228-468-1	01	1	1412-1509		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-98228-468-1	01	1	1412-1509				●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC)	8-98228-468-1	01	1	1510-	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-98228-468-1	01	1	1510-				●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1-T ENG(LP0) HIGH RIDE SUSPENSION(7YC)	8-98209-389-0	01	1	1412-		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-159-0	01	1	1412-		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV	8-98228-465-0	01	1	1409-1411	●
52	06.673 HOSE; FLEX,P/S CONT VLV EXC. HIGH RIDE SUSPENSION(7YC)	8-98228-465-0	01	1	1409-1411		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV	8-98228-465-0	01	1	1412-1509	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC)	8-98228-465-0	01	1	1412-1509		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC)	8-98228-465-0	01	1	1510-	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV HIGH RIDE SUSPENSION(7YC)	8-98228-466-0	01	1	1409-1411		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV	8-98228-466-0	01	1	1409-1411				●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC)	8-98228-466-0	01	1	1412-1509		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV	8-98228-466-0	01	1	1412-1509				●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC)	8-98228-466-0	01	1	1510-	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV	8-98228-466-0	01	1	1510-				●	●	●
109	06.672 CLIP; RUBBER HOSE 4JA1-T ENG(LP0) (C)	8-98203-619-0	01	1	1412-		●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=10X2 H=22	8-94252-455-2	01	1	1409-	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=20.8	8-97944-127-0	02	1	1409-	●	●	●	●	●	●
166	06.672 BOLT; CLIP 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1409-1411	●	●	●	●	●	●
166	06.672 BOLT; CLIP 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1412-	●			●	●	●
166	06.672 BOLT; CLIP 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1412-		●	●
233	06.672 BOLT; PIPE CLIP,P/S 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1409-	●	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JA1-T ENG(LP0) 03.162 (C) ID=11X2 L=16	8-98177-573-0	01	1	1412-		●	●
262	06.672 CLIP; P/S PIPE 03.162 (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1409-1411	●	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 03.162 (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1412-	●			●	●	●
262	06.672 CLIP; P/S PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 03.162 (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1412-		●	●
262	06.672 CLIP; P/S PIPE 02.559 (B) ID=11 L=20	0-95235-032-0	01	1	1409-1411	●	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 02.559 (B) ID=11 L=20	0-95235-032-0	01	1	1412-	●			●	●	●
262	06.672 CLIP; P/S PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 02.559 (B) ID=11 L=20	0-95235-032-0	01	1	1412-		●	●
271	06.672 BOLT; P/S OIL PIPE FIX 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1409-1411	●	●	●	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1412-	●			●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1412-		●	●
356	06.672 BRACKET; P/S,RESERVOIR	8-97946-163-0	01	1	1409-	●	●	●	●	●	●

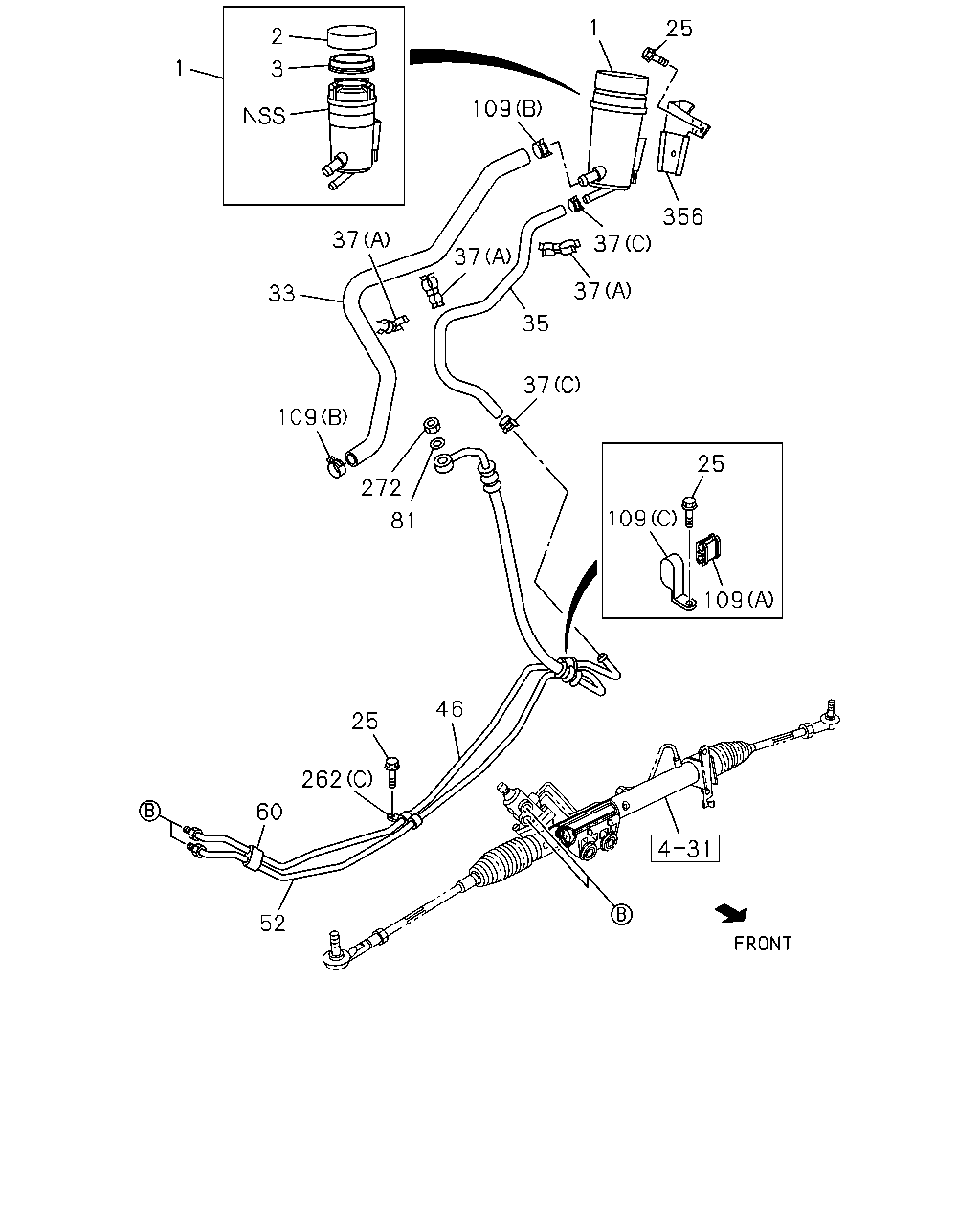

1 2 3 109 1 25 356 37 37 35 37 37 37 33 109 272 81 25 109 109 46 25 262 60 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.635 TANK ASM; OIL,P/S	8-97234-350-0	01	1	1409-1505	●	●	●	●	●	●
1	06.635 TANK ASM; OIL,P/S	8-97234-350-0	01	1	1506-	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S	8-97349-476-0	01	1	1409-1505	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S	8-97349-476-0	01	1	1506-	●	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S	8-97349-477-0	01	1	1409-1505	●	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S	8-97349-477-0	01	1	1506-	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1409-	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1-T ENG(LP0)	8-97946-137-0	01	1	1412-		●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97946-138-2	01	1	1409-1411	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97946-138-2	01	1	1412-	●			●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX)	8-97946-138-2	01	1	1412-		●	●
35	06.671 HOSE; RETURN,P/S TANK	8-97946-140-1	01	1	1409-	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 06.672 (A) ID=17.5 & 21	8-97177-580-0	01	1	1409-1411	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AI R(8NF) 06.672 (A) ID=17.5 & 21	8-97177-580-0	01	1	1412-	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 06.672 (A) ID=17.5 & 21	8-97177-580-0	02	1	1409-1411	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 06.672 (A) ID=17.5 & 21	8-97177-580-0	02	1	1412-	●			●	●	●
37	01.762 CLIP; HOSE,P/S 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 06.672 (A) ID=17.5 & 21	8-97177-580-0	02	1	1412-		●	●
37	01.762 CLIP; HOSE,P/S (C) ID=16	8-98030-682-0	02	1	1409-	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S (B) ID=21.5 L=21	8-98211-907-0	02	1	1409-1411	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S (B) ID=21.5 L=21	8-98211-907-0	02	1	1412-	●			●	●	●
37	01.762 CLIP; HOSE,P/S 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) (B) ID=21.5 L=21	8-98211-907-0	02	1	1412-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JA1-T ENG(LP0) HIGH RIDE SUSPENSION(7YC)	8-98209-390-0	01	1	1412-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) L=1017	8-98179-941-0	01	1	1412-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-98228-467-1	01	1	1409-1411	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK EXC. HIGH RIDE SUSPENSION(7YC)	8-98228-467-1	01	1	1409-1411		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-98228-467-1	01	1	1412-1509	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC)	8-98228-467-1	01	1	1412-1509		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC)	8-98228-467-1	01	1	1510-	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK HIGH RIDE SUSPENSION(7YC)	8-98228-468-1	01	1	1409-1411		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-98228-468-1	01	1	1409-1411				●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC)	8-98228-468-1	01	1	1412-1509		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-98228-468-1	01	1	1412-1509				●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC)	8-98228-468-1	01	1	1510-	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-98228-468-1	01	1	1510-				●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1-T ENG(LP0) HIGH RIDE SUSPENSION(7YC)	8-98209-389-0	01	1	1412-		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-159-0	01	1	1412-		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV	8-98228-465-0	01	1	1409-1411	●
52	06.673 HOSE; FLEX,P/S CONT VLV EXC. HIGH RIDE SUSPENSION(7YC)	8-98228-465-0	01	1	1409-1411		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV	8-98228-465-0	01	1	1412-1509	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC)	8-98228-465-0	01	1	1412-1509		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) EXC. HIGH RIDE SUSPENSION(7YC)	8-98228-465-0	01	1	1510-	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV HIGH RIDE SUSPENSION(7YC)	8-98228-466-0	01	1	1409-1411		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV	8-98228-466-0	01	1	1409-1411				●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC)	8-98228-466-0	01	1	1412-1509		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV	8-98228-466-0	01	1	1412-1509				●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) HIGH RIDE SUSPENSION(7YC)	8-98228-466-0	01	1	1510-	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV	8-98228-466-0	01	1	1510-				●	●	●
60	06.672 CLAMP; PIPE,RETURN 4JA1-T ENG(LP0) ID=10X2 H=22	8-94252-455-2	01	1	1412-		●	●
81	06.672 WASHER; LK,FLEX HOSE 4JA1-T ENG(LP0) 07.347 ID=12.2	0-91510-812-0	01	1	1412-		●	●
109	06.672 CLIP; RUBBER HOSE 4JA1-T ENG(LP0) (C)	8-98203-619-0	01	1	1412-		●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=10X2 H=22	8-94252-455-2	01	1	1409-	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=20.8	8-97944-127-0	02	1	1409-	●	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JA1-T ENG(LP0) 03.162 (C) ID=11X2 L=16	8-98177-573-0	01	1	1412-		●	●
262	06.672 CLIP; P/S PIPE 03.162 (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1409-1411	●	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 03.162 (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1412-	●			●	●	●
262	06.672 CLIP; P/S PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 03.162 (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1412-		●	●
262	06.672 CLIP; P/S PIPE 02.559 (B) ID=11 L=20	0-95235-032-0	01	1	1409-1411	●	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 02.559 (B) ID=11 L=20	0-95235-032-0	01	1	1412-	●			●	●	●
262	06.672 CLIP; P/S PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 02.559 (B) ID=11 L=20	0-95235-032-0	01	1	1412-		●	●
272	06.672 NUT; P/S OIL PIPE FIX 4JA1-T ENG(LP0) 04.439 M12	0-91111-512-0	01	1	1412-		●	●
356	06.672 BRACKET; P/S,RESERVOIR	8-97946-163-0	01	1	1409-	●	●	●	●	●	●
