1 |

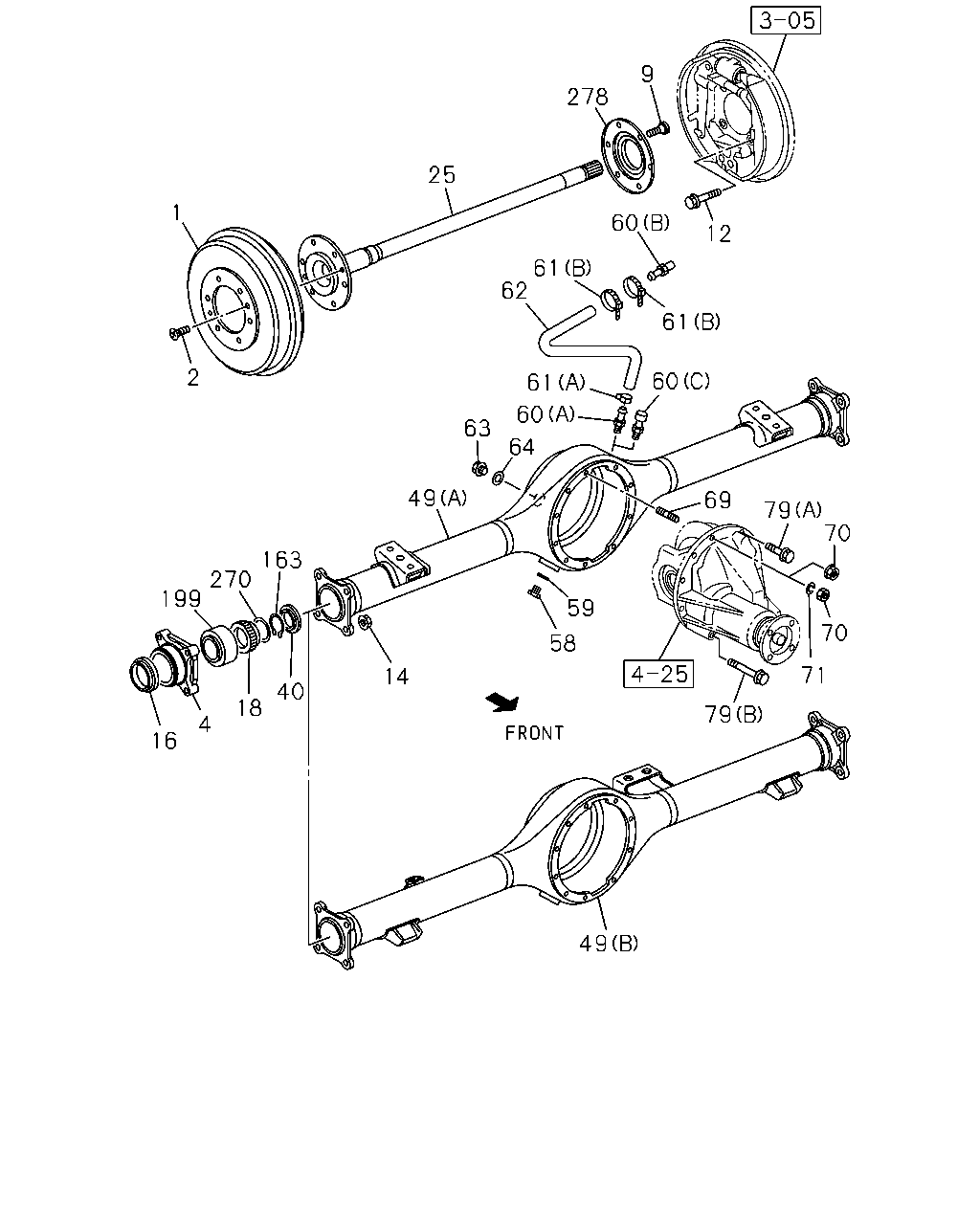

05.809 DRUM; BRK,RR
EXC. AUSTRALIA EQUIPMENT(B13),HONG
KONG EQUIPMENT(B14),SINGAPORE
EQUIPMENT(2G0),HIGH RIDE SUSPENSION(7YC)
|
8-98136-491-1 |
02 |
1 |
1412- |
● |
● |
|
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
AISIN TAKAOKA
|
8-97948-038-1 |
02 |
1 |
1409-1411 |
● |
● |
● |
● |
● |
● |
| |
1 |
05.809 DRUM; BRK,RR
AISIN TAKAOKA
|
8-97948-038-1 |
02 |
1 |
1412- |
|
|
● |
● |
● |
● |
| |
1 |
05.809 DRUM; BRK,RR
HIGH RIDE SUSPENSION(7YC)
AISIN TAKAOKA
|
8-97948-038-1 |
02 |
1 |
1412- |
● |
● |
|
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
AUSTRALIA EQUIPMENT(B13),HONG KONG
EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)
EXC. HIGH RIDE SUSPENSION(7YC)
AISIN TAKAOKA
|
8-97948-038-1 |
02 |
1 |
1412- |
● |
● |
|
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
SOMBOON
|
8-98061-813-1 |
02 |
1 |
1409-1411 |
● |
● |
● |
● |
● |
● |
| |
1 |
05.809 DRUM; BRK,RR
SOMBOON
|
8-98061-813-1 |
02 |
1 |
1412- |
|
|
● |
● |
● |
● |
| |
1 |
05.809 DRUM; BRK,RR
HIGH RIDE SUSPENSION(7YC)
SOMBOON
|
8-98061-813-1 |
02 |
1 |
1412- |
● |
● |
|
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
AUSTRALIA EQUIPMENT(B13),HONG KONG
EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)
EXC. HIGH RIDE SUSPENSION(7YC)
SOMBOON
|
8-98061-813-1 |
02 |
1 |
1412- |
● |
● |
|
|
|
|
| |
2 |
05.812 BOLT; BRK DRUM
M6X16 CK-HEAD
|
0-36410-616-0 |
02 |
1 |
1409- |
● |
● |
● |
● |
● |
● |
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
EXC. AUSTRALIA EQUIPMENT(B13),HONG
KONG EQUIPMENT(B14),SINGAPORE
EQUIPMENT(2G0),HIGH RIDE SUSPENSION(7YC)
|
8-98103-449-2 |
02 |
1 |
1412- |
● |
● |
|
|
|
|
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
|
8-98103-450-3 |
02 |
1 |
1409-1411 |
● |
● |
● |
● |
● |
● |
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
|
8-98103-450-3 |
02 |
1 |
1412- |
|
|
● |
● |
● |
● |
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
HIGH RIDE SUSPENSION(7YC)
|
8-98103-450-3 |
02 |
1 |
1412- |
● |
● |
|
|
|
|
| |
4 |
05.816 HOLDER; BRG,AXLE SHAFT
AUSTRALIA EQUIPMENT(B13),HONG KONG
EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98103-450-3 |
02 |
1 |
1412- |
● |
● |
|
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M12X42.5 RH THREAD
|
8-97944-831-1 |
12 |
1 |
1409- |
● |
● |
● |
● |
● |
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
EXC. AUSTRALIA EQUIPMENT(B13),HONG
KONG EQUIPMENT(B14),SINGAPORE
EQUIPMENT(2G0),HIGH RIDE SUSPENSION(7YC)
M12X84 FLANGE
|
8-98107-913-2 |
08 |
1 |
1412- |
● |
● |
|
|
|
|
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
M12X59 FLANGE
|
8-98107-914-2 |
08 |
1 |
1409-1411 |
● |
● |
● |
● |
● |
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
M12X59 FLANGE
|
8-98107-914-2 |
08 |
1 |
1412- |
|
|
● |
● |
● |
● |
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
HIGH RIDE SUSPENSION(7YC)
M12X59 FLANGE
|
8-98107-914-2 |
08 |
1 |
1412- |
● |
● |
|
|
|
|
| |
12 |
05.816 BOLT; BRG HOLDER TO CASE
AUSTRALIA EQUIPMENT(B13),HONG KONG
EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)
EXC. HIGH RIDE SUSPENSION(7YC)
M12X59 FLANGE
|
8-98107-914-2 |
08 |
1 |
1412- |
● |
● |
|
|
|
|
| |
14 |
05.816 NUT; BRG HOLDER TO CASE
M12 FLANGE
|
0-91180-212-0 |
08 |
1 |
1409- |
● |
● |
● |
● |
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
|
8-98134-394-0 |
02 |
1 |
1409- |
● |
● |
● |
● |
● |
● |
| |
18 |
05.822 RETAINER; RR AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97239-868-0 |
02 |
1 |
1412- |
● |
● |
|
● |
● |
● |
| |
18 |
05.822 RETAINER; RR AXLE
|
8-98009-341-0 |
02 |
1 |
1409-1411 |
● |
● |
● |
● |
● |
● |
| |
18 |
05.822 RETAINER; RR AXLE
|
8-98009-341-0 |
02 |
1 |
1412- |
|
|
● |
|
|
|
| |
18 |
05.822 RETAINER; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-98009-341-0 |
02 |
1 |
1412- |
● |
● |
|
● |
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH
RIDESUSPENSION(7YC)
|
8-98107-831-1 |
02 |
1 |
1412- |
● |
● |
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
|
8-98080-677-2 |
02 |
1 |
1409-1411 |
|
|
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98080-677-2 |
02 |
1 |
1409-1411 |
● |
● |
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
|
8-98080-677-2 |
02 |
1 |
1412-1509 |
|
|
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/11(GT4),FINAL
GEAR RATIO 41/12(GU6),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
,FINAL GEAR RATIO 43/14(G44)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98080-677-2 |
02 |
1 |
1412-1509 |
● |
● |
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/11(GT4),FINAL
GEAR RATIO 41/12(GU6),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
,FINAL GEAR RATIO 43/14(G44)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98080-677-2 |
02 |
1 |
1510- |
● |
● |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
HIGH RIDE SUSPENSION(7YC)
|
8-98080-678-2 |
02 |
1 |
1409-1509 |
● |
● |
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
|
8-98080-678-2 |
02 |
1 |
1409-1509 |
|
|
|
● |
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
HIGH RIDE SUSPENSION(7YC)
|
8-98080-678-2 |
02 |
1 |
1510- |
● |
● |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
|
8-98080-678-2 |
02 |
1 |
1510- |
|
|
|
● |
● |
● |
| |
40 |
05.387 SEAL; OIL,REAR AXLE
|
8-97323-297-0 |
02 |
1 |
1409- |
● |
● |
● |
● |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
BRK WHL LK CONT LSPV<JR9>
HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98080-422-2 |
01 |
1 |
1412- |
● |
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU)
BRK WHL LK CONT LSPV<JR9>
(A)
|
8-98080-422-2 |
01 |
1 |
1412- |
|
|
|
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
A/T 5 SPEED-AISIN(MA1),M/T MUA 5
SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),
M/TAISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5
G(RSP),M/T MUA 5 SPEED 5S(RSQ)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98080-393-2 |
01 |
1 |
1412- |
● |
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
HIGH RIDE SUSPENSION(7YC)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRKWHL LK CONT LSPV<JR9>
(B)
|
8-98080-420-2 |
01 |
1 |
1412- |
● |
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRKWHL LK CONT LSPV<JR9>
(B)
|
8-98080-420-2 |
01 |
1 |
1412- |
|
|
|
● |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
A/T 5 SPEED-AISIN(MA1),M/T MUA 5
SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),
M/TAISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5
G(RSP),M/T MUA 5 SPEED 5S(RSQ)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP
ENSION(7YC)
(A)
|
8-98080-391-2 |
01 |
1 |
1412- |
● |
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
HIGH RIDE SUSPENSION(7YC)
EXC. ELECTRONIC TRACTION CONTROL<NW9>
(B)
|
8-98080-421-2 |
01 |
1 |
1412- |
● |
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. ELECTRONIC TRACTION CONTROL<NW9>
(B)
|
8-98080-421-2 |
01 |
1 |
1412- |
|
|
|
● |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
AUSTRALIA EQUIPMENT(B13),HONG KONG
EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0)
EXC. ELECTRONIC TRACTION CONTROL<NW9>
,HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98107-518-2 |
01 |
1 |
1412- |
● |
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
A/T 5 SPEED-AISIN(MA1),M/T MUA 5
SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),
M/TAISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5
G(RSP),M/T MUA 5 SPEED 5S(RSQ)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. AUSTRALIA EQUIPMENT(B13),HONG
KONG EQUIPMENT(B14),ELECTRONIC TRACTION
CONTROL<NW9>,SINGAPORE
EQUIPMENT(2G0),HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98080-392-2 |
01 |
1 |
1412- |
● |
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
M/T MSG 5 SPEED(M75)
BRK WHL LK CONT LSPV<JR9>
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98107-517-2 |
01 |
1 |
1412-1412 |
● |
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
M/T MSG 5 SPEED(M75)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP
ENSION(7YC)
(A)
|
8-98107-514-2 |
01 |
1 |
1412- |
● |
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
M/T MSG 5 SPEED(M75)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. AUSTRALIA EQUIPMENT(B13),HONG
KONG EQUIPMENT(B14),ELECTRONIC TRACTION
CONTROL<NW9>,SINGAPORE
EQUIPMENT(2G0),HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98107-515-2 |
01 |
1 |
1412- |
● |
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
A/T 5 SPEED-AISIN(MA1)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
BRKWHL LK CONT LSPV<JR9>
(B)
|
8-98173-630-0 |
01 |
1 |
1412- |
|
|
|
● |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
A/T 5 SPEED-AISIN(MA1)
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. ELECTRONIC TRACTION CONTROL<NW9>
(B)
|
8-98173-631-0 |
01 |
1 |
1412- |
|
|
|
● |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
A/T 5 SPEED-AISIN(MA1)
BRK WHL LK CONT LSPV<JR9>
(A)
|
8-98173-632-0 |
01 |
1 |
1412- |
|
|
|
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
(A)
|
8-98157-092-1 |
01 |
1 |
1409-1411 |
|
|
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98157-092-1 |
01 |
1 |
1409-1411 |
● |
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
(A)
|
8-98157-092-1 |
01 |
1 |
1412-1509 |
|
|
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
ELECTRONIC TRACTION CONTROL<NW9>
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98157-092-1 |
01 |
1 |
1412-1509 |
● |
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
ELECTRONIC TRACTION CONTROL<NW9>
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98157-092-1 |
01 |
1 |
1510- |
● |
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98080-423-2 |
01 |
1 |
1409-1411 |
● |
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
M/T MUX 5 SPEED 5S(MZJ)
(B)
|
8-98080-423-2 |
01 |
1 |
1409-1411 |
|
|
|
● |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
ELECTRONIC TRACTION CONTROL<NW9>
HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98080-423-2 |
01 |
1 |
1412-1509 |
● |
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU)
4 WHEEL ANTI LOCK BRAKE<JE5>
ELECTRONIC TRACTION CONTROL<NW9>
(B)
|
8-98080-423-2 |
01 |
1 |
1412-1509 |
|
|
|
● |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
ELECTRONIC TRACTION CONTROL<NW9>
HIGH RIDE SUSPENSION(7YC)
(B)
|
8-98080-423-2 |
01 |
1 |
1510- |
● |
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T AISIN 6 SPEED(RNU)
4 WHEEL ANTI LOCK BRAKE<JE5>
ELECTRONIC TRACTION CONTROL<NW9>
(B)
|
8-98080-423-2 |
01 |
1 |
1510- |
|
|
|
● |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
A/T 5 SPEED-AISIN(MA1)
(B)
|
8-98173-633-0 |
01 |
1 |
1409-1411 |
|
|
|
● |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
A/T 5 SPEED-AISIN(MA1)
4 WHEEL ANTI LOCK BRAKE<JE5>
ELECTRONIC TRACTION CONTROL<NW9>
(B)
|
8-98173-633-0 |
01 |
1 |
1412- |
|
|
|
● |
● |
● |
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
M16X12.5
|
8-97307-060-0 |
01 |
1 |
1409- |
● |
● |
● |
● |
● |
● |
| |
59 |
05.400 GASKET; DRAIN PLUG
01.252
ID=16.2 OD=24
|
9-09571-416-0 |
01 |
1 |
1409- |
● |
● |
● |
● |
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
L=29
|
8-98006-960-0 |
01 |
1 |
1412- |
● |
● |
|
● |
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
4JJ1-TCX ENG(LS0)
(B)
|
8-98018-796-0 |
01 |
1 |
1409-1411 |
● |
● |
● |
● |
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
(B)
|
8-98018-796-0 |
01 |
1 |
1412- |
|
|
● |
|
|
|
| |
60 |
05.387 BREATHER; RR AXLE CASE
AUSTRALIA EQUIPMENT(B13)
(B)
|
8-98018-796-0 |
01 |
1 |
1412- |
● |
● |
|
● |
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
4JJ1-TCX ENG(LS0)
(A)
|
8-98179-881-0 |
01 |
1 |
1409-1411 |
|
|
● |
|
|
|
| |
60 |
05.387 BREATHER; RR AXLE CASE
4JJ1-TCX ENG(LS0)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98179-881-0 |
01 |
1 |
1409-1411 |
● |
● |
|
|
|
|
| |
60 |
05.387 BREATHER; RR AXLE CASE
(A)
|
8-98179-881-0 |
01 |
1 |
1412-1509 |
|
|
● |
|
|
|
| |
60 |
05.387 BREATHER; RR AXLE CASE
AUSTRALIA EQUIPMENT(B13)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98179-881-0 |
01 |
1 |
1412-1509 |
● |
● |
|
|
|
|
| |
60 |
05.387 BREATHER; RR AXLE CASE
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98179-881-0 |
01 |
1 |
1510- |
|
|
● |
|
|
|
| |
60 |
05.387 BREATHER; RR AXLE CASE
AUSTRALIA EQUIPMENT(B13)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98179-881-0 |
01 |
1 |
1510- |
● |
● |
|
|
|
|
| |
60 |
05.387 BREATHER; RR AXLE CASE
4JJ1-TCX ENG(LS0)
HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-279-0 |
01 |
1 |
1409-1411 |
● |
● |
|
|
|
|
| |
60 |
05.387 BREATHER; RR AXLE CASE
4JJ1-TCX ENG(LS0)
(A)
|
8-98008-279-0 |
01 |
1 |
1409-1411 |
|
|
|
● |
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
AUSTRALIA EQUIPMENT(B13)
HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-279-0 |
01 |
1 |
1412-1509 |
● |
● |
|
|
|
|
| |
60 |
05.387 BREATHER; RR AXLE CASE
AUSTRALIA EQUIPMENT(B13)
(A)
|
8-98008-279-0 |
01 |
1 |
1412-1509 |
|
|
|
● |
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-279-0 |
01 |
1 |
1510- |
|
|
● |
|
|
|
| |
60 |
05.387 BREATHER; RR AXLE CASE
AUSTRALIA EQUIPMENT(B13)
HIGH RIDE SUSPENSION(7YC)
(A)
|
8-98008-279-0 |
01 |
1 |
1510- |
● |
● |
|
|
|
|
| |
60 |
05.387 BREATHER; RR AXLE CASE
AUSTRALIA EQUIPMENT(B13)
(A)
|
8-98008-279-0 |
01 |
1 |
1510- |
|
|
|
● |
● |
● |
| |
61 |
05.387 CLIP; BREATHER HOSE,RR AXLE
4JJ1-TCX ENG(LS0)
02.587
(B)
L=112
|
8-94232-618-0 |
02 |
1 |
1409-1411 |
● |
● |
● |
● |
● |
● |
| |
61 |
05.387 CLIP; BREATHER HOSE,RR AXLE
02.587
(B)
L=112
|
8-94232-618-0 |
02 |
1 |
1412- |
|
|
● |
|
|
|
| |
61 |
05.387 CLIP; BREATHER HOSE,RR AXLE
AUSTRALIA EQUIPMENT(B13)
02.587
(B)
L=112
|
8-94232-618-0 |
02 |
1 |
1412- |
● |
● |
|
● |
● |
● |
| |
61 |
05.387 CLIP; BREATHER HOSE,RR AXLE
4JJ1-TCX ENG(LS0)
03.163
(A)
ID=11
|
8-94238-570-0 |
01 |
1 |
1409-1411 |
● |
● |
● |
● |
● |
● |
| |
61 |
05.387 CLIP; BREATHER HOSE,RR AXLE
03.163
(A)
ID=11
|
8-94238-570-0 |
01 |
1 |
1412- |
|
|
● |
|
|
|
| |
61 |
05.387 CLIP; BREATHER HOSE,RR AXLE
AUSTRALIA EQUIPMENT(B13)
03.163
(A)
ID=11
|
8-94238-570-0 |
01 |
1 |
1412- |
● |
● |
|
● |
● |
● |
| |
62 |
05.387 HOSE; RUBBER,BREATHER,RR AXLE
4JJ1-TCX ENG(LS0)
|
8-98179-715-1 |
01 |
1 |
1409-1411 |
|
|
● |
|
|
|
| |
62 |
05.387 HOSE; RUBBER,BREATHER,RR AXLE
4JJ1-TCX ENG(LS0)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98179-715-1 |
01 |
1 |
1409-1411 |
● |
● |
|
|
|
|
| |
62 |
05.387 HOSE; RUBBER,BREATHER,RR AXLE
|
8-98179-715-1 |
01 |
1 |
1412-1509 |
|
|
● |
|
|
|
| |
62 |
05.387 HOSE; RUBBER,BREATHER,RR AXLE
AUSTRALIA EQUIPMENT(B13)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98179-715-1 |
01 |
1 |
1412-1509 |
● |
● |
|
|
|
|
| |
62 |
05.387 HOSE; RUBBER,BREATHER,RR AXLE
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98179-715-1 |
01 |
1 |
1510- |
|
|
● |
|
|
|
| |
62 |
05.387 HOSE; RUBBER,BREATHER,RR AXLE
AUSTRALIA EQUIPMENT(B13)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98179-715-1 |
01 |
1 |
1510- |
● |
● |
|
|
|
|
| |
62 |
05.387 HOSE; RUBBER,BREATHER,RR AXLE
4JJ1-TCX ENG(LS0)
HIGH RIDE SUSPENSION(7YC)
|
8-98154-100-1 |
01 |
1 |
1409-1411 |
● |
● |
|
|
|
|
| |
62 |
05.387 HOSE; RUBBER,BREATHER,RR AXLE
4JJ1-TCX ENG(LS0)
|
8-98154-100-1 |
01 |
1 |
1409-1411 |
|
|
|
● |
● |
● |
| |
62 |
05.387 HOSE; RUBBER,BREATHER,RR AXLE
AUSTRALIA EQUIPMENT(B13)
HIGH RIDE SUSPENSION(7YC)
|
8-98154-100-1 |
01 |
1 |
1412-1509 |
● |
● |
|
|
|
|
| |
62 |
05.387 HOSE; RUBBER,BREATHER,RR AXLE
AUSTRALIA EQUIPMENT(B13)
|
8-98154-100-1 |
01 |
1 |
1412-1509 |
|
|
|
● |
● |
● |
| |
62 |
05.387 HOSE; RUBBER,BREATHER,RR AXLE
HIGH RIDE SUSPENSION(7YC)
|
8-98154-100-1 |
01 |
1 |
1510- |
|
|
● |
|
|
|
| |
62 |
05.387 HOSE; RUBBER,BREATHER,RR AXLE
AUSTRALIA EQUIPMENT(B13)
HIGH RIDE SUSPENSION(7YC)
|
8-98154-100-1 |
01 |
1 |
1510- |
● |
● |
|
|
|
|
| |
62 |
05.387 HOSE; RUBBER,BREATHER,RR AXLE
AUSTRALIA EQUIPMENT(B13)
|
8-98154-100-1 |
01 |
1 |
1510- |
|
|
|
● |
● |
● |
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
|
8-97307-059-1 |
01 |
1 |
1409- |
● |
● |
● |
● |
● |
● |
| |
64 |
05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30
|
8-94462-734-0 |
01 |
1 |
1409- |
● |
● |
● |
● |
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH
RIDESUSPENSION(7YC)
M8X25 L=36
|
8-97364-104-0 |
02 |
1 |
1412- |
● |
● |
|
|
|
|
| |
69 |
05.387 STUD; AXLE CASE
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
1409-1411 |
● |
● |
● |
● |
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
1412- |
|
|
● |
● |
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
HIGH RIDE SUSPENSION(7YC)
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
1412- |
● |
● |
|
|
|
|
| |
69 |
05.387 STUD; AXLE CASE
FINAL GEAR RATIO 41/11(GT4),FINAL
GEAR RATIO 41/12(GU6),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
,FINAL GEAR RATIO 43/14(G44)
EXC. HIGH RIDE SUSPENSION(7YC)
M10X31 L=43
|
8-98022-413-0 |
02 |
1 |
1412- |
● |
● |
|
|
|
|
| |
70 |
05.387 NUT; CARRIER
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH
RIDESUSPENSION(7YC)
M8
|
5-09400-020-0 |
02 |
1 |
1412- |
● |
● |
|
|
|
|
| |
70 |
05.387 NUT; CARRIER
00.833
M10
|
0-91110-510-0 |
02 |
1 |
1409-1411 |
● |
● |
● |
● |
● |
● |
| |
70 |
05.387 NUT; CARRIER
00.833
M10
|
0-91110-510-0 |
02 |
1 |
1412-1509 |
|
|
● |
● |
● |
● |
| |
70 |
05.387 NUT; CARRIER
HIGH RIDE SUSPENSION(7YC)
00.833
M10
|
0-91110-510-0 |
02 |
1 |
1412-1509 |
● |
● |
|
|
|
|
| |
70 |
05.387 NUT; CARRIER
FINAL GEAR RATIO 41/11(GT4),FINAL
GEAR RATIO 41/12(GU6),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
,FINAL GEAR RATIO 43/14(G44)
EXC. HIGH RIDE SUSPENSION(7YC)
00.833
M10
|
0-91110-510-0 |
02 |
1 |
1412-1509 |
● |
● |
|
|
|
|
| |
70 |
05.387 NUT; CARRIER
04.085
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1510- |
|
|
● |
● |
● |
● |
| |
70 |
05.387 NUT; CARRIER
HIGH RIDE SUSPENSION(7YC)
04.085
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1510- |
● |
● |
|
|
|
|
| |
70 |
05.387 NUT; CARRIER
FINAL GEAR RATIO 41/11(GT4),FINAL
GEAR RATIO 41/12(GU6),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
,FINAL GEAR RATIO 43/14(G44)
EXC. HIGH RIDE SUSPENSION(7YC)
04.085
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1510- |
● |
● |
|
|
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH
RIDESUSPENSION(7YC)
02.559
ID=8.2
|
0-91510-808-0 |
02 |
1 |
1412- |
● |
● |
|
|
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
1409-1411 |
● |
● |
● |
● |
● |
● |
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
1412-1509 |
|
|
● |
● |
● |
● |
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
HIGH RIDE SUSPENSION(7YC)
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
1412-1509 |
● |
● |
|
|
|
|
| |
71 |
05.389 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR RATIO 41/11(GT4),FINAL
GEAR RATIO 41/12(GU6),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
,FINAL GEAR RATIO 43/14(G44)
EXC. HIGH RIDE SUSPENSION(7YC)
02.277
ID=10.2
|
0-91510-810-0 |
02 |
1 |
1412-1509 |
● |
● |
|
|
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH
RIDESUSPENSION(7YC)
06.156
(A)
M8X25 W/LK WASHER
|
8-98022-410-0 |
04 |
1 |
1412- |
● |
● |
|
|
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH
RIDESUSPENSION(7YC)
06.156
(A)
M8X30 W/LK WASHER
|
8-98022-411-0 |
02 |
1 |
1412- |
● |
● |
|
|
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/10(GT5)
EXC. LIMITED SLIP DIFF<G80>,HIGH
RIDESUSPENSION(7YC)
06.156
(A)
M8X90 W/LK WASHER
|
8-98022-412-0 |
02 |
1 |
1412- |
● |
● |
|
|
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
(A)
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
1409-1411 |
● |
● |
● |
● |
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
(A)
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
1412-1509 |
|
|
● |
● |
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
HIGH RIDE SUSPENSION(7YC)
(A)
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
1412-1509 |
● |
● |
|
|
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/11(GT4),FINAL
GEAR RATIO 41/12(GU6),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
,FINAL GEAR RATIO 43/14(G44)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
M10X30 W/LK WASHER
|
0-50561-030-0 |
07 |
1 |
1412-1509 |
● |
● |
|
|
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
04.085
(A)
M10X30 FLANGE
|
0-28061-030-0 |
07 |
1 |
1510- |
|
|
● |
● |
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
HIGH RIDE SUSPENSION(7YC)
04.085
(A)
M10X30 FLANGE
|
0-28061-030-0 |
07 |
1 |
1510- |
● |
● |
|
|
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/11(GT4),FINAL
GEAR RATIO 41/12(GU6),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
,FINAL GEAR RATIO 43/14(G44)
EXC. HIGH RIDE SUSPENSION(7YC)
04.085
(A)
M10X30 FLANGE
|
0-28061-030-0 |
07 |
1 |
1510- |
● |
● |
|
|
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
(B)
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
1409-1411 |
● |
● |
● |
● |
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
(B)
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
1412-1509 |
|
|
● |
● |
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
HIGH RIDE SUSPENSION(7YC)
(B)
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
1412-1509 |
● |
● |
|
|
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/11(GT4),FINAL
GEAR RATIO 41/12(GU6),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
,FINAL GEAR RATIO 43/14(G44)
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
M10X90 W/LK WASHER
|
0-50561-090-0 |
01 |
1 |
1412-1509 |
● |
● |
|
|
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
(B)
M10X90
|
0-28061-090-0 |
01 |
1 |
1510- |
|
|
● |
● |
● |
● |
| |
79 |
05.387 BOLT; COVER TO CASE
HIGH RIDE SUSPENSION(7YC)
(B)
M10X90
|
0-28061-090-0 |
01 |
1 |
1510- |
● |
● |
|
|
|
|
| |
79 |
05.387 BOLT; COVER TO CASE
FINAL GEAR RATIO 41/11(GT4),FINAL
GEAR RATIO 41/12(GU6),FINAL GEAR RATIO
43/11(GW1),FINAL GEAR RATIO 43/10(GY2)
,FINAL GEAR RATIO 43/14(G44)
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
M10X90
|
0-28061-090-0 |
01 |
1 |
1510- |
● |
● |
|
|
|
|
| |
163 |
05.422 RING; SNAP,AXLE SHAFT
ID=38.5 T=1.75
|
9-09180-042-0 |
AR |
1 |
1409- |
● |
● |
● |
● |
● |
● |
| |
163 |
05.422 RING; SNAP,AXLE SHAFT
ID=38.5 T=2.00
|
9-09952-253-0 |
AR |
1 |
1409- |
● |
● |
● |
● |
● |
● |
| |
199 |
05.855 BEARING; RR AXLE
|
8-97216-797-2 |
02 |
1 |
1409- |
● |
● |
● |
● |
● |
● |
| |
270 |
05.855 SHIM; RETAINER
05.537
T=0.24
|
9-41519-109-0 |
AR |
1 |
1409- |
● |
● |
● |
● |
● |
● |
| |
278 |
05.822 CATCHER; OIL
|
8-98103-447-2 |
02 |
1 |
1409- |
● |
● |
● |
● |
● |
● |
