◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51580 - TFR/TFS RHD ▶ 3 - Brakes, Brake System ▶ 3-60 - BRAKE PIPING; VACUUM ▶
3-60 — BRAKE PIPING; VACUUM (#148465) — 25 parça

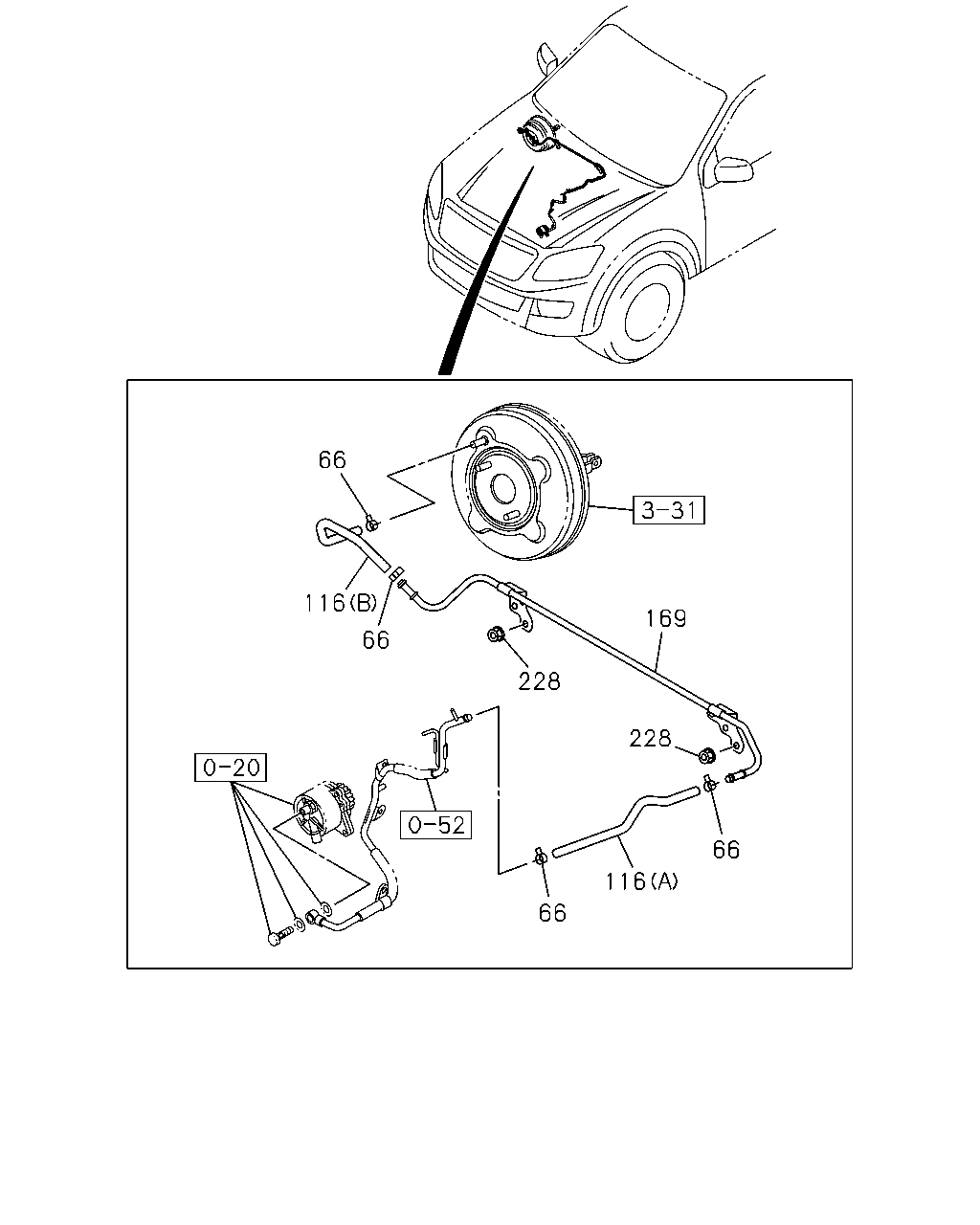

çizim 443815
66 116 66 228 169 228 66 116 66
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-98036-539-0 04 1 1409- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JA1-T ENG(LP0) (C) 		8-98100-738-0 01 1 1412- ● ●
116 04.931 HOSE; VAC,M/VAC
(B) 		8-98100-736-0 01 1 1409-1411 ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(B) 		8-98100-736-0 01 1 1412- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) (B) 		8-98100-736-0 01 1 1412- ● ●
116 04.931 HOSE; VAC,M/VAC
(A) 		8-98100-737-1 01 1 1409-1411 ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(A) 		8-98100-737-1 01 1 1412- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) (A) 		8-98100-737-1 01 1 1412- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE 8-98100-266-1 01 1 1409-1411 ● ● ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE 8-98100-266-1 01 1 1412- ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 		8-98100-266-1 01 1 1412- ● ●
228 04.930 NUT; PIPE
01.062 M6 FLANGE 		0-91180-106-0 02 1 1409-1411 ● ● ● ● ● ●
228 04.930 NUT; PIPE
01.062 M6 FLANGE 		0-91180-106-0 02 1 1412- ● ● ● ●
228 04.930 NUT; PIPE
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1412- ● ●

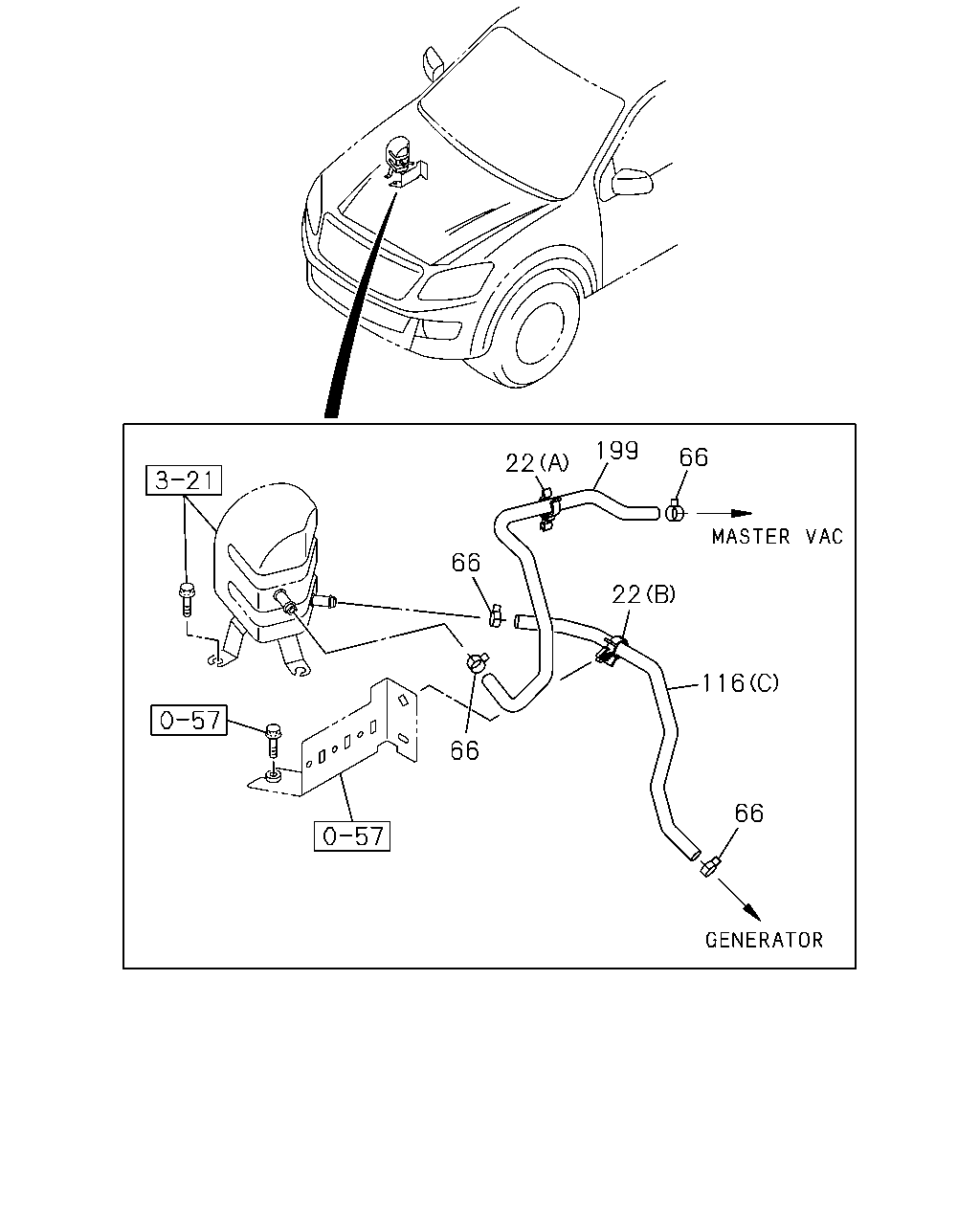

çizim 458713
66 116 22 66 199 22 66 66
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
22 04.681 CLIP; HOSE,VAC TANK
4JA1-T ENG(LP0) 03.162 (A) 		8-97089-536-0 01 1 1412- ● ●
22 04.681 CLIP; HOSE,VAC TANK
4JA1-T ENG(LP0) (B) 		8-97362-925-0 01 1 1412- ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-98036-539-0 04 1 1409- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JA1-T ENG(LP0) (C) 		8-98100-738-0 01 1 1412- ● ●
116 04.931 HOSE; VAC,M/VAC
(B) 		8-98100-736-0 01 1 1409-1411 ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(B) 		8-98100-736-0 01 1 1412- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) (B) 		8-98100-736-0 01 1 1412- ● ●
116 04.931 HOSE; VAC,M/VAC
(A) 		8-98100-737-1 01 1 1409-1411 ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
(A) 		8-98100-737-1 01 1 1412- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) (A) 		8-98100-737-1 01 1 1412- ● ●
199 04.681 HOSE; VAC,VAC TANK TO VAC PUMP
4JA1-T ENG(LP0) 		8-98100-739-2 01 1 1412- ● ●
