Sayfa 3-58 - Isuzu EPC

3-58 — FIXING PARTS; OIL PIPING (#148464) — 195 parça

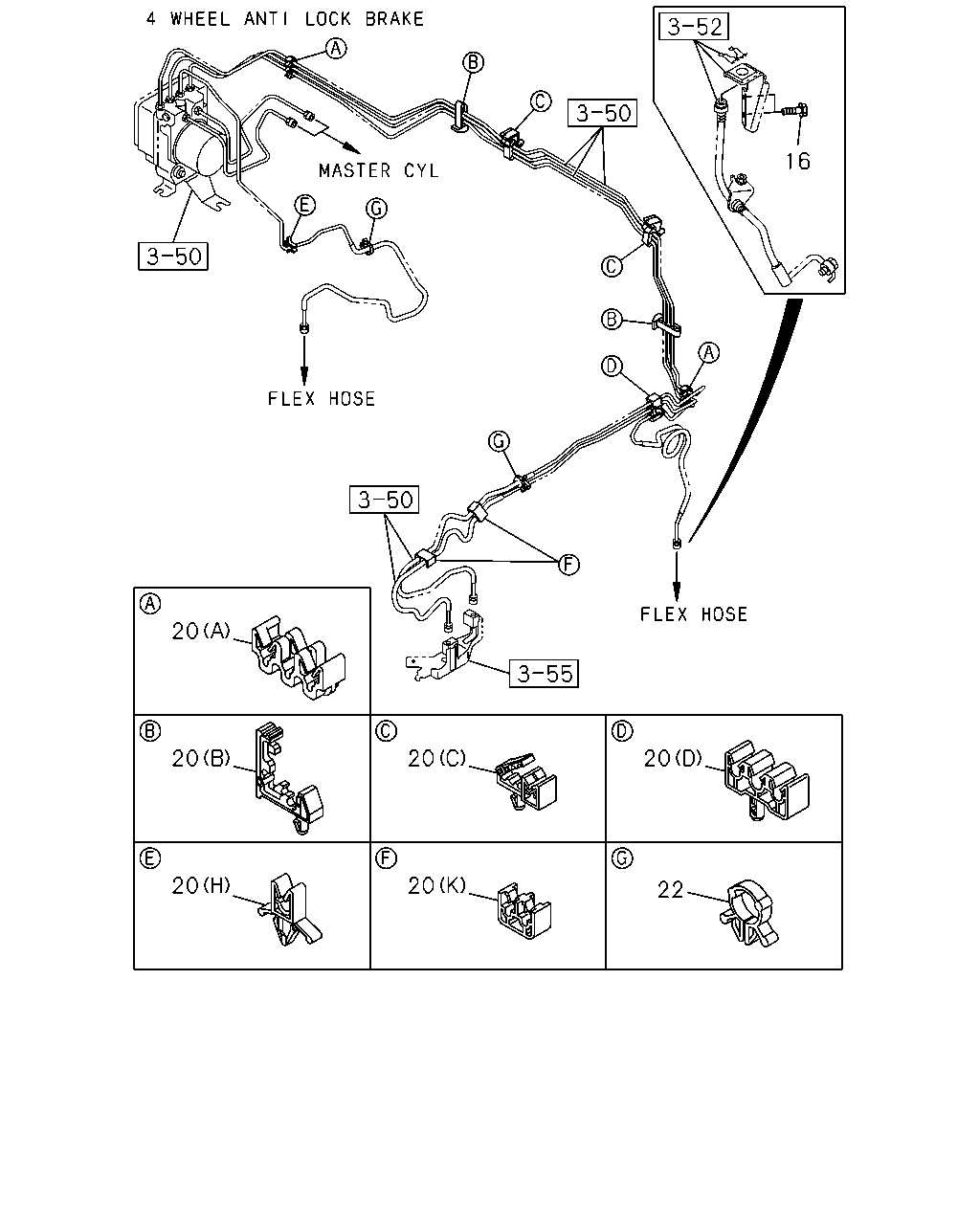

16 20 22 20 20 20 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	04.686 BOLT; BRKT TO FRAME EURO5 SPECIFICATION<NT5> HIGH RIDE SUSPENSION(7YC) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1412-	●	●
16	04.686 BOLT; BRKT TO FRAME EURO5 SPECIFICATION<NT5> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1412-			●	●
16	04.686 BOLT; BRKT TO FRAME HIGH RIDE SUSPENSION(7YC) 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1409-1411	●	●
16	04.686 BOLT; BRKT TO FRAME 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1409-1411			●	●	●
16	04.686 BOLT; BRKT TO FRAME EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1412-1509	●	●
16	04.686 BOLT; BRKT TO FRAME EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1412-1509			●	●	●
16	04.686 BOLT; BRKT TO FRAME EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1510-	●	●				●
16	04.686 BOLT; BRKT TO FRAME EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1510-			●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (L) ID=4.76X2 & 6.35X1	8-98113-390-0	02	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (L) ID=4.76X2 & 6.35X1	8-98113-390-0	02	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (L) ID=4.76X2 & 6.35X1	8-98113-390-0	02	1	1412-1505			●	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> (L) ID=4.76X2 & 6.35X1	8-98113-390-0	02	1	1506-	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (L) ID=4.76X2 & 6.35X1	8-98113-390-0	01	1	1412-	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (L) ID=4.76X2 & 6.35X1	8-98113-390-0	01	1	1412-	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (L) ID=4.76X2 & 6.35X1	8-98113-390-0	01	1	1412-			●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (M) ID=4.76X2	8-98113-395-0	01	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (M) ID=4.76X2	8-98113-395-0	01	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (M) ID=4.76X2	8-98113-395-0	01	1	1412-1505			●	●	●
20	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (M) ID=4.76X2	8-98113-395-0	01	1	1506-	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) ID=4.8X3	8-94487-369-0	02	1	1412-1505	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (A) ID=4.8X3	8-94487-369-0	02	1	1412-1505	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (A) ID=4.8X3	8-94487-369-0	02	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> (A) ID=4.8X3	8-94487-369-0	02	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (A) ID=4.8X3	8-94487-369-0	02	1	1412-1505			●		●
20	04.686 CLIP; BRK PIPE (A) ID=4.8X3	8-94487-369-0	02	1	1506-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (N) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (N) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (N) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1412-1505			●	●	●
20	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (N) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1506-	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (A) ID=4.8X3	8-94487-369-0	02	1	1409-1411	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (A) ID=4.8X3	8-94487-369-0	01	1	1412-	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (A) ID=4.8X3	8-94487-369-0	01	1	1412-	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (A) ID=4.8X3	8-94487-369-0	01	1	1412-			●	●	●
20	04.686 CLIP; BRK PIPE 03.162 (F) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	1409-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (K) ID=6.8X2	8-97251-122-0	02	1	1409-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (G) ID=6.8X2	8-97251-124-0	04	1	1409-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (H) ID=4.76	8-97300-443-0	01	1	1409-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (B) ID=4.76X3	8-98113-388-0	02	1	1409-1411	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) ID=4.76X3	8-98113-388-0	02	1	1412-1505	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (B) ID=4.76X3	8-98113-388-0	02	1	1412-1505	●	●	●	●
20	04.686 CLIP; BRK PIPE (B) ID=4.76X3	8-98113-388-0	02	1	1506-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (C) ID=4.76X3 & 6.35X1 OR 10X1	8-98113-389-0	02	1	1409-1411	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (C) ID=4.76X3 & 6.35X1 OR 10X1	8-98113-389-0	02	1	1412-1505	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (C) ID=4.76X3 & 6.35X1 OR 10X1	8-98113-389-0	02	1	1412-1505	●	●	●	●
20	04.686 CLIP; BRK PIPE (C) ID=4.76X3 & 6.35X1 OR 10X1	8-98113-389-0	02	1	1506-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1	8-98113-394-0	02	1	1409-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1409-1411	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1412-1505	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1412-1505	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1412-1505			●		●
20	04.686 CLIP; BRK PIPE (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1506-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 04.685 (E) ID=4.76X3	8-97216-721-1	02	1	1409-1509						●
20	04.686 CLIP; BRK PIPE EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3	8-97216-721-1	02	1	1409-1509	●	●
20	04.686 CLIP; BRK PIPE EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3	8-97216-721-1	02	1	1510-	●	●				●
20	04.686 CLIP; BRK PIPE 03.162 (J) ID=8.4 & 6.8X2	8-97251-127-0	01	1	1409-1509						●
20	04.686 CLIP; BRK PIPE EXC. HIGH RIDE SUSPENSION(7YC) 03.162 (J) ID=8.4 & 6.8X2	8-97251-127-0	01	1	1409-1509	●	●
20	04.686 CLIP; BRK PIPE EXC. HIGH RIDE SUSPENSION(7YC) 03.162 (J) ID=8.4 & 6.8X2	8-97251-127-0	01	1	1510-	●	●				●
20	04.686 CLIP; BRK PIPE HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3	8-97216-721-1	03	1	1409-1509	●	●
20	04.686 CLIP; BRK PIPE 04.685 (E) ID=4.76X3	8-97216-721-1	03	1	1409-1509			●	●	●
20	04.686 CLIP; BRK PIPE HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3	8-97216-721-1	03	1	1510-	●	●				●
20	04.686 CLIP; BRK PIPE 04.685 (E) ID=4.76X3	8-97216-721-1	03	1	1510-			●	●	●
22	04.686 CLIP; PIPE TO FRAME 16.065 ID=9	5-09707-027-0	02	1	1409-	●	●	●	●	●	●

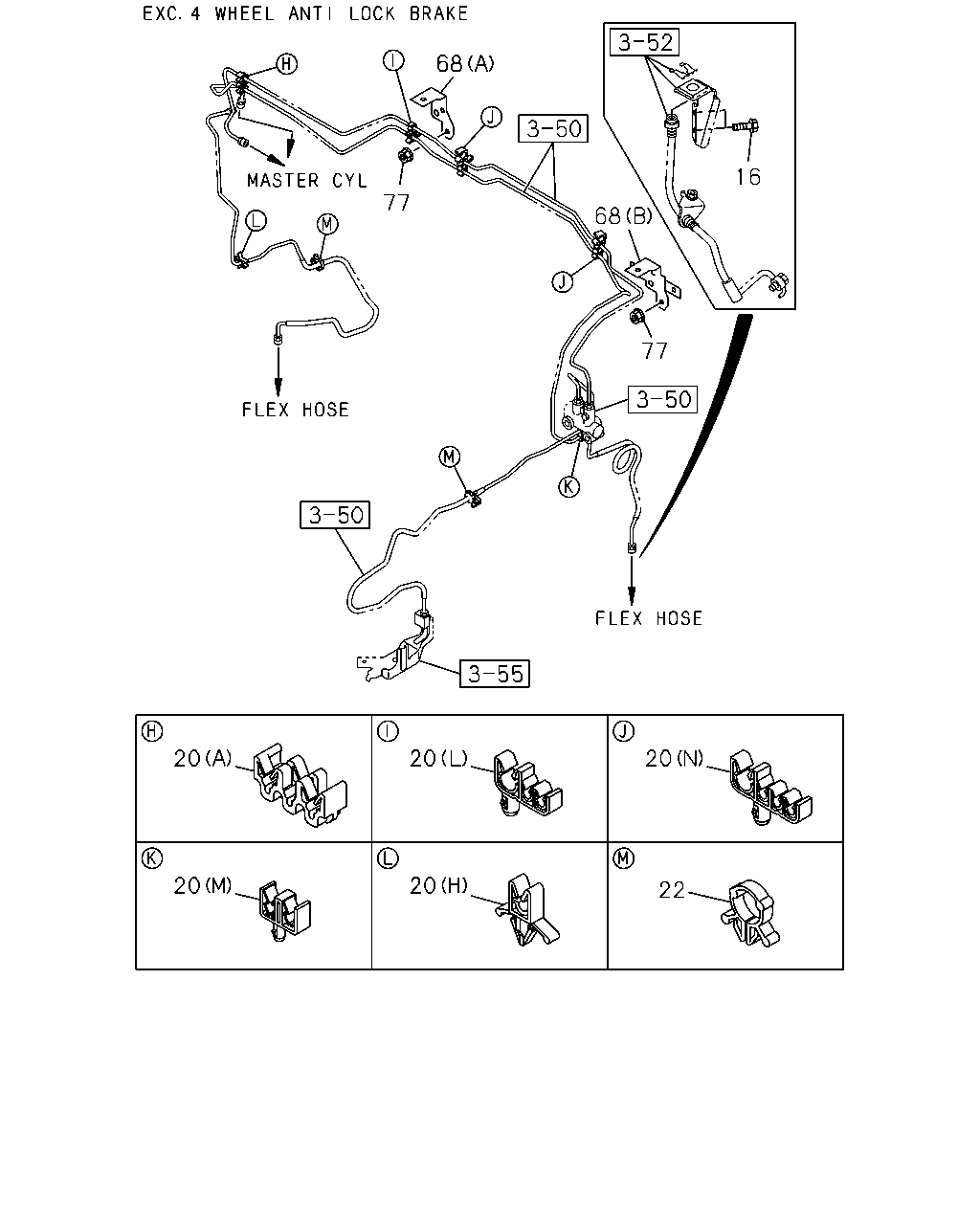

16 68 77 77 68 20 20 20 20 20 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	04.686 BOLT; BRKT TO FRAME EURO5 SPECIFICATION<NT5> HIGH RIDE SUSPENSION(7YC) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1412-	●	●
16	04.686 BOLT; BRKT TO FRAME EURO5 SPECIFICATION<NT5> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1412-			●	●
16	04.686 BOLT; BRKT TO FRAME HIGH RIDE SUSPENSION(7YC) 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1409-1411	●	●
16	04.686 BOLT; BRKT TO FRAME 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1409-1411			●	●	●
16	04.686 BOLT; BRKT TO FRAME EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1412-1509	●	●
16	04.686 BOLT; BRKT TO FRAME EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1412-1509			●	●	●
16	04.686 BOLT; BRKT TO FRAME EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> HIGH RIDE SUSPENSION(7YC) 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1510-	●	●				●
16	04.686 BOLT; BRKT TO FRAME EMISSION SYSTEM R15-04<K75>,EURO1 SPECIFICATION<NT1>,EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1510-			●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (L) ID=4.76X2 & 6.35X1	8-98113-390-0	02	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (L) ID=4.76X2 & 6.35X1	8-98113-390-0	02	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (L) ID=4.76X2 & 6.35X1	8-98113-390-0	02	1	1412-1505			●	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> (L) ID=4.76X2 & 6.35X1	8-98113-390-0	02	1	1506-	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (L) ID=4.76X2 & 6.35X1	8-98113-390-0	01	1	1412-	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (L) ID=4.76X2 & 6.35X1	8-98113-390-0	01	1	1412-	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (L) ID=4.76X2 & 6.35X1	8-98113-390-0	01	1	1412-			●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (M) ID=4.76X2	8-98113-395-0	01	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (M) ID=4.76X2	8-98113-395-0	01	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (M) ID=4.76X2	8-98113-395-0	01	1	1412-1505			●	●	●
20	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (M) ID=4.76X2	8-98113-395-0	01	1	1506-	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) ID=4.8X3	8-94487-369-0	02	1	1412-1505	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (A) ID=4.8X3	8-94487-369-0	02	1	1412-1505	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (A) ID=4.8X3	8-94487-369-0	02	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> (A) ID=4.8X3	8-94487-369-0	02	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (A) ID=4.8X3	8-94487-369-0	02	1	1412-1505			●		●
20	04.686 CLIP; BRK PIPE (A) ID=4.8X3	8-94487-369-0	02	1	1506-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (N) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (N) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (N) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1412-1505			●	●	●
20	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (N) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1506-	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (A) ID=4.8X3	8-94487-369-0	02	1	1409-1411	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (A) ID=4.8X3	8-94487-369-0	01	1	1412-	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (A) ID=4.8X3	8-94487-369-0	01	1	1412-	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (A) ID=4.8X3	8-94487-369-0	01	1	1412-			●	●	●
20	04.686 CLIP; BRK PIPE 03.162 (F) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	1409-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (K) ID=6.8X2	8-97251-122-0	02	1	1409-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (G) ID=6.8X2	8-97251-124-0	04	1	1409-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (H) ID=4.76	8-97300-443-0	01	1	1409-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (B) ID=4.76X3	8-98113-388-0	02	1	1409-1411	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) ID=4.76X3	8-98113-388-0	02	1	1412-1505	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (B) ID=4.76X3	8-98113-388-0	02	1	1412-1505	●	●	●	●
20	04.686 CLIP; BRK PIPE (B) ID=4.76X3	8-98113-388-0	02	1	1506-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (C) ID=4.76X3 & 6.35X1 OR 10X1	8-98113-389-0	02	1	1409-1411	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (C) ID=4.76X3 & 6.35X1 OR 10X1	8-98113-389-0	02	1	1412-1505	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (C) ID=4.76X3 & 6.35X1 OR 10X1	8-98113-389-0	02	1	1412-1505	●	●	●	●
20	04.686 CLIP; BRK PIPE (C) ID=4.76X3 & 6.35X1 OR 10X1	8-98113-389-0	02	1	1506-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1	8-98113-394-0	02	1	1409-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1409-1411	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1412-1505	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1412-1505	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1412-1505			●		●
20	04.686 CLIP; BRK PIPE (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1506-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 04.685 (E) ID=4.76X3	8-97216-721-1	02	1	1409-1509						●
20	04.686 CLIP; BRK PIPE EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3	8-97216-721-1	02	1	1409-1509	●	●
20	04.686 CLIP; BRK PIPE EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3	8-97216-721-1	02	1	1510-	●	●				●
20	04.686 CLIP; BRK PIPE 03.162 (J) ID=8.4 & 6.8X2	8-97251-127-0	01	1	1409-1509						●
20	04.686 CLIP; BRK PIPE EXC. HIGH RIDE SUSPENSION(7YC) 03.162 (J) ID=8.4 & 6.8X2	8-97251-127-0	01	1	1409-1509	●	●
20	04.686 CLIP; BRK PIPE EXC. HIGH RIDE SUSPENSION(7YC) 03.162 (J) ID=8.4 & 6.8X2	8-97251-127-0	01	1	1510-	●	●				●
20	04.686 CLIP; BRK PIPE HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3	8-97216-721-1	03	1	1409-1509	●	●
20	04.686 CLIP; BRK PIPE 04.685 (E) ID=4.76X3	8-97216-721-1	03	1	1409-1509			●	●	●
20	04.686 CLIP; BRK PIPE HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3	8-97216-721-1	03	1	1510-	●	●				●
20	04.686 CLIP; BRK PIPE 04.685 (E) ID=4.76X3	8-97216-721-1	03	1	1510-			●	●	●
22	04.686 CLIP; PIPE TO FRAME 16.065 ID=9	5-09707-027-0	02	1	1409-	●	●	●	●	●	●
68	04.686 BRACKET; CLIP 4JA1-T ENG(LP0) (A)	8-98099-790-0	01	1	1412-	●	●
68	04.686 BRACKET; CLIP 4JA1-T ENG(LP0) (B)	8-98099-791-0	01	1	1412-	●	●
77	04.686 NUT; BRKT,OIL PIPE 4JA1-T ENG(LP0) 01.062 M6 FLANGE	0-91180-106-0	02	1	1412-	●	●

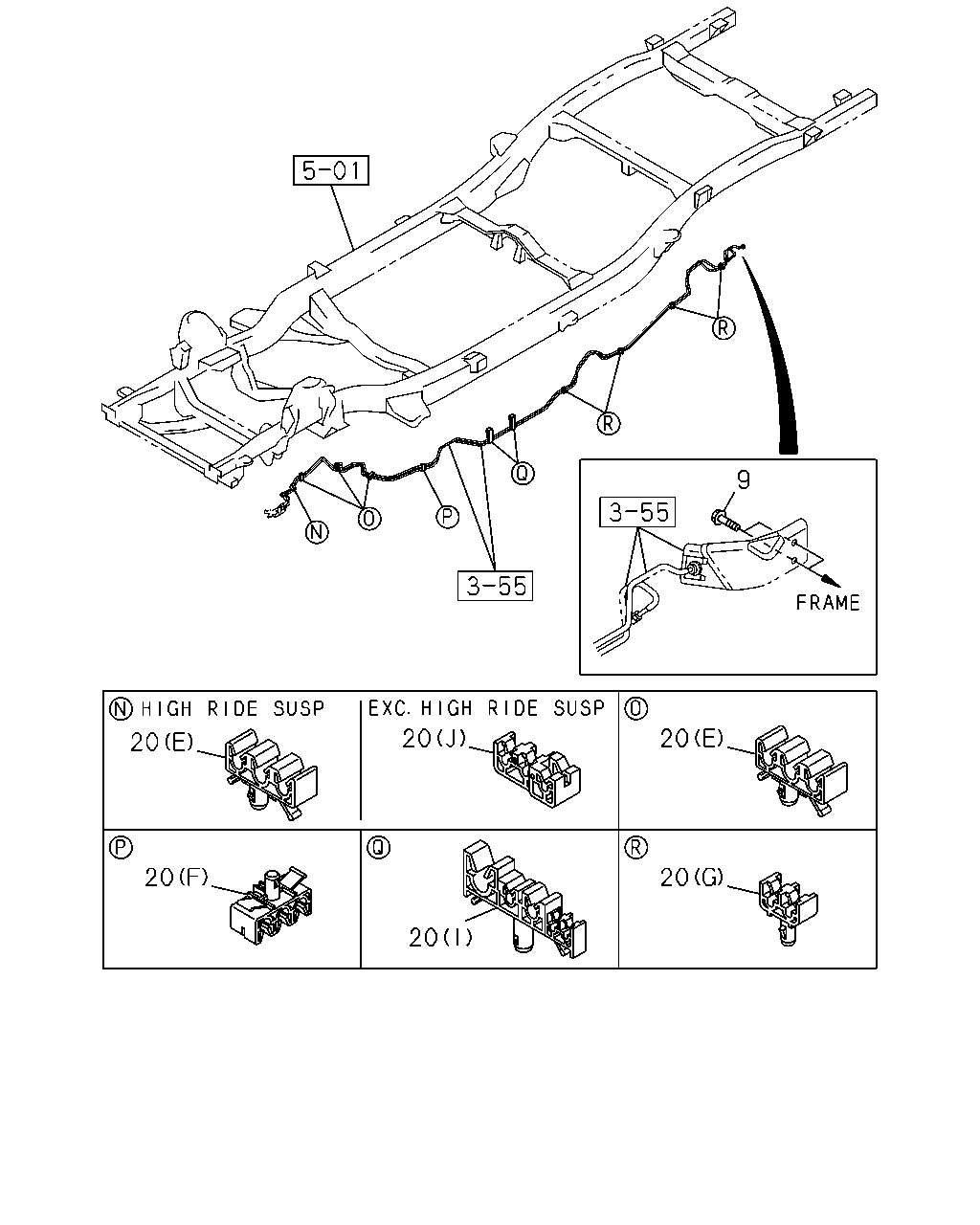

9 20 20 20 20 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
9	04.686 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1409-1411	●	●	●	●	●	●
9	04.686 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1412-						●
9	04.686 BOLT; BRKT ELECTRONIC TRACTION CONTROL<NW9> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1412-	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (L) ID=4.76X2 & 6.35X1	8-98113-390-0	02	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (L) ID=4.76X2 & 6.35X1	8-98113-390-0	02	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (L) ID=4.76X2 & 6.35X1	8-98113-390-0	02	1	1412-1505			●	●	●
20	04.686 CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> (L) ID=4.76X2 & 6.35X1	8-98113-390-0	02	1	1506-	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (L) ID=4.76X2 & 6.35X1	8-98113-390-0	01	1	1412-	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (L) ID=4.76X2 & 6.35X1	8-98113-390-0	01	1	1412-	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (L) ID=4.76X2 & 6.35X1	8-98113-390-0	01	1	1412-			●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (M) ID=4.76X2	8-98113-395-0	01	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (M) ID=4.76X2	8-98113-395-0	01	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (M) ID=4.76X2	8-98113-395-0	01	1	1412-1505			●	●	●
20	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (M) ID=4.76X2	8-98113-395-0	01	1	1506-	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (A) ID=4.8X3	8-94487-369-0	02	1	1412-1505	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (A) ID=4.8X3	8-94487-369-0	02	1	1412-1505	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (A) ID=4.8X3	8-94487-369-0	02	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> (A) ID=4.8X3	8-94487-369-0	02	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (A) ID=4.8X3	8-94487-369-0	02	1	1412-1505			●		●
20	04.686 CLIP; BRK PIPE (A) ID=4.8X3	8-94487-369-0	02	1	1506-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (N) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (N) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (N) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (N) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (N) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1412-1505			●	●	●
20	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ELECTRONIC TRACTION CONTROL<NW9> (N) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1506-	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (A) ID=4.8X3	8-94487-369-0	02	1	1409-1411	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (A) ID=4.8X3	8-94487-369-0	01	1	1412-	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (A) ID=4.8X3	8-94487-369-0	01	1	1412-	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (A) ID=4.8X3	8-94487-369-0	01	1	1412-			●	●	●
20	04.686 CLIP; BRK PIPE 03.162 (F) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	1409-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (K) ID=6.8X2	8-97251-122-0	02	1	1409-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (G) ID=6.8X2	8-97251-124-0	04	1	1409-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (H) ID=4.76	8-97300-443-0	01	1	1409-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (B) ID=4.76X3	8-98113-388-0	02	1	1409-1411	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) ID=4.76X3	8-98113-388-0	02	1	1412-1505	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (B) ID=4.76X3	8-98113-388-0	02	1	1412-1505	●	●	●	●
20	04.686 CLIP; BRK PIPE (B) ID=4.76X3	8-98113-388-0	02	1	1506-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (C) ID=4.76X3 & 6.35X1 OR 10X1	8-98113-389-0	02	1	1409-1411	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (C) ID=4.76X3 & 6.35X1 OR 10X1	8-98113-389-0	02	1	1412-1505	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (C) ID=4.76X3 & 6.35X1 OR 10X1	8-98113-389-0	02	1	1412-1505	●	●	●	●
20	04.686 CLIP; BRK PIPE (C) ID=4.76X3 & 6.35X1 OR 10X1	8-98113-389-0	02	1	1506-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1	8-98113-394-0	02	1	1409-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1409-1411	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0),4JK1-TCY ENG(RDX) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1412-1505	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1412-1505	●	●	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1412-1505	●	●
20	04.686 CLIP; BRK PIPE 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1412-1505			●		●
20	04.686 CLIP; BRK PIPE (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1506-	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 04.685 (E) ID=4.76X3	8-97216-721-1	02	1	1409-1509						●
20	04.686 CLIP; BRK PIPE EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3	8-97216-721-1	02	1	1409-1509	●	●
20	04.686 CLIP; BRK PIPE EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3	8-97216-721-1	02	1	1510-	●	●				●
20	04.686 CLIP; BRK PIPE 03.162 (J) ID=8.4 & 6.8X2	8-97251-127-0	01	1	1409-1509						●
20	04.686 CLIP; BRK PIPE EXC. HIGH RIDE SUSPENSION(7YC) 03.162 (J) ID=8.4 & 6.8X2	8-97251-127-0	01	1	1409-1509	●	●
20	04.686 CLIP; BRK PIPE EXC. HIGH RIDE SUSPENSION(7YC) 03.162 (J) ID=8.4 & 6.8X2	8-97251-127-0	01	1	1510-	●	●				●
20	04.686 CLIP; BRK PIPE HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3	8-97216-721-1	03	1	1409-1509	●	●
20	04.686 CLIP; BRK PIPE 04.685 (E) ID=4.76X3	8-97216-721-1	03	1	1409-1509			●	●	●
20	04.686 CLIP; BRK PIPE HIGH RIDE SUSPENSION(7YC) 04.685 (E) ID=4.76X3	8-97216-721-1	03	1	1510-	●	●				●
20	04.686 CLIP; BRK PIPE 04.685 (E) ID=4.76X3	8-97216-721-1	03	1	1510-			●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
