Isuzu WW
▶
PICKUP
▶
TFR
▶
51580 - TFR/TFS RHD
▶
3 - Brakes, Brake System
▶
3-31 - BRAKE MASTER VAC AND BRAKE BOOSTER
▶

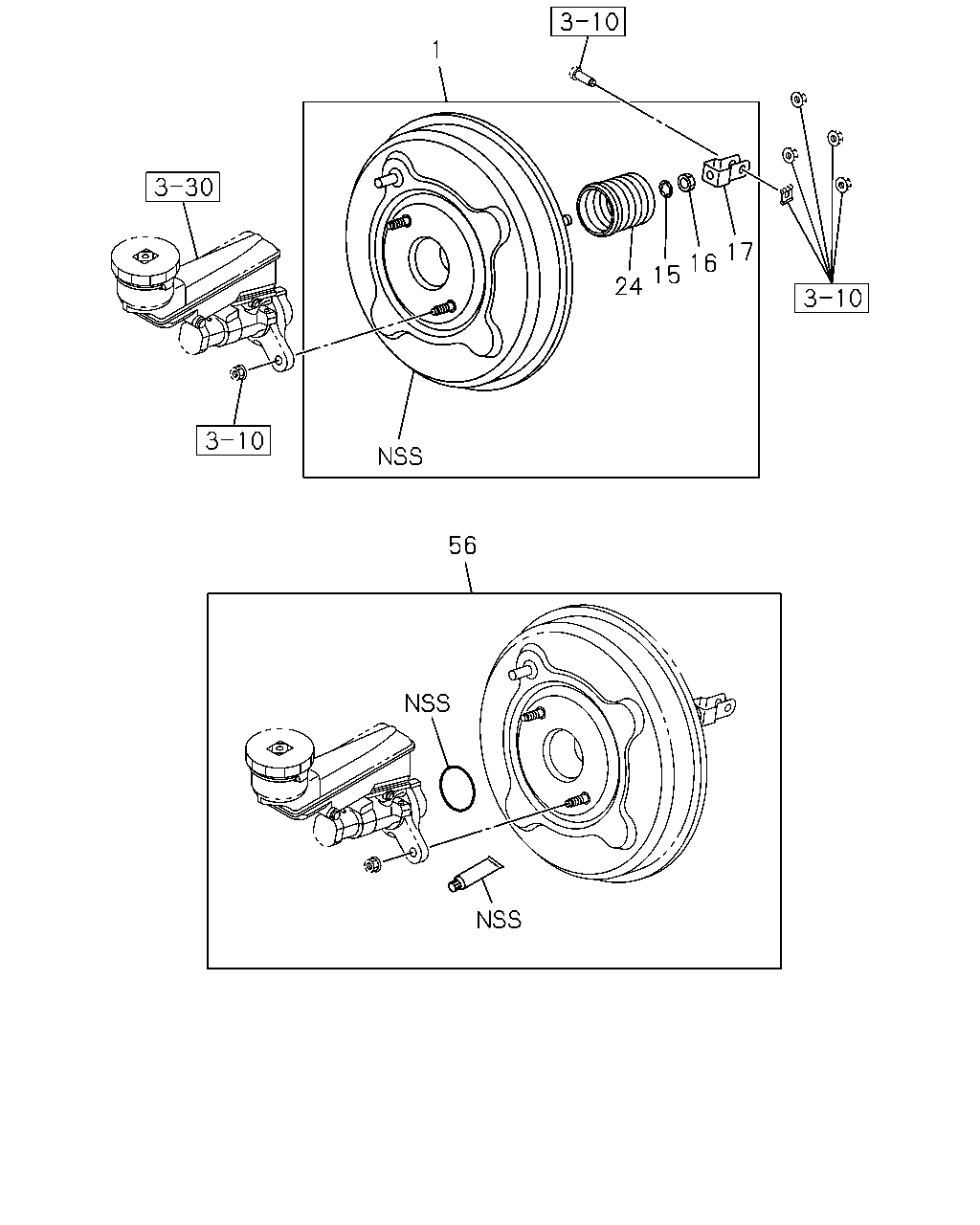

3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER
(#148460) — 9 parça
Tümü
A - TFB5SF
B - TFB5WF
C - TFS5CF
D - TFS5SF
E - TFS5WF
F - TFB5CF
1
24
15
16
17
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
04.901 MASTER VAC ASM; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
8-98163-231-1
01
1
1412-
●
●
●
●
●
1
04.901 MASTER VAC ASM; BRK
8-98163-232-0
01
1
1409-1411
●
●
●
●
●
●
1
04.901 MASTER VAC ASM; BRK
8-98163-232-1
01
1
1412-
●
1
04.901 MASTER VAC ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5>
8-98163-232-1
01
1
1412-
●
●
●
●
●
15
04.906 RETAINER; GUARD,M/VAC
8-98048-040-0
01
1
1409-
●
●
●
●
●
●
16
04.662 NUT; VLV ROD,M/VAC
8-98048-038-0
01
1
1409-
●
●
●
●
●
●
17
04.662 CLEVIS; YOKE,M/VAC
8-98048-039-0
01
1
1409-
●
●
●
●
●
●
24
04.906 GUARD; VLV BODY,M/VAC
8-98185-212-0
01
1
1409-
●
●
●
●
●
●
56
04.910 GASKET KIT; M/CYL TO SERVO UNIT
8-98185-211-0
01
1
1409-
●
●
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
