Isuzu WW
▶
TRUCKS
▶
FVM
▶
11131 - FVM(INDONESIA)6SD1
▶
0 - Engine, Emission, Engine Electrical
▶
0-87 - COUPLING; INJECTION PUMP
▶
0-87 — COUPLING; INJECTION PUMP
(#14846) — 15 parça
◀

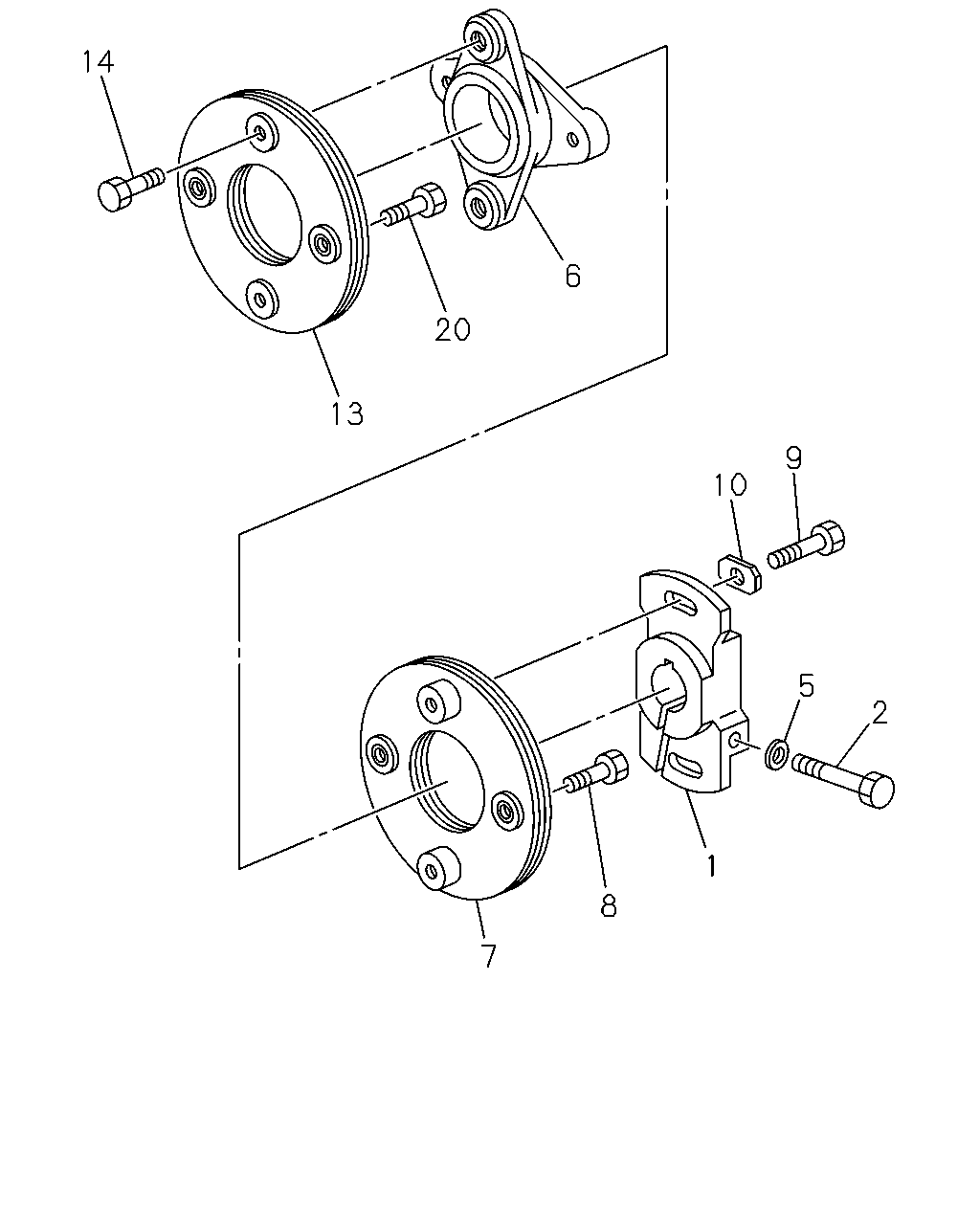

[087A] COUPLING (11 parça)

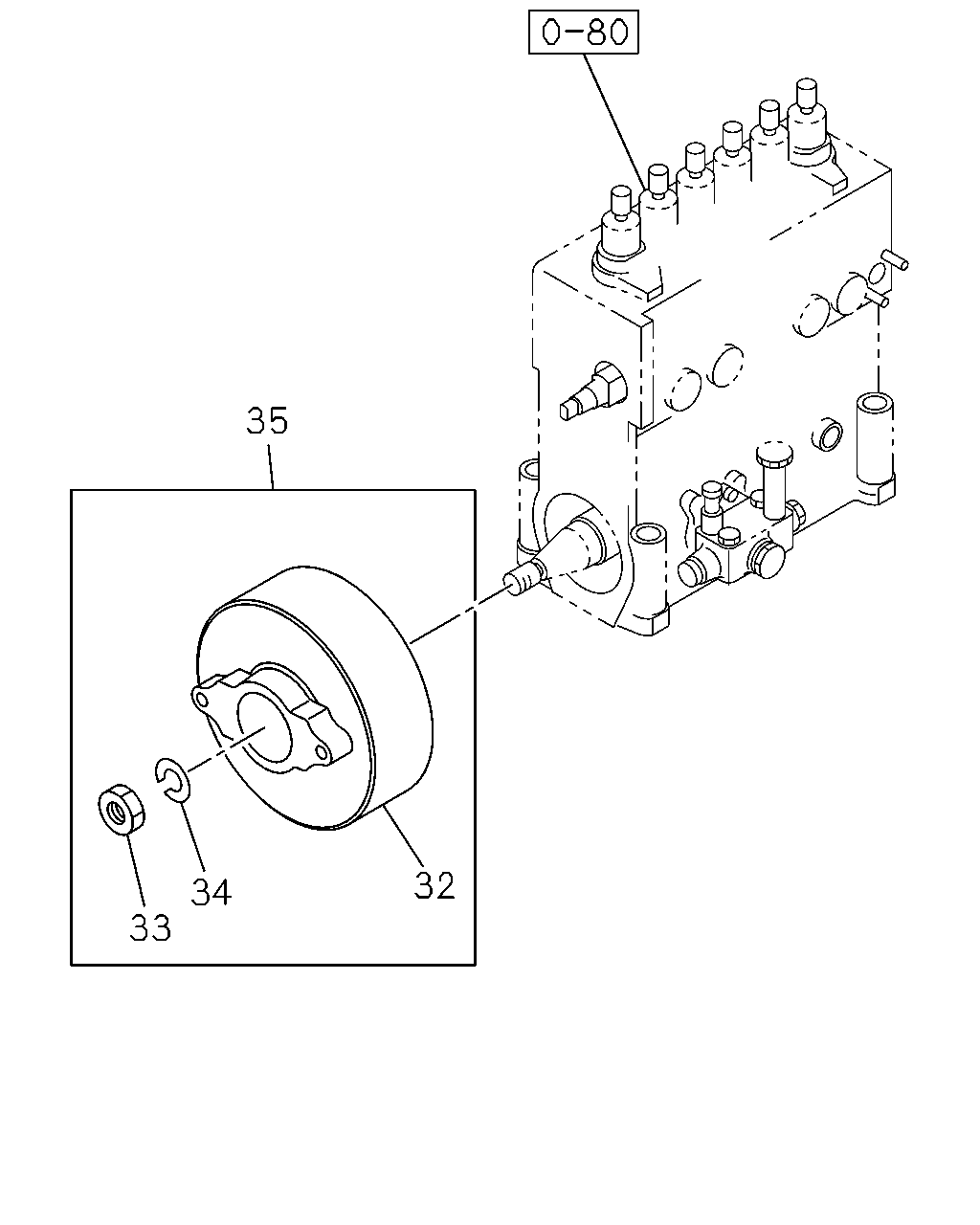

[087A] DAMPER ASM (4 parça)
▶
14
6
20
13
9
10
5
2
1
8
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COUPLING; INJ PUMP DRIVE
1-15781-039-0
01
1
0711-
2
BOLT; COUPLING FIX,INJ PUMP
1-15789-162-0
01
1
0711-
5
WASHER; COUPLING FIX,INJ PUMP
1-15789-021-0
01
1
0711-
6
COUPLING; CROSS,INJ PUMP DRIVE
1-15789-161-0
01
1
0711-
7
PLATE; COUPLING,COUPLING SIDE
1-15619-181-0
01
1
0711-
8
BOLT; PLATE TO CROSS COUPLING
1-15619-183-0
02
1
0711-
9
BOLT; PLATE TO COUPLING,INJ PUMP
1-15789-159-0
02
1
0711-
10
NUT; PLATE TO COUPLING,INJ PUMP
1-15789-165-0
02
1
0711-
13
PLATE; COUPLING,TIMER SIDE,INJ PUMP
1-15619-181-0
01
1
0711-
14
BOLT; PLATE TO CROSS COUPLING,TIMER SI
1-15619-183-0
02
1
0711-
20
BOLT; COUPLING TO INJ PUMP
1-15619-183-0
02
1
0711-
35
32
34
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
DAMPER; INJ PUMP
1-15744-024-0
01
1
0711-
33
NUT; DAMPER
1-19179-020-0
01
1
0711-
34
WASHER; DAMPER
1-19179-002-0
01
1
0711-
35
DAMPER ASM; INJ PUMP
1-15744-026-0
01
1
0711-
